Availability:
1 in stock

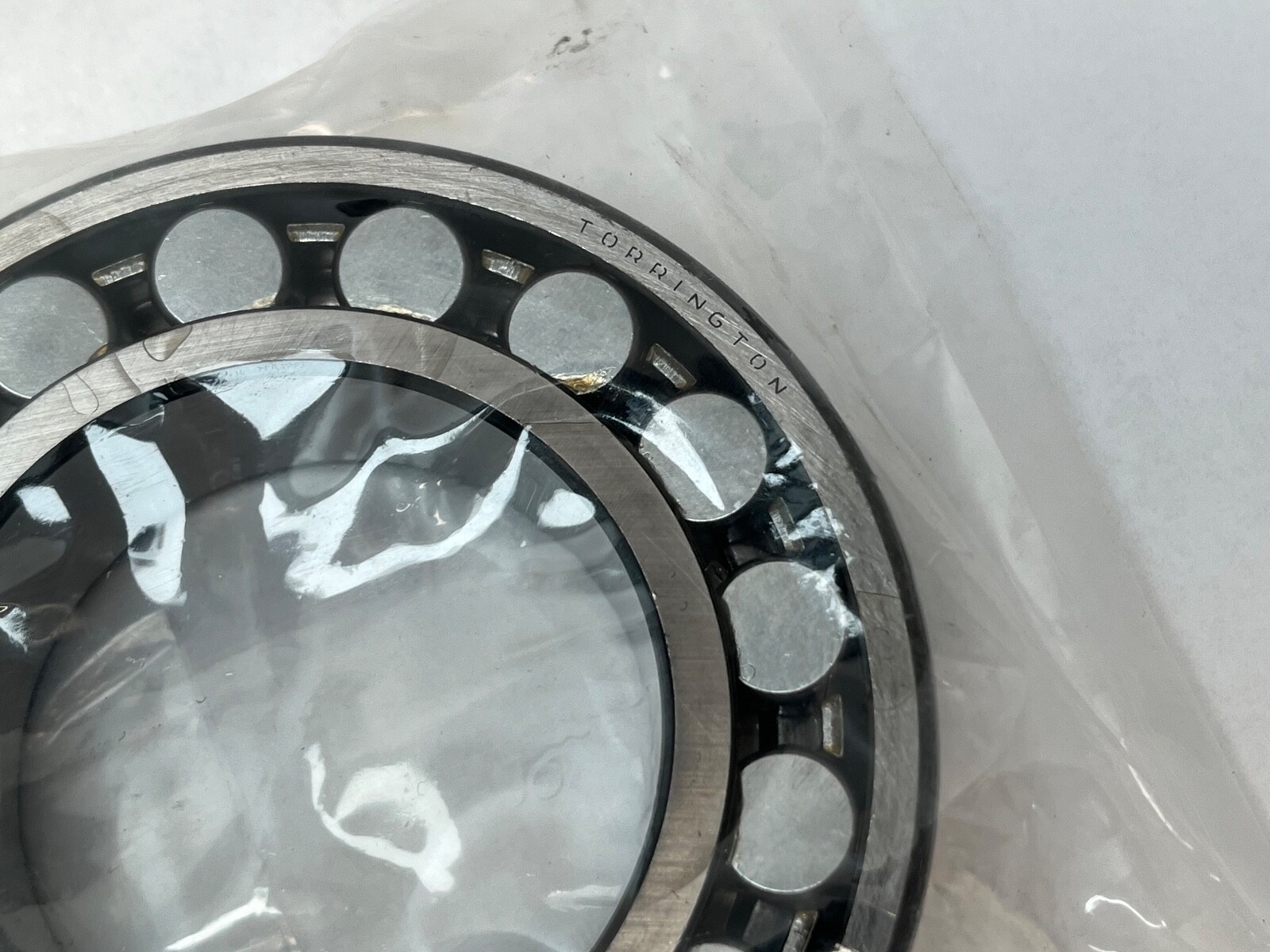

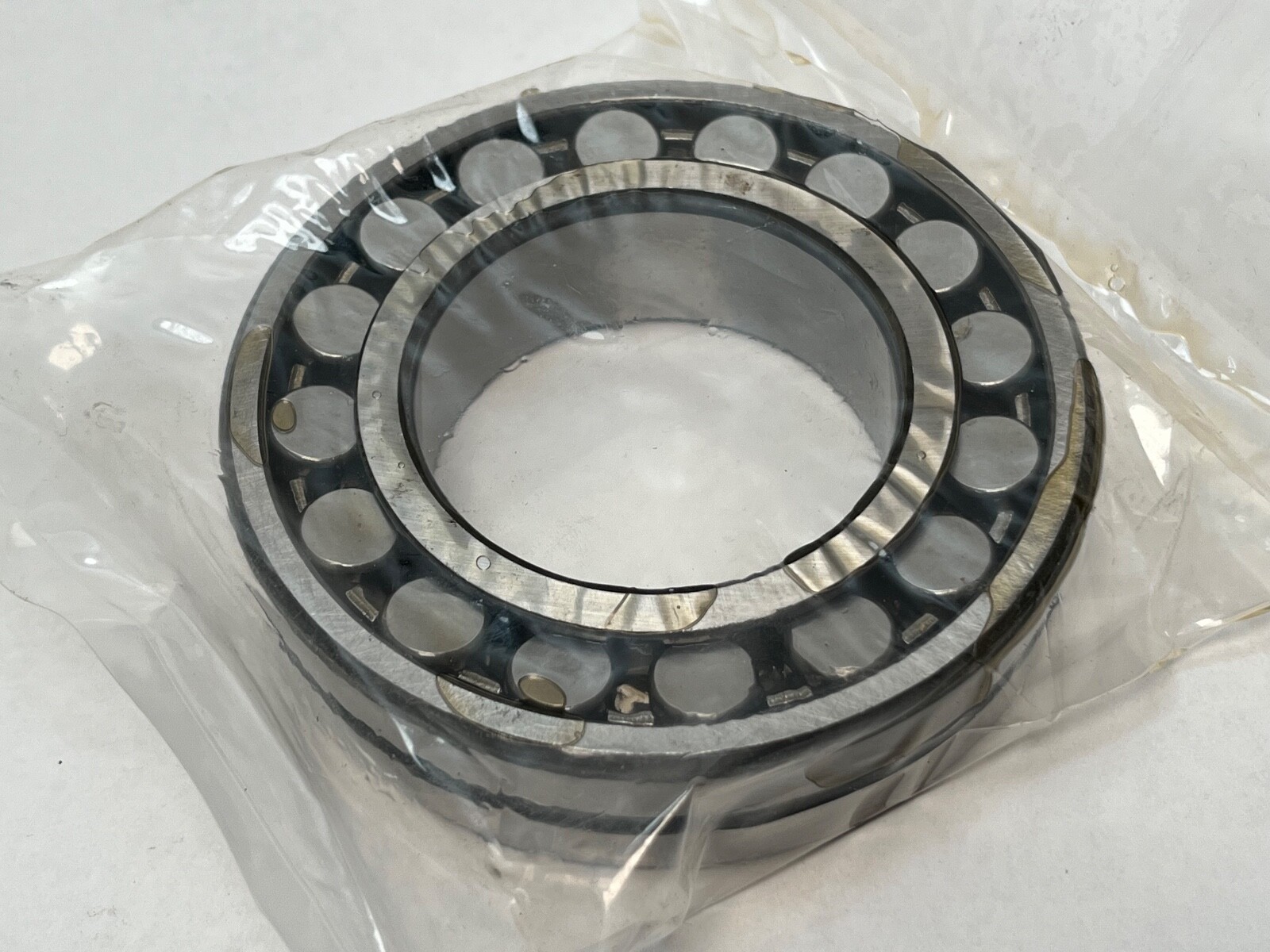

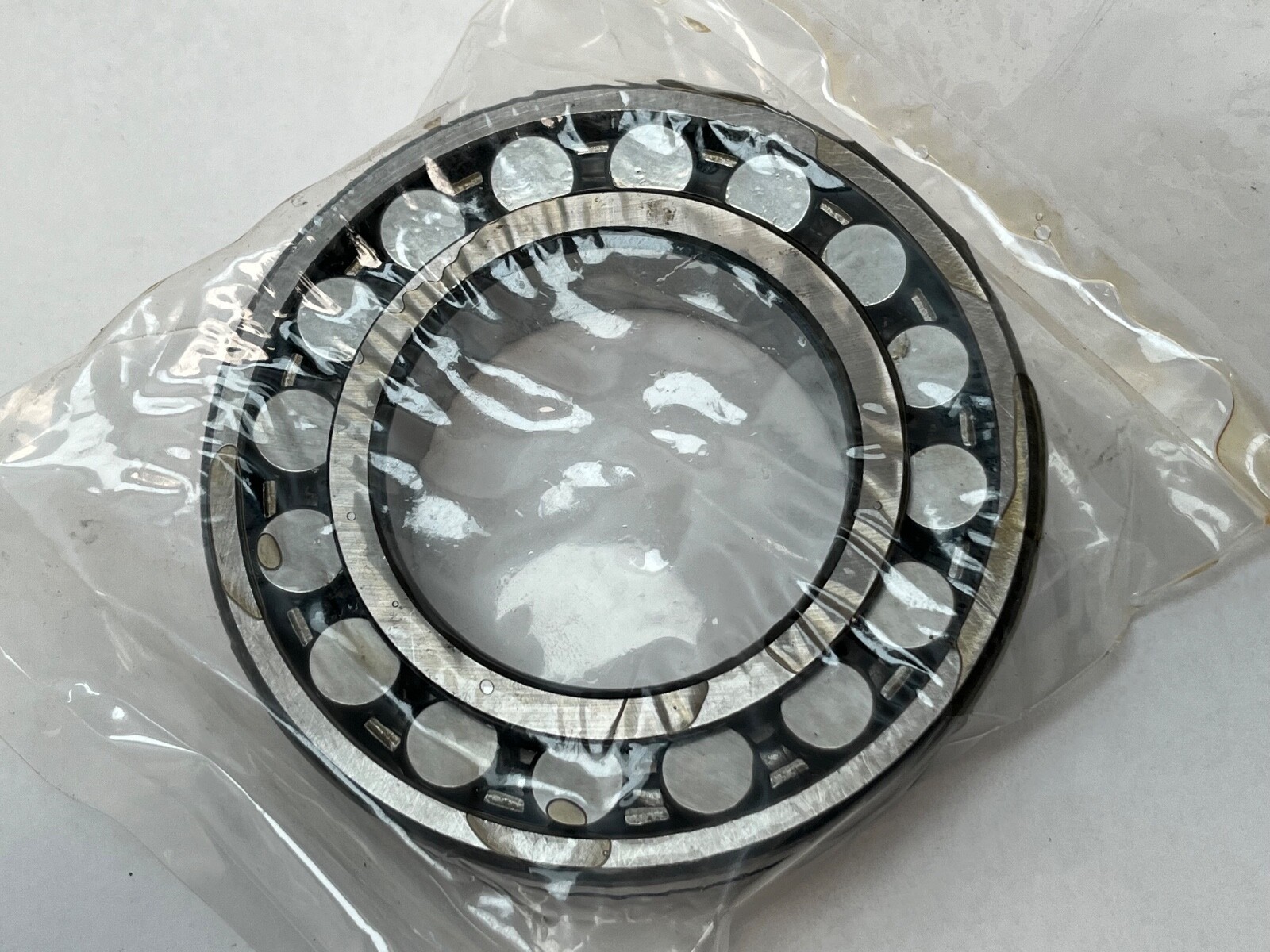

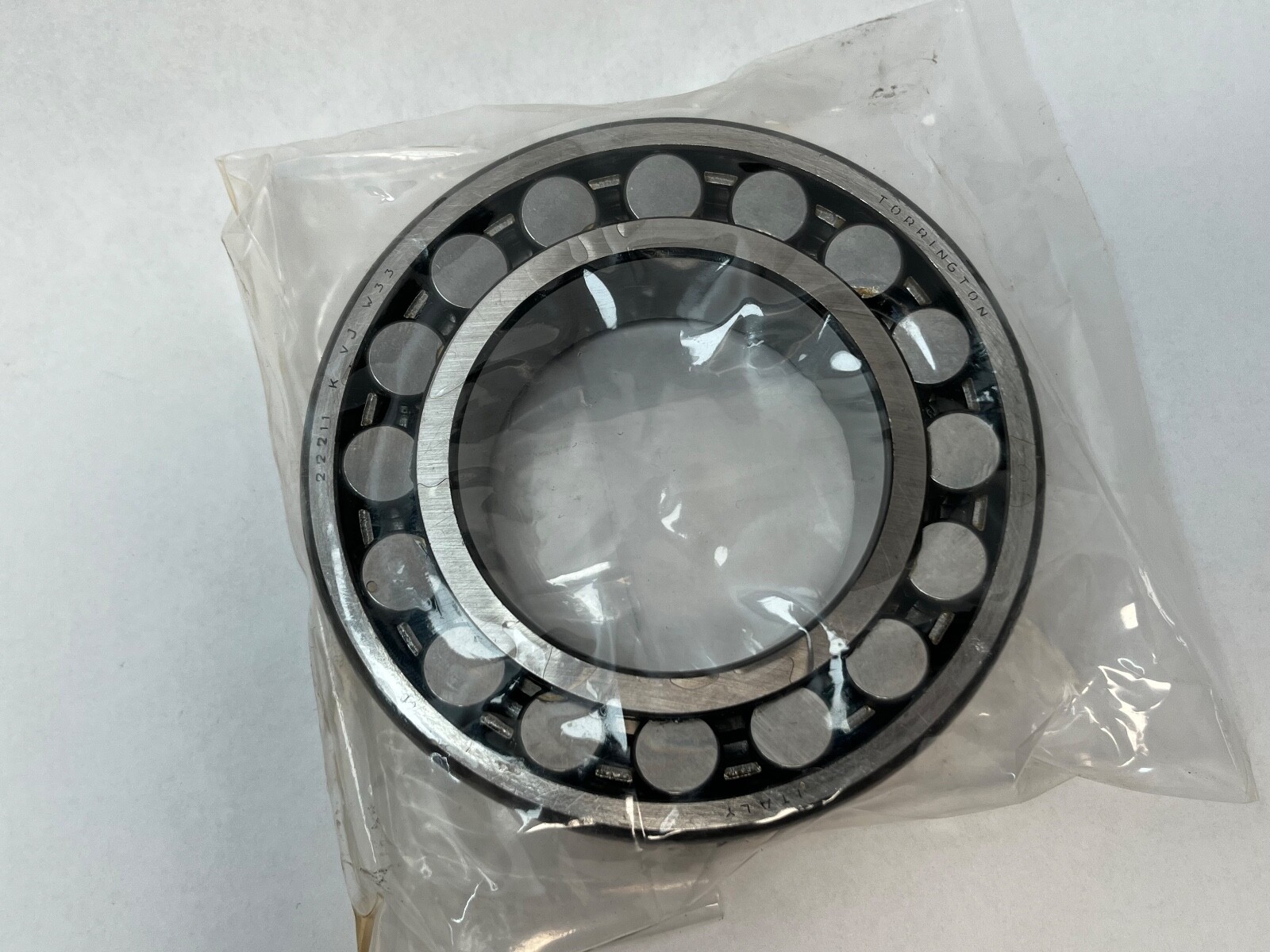

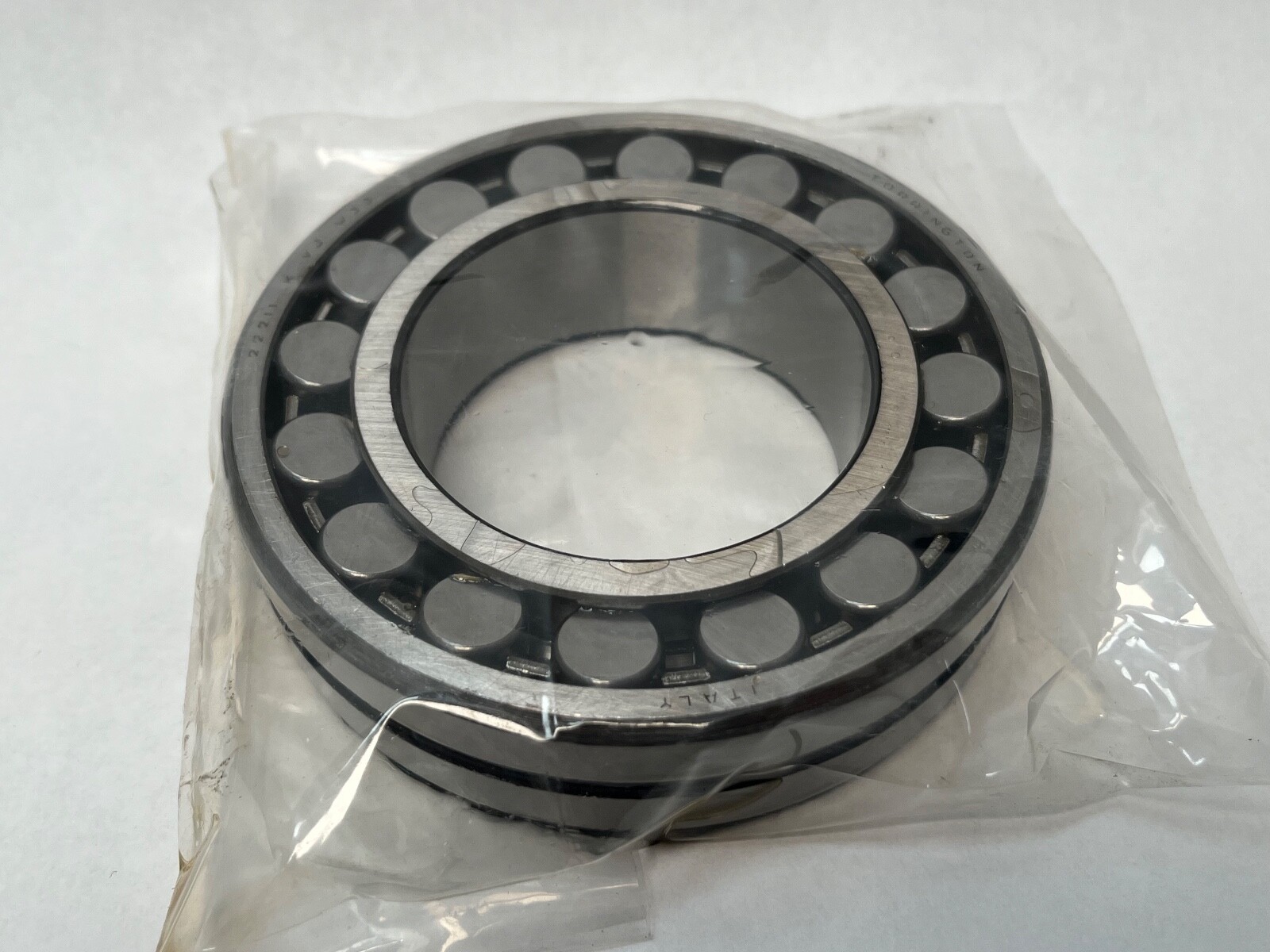

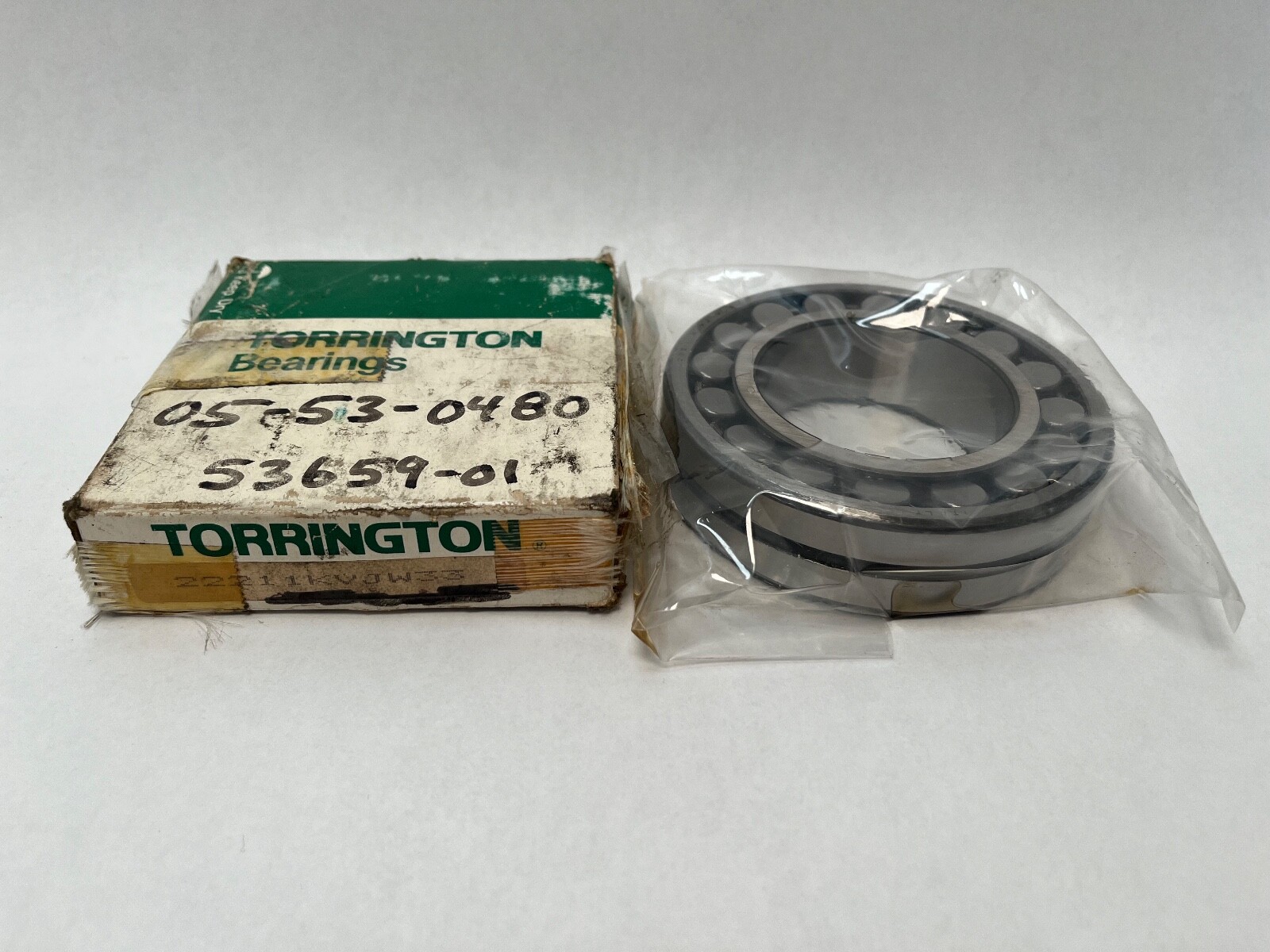

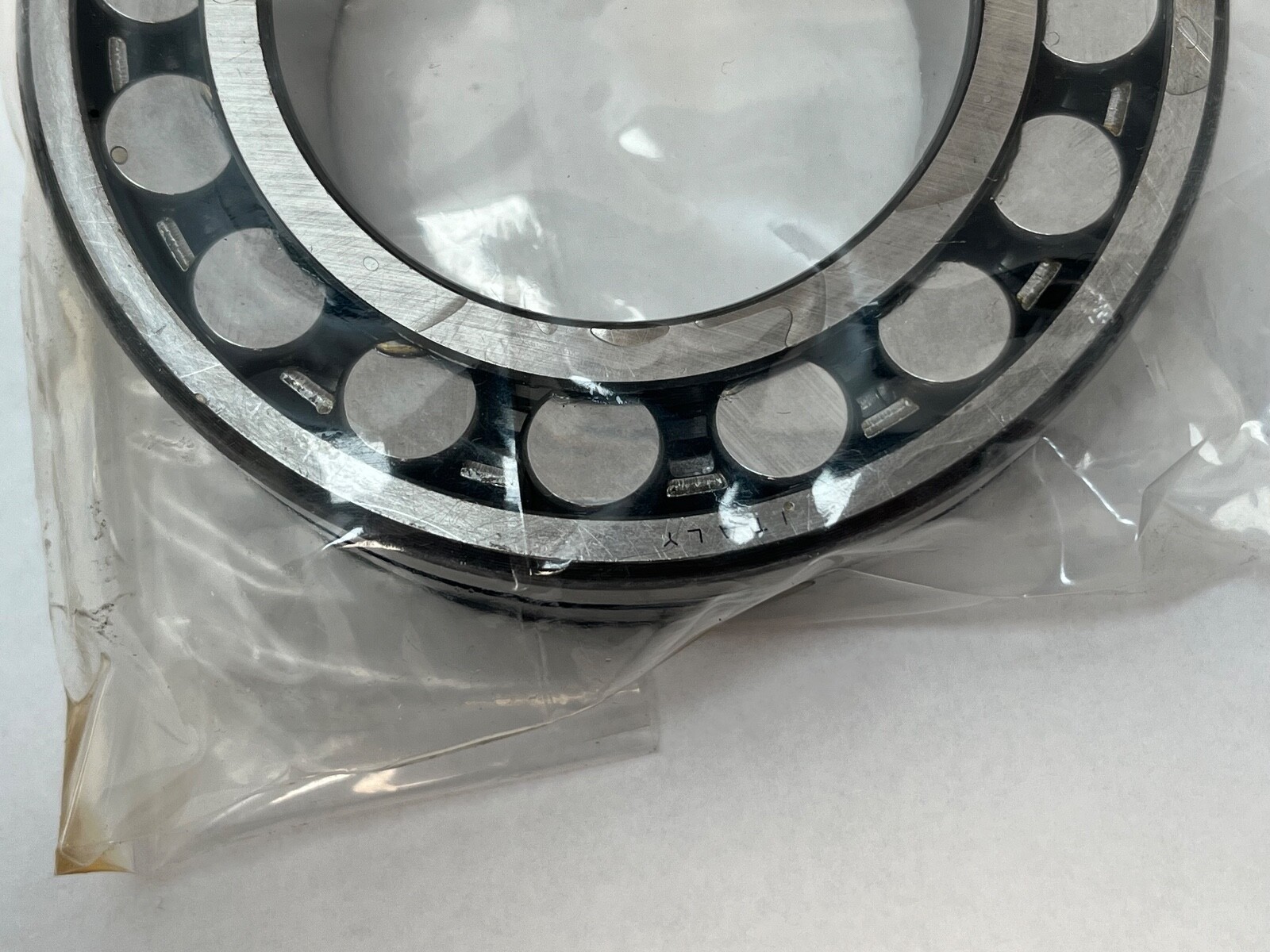

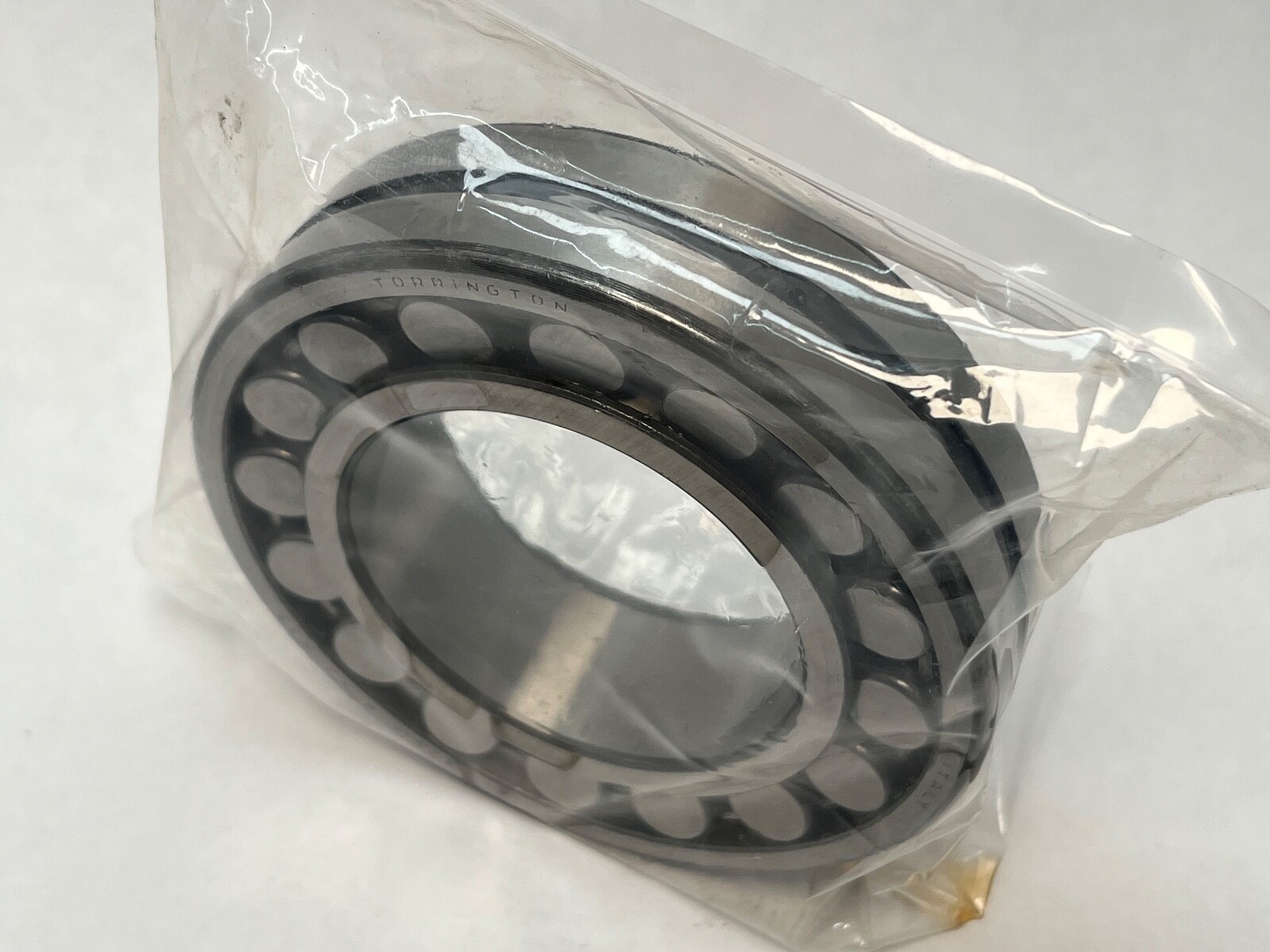

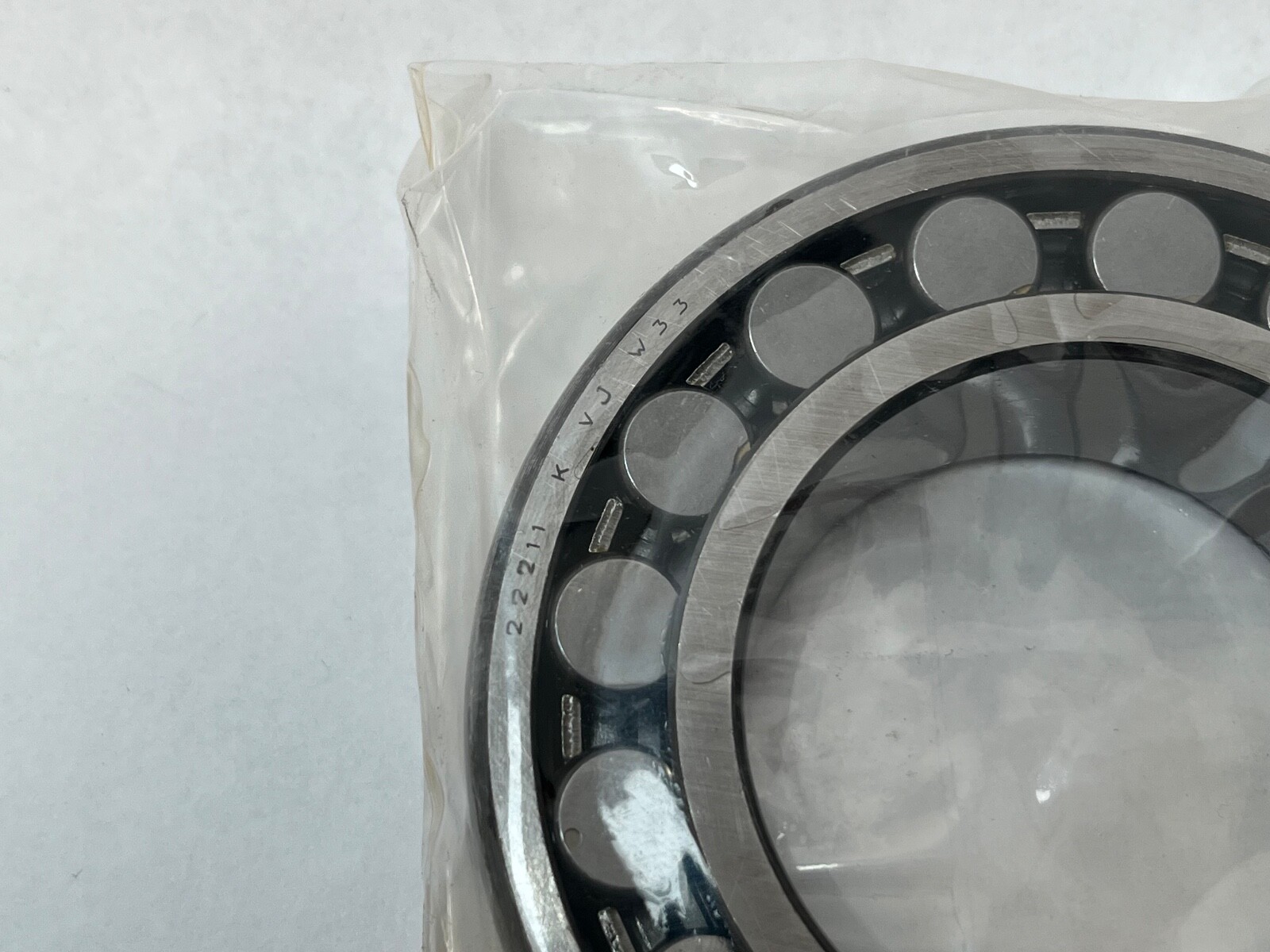

Torrington 22211KVJW33 spherical roller bearing, 55 mm tapered bore, 100 mm OD, 25 mm wide, steel cage, W33 groove, CN clearance. Timken successor 22211KEJW33.
List Price
$51.53
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| MPN | 22211KVJW33 |
| Model | 22211-K-VJ-W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 55 mm |
| OD | 100 mm |
| Width | 25 mm |
| Series | 22200 |
|---|---|
| Lubricant | grease or oil |
| Cage Type | Two-piece finger type |
| Dynamic Load Rating | 140,000 N (Successor 22211KEJW33 data) |
| Static Load Rating | 142,000 N (Successor 22211KEJW33 data) |
| Rolling Elements | Spherical Roller |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Relubrication Feature | W33 lubrication groove and three holes in outer ring |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | CN |
| Mpn Variants | 22211KVJW33, 22211-K-VJ-W33, 22211 K VJ W33, 22211 K V J W33 |
| Compatible With Replaces | Timken 22211KEJW33 (current successor design); adapter sleeve H311 |
| Additional Attributes | Successor 22211KEJW33 data: e factor 0.23; Y0 2.89; Y1 2.95; Y2 4.4; shaft backing shoulder 66 mm; housing backing shoulder 91 mm; max fillet radius 1.5 mm. Adapter sleeve H311 |
| Design Units | Metric |
| Industry Terms | spherical roller bearing; self-aligning double row roller bearing; tapered bore spherical roller bearing; 22211 K W33; Torrington spherical bearing 55 mm bore |
| Common Misspellings | Torington 22211KVJW33; Torrinton 22211KVJW33; Torrington 22211 KVJW33; 22211KVJ W33; Torrington 22211KVJ33 |
| Application Types | gearboxes; conveyors; fans and blowers; crushers; vibrating screens; industrial pumps; heavy radial and axial load shafts |
| Cross Reference 1 | Timken 22211KEJW33 |
|---|---|
| Cross Reference 2 | SKF 22211 EK |
| Cross Reference 3 | FAG 22211-E1-K |
| Cross Reference 4 | NSK 22211EAKE4 |
Torrington 22211KVJW33 double-row spherical roller bearing: 55 mm tapered bore, 100 mm outside diameter, 25 mm width, two-piece steel cage, W33 lubrication groove, normal clearance. Unit Quantity: 1 Pc. One complete bearing. Torrington is a Timken brand; the current Timken design is 22211KEJW33.
222 — spherical roller bearing, ISO dimension series 22.
11 — bore code. 11 × 5 = 55 mm bore.
K — 1:12 tapered bore, for mounting on an adapter sleeve or a tapered shaft seat.
VJ — Torrington two-piece steel cage, finger type, one cage per roller row.
W33 — lubrication groove with three radial holes in the outer ring.
Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 25 mm. Bore Type: Tapered 1:12. Rolling Elements: Spherical Roller. Number Of Rows: 2. Cage Material: Steel. Cage Type: Two-piece finger type. Internal Clearance: CN. Closure Type: Open. Lubricant: grease or oil.
Timken 22211KEJW33 data: Dynamic Load Rating: 140,000 N. Static Load Rating: 142,000 N. Reference Speed: 4,700 rpm grease; 5,800 rpm oil. e factor: 0.23. Y1: 2.95. Y2: 4.4. Y0: 2.89.
The spherical outer raceway lets the bearing self-align under shaft deflection while carrying heavy radial load and axial load in both directions. The W33 groove feeds grease or oil to the centre of both roller rows.
Timken 22211KEJW33 data: Shaft Backing Shoulder Diameter: 66 mm. Housing Backing Shoulder Diameter: 91 mm. Maximum Fillet Radius: 1.5 mm.
Adapter sleeve: H311 (50 mm shaft) with KM11 locknut and MB11 lockwasher.
Same 55 × 100 × 25 mm tapered-bore, normal-clearance envelope: Timken 22211KEJW33, SKF 22211 EK, FAG 22211-E1-K, NSK 22211EAKE4, NTN 22211EAKW33.
55 mm tapered bore, 100 mm outside diameter and 25 mm width.
W33 is a lubrication groove with three radial holes in the outer ring.
The 1:12 tapered 55 mm bore mounts on an H311 adapter sleeve with KM11 locknut and MB11 lockwasher.
