Availability:
3 in stock

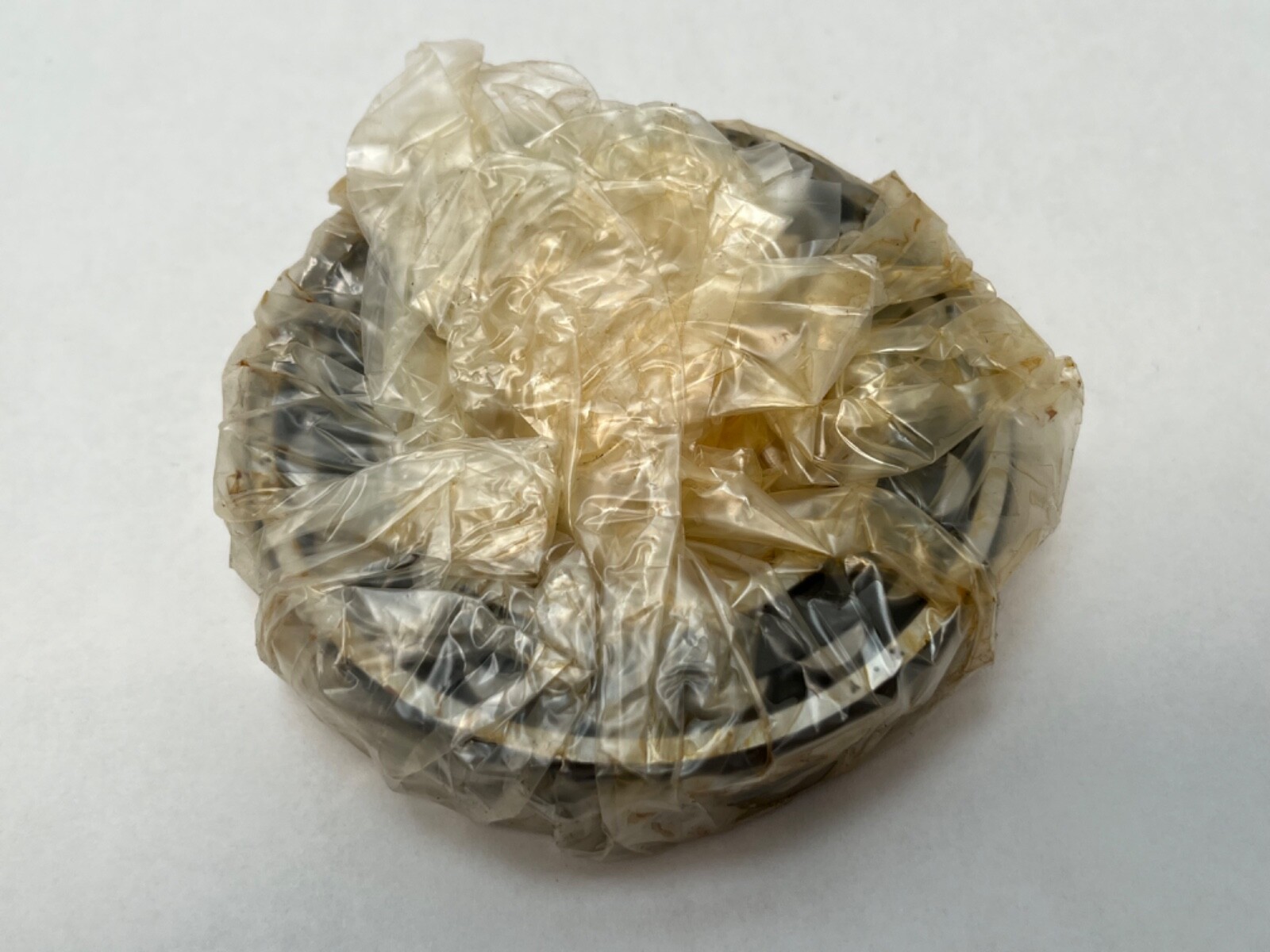

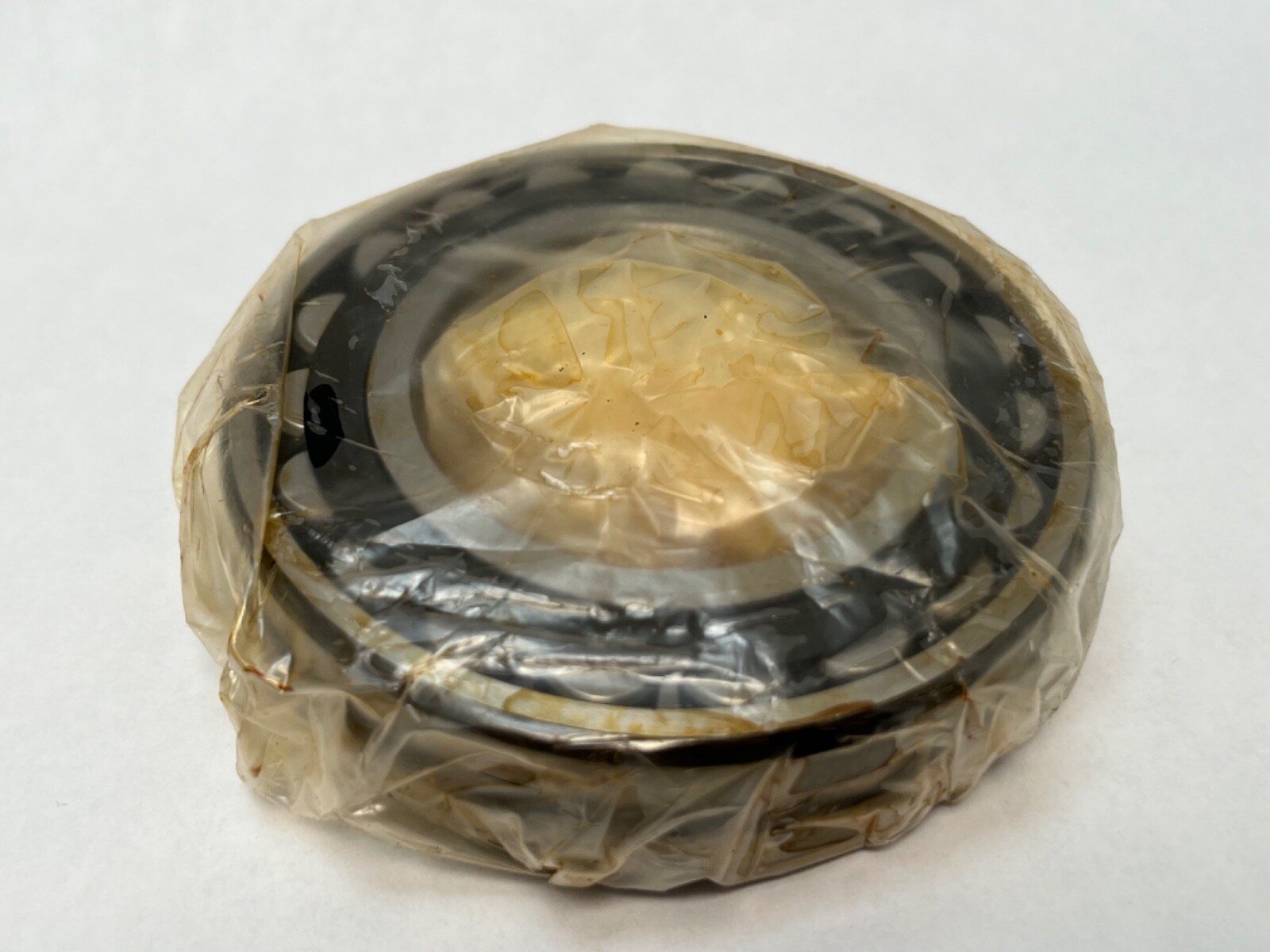

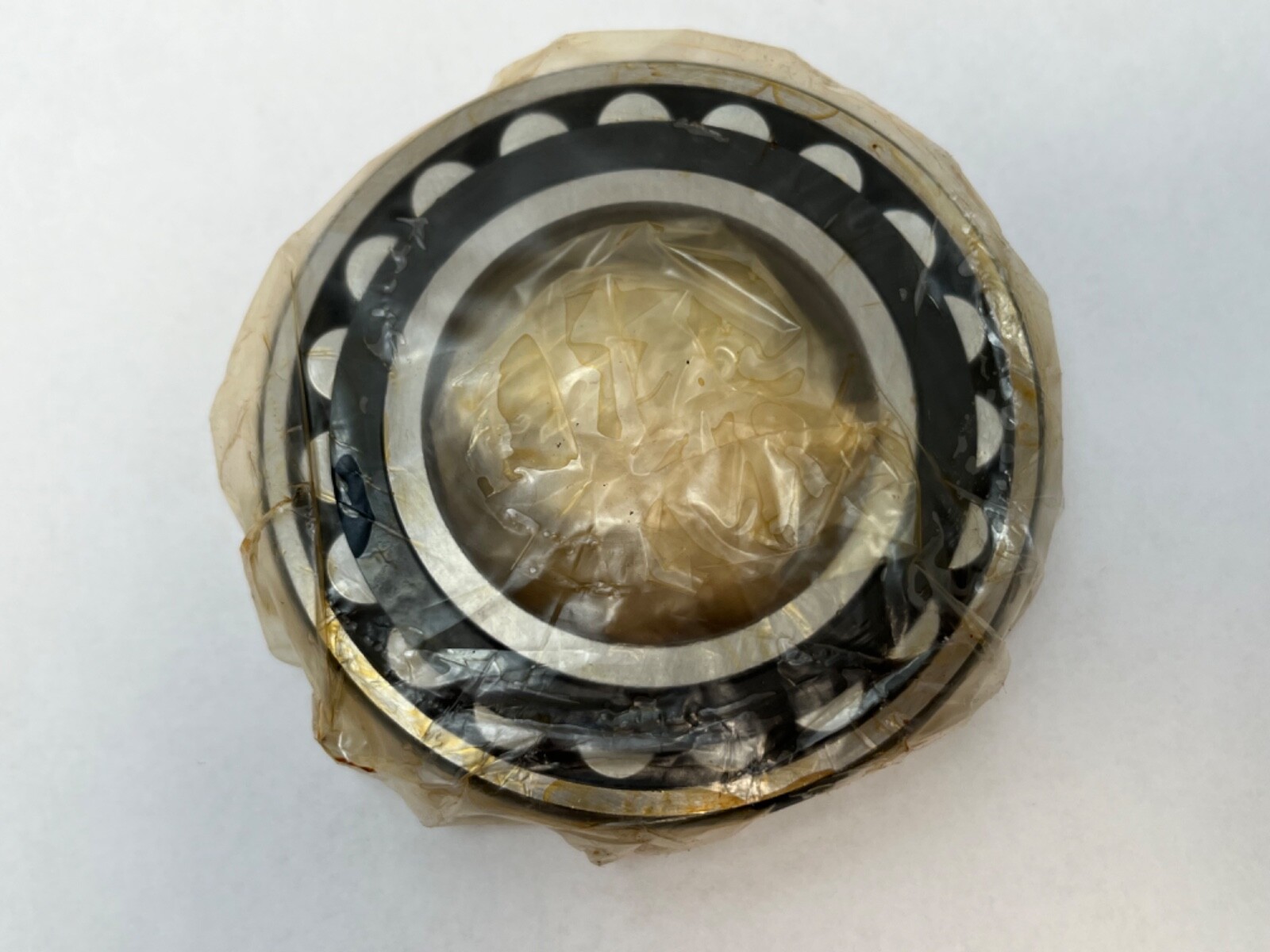

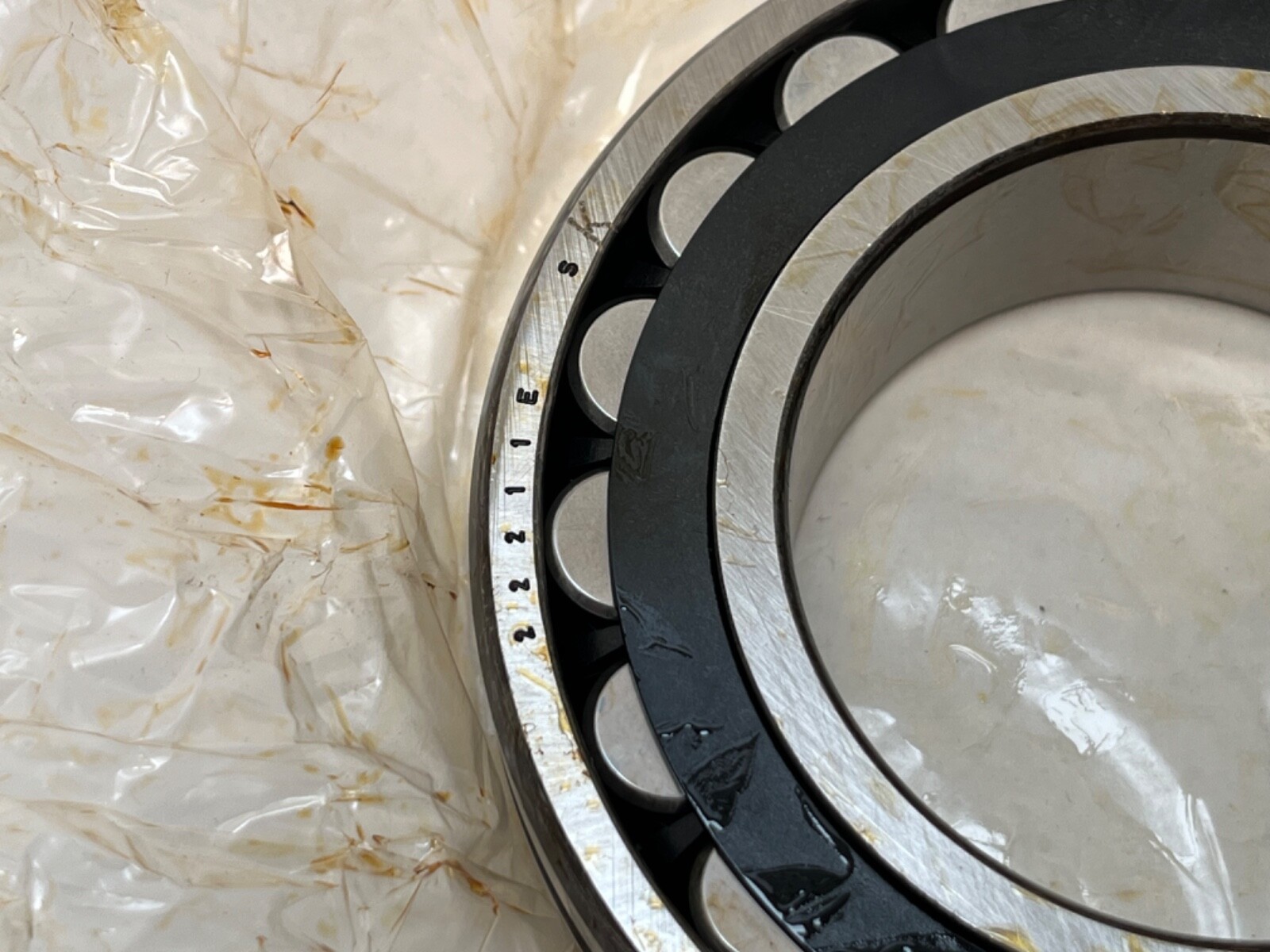

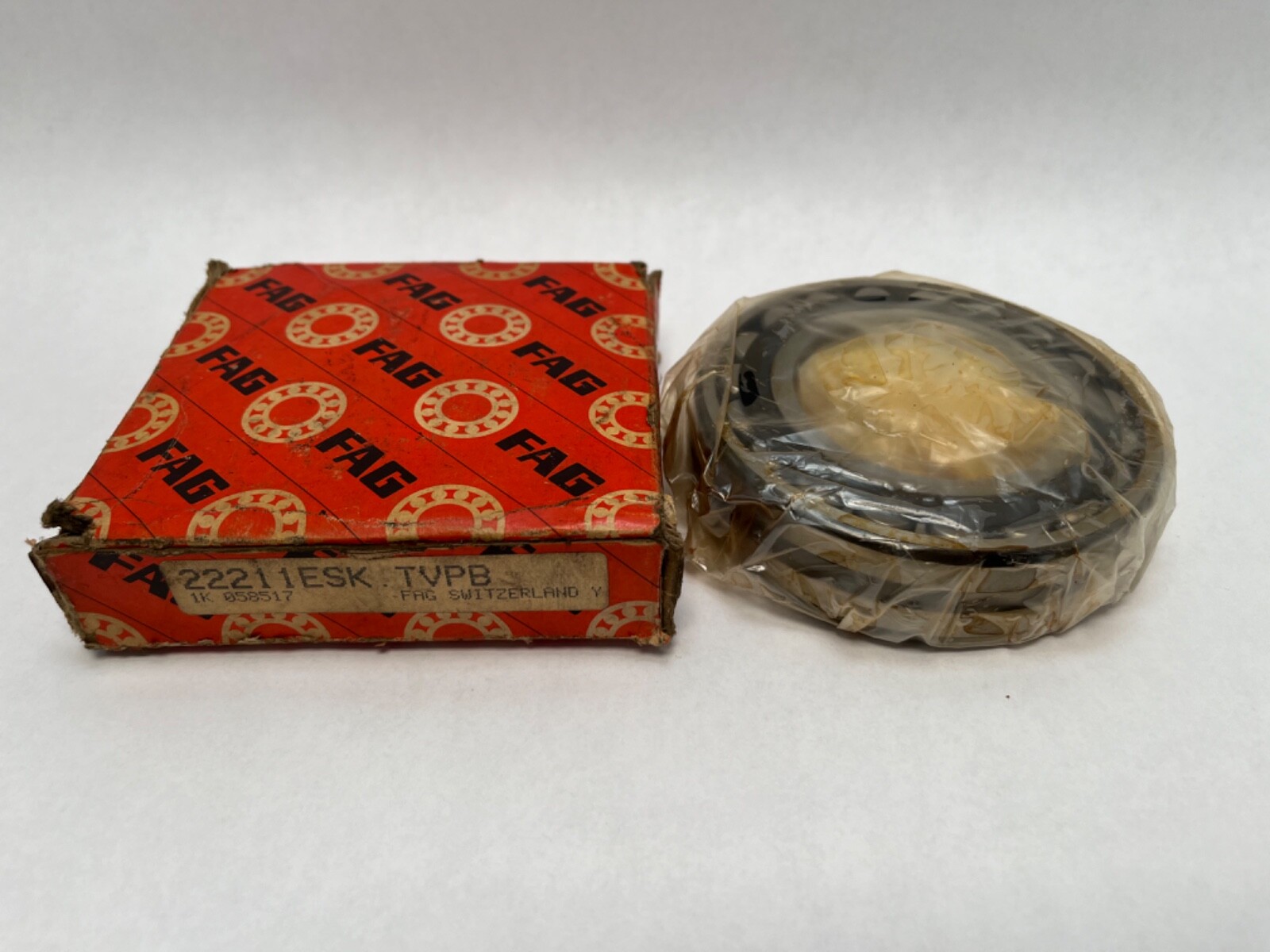

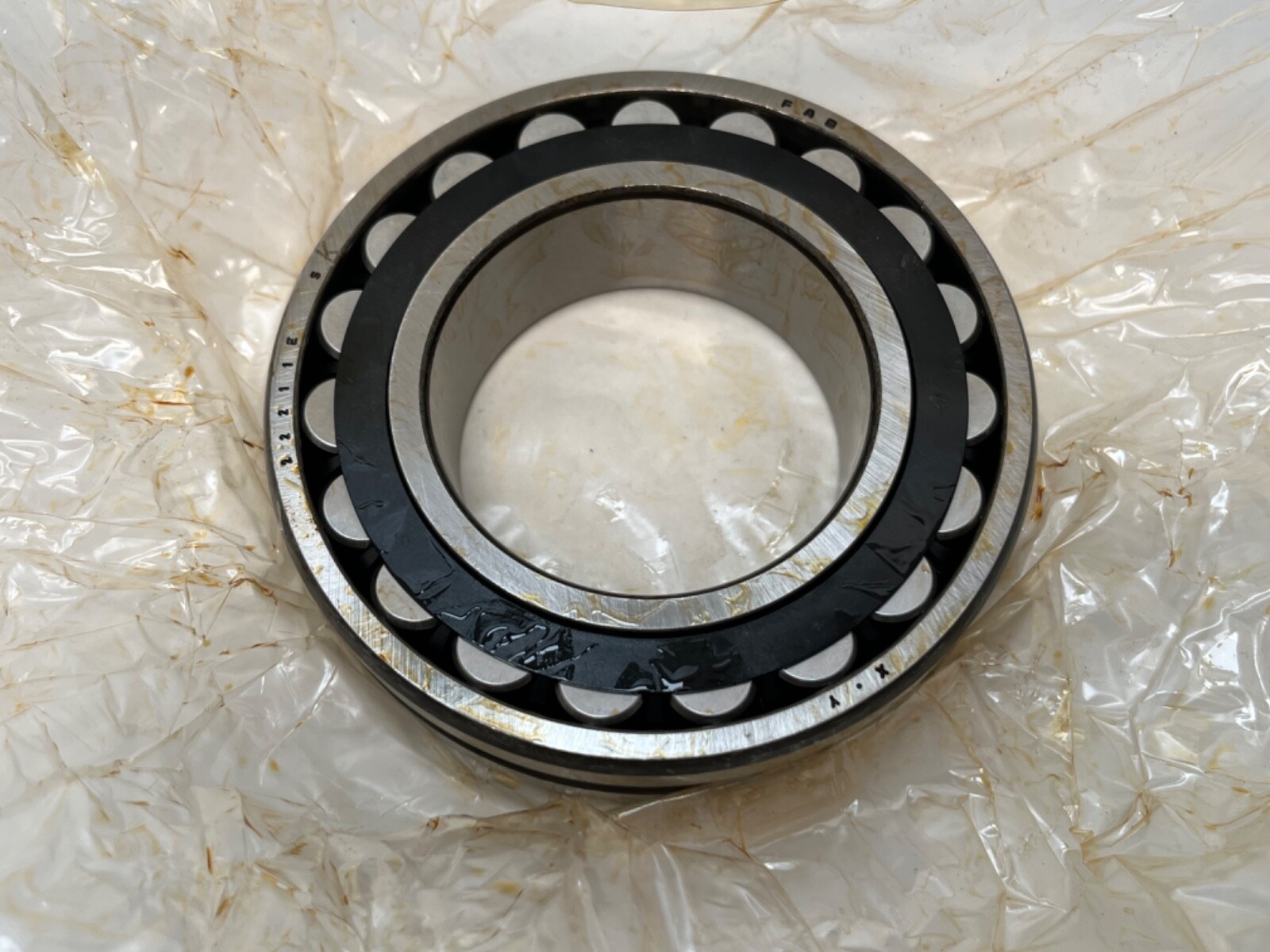

FAG 22211-E-K-TVPB spherical roller bearing, 55 mm tapered bore (1:12), 100 mm OD, 25 mm wide, glass-fibre polyamide cage. Open, normal clearance.
List Price
$55.70
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| Model | 22211-E-K-TVPB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 55 mm |
| OD | 100 mm |
| Width | 25 mm |
| Material | Chrome Steel |
|---|---|
| Series | 222 |
| Rolling Elements | Spherical Roller |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.40 |
| Internal Clearance | CN |
| Base Number | 22211 |
| Overall Width | 25 mm |
| Mpn Variants | 22211EK.TVPB, 22211-E-K-TVPB, 22211-E-K-TVPB-W33, 22211E, 22211EKTVPB |
| Compatible With Replaces | Schaeffler successor 22211-E1-XL-K; adapter sleeve H311 |
| Additional Attributes | Successor 22211-E1-XL-K data: Dynamic Load Rating 129,000 N; Static Load Rating 130,000 N; Limiting Speed 9,000 rpm; Reference Speed 4,650 rpm; Mass 0.81 kg |
| Cross Reference 1 | SKF 22211 EK |
|---|---|
| Cross Reference 2 | NSK 22211EAKE4 |
| Cross Reference 3 | Timken 22211KEJW33 |
| Cross Reference 4 | NTN 22211EAKD1 |
FAG 22211-E-K-TVPB double-row spherical roller bearing, 222 series, E internal design. Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 25 mm. Bore Type: Tapered, 1:12. Cage Material: Glass-fibre reinforced polyamide. Internal Clearance: CN. Closure Type: Open. Number Of Rows: 2. Rolling Elements: Spherical Roller.
22211 — spherical roller bearing, 222 dimension series, bore code 11 = 55 mm.
E — reinforced internal design.
K — tapered bore, taper 1:12.
TVPB — glass-fibre reinforced polyamide cage.
Two rows of barrel rollers in a common spherical outer raceway carry heavy radial load plus axial load in both directions and self-align to shaft misalignment. The tapered bore mounts on an adapter sleeve, withdrawal sleeve or tapered journal.
Successor 22211-E1-XL-K data: Dynamic Load Rating: 129,000 N. Static Load Rating: 130,000 N. Limiting Speed: 9,000 rpm. Reference Speed: 4,650 rpm. Item Weight: 0.81 kg (1.77 lb).
Adapter sleeve: H311. Successor 22211-E1-XL-K data: fillet radius r min: 1.5 mm. Abutment ra max: 1.5 mm. Abutment Da max: 91 mm.
Unit Quantity: 1 Pc.
Compatible With / Replaces: Schaeffler successor 22211-E1-XL-K. Cross-Reference: SKF 22211 EK, NSK 22211EAKE4, Timken 22211KEJW33, NTN 22211EAKD1. Same 55 x 100 x 25 mm envelope with 1:12 tapered bore.
