Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
5 in stock
Double-row spherical roller bearing, 55 x 100 x 25 mm, 1:12 tapered bore for an adapter sleeve. W33 lube groove, C3 clearance, pressed steel cage.
List Price
$45.88
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Koyo |
|---|---|
| Model | 22211 R H K W33 C3 22211CC 22211C 22211E |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 55 mm |
| OD | 100 mm |
| Width | 25 mm |
| Material | Chrome steel |
|---|---|
| Series | 222 |
| Lubricant | Grease or oil |
| Relubrication | W33 annular groove with three radial feed holes |
| Base Number | 22211 |
| Common Misspellings | 22211 RHKW33C3, 22211RHK W33 C3, 22211RHKW33 C3, Koyo 22211RH KW33C3, 2211RHKW33C3 |
| Overall Width | 25 mm |
| Bore Shaft Size | 55 mm |
| Mpn Variants | 22211RHKW33C3, 22211-RH-K-W33-C3, 22211RHKW33, 22211RHK, 22211K |
| Compatible With Replaces | H311 adapter sleeve, KM11 locknut, MB11 lockwasher |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Internal Clearance | C3 |
| Harmonization Code | 8482.30.00 |
| Bearing Material | Chrome steel |
| Cross Reference 1 | SKF 22211 EK/C3 - no outer-ring groove |
|---|---|
| Cross Reference 2 | FAG 22211-E1-K-C3 |
| Cross Reference 3 | NSK 22211EAKE4C3 |
| Cross Reference 4 | NTN 22211EAK - no groove, normal clearance |
| Cross Reference 5 | Timken 22211KEJW33C3 |
| Cross Reference 6 | Torrington 22211KCJW33C3 |
| Cross Reference 7 | Nachi 22211EXKW33C3 |
| Cross Reference 8 | NTN-SNR 22211EAKW33C3 |
| Cross Reference 9 | Koyo 22211RHRKW33C3 (related, RHR execution) |

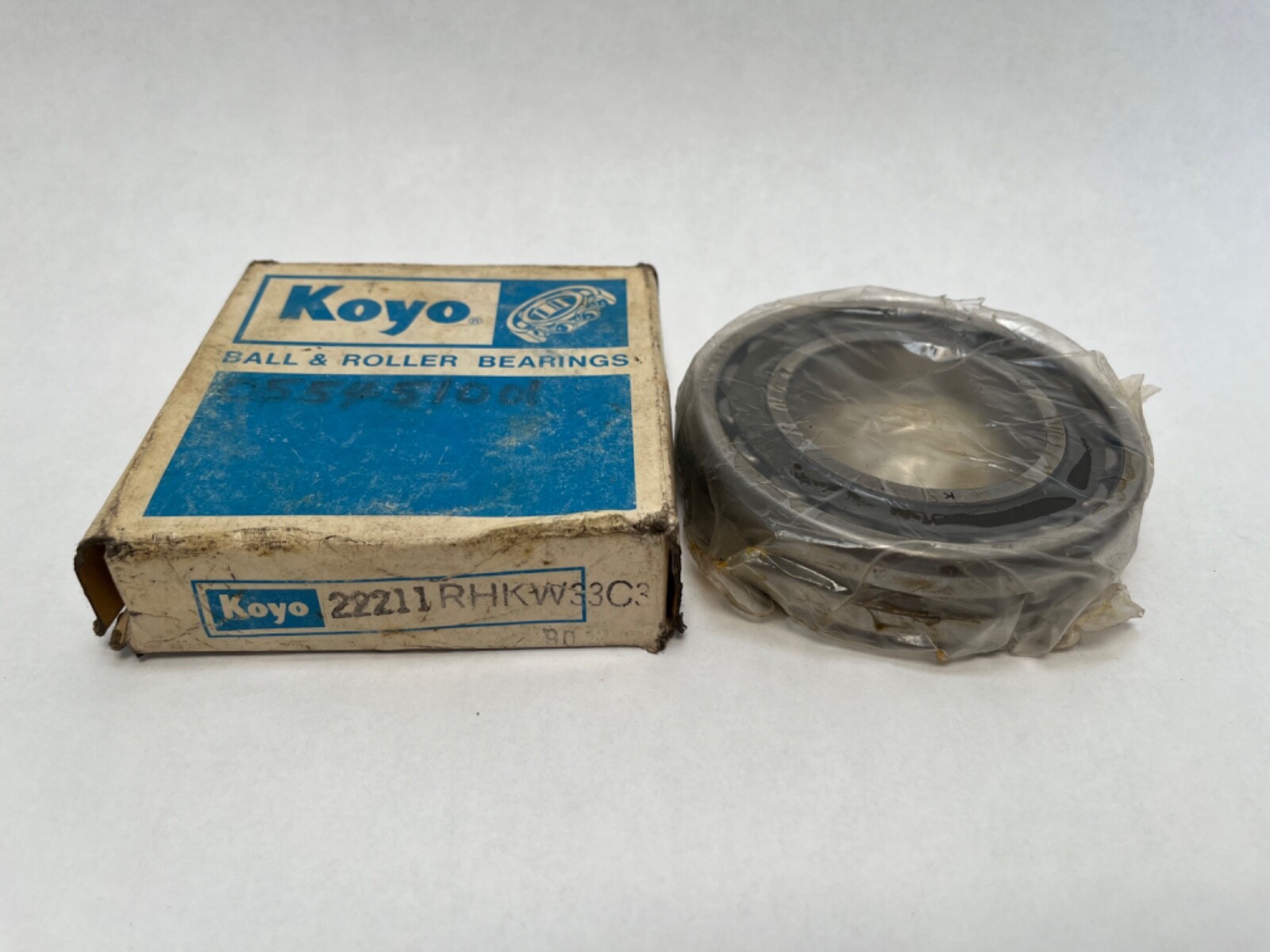

Koyo 22211RHKW33C3 is a double-row spherical roller bearing with a 1:12 tapered bore, an annular lubrication groove in the outer ring and C3 internal clearance. Unit Quantity: 1 Pc. Single bearing with a tapered bore, open on both faces. Two rows of barrel rollers run on a common spherical raceway in the outer ring, so the inner ring, rollers and cage swivel inside the outer ring and the bearing accommodates shaft deflection and housing misalignment while carrying heavy radial load and thrust in both directions.
222 — ISO dimension series 22, the wider section of the double-row spherical roller range.
11 — bore code 11, giving 55 mm.
RH — symmetric rollers running in a pressed steel cage.
K — 1:12 tapered bore.
W33 — annular lubrication groove around the outer ring with three radial feed holes.
C3 — internal radial clearance greater than normal.
Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Tapered 1:12. Internal Clearance: C3. Cage Material: Pressed steel. Closure Type: Open. Bearing Material: Chrome steel. Lubricant: Grease or oil. Relubrication: W33 annular groove with three radial feed holes. Series: 222. Base Number: 22211.
Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 25 mm. The 1:12 tapered bore mounts on an adapter sleeve. The matching sleeve for a 55 mm bore is an H311, whose tapered outside diameter is 55 mm and whose shaft seat is 50 mm. Locknut: KM11. Lockwasher: MB11.
The same bearing is written 22211RHKW33C3, 22211-RH-K-W33-C3 and 22211RHKW33. Related numbers on the 55 x 100 x 25 mm size with a 1:12 tapered bore: SKF 22211 EK/C3 (no outer-ring groove), FAG 22211-E1-K-C3, NSK 22211EAKE4C3, NTN 22211EAK (no groove, normal clearance), Timken 22211KEJW33C3, Torrington 22211KCJW33C3, Nachi 22211EXKW33C3, NTN-SNR 22211EAKW33C3, Koyo 22211RHRKW33C3 (RHR roller and cage execution). The straight-bore form of the same size is written 22211RHW33C3 and mounts directly on a cylindrical shaft seat, so it is a related size rather than an interchange.
What are the bore, outside diameter and width?Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 25 mm.
Which adapter sleeve fits it?The 1:12 tapered bore mounts on an H311 adapter sleeve, with KM11 locknut and MB11 lockwasher.
What do W33 and C3 mean?W33 is an annular lubrication groove around the outer ring with three radial feed holes. C3 is internal radial clearance greater than normal.
