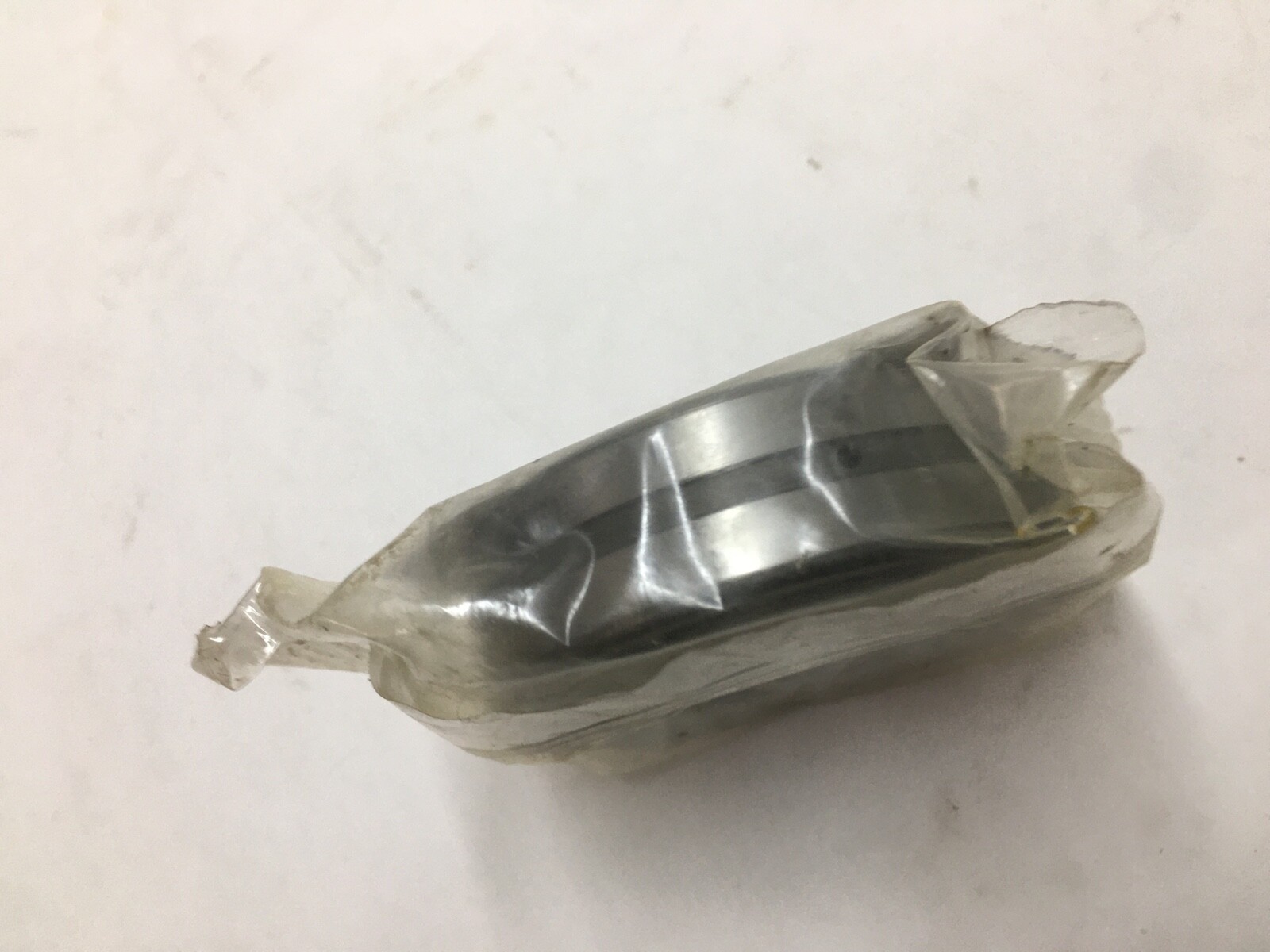

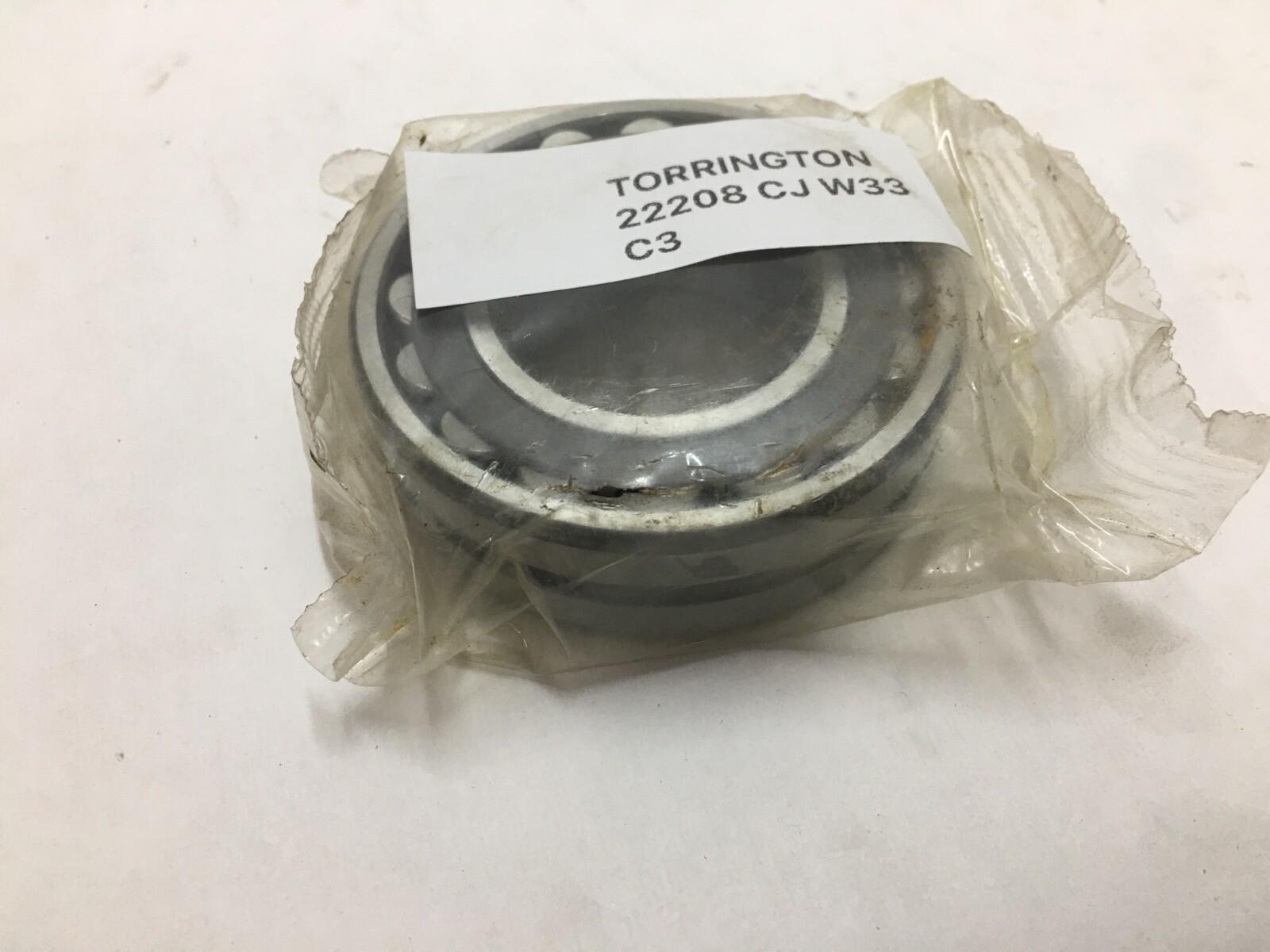

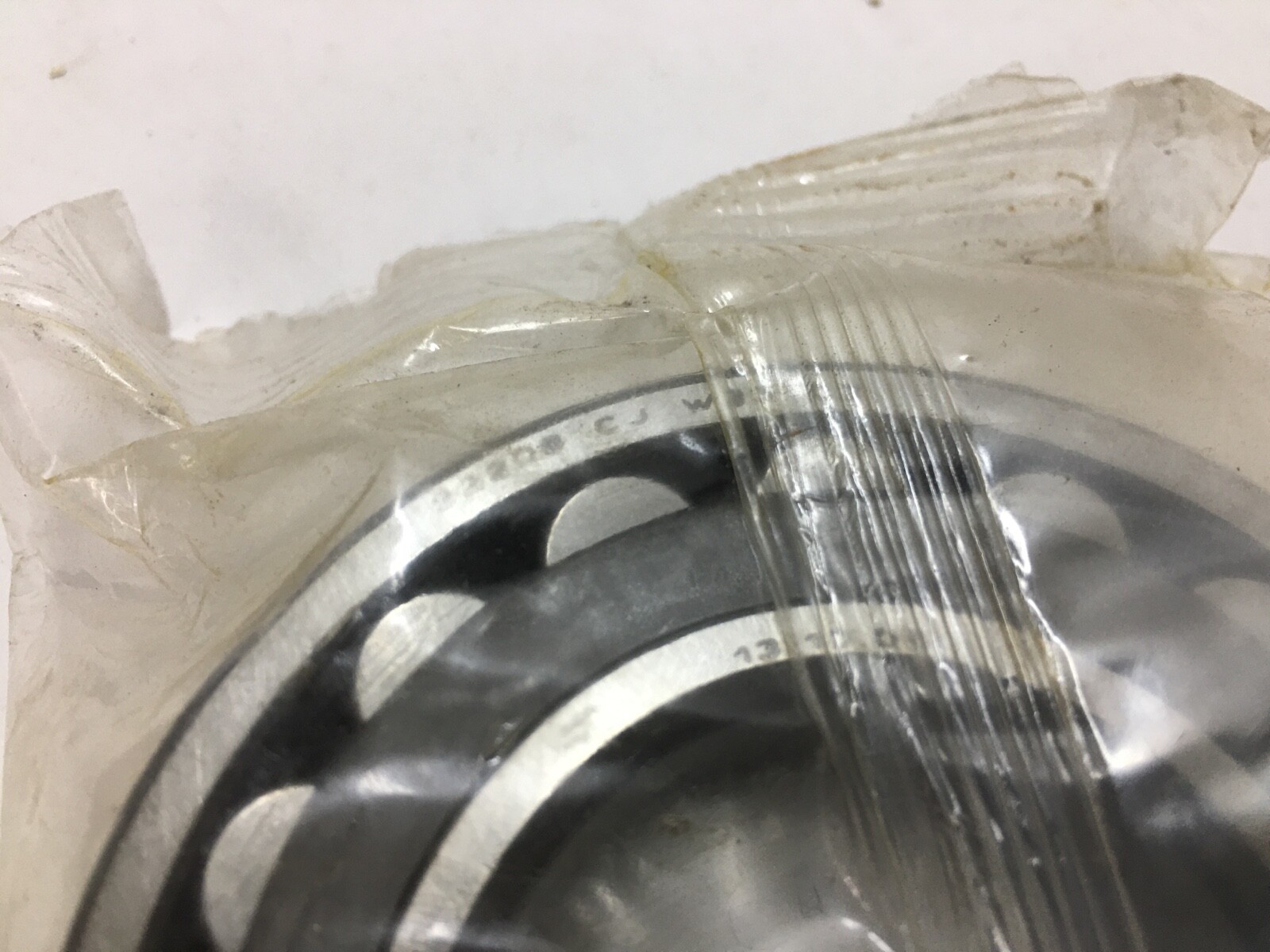

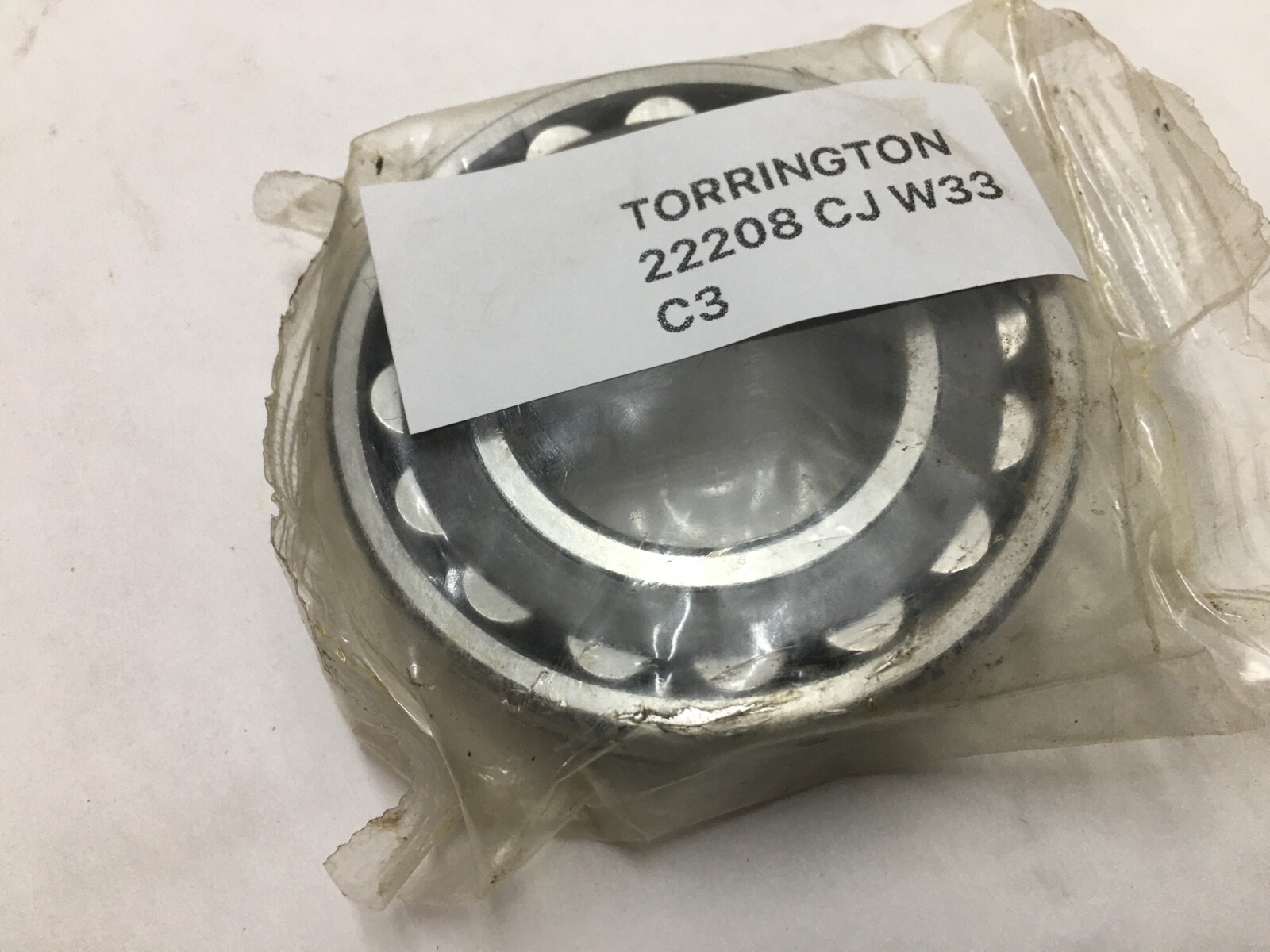

Torrington 22208CJW33C3 spherical roller bearing, 40 x 80 x 23 mm, straight bore, steel cage, W33 lube groove, C3 clearance. Successor: Timken 22208EJW33C3.
List Price
$43.35
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| MPN | 22208CJW33C3 |
| Model | 22208 CJ W33 C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 40 mm |
| OD | 80 mm |
| Width | 23 mm |
| Series | 22200 |
|---|---|
| Closure Type | Open |
| Rolling Elements | Spherical Roller |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Mpn Variants | 22208CJW33C3, 22208 CJ W33 C3, 22208-CJ-W33-C3 |
| Compatible With Replaces | Timken 22208EJW33C3 (current successor design) |
| Design Units | Metric |
| Cross Reference 1 | Timken 22208EJW33C3 - current E design successor |
|---|---|
| Cross Reference 2 | SKF 22208 E/C3 - E design, no W33 groove |
| Cross Reference 3 | FAG 22208-E1-XL-C3 - E1 XL design, no lube groove |
| Cross Reference 4 | NSK 22208EAE4C3 - EA design, W33 groove |
| Cross Reference 5 | NTN 22208EAW33C3 - EA design, W33 groove |
Torrington 22208CJW33C3 double-row spherical roller bearing: 40 mm straight bore, 80 mm outside diameter, 23 mm width, steel cage, W33 lubrication groove, C3 clearance. Torrington is a Timken brand; the current Timken design is 22208EJW33C3. Unit Quantity: 1 Pc.
222 — spherical roller bearing, ISO dimension series 22.
08 — bore code. 08 × 5 = 40 mm bore.
CJ — Torrington internal design with steel cage.
W33 — lubrication groove with three radial holes in the outer ring.
C3 — radial internal clearance greater than normal.
Bore Diameter: 40 mm. Outside Diameter: 80 mm. Overall Width: 23 mm. Bore Type: Straight. Rolling Elements: Spherical Roller. Number Of Rows: 2. Cage Material: Steel. Internal Clearance: C3. Closure Type: Open. Lubricant: grease or oil. Series: 22200. Unit Quantity: 1 Pc.
Straight bore, open on both faces. The spherical outer raceway lets the bearing self-align under shaft deflection and carry axial load in both directions. The W33 groove and three radial holes in the outer ring feed grease or oil to the rollers.
Cross-references, 40 x 80 x 23 mm straight bore, C3 clearance: Timken 22208EJW33C3 (current E design successor); SKF 22208 E/C3 (no W33 groove); FAG 22208-E1-XL-C3 (no lube groove); NSK 22208EAE4C3 and NTN 22208EAW33C3 (W33 groove).
40 mm straight bore, 80 mm outside diameter, 23 mm width.
W33 is a lubrication groove with three radial holes in the outer ring, for grease or oil feed.
Timken 22208EJW33C3, the current E design.
