Availability:
1 in stock

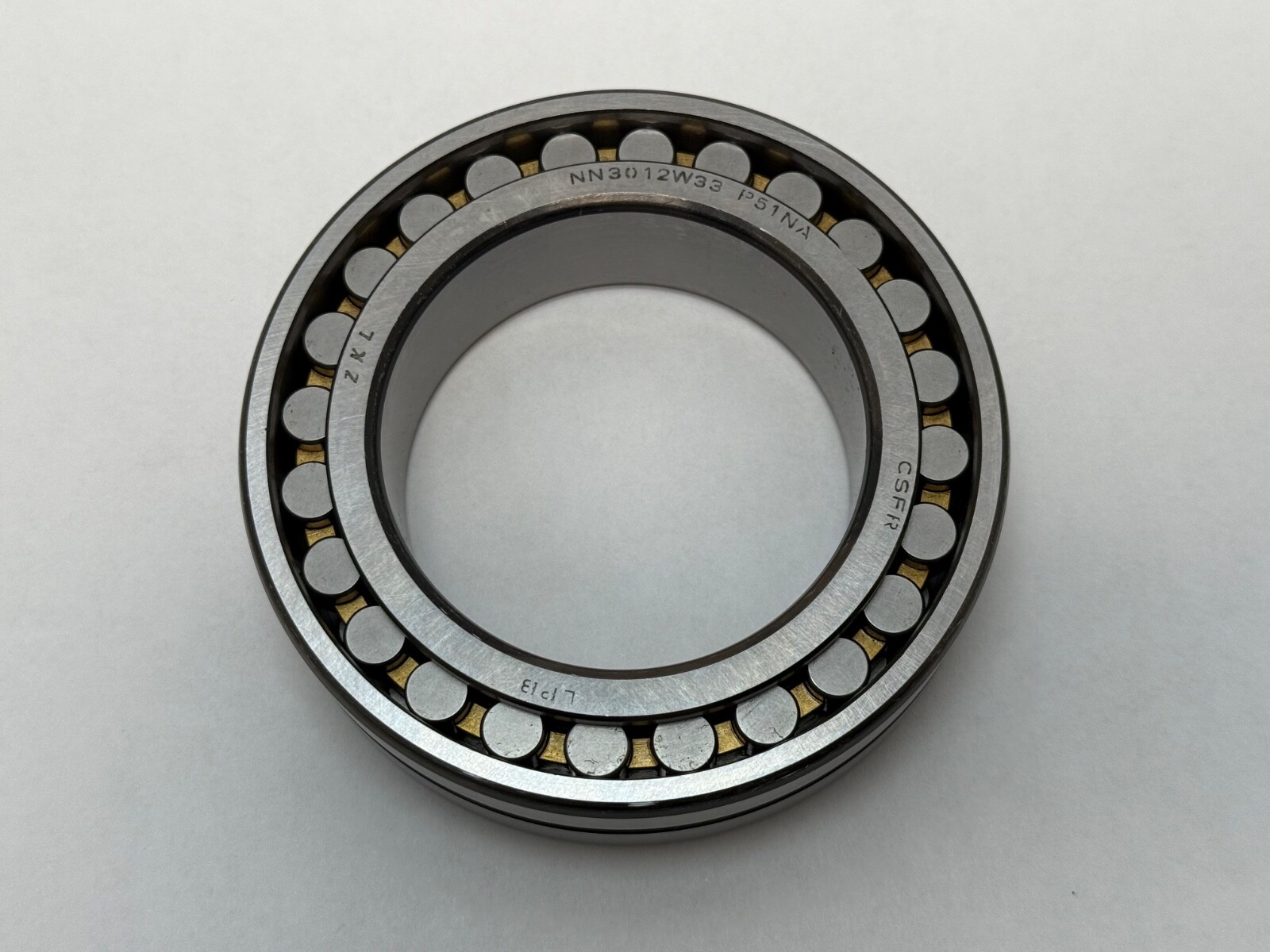

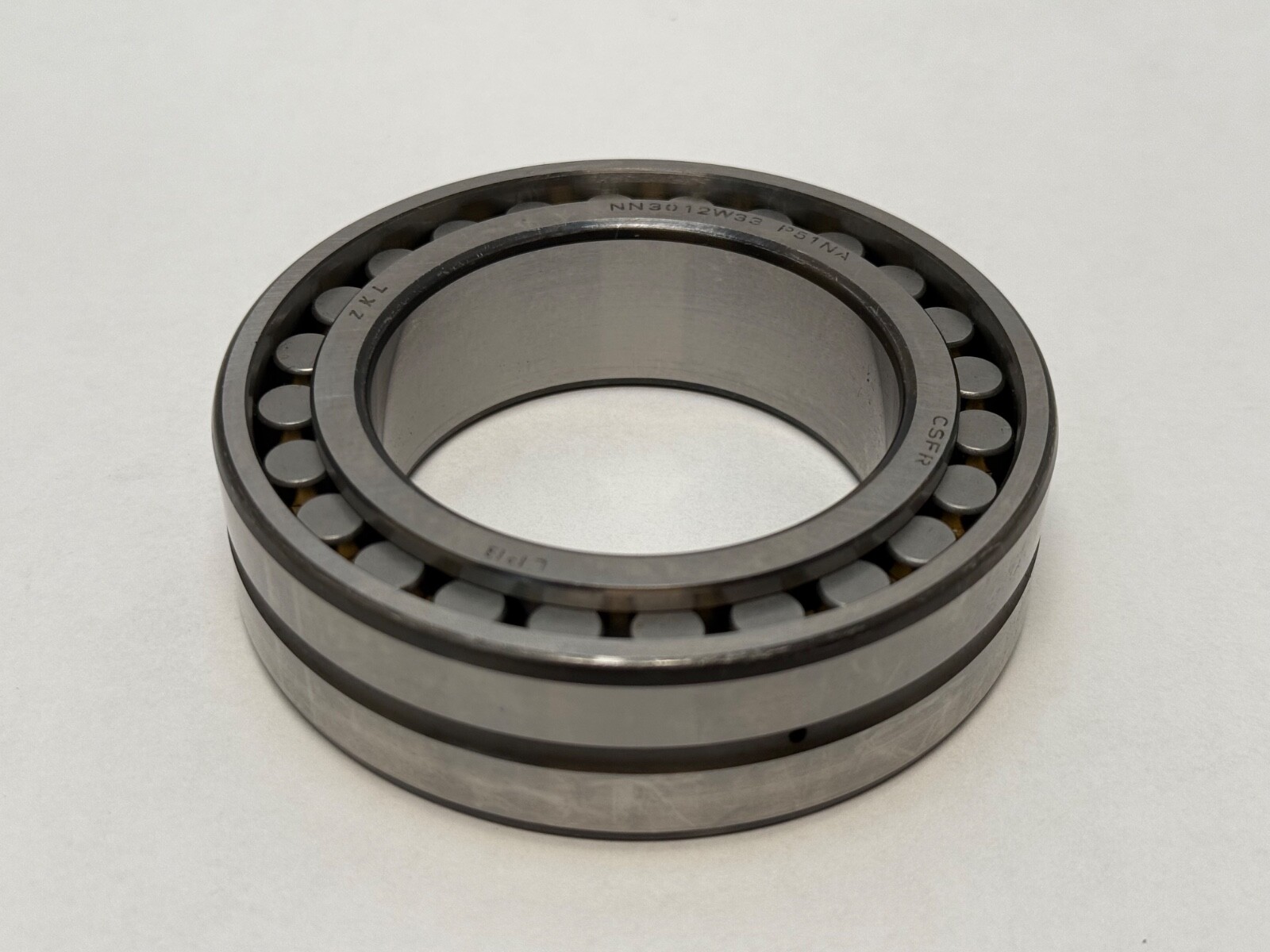

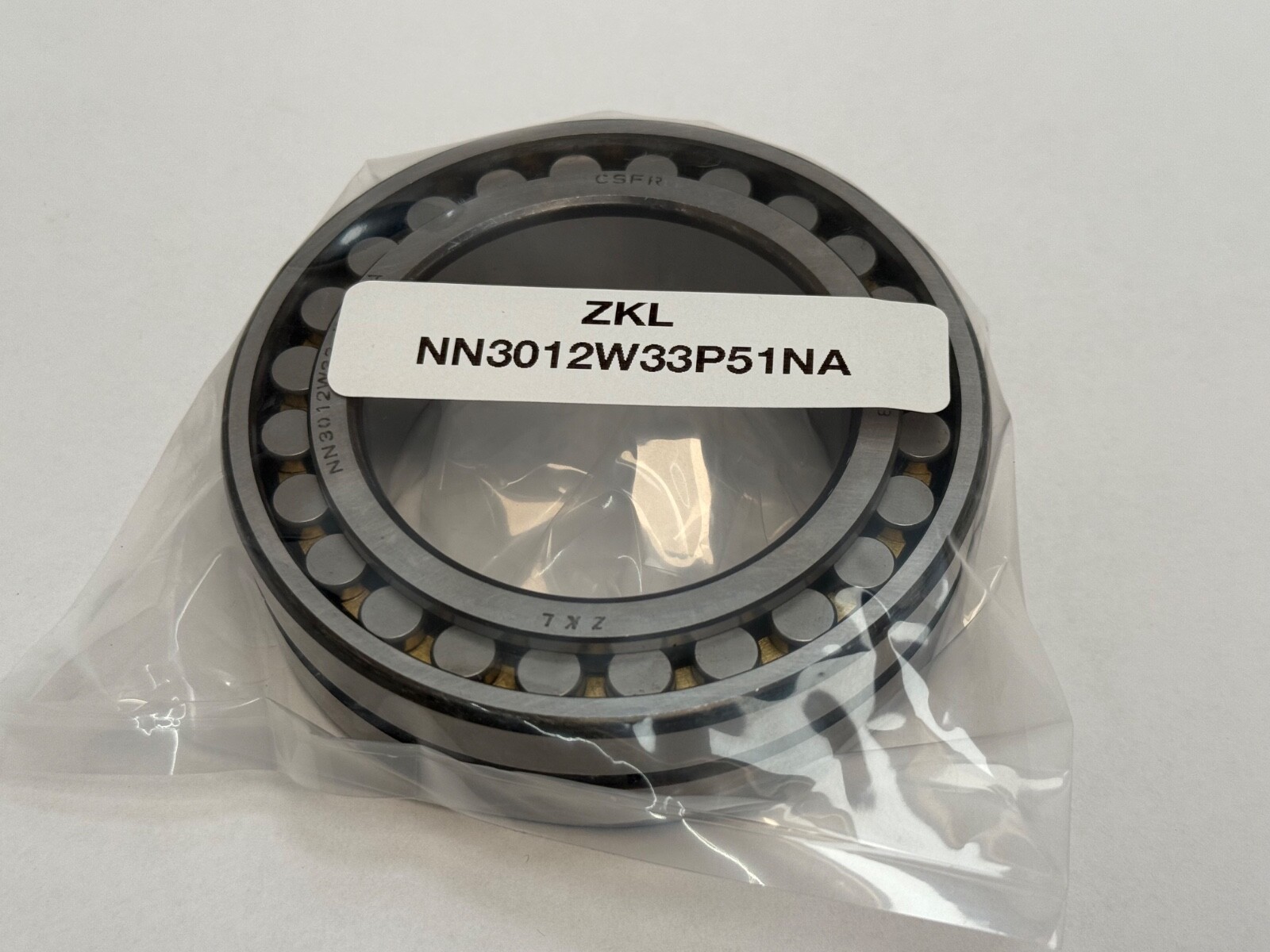

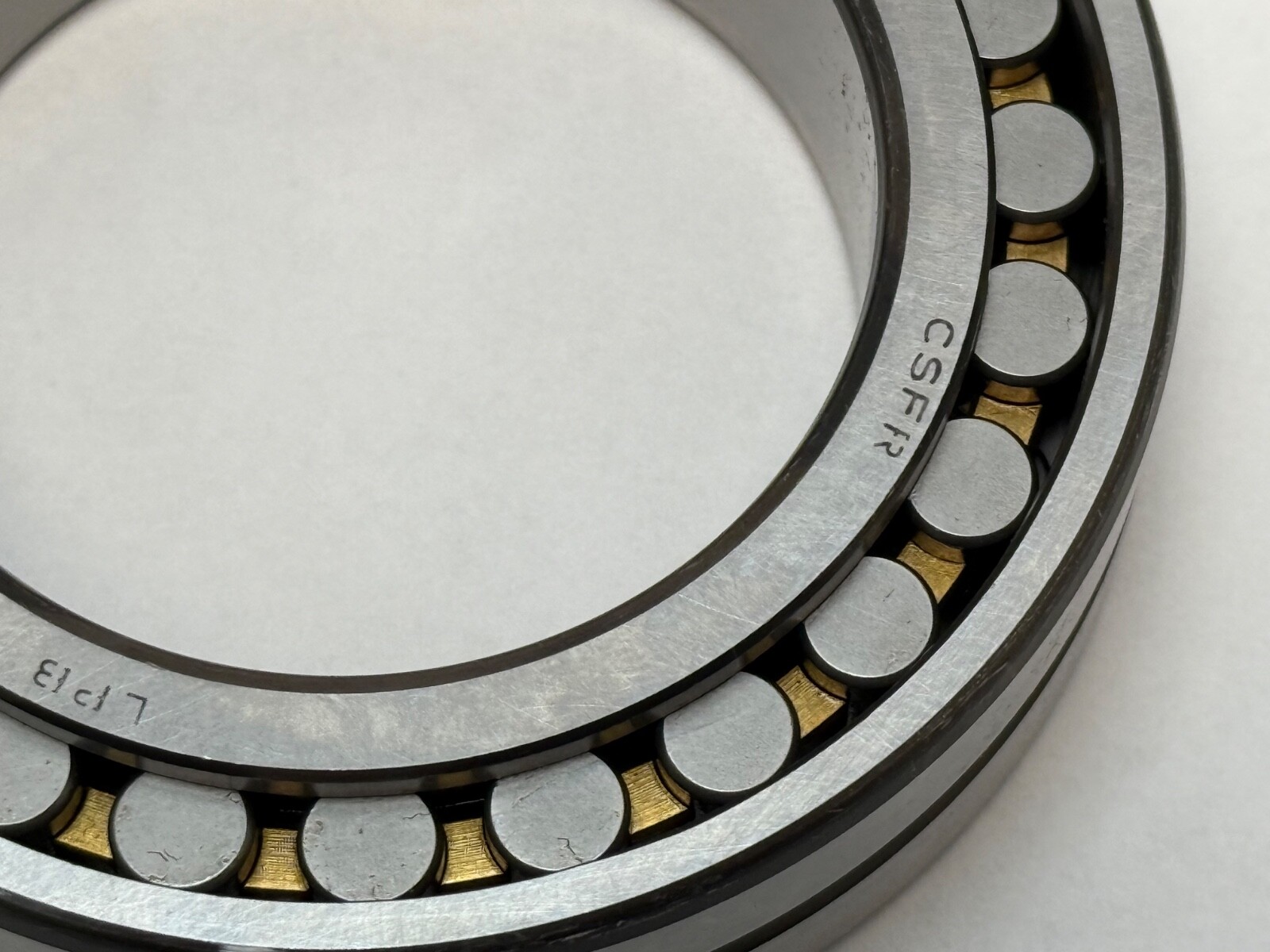

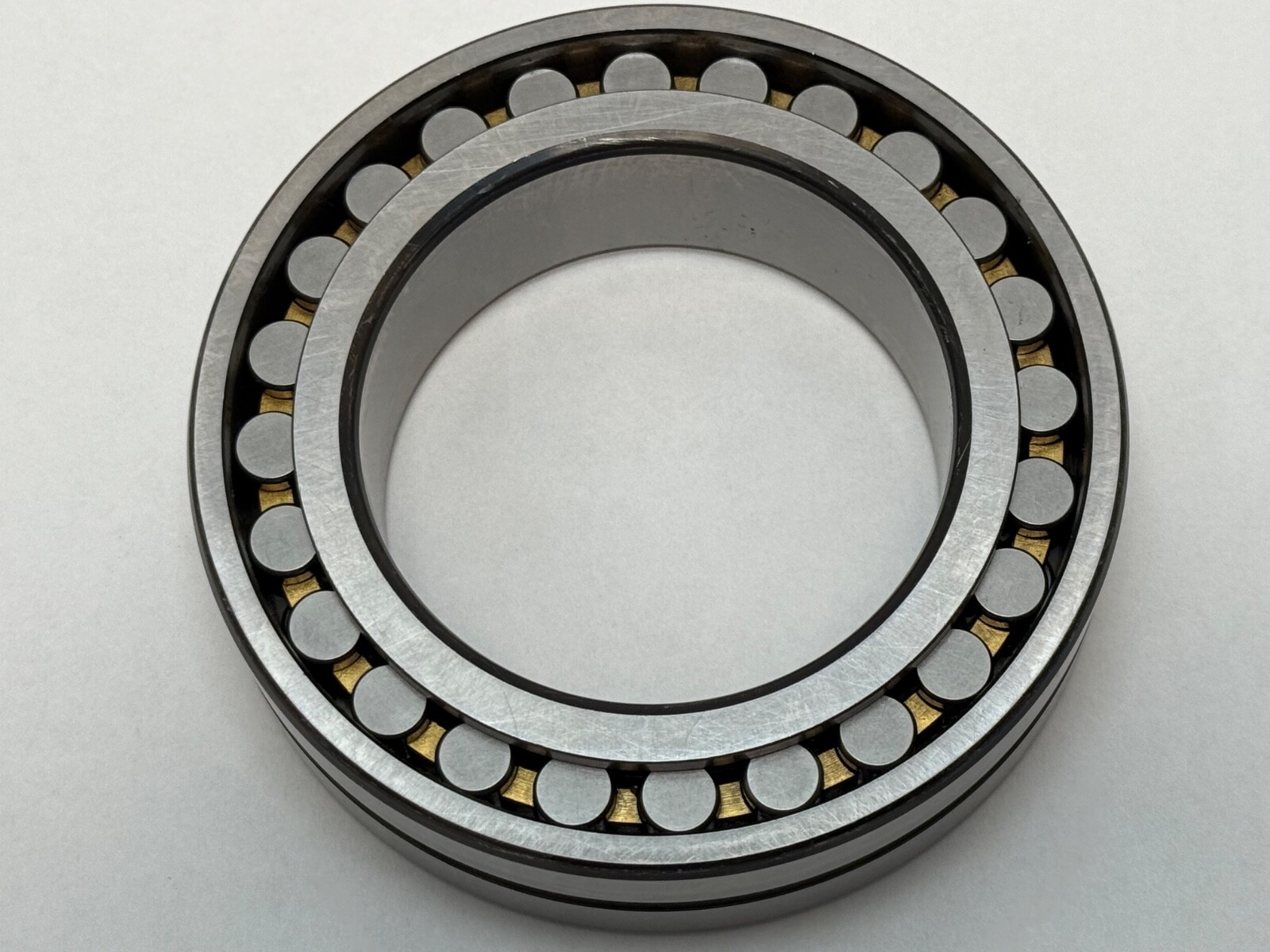

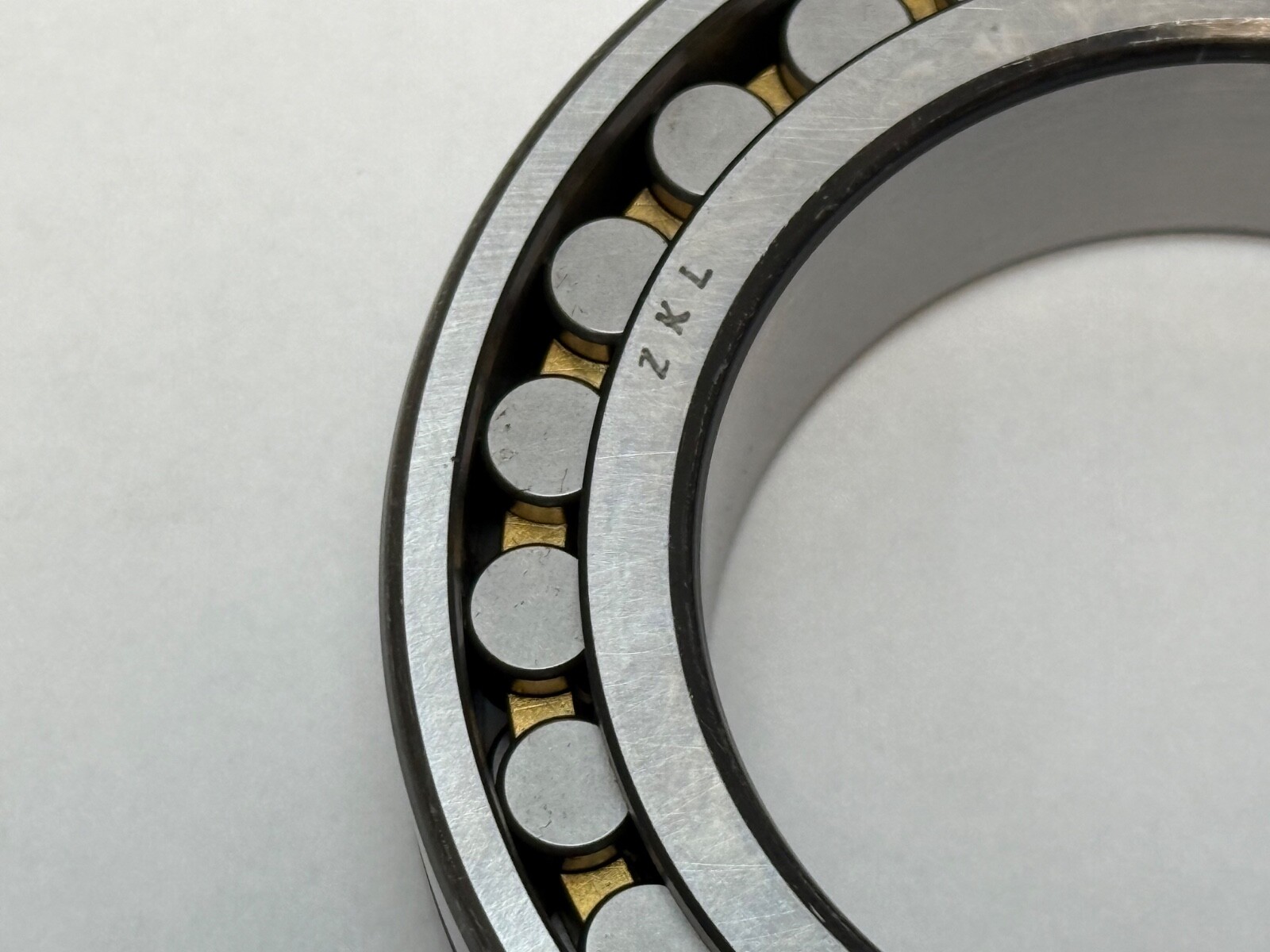

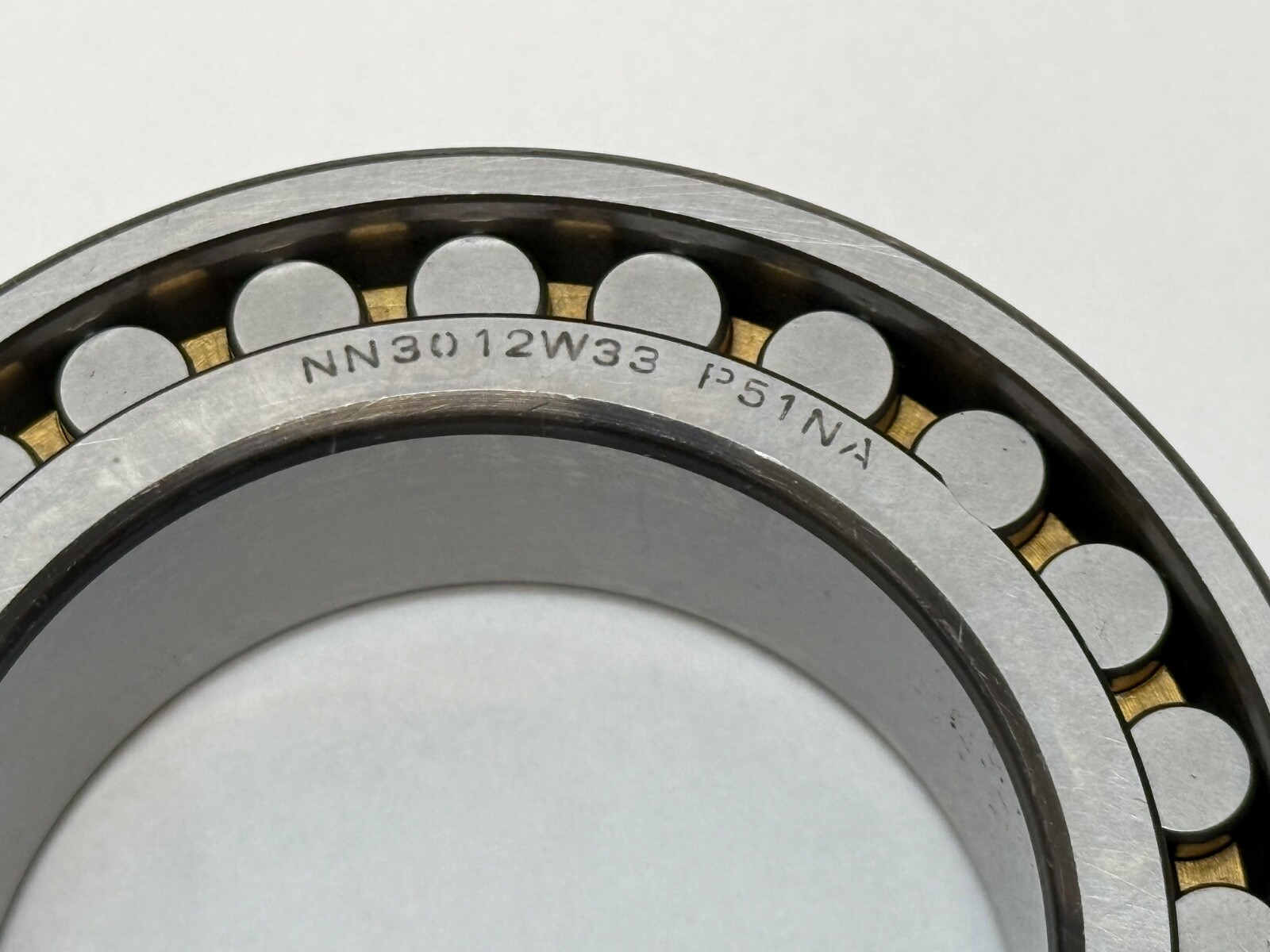

ZKL NN3012 W33 P51 NA double-row cylindrical roller bearing, 60 mm bore, 95 mm OD, 26 mm wide, P5 precision, C1 clearance, non-interchangeable rings.
List Price
$75.68
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | ZKL |
|---|---|
| MPN | NN3012 W33 P51 NA |
| Model | NN-3012-W33-P51-NA |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 60 mm |
| OD | 95 mm |
| Width | 26 mm |
| Bore | Straight Bore |
|---|---|
| Material | Bearing Steel |
| Rolling Elements | Cylindrical Roller |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | C1 |
| Overall Width | 26 mm |
| Mpn Variants | NN3012W33P51NA, NN-3012-W33-P51-NA, NN 3012 W33 P51 NA, NN3012 |
| Precision Class | RBEC 5 / P5 |
| Lubricant | grease or oil |
| Cross Reference 1 | SKF NN 3012 TN/SP |
|---|---|
| Cross Reference 2 | FAG NN3012-AS-M-SP |
ZKL NN3012 W33 P51 NA is a double-row cylindrical roller bearing with a cylindrical bore, built to P5 precision with C1 radial clearance for machine tool spindles. The NN design carries the guide ribs on the inner ring and a plain outer ring.
NN — double-row cylindrical roller bearing, ribs on the inner ring.
30 — ISO dimension series 30.
12 — bore code, 12 x 5 = 60 mm bore.

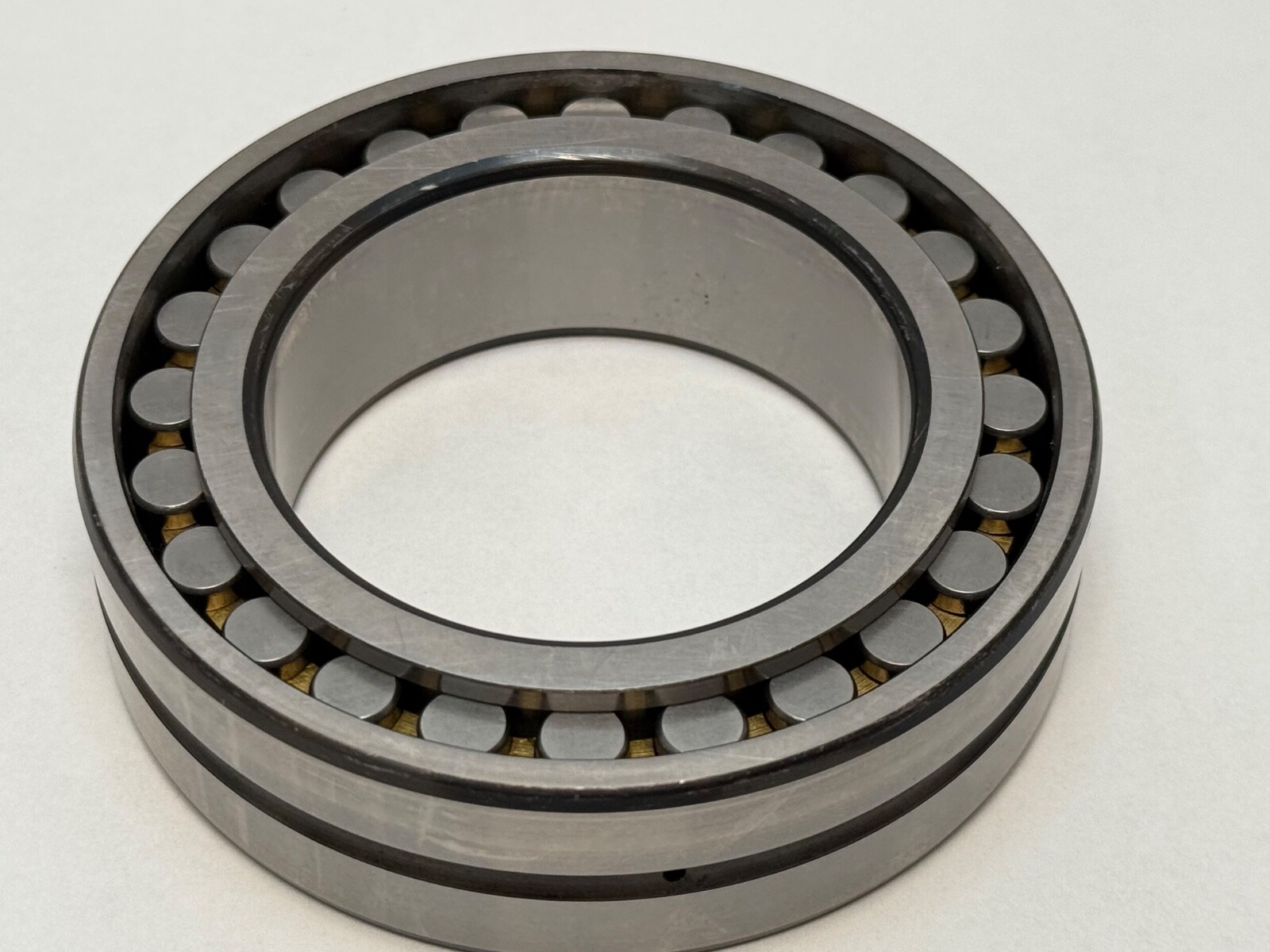

W33 — lubrication groove and three radial holes in the outer ring, for grease or oil feed.
P51 — P5 dimensional and running accuracy combined with C1 radial clearance.

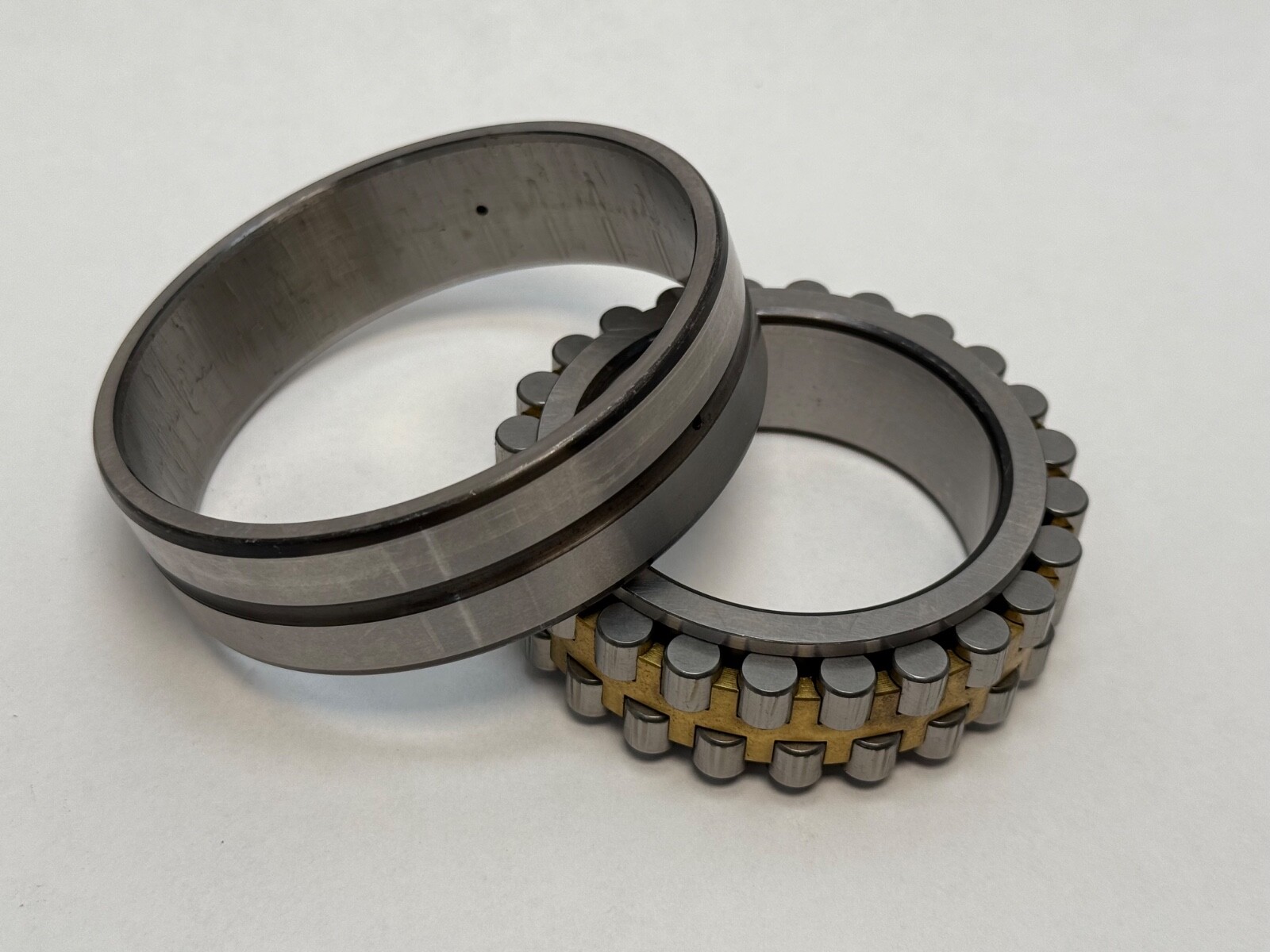

NA — radial clearance set for non-interchangeable rings; the inner and outer rings are a matched pair.
Bearing Type: Double-row cylindrical roller bearing. Rolling Elements: Cylindrical Roller. Number Of Rows: 2. Bore Type: Cylindrical. Precision Class: RBEC 5 / P5. Internal Clearance: C1. Closure Type: Open. Lubricant: grease or oil.
Bore Diameter: 60 mm. Outside Diameter: 95 mm. Overall Width: 26 mm. ISO 15 boundary dimensions for the NN3012 size.
The NN3012 envelope is standardised. Dimensional equivalents include SKF NN 3012 TN/SP and FAG NN3012-AS-M-SP. The tapered-bore NN3012 K is a different part.
What size is an NN3012 bearing?
60 mm bore, 95 mm outside diameter, 26 mm wide.
What does P51 mean on a ZKL bearing?
P5 precision combined with C1 radial clearance.
What does NA mean?
Non-interchangeable rings: the inner and outer rings are matched to hold the stated clearance.
