Double-row spherical roller bearing, 120 x 215 x 58 mm, straight bore, machined brass cage inner-ring guided, W33 lubrication groove, FAG 22224AS.MB.
List Price
$243.13
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22224AS.MB |
| Model | 22224 ES/C/AS MB W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 58 mm |
| Material | Bearing Steel |
|---|---|
| Series | 222 (ISO 22224) |
| Lubricant | Oil/Grease |
| Base Number | 22224 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; double row spherical roller bearing; SRB; brass cage roller bearing; W33 lube groove bearing |
| Common Misspellings | 22224 bering; spherical bering; 22224ASMB; 22224 AS-MB W-33; FAG 2224AS.MB |
| Application Types | Gearboxes; conveyor head and tail shafts; fan and blower shafts; vibrating screens; pulp and paper machinery; crushers; mixers and agitators; heavy plummer-block positions |
| Bore Shaft Size | 120 mm, cylindrical (straight) bore |
| Mpn Variants | 22224AS.MB; 22224 AS MB; 22224-AS-MB; 22224AS.MB.W33; 22224-AS-MB-W33; 22224ASMB; 22224 MB; 22224MB; 22224-MB; 22224 MB W33; 22224MBW33; 22224 |
| Manufacturer Status | Legacy FAG designation; FAG's current same-envelope production designation is the 22224-E1(A) family. FAG is a Schaeffler brand. |
| Compatible With Replaces | Housings and shaft seats machined for an ISO 22224 (120x215x58 mm) double-row spherical roller bearing with a straight bore. Not a substitute for a 23224 (232 series is wider). |
| Additional Attributes | Ring chamfer r min: 2.1 mm; Calculation factors (ISO 22224 envelope): e 0.28, Y1 2.4, Y2 3.6, Y0 2.4 |
| Cage Type | Machined, inner-ring guided |
| Rolling Elements | Spherical Roller |
| Cage Material | Brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Internal Clearance | CN |
| Harmonization Code | 8482.30.00 |
| Bearing Material | Bearing Steel |
| Part Number | 22224AS.MB |
| Closure Type | Open |
| Cross Reference 1 | SKF 22224 E - E design, pressed steel cage |
|---|---|
| Cross Reference 2 | Timken 22224EM - E design, brass cage |
| Cross Reference 3 | Rollway 22224 MB W33 - brass cage, W33 groove |

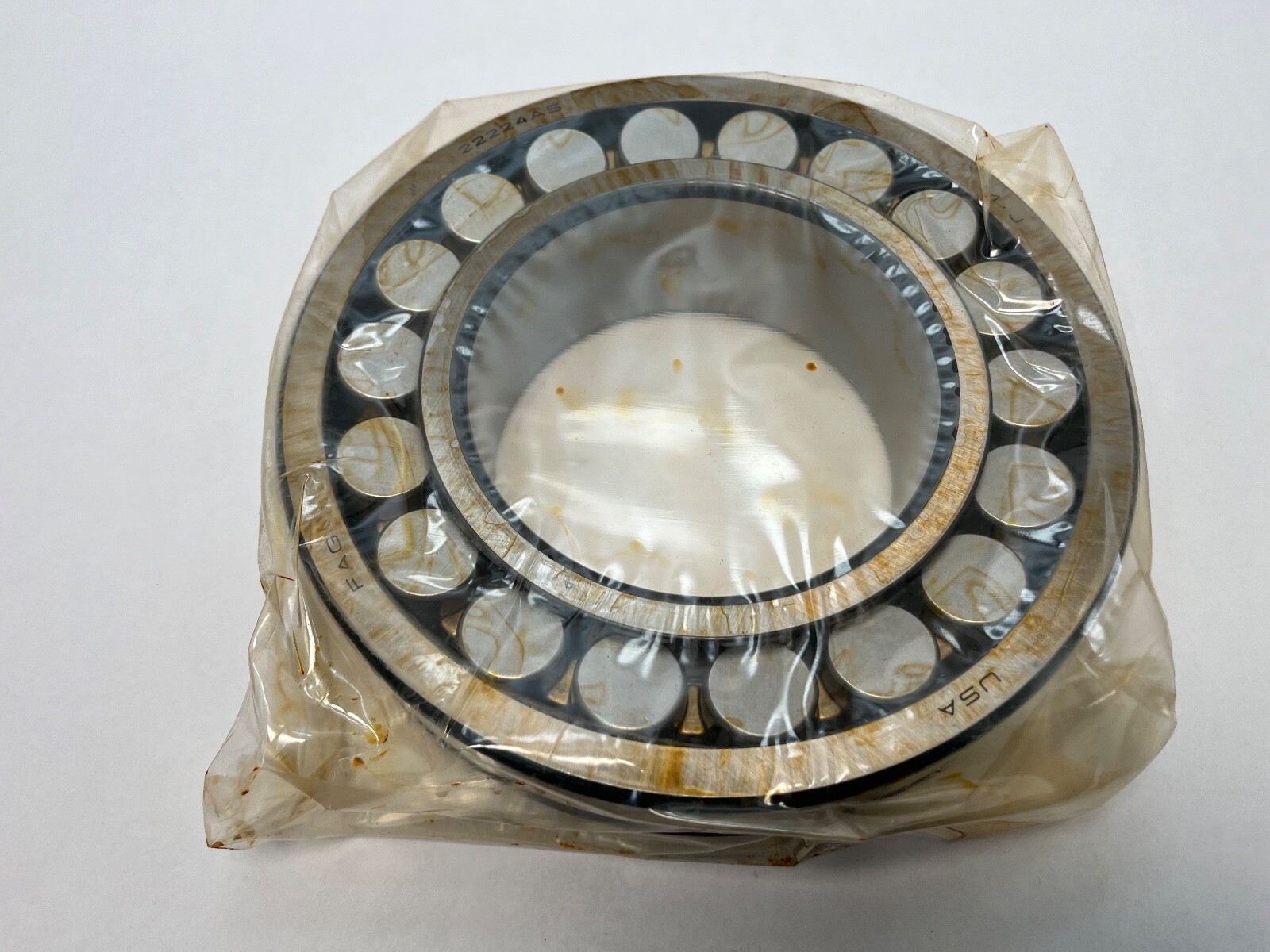

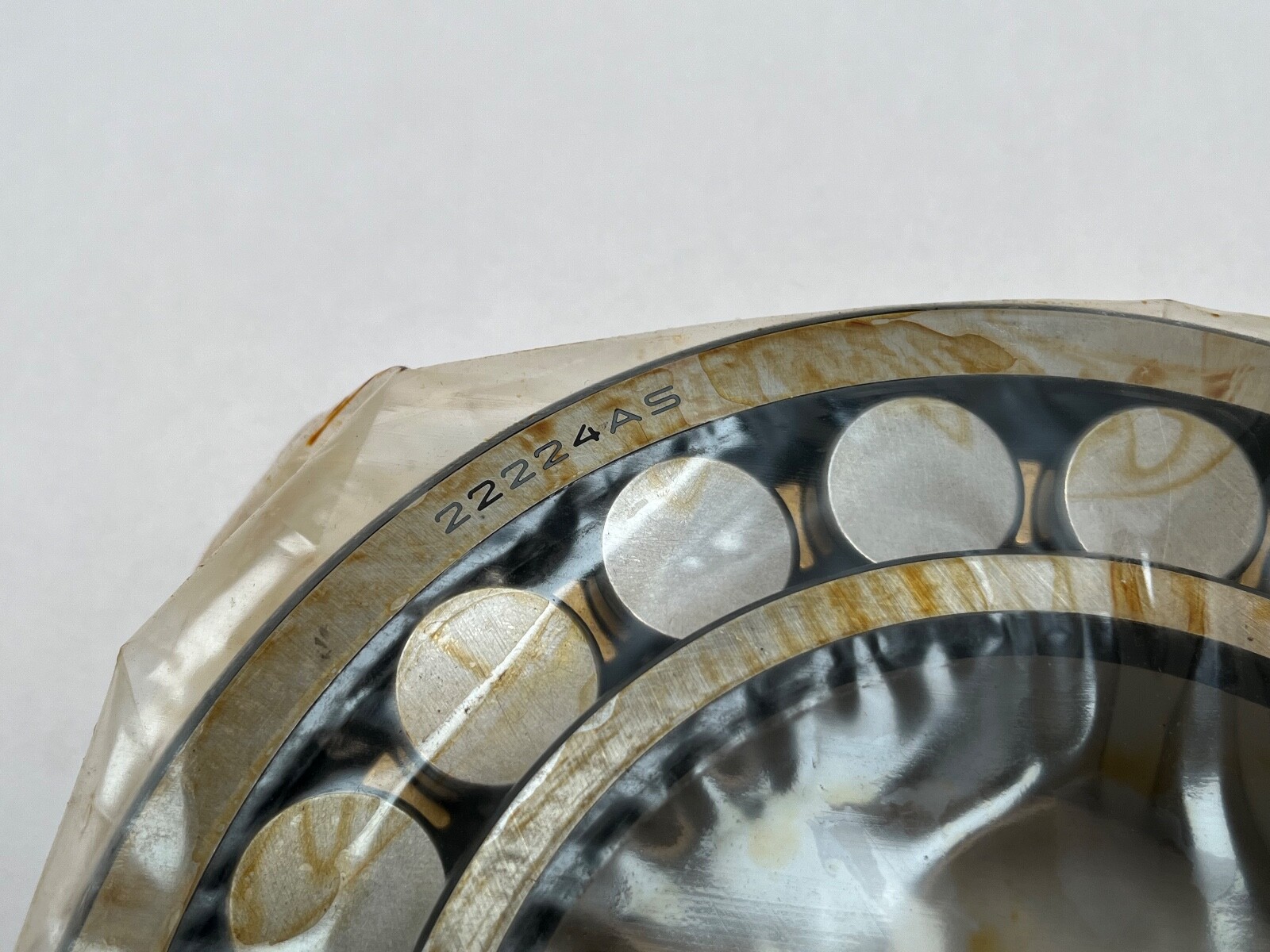

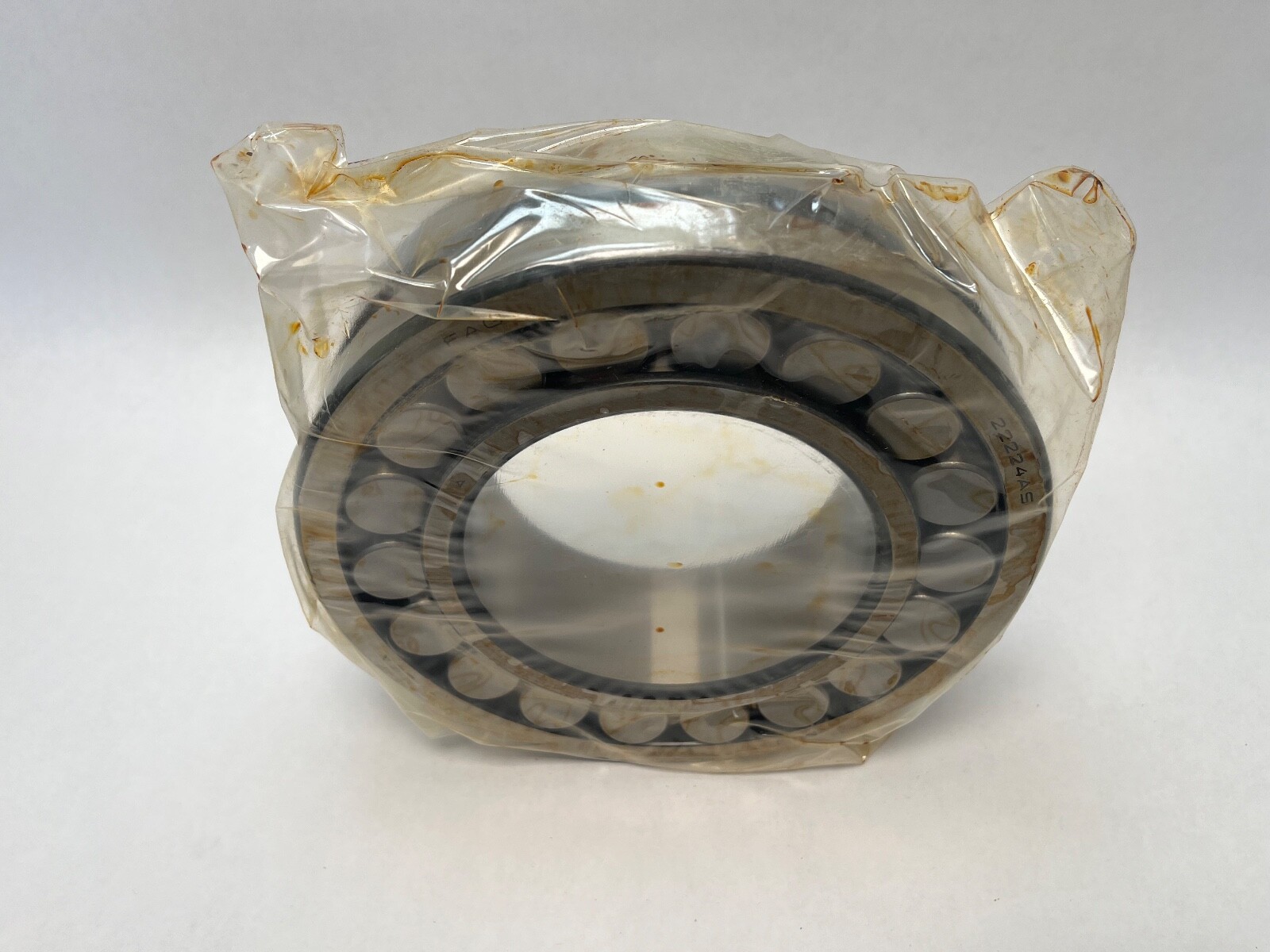

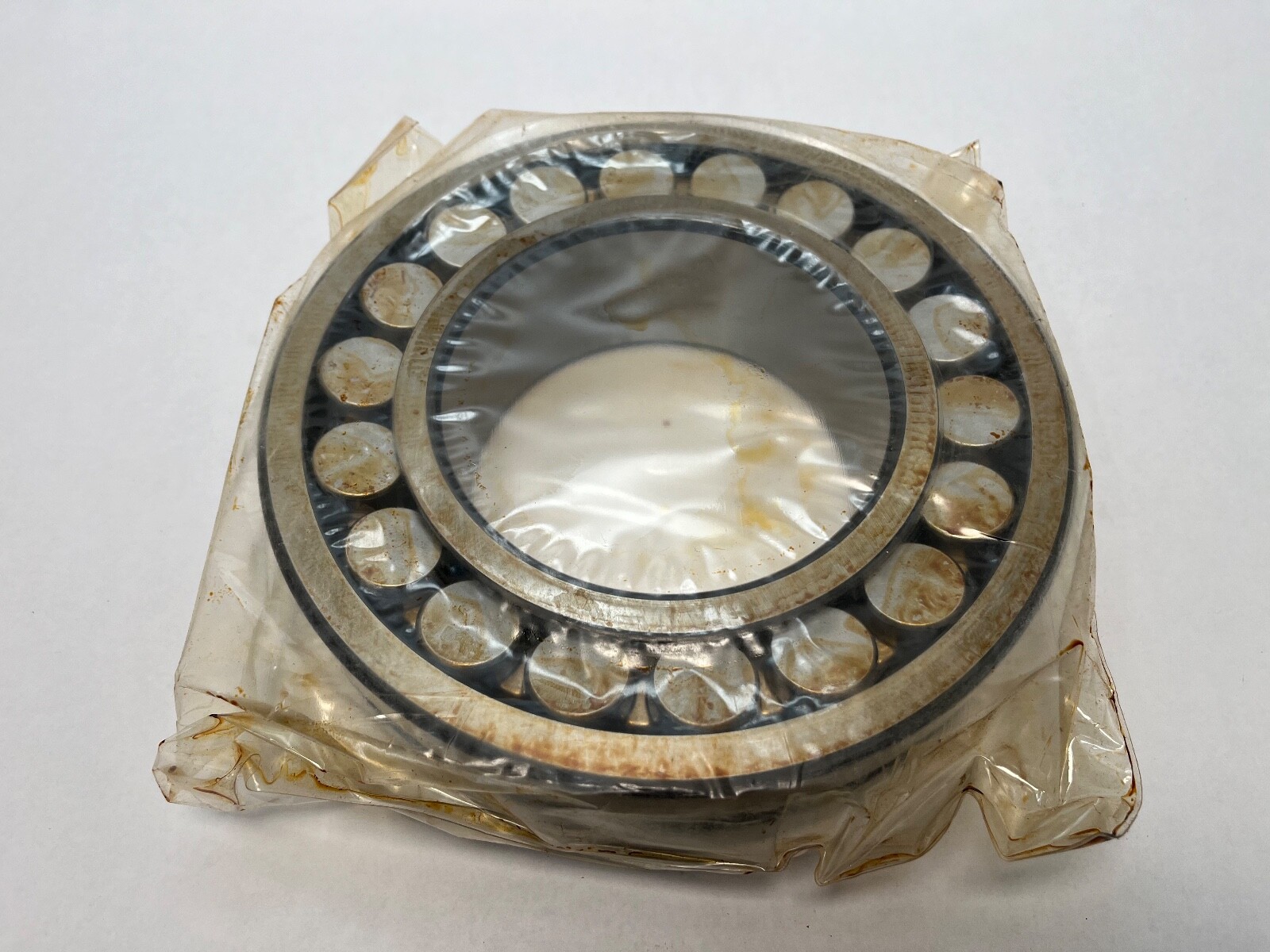

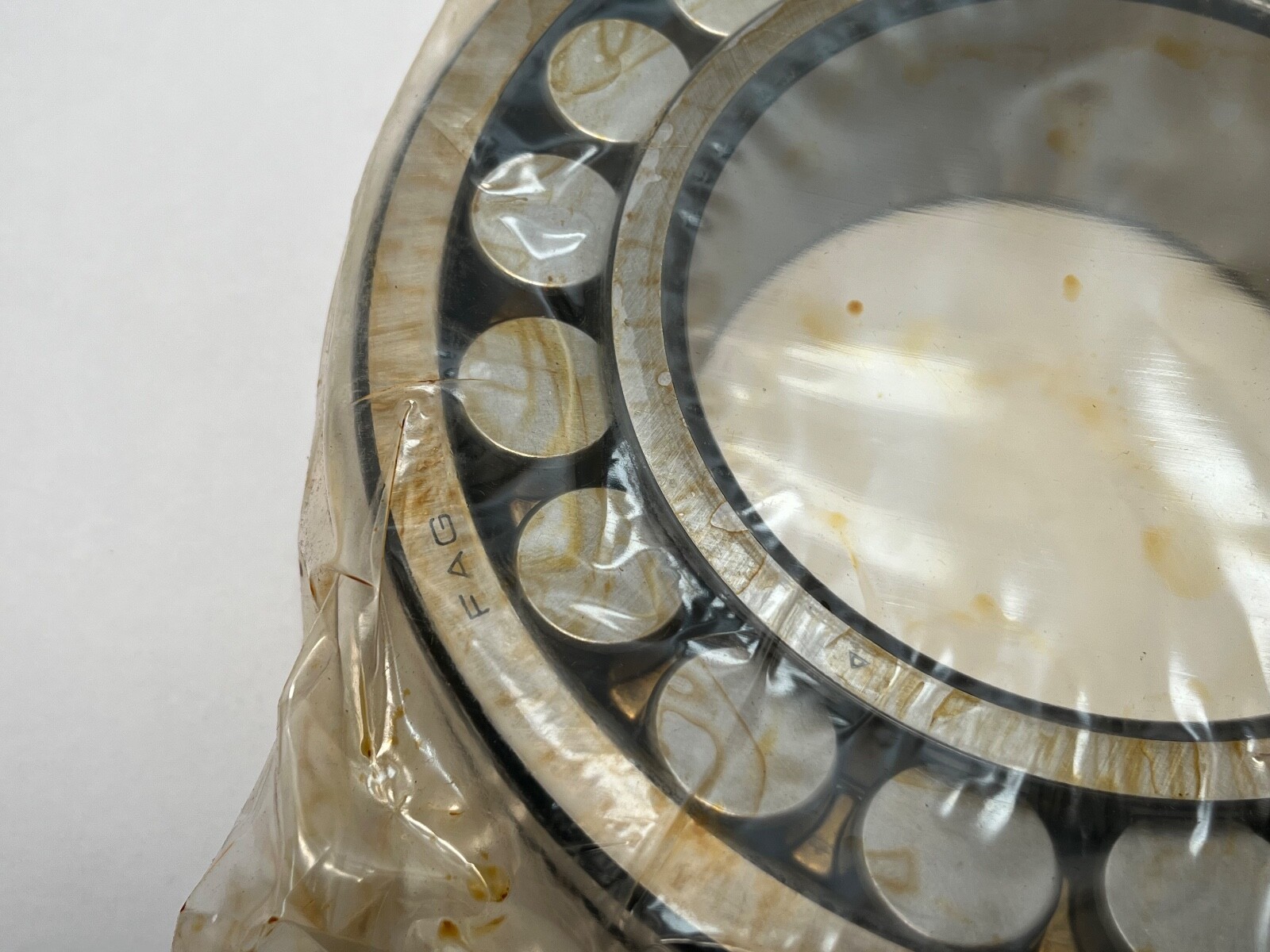

FAG 22224AS.MB is a single double-row spherical roller bearing in the ISO 22224 envelope, new, one complete bearing. Bore Diameter: 120 mm. Outside Diameter: 215 mm. Width: 58 mm. Bore Type: straight (cylindrical). Number Of Rows: 2. Rolling Elements: spherical rollers. Cage: machined brass, inner-ring guided. Lubrication: groove and holes in the outer ring.
22224 — ISO base number for a 222-series double-row spherical roller bearing with a 120 mm bore.
AS — FAG code for an annular lubrication groove with radial lubrication holes in the outer ring.
MB — machined brass solid cage, guided on the inner ring.

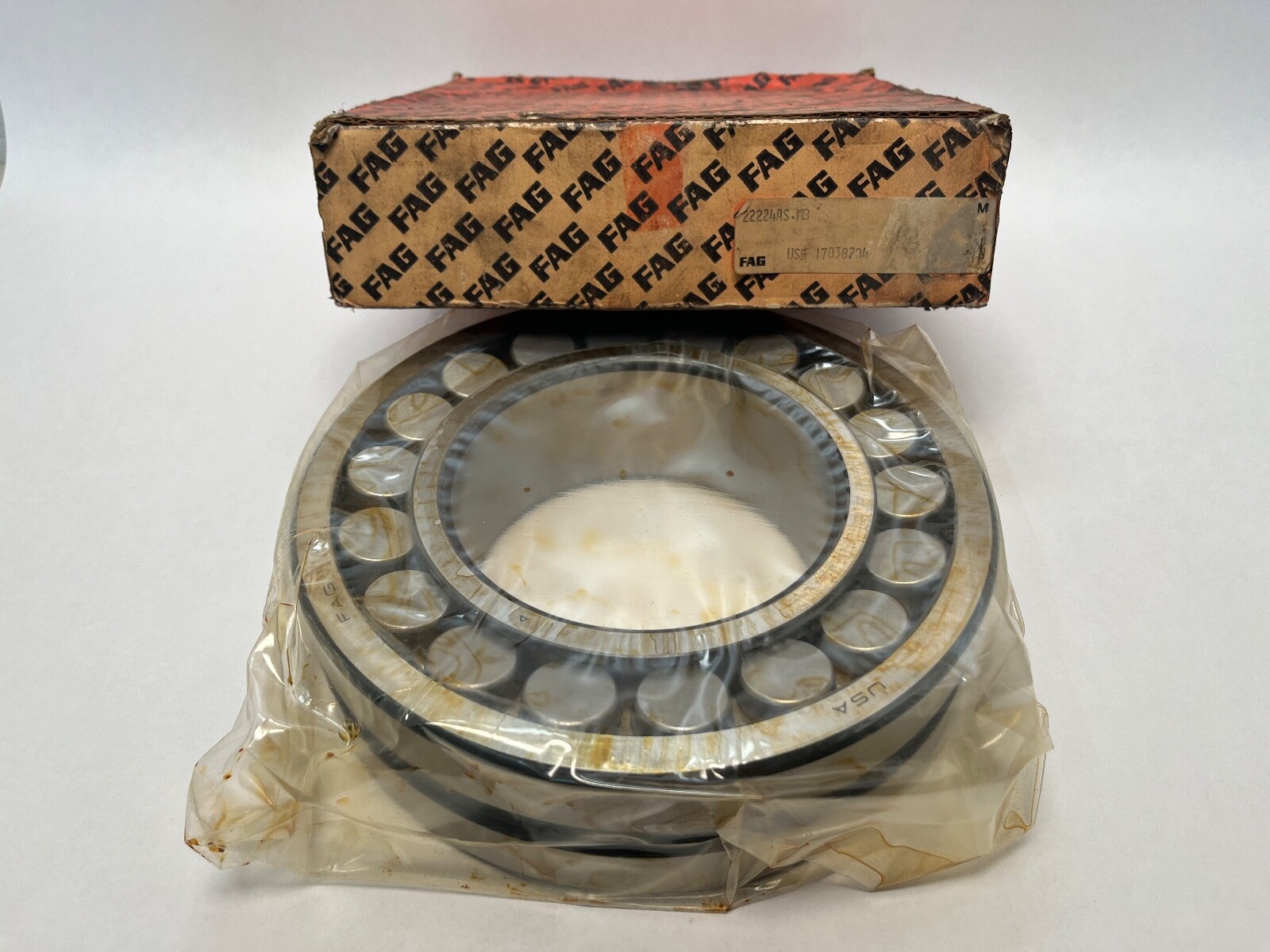

W33 — annular groove and three radial holes in the outer ring, carried on the carton designation 22224-AS-MB-W33.
No K — straight cylindrical bore.
Brand: FAG. Part Number: 22224AS.MB. Base Number: 22224. Series: 222 (ISO 22224). Bearing Type: spherical roller bearing, double row, self-aligning. Bore Diameter: 120 mm. Outside Diameter: 215 mm. Width: 58 mm. Number Of Rows: 2. Internal Clearance: CN. Cage Material: Brass. Cage Type: Machined, inner-ring guided. Closure Type: Open. Bearing Material: Bearing Steel. Lubricant: grease or oil. Harmonization Code: 8482.30.00.
Ring chamfer r (min): 2.1 mm. Calculation factors for the ISO 22224 envelope: e 0.28, Y1 2.4, Y2 3.6, Y0 2.4. Relubrication Feature: W33 annular groove with three lubrication holes in the outer ring. Compatible With: housings and shaft seats machined for an ISO 22224 (120 x 215 x 58 mm) double-row spherical roller bearing with a straight bore.
Cross-references: SKF 22224 E (E design, pressed steel cage); Timken 22224EM (E design, brass cage); Rollway 22224 MB W33 (brass cage, W33 groove). FAG’s current production designation in this size is the 22224-E1(A) family. The 232 series, for example 23224, is wider in the same bore.
Bore Diameter: 120 mm. Outside Diameter: 215 mm. Width: 58 mm. The bore is straight, with no taper.
MB is a machined brass solid cage guided on the inner ring.
Yes. The outer ring has an annular lubrication groove with three radial lubrication holes (AS, W33).
