SKF 22209 CCK/W33 double-row spherical roller bearing, 45 x 85 x 23 mm, 1:12 tapered bore, open, W33 outer-ring lubrication groove with three holes.
List Price
$52.97
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22209 CCK/W33 |
| Model | 22209 CCK/W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Lubricant | Grease or oil |
| Base Number | 22209 |
| Industry Terms | Spherical roller bearing; self-aligning roller bearing |
| Common Misspellings | 22209 CKJ W33; 22209CCKJ W33; 22209 spherical bearing |
| Application Types | conveyor pulleys and idlers; fans and blowers; crushers |
| Bore Shaft Size | 45 mm (1.7717 in), 1:12 tapered bore |
| Locking Method | Adapter sleeve on a 1:12 taper, locked by KM nut and MB washer |
| Mpn Variants | 22209 CCK/W33; 22209CCK/W33; 22209-CKJ/W33; 22209CCKJ |
| Compatible With Replaces | Adapter sleeve H309, locknut KM 9, lockwasher MB 9 |
| Cage Type | Window type, with guide ring |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Relubrication Feature | W33 groove, three radial holes in outer ring |
| Harmonization Code | 8482.30.00 |
| Part Number | 22209 CCK/W33 |
| Closure Type | Open |

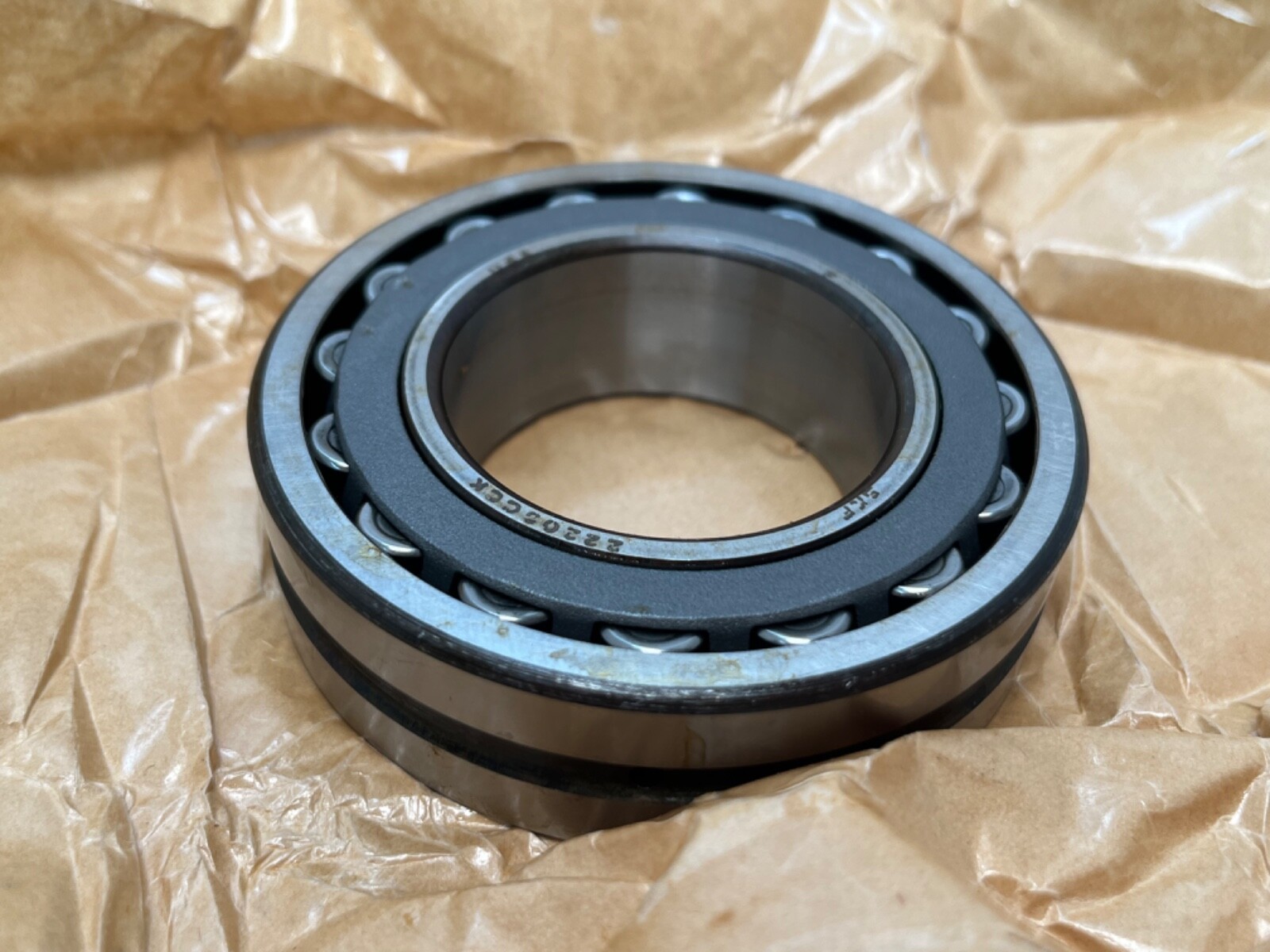

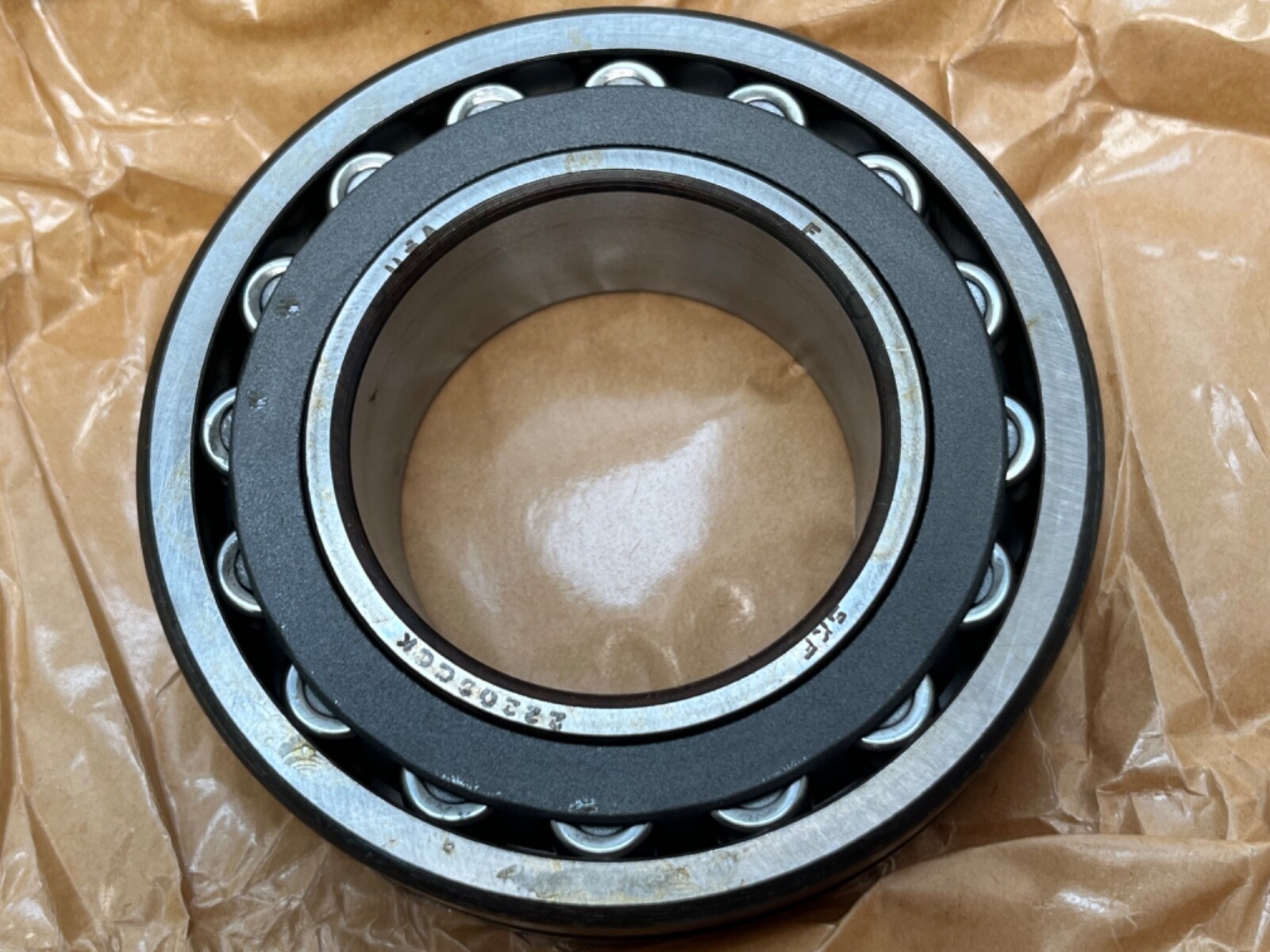

SKF 22209 CCK/W33 is a double-row spherical roller bearing with a 1:12 tapered bore, open on both faces. One bearing, bearing only. Two rows of rollers share one spherical raceway in the outer ring, so the bearing is self-aligning and carries load through shaft deflection and housing misalignment.
222 — wide, higher-capacity spherical roller dimension series. Bore code 09 — 45 mm bore.
CC — pressed steel cage with an inner-ring guide ring.

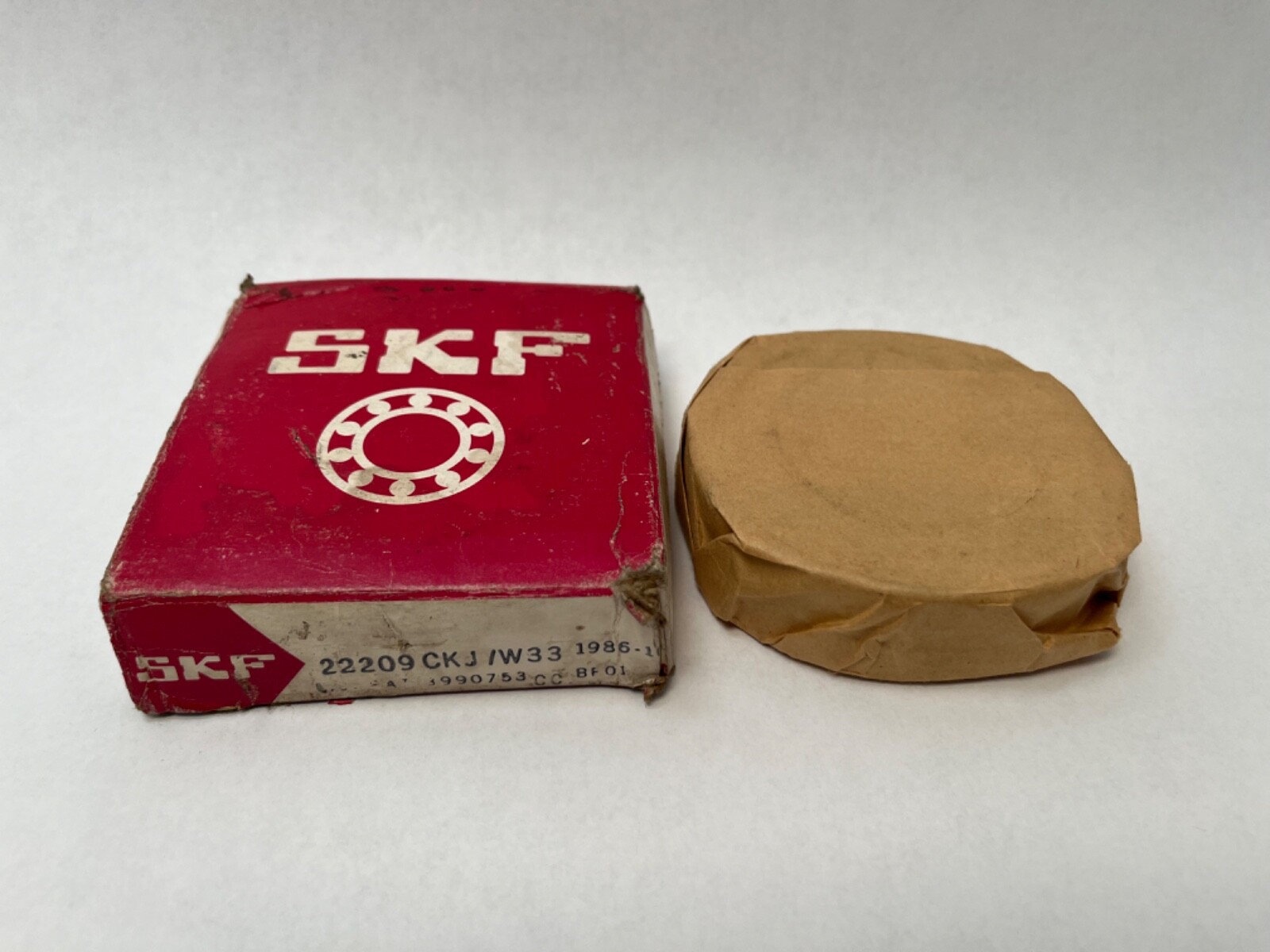

CJ — SKF’s earlier suffix for the same construction, carried on some cartons of this size.
K — 1:12 tapered bore.
W33 — lubrication groove machined around the outer ring with three radial feed holes.
Bore Diameter: 45 mm (1.7717 in). Bore Type: Tapered, 1:12. Outside Diameter: 85 mm. Width: 23 mm. Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Pressed steel. Closure Type: Open. Series: 222. Base Number: 22209. Lubricant: grease or oil via the W33 groove and holes. Relubrication Feature: W33 groove, three radial holes in outer ring. Unit Quantity: 1 Pc. Harmonization Code: 8482.30.00.
Bore: 45 mm, 1:12 taper. Outside Diameter: 85 mm. Width: 23 mm. Matching adapter sleeve: H309, shaft seat 40 mm, with KM 9 locknut and MB 9 lockwasher. The W33 groove and holes carry lubricant to the rollers through the housing.
MPN Variants: 22209 CCK/W33, 22209CCK/W33, 22209-CKJ/W33, 22209CCKJ, 22209-C-K-J-W33, 22209CCKW33, 22209 CJK/W33. Adapter sleeve H309, locknut KM 9 and lockwasher MB 9 are separate parts.
Bore 45 mm with 1:12 taper, outside diameter 85 mm, width 23 mm.
Adapter sleeve H309 with a 40 mm shaft seat, KM 9 locknut and MB 9 lockwasher.
A lubrication groove around the outer ring with three radial feed holes.
