Availability:
1 in stock

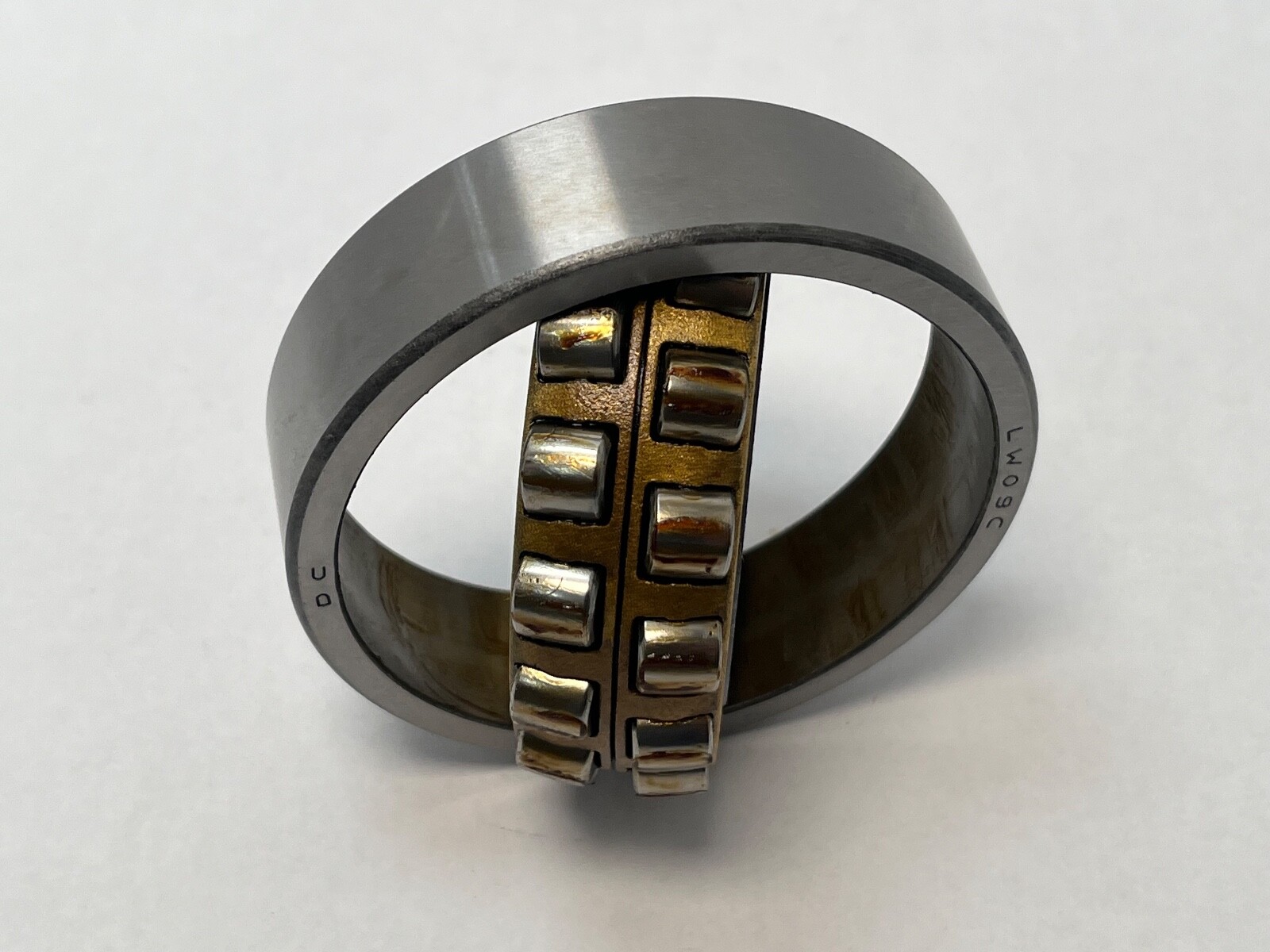

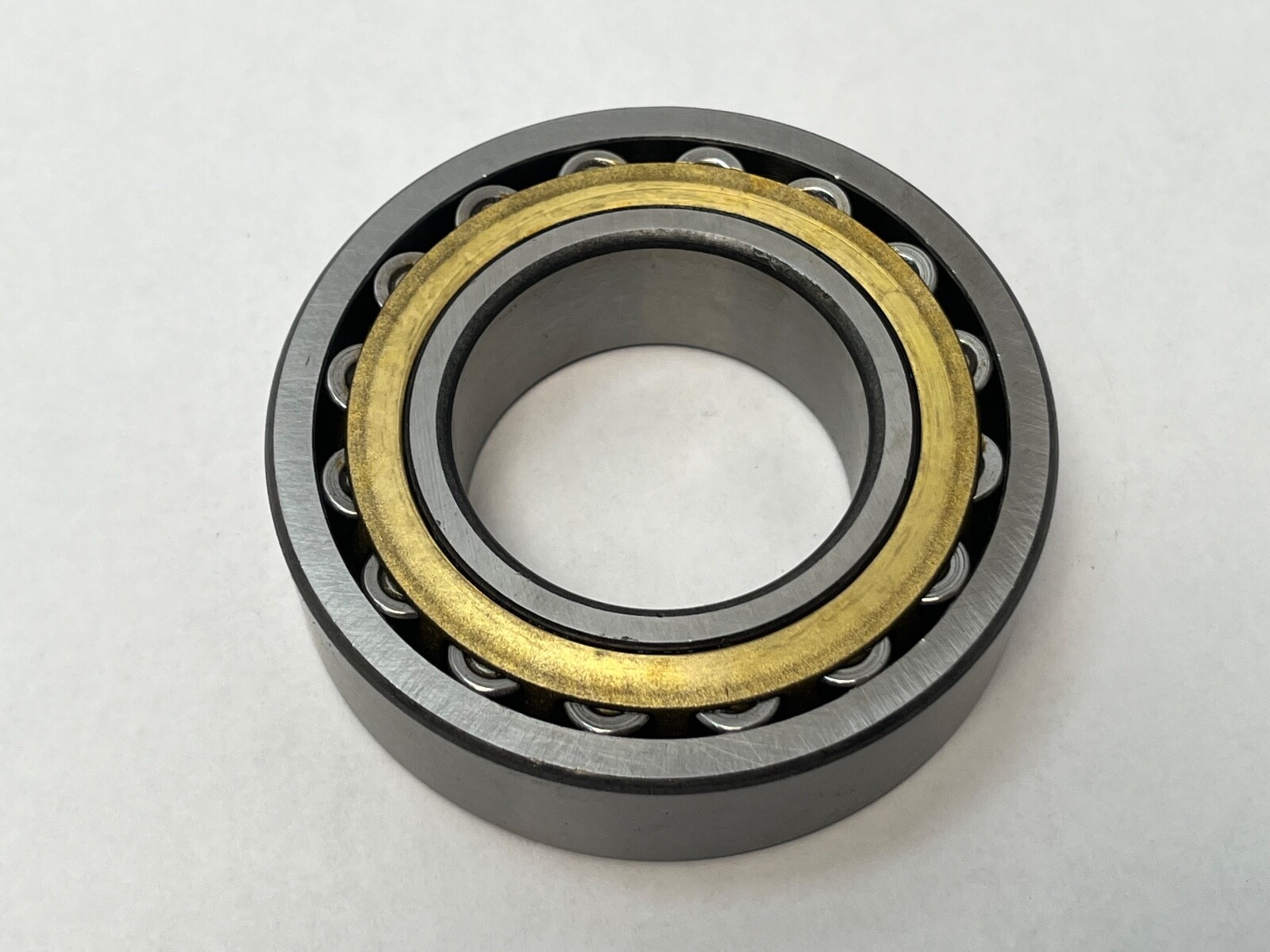

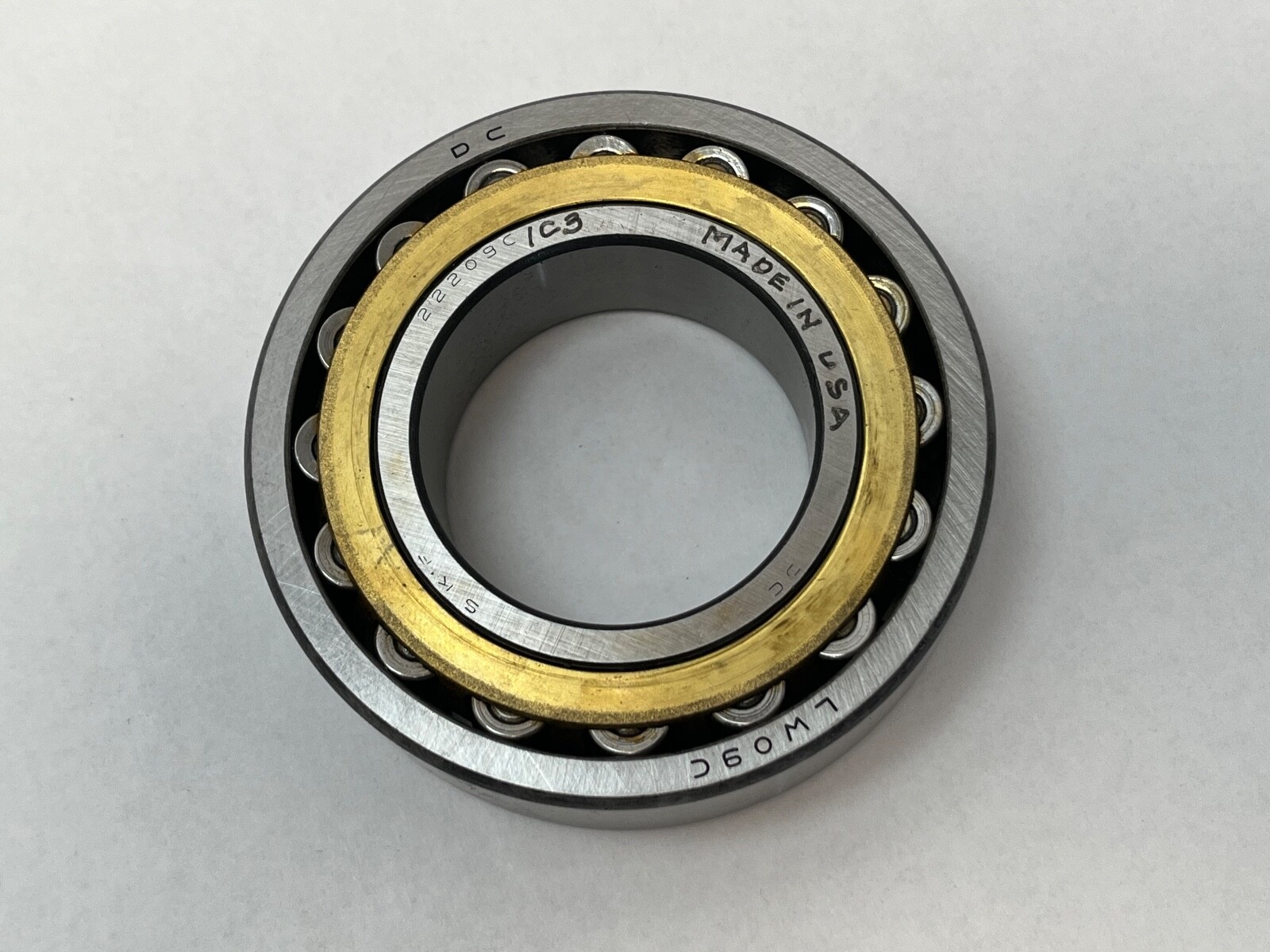

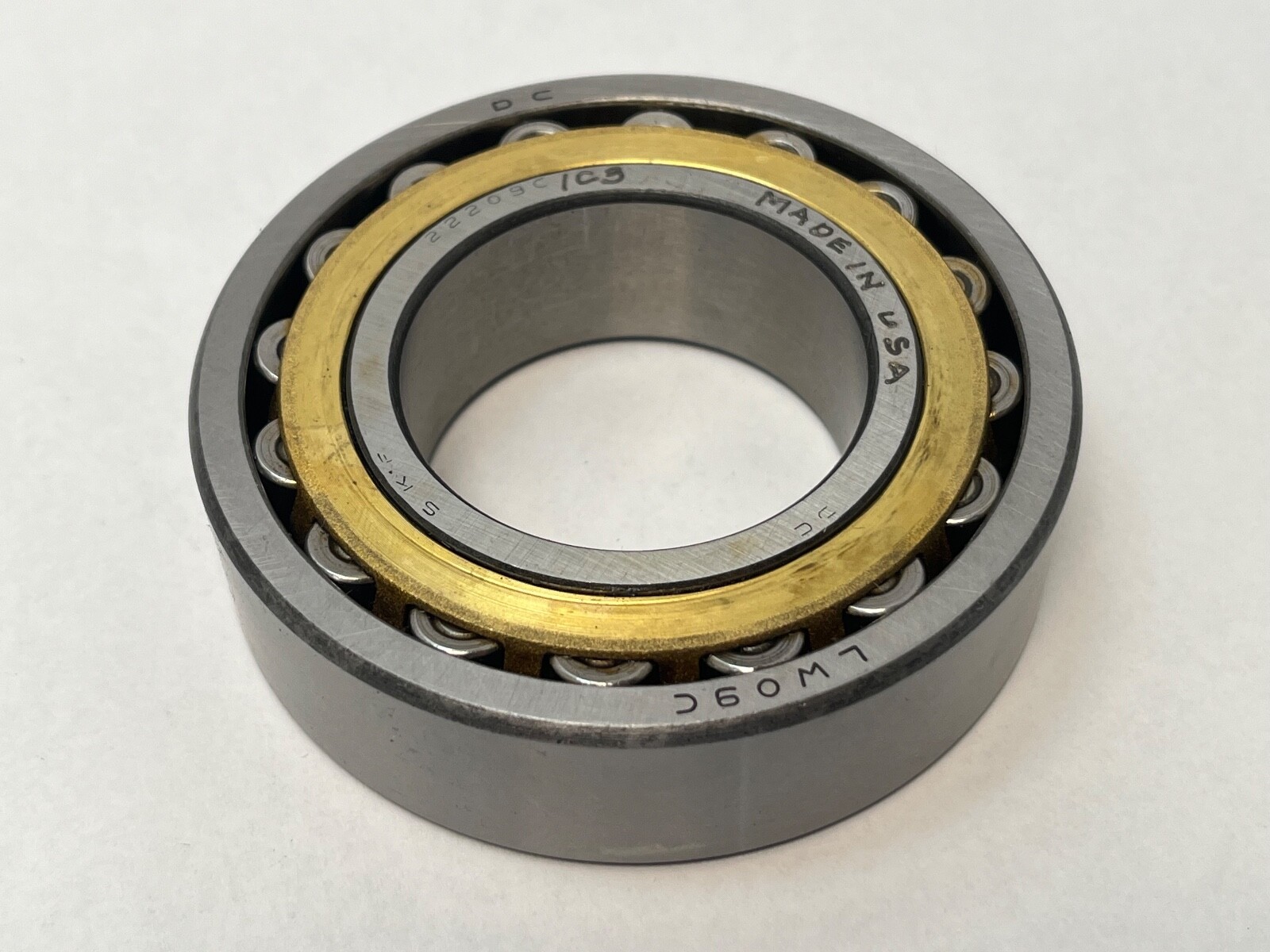

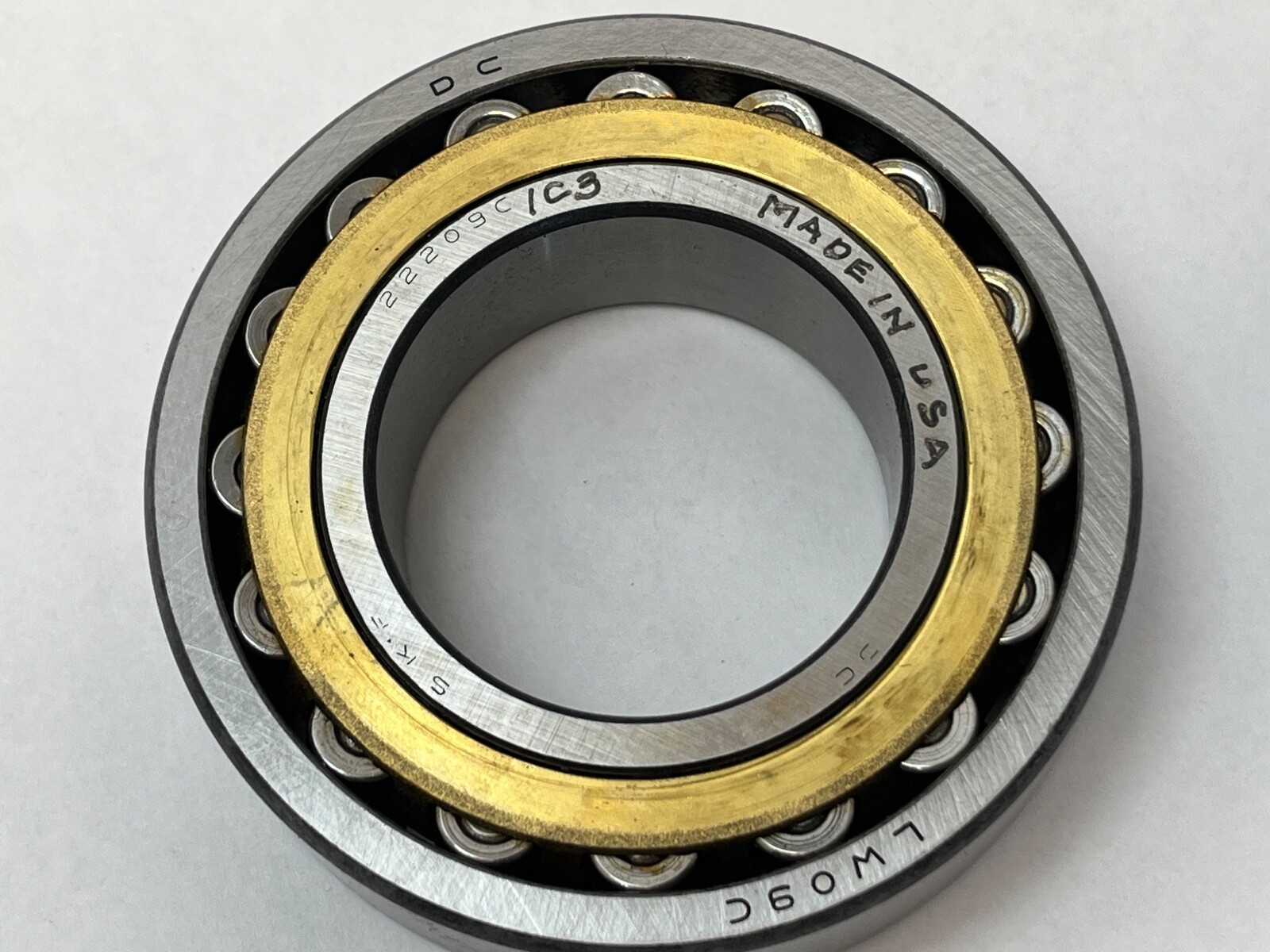

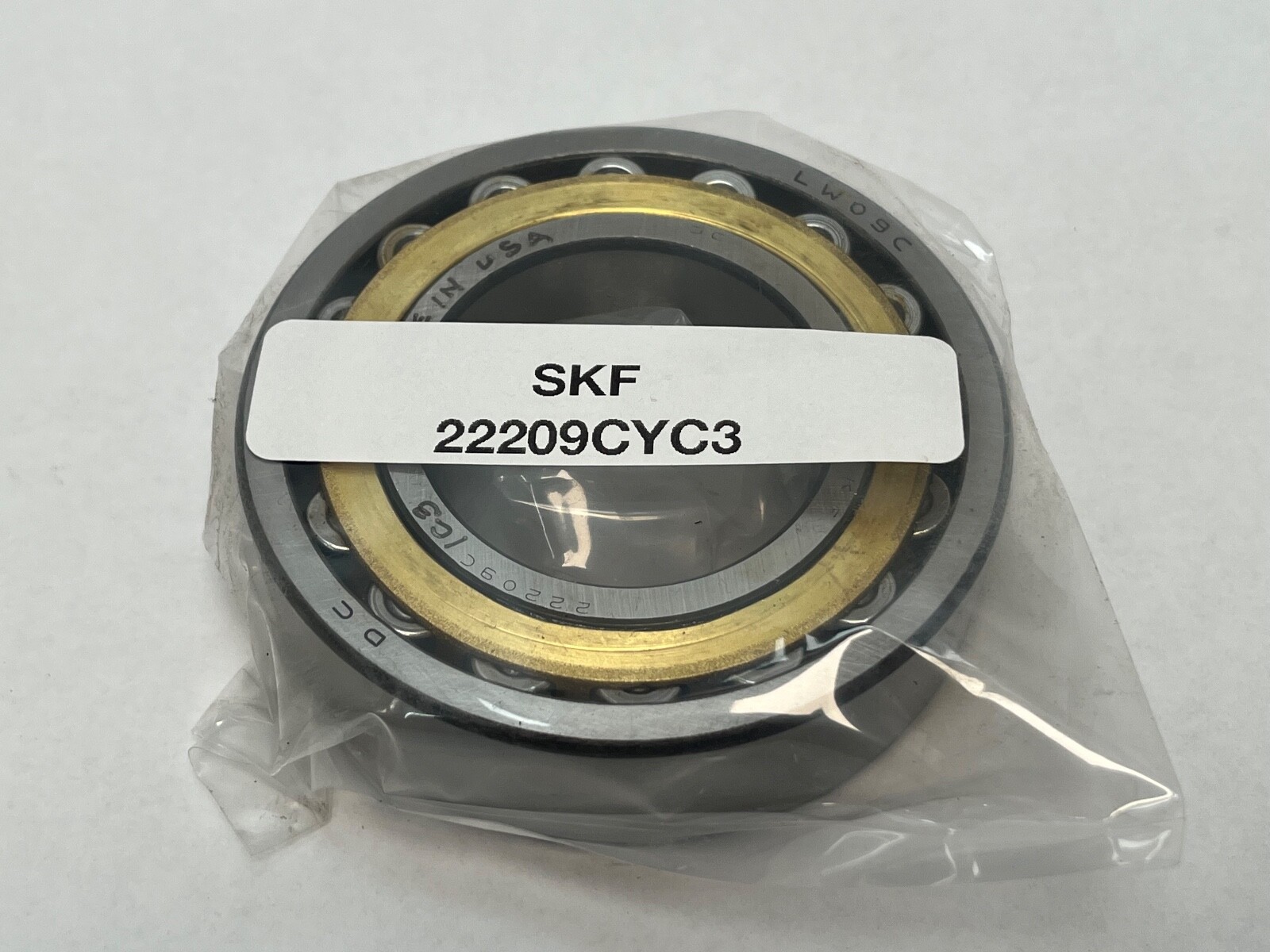

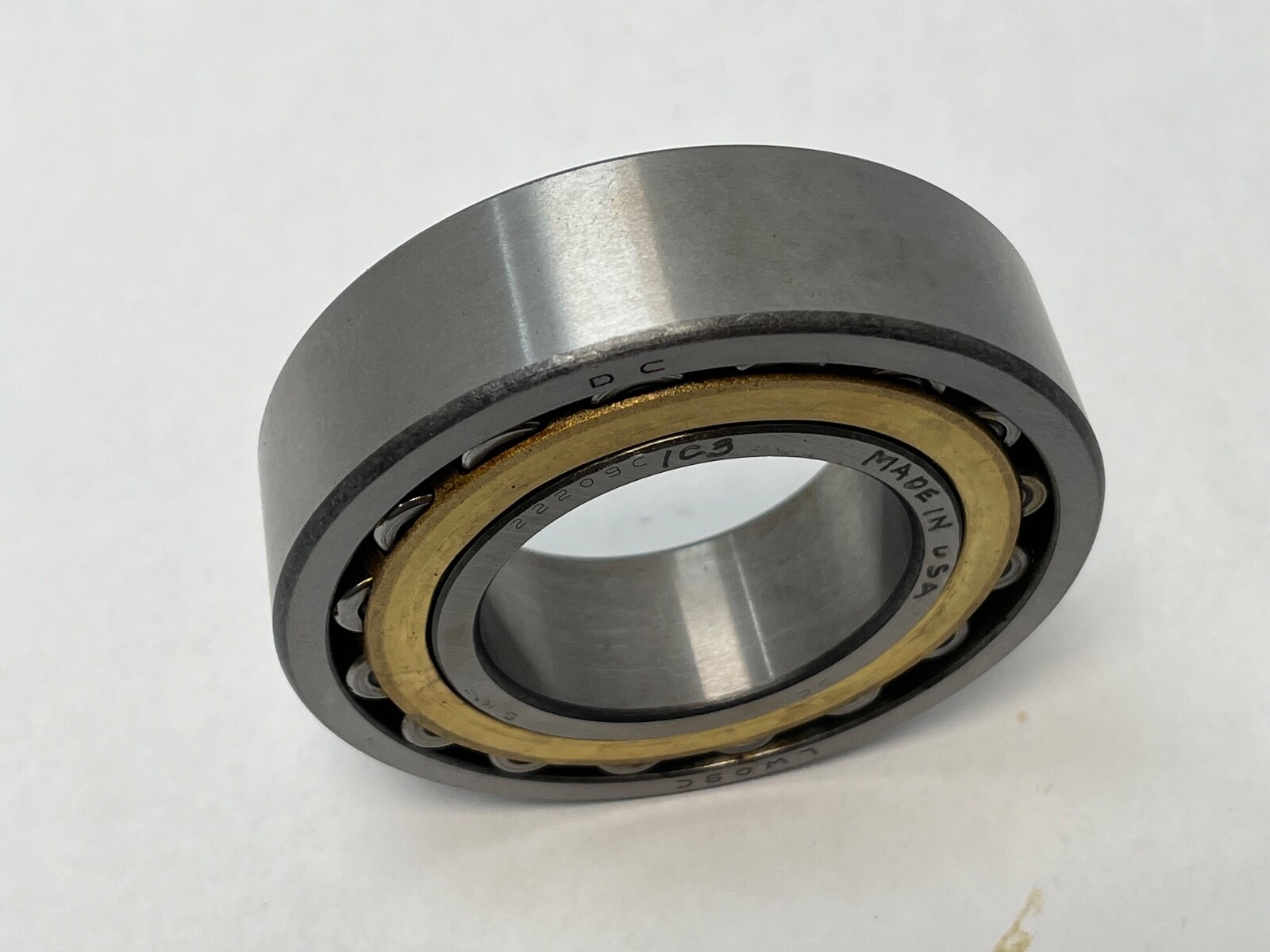

Spherical roller bearing, 45 mm straight bore, 85 mm OD, 23 mm wide, C3 internal clearance. SKF 22209 CY/C3 with pressed brass window cages, open.
List Price
$45.88
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22209 CY/C3 |
| Model | 22209CYC3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Material | Bearing steel |
|---|---|
| Series | 222 |
| Cage Type | Window-type, pressed |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.40 |
| Internal Clearance | C3 |
| Base Number | 22209 |
| Overall Width | 23 mm |
| Mpn Variants | 22209CYC3, 22209 CY C3, 22209-C-Y-C3, 22209CY/C3 |
| Cross Reference 1 | SKF 22209 E/C3 - E design, higher ratings |
|---|---|
| Cross Reference 2 | FAG 22209-E1-C3 - E design |
| Cross Reference 3 | NSK 22209EAE4C3 - E design |
| Cross Reference 4 | NTN 22209BC3 - B design |
| Cross Reference 5 | Timken 22209EJW33C3 - E design, W33 groove |
SKF 22209 CY/C3 double-row spherical roller bearing from the 222 series with a cylindrical bore and C3 internal clearance. The sphered outer raceway lets the bearing self-align under shaft deflection or mounting misalignment. Unit Quantity: 1 Pc.
22209 — SKF spherical roller bearing, 222 dimension series, bore code 09 = 45 mm.
C — SKF C internal design, symmetrical rollers.
Y — pressed brass window-type cage.
C3 — radial internal clearance greater than normal.
Bearing Type: Spherical Roller Bearing. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Straight. Cage Type: Window-type, pressed. Cage Material: Pressed brass. Closure Type: Open. Internal Clearance: C3. Series: 222.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. The straight bore mounts directly on a 45 mm shaft seat.
Cross-references with the same 45 x 85 x 23 mm envelope, all E-design bearings with different ratings: SKF 22209 E/C3, FAG 22209-E1-C3, NSK 22209EAE4C3, NTN 22209BC3, Timken 22209EJW33C3. MPN Variants: 22209CYC3, 22209 CY C3, 22209-C-Y-C3, 22209CY/C3.
45 mm straight (cylindrical) bore.
Yes. It is a double-row spherical roller bearing with a sphered outer raceway, so it self-aligns to accommodate shaft misalignment.
A pressed brass window-type cage (Y).
