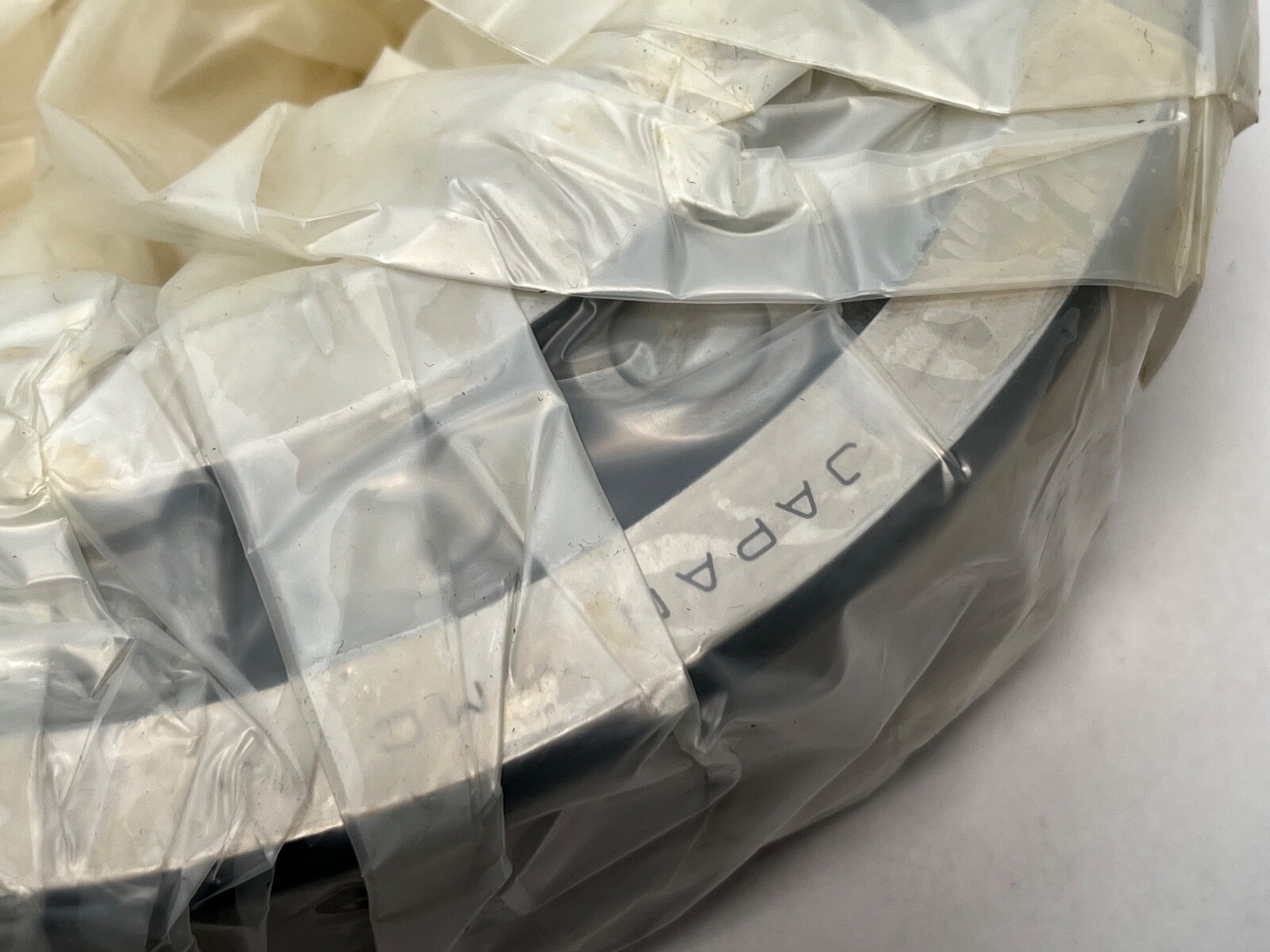

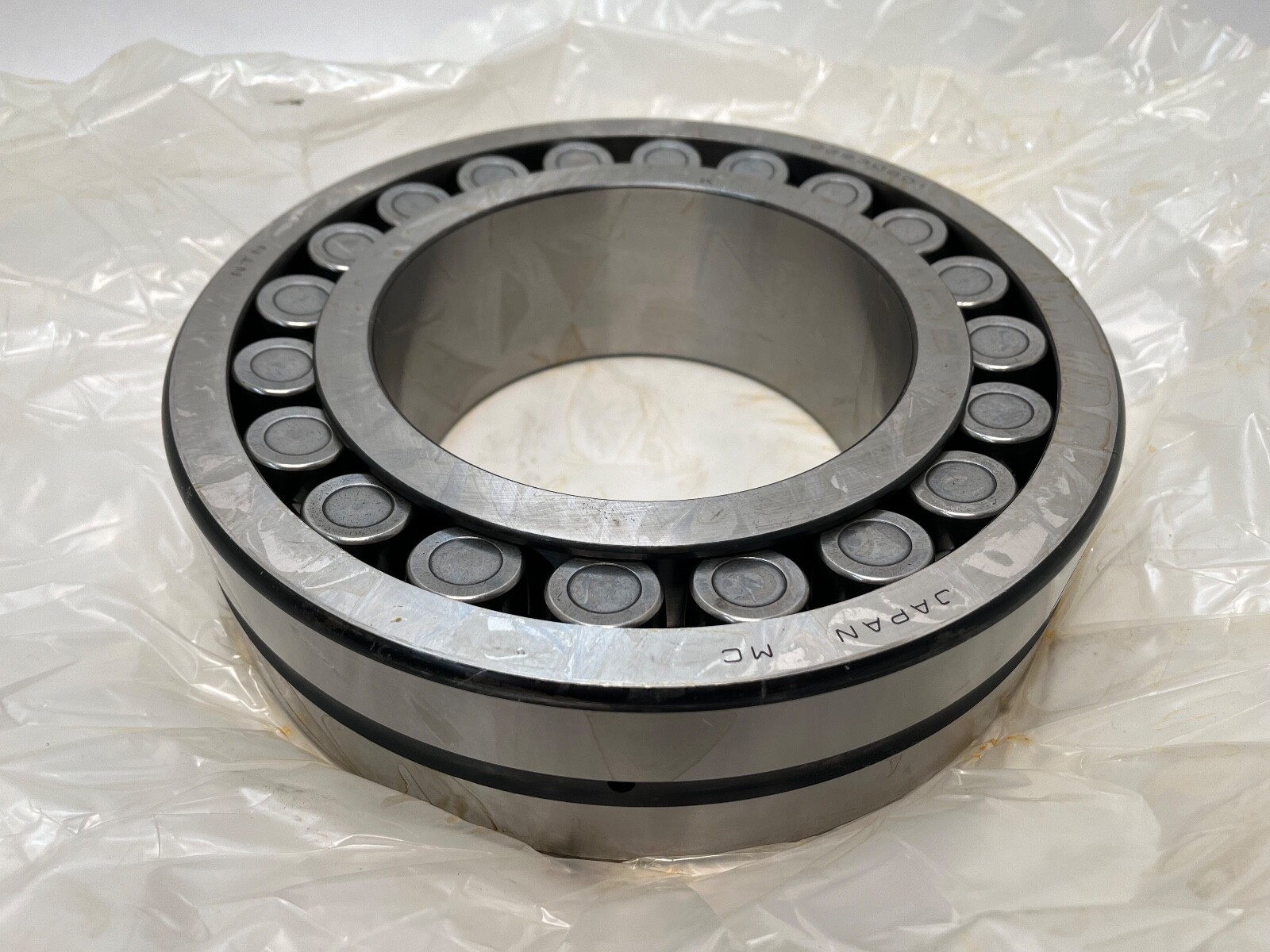

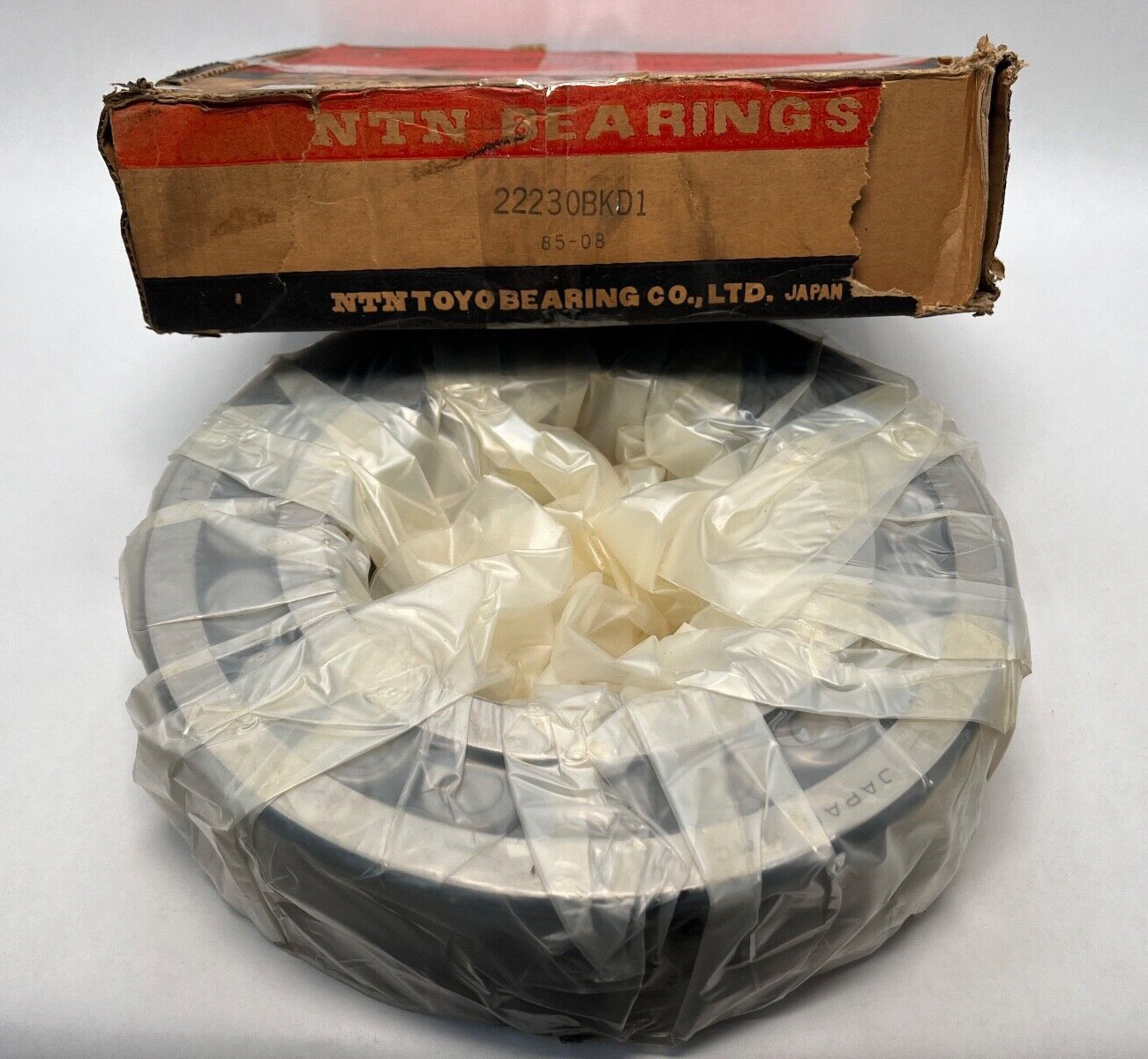

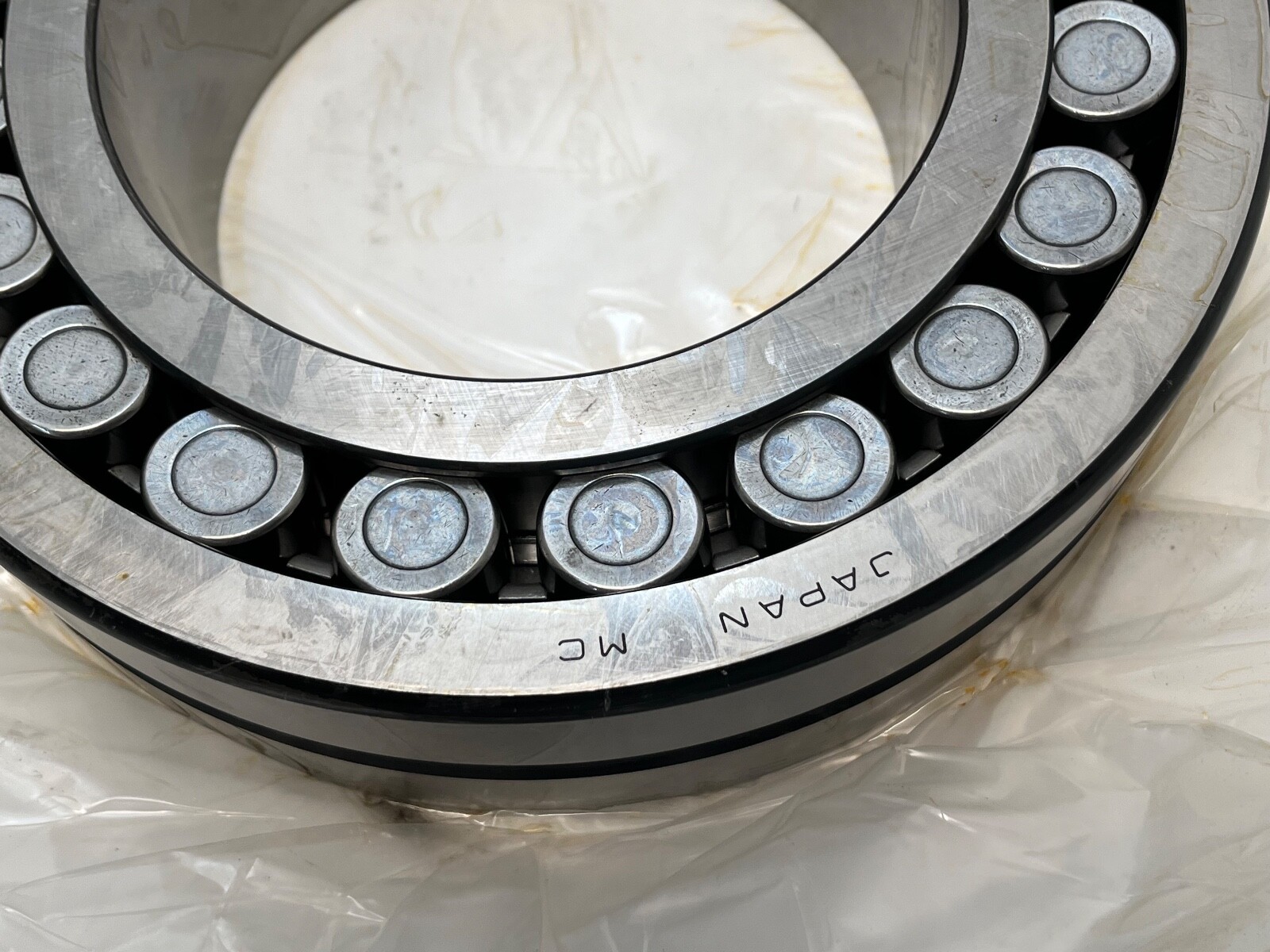

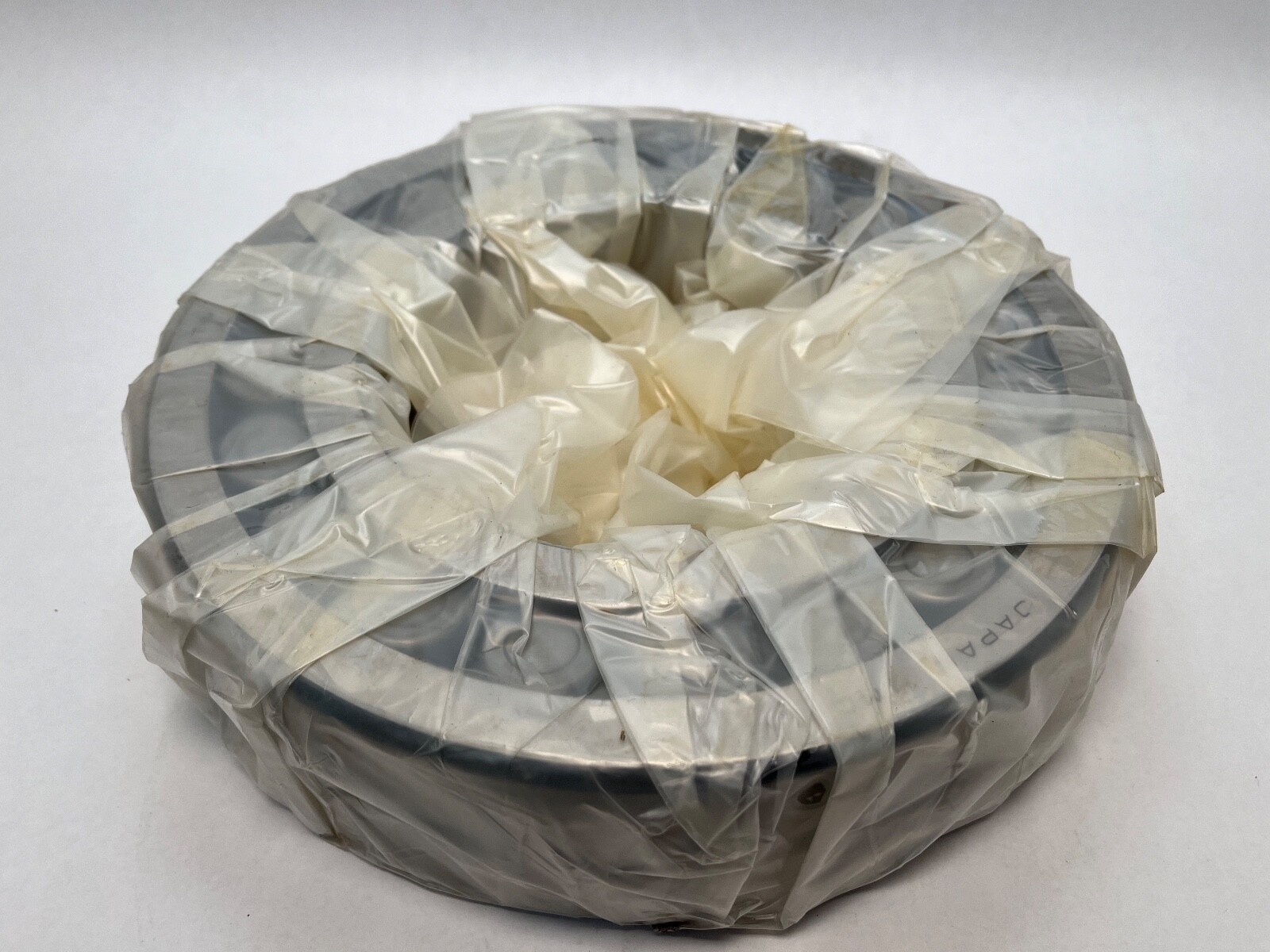

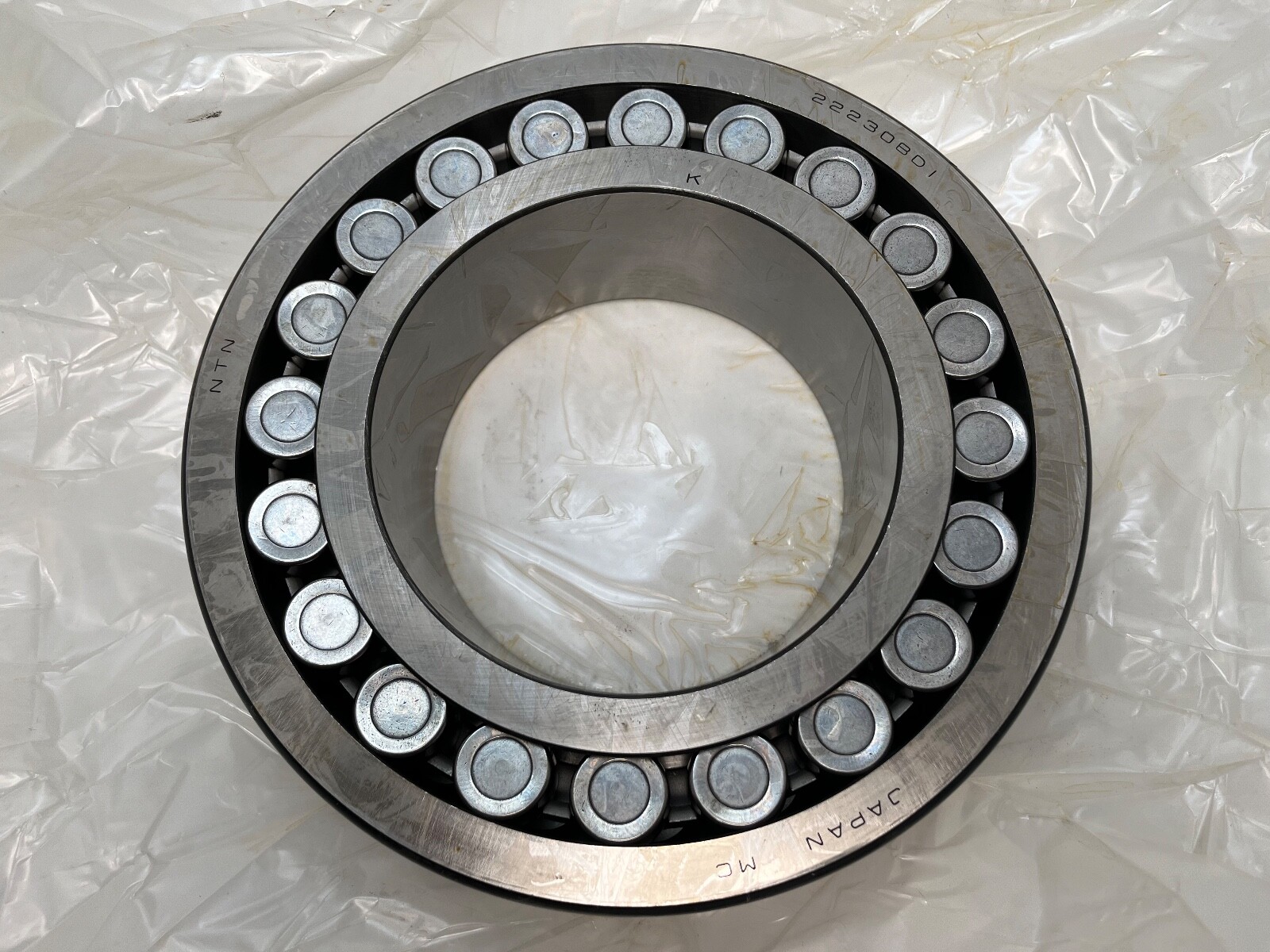

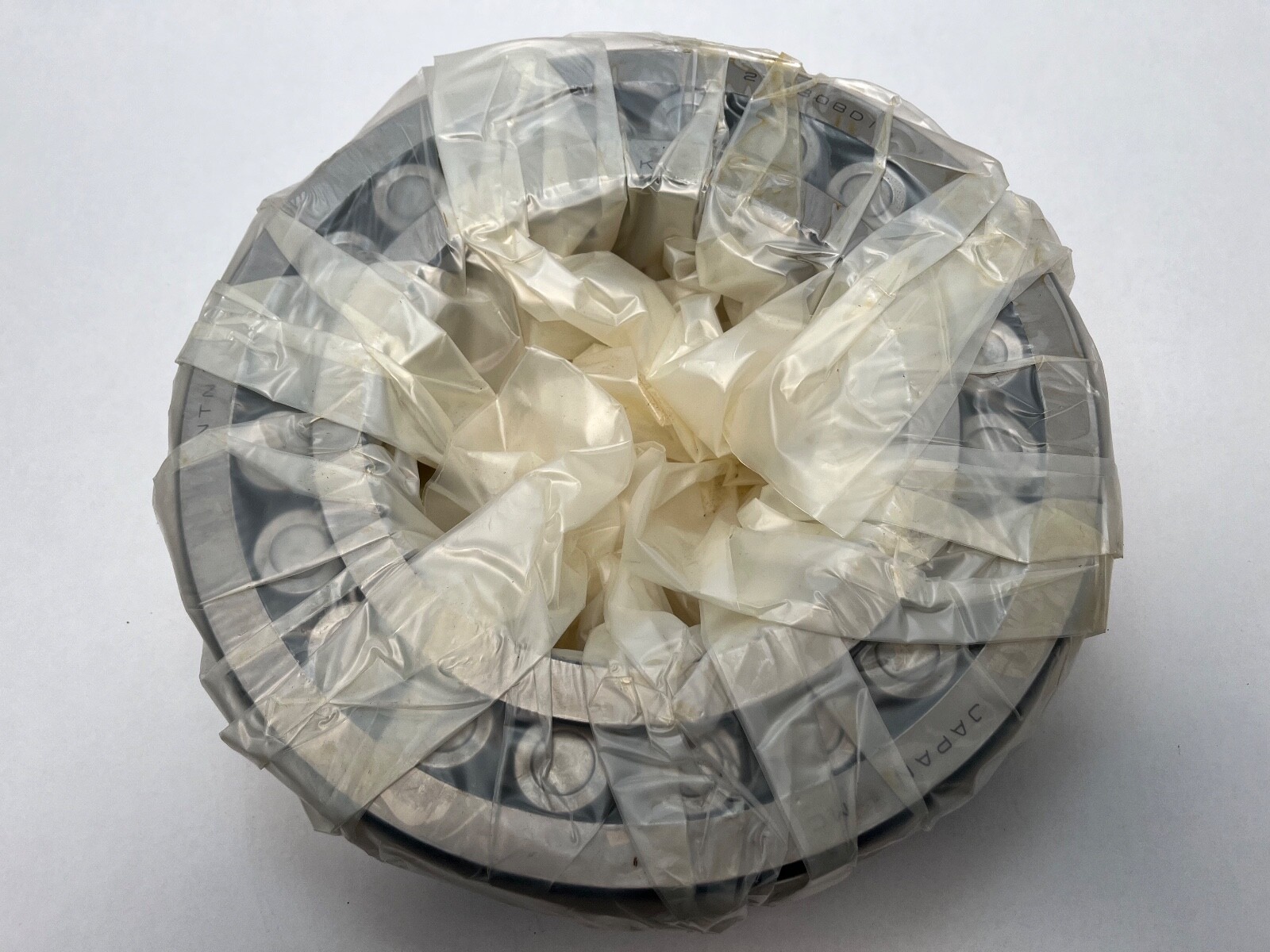

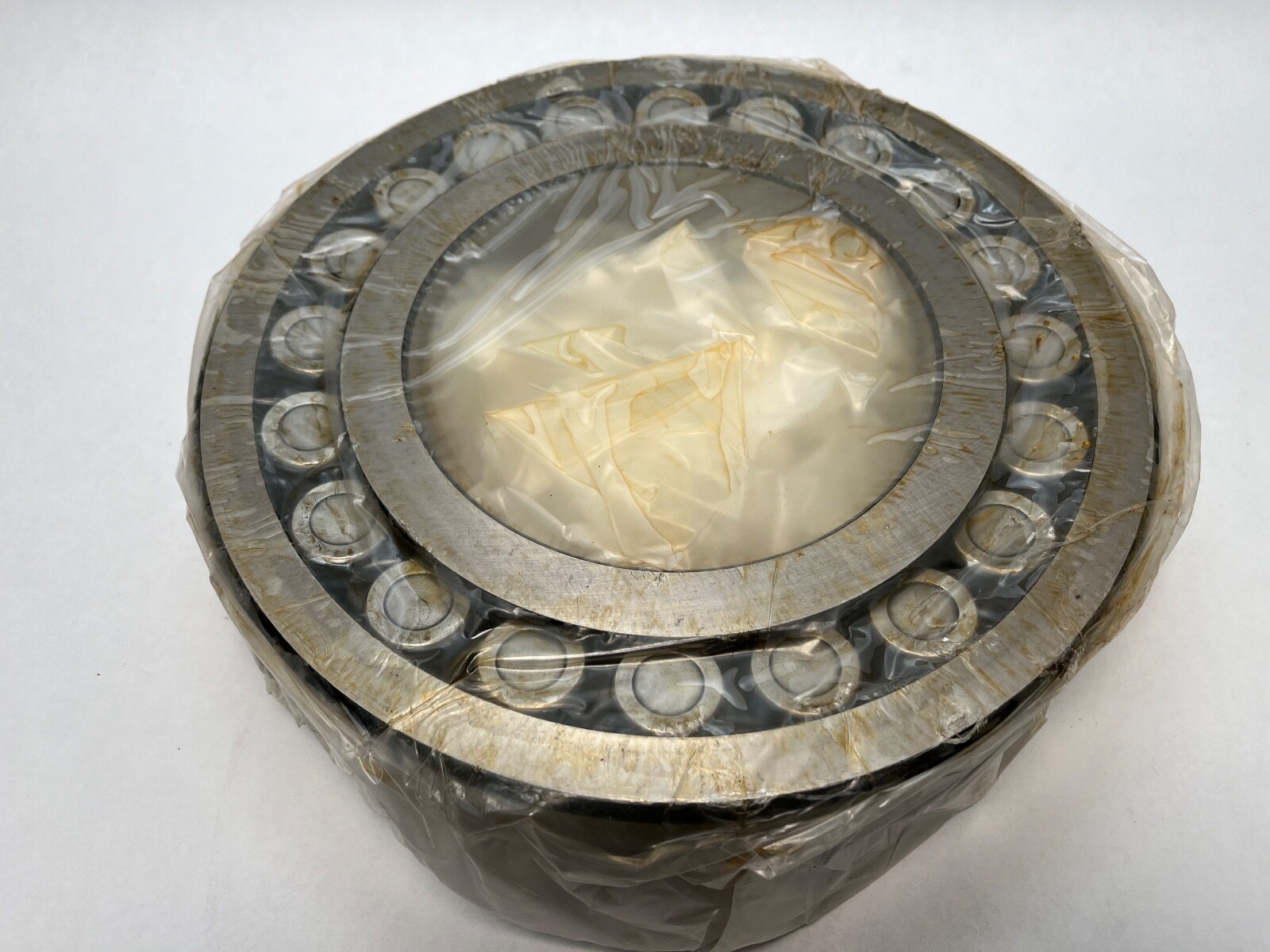

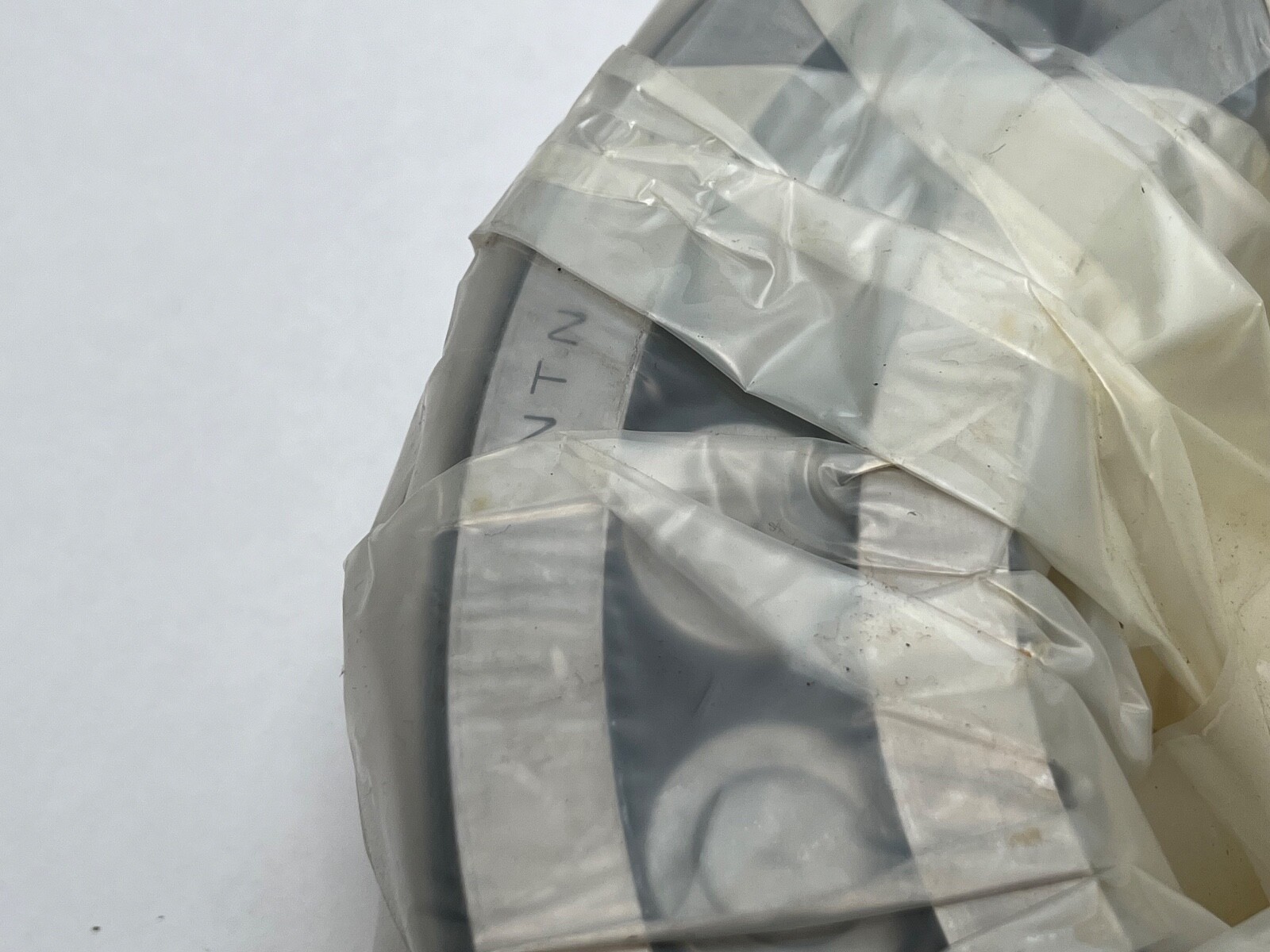

Spherical roller bearing, 150 x 270 x 73 mm, 1:12 tapered bore, W33 lubrication groove and holes, CN clearance. NTN 22230BKD1, mounts on H3130 sleeve.
List Price
$374.82
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 22230BKD1 |
| Model | 22230 B/J K D1/W33 / 22230 CKJ/CCKJ W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 150 mm |
| OD | 270 mm |
| Width | 73 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Lubricant | grease or oil |
| Mpn Variants | 22230BKD1, 22230-B-K-D1, 22230 B/J K D1/W33, 22230CKJW33, 22230 CKJ/CCKJ W33 |
| Compatible With Replaces | Mounts on H3130 adapter sleeve |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Relubrication Feature | W33 groove and three holes (D1) |
| Harmonization Code | 8482.30.00.80 |
| Closure Type | Open |
| Cross Reference 1 | SKF 22230CCK/W33 |
|---|---|
| Cross Reference 2 | FAG 22230-E1-K |
| Cross Reference 3 | NSK 22230CDKE4 |
| Cross Reference 4 | Timken 22230KEMW33 |

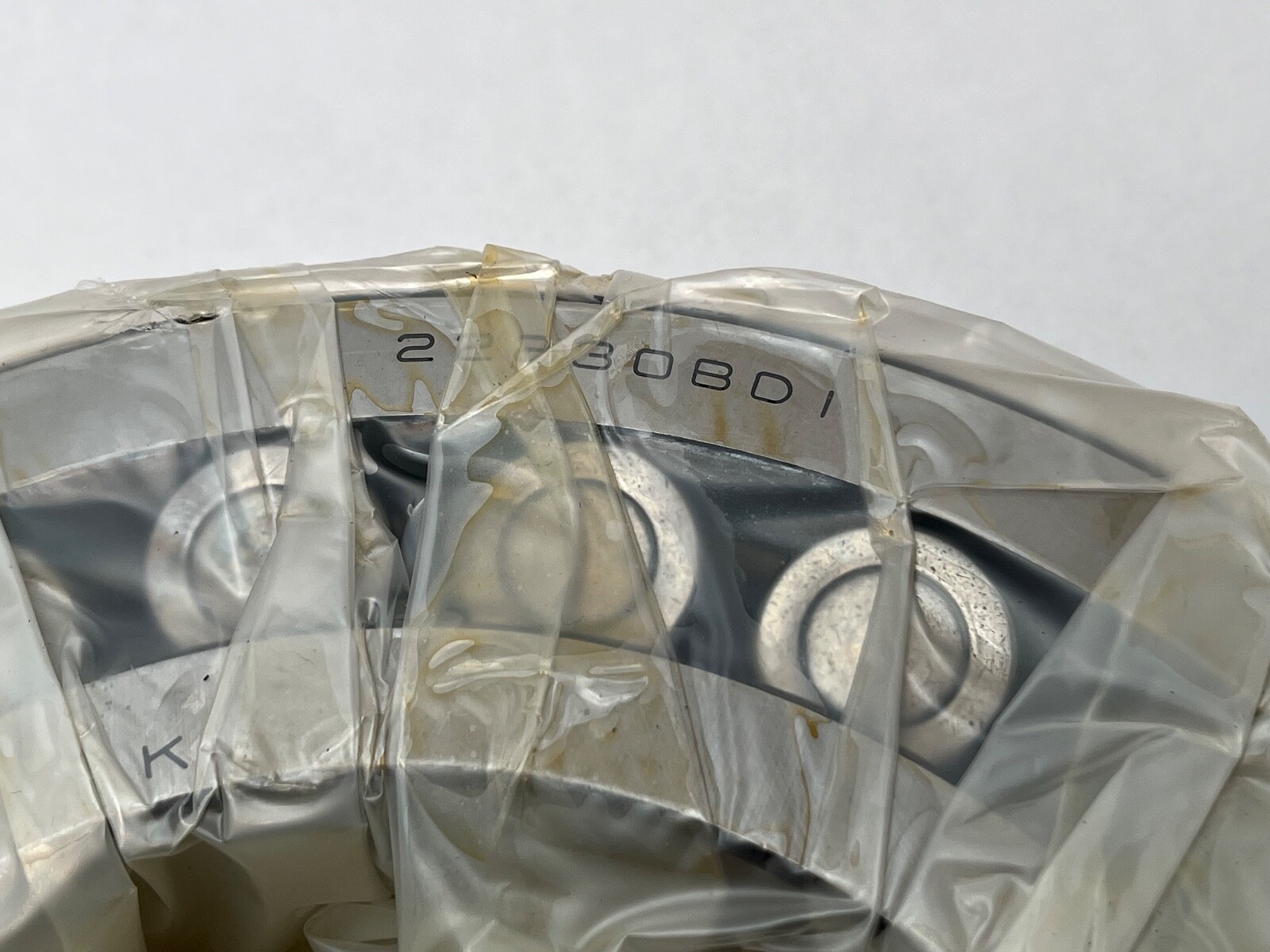

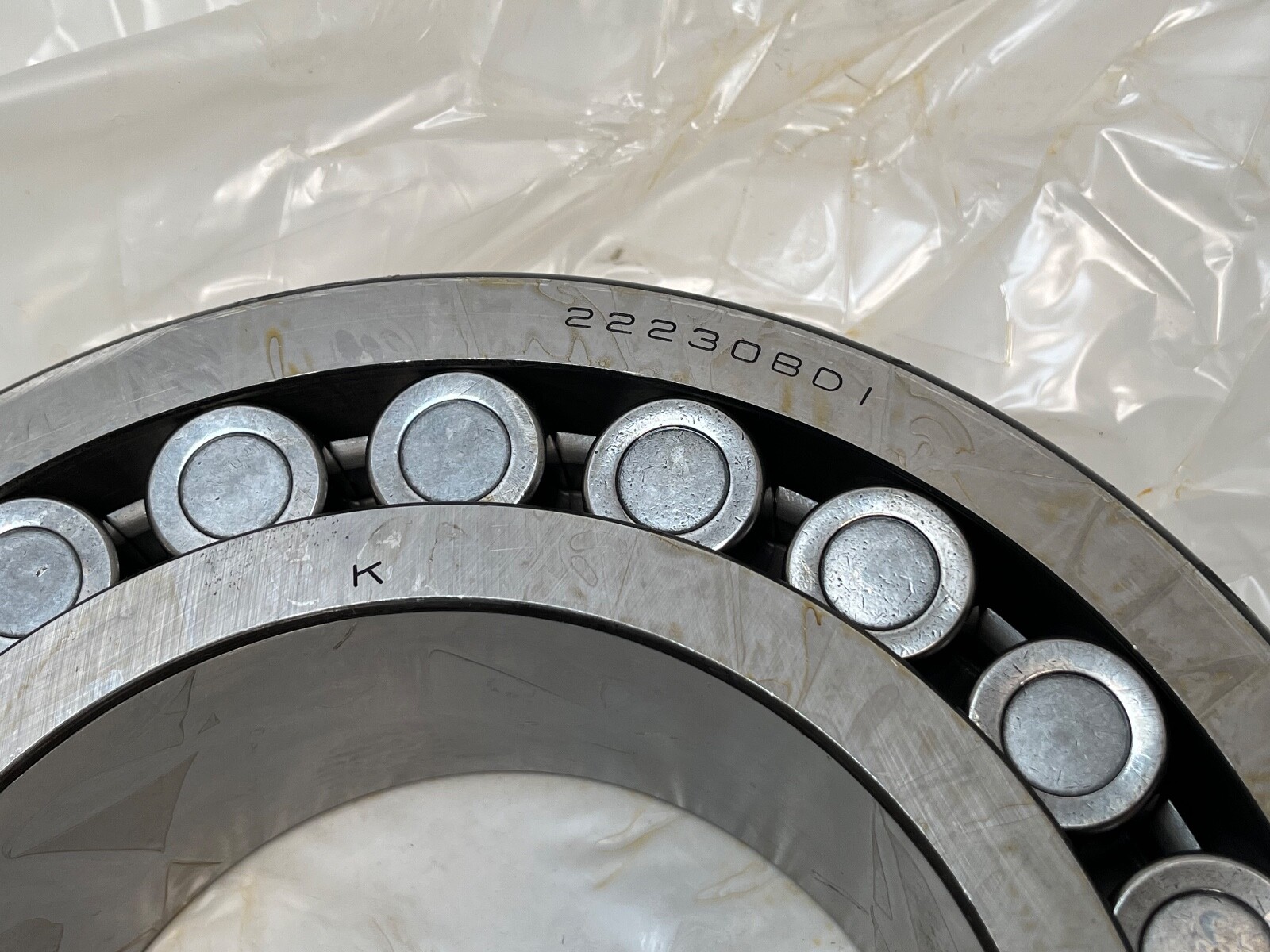

NTN 22230BKD1 double-row spherical roller bearing with a 1:12 tapered bore and a lubrication groove with three radial holes in the outer ring. Unit Quantity: 1 Pc.
222 — spherical roller bearing, dimension series 22.
30 — bore code, 30 x 5 = 150 mm.
B — NTN legacy standard internal design.
K — 1:12 tapered bore.
D1 — lubrication groove and three radial holes in the outer ring, the W33 feature.
Bore Diameter: 150 mm. Outside Diameter: 270 mm. Overall Width: 73 mm. Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Type: Tapered 1:12. Internal Clearance: CN. Lubricant: grease or oil. Closure Type: Open. Series: 22200. Relubrication Feature: W33 groove and three holes (D1). Country of Origin: Japan.
Tapered bore 1:12. Adapter sleeve: H3130, with matching locknut and lock washer, for a 135 mm shaft. Harmonization Code: 8482.30.00.80.
Cross-references: SKF 22230CCK/W33; FAG 22230-E1-K; NSK 22230CDKE4; Timken 22230KEMW33; Koyo 22230RHAKW33. Other written forms of the designation: 22230CKJW33; 22230 CKJ/CCKJ W33.
150 mm bore, 270 mm outside diameter and 73 mm width, with a 1:12 tapered bore.
D1 is the lubrication groove with three radial holes in the outer ring, the W33 feature.
The H3130 adapter sleeve, for a 135 mm shaft.
