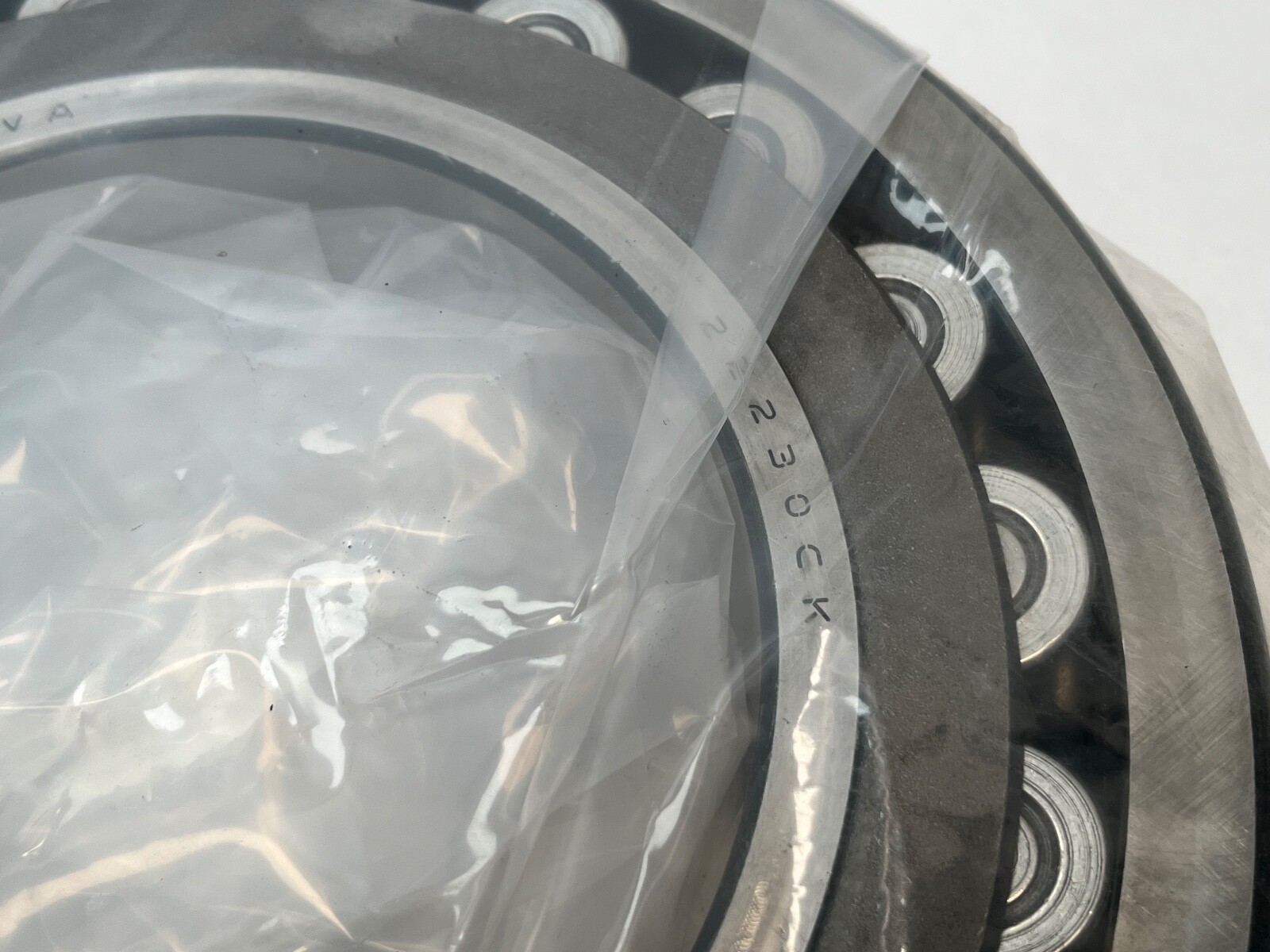

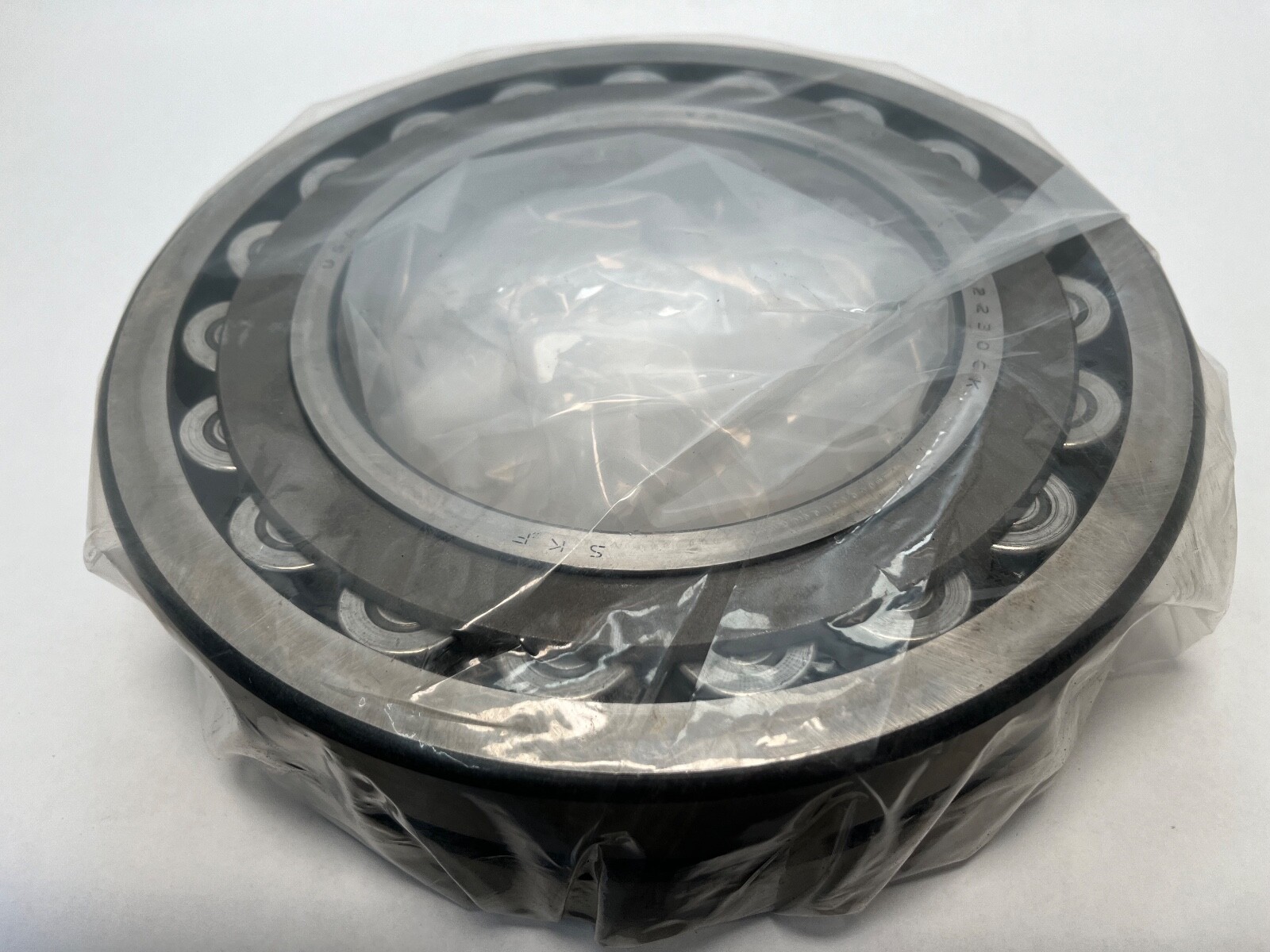

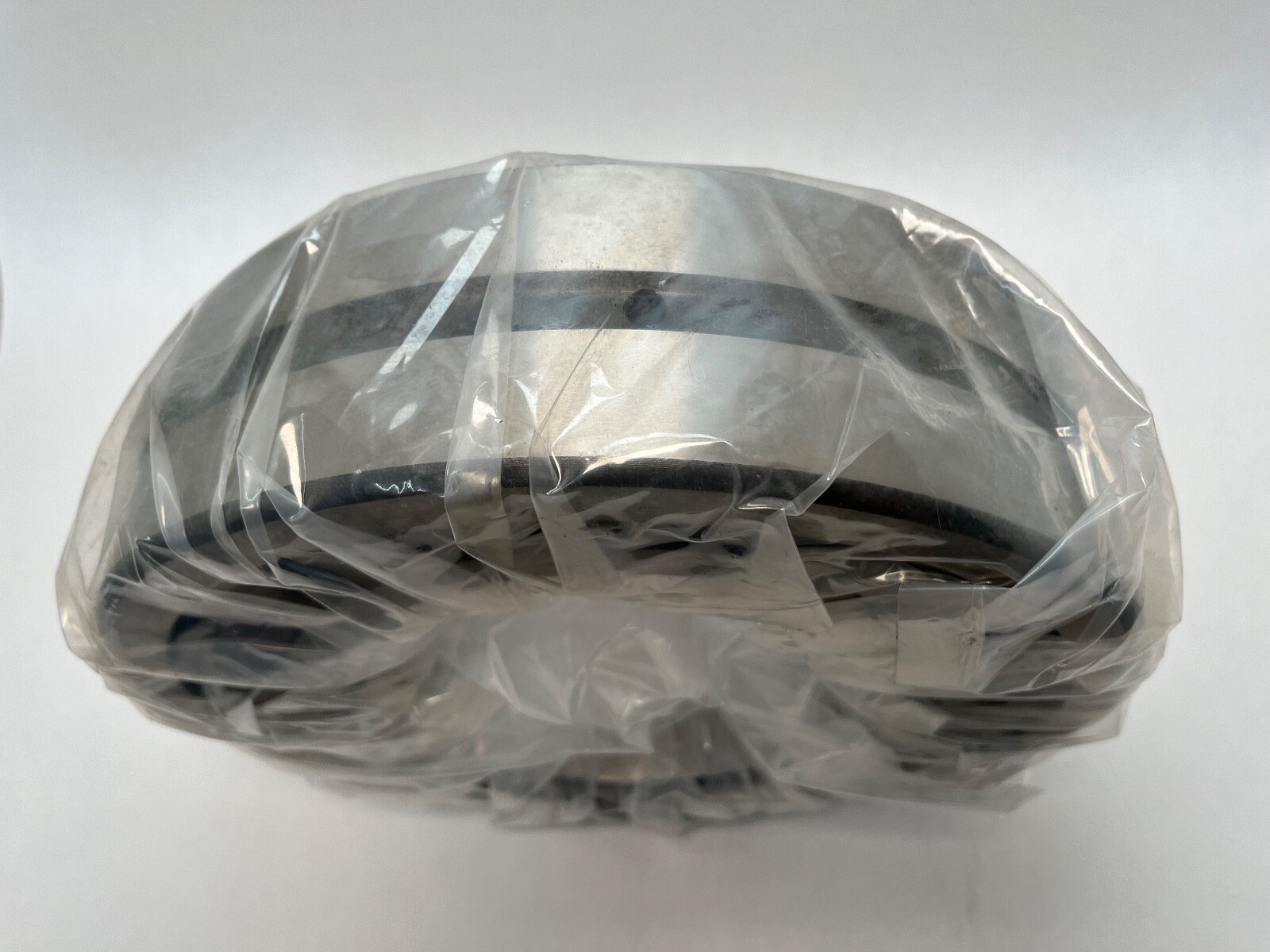

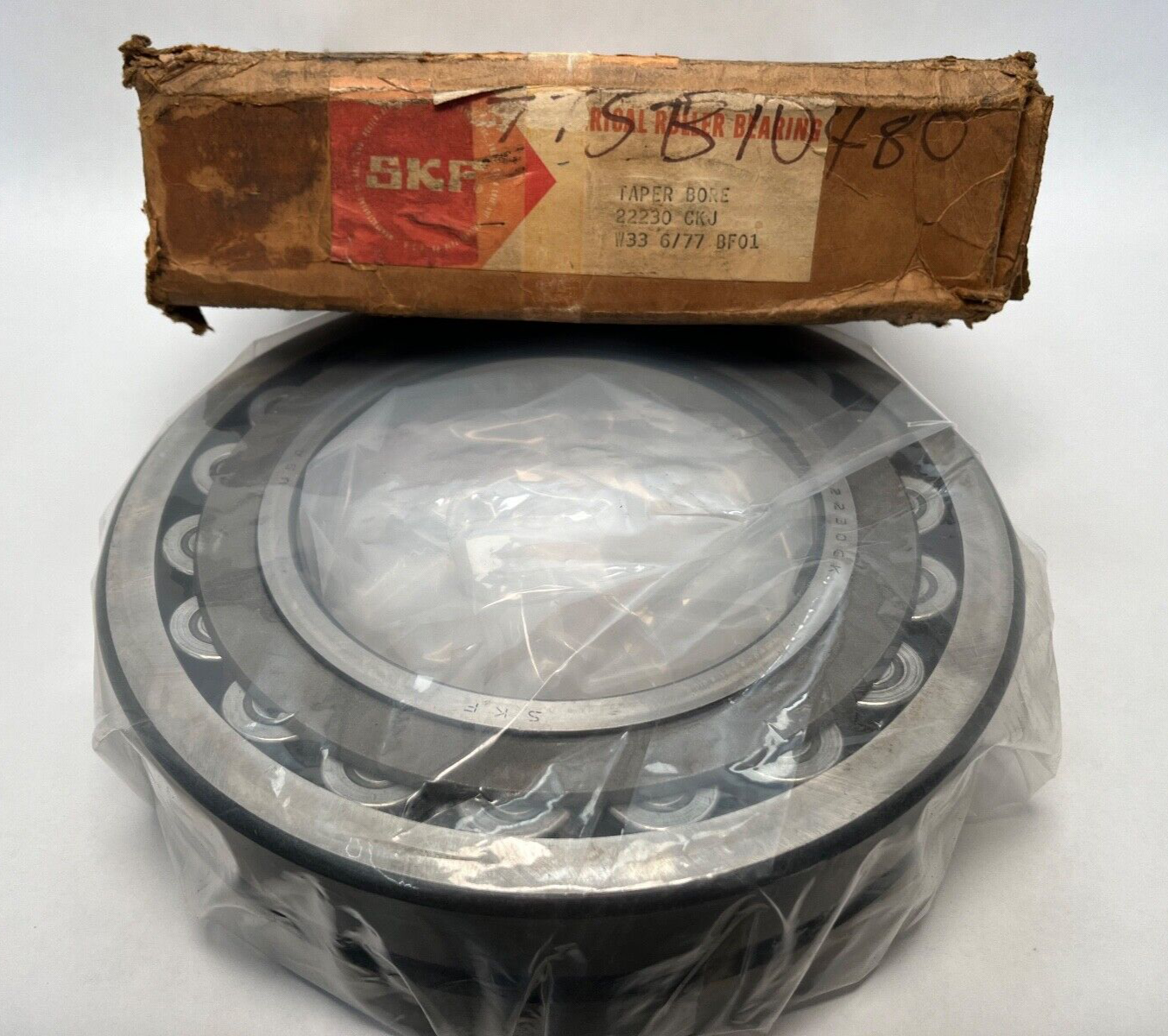

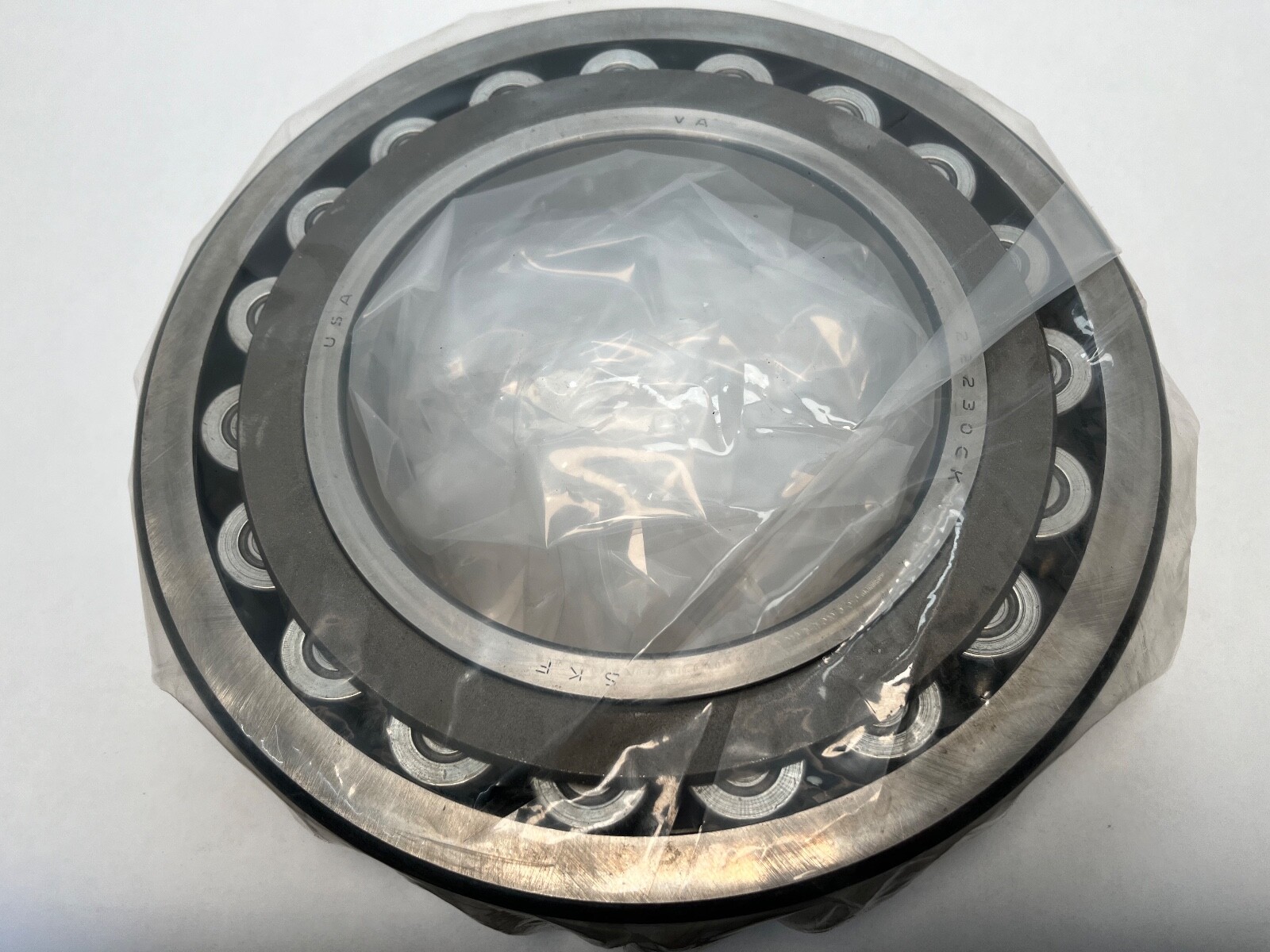

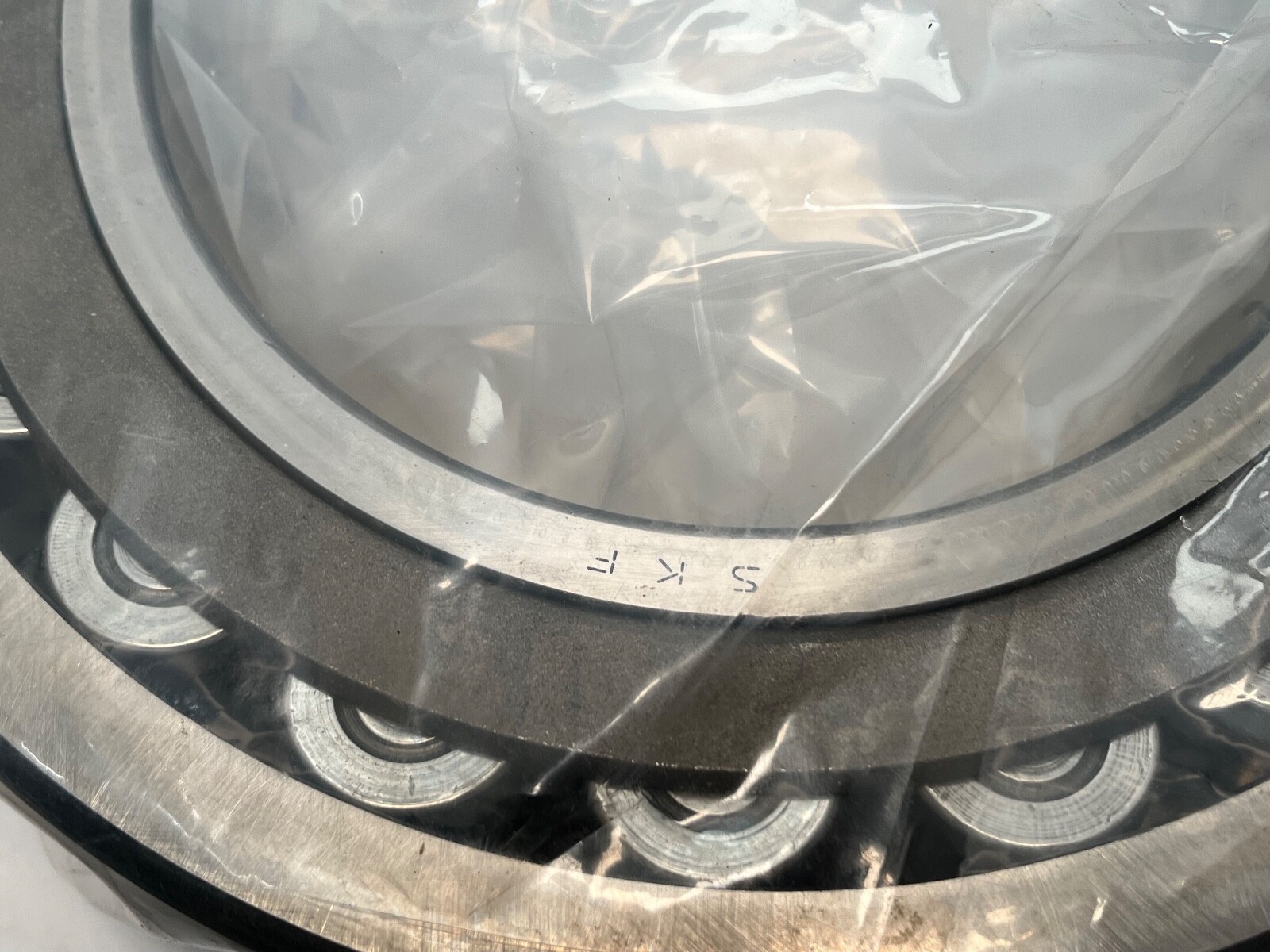

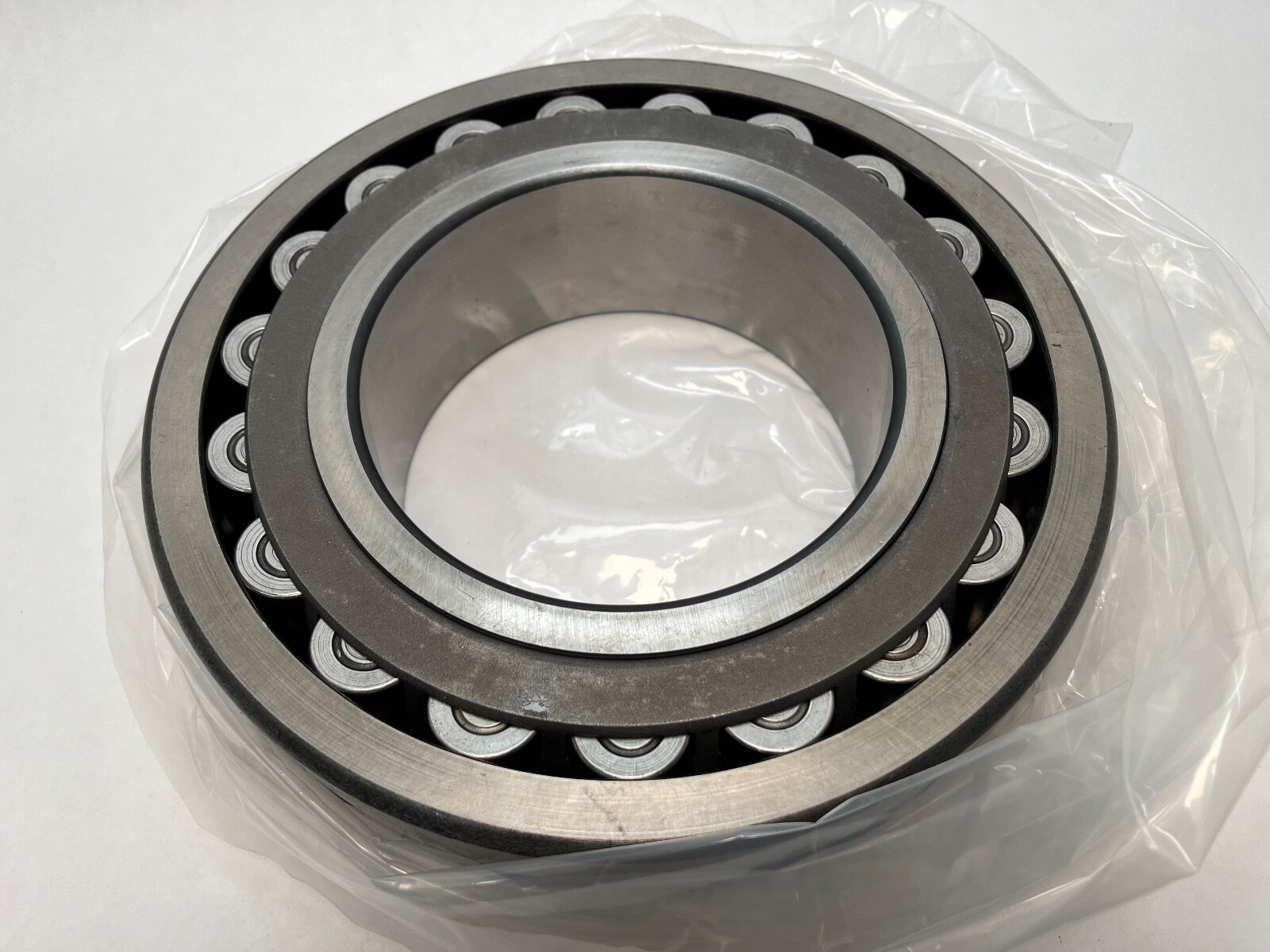

SKF 22230 CKJ/W33 spherical roller bearing, 150 x 270 x 73 mm, 1:12 tapered bore, W33 lube groove, pressed steel cages. Mounts on an H 3130 adapter sleeve.
List Price
$443.51
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22230 CKJ/W33 |
| Model | 22230 CKJ/W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 150 mm |
| OD | 270 mm |
| Width | 73 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Lubricant | Grease or oil |
| Mpn Variants | 22230 CKJ/W33, 22230CKJW33, 22230-C-K-J-W33, 22230 C K J W33 |
| Compatible With Replaces | Adapter sleeve H 3130 |
| Cage Type | Pressed |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Relubrication Feature | W33 groove and three holes |
| Harmonization Code | 8482.30.00 |
| Bearing Material | Bearing steel |
| Industry Terms | spherical roller bearing; tapered bore spherical roller bearing; W33 spherical roller bearing; double row self-aligning roller bearing; 22230K bearing |
| Common Misspellings | SFK 22230 CKJ/W33; SKF 22230CKJ W33; SKF 22230 CJK/W33 |
| Application Types | Heavy radial load applications with shaft misalignment; industrial gearboxes; pumps; fans |
| Closure Type | Open |
| Cross Reference 1 | SKF 22230 CCK/W33 – current CC design |
|---|---|
| Cross Reference 2 | Timken 22230KEJW33 |
| Cross Reference 3 | FAG 22230-E1-K |
| Cross Reference 4 | NSK 22230CAKE4 – machined brass cage |
| Cross Reference 5 | NTN 22230BK |
SKF 22230 CKJ/W33 is a double row spherical roller bearing with a 1:12 tapered bore, pressed steel cages and a lubrication groove with three holes in the outer ring. Unit Quantity: 1 Pc. Bearing only. Bore Diameter: 150 mm. Outside Diameter: 270 mm. Width: 73 mm.
222 — spherical roller bearing, dimension series 22.
30 — bore code, 30 x 5 = 150 mm bore.
C — SKF C internal design.
K — tapered bore, taper 1:12.
J — pressed steel cage.
W33 — annular groove and three lubrication holes in the outer ring.
Bore Type: Tapered 1:12. Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Pressed steel. Internal Clearance: CN. Relubrication Feature: W33 groove and three holes. Lubricant: grease or oil. Closure Type: Open. Series: 22200. Harmonization Code: 8482.30.00.
Bore Diameter: 150 mm. Outside Diameter: 270 mm. Width: 73 mm. Mounts on an H 3130 adapter sleeve (135 mm shaft) or directly on a 1:12 tapered shaft seat.
Cross-references: SKF 22230 CCK/W33 (current CC design); Timken 22230KEJW33; FAG 22230-E1-K; NSK 22230CAKE4 (machined brass cage); NTN 22230BK. The same bearing is written 22230 CKJ/W33, 22230CKJW33, 22230-C-K-J-W33 and 22230 C K J W33.
Bore 150 mm, outside diameter 270 mm, width 73 mm, with a 1:12 tapered bore.
W33 is an annular groove and three lubrication holes in the outer ring; lubricant is grease or oil.
The H 3130 adapter sleeve, for a 135 mm shaft.
