Double-row spherical roller bearing, 150 mm tapered bore x 270 mm OD x 73 mm wide, polyamide cage, C3 clearance, W33 lubrication groove, open faces.
List Price
$368.52
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22230ESK.TVPB.C3 |
| Model | 22230EK |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 150 mm |
| OD | 270 mm |
| Width | 73 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Lubricant | Grease or oil |
| Base Number | 22230 |
| Industry Terms | self-aligning roller bearing; spherical roller; taper bore roller bearing; W33 bearing |
| Common Misspellings | 22230 ESK TVPB C3; 22230-ESK-TVPBC3; FAG 22230 ES K TVPB |
| Application Types | Vibrating screens; conveyor pulleys; crushers; fans and blowers; paper machine and mill shafts |
| Bore Shaft Size | 150 mm (5.9055 in), tapered 1:12 |
| Locking Method | Tapered 1:12 bore, mounted on an adapter sleeve or a tapered shaft seat |
| Replacement Insert | Matching adapter sleeve H3130 (135 mm shaft seat) - not included |
| Mpn Variants | 22230ESK.TVPB.C3; 22230ESKTVPBC3; 22230-ES-K-TVPB-C3; 22230E; 22230EK; 22230 K W33 C3 |
| Additional Attributes | E reinforced design; W33 outer-ring groove with three radial holes; 1:12 tapered bore; open on both faces |
| Cage Type | Window |
| Rolling Elements | Spherical Roller |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 2 |
| Bore Type | Tapered Bore |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | C3 |
| Part Number | 22230-ES-K-TVPB-C3 |
| Closure Type | Open |

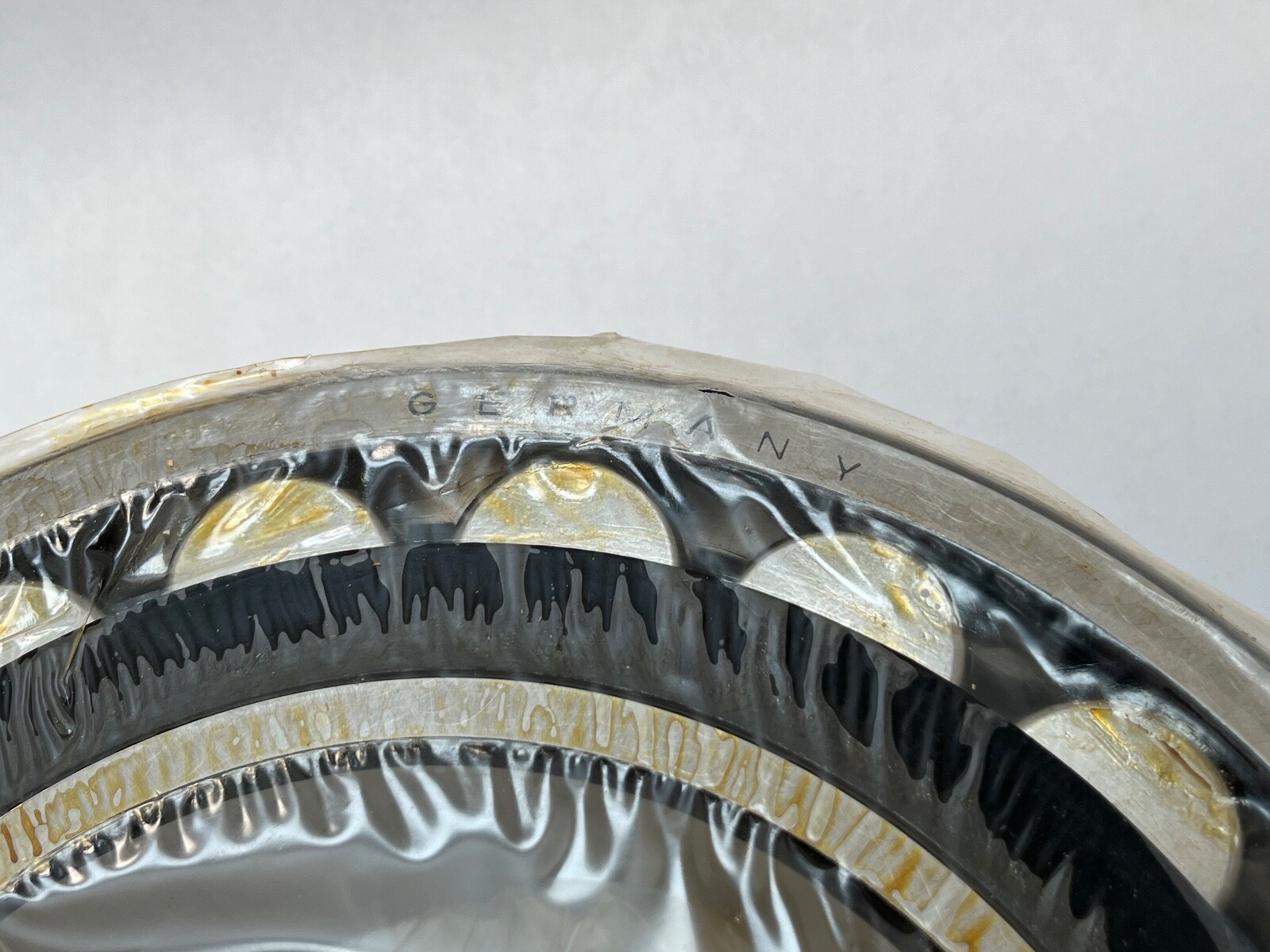

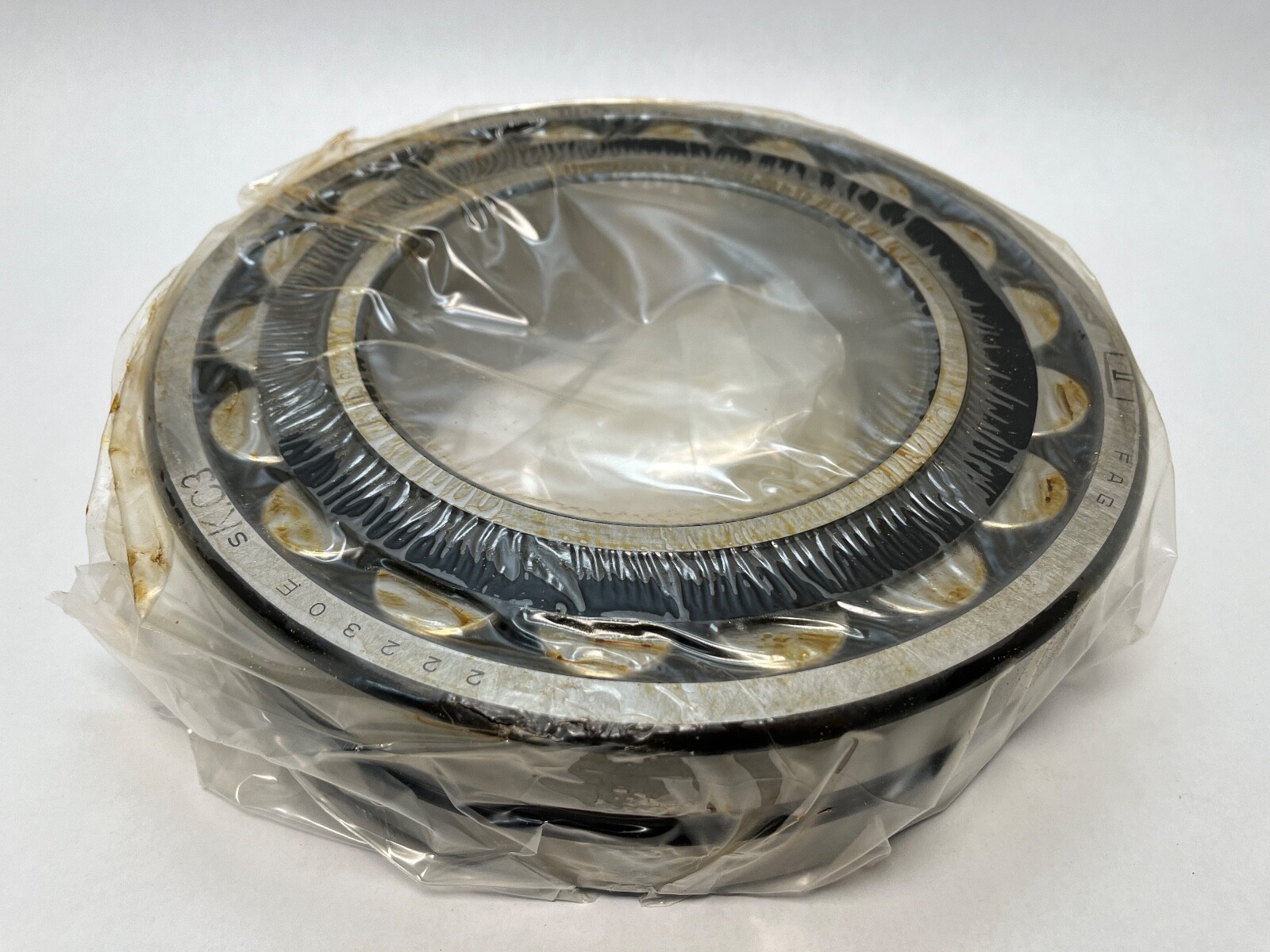

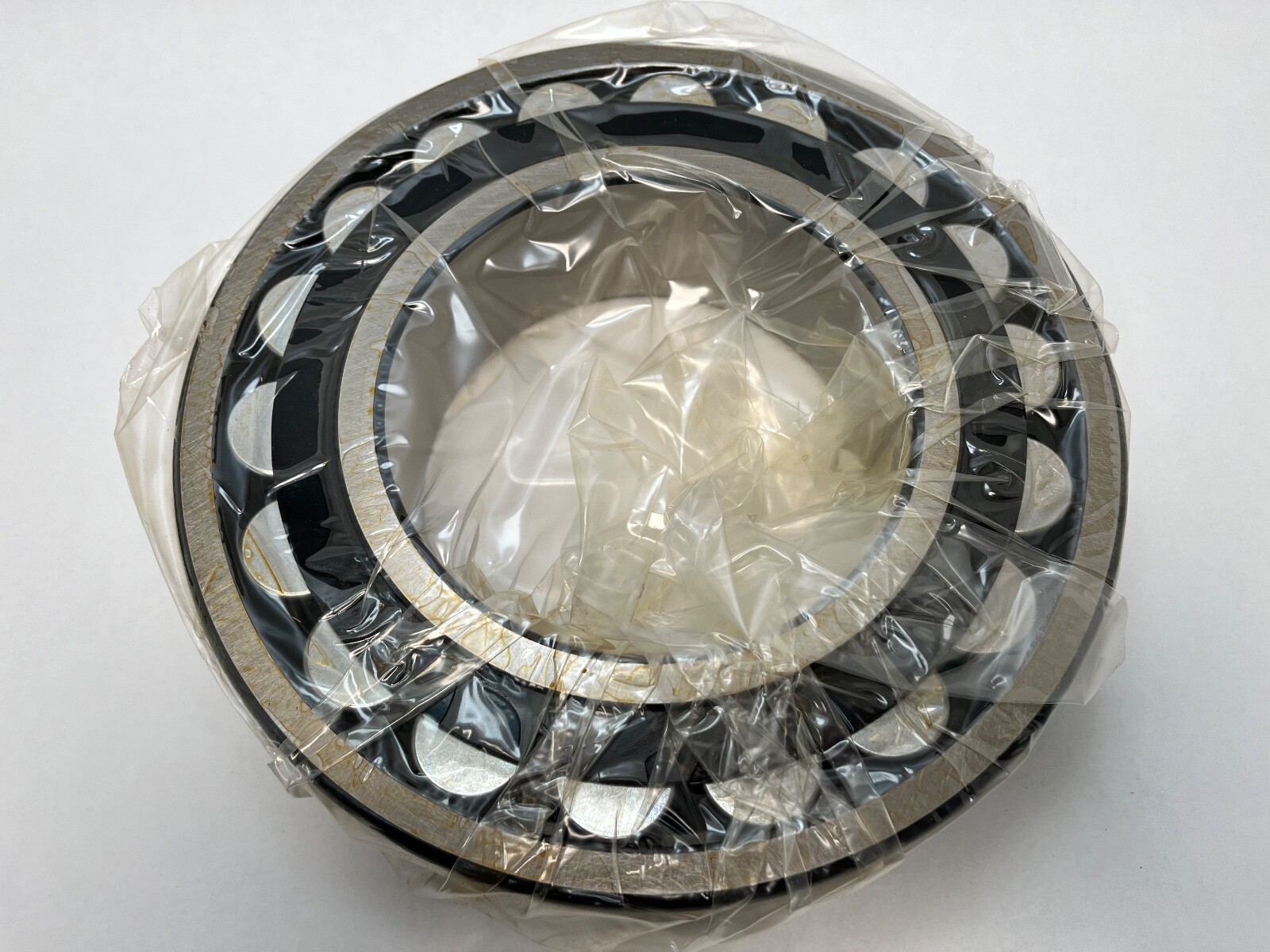

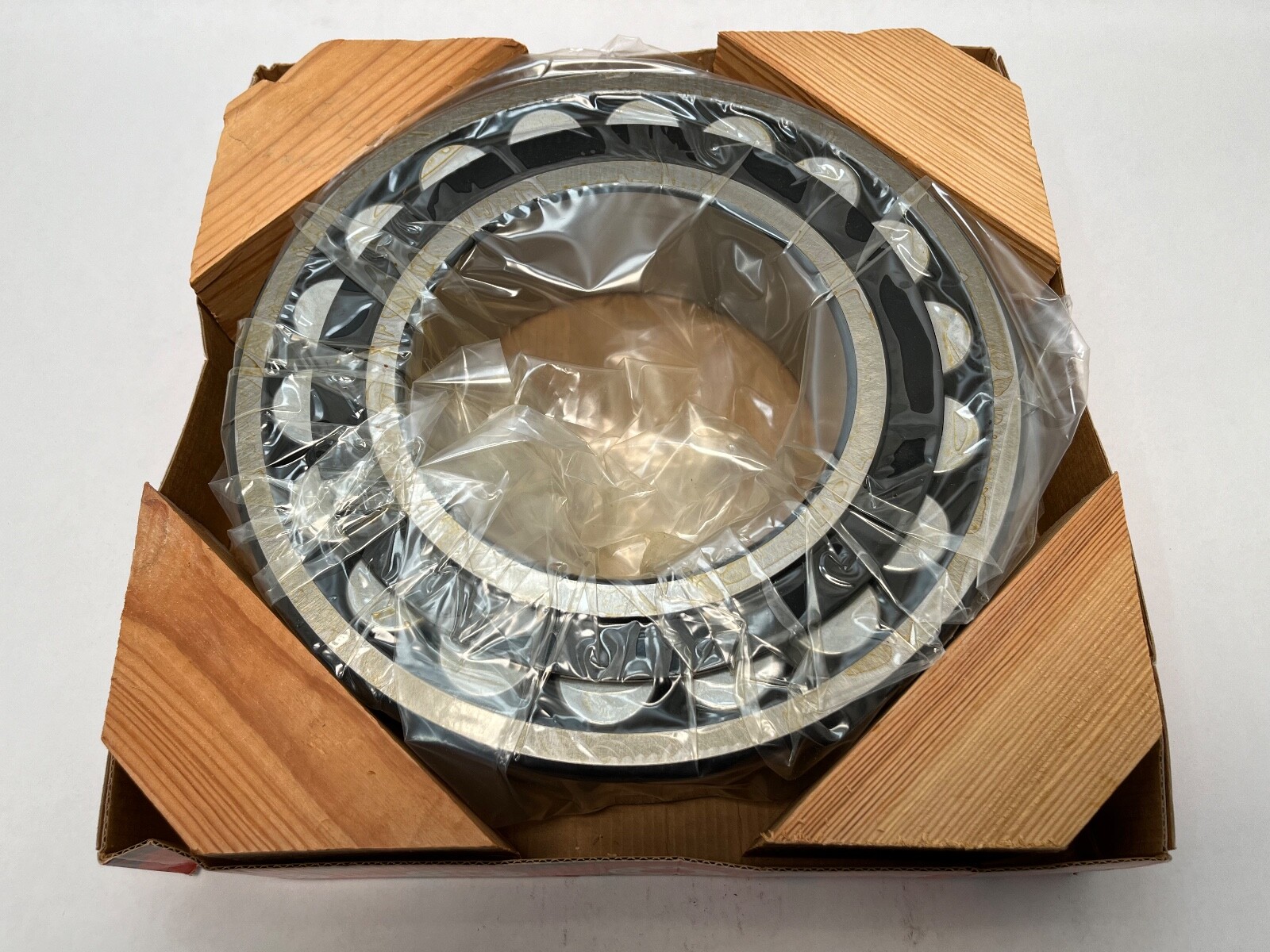

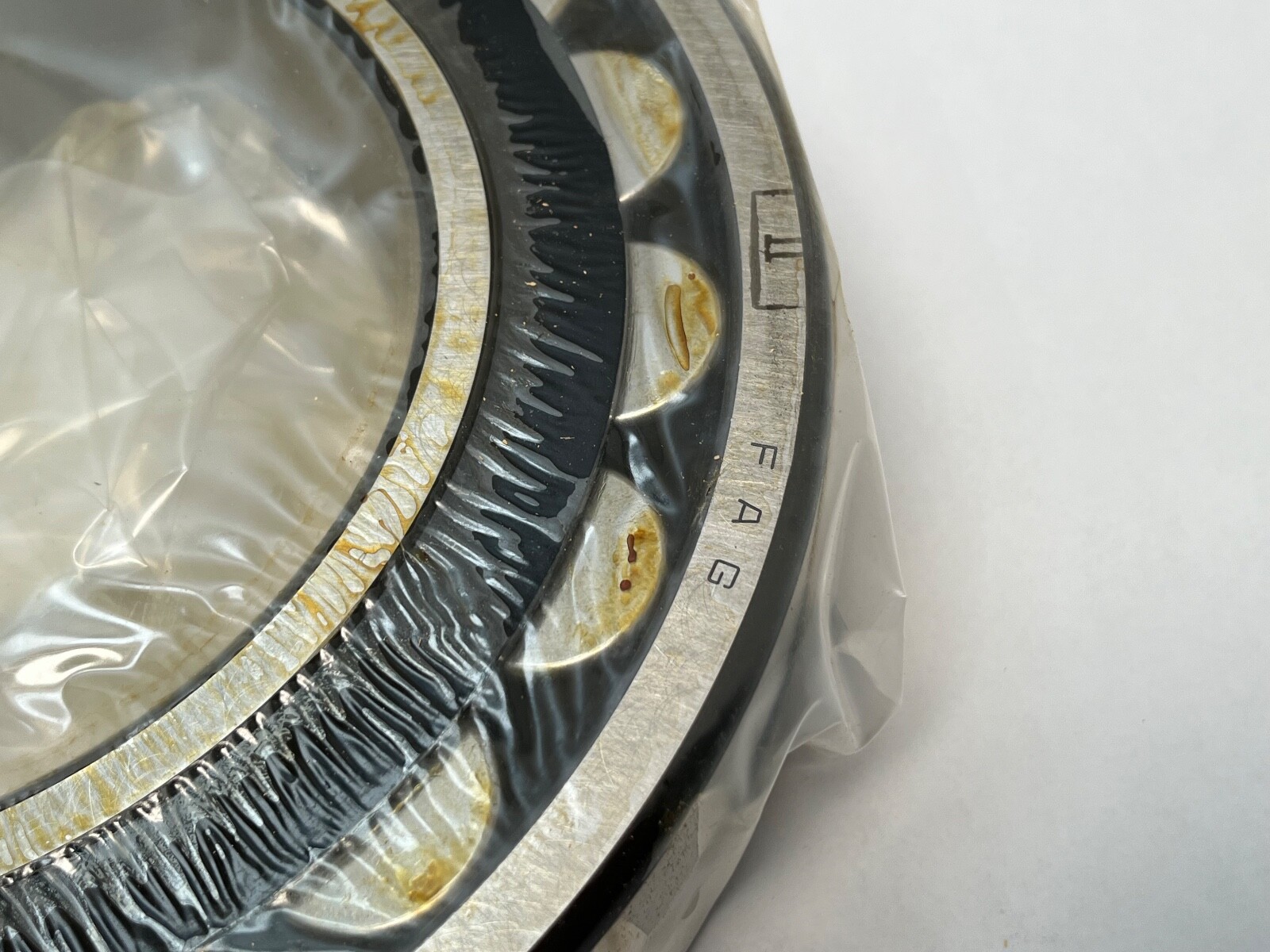

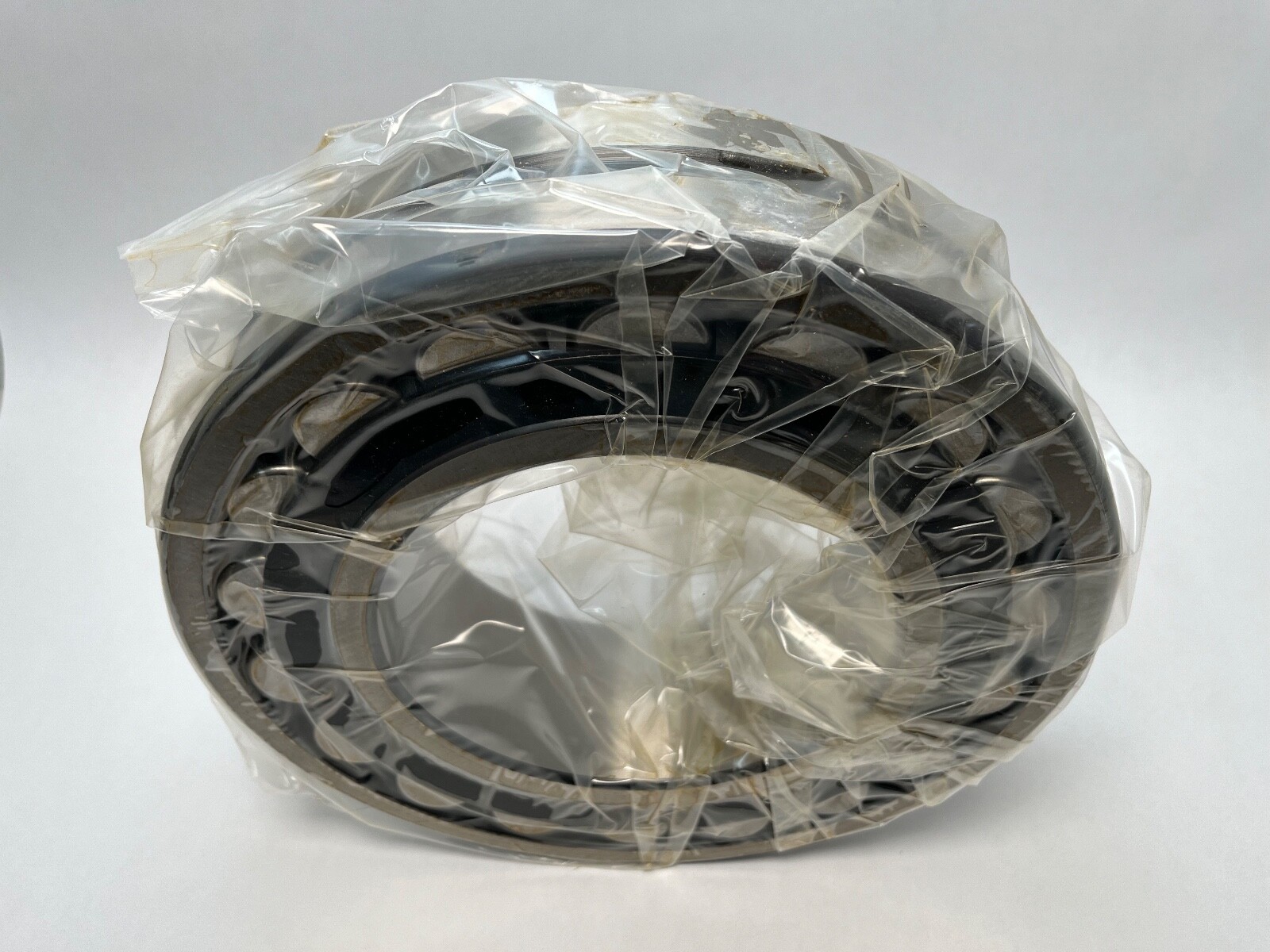

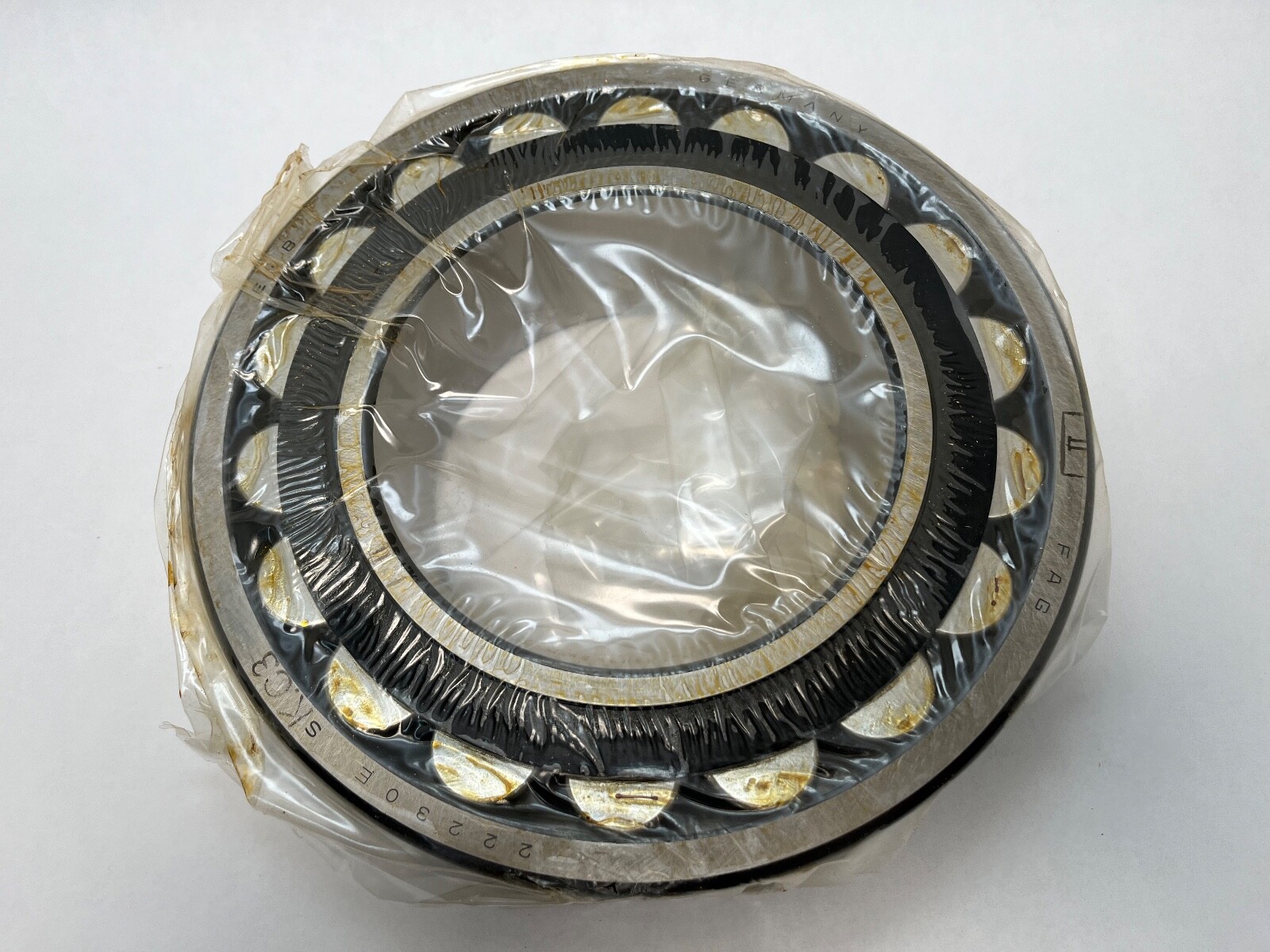

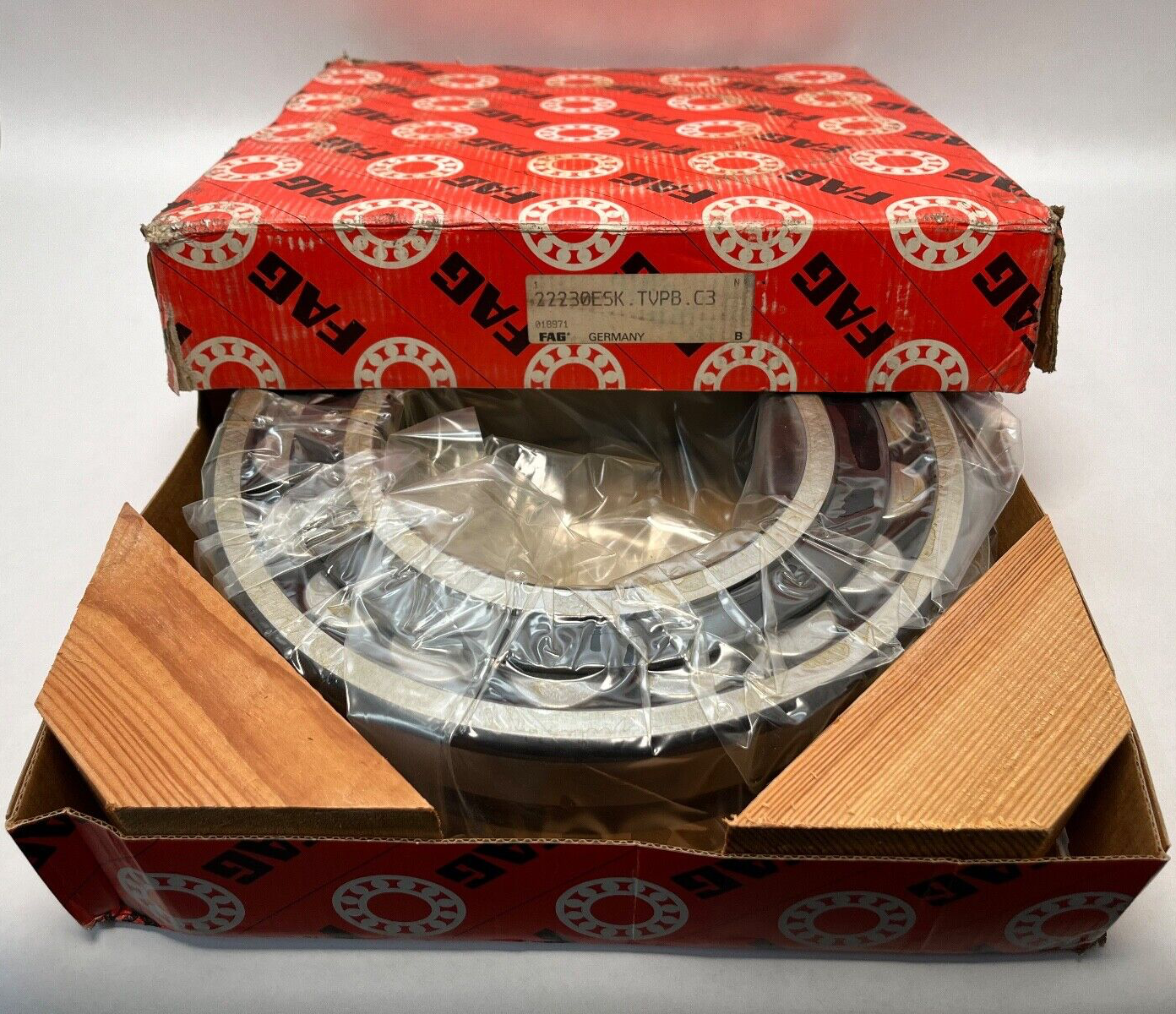

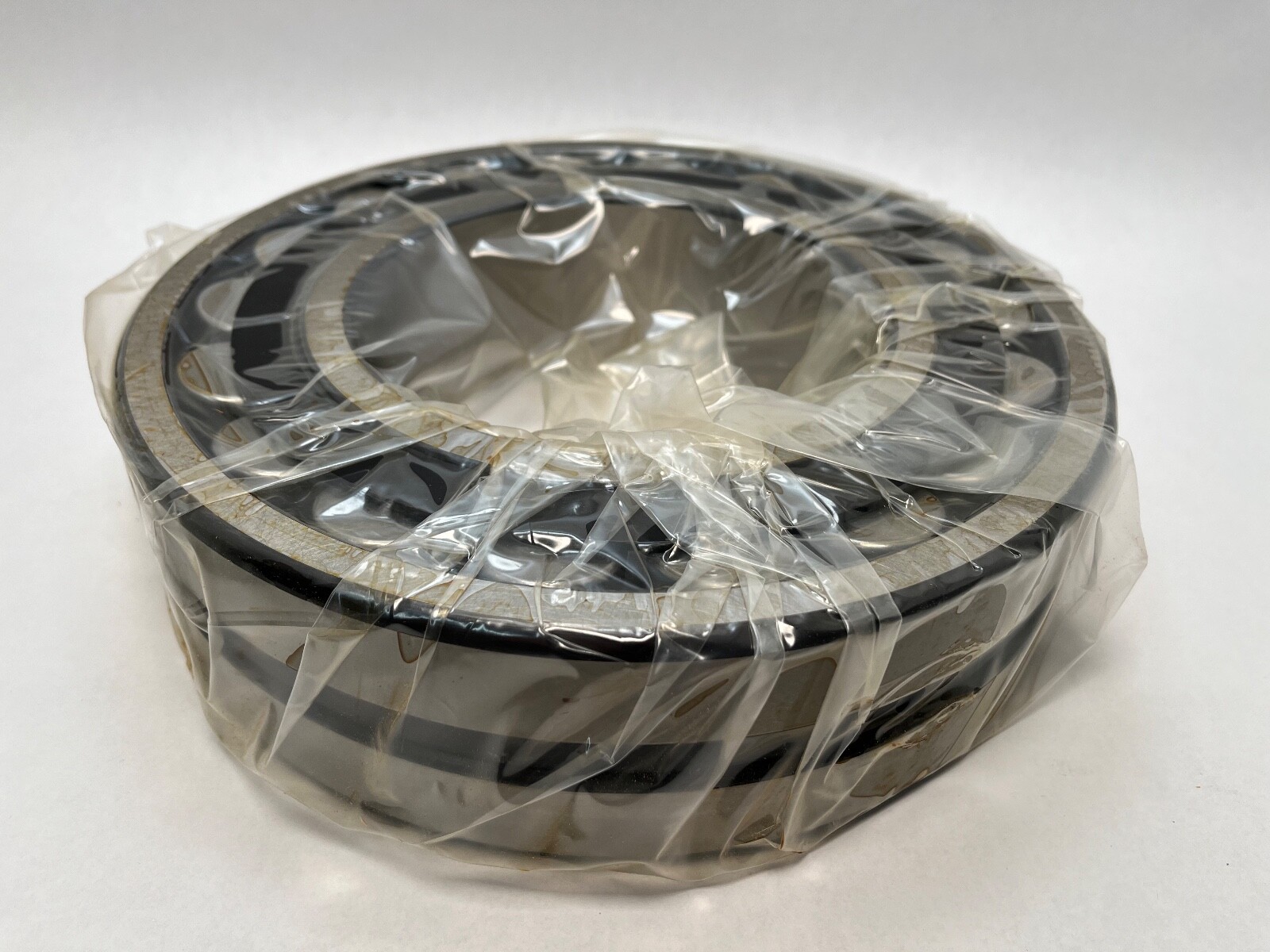

FAG 22230ESK.TVPB.C3 double-row spherical roller bearing, 150 mm tapered bore (1:12), 270 mm outside diameter, 73 mm width. E reinforced design, glass-fibre reinforced polyamide window cage, C3 radial internal clearance, W33 outer-ring lubrication groove with three radial holes. Open on both faces. Bearing only; sold as 1 Pc.

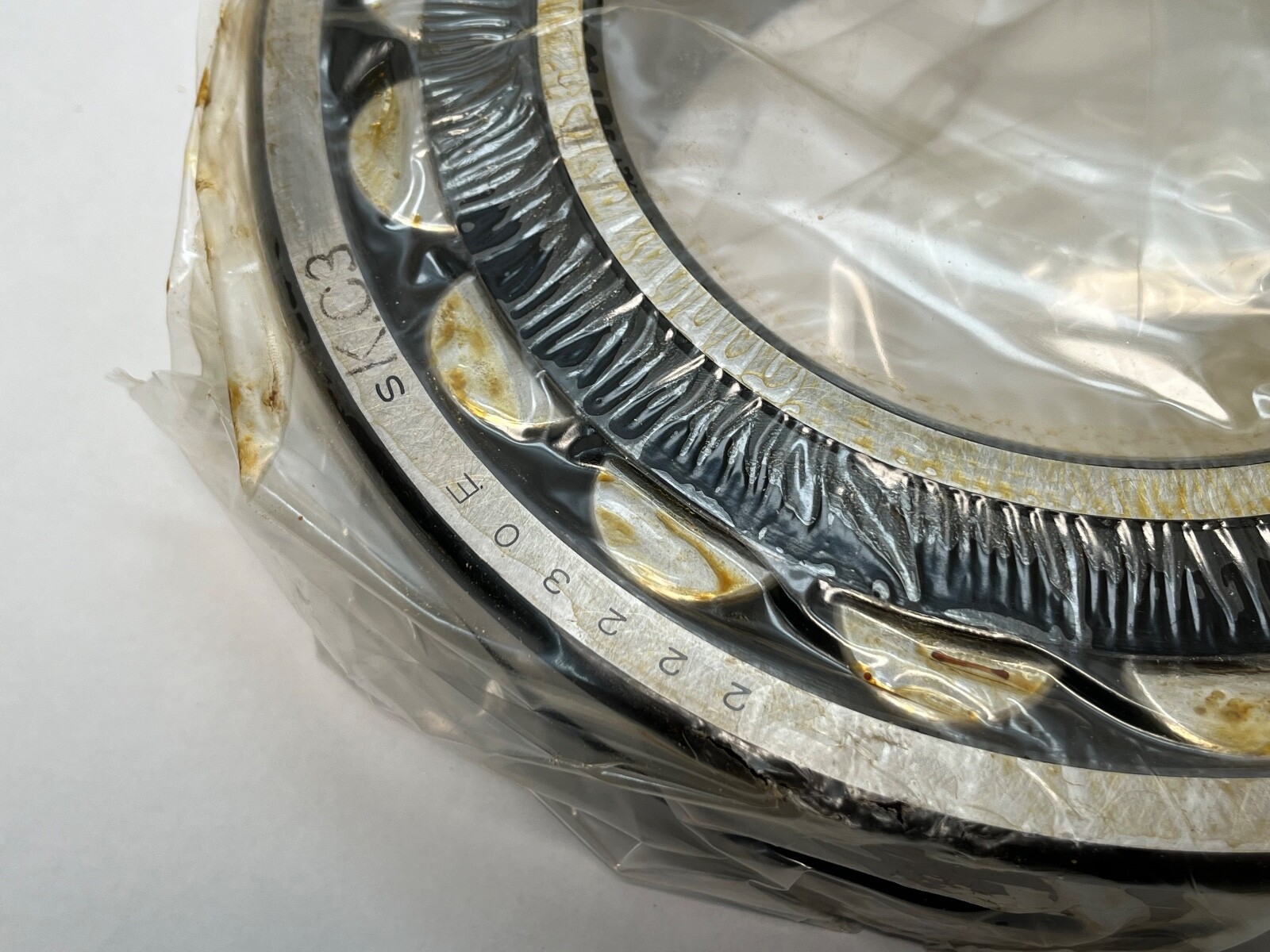

22230 — 222 dimension series, bore code 30 = 150 mm bore, 270 x 73 mm envelope.
E — reinforced internal design with larger rollers and higher load capacity than the base series.
S — FAG code for the W33 feature: outer-ring groove with three radial lubrication holes.
K — tapered bore, 1:12 taper.
TVPB — glass-fibre reinforced polyamide window cage.
C3 — radial internal clearance greater than normal.
Bore Diameter: 150 mm, tapered 1:12. Outside Diameter: 270 mm. Width: 73 mm. Rolling Elements: symmetrical barrel rollers, two rows. Cage Material: glass-fibre reinforced polyamide. Internal Clearance: C3. Lubricant: grease or oil. Closure Type: Open. Snap Ring: none.
Tapered 1:12 bore mounts on an adapter sleeve or a tapered shaft seat. Matching adapter sleeve: H3130, 135 mm shaft seat, not included.
MPN variants: 22230ESK.TVPB.C3, 22230ESKTVPBC3, 22230-ES-K-TVPB-C3, 22230E, 22230EK, 22230 K W33 C3.
150 mm tapered bore, 270 mm outside diameter, 73 mm width.
The H3130 adapter sleeve with a 135 mm shaft seat fits the 150 mm tapered bore. The sleeve is not included.
E is the reinforced internal design, S is the W33 groove with three radial lubrication holes, K is the 1:12 tapered bore, and TVPB is the glass-fibre reinforced polyamide window cage.
