| MFR / Brand | FAG |
|---|---|
| MPN | 22206ES.TVPB.C3 |
| Model | 22206-ES-TVPB-C3 / 22206-E1-XL-TVPB-C3 |
| Bearing Type | Spherical Roller Bearing |
| ID | 30 mm |
| OD | 62 mm |
| Width | 20 mm |
| Material | Chrome Steel |
|---|---|
| Cage Type | Polyamide |
| Series | 222 Series |
| Condition | New |
| Internal Clearance | C3 |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Base Number | 22206 |
| Closure Type | Open |
What this is

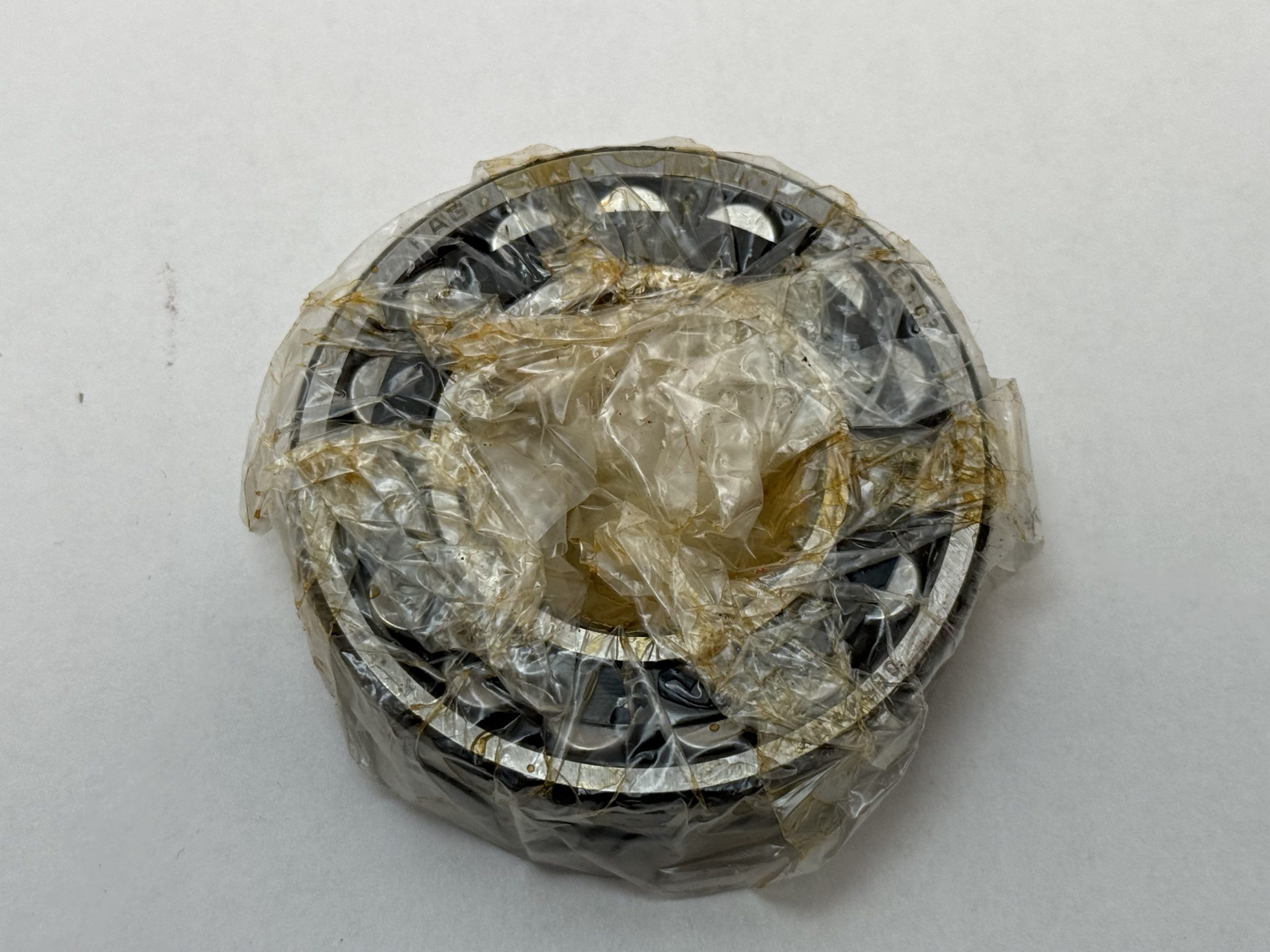

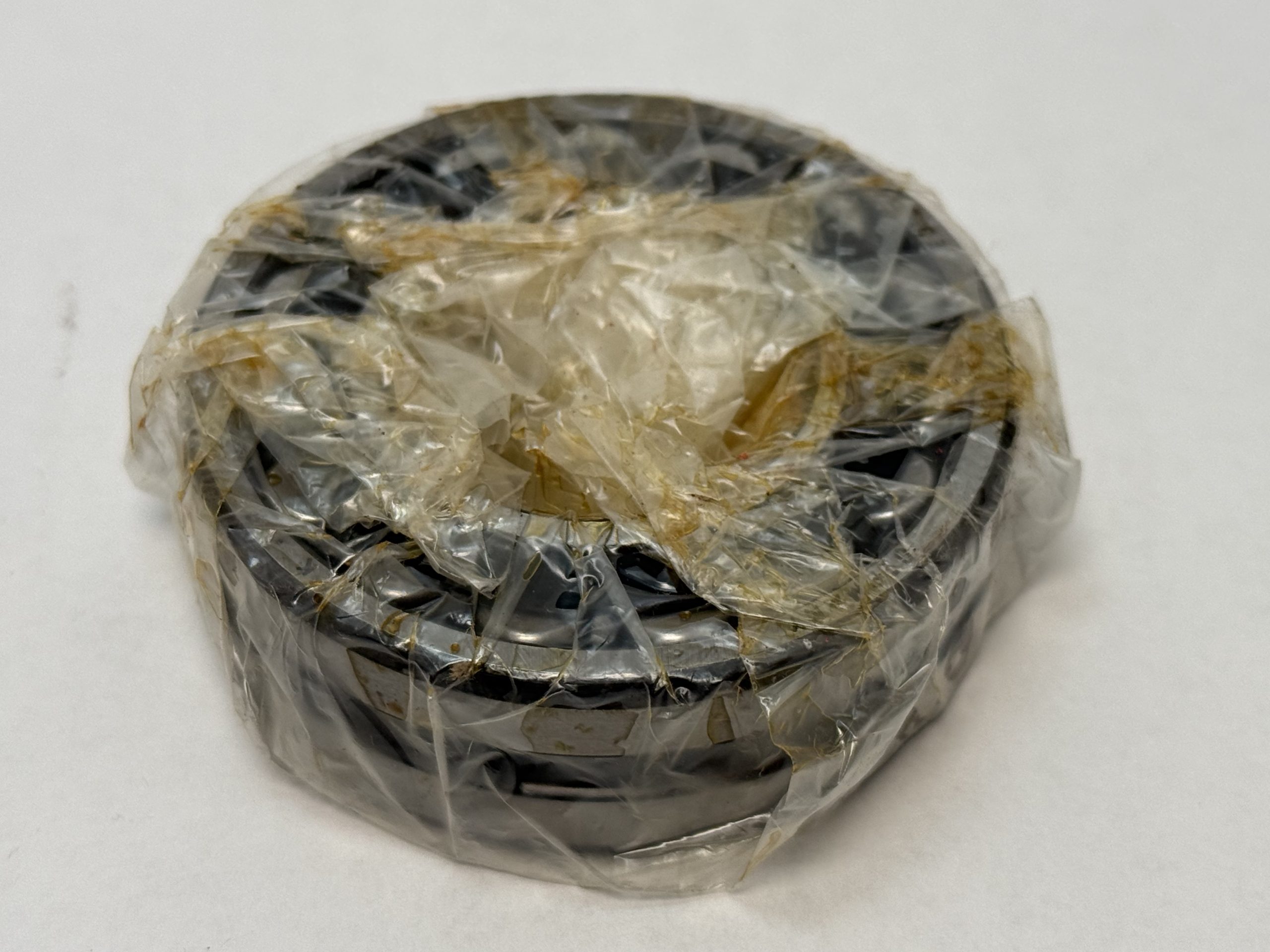

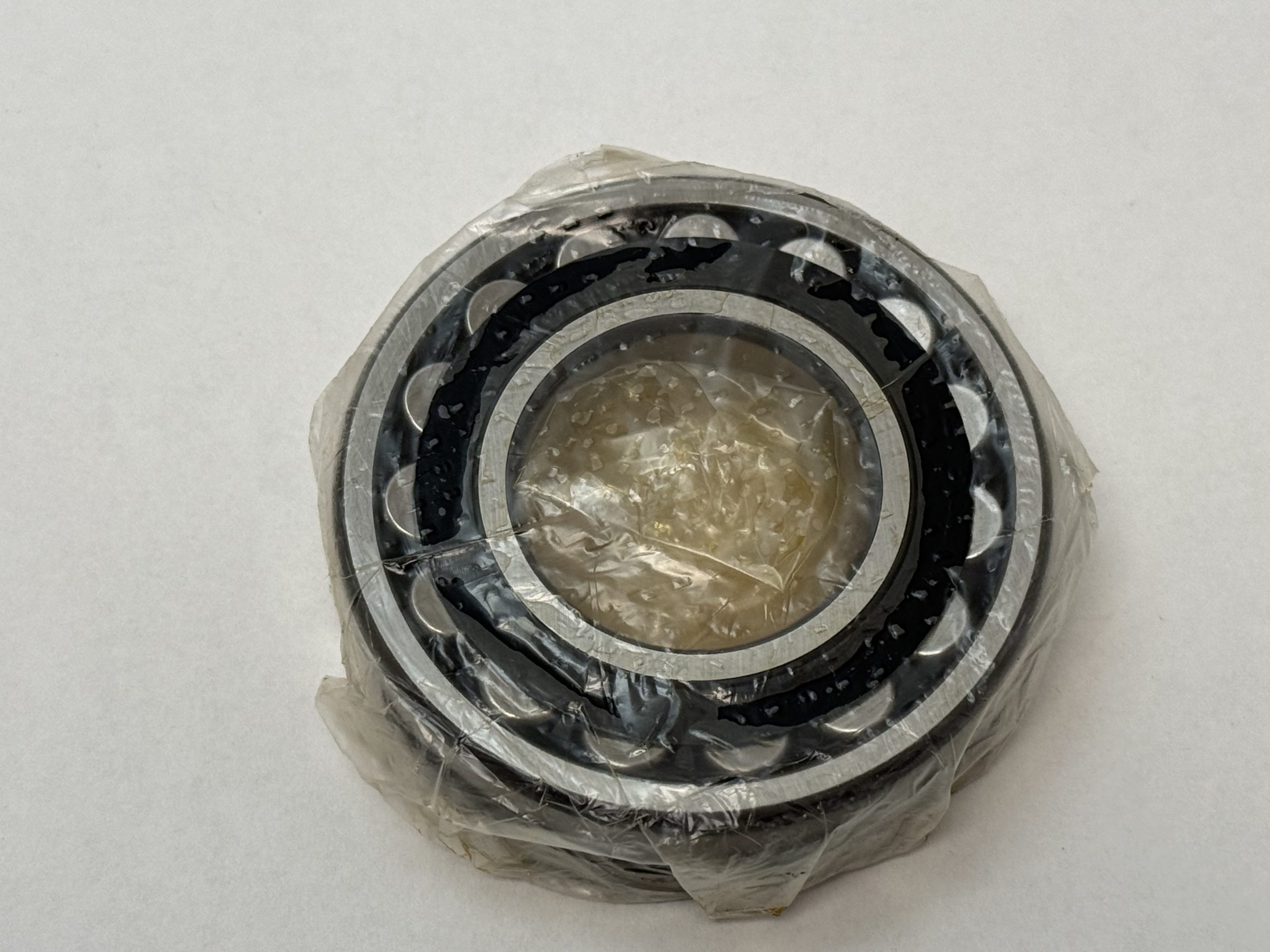

A FAG 22206ES.TVPB.C3 double-row spherical roller bearing — 30 mm bore, 62 mm outside diameter, 20 mm wide, straight bore. Two rows of barrel rollers sit on a common spherical raceway ground into the outer ring, which lets the inner ring and roller set swivel inside it. That is the whole point of the design: the bearing absorbs shaft misalignment and housing deflection that would destroy a cylindrical or ball bearing, while still carrying heavy radial load and axial load in both directions.

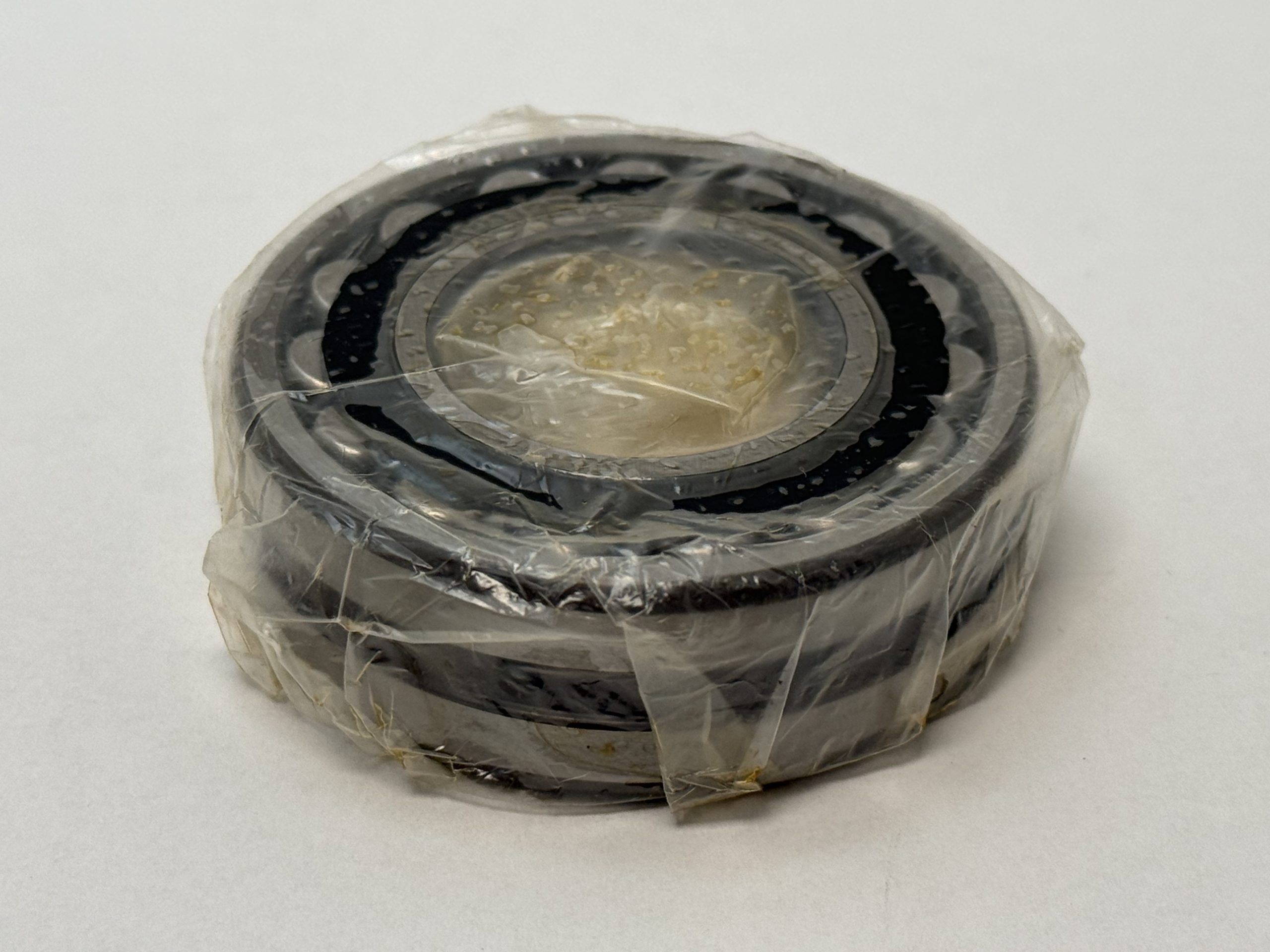

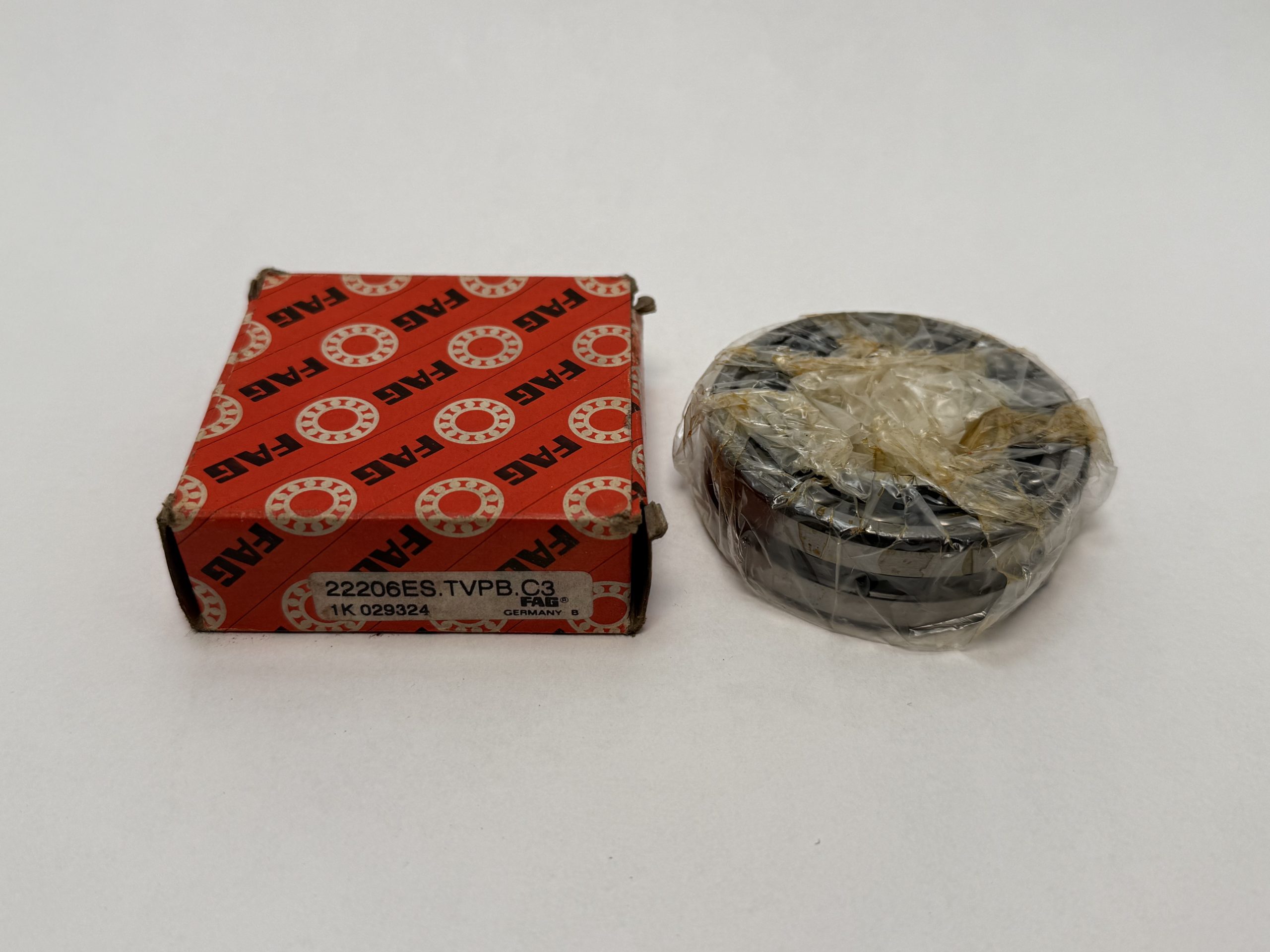

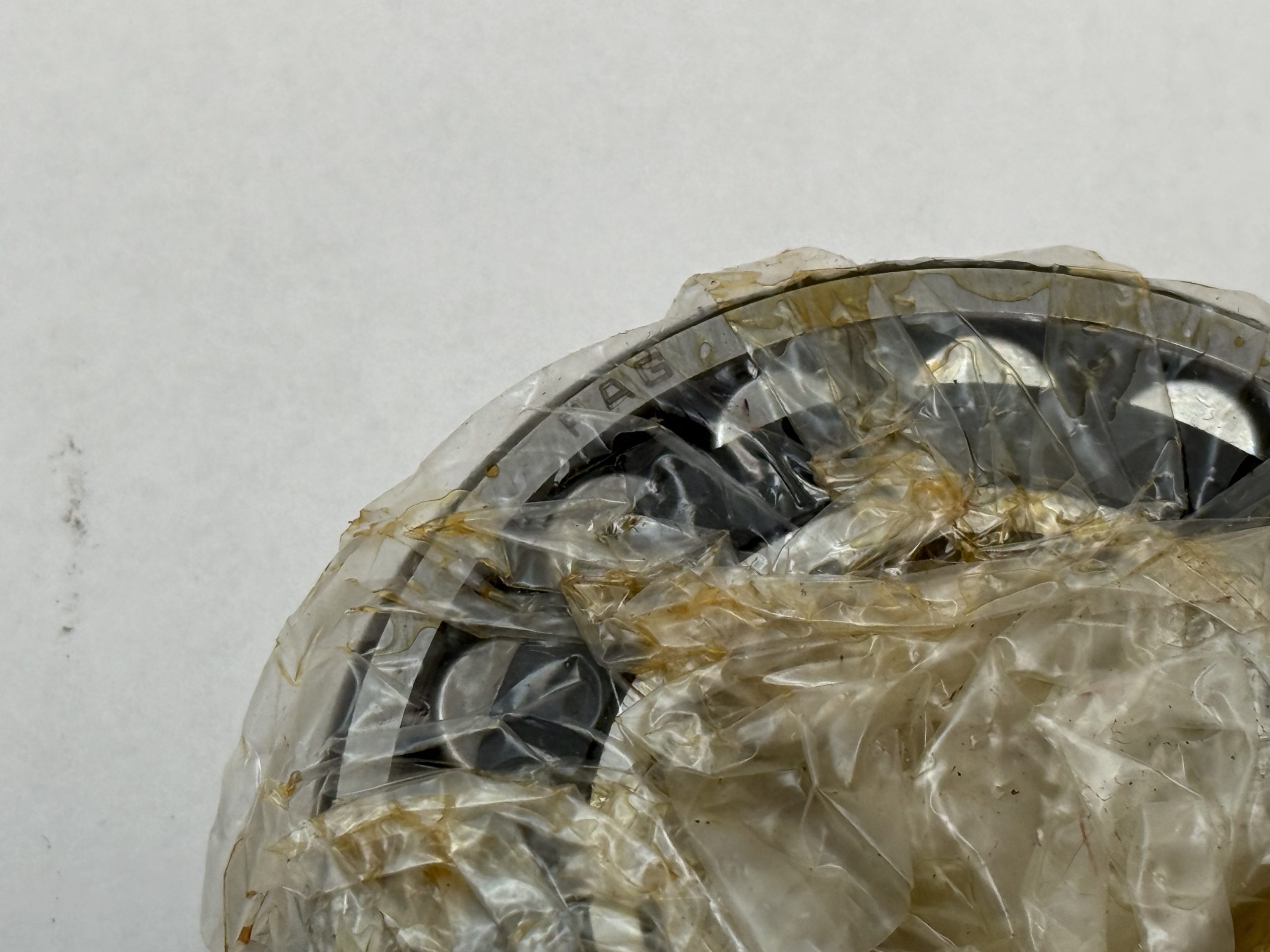

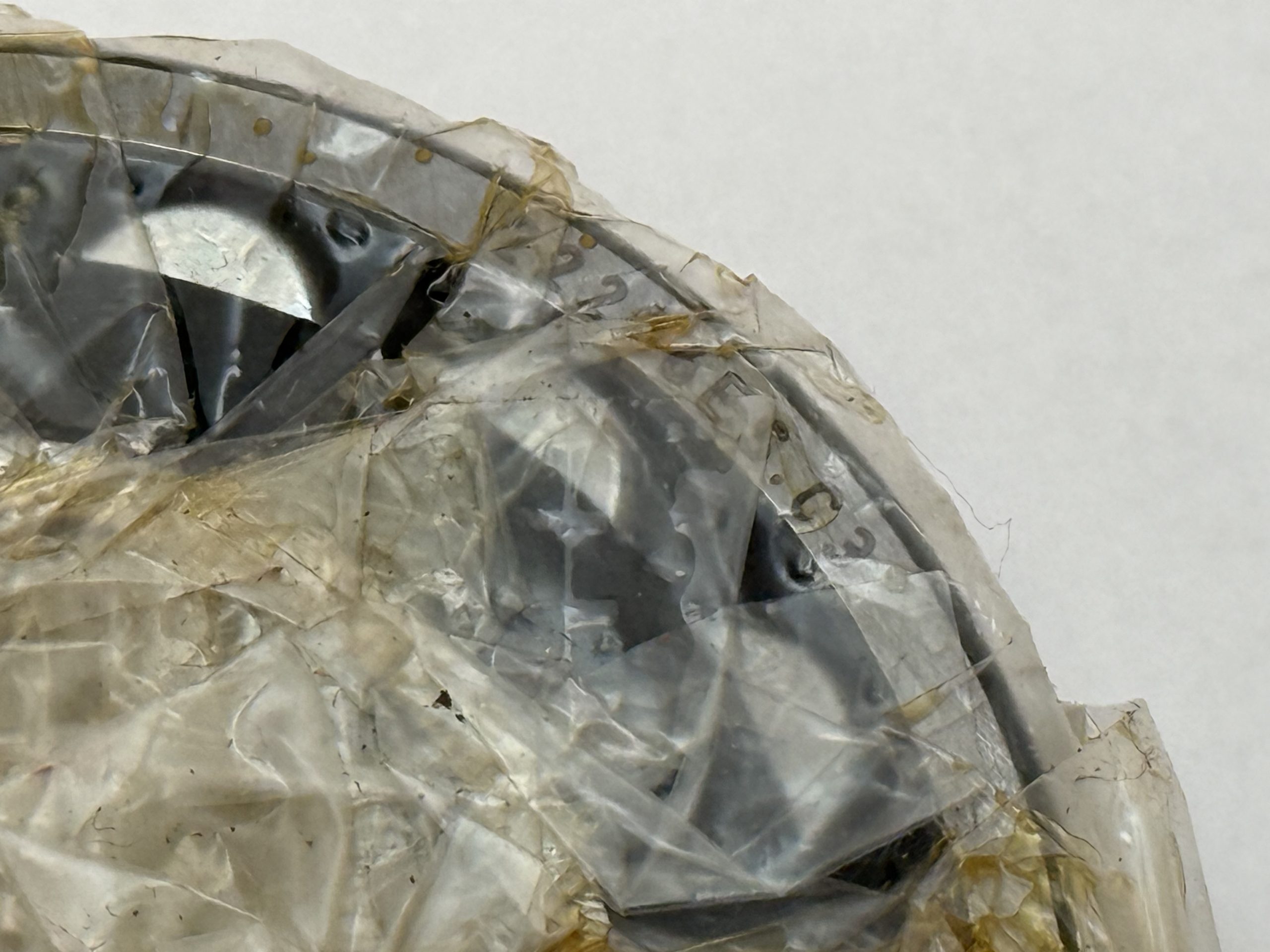

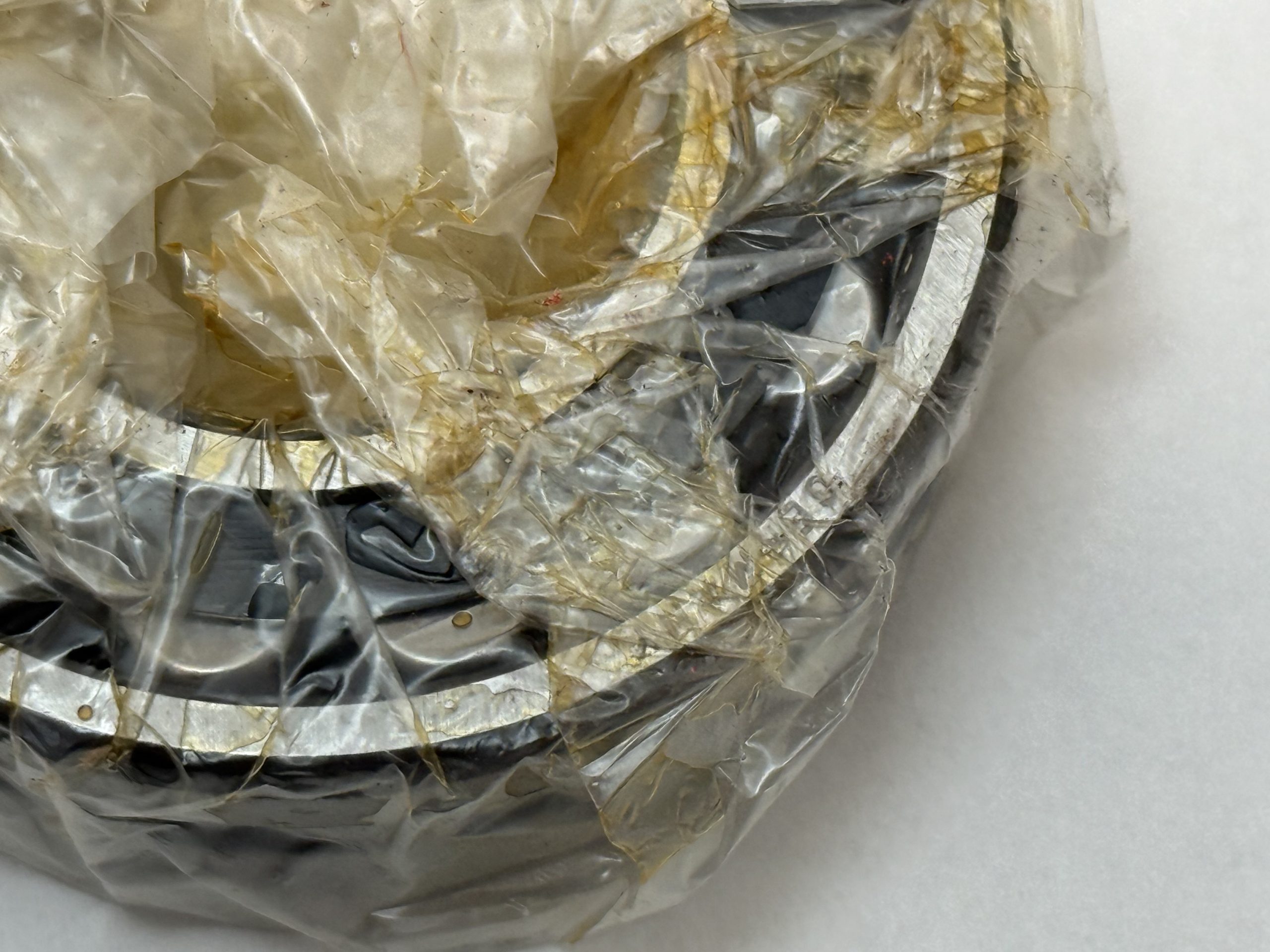

This one has the TVPB cage — a one-piece glass-fibre-reinforced polyamide window cage guided on the inner ring, visible in black through the wrap, rather than the pressed steel or machined brass used on other variants. It is the plain version with no W33 annular groove or lubrication holes in the outer ring. Original FAG carton marked Germany, batch 1K 029324, still in the factory wrap.
How the part number breaks down
222 — ISO type and dimension series for a double-row spherical roller bearing in the 22 series, the wider of the two common sections.
06 — the bore code. Multiply by 5 for the bore in millimetres: 06 × 5 = 30 mm.
E — FAG’s high-capacity internal design, with a larger roller complement than the original series.
S — the design variant within the E family.
TVPB — a solid glass-fibre-reinforced polyamide cage, guided on the inner ring. The alternatives in the same family are M for a roller-guided brass cage, MA for brass guided on the outer ring and MB for brass guided on the inner ring.
C3 — radial internal clearance greater than standard, for a tighter shaft or housing fit or for running warm.
Schaeffler’s current designation for this size is 22206-E1-XL-TVPB-C3. Also written 22206ES TVPB C3, 22206-ES-TVPB-C3, 22206E and 22206 E S C3.
Published figures
Bore: 30 mm
Outside diameter: 62 mm
Width: 20 mm
Rows: 2 (double row)
Basic dynamic load rating: 64 kN
Basic static load rating: 57 kN
Fatigue limit load: 6.9 kN
Reference speed: 7,800 rpm
Limiting speed: 13,000 rpm
Bore type: straight (cylindrical)
Cage: TVPB, glass-fibre-reinforced polyamide, inner-ring guided
Internal clearance: C3
Closure: open both sides, no W33 groove
Made in Germany
