Availability:
1 in stock

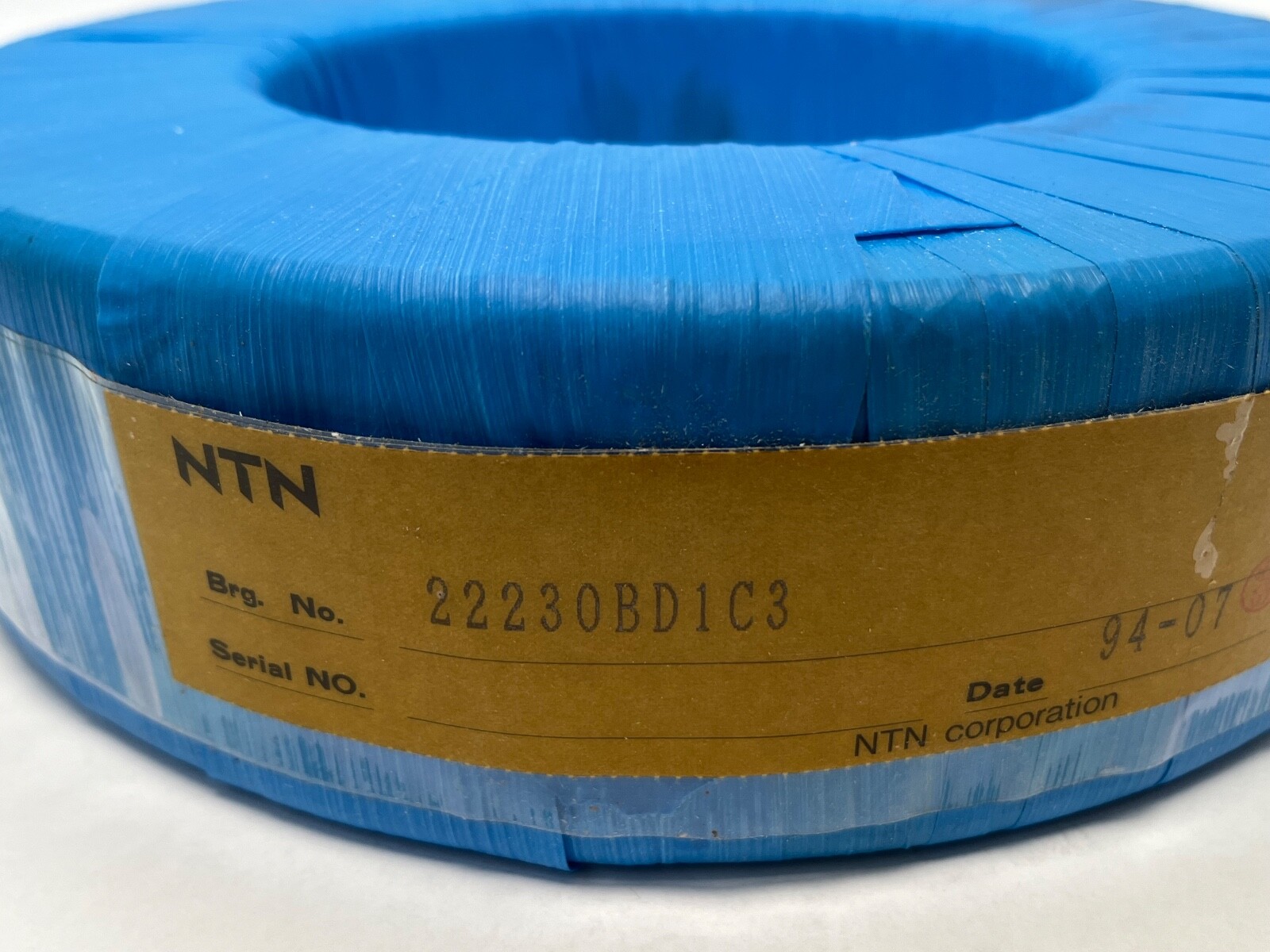

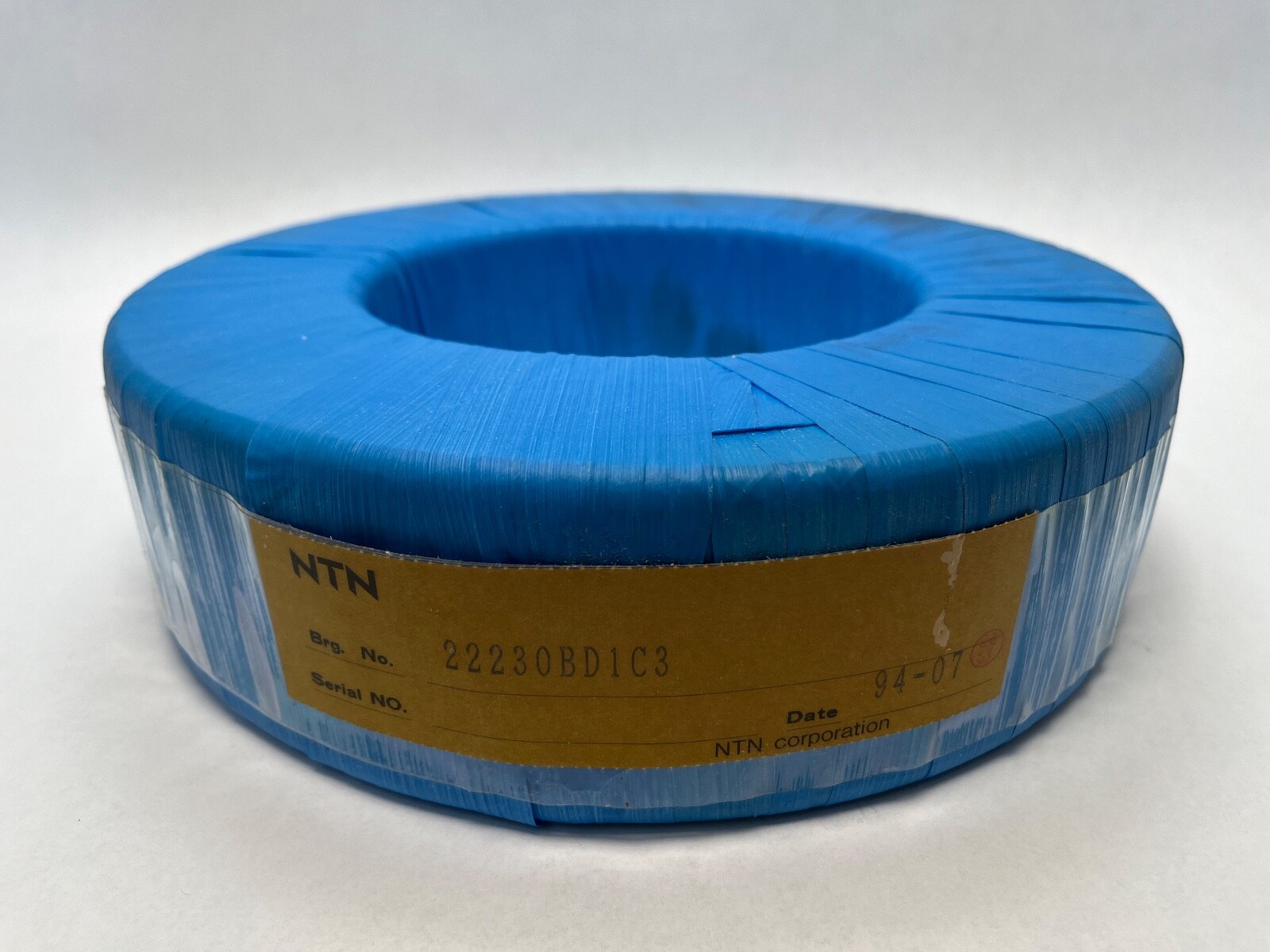

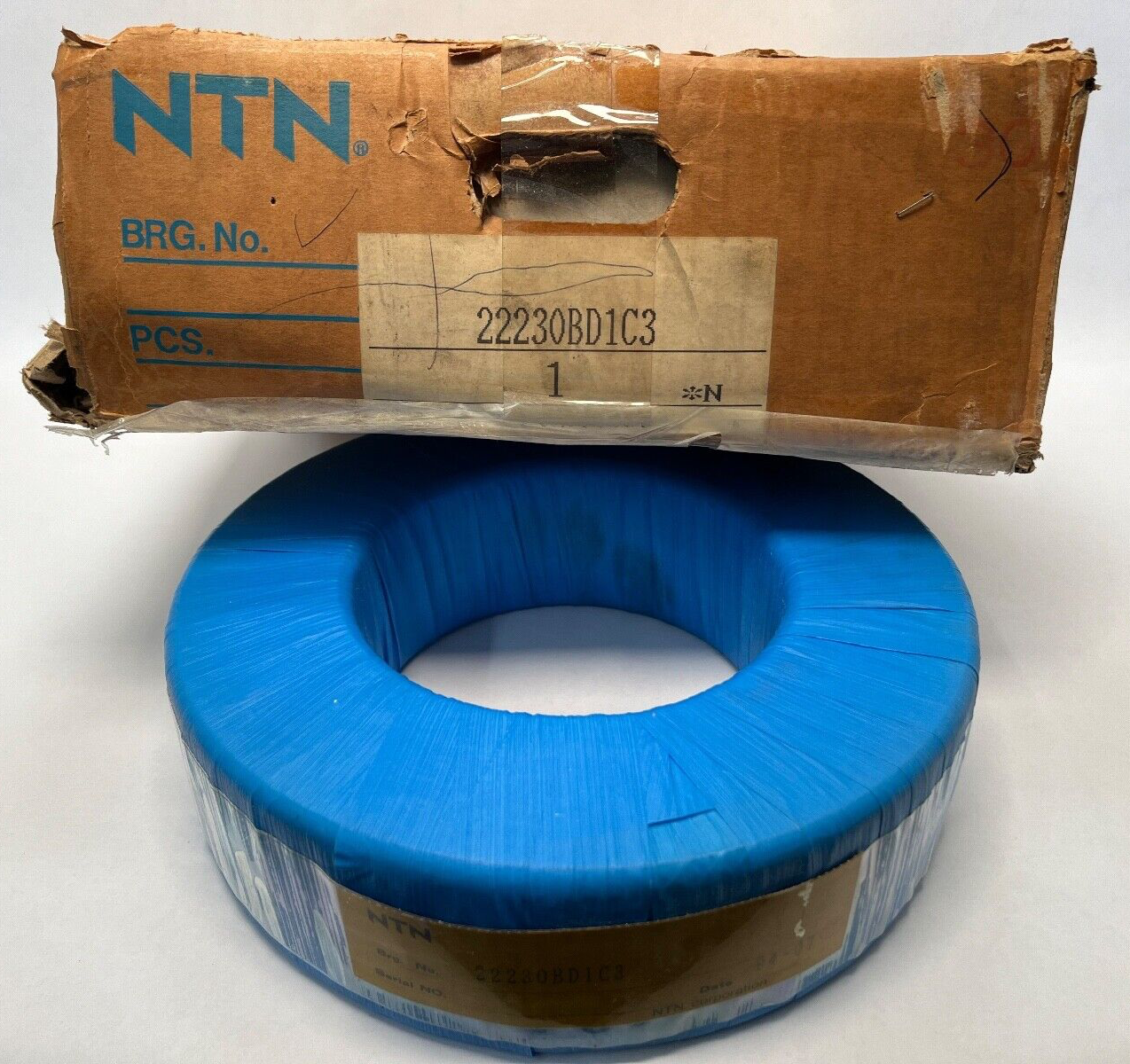

Spherical roller bearing, 150 x 270 x 73 mm, straight bore, C3 clearance, lubrication groove and holes. NTN 22230BD1C3, 222 series, B design.
List Price
$374.82
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 22230BD1C3 |
| Model | 22230 B/J D1/W33 C3 / 22230 CJ/CCJ C3 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 150 mm |
| OD | 270 mm |
| Width | 73 mm |
| Material | Bearing Steel |
|---|---|
| Series | 222 |
| Lubricant | Grease or oil |
| Mpn Variants | 22230BD1C3, 22230-BD1-C3, 22230B D1 C3, 22230BW33C3, 22230CJC3W33 |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Relubrication Feature | Lubrication groove and holes (D1 / W33) |
| Harmonization Code | 8482.30.00 |
| Cross Reference 1 | SKF 22230 CC/C3W33 |
|---|---|
| Cross Reference 2 | Timken 22230EJW33C3 |
| Cross Reference 3 | NSK 22230CAE4C3 – machined brass cage |
| Cross Reference 4 | FAG 22230-E1-C3 – no lube groove |
NTN 22230BD1C3 double-row spherical roller bearing, 222 series, straight bore, with outer-ring lubrication groove and holes. Bore Diameter: 150 mm. Outside Diameter: 270 mm. Width: 73 mm. Internal Clearance: C3.
222 — spherical roller series 222: double row, light-medium section.
30 — bore code, 150 mm.
B — NTN B-type internal design.
D1 — lubrication groove and holes in the outer ring, NTN’s code for the W33 feature.
C3 — radial internal clearance greater than normal, for heat-affected or interference-fitted service.
Lubricant: Grease or oil. The groove distributes lubricant around the outer ring; radial holes carry it inward between the two roller rows. The spherical outer raceway lets the bearing self-align under shaft deflection or housing misalignment.
SKF 22230 CC/C3W33 and Timken 22230EJW33C3 are 222-series C3 spherical rollers with lubrication groove and holes. NSK 22230CAE4C3 has a machined brass cage. FAG 22230-E1-C3 has no lubrication groove. The CJC3W33 marking on the listing is another maker’s cage code.
