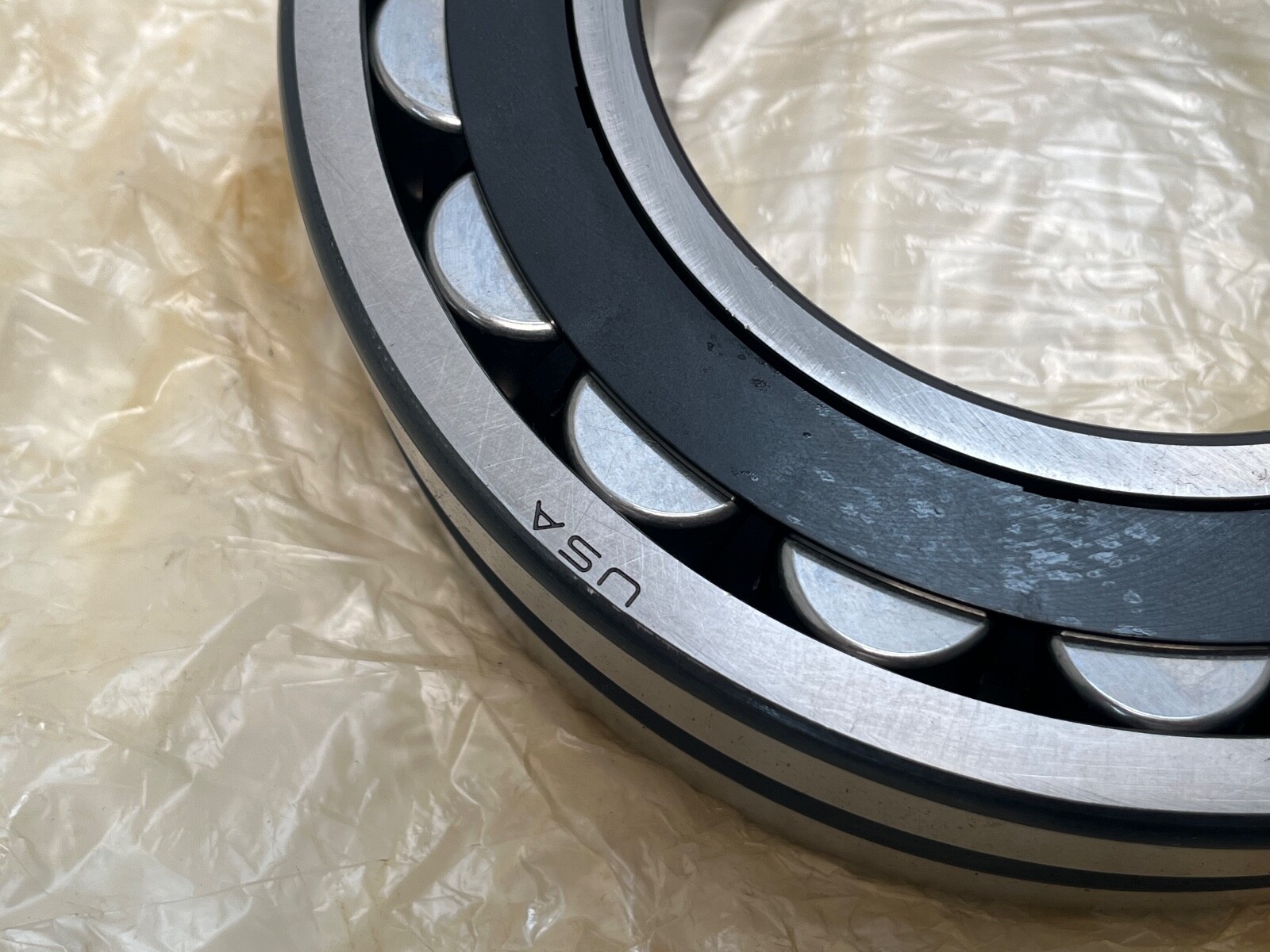

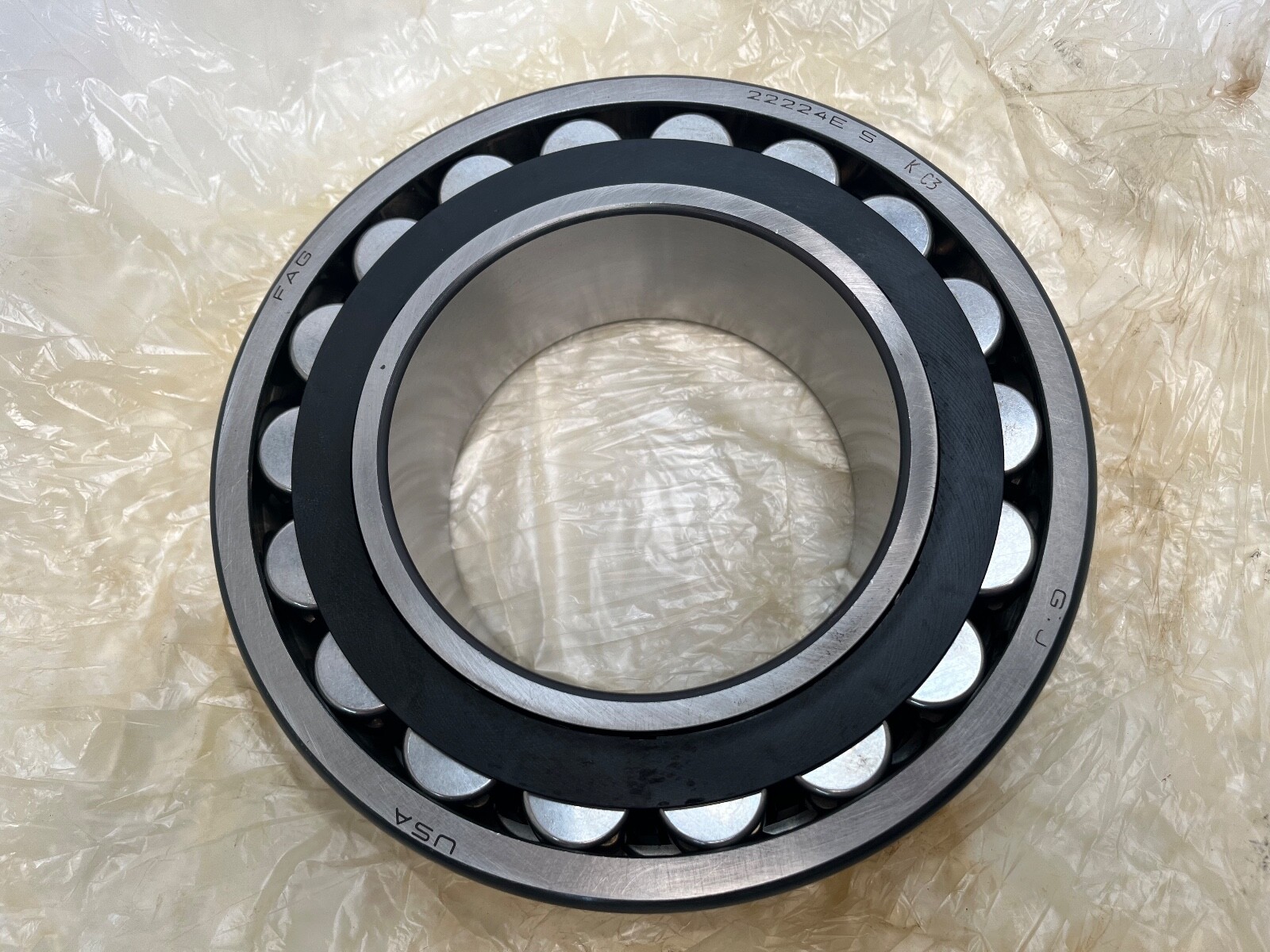

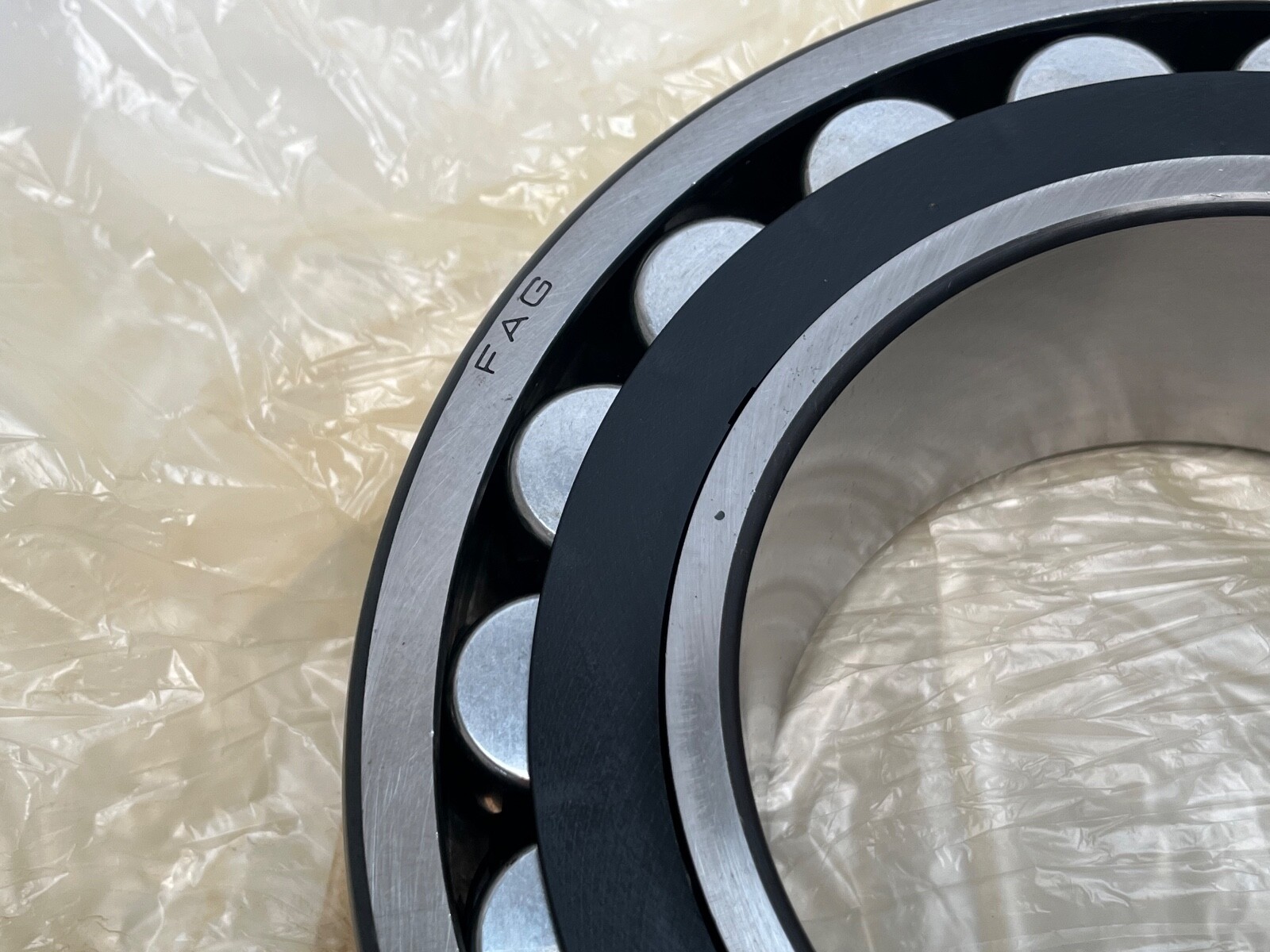

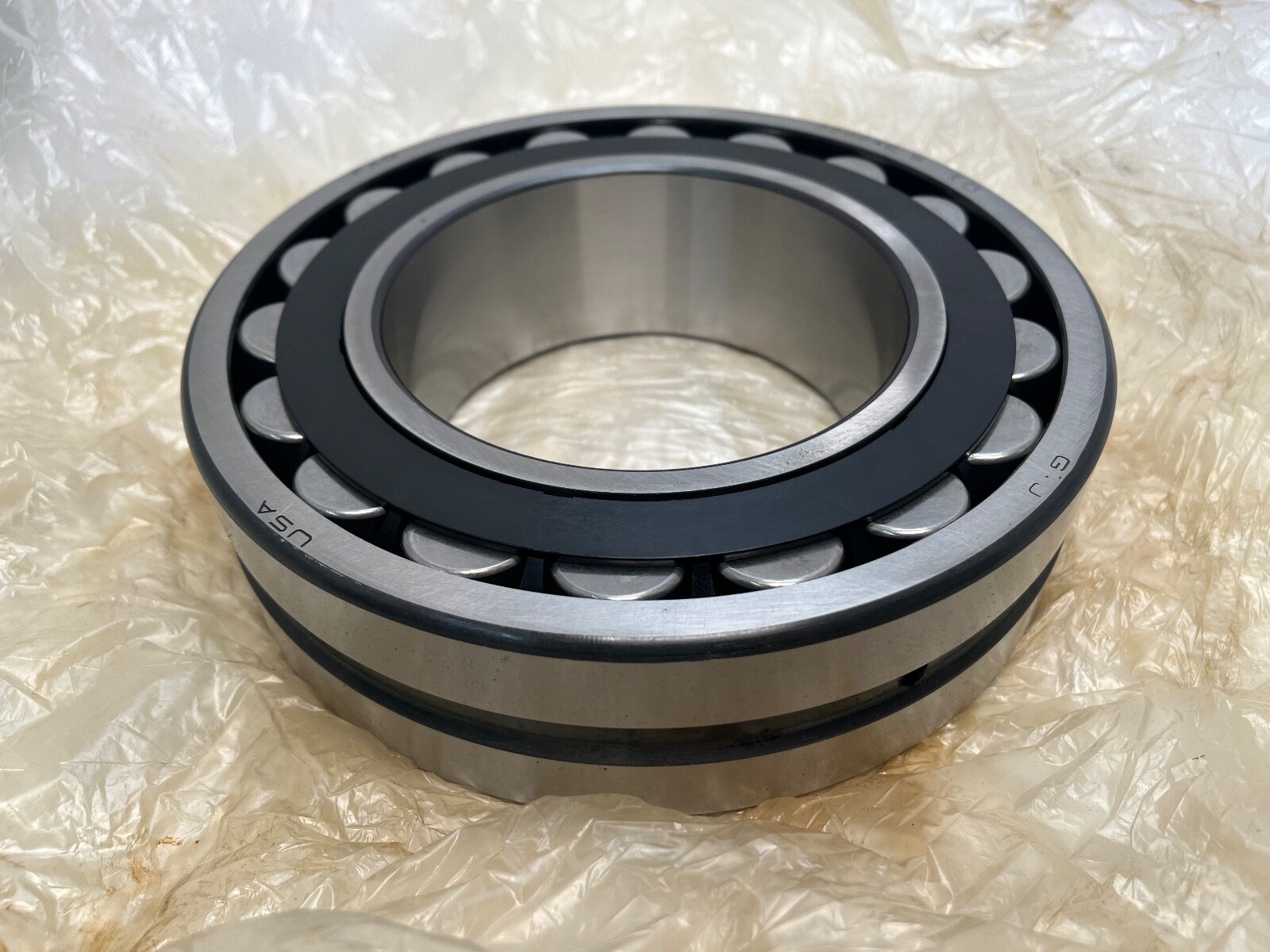

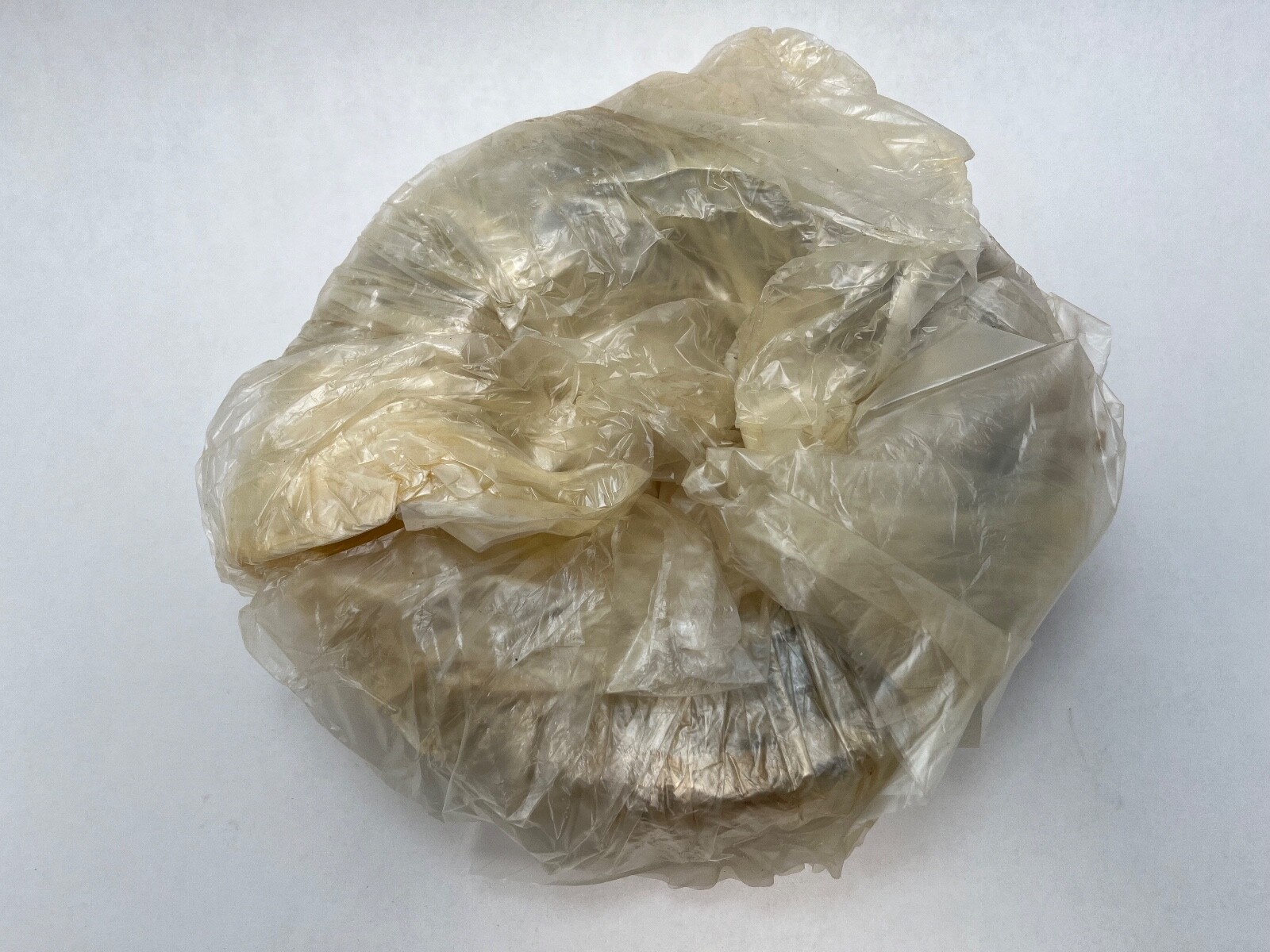

FAG 22224-ES-K-TVP-C3 spherical roller bearing, 120 x 215 x 58 mm, 1:12 tapered bore, C3 clearance, W33 lubrication groove, polyamide cage. Mounts on an H3124 adapter sleeve.
List Price
$235.58
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22224ESK.TVP.C3 |
| Model | 22224 ESK/CKY/ASK TVP C3 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 58 mm |
| Base Number | 22224 |
|---|---|
| Industry Terms | spherical roller bearing, double row spherical roller bearing, tapered bore, W33 lubrication groove, self-aligning roller bearing |
| Common Misspellings | 22224ESKTVPC3, 22224 ESK TVPC3, 22224-ESK-TVP-C3, 22224ESK C3 |
| Application Types | Conveyors, crushers, vibrating screens, fans, paper machines, gearboxes, plummer block housings |
| Overall Width | 58 mm |
| Relubrication | Lubrication groove and holes in outer ring (S / W33) |
| Mpn Variants | 22224ESK.TVP.C3, 22224-ES-K-TVP-C3, 22224-ES-K-TVP-C3-W33, 22224 ESK TVP C3 W33, 22224 ESK/CKY/ASK TVP C3 W33 |
| Additional Attributes | Adapter sleeve: H3124; Withdrawal sleeve: AHX3124 |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Lubricant | grease or oil |
| Closure Type | Open |
| Cross Reference 1 | SKF 22224 EK/C3 |
|---|---|
| Cross Reference 2 | NSK 22224EAKE4C3 |
| Cross Reference 3 | FAG 22224-E1-XL-K-C3 - current execution |

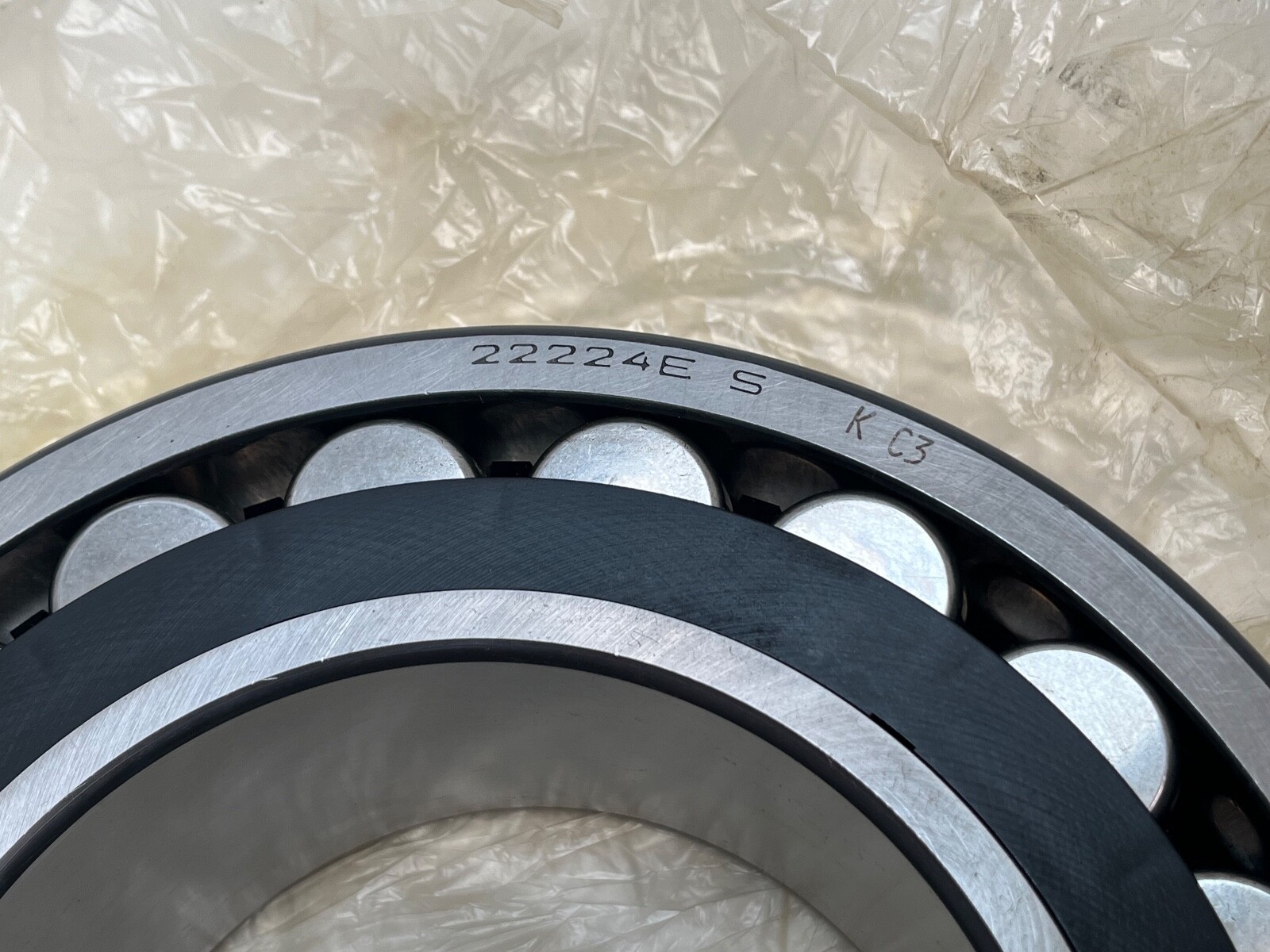

FAG 22224-ES-K-TVP-C3 (22224ESK.TVP.C3) double-row spherical roller bearing in the 222 series with a 1:12 tapered bore and an outer-ring lubrication groove. Bearing type: spherical roller bearing. Number Of Rows: 2. Closure Type: Open.
222 — spherical roller bearing, dimension series 22.
24 — bore code, 24 x 5 = 120 mm.
E — FAG increased-capacity internal design.
S — lubrication groove in the outer ring outside surface with radial lubrication holes, equivalent to W33.
K — tapered bore, taper 1:12.
TVP — glass-fibre reinforced polyamide cage.
C3 — radial internal clearance larger than CN.
Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Tapered 1:12. Cage Material: Glass-fibre reinforced polyamide. Internal Clearance: C3. Relubrication: lubrication groove and holes in outer ring (S / W33). Lubricant: grease or oil. Closure Type: Open.
Bore Diameter: 120 mm. Outside Diameter: 215 mm. Overall Width: 58 mm. Adapter sleeve: H3124. Withdrawal sleeve: AHX3124.
FAG 22224-E1-XL-K-C3 is the current Schaeffler execution on this envelope. SKF 22224 EK/C3 and NSK 22224EAKE4C3 share the 120 x 215 x 58 mm envelope. MPN Variants: 22224ESK.TVP.C3, 22224-ES-K-TVP-C3, 22224-ES-K-TVP-C3-W33, 22224 ESK TVP C3 W33.
Bore Diameter: 120 mm. Outside Diameter: 215 mm. Overall Width: 58 mm.
S: lubrication groove in the outer ring with radial lubrication holes, equivalent to W33. K: tapered bore, taper 1:12.
Adapter sleeve H3124 and withdrawal sleeve AHX3124.
