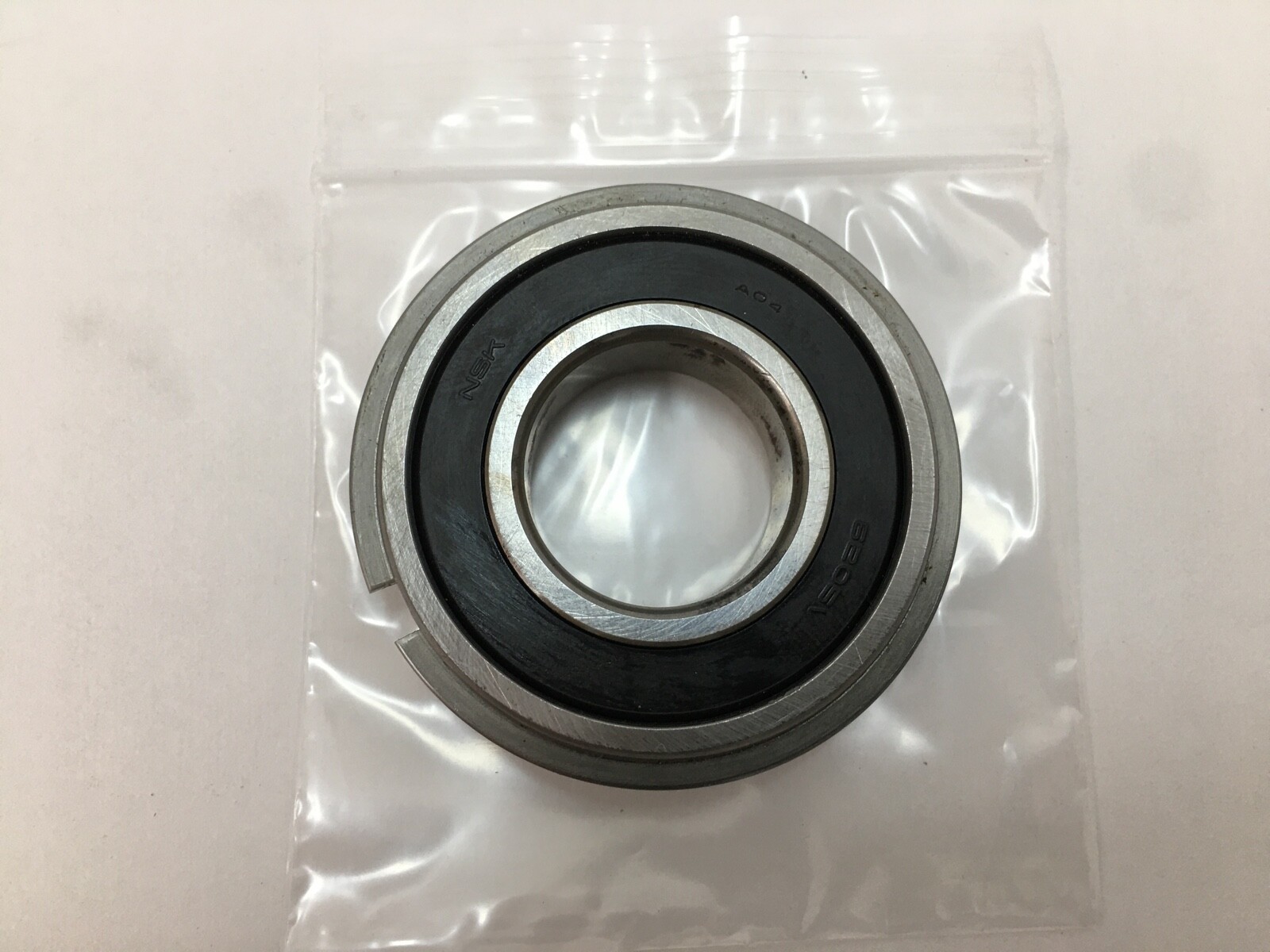

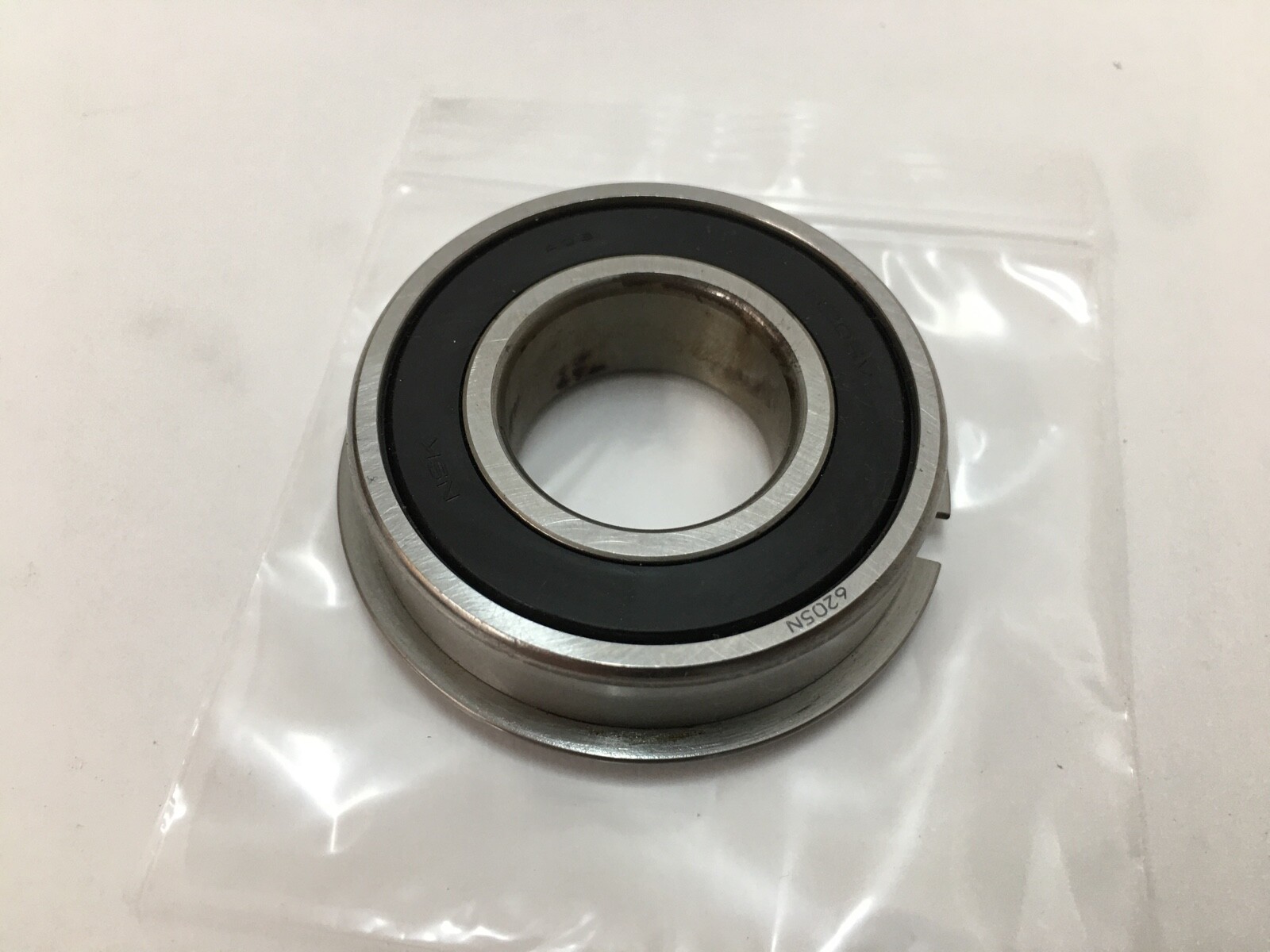

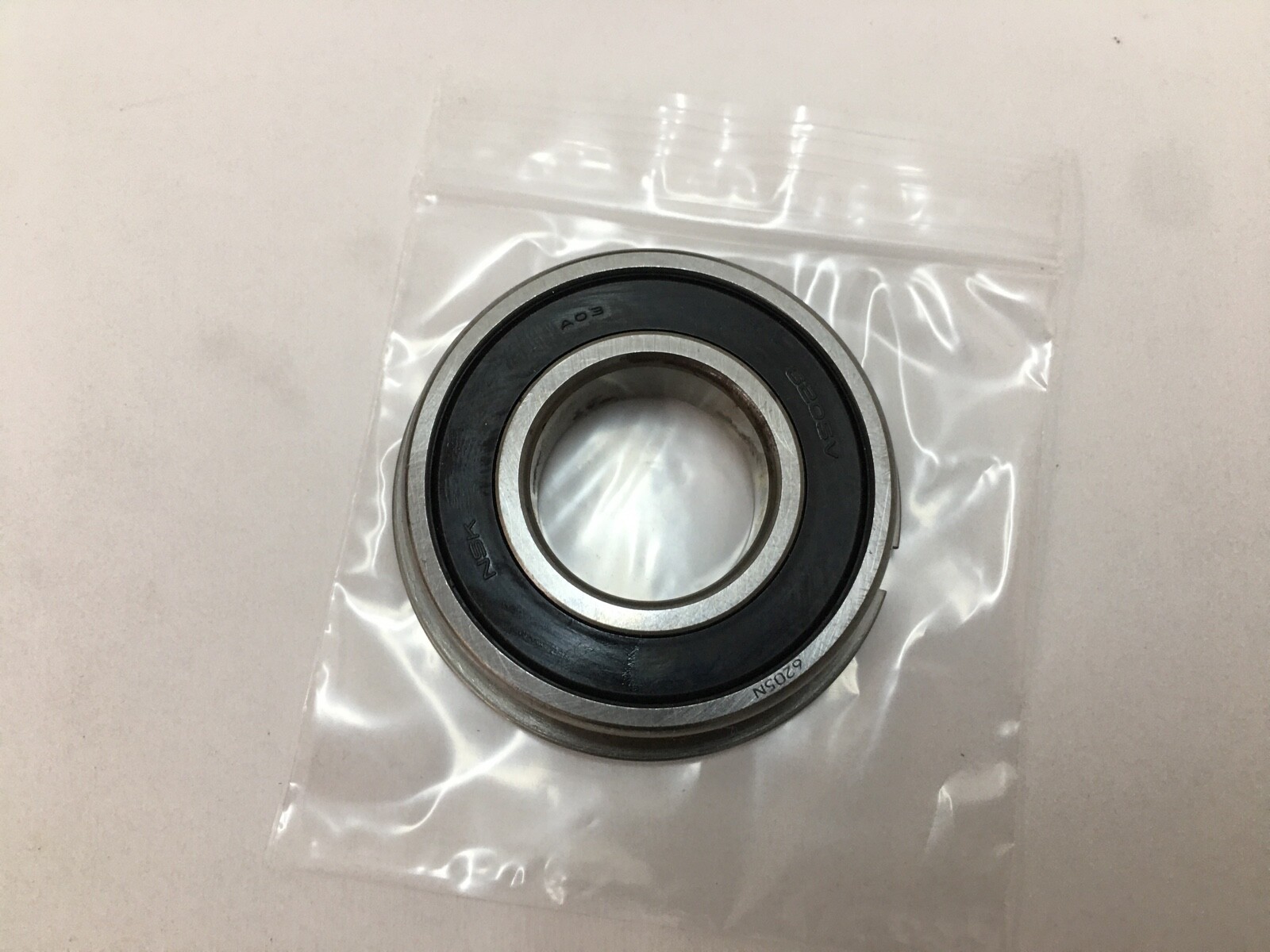

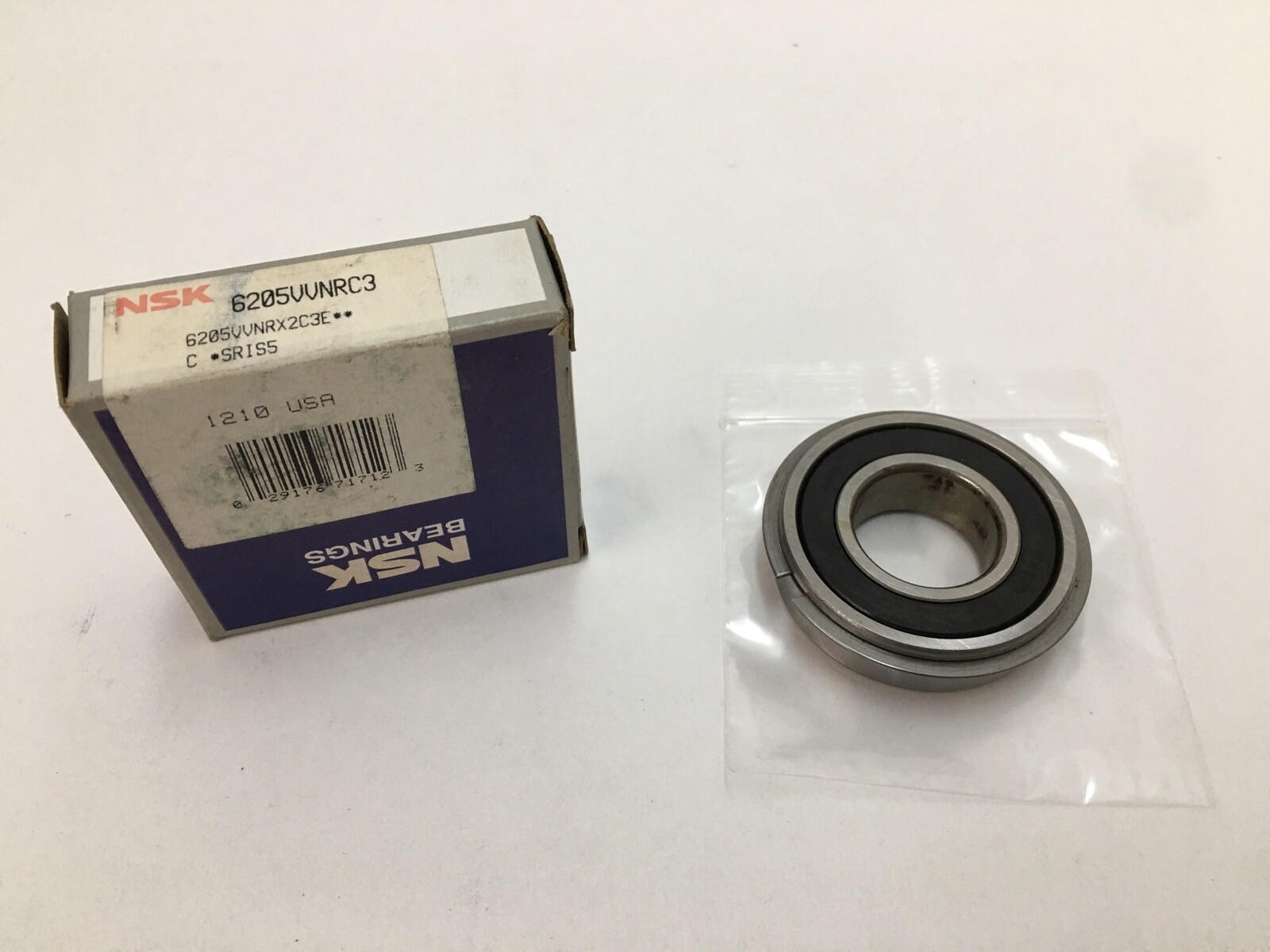

Deep groove ball bearing 6205, 25 mm bore, 52 mm OD, 15 mm width, non-contact rubber seals, snap ring, C3 clearance. Two NSK 6205VVNRC3 pieces, 15,400 N.
List Price
$32.91
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 6205VVNRC3 |
| GTIN | 029176717123 |
| Model | 6205VV NR C3 |
| Bearing Type | Ball Bearing, Rubber Non-Contact Seals Both Sides |
| ID | 25 mm |
| OD | 52 mm |
| Width | 15 mm |
| Series | 6200 |
|---|---|
| Lubricant | Grease |
| Material | Bearing Steel (High Carbon Chrome) |
| Dynamic Load Rating | 15,400 N |
| Static Load Rating | 7,850 N |
| Rolling Elements | Ball |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Yes |
| Limiting Speed | 15,000 rpm grease |
| Harmonization Code | 8482.10.5068 |
| Internal Clearance | C3 |
| Mpn Variants | 6205VVNRC3, 6205VVNR C3, 6205VV NR C3, 6205VVC3NR, 6205-2RSNR C3, 62052RSNRC3, 6205 2RS NR |
| Additional Attributes | Number of balls: 9; Ball diameter: 7.938 mm; Shaft abutment da: 30-32 mm; Housing abutment Da max: 47 mm; Fillet ra max: 1 mm; Chamfer r min: 1 mm; Factor f0: 13.9 |
| Industry Terms | sealed deep groove ball bearing with snap ring; 6205 2RS NR C3; 6205 VV NR; snap ring groove ball bearing; non-contact sealed ball bearing |
| Common Misspellings | 6205 VVNRC3, 6205VV NRC3, NSK6205VVNRC3, 6205-VV-NR-C3, 6205VNRC3 |
| Application Types | Electric motors; pumps; gearboxes; industrial machinery |
| Cross Reference 1 | NTN 6205LLBNRC3 |
|---|---|
| Cross Reference 2 | SKF 6205-2RZNR/C3 |
| Cross Reference 3 | NTN 6205LLUNR (contact seals) |
| Cross Reference 4 | Koyo 6205-2RSNR (contact seals) |
| Cross Reference 5 | RHP 6205-2RSR-N (contact seals) |
NSK 6205VVNRC3 is a single-row deep groove ball bearing in the ISO 6205 size, with non-contact rubber seals on both sides, a snap ring groove with snap ring fitted, and C3 radial internal clearance. Unit Quantity: 2 Pcs.
6205 — NSK 62 series deep groove ball bearing, bore code 05, 25 x 52 x 15 mm.
VV — rubber non-contact seals on both sides.
NR — snap ring groove in the outer ring with the snap ring fitted, for axial location in the housing.
C3 — radial internal clearance greater than normal.
Bore Diameter: 25 mm. Outside Diameter: 52 mm. Overall Width: 15 mm. Dynamic Load Rating: 15,400 N. Static Load Rating: 7,850 N. Limiting Speed: 15,000 rpm grease. Closure Type: Non-contact seals both sides. Cage Material: Pressed steel. Internal Clearance: C3. Rolling Elements: Ball. Number Of Balls: 9. Ball Diameter: 7.938 mm. Unit Quantity: 2 Pcs.
Shaft abutment diameter: 30 mm min, 32 mm max. Housing abutment diameter: 47 mm max. Fillet radius: 1 mm max. Chamfer: 1 mm min.
Cross-references with the same envelope, snap ring and clearance: NTN 6205LLBNRC3 and SKF 6205-2RZNR/C3. Contact-seal equivalents: NTN 6205LLUNR, Koyo 6205-2RSNR and RHP 6205-2RSR-N. MPN Variants: 6205VVNRC3, 6205VVNR C3, 6205VV NR C3, 6205VVC3NR, 6205-2RSNR C3, 62052RSNRC3, 6205 2RS NR.
25 mm bore, 52 mm outside diameter, 15 mm width.

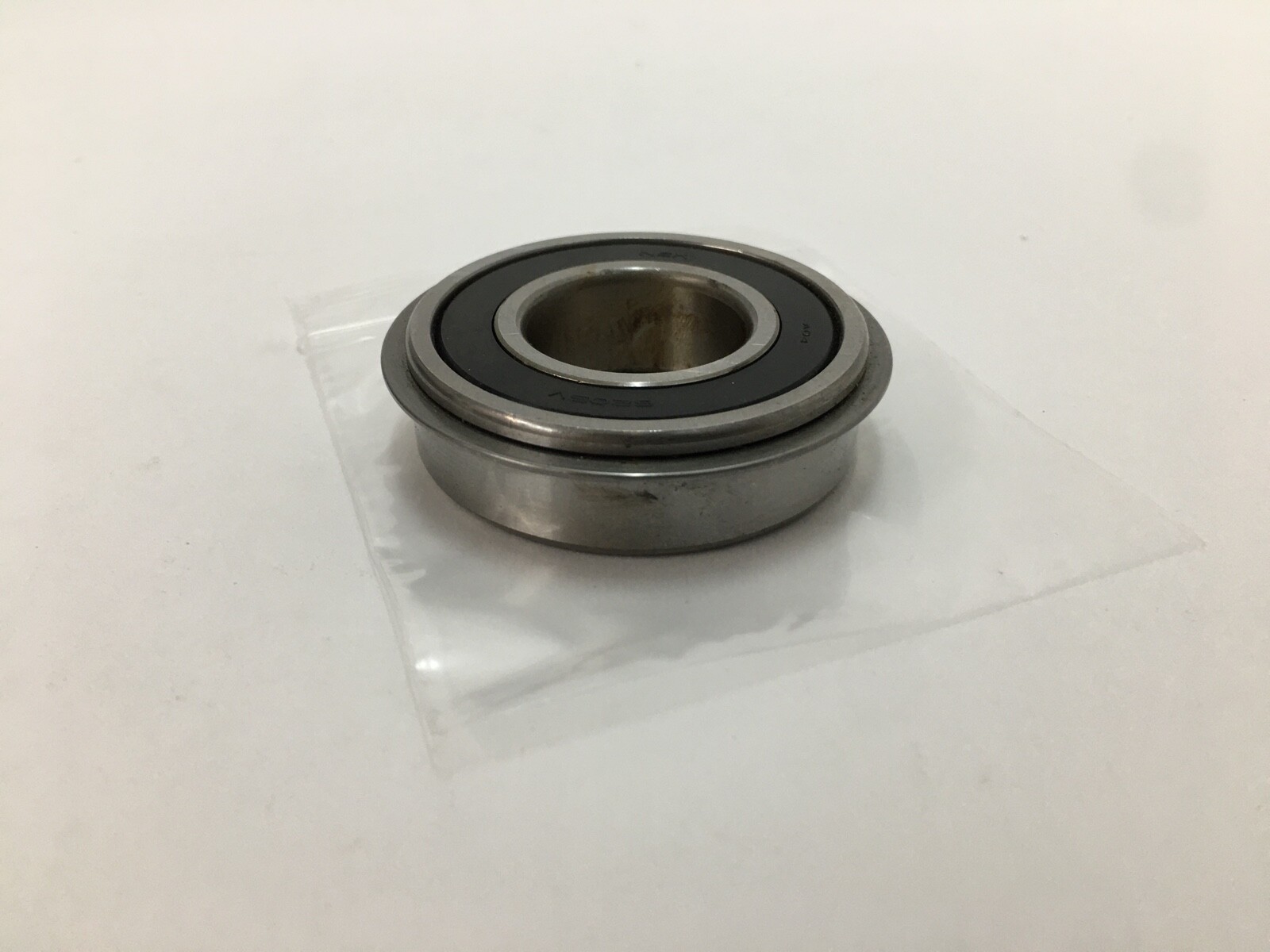

A snap ring groove in the outer ring with the snap ring fitted.
15,400 N dynamic and 7,850 N static.
