Availability:
1 in stock
Single-row angular contact ball bearing, 17 mm bore, 40 mm OD, 12 mm wide, 40° contact angle, high-capacity B-series design with a polyamide cage.
List Price
$70.96
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7203BETN |
| Model | 7203 BE TN |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 17 mm |
| OD | 40 mm |
| Width | 12 mm |
| Material | Bearing Steel |
|---|---|
| Industry Terms | Angular contact ball bearing; 40 degree contact angle; B series angular contact; polyamide cage bearing; single row angular contact |
| Common Misspellings | 7203 BTEN; 7203BENT; 7302BETN; 7203 B ETN |
| Overall Width | 12 mm |
| Mpn Variants | 7203BETN; 7203-B-E-TN; 7203 BE TN; 7203BE; 7203B; 7203BETNG |
| Precision Class | ABEC 1 / P0 |
| Additional Attributes | Effective load centre a 18.2 mm; chamfer r min 0.6 mm; shaft abutment da min 22 mm; housing abutment Da max 35 mm; max fillet radius ra 0.6 mm |
| Closure Type | Open |
| Cage Type | Moulded, ball-guided |
| Dynamic Load Rating | 12,100 N |
| Static Load Rating | 6,100 N |
| Series | 7200 |
| Rolling Elements | Ball |
| Item Weight | 0.065 kg (0.14 lb) |
| Cage Material | Polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 16,000 rpm grease; 22,000 rpm oil |
| Internal Clearance | CN |
| Contact Angle | 40° |
| Cross Reference 1 | NSK 7203BEAT85 |
|---|---|
| Cross Reference 2 | SKF 7203 BEP |
| Cross Reference 3 | FAG 7203-B-XL-TVP |
| Cross Reference 4 | NTN 7203BG |
| Cross Reference 5 | Fafnir 7203WN |
| Cross Reference 6 | Koyo 7203B - plain B, lower capacity |
| Cross Reference 7 | SNR 7203B - plain B, lower capacity |

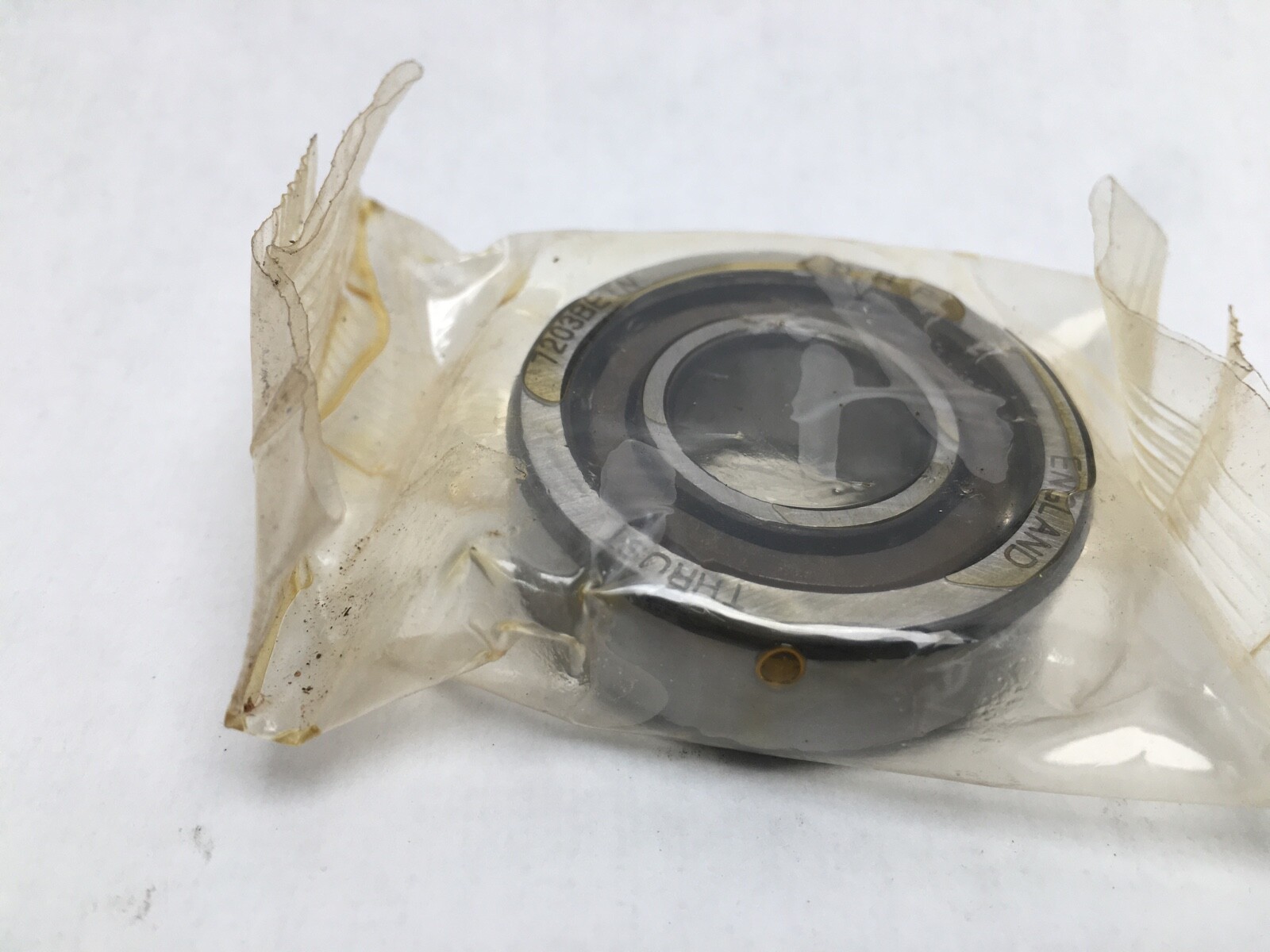

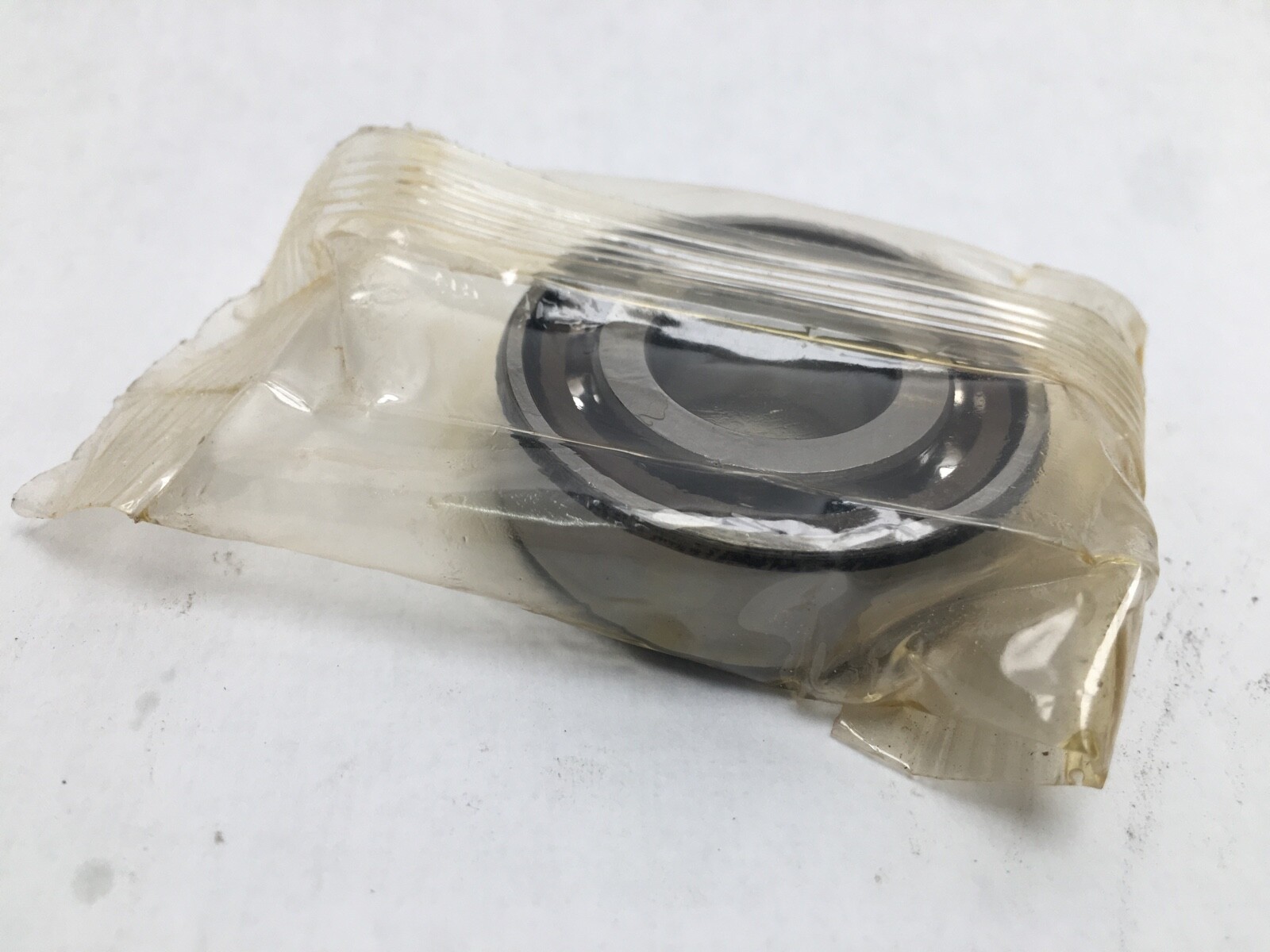

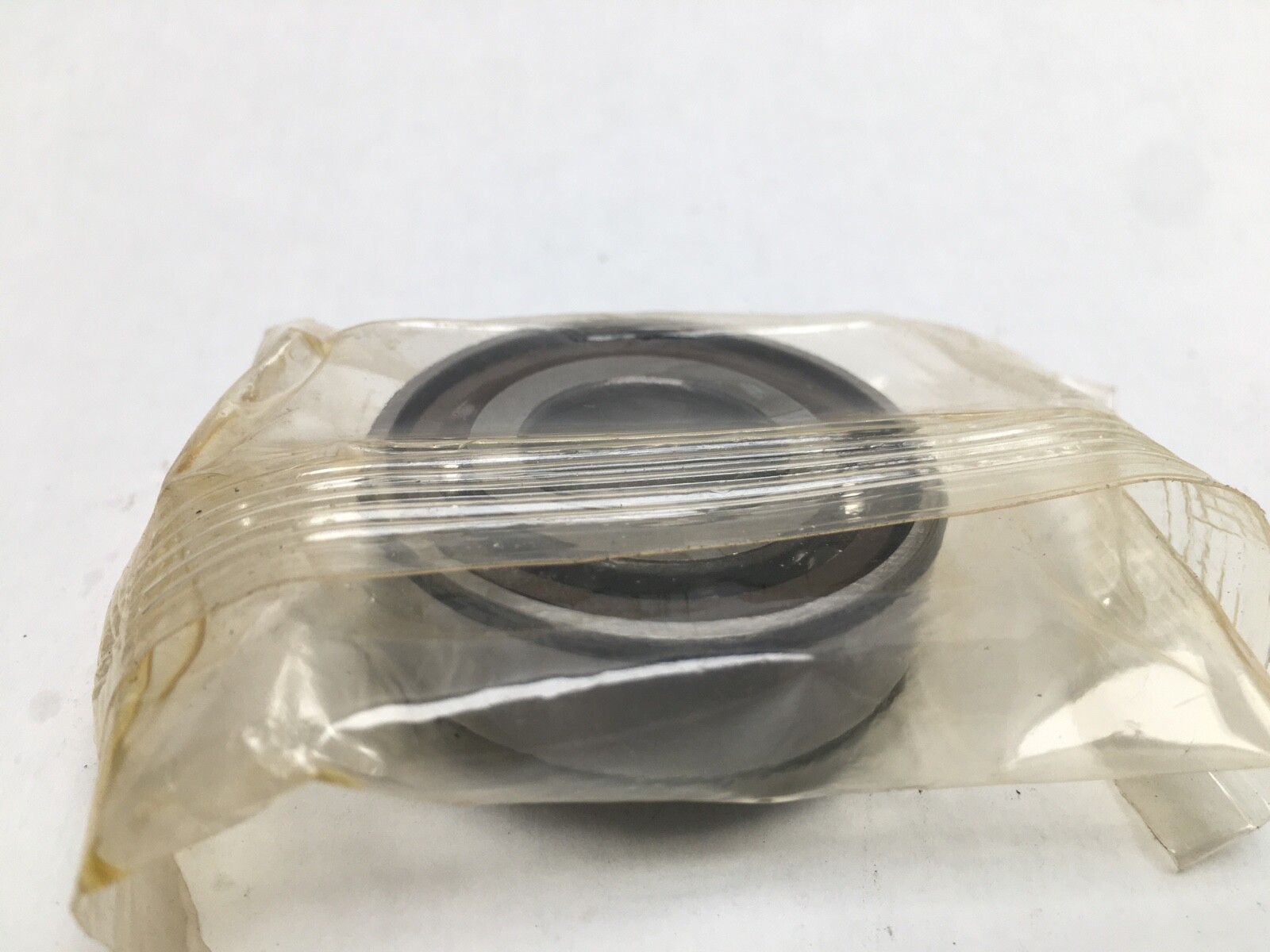

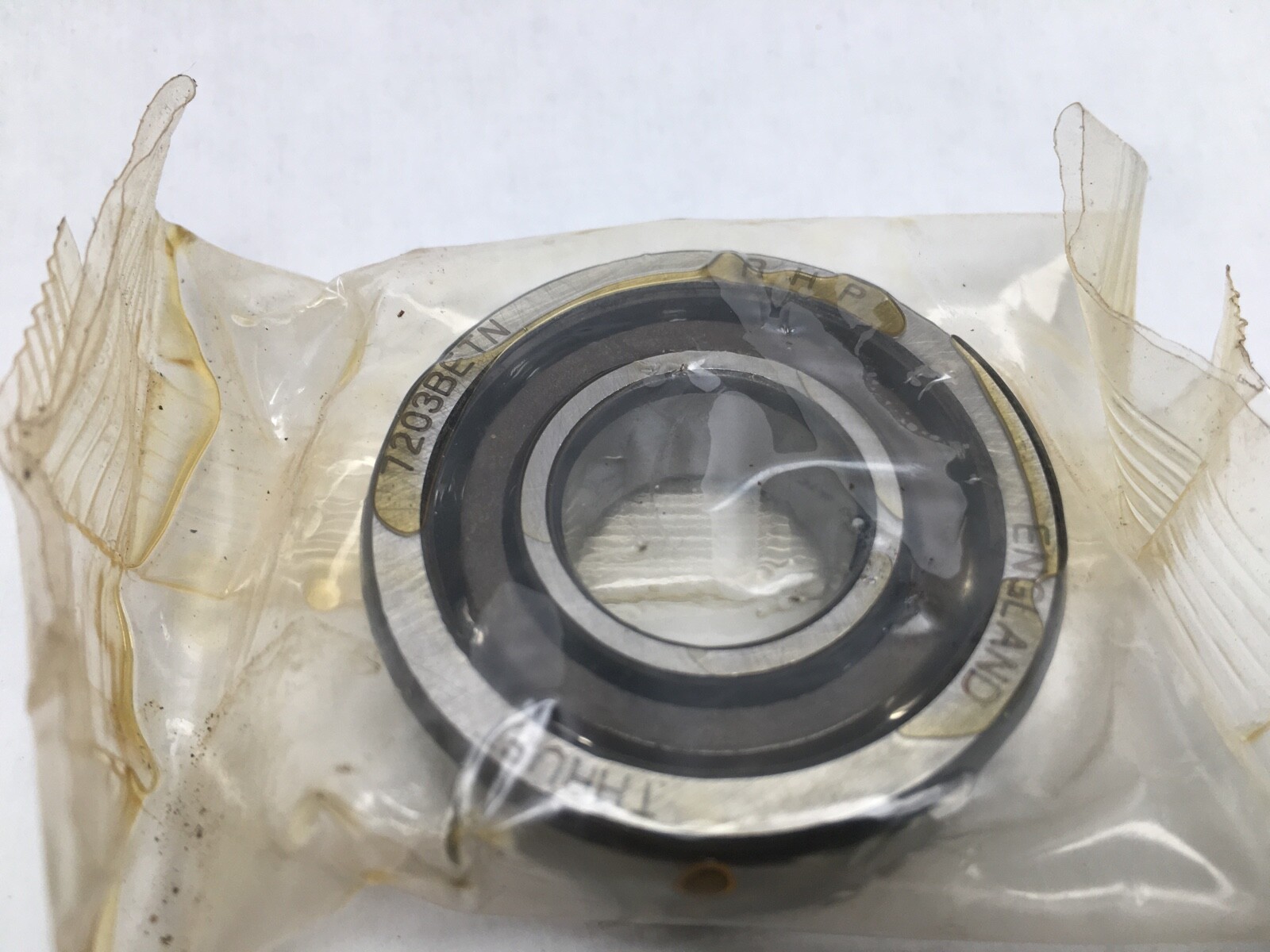

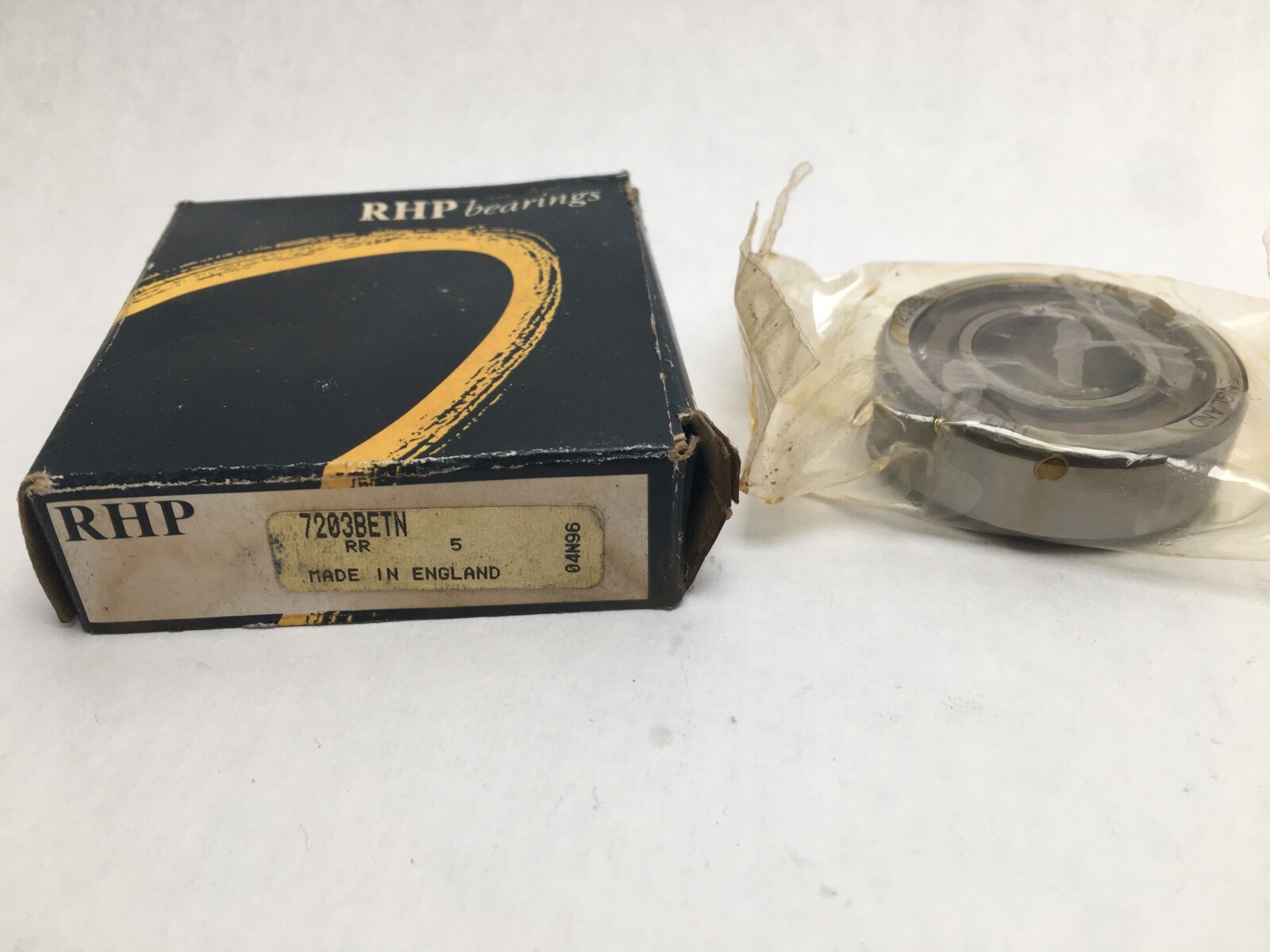

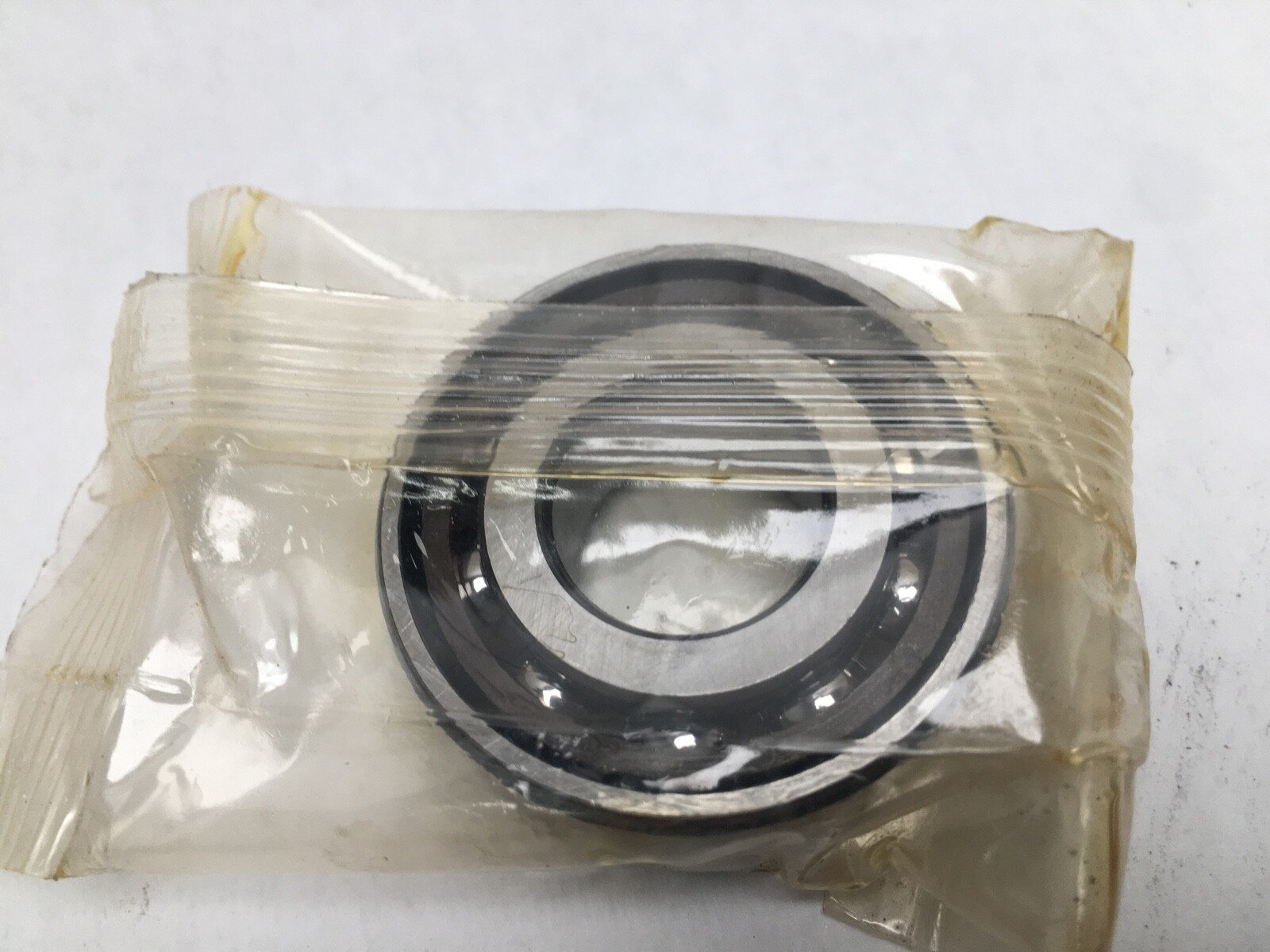

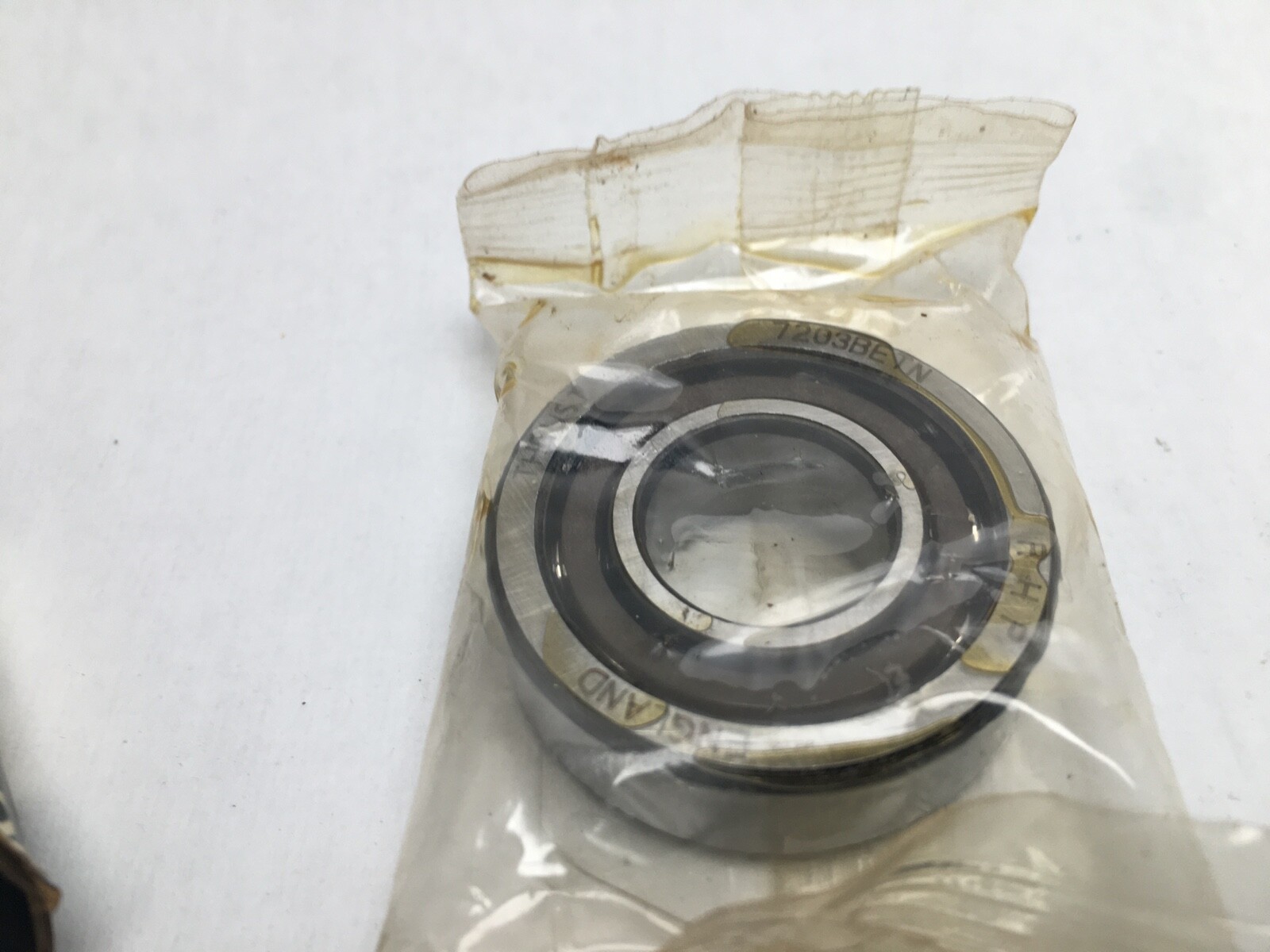

RHP 7203BETN single-row angular contact ball bearing: 17 mm bore, 40 mm outside diameter, 12 mm width, 40° contact angle, high-capacity B-series design with a polyamide cage, open. Unit Quantity: 1 Pc. Single bearing, takes thrust in one direction only.
7203 — ISO 72 dimension series, bore code 03. Bore 17 mm, outside diameter 40 mm, width 12 mm.
B — the 40° contact angle of the standard-precision ISO B range.
E — high load capacity execution. A larger ball complement on the same envelope raises both load ratings over the plain 7203B.
TN — moulded polyamide cage.
Bore Diameter: 17 mm. Outside Diameter: 40 mm. Overall Width: 12 mm. Contact Angle: 40°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Cage Material: Polyamide. Cage Type: Moulded, ball-guided. Dynamic Load Rating: 12,100 N. Static Load Rating: 6,100 N. Limiting Speed: 16,000 rpm grease; 22,000 rpm oil. Precision Class: ABEC 1 / P0. Internal Clearance: CN. Series: 7200. Item Weight: 0.065 kg (0.14 lb).
A single row of balls runs on raceways offset so that the line of contact sits at 40° to the radial plane: high thrust load in one direction, smaller radial load.
Effective load centre a: 18.2 mm from the bearing face. Chamfer dimension r min: 0.6 mm. Shaft abutment diameter da: 22 mm min. Housing abutment diameter Da: 35 mm max. Maximum fillet radius on the shaft or housing ra: 0.6 mm.
Cross-Reference 1: NSK 7203BEAT85. Cross-Reference 2: SKF 7203 BEP. Cross-Reference 3: FAG 7203-B-XL-TVP. Cross-Reference 4: NTN 7203BG. Cross-Reference 5: Fafnir 7203WN. Cross-Reference 6: Koyo 7203B, plain B design with lower capacity. Cross-Reference 7: SNR 7203B, plain B design with lower capacity. All are 17 x 40 x 12 mm with a 40° contact angle.
40 degrees.
17 mm bore, 40 mm outside diameter, 12 mm width.
Dynamic 12,100 N, static 6,100 N.
