Angular contact ball bearing, 17 x 40 x 12 mm, 40° contact angle. Open, polyamide window cage, CN clearance, straight bore, single row, ISO 7200 series.
List Price
$28.88
5 in stock
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | RHP |
|---|---|
| MPN | 7203BETN |
| Model | 7203 BE TN |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 17 mm (0.6693 in) |
| OD | 40 mm (1.5748 in) |
| Width | 12 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 7200 |
| Condition | New – Open box |
| Lubricant | Grease |
| Base Number | 7203 |
| Industry Terms | angular contact ball bearing, 40 degree contact angle bearing, polyamide cage bearing, 7200 series bearing, new old stock bearing |
| Condition Note | Made In England, New Old Stock |
| Overall Width | 12 mm (0.4724 in) |
| Bore Shaft Size | 17 mm (0.6693 in) |
| Mpn Variants | 7203BETN, 7203 BE TN, 7203-BE-TN, 7203BE, 7203B, 7203 |
| Precision Class | P0 (normal class, ABEC 1) |
| Additional Attributes | Shaft abutment d1 22 mm min; housing abutment D1 35 mm max; D2 37.5 mm max; chamfer r 0.6 mm min, r1 0.3 mm min; internal volume 3.1 cm3; lubrication jet PCD 25.9 mm |
| Min Temp | -30 °C |
| Cage Type | Moulded polyamide window cage |
| Dynamic Load Rating | 10.6 kN / 2383 lbf |
| Static Load Rating | 5.3 kN / 1191 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.15 lbs |
| Cage Material | Polyamide |
| Limiting Speed | 22000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 40° |
| Preload | Not specified |
| Design Units | Metric |
| Part Number | 7203BETN |
| Cross Reference 1 | SKF 7203 BEP |
|---|---|
| Cross Reference 2 | FAG 7203-B-XL-TVP |
| Cross Reference 3 | 7203C (related size, 15 degree contact angle) |
| Cross Reference 4 | 7203A5 (related size, 25 degree contact angle) |

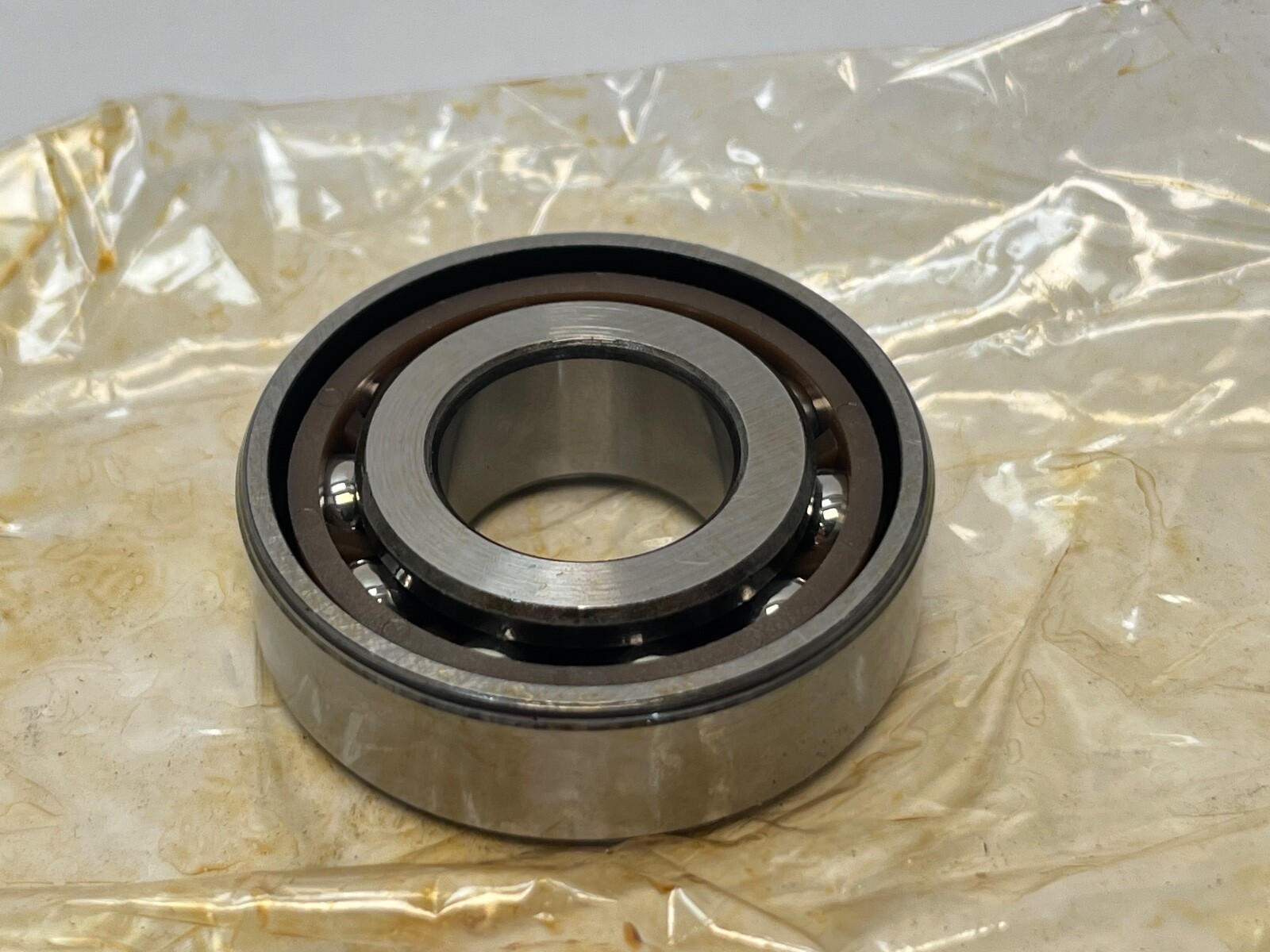

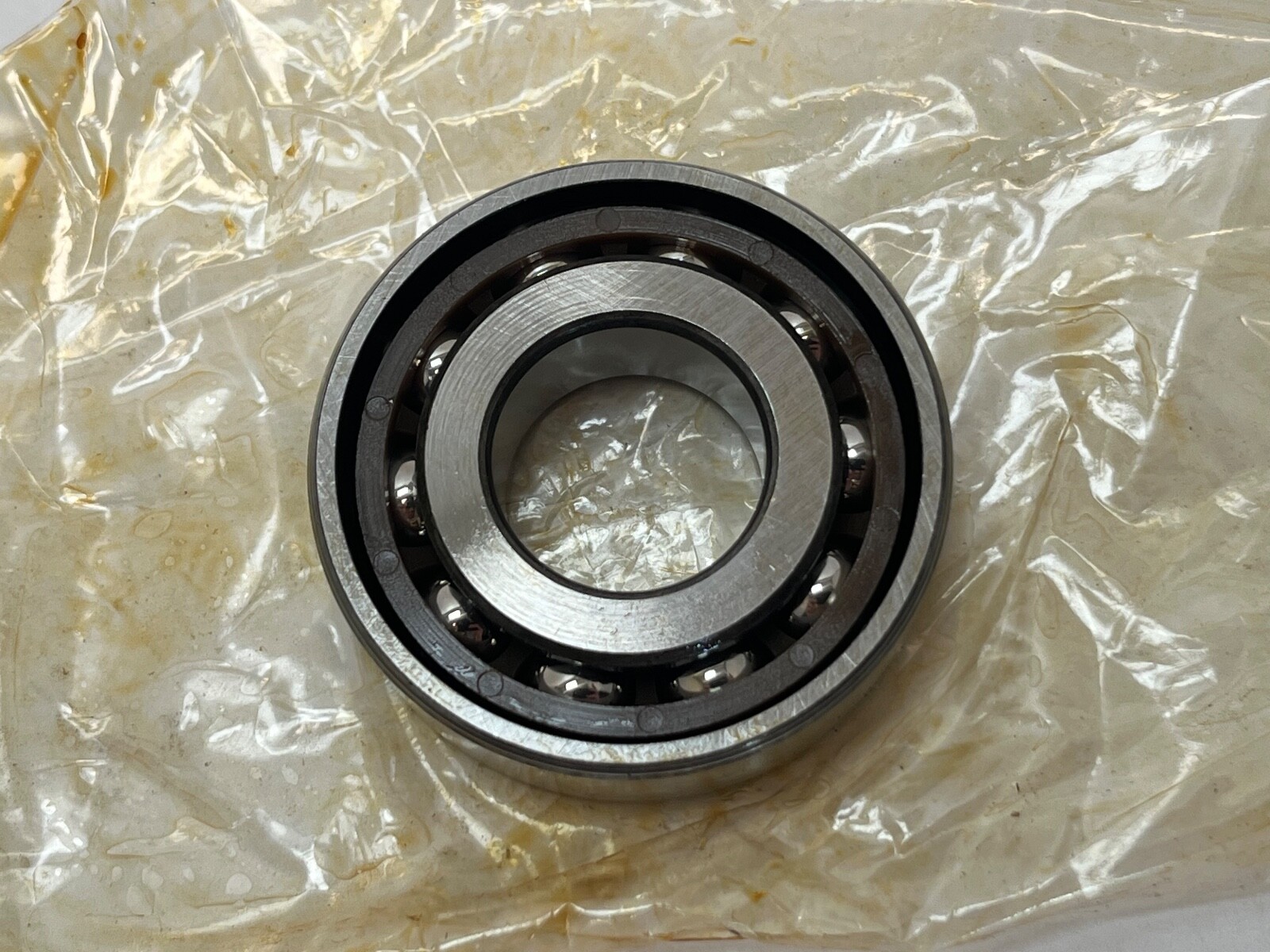

RHP 7203BETN is a single-row angular contact ball bearing with a 17 mm bore, 40 mm outside diameter and 12 mm width. Series: 7200 (ISO dimension series 02). Base Number: 7203. Contact Angle: 40°. Cage Material: polyamide, window type. Precision Class: P0, normal class, equivalent to ABEC 1. Bore Type: straight. Closure: open on both faces.
Contact Angle: 40°. Design: reinforced capacity. Cage: moulded polyamide window cage. Internal Clearance: CN, normal. Searchable forms of the designation include 7203BETN, 7203 BE TN, 7203-BE-TN, 7203BE and 7203B.
A 40° contact angle carries higher axial load in one direction than a 15° or 25° bearing of the same envelope. The trade is speed: a steeper angle runs slower than a shallower one at equal size. Dynamic load rating in this envelope is 10.6 kN and static load rating 5.3 kN. Limiting speed is 22,000 rpm. A polyamide window cage is lighter than pressed steel and runs quieter. Maximum recommended operating temperature for a polyamide cage is 120 °C.
Internal Clearance: CN, normal radial clearance. This bearing carries no preload code, so it is supplied clearance-set and the operating preload is established by the mounting.
Unit Quantity: 1 Pc. A single-row angular contact ball bearing takes axial load in one direction, so two are mounted opposed where thrust reverses.
Shaft abutment diameter d1: 22 mm minimum. Housing abutment diameter D1: 35 mm maximum. D2: 37.5 mm maximum. Chamfer r: 0.6 mm minimum. Chamfer r1: 0.3 mm minimum.
Same-specification 40° reinforced polyamide-cage equivalents in this envelope are SKF 7203 BEP and FAG 7203-B-XL-TVP. A 7203C or 7203A5 in the same 17 x 40 x 12 mm envelope is a 15° or 25° bearing and is a related size.

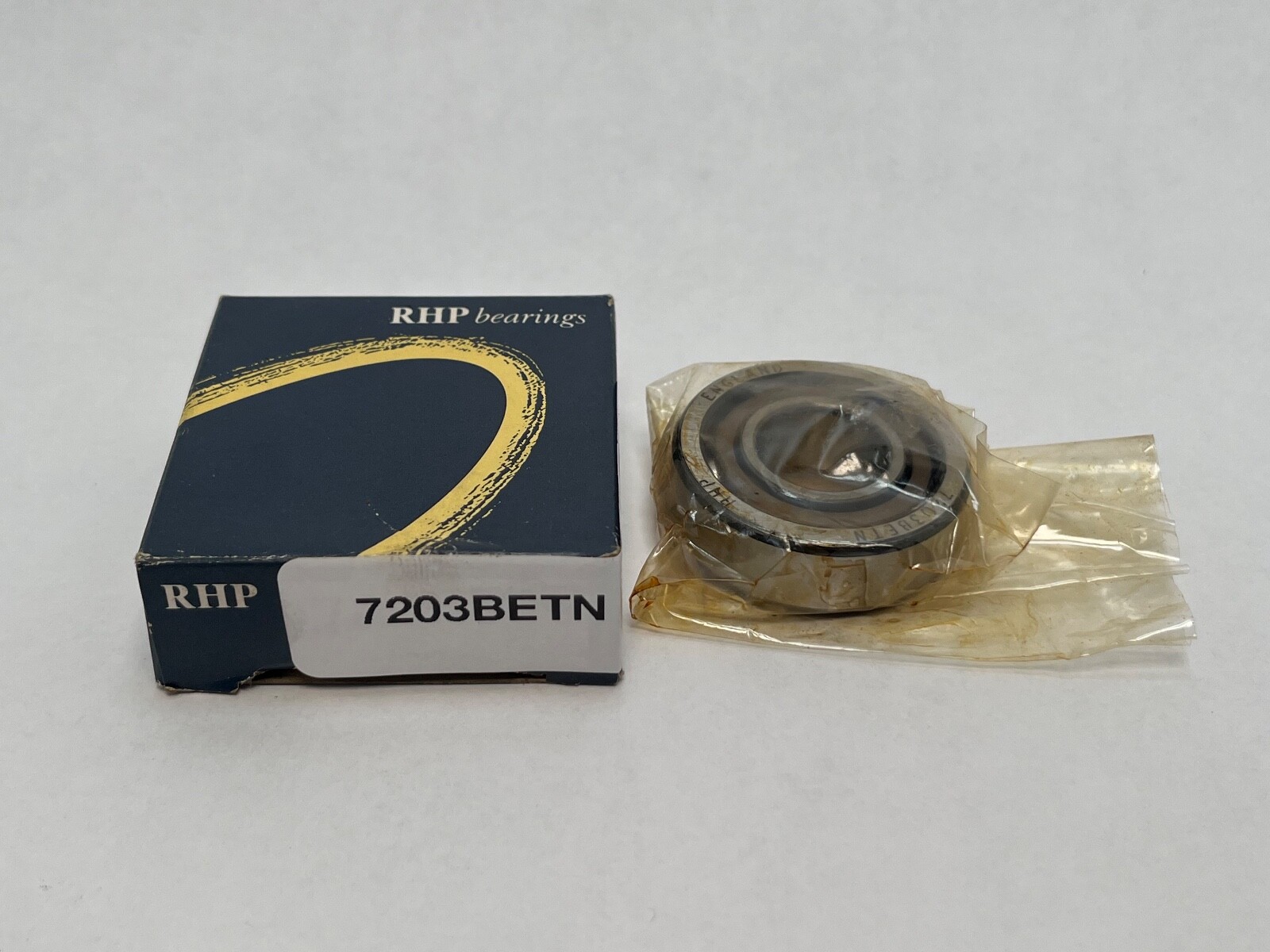

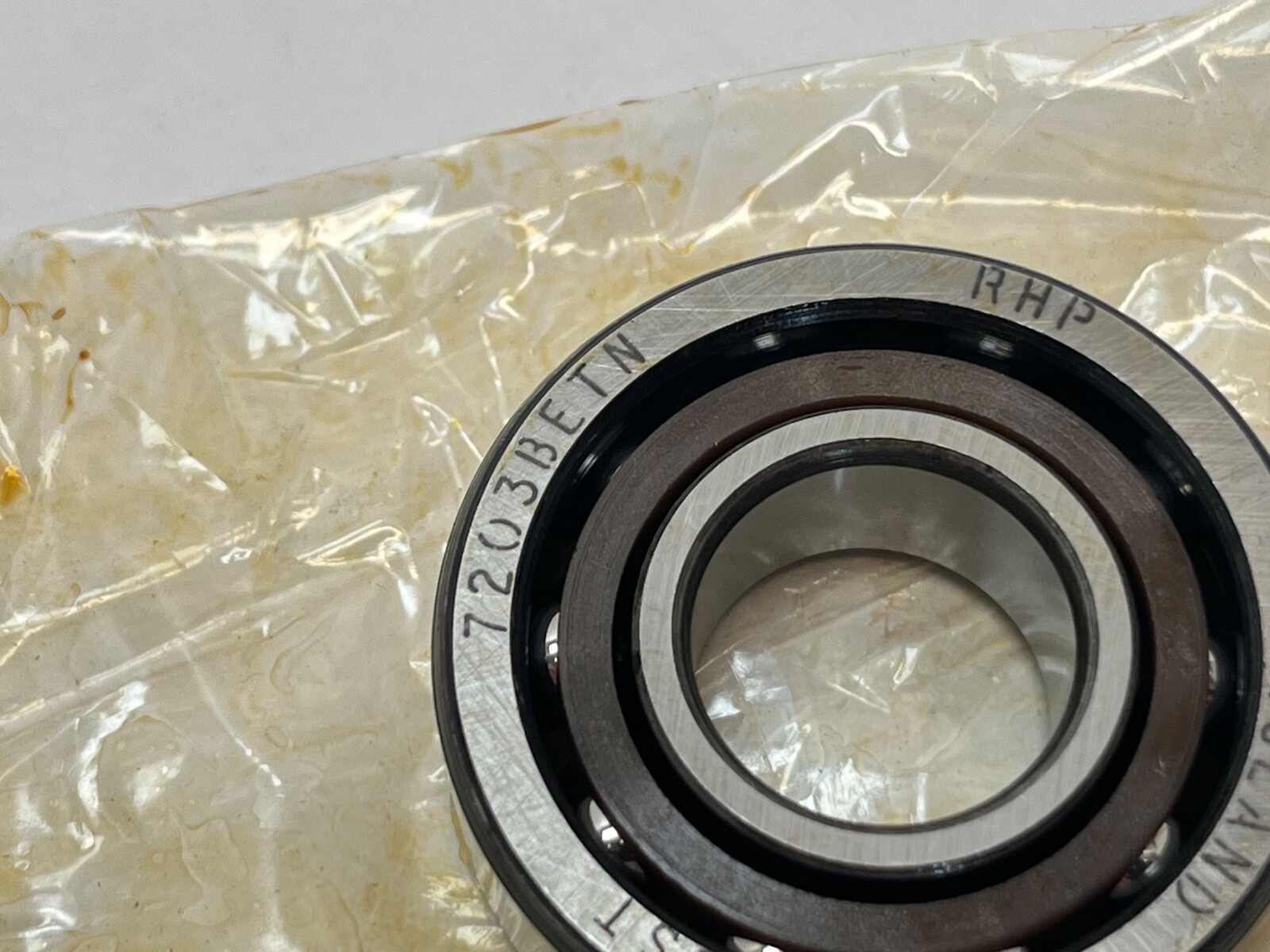

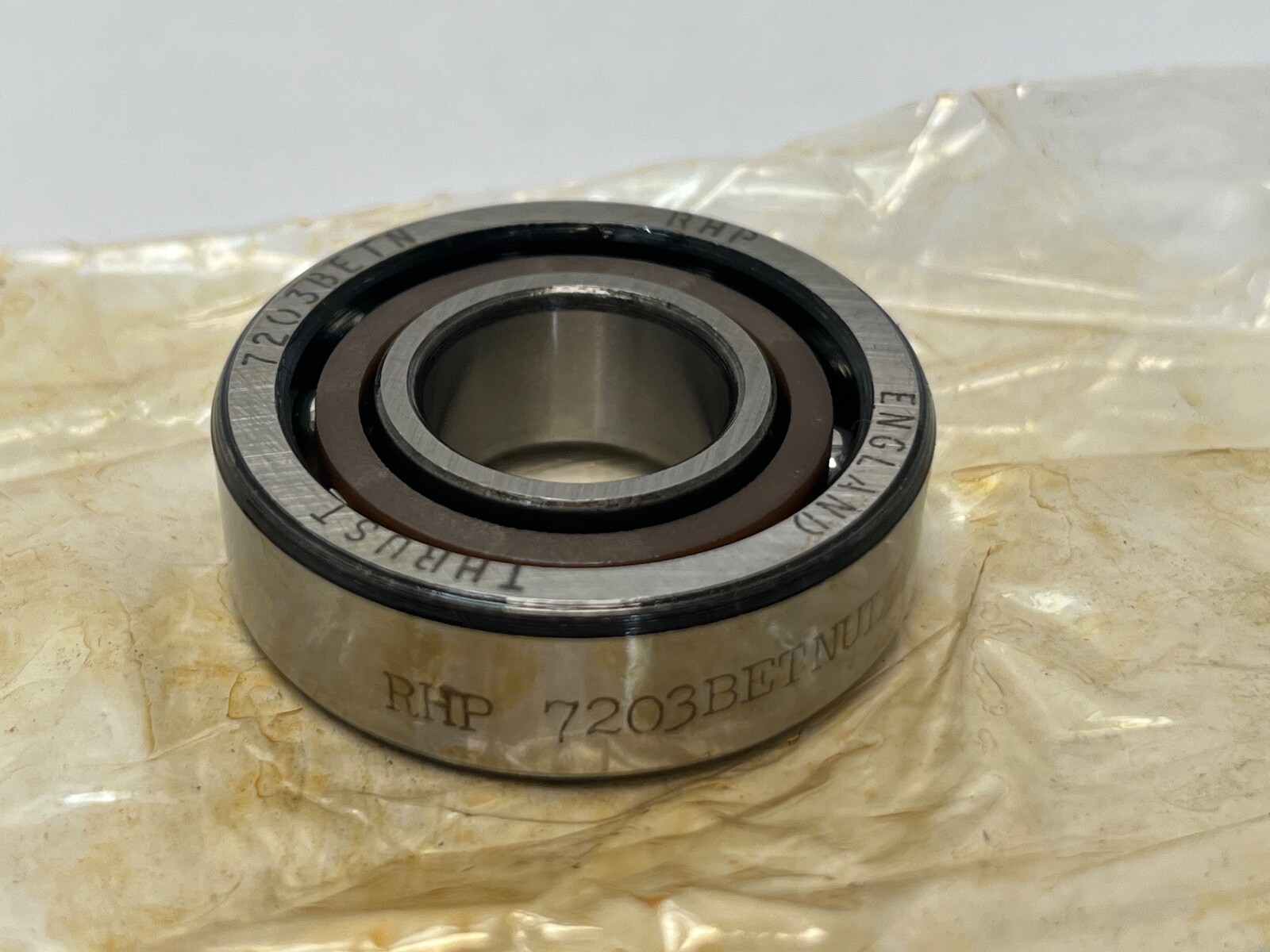

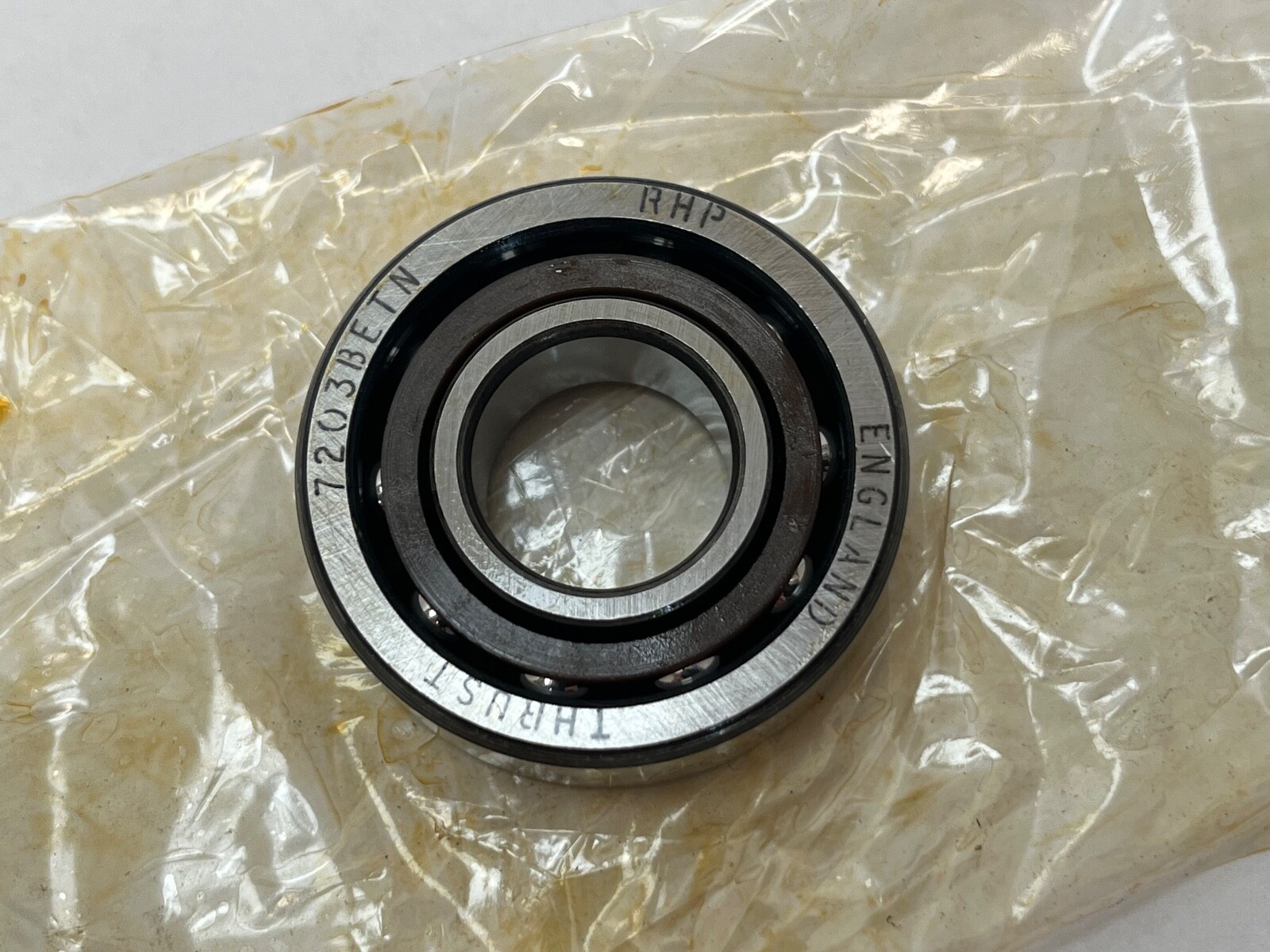

Country of Origin: United Kingdom. Marked Made In England. RHP is part of the NSK group.
