RHP7002-C-T-DUL-P4VSuper Precision Angular Contact Ball Bearing – 15 mm ID, 32 mm OD, 9 mm Width, Open, 15° Contact Angle, Light Preload

Product Description

What this part is:

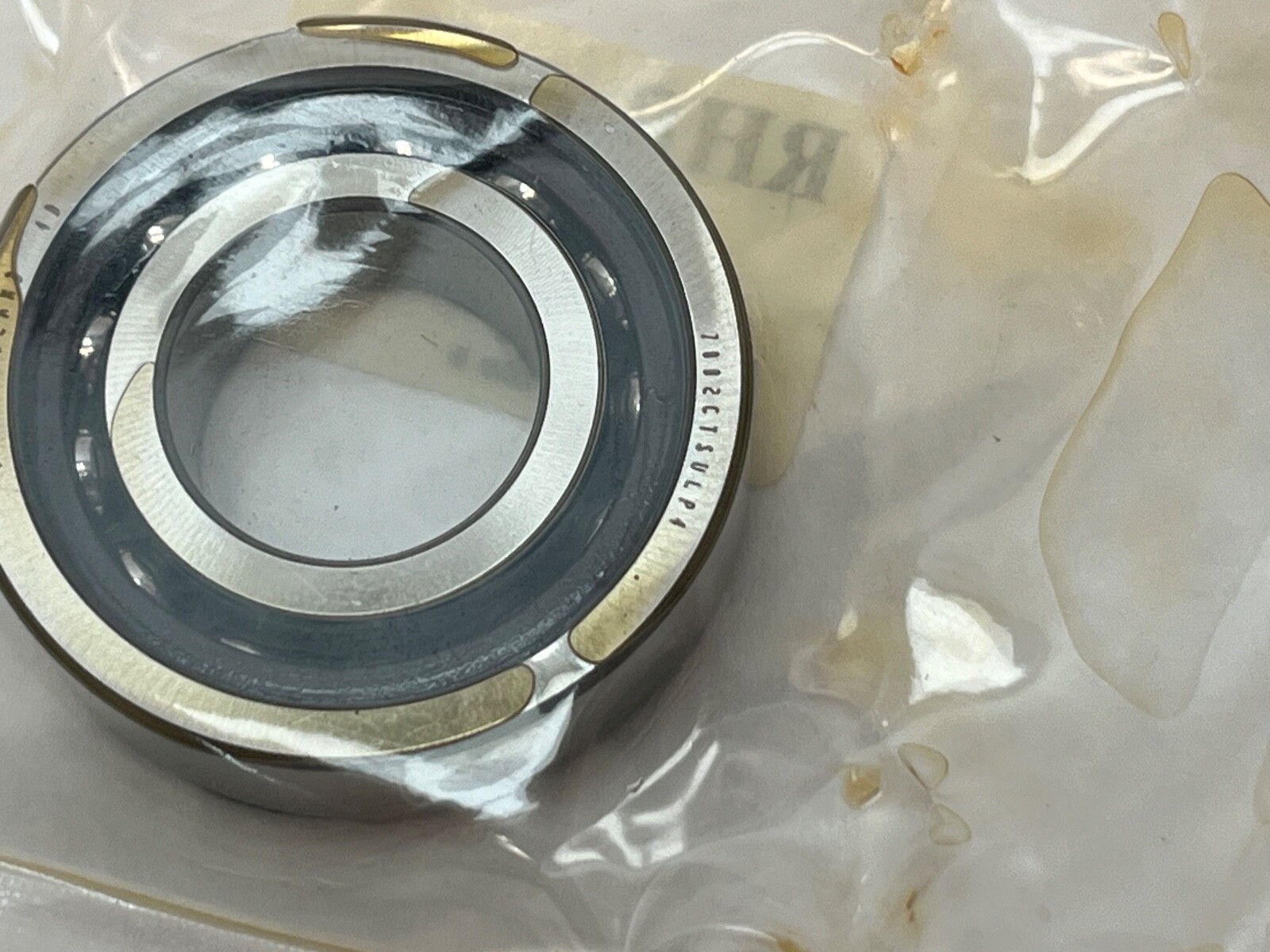

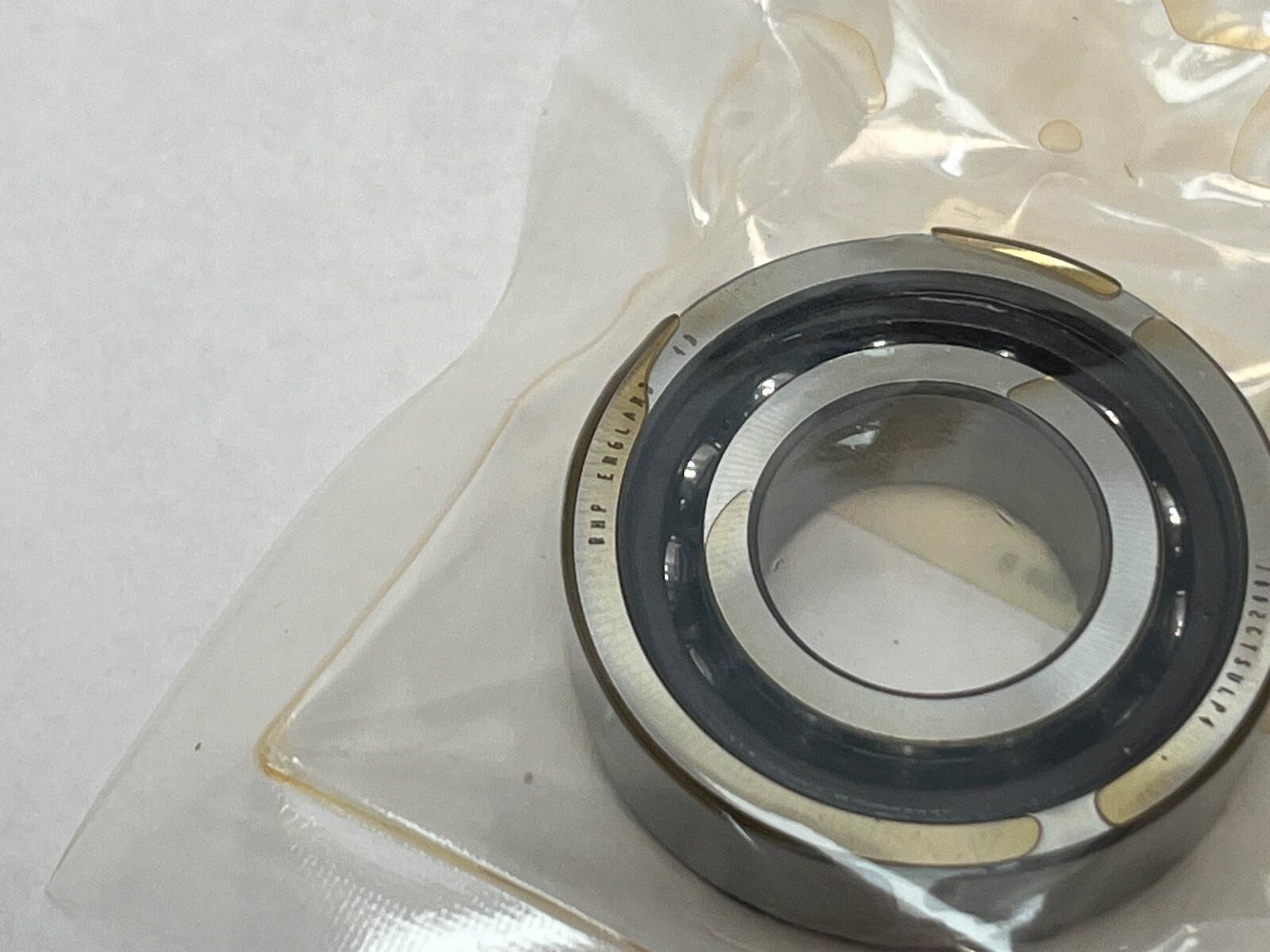

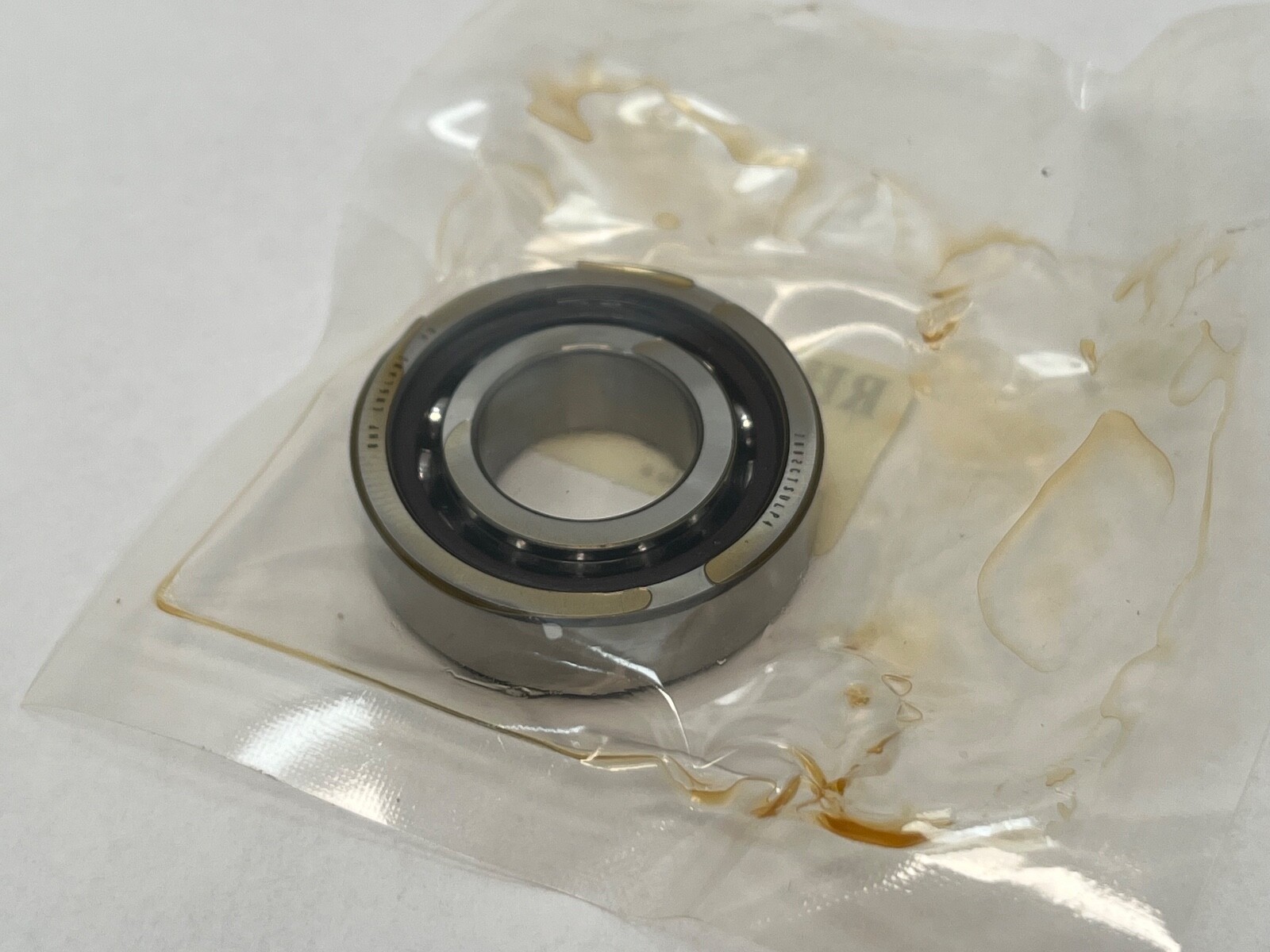

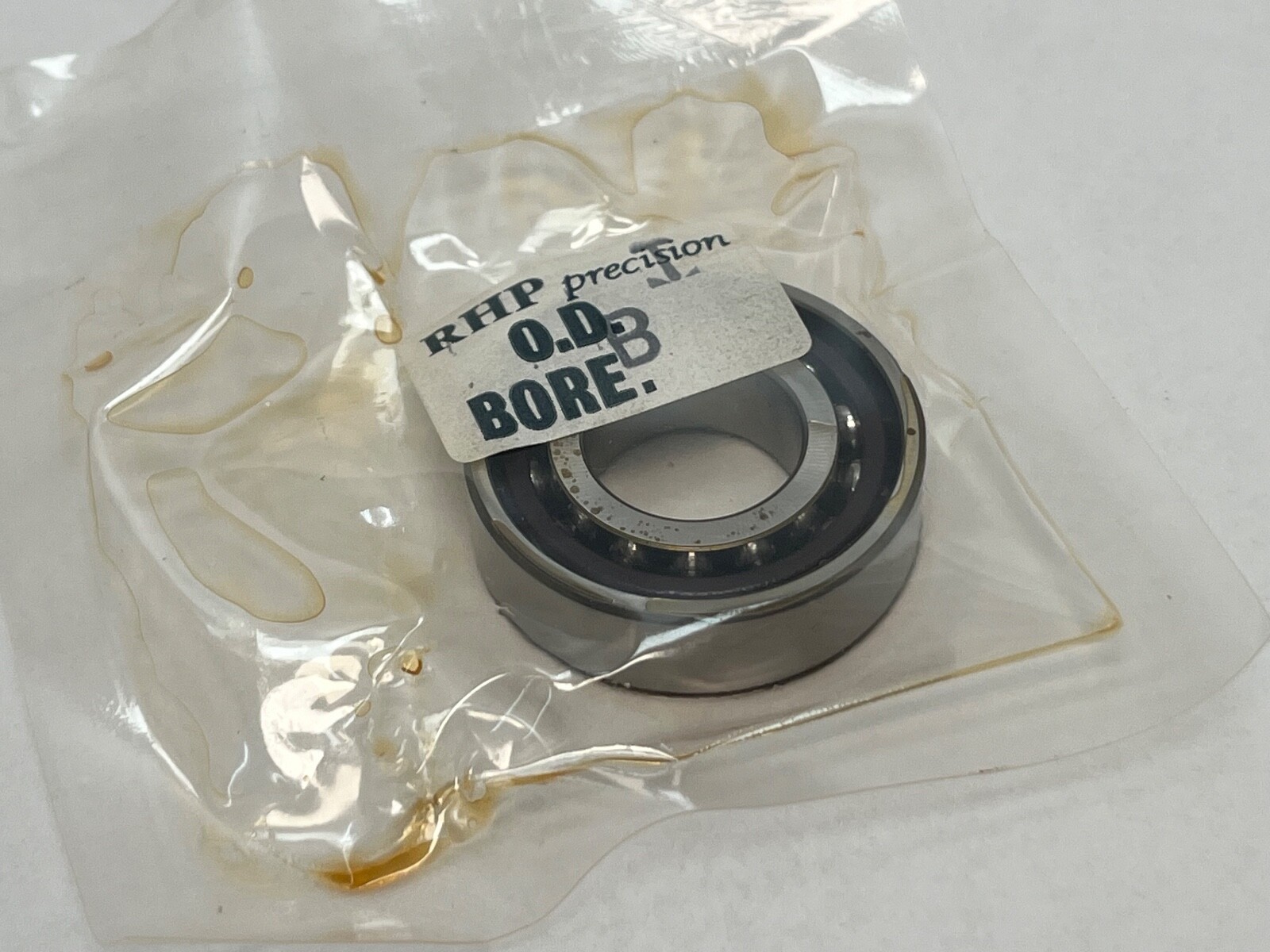

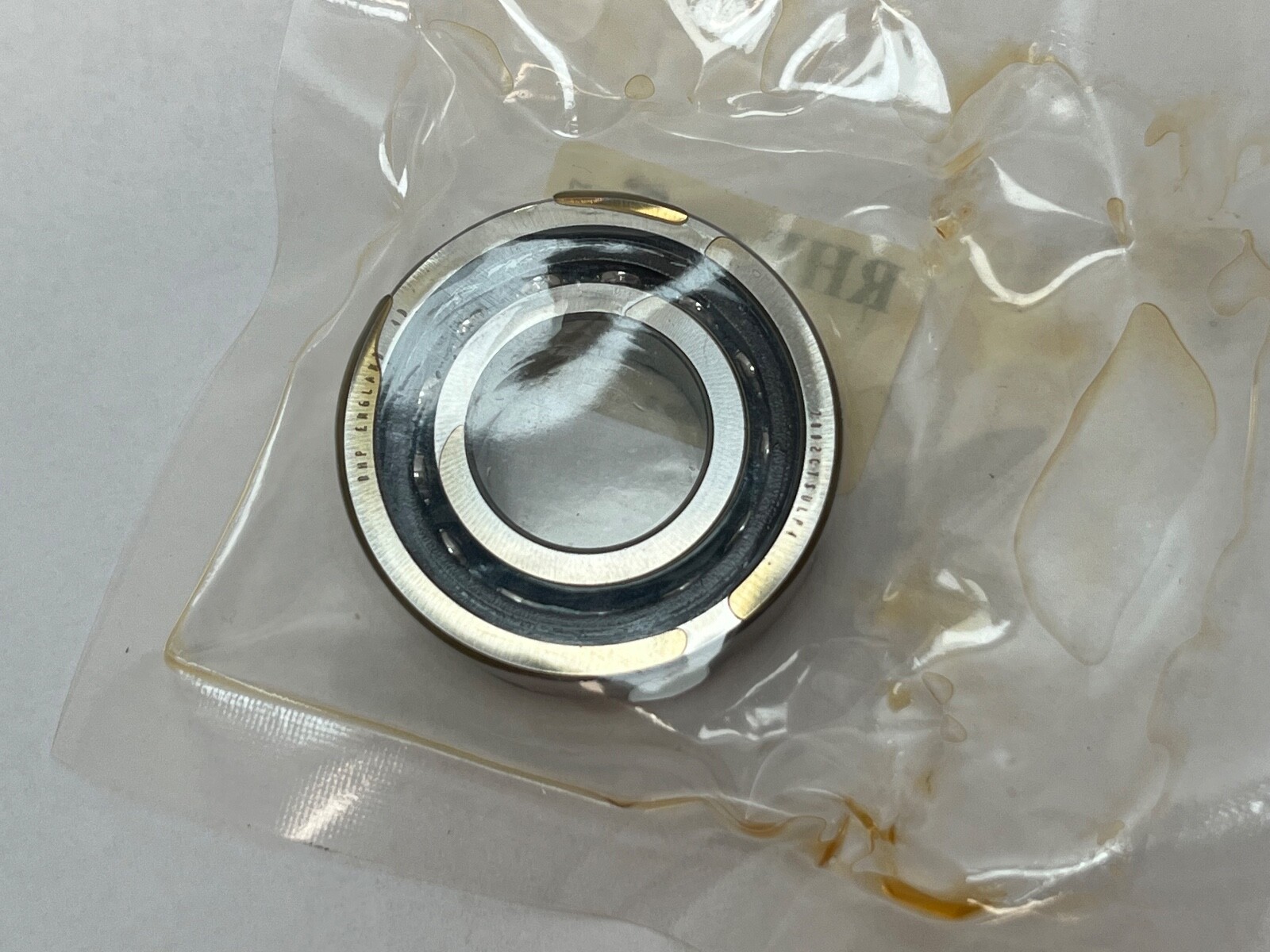

RHP 7002-C-T-DUL-P4V super precision single-row angular contact ball bearing, 15 degree contact angle, light preload, open, machined laminated phenolic outer-ring guided cage. Unit Quantity: 1 Pc, one piece from a factory duplex light-preload pair.

Decoding the designation:

C — 15° contact angle.

T — laminated phenolic resin cage, machined and outer-ring guided.

DU — duplex universal. Universal face control: the inner and outer rings are ground to the same width, so two bearings mount back-to-back, face-to-face or tandem.

L — light preload.

P4 — RHP P4, ISO Class 4, ABEC 7 precision.

Specifications:

Bore Diameter: 15 mm. Outside Diameter: 32 mm. Overall Width: 9 mm. Series: 7000, ISO dimension series 10. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Contact Angle: 15°. Cage Material: Laminated phenolic resin. Cage Type: Machined, outer-ring guided. Preload: Light. Mounting Arrangement: Duplex universal. Precision Class: RHP P4, ISO Class 4, ABEC 7. Bearing Material: Carbon chrome bearing steel, SAE 52100, through hardened and heat treated. Lubricant: grease or oil. Country of Origin: United Kingdom. Harmonization Code: 8482.10.50.

Dynamic Load Rating: 6.25 kN, 1405 lbf. Static Load Rating: 3.40 kN, 764 lbf. Limiting Speed, oil/air lubrication: 71,400 r/min. Limiting Speed, grease lubrication: 44,200 r/min. Axial Preload, duplex light pair: 39 N. Axial Stiffness, duplex light pair: 23 N/µm. Item Weight: 0.031 kg, 0.07 lbs.

Dimensions and mounting:

Effective Load Centre: 7.6 mm. Abutment Diameter, shaft, d1 min: 17.5 mm. Abutment Diameter, housing, D1 max: 29.5 mm. Housing Abutment D2 max: 30.8 mm. Chamfer r min: 0.3 mm. Chamfer r1 min: 0.15 mm. Internal Free Volume: 1.4 cm³. Pitch Circle Diameter of Lubrication Jets: 21.3 mm.

Compatibility and replacement:

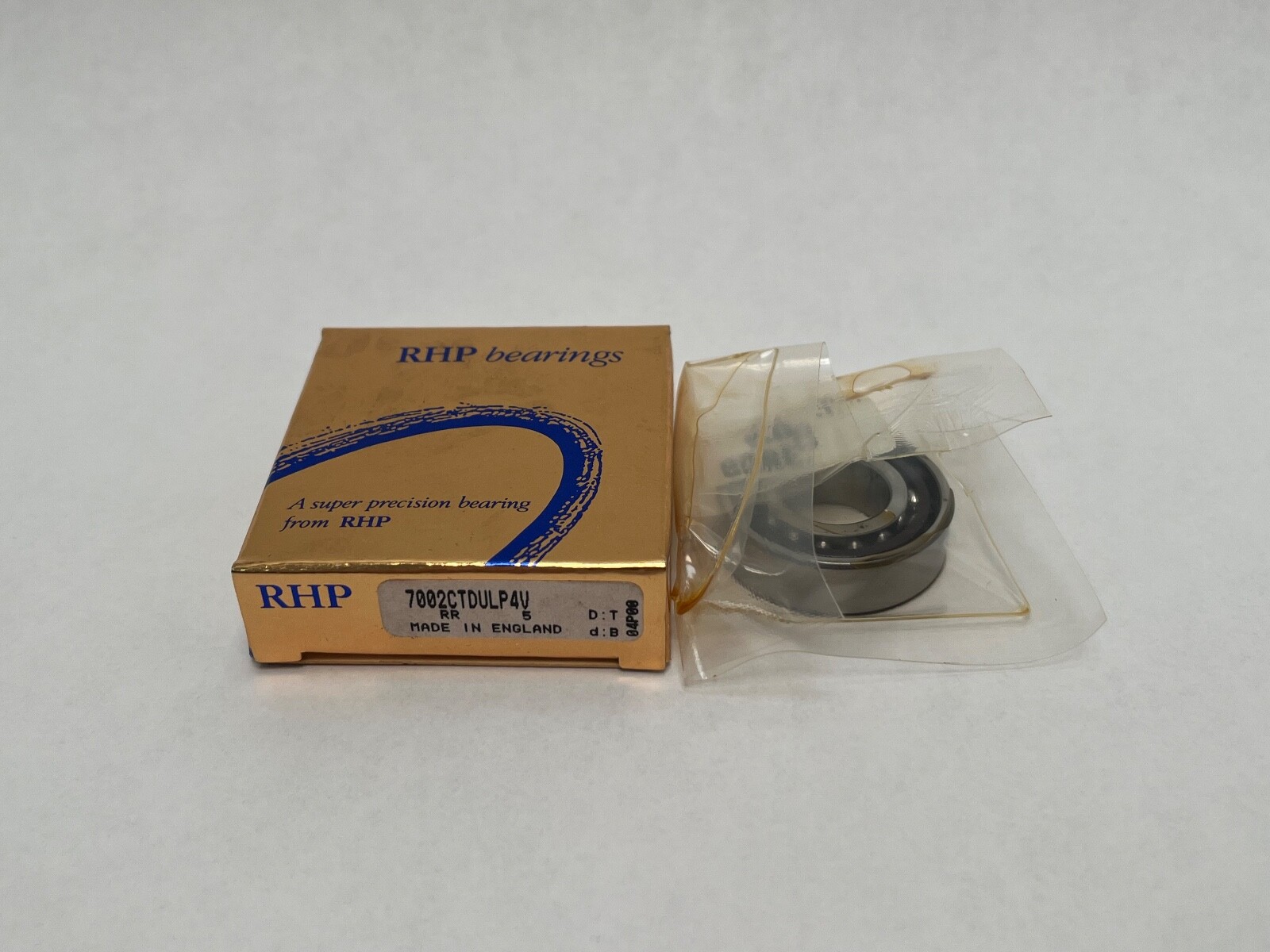

The carton carries the same bearing in three schemes: RHP 7002-C-T-DUL-P4V, RHP B-series B7002 C T P4S, and Fafnir 2MM9102WI-DUL. Cross-references: SKF 7002 CD/P4ADGA, Fafnir 2MM9102WI-DUL, NSK 7002CTYNSULP4 (polyamide cage). MPN Variants: 7002-C-T-DUL-P4V, 7002CTDULP4V, 7002 C T DUL P4V, 7002C.

Frequently asked questions:

What size is the RHP 7002CTDULP4V?

Bore Diameter: 15 mm. Outside Diameter: 32 mm. Overall Width: 9 mm.

What contact angle and preload does it have?

Contact Angle: 15°. Preload: Light, duplex universal.

What are the load ratings?

Dynamic Load Rating: 6.25 kN. Static Load Rating: 3.40 kN.
