SNR6003EEDeep Groove Ball Bearing – 17 mm Bore, 35 mm OD, 10 mm Width, Contact Seals Both Sides, CN Clearance

Product Description

What this part is:

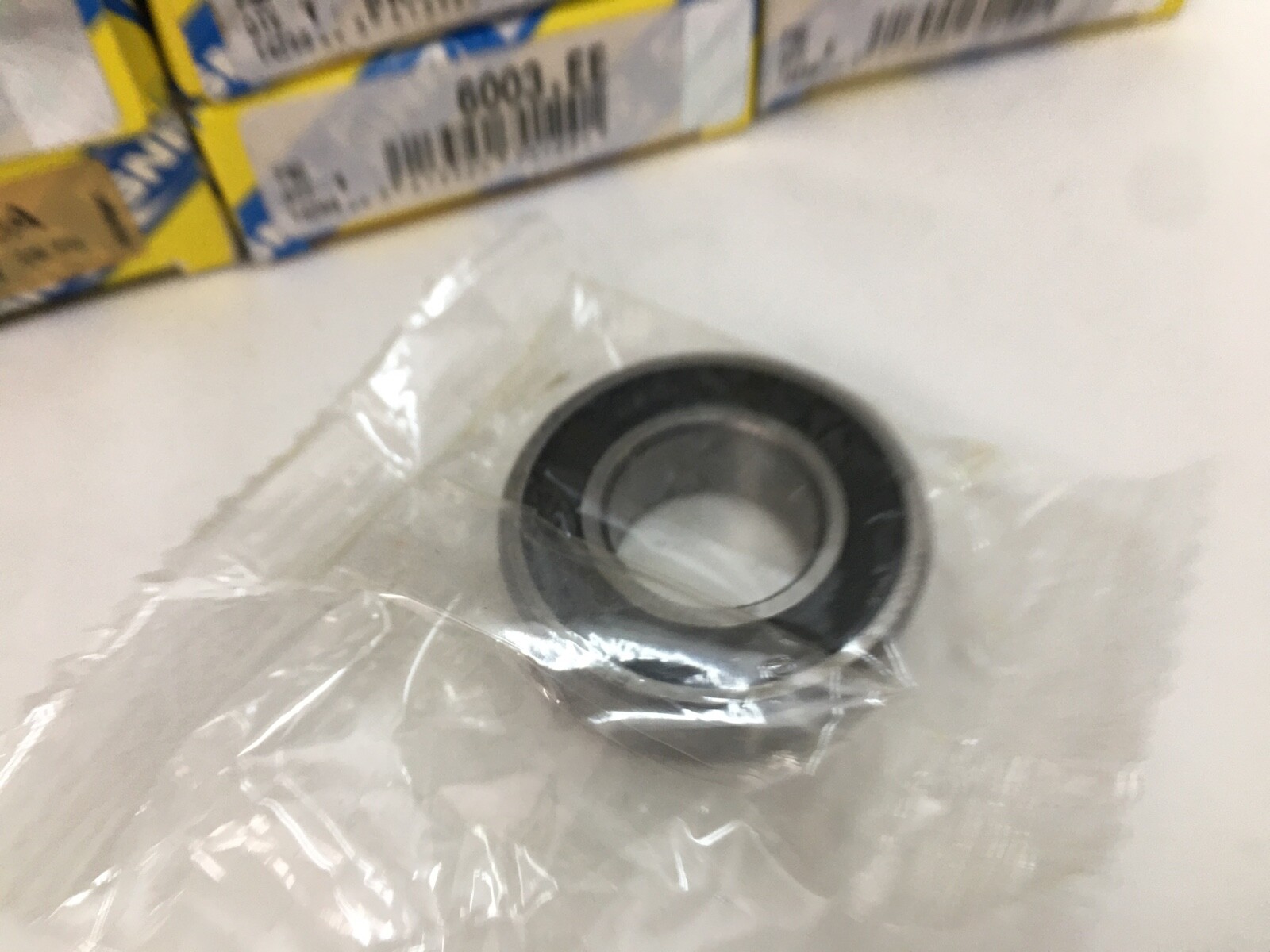

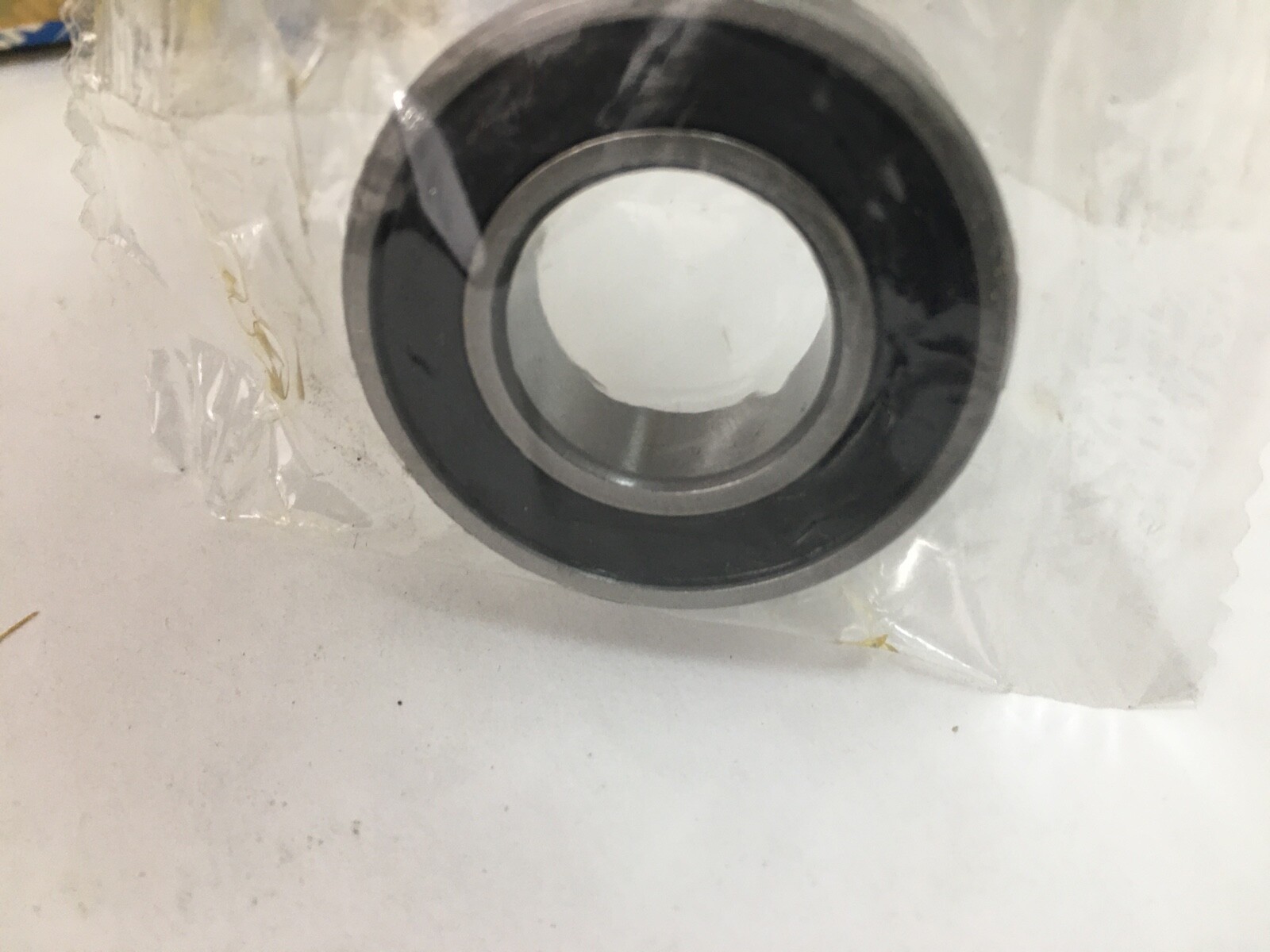

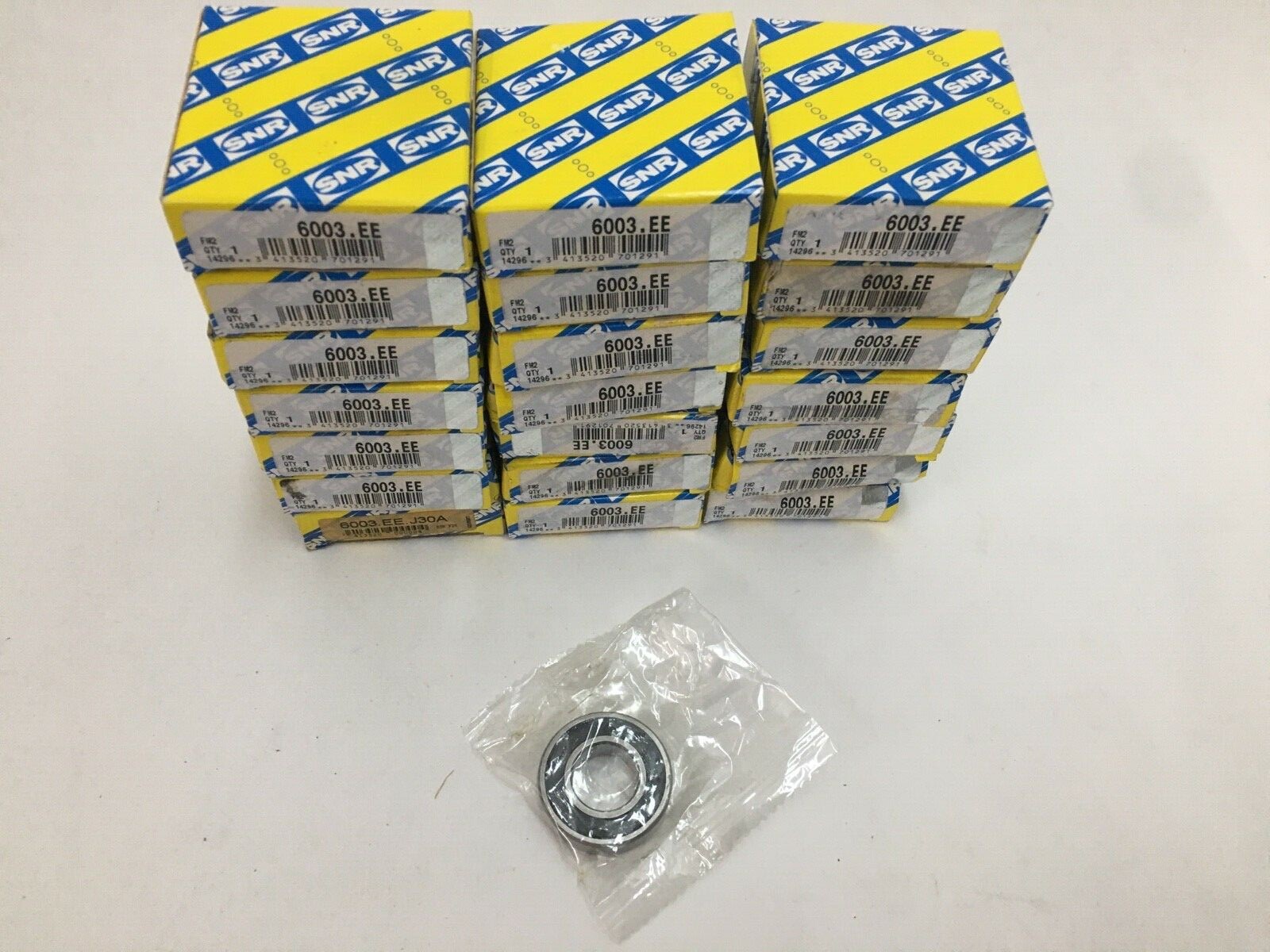

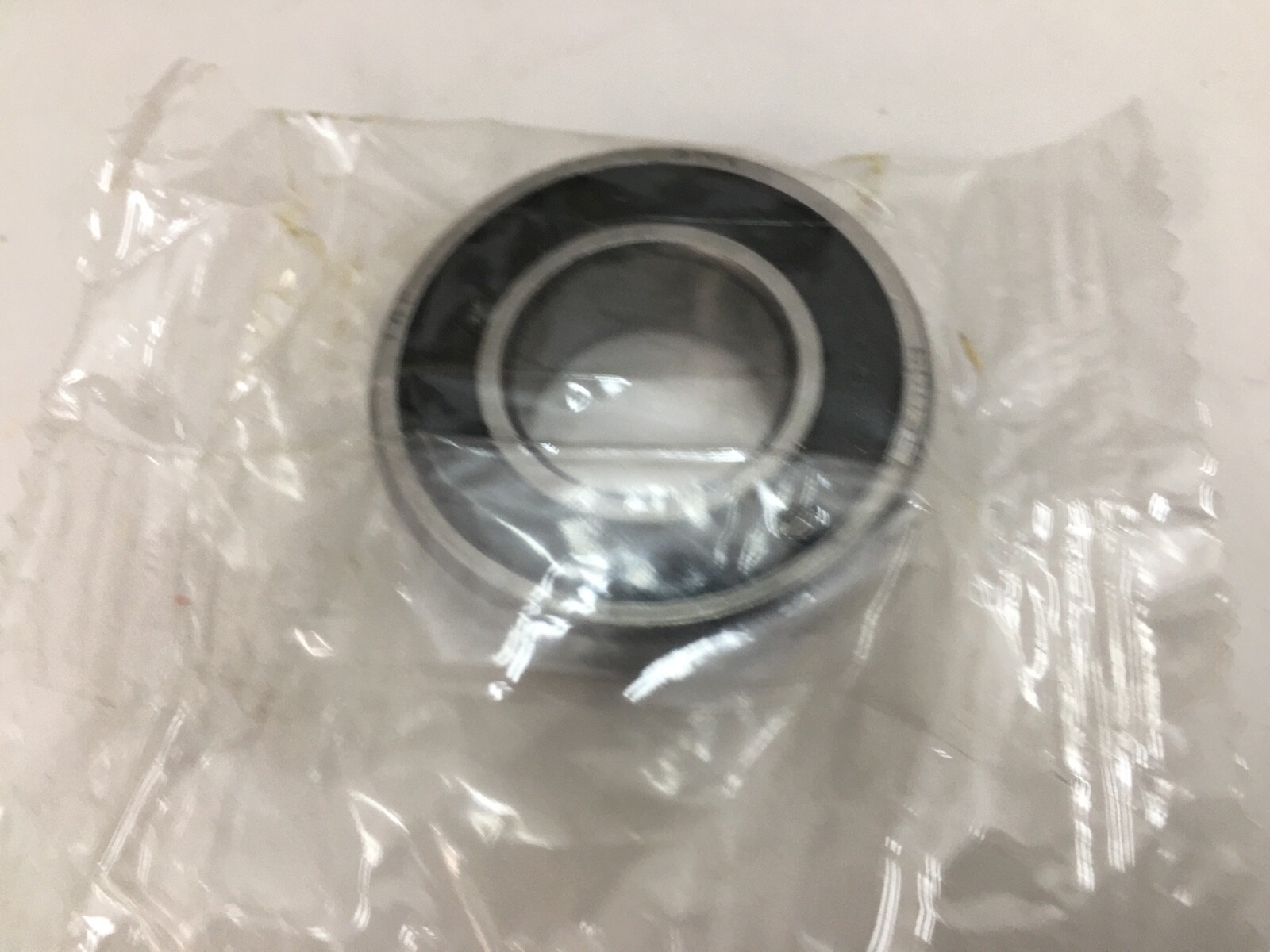

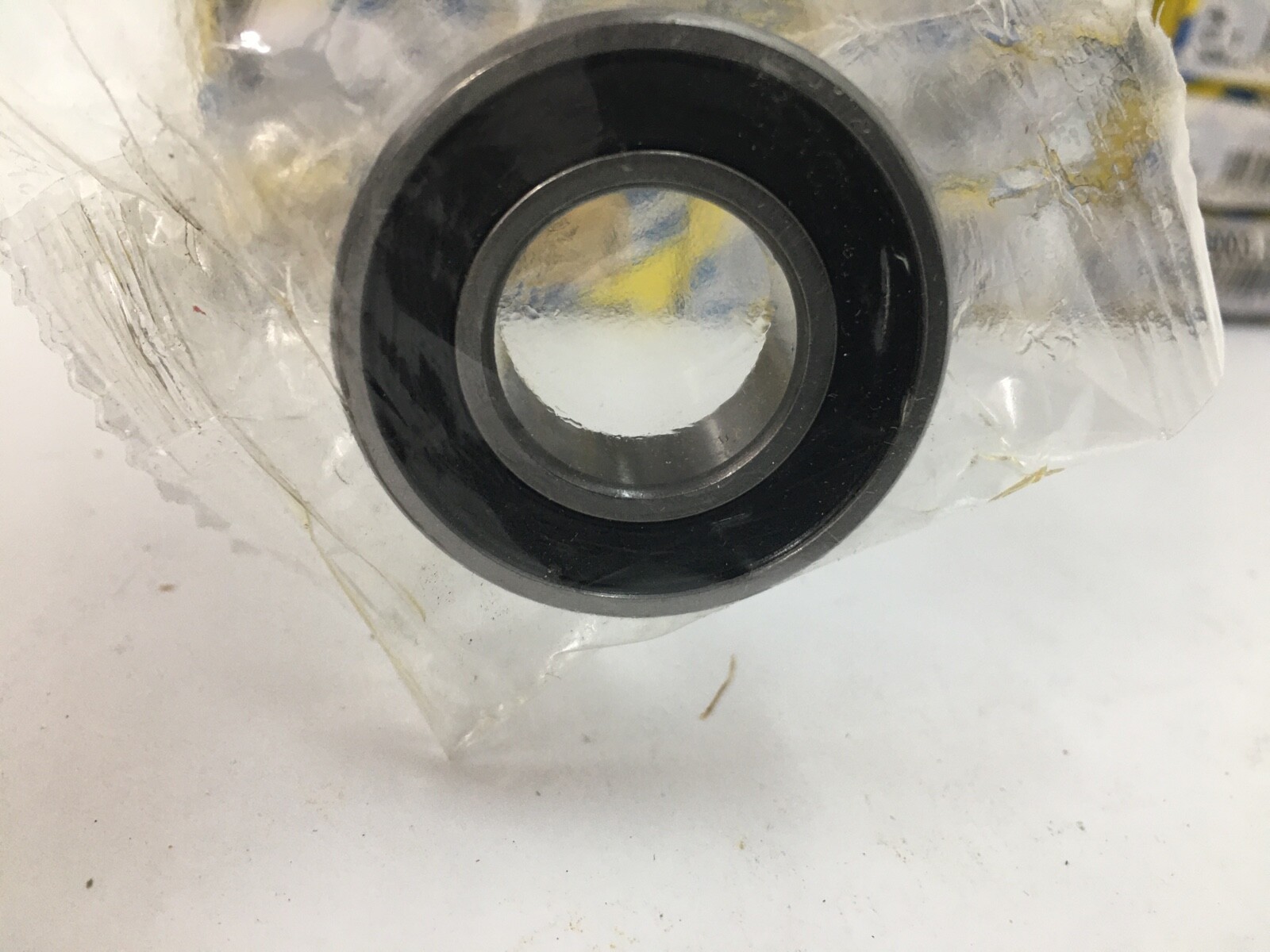

SNR 6003EE single-row deep groove ball bearing with contact seals on both sides. Bore Diameter: 17 mm. Outside Diameter: 35 mm. Width: 10 mm. Closure Type: Contact seals, both sides. Internal Clearance: CN. Cage: Pressed steel. Rolling Elements: Steel balls. Bearing Material: Chrome steel. Unit Quantity: 12 Pcs, supplied as individual sealed bearings. GTIN: 3413520701291.

Decoding the designation:

6003 — ISO 60 light series deep groove ball bearing, bore code 03 for 17 mm: 17 x 35 x 10 mm.

EE — contact seals on both faces, the SNR form of a 2RS execution.

Specifications:

Dynamic Load Rating (C): 6.3 kN. Static Load Rating (C0): 3.25 kN. Fatigue Limit Load (Cu): 0.15 kN. Calculation Factor f0: 14.4. Limiting Speed: 13,000 r/min. Minimum Operating Temperature: −30 °C. Maximum Operating Temperature: 120 °C. Chamfer (rs min): 0.3 mm.

Dimensions and mounting:

17 x 35 x 10 mm. Radial Clearance Class: CN, the standard clearance group. The contact seals hold the factory grease charge in and keep dirt and water out, so the bearing runs sealed for life.

Compatibility and replacement:

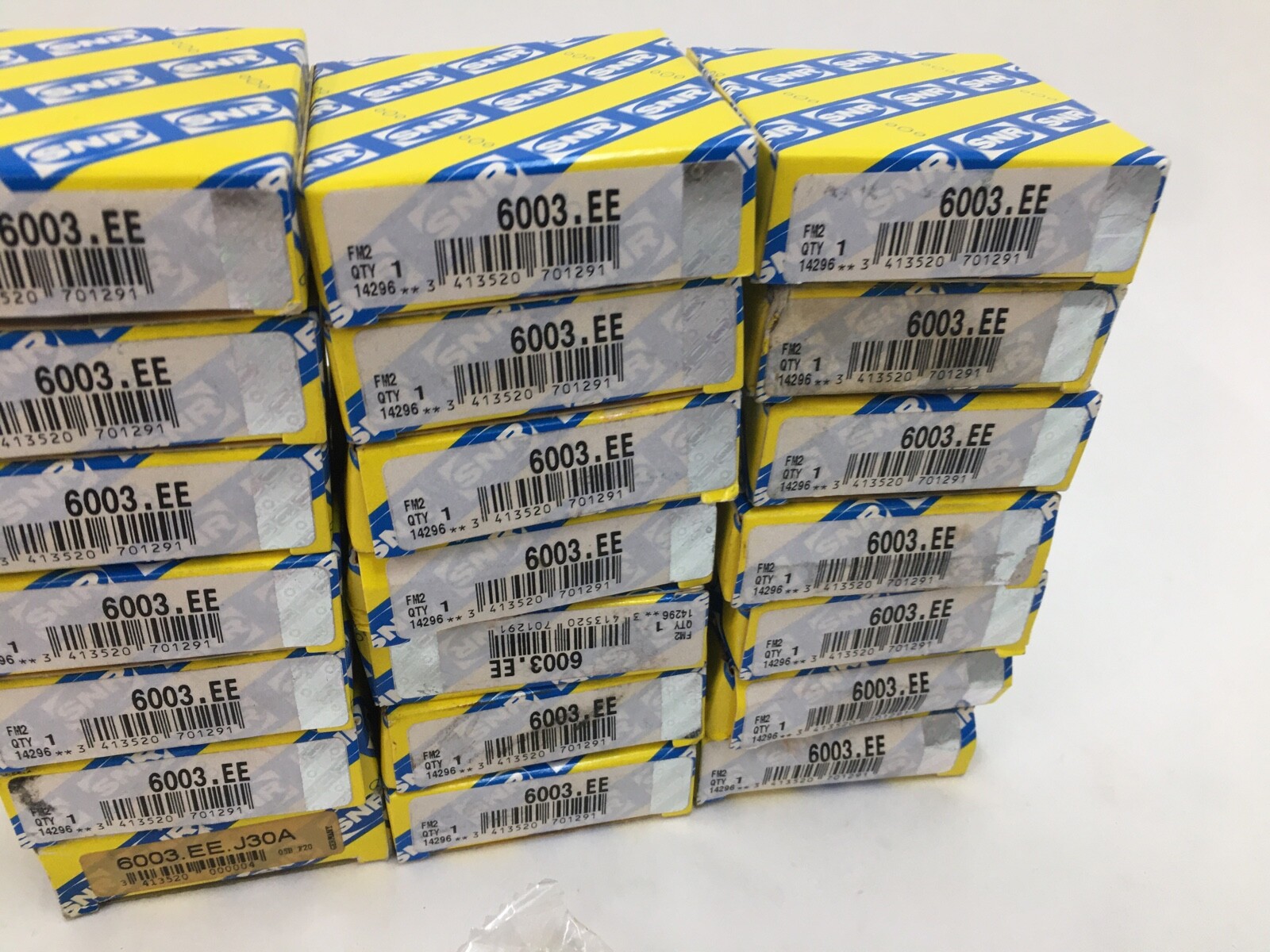

SNR writes this bearing 6003EE and 6003.EE. The same 17 x 35 x 10 mm sealed execution is written 6003-2RS, 60032RS and 6003RS elsewhere in the trade. Cross-references: SKF 6003-2RS1, FAG 6003-2RSR, NSK 6003DDU, NTN 6003LLU. The 6003ZZ shielded execution shares the envelope with metal shields instead of rubber lips.

Frequently asked questions:

What size is the SNR 6003EE?

17 mm bore, 35 mm outside diameter, 10 mm width.

What does EE mean?

Contact seals on both faces, equivalent to a 2RS execution.

What is the load rating?

Dynamic 6.3 kN and static 3.25 kN.
