Availability:
3 in stock

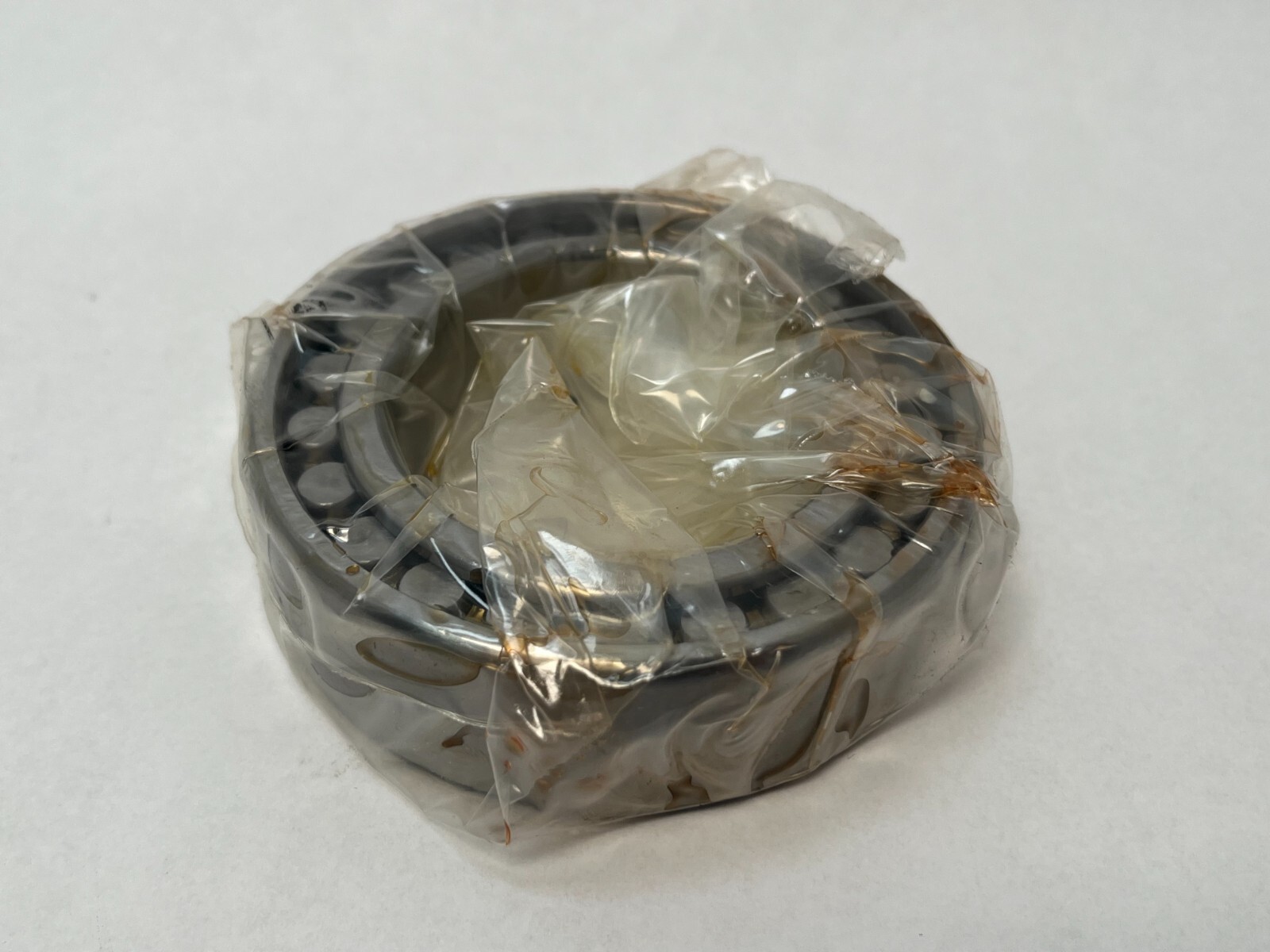

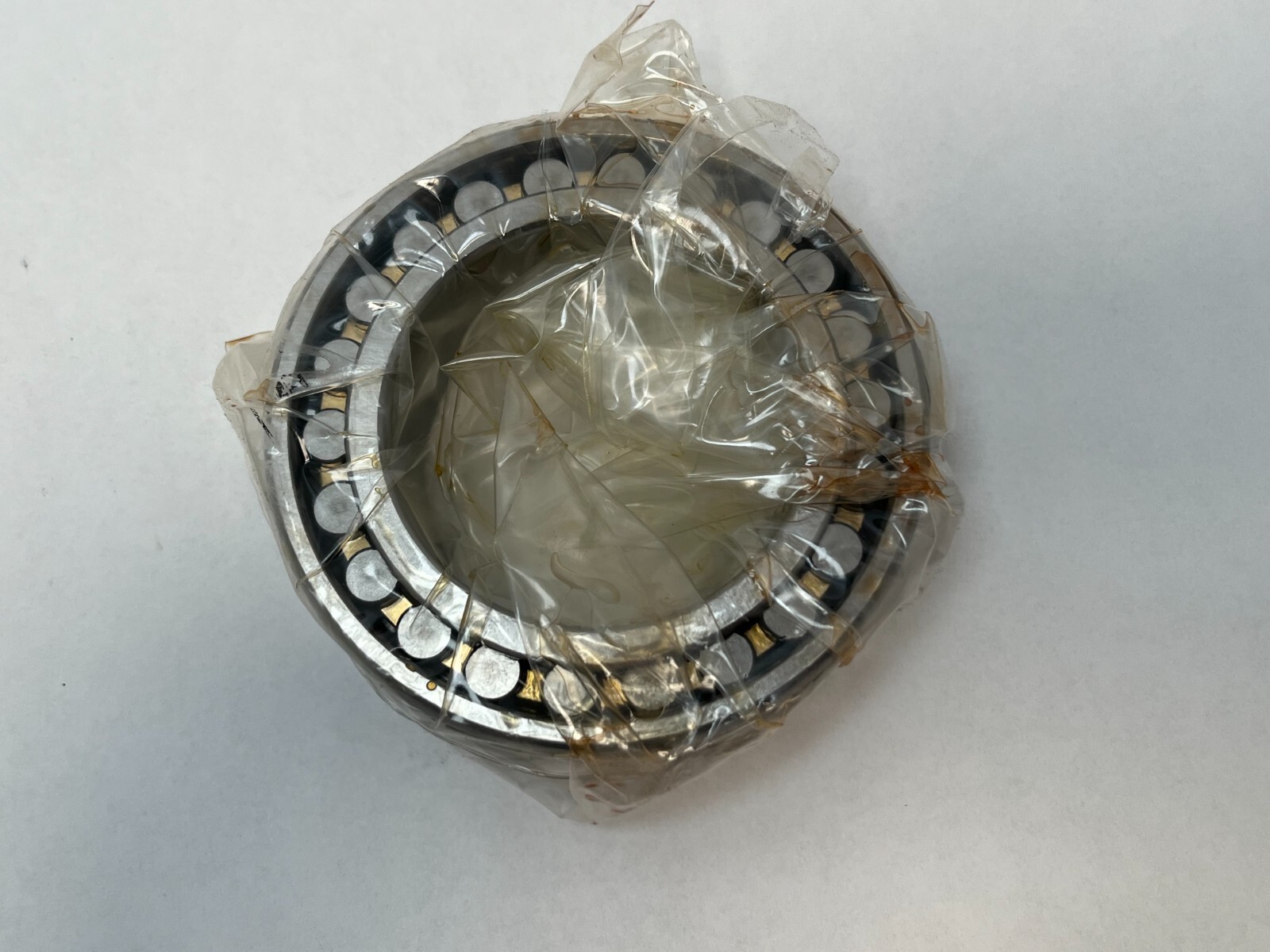

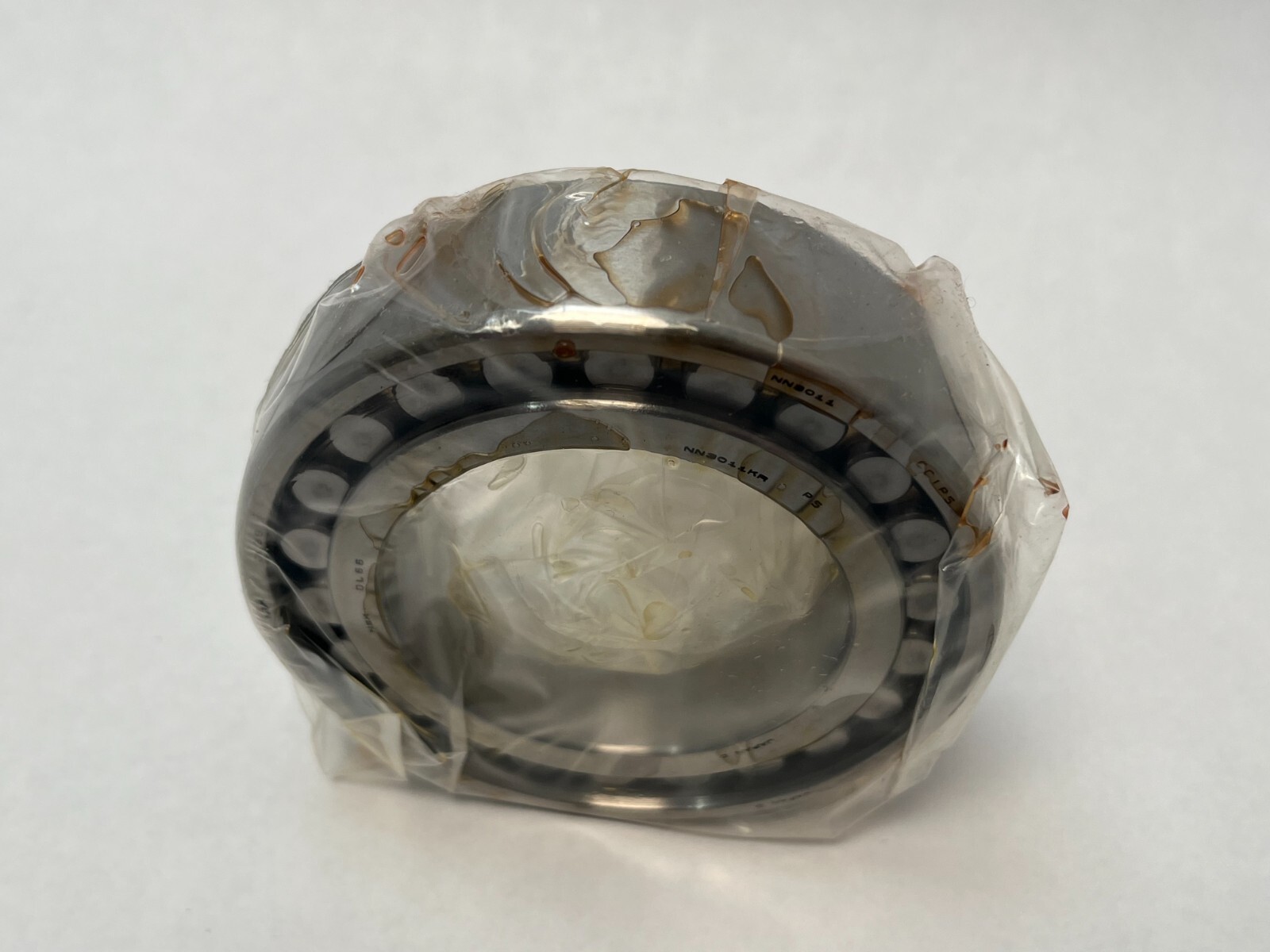

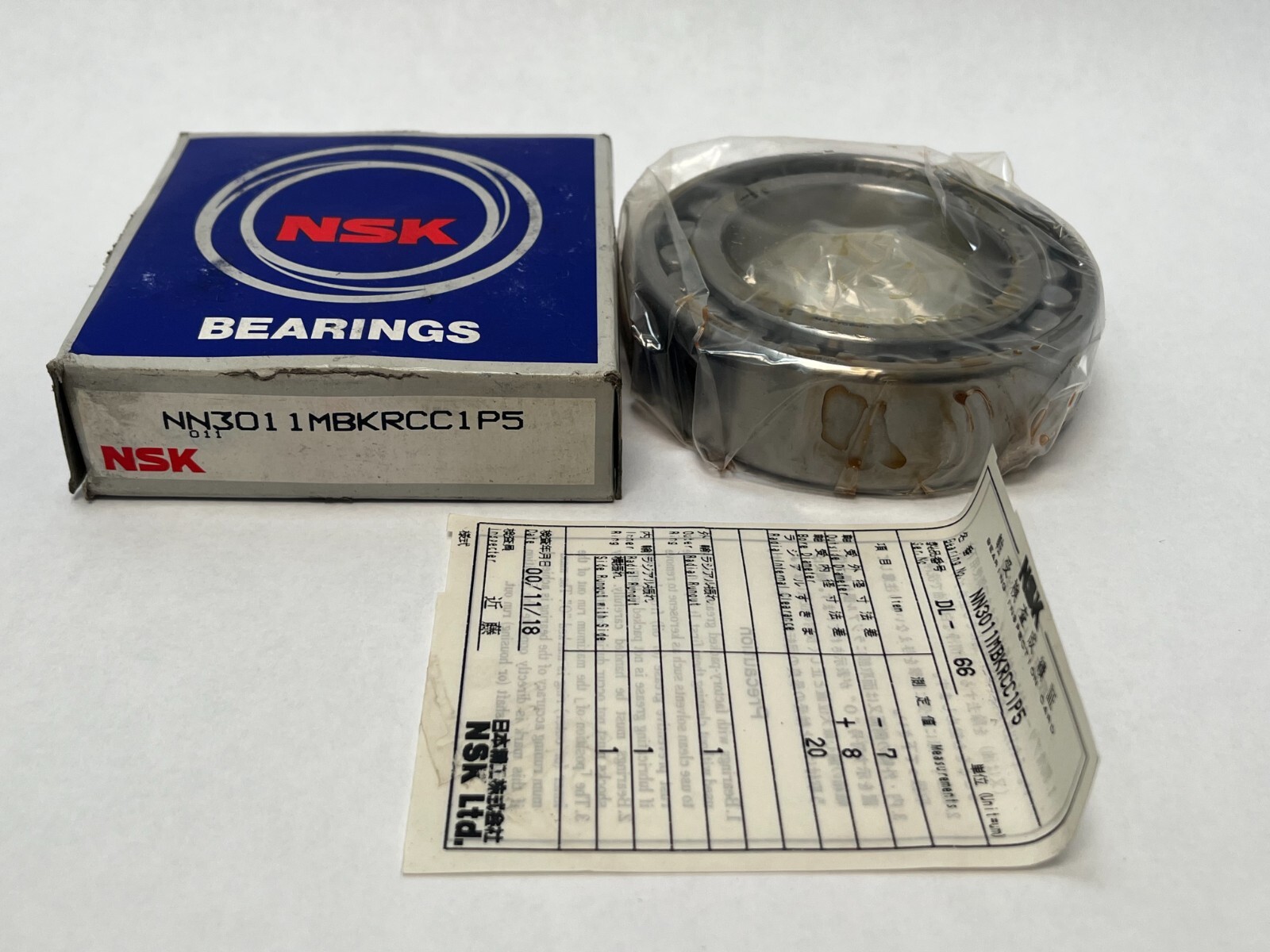

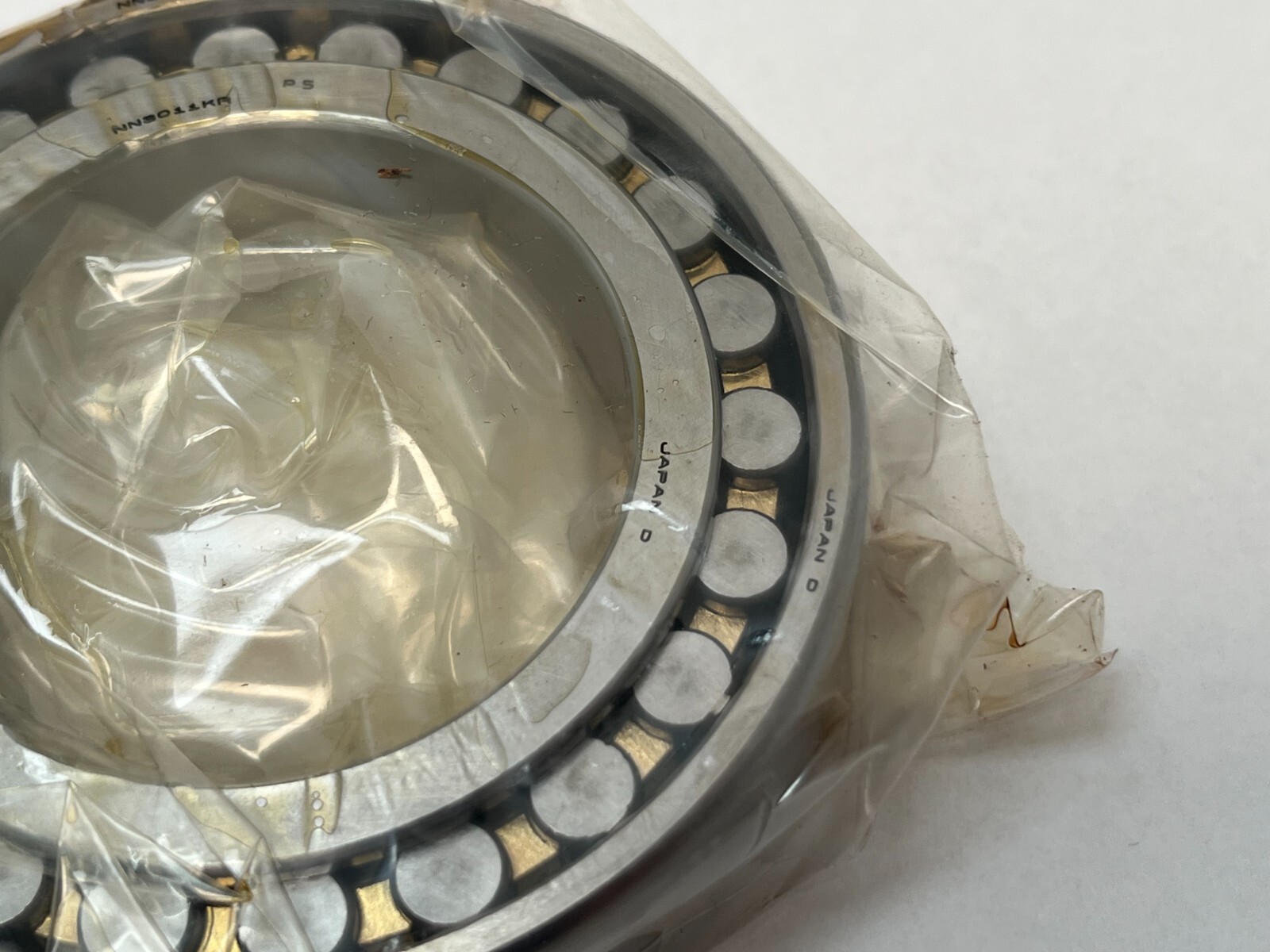

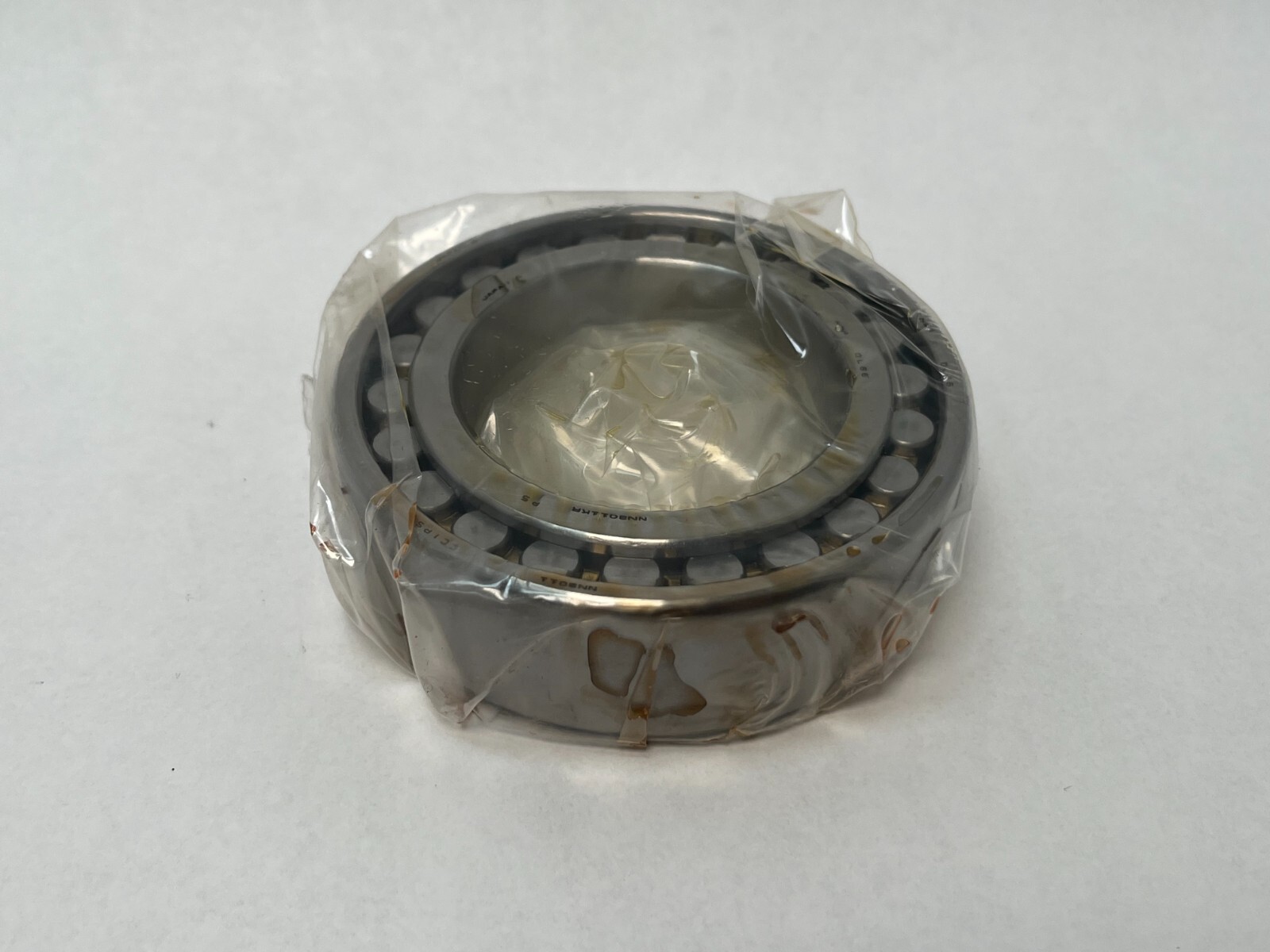

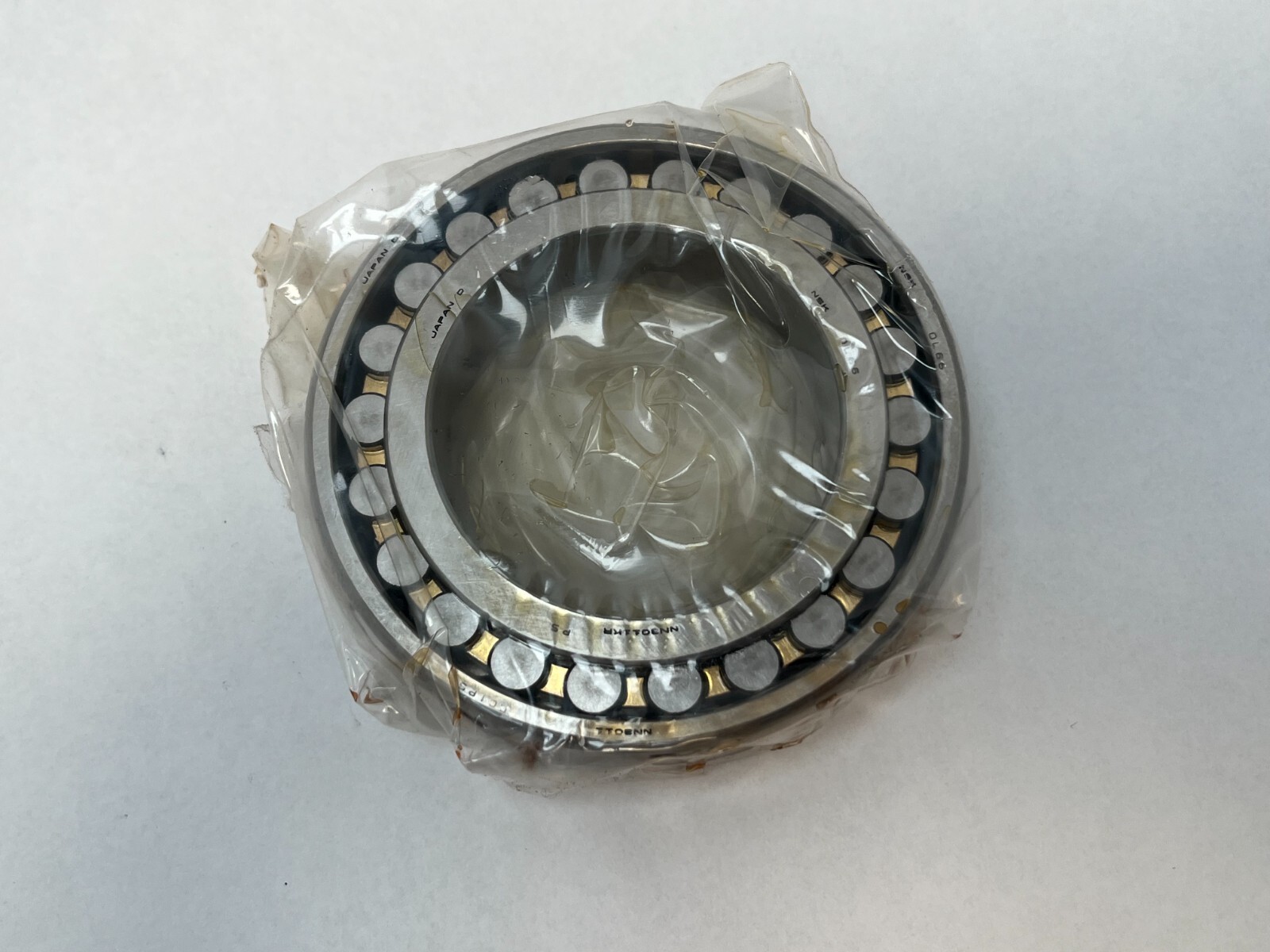

Double-row cylindrical roller bearing, 55 x 90 x 26 mm, 1:12 tapered bore, machined brass cage, ABEC 7 / P4, 12,500 rpm on oil-air.
List Price
$175.15
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | NN3011MBKRCC1P4 |
| Model | NN3011-MB-K-R-CC1-P4 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 55 mm |
| OD | 90 mm |
| Width | 26 mm |
| Material | Chrome steel |
|---|---|
| Series | NN30 |
| Lubricant | Grease or oil |
| Base Number | NN3011 |
| Common Misspellings | NN 3011 MBKR CC1 P4, NN3011MBKR-CC1P4, NN3011MBKC1P4 |
| Mpn Variants | NN3011MBKRCC1P4, NN3011-MB-K-R-CC1-P4, NN3011MBKRCC1P4Y, NN3011KMBCC1P4, NN3011K, NN3011 |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Machined |
| Dynamic Load Rating | 79,500 N |
| Static Load Rating | 96,500 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Cylindrical Roller |
| Item Weight | 0.748 kg (1.65 lb) |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 10,400 rpm grease; 12,500 rpm oil |
| Internal Clearance | CC1 |
| Harmonization Code | 8482.50.00 |
| Bearing Material | Chrome steel |
| Cross Reference 1 | SKF NN 3011 KTN/SP - polyamide cage |
|---|---|
| Cross Reference 2 | FAG NN3011-AS-K-M-SP |
| Cross Reference 3 | NTN NN3011KC1NAP4 |
| Cross Reference 4 | Koyo NN3011K - standard precision, not P4 |
| Cross Reference 6 | SNR NN3011K - standard precision, not P4 |
| Cross Reference 7 | NSK NN3011KCC1P4 |
| Cross Reference 8 | NSK NN3011 - straight bore, not tapered |
NSK NN3011MBKRCC1P4 super-precision double-row cylindrical roller bearing. Bore Diameter: 55 mm. Outside Diameter: 90 mm. Overall Width: 26 mm. Bore Type: Tapered 1:12. Rolling Elements: Cylindrical Roller. Number Of Rows: 2. Closure Type: Open. Cage Material: Machined brass. Cage Type: Machined. Precision Class: ABEC 7 / P4. Internal Clearance: CC1. Series: NN30. Base Number: NN3011. Bearing Material: Chrome steel. Unit Quantity: 1 Pc.
NN — double-row cylindrical roller, inner-ring rib type, with a separable plain outer ring.
3011 — dimension series 30, bore code 11, giving a 55 mm bore in a 90 mm outside diameter.
MB — machined brass cage.
K — 1:12 tapered bore.
CC1 — NSK clearance group for tapered-bore cylindrical rollers, 15 to 35 micron mounted radial clearance.
P4 — ISO tolerance class 4, ABEC 7.
Dynamic Load Rating: 79.5 kN. Static Load Rating: 96.5 kN. Limiting Speed: 10,400 rpm grease; 12,500 rpm oil-air. Item Weight: 0.748 kg (1.65 lb). Precision Class: ABEC 7 / P4. Internal Clearance: CC1.
Two rows of short cylindrical rollers give this bearing its radial stiffness — a machine tool spindle uses an NN30 as the front radial member and takes thrust on a separate angular contact set. Cylindrical rollers carry radial load only, so there is no contact angle. The tapered bore is the adjustment mechanism: driving the inner ring up the journal expands it and sets the running clearance to the CC1 band. P4 tolerances hold the bore, outside diameter and runout tight enough for the 12,500 rpm oil-air figure to be usable.
Roller circumscribed circle diameter Ew: 81 mm. Outer-ring lubrication holes: 4 holes at 2 mm diameter, feeding from a 3.5 mm wide oil groove. Recommended grease quantity: 2.0 g per bearing. The 1:12 bore seats directly on a tapered spindle journal. Mounted clearance bands available on this size: CC0 10 to 20 micron, CC1 15 to 35 micron, CC9 5 to 15 micron.
Unit Quantity: 1 Pc. One complete double-row bearing, inner ring with both roller rows plus the separable outer ring.
Same envelope, tapered bore and super-precision class: FAG NN3011-AS-K-M-SP, NTN NN3011KC1NAP4 and SKF NN 3011 KTN/SP, the SKF part with a polyamide cage. Koyo, Nachi and SNR NN3011K are the same size and bore in standard precision, not P4. NN3011 with a straight bore is the same 55 x 90 x 26 mm envelope with a different mounting method and is a related size rather than a substitution.
