Availability:
1 in stock

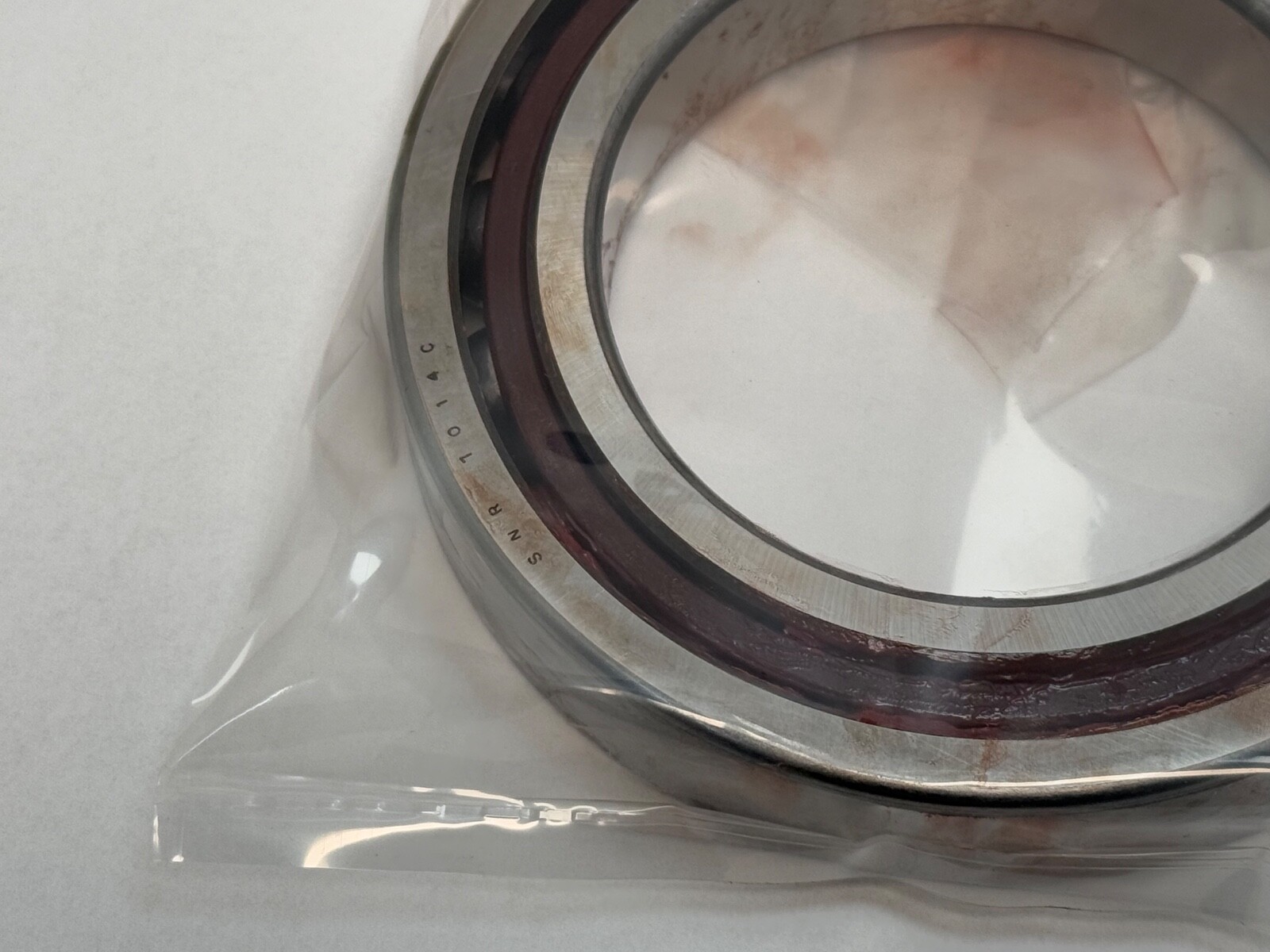

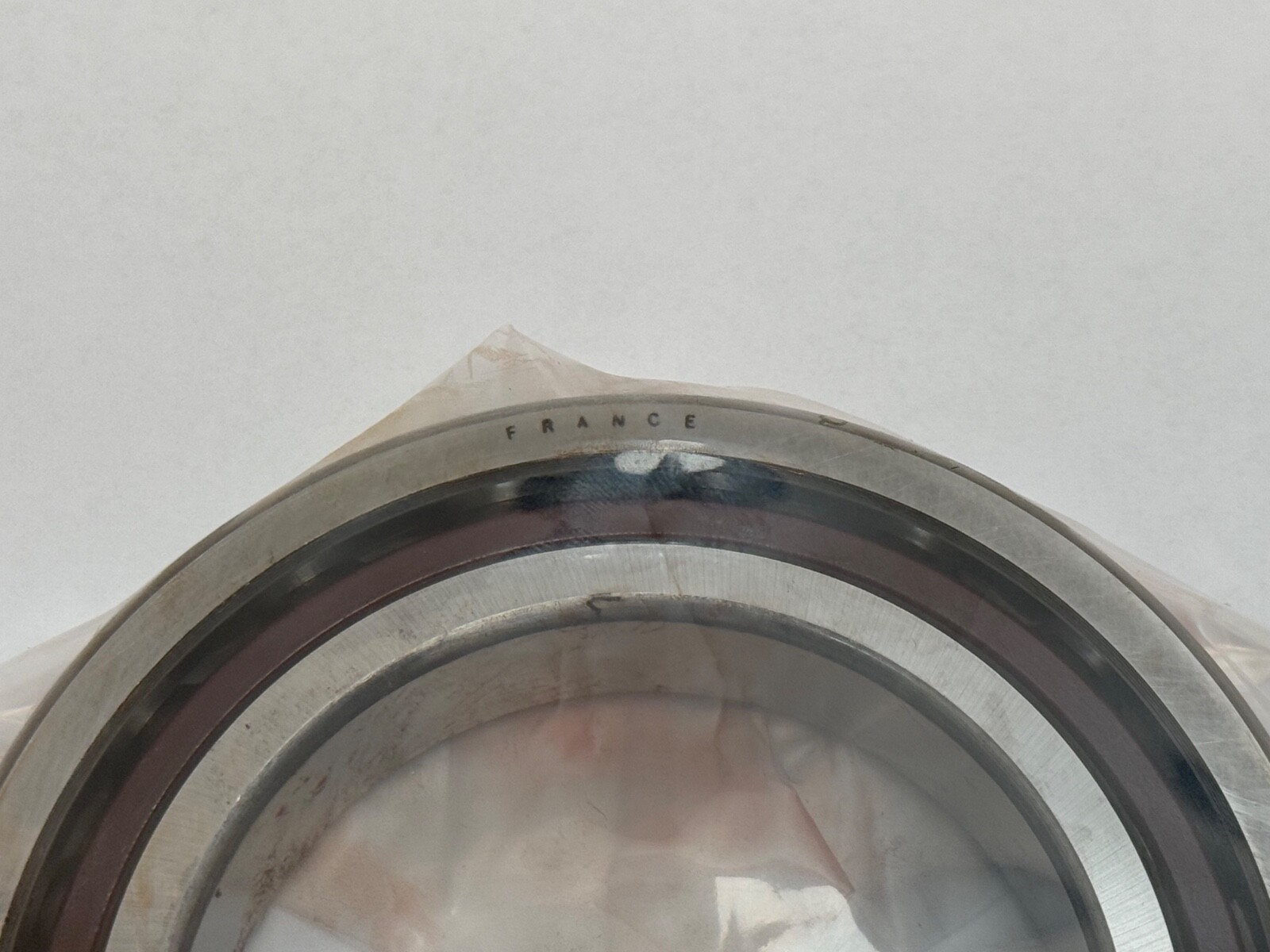

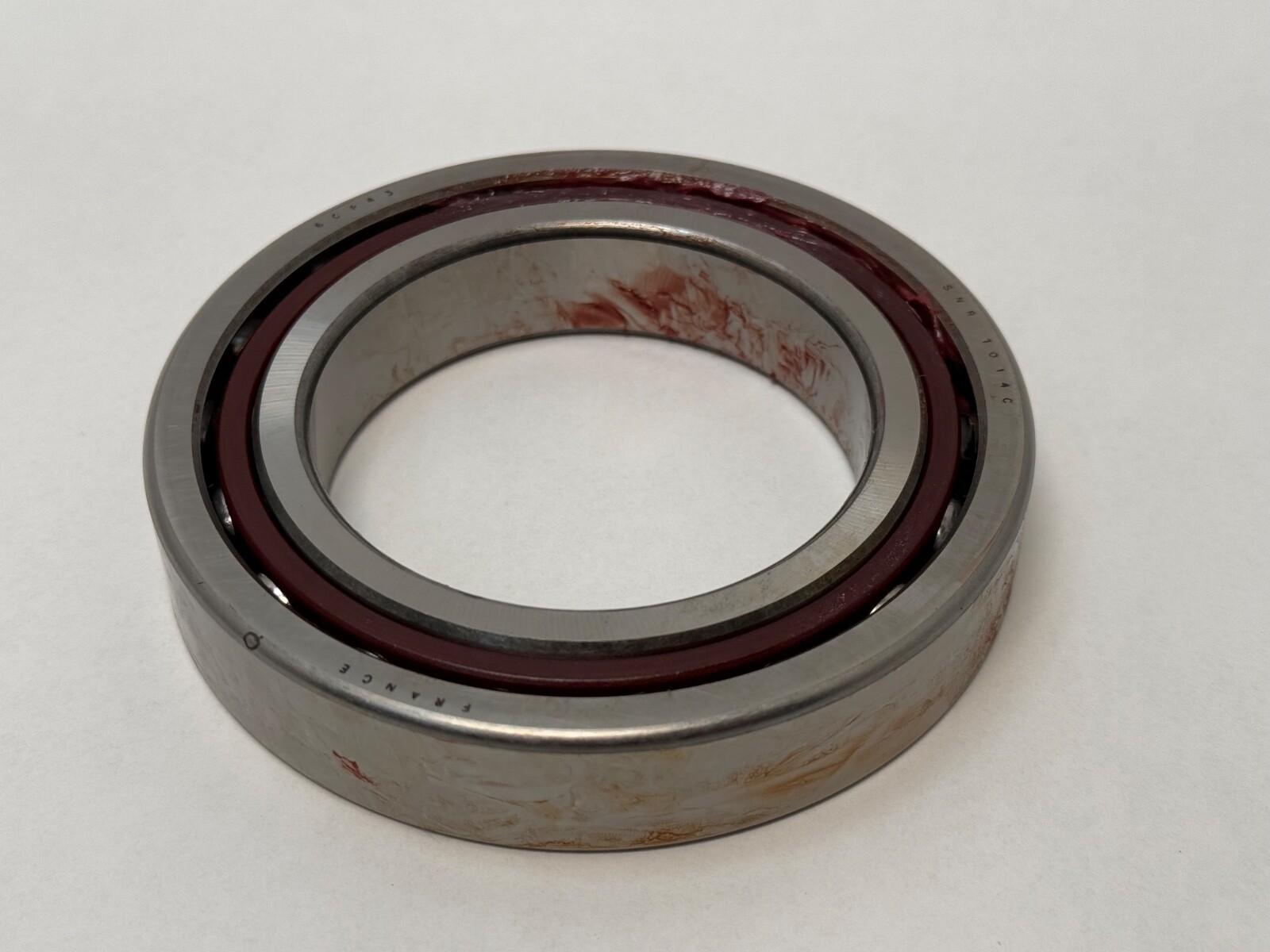

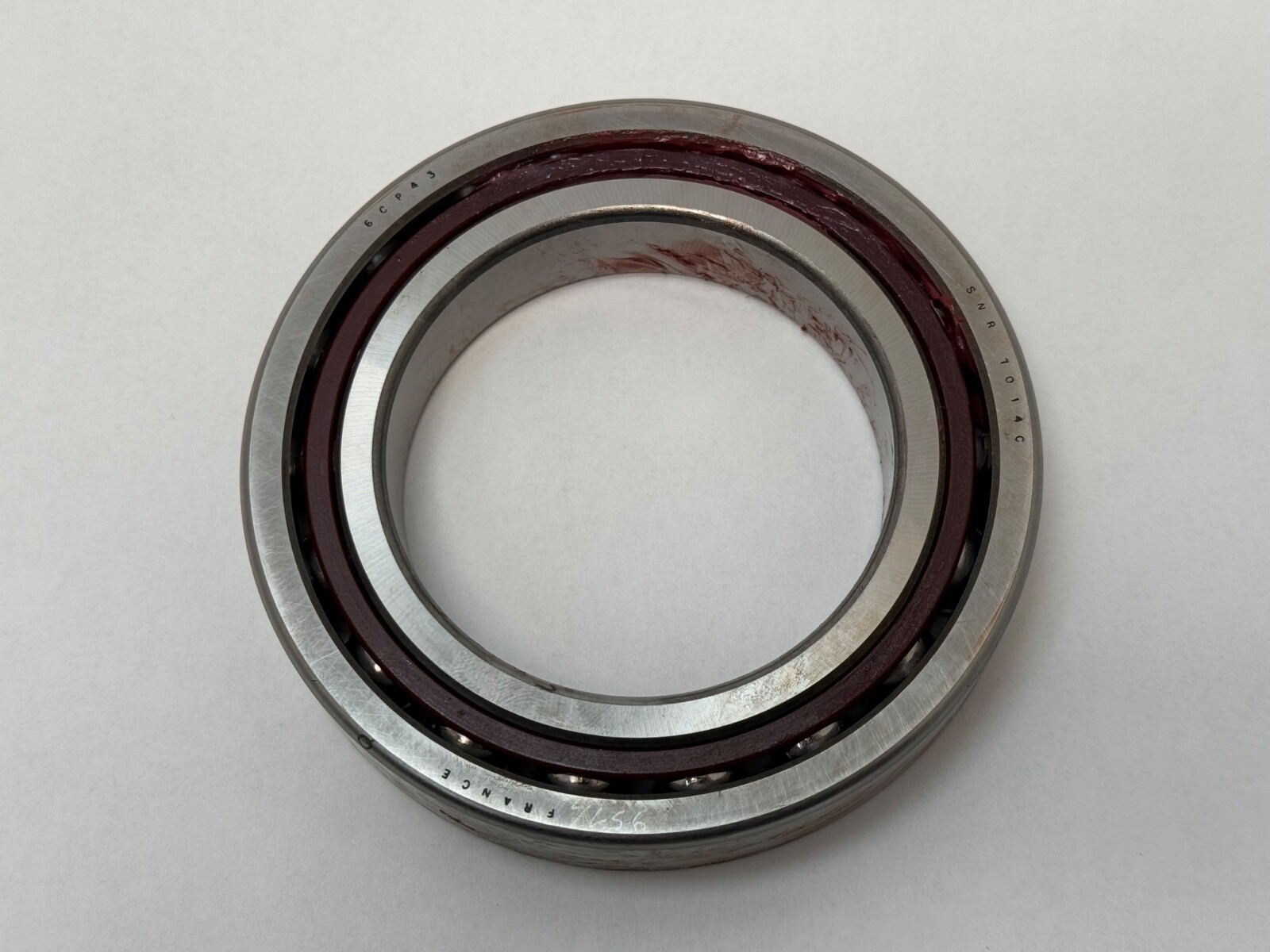

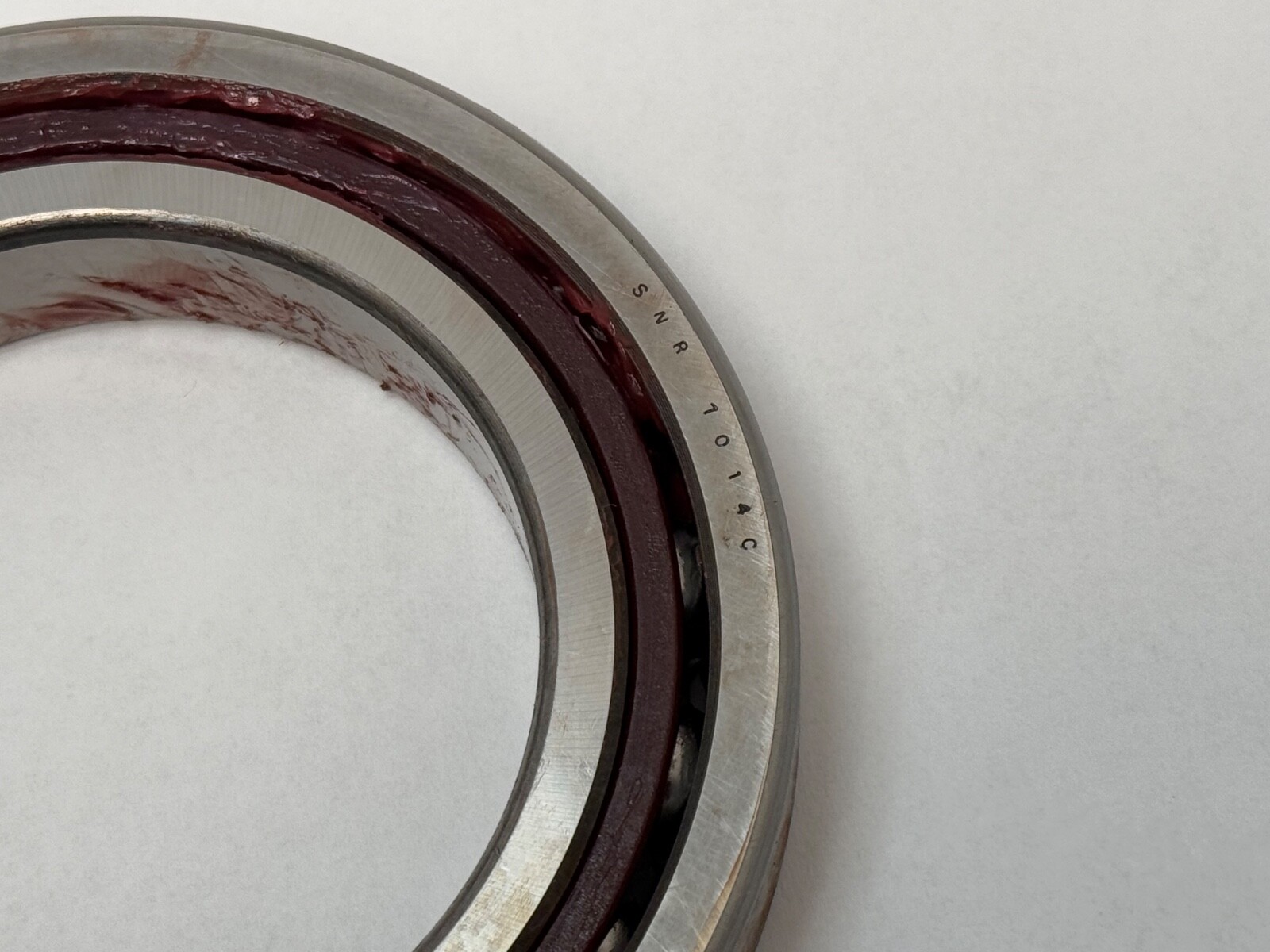

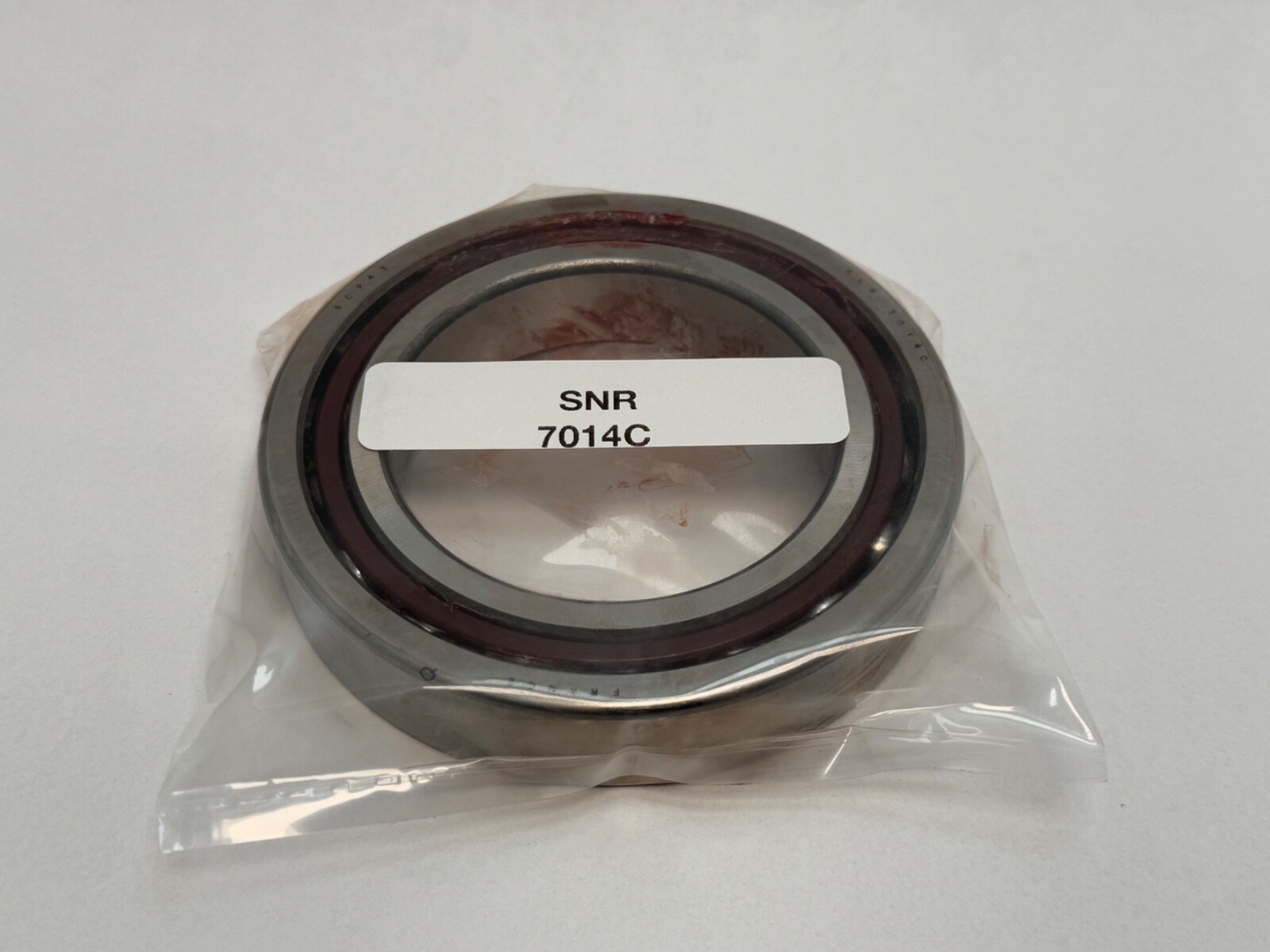

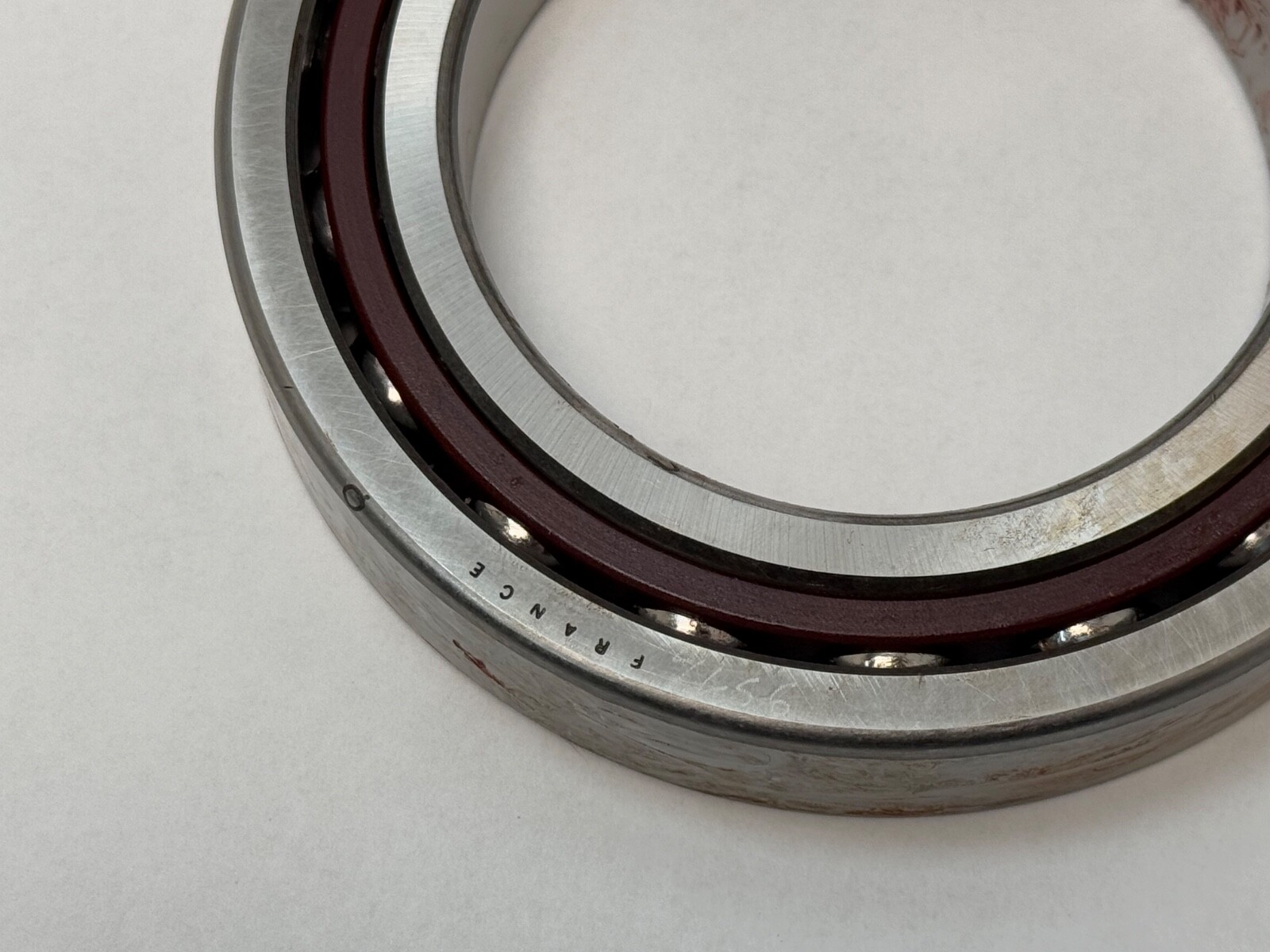

Angular contact ball bearing, 70 x 110 x 20 mm, 15° contact angle, open, straight bore. Single row, takes radial and one-direction axial load.
List Price
$78.67
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 7014C |
| Model | 7014 C |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 110 mm |
| Width | 20 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Grease or oil |
| Base Number | 7014 |
| Bore Shaft Size | 70 mm |
| Mpn Variants | 7014-C, 7014 C, 7014C |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Part Number | 7014C |
What this part is: SNR 7014C single-row angular contact ball bearing. Bore: 70 mm. Outside Diameter: 110 mm. Overall Width: 20 mm. Series: 7000. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: Bearing steel. Closure Type: Open. Bore Type: Straight. Decoding the designation: Contact Angle: 15°. Base Number: 7014. Part Number: 7014C. What these specs mean in practice: Dynamic Load Rating: 52 kN. Static Load Rating: 45.5 kN. Limiting Speed: 15000 rpm. A 15° contact angle favours speed and radial rigidity over thrust capacity, which suits a high-speed shaft position. A single-row angular contact bearing takes radial load together with axial load in one direction, and is commonly set against a second bearing to locate a shaft both ways. Dimensions and running data: Bore: 70 mm. Outside Diameter: 110 mm. Overall Width: 20 mm. Item Weight: 1.34 lbs. Max Temp: 120°C. Min Temp: -30°C. Lubricant: grease or oil. Quantity and configuration: Unit Quantity: 1 Pc. A single bearing. Interchange guidance: MPN Variants: 7014-C, 7014 C, 7014C.
