Availability:
1 in stock

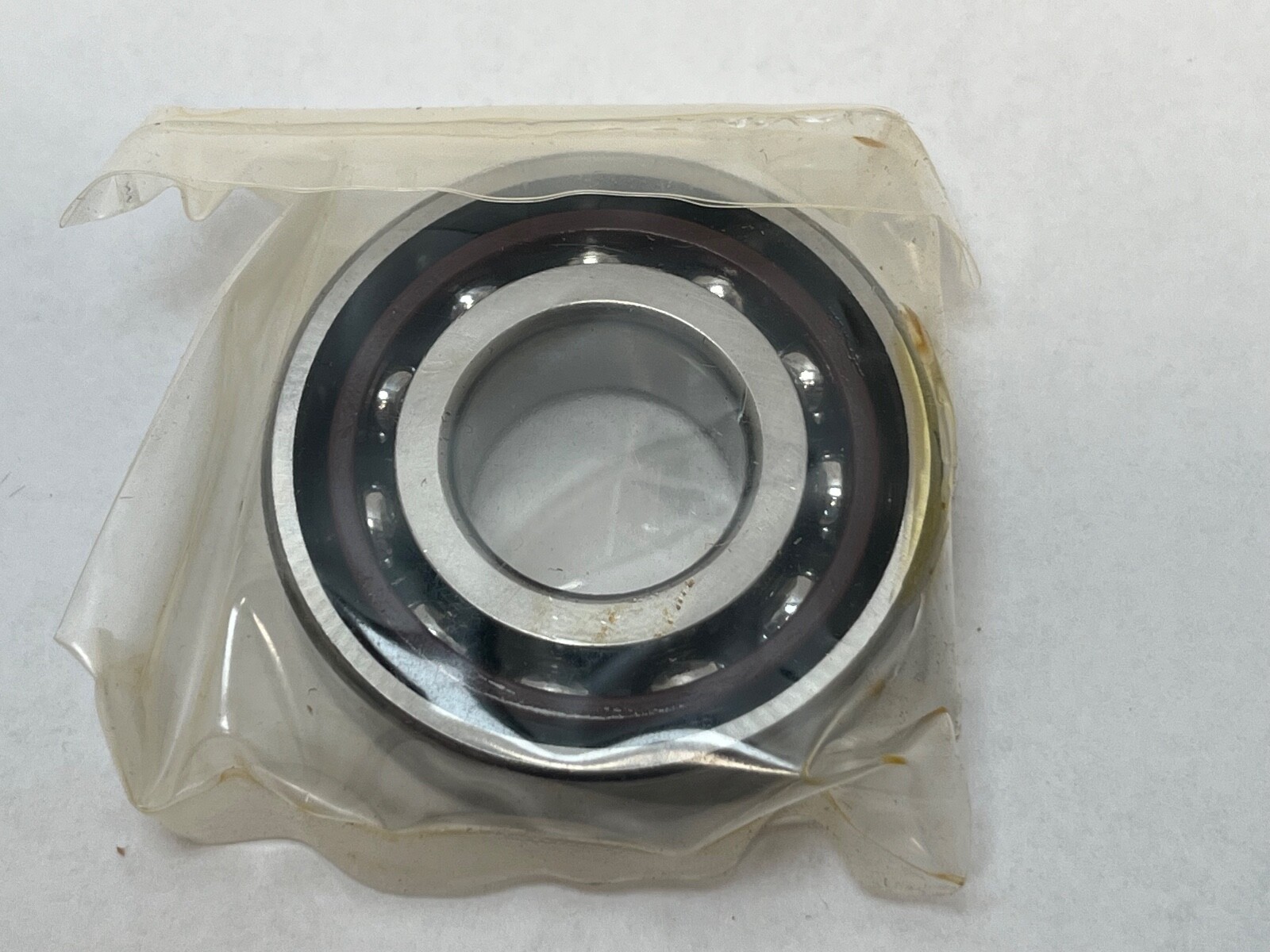

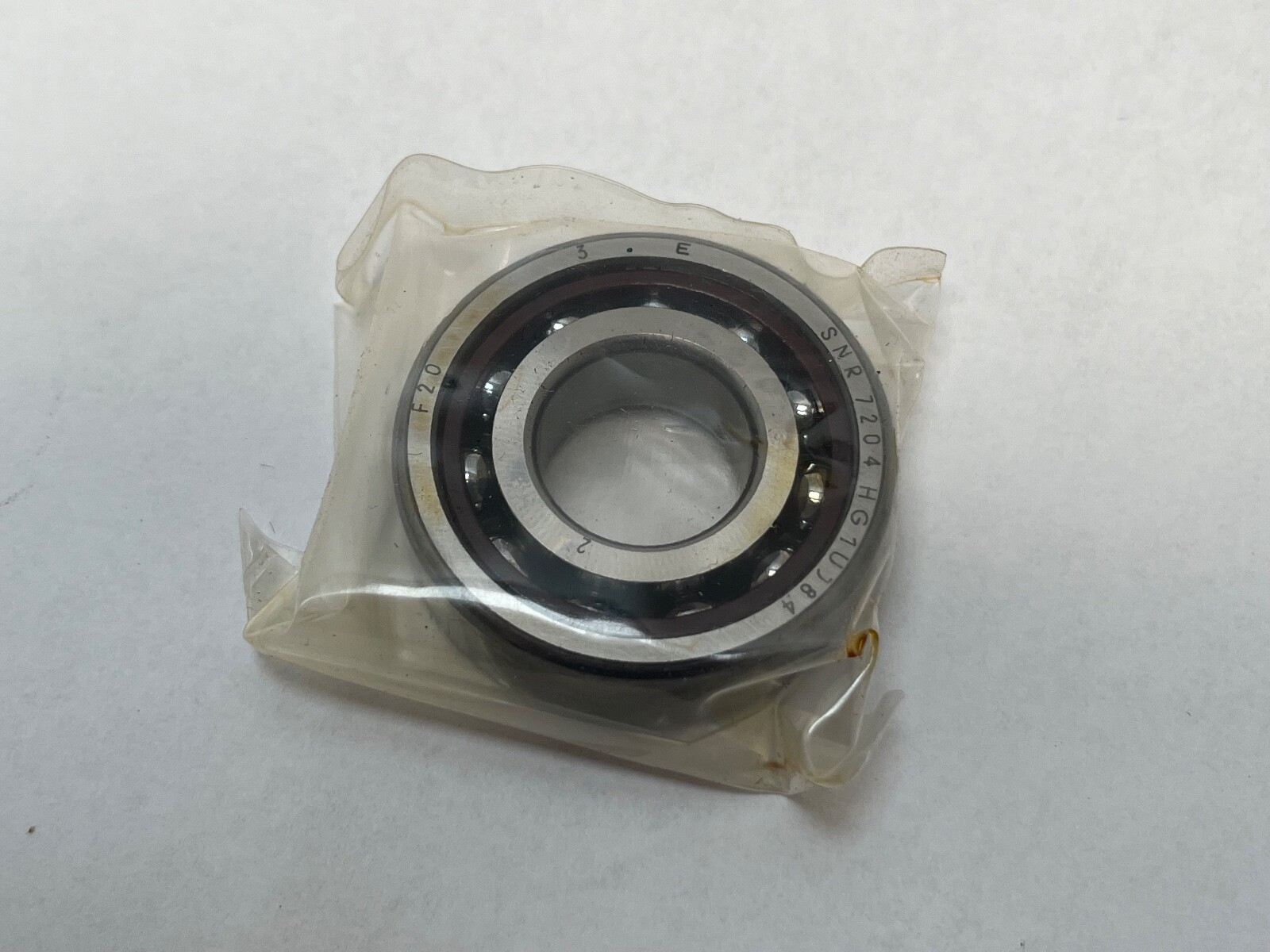

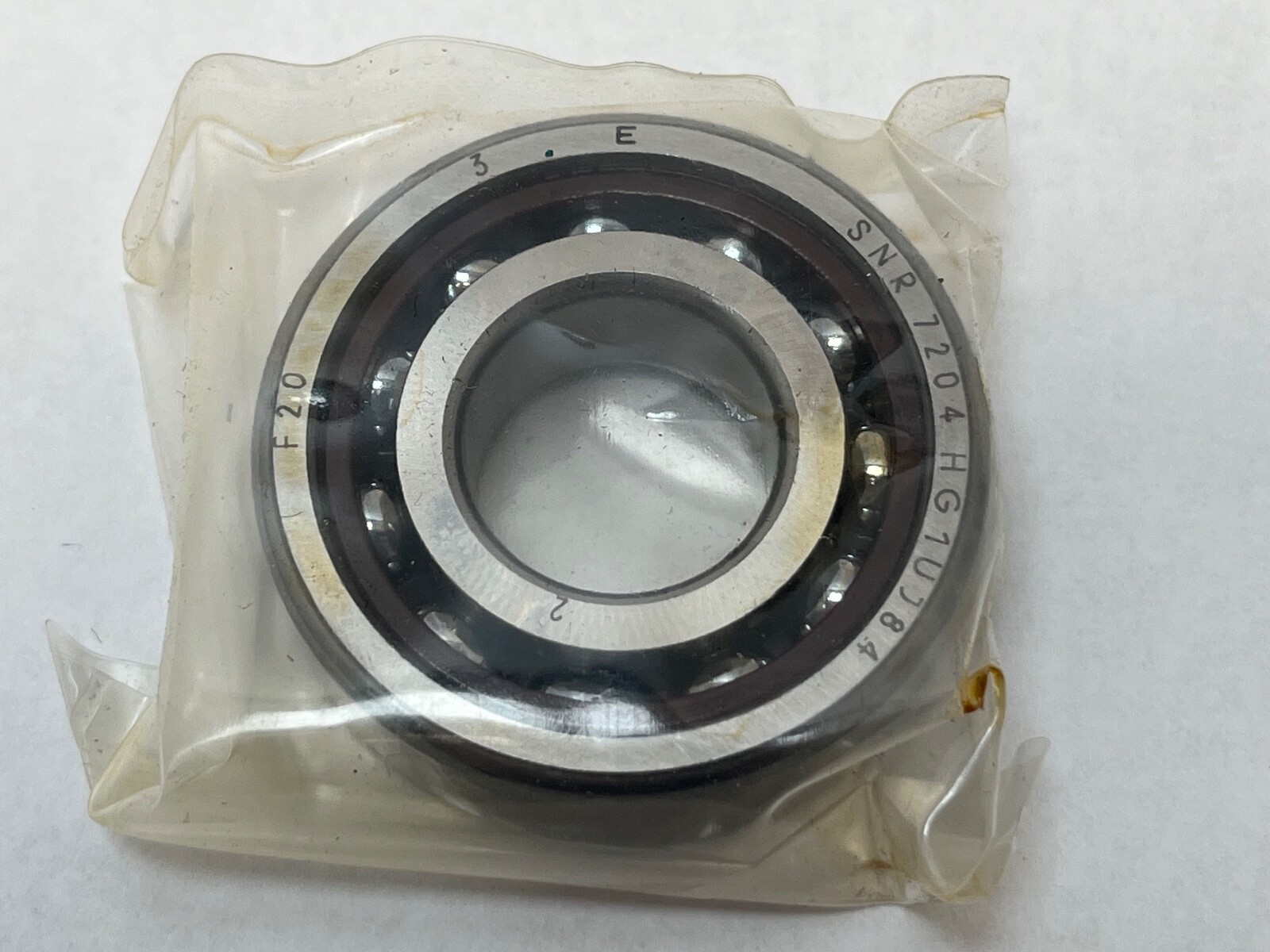

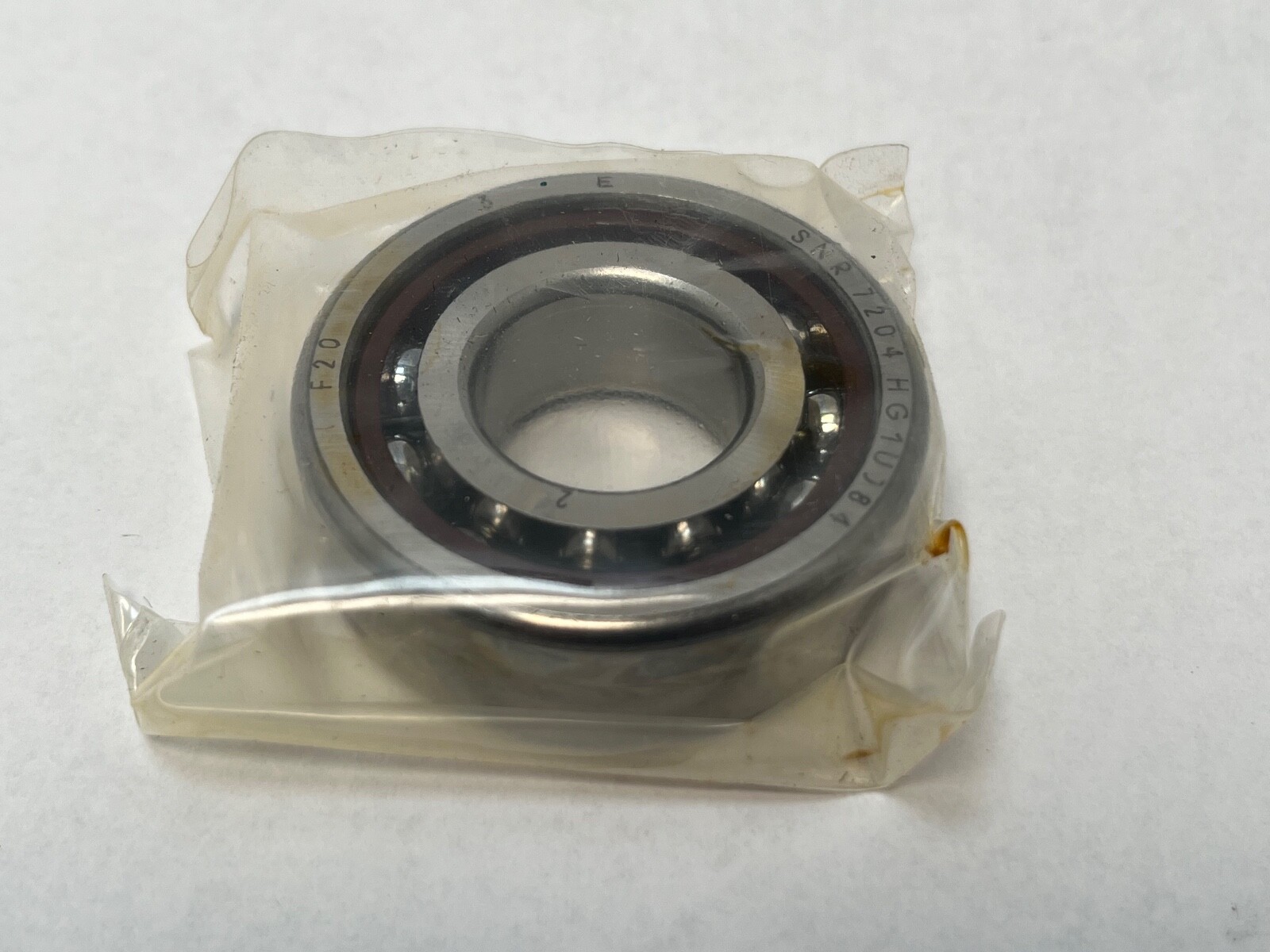

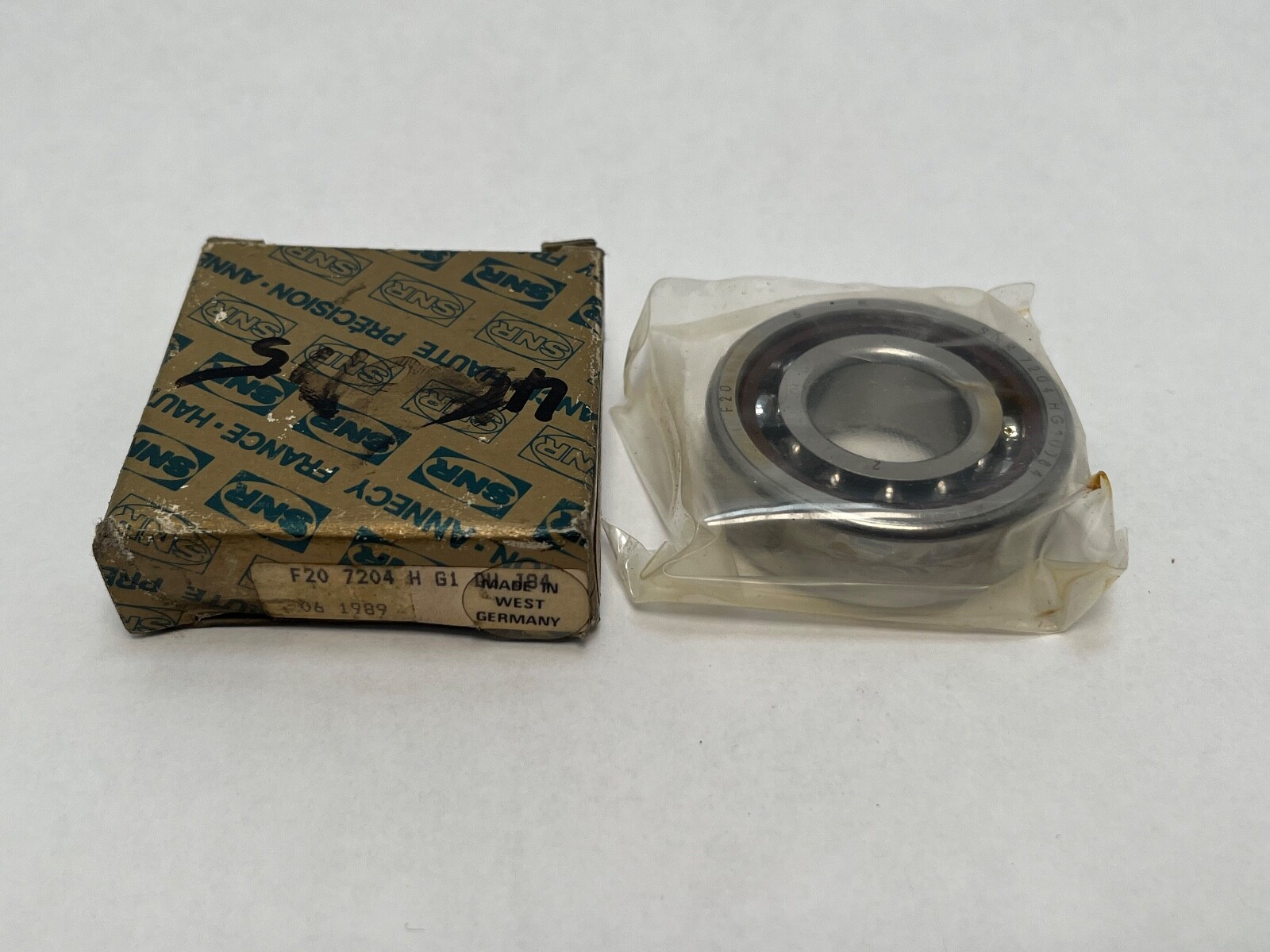

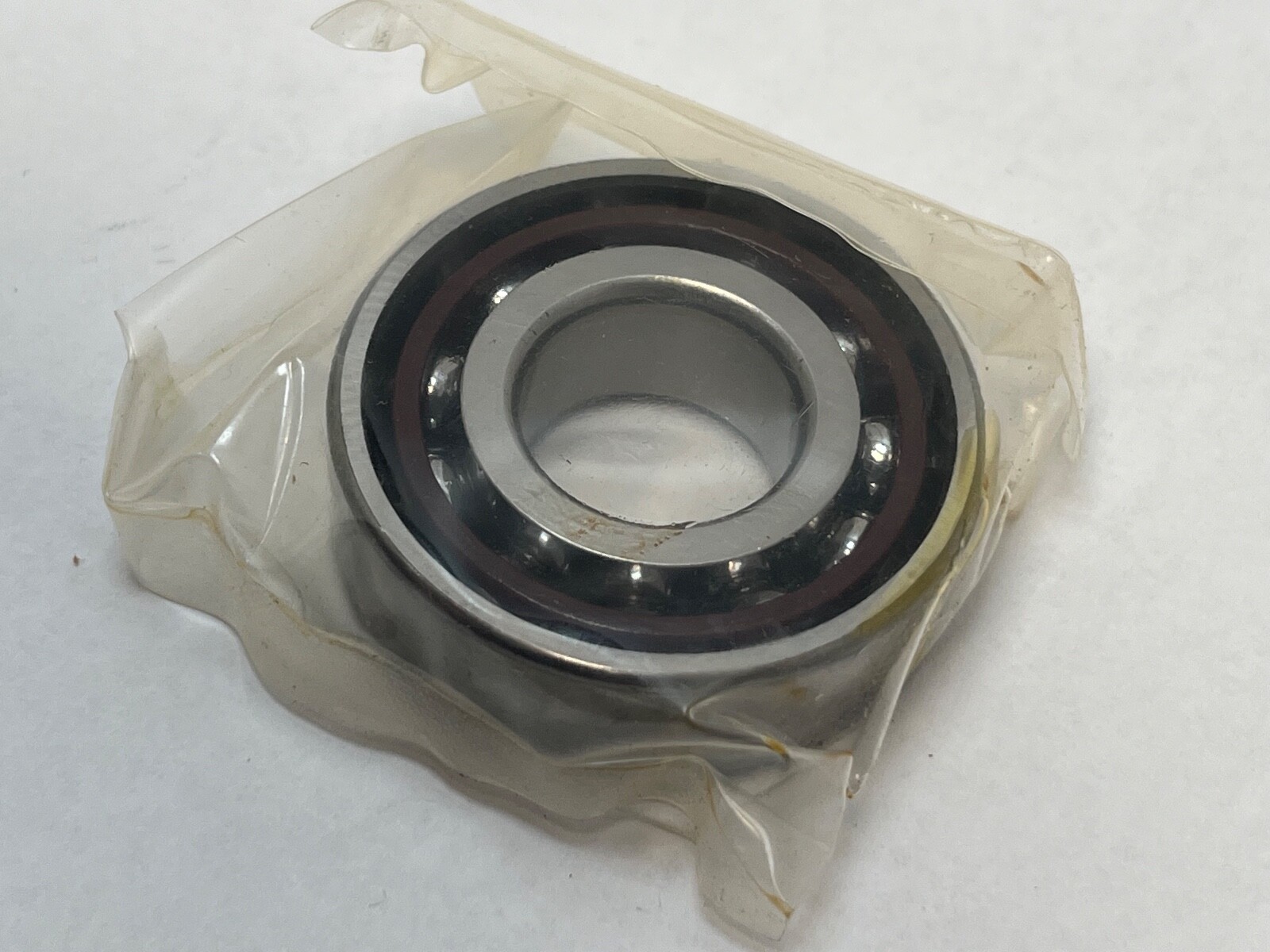

Super-precision angular contact ball bearing, SNR 7204HG1DUJ84, 20 x 47 x 14 mm, 25° contact angle, medium preload, machined phenolic cage, ABEC 7.
List Price
$61.18
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 7204HG1DUJ84 |
| Model | 7204A5/ACD 7204E T DUM P4 / 3MM204WI CR DUM / 7204 H G1 DU J84 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 47 mm |
| Width | 14 mm |
| Series | 7200 |
|---|---|
| Material | Chrome Steel |
| Lubricant | Grease or oil |
| Base Number | 7204 |
| Industry Terms | Super precision spindle bearing; machine tool angular contact |
| Common Misspellings | 7204HGIDUJ84, 7204 HG1 DU J84, 7204HG1DUJ64 |
| Bore Shaft Size | 20 mm |
| Mpn Variants | 7204HG1DUJ84, 7204-H-G1-DU-J84, 7204E-T-DUM-P4, 7204A5/ACD |
| Closure Type | Open |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Part Number | 7204HG1DUJ84 |
| Cross Reference 1 | SKF 7204 ACD/P4ADGB |
|---|
SNR 7204HG1DUJ84 super-precision angular contact ball bearing. Brand: SNR. Manufacturer Part Number: 7204HG1DUJ84. Bearing Type: Angular contact ball bearing. Series: 7200. Base Number: 7204. Bore: 20 mm. Outside Diameter: 47 mm. Width: 14 mm. Bore Type: Straight. Closure Type: Open. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: Chrome steel. Design Units: Metric. Unit Quantity: 1 Pc.
7204 — 7200 series angular contact bearing, 20 mm bore.
H — 25° contact angle.
G1 — laminated resin (phenolic) cage, machined and centred on the outer ring.
DU — universally matchable duplex grinding.
J84 — medium preload.
Contact Angle: 25°. Cage Material: Phenolic laminated resin. Cage Type: Machined, centred on the outer ring. Preload: Medium. Precision Class: ABEC 7 / P4. Lubricant: Grease or oil. Item Weight: 0.24 lbs. Internal Clearance: N/A, preload-set. Harmonization Code: 8482.10.50.
Mounting Arrangement: Universal duplex. One bearing from a universally matchable DU grinding: the faces are flush ground, so it pairs back-to-back, face-to-face or in tandem with another bearing of the same designation, with the medium preload built into the grinding.
Cross-Reference: SKF 7204 ACD/P4ADGB. Searchable variants: 7204HG1DUJ84, 7204-H-G1-DU-J84, 7204E-T-DUM-P4, 7204A5/ACD, 3MM204WI CR DUM.
Bore: 20 mm. Outside Diameter: 47 mm. Width: 14 mm.
Contact Angle: 25°. Preload: Medium (J84).
A universally matchable duplex grinding.
