Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

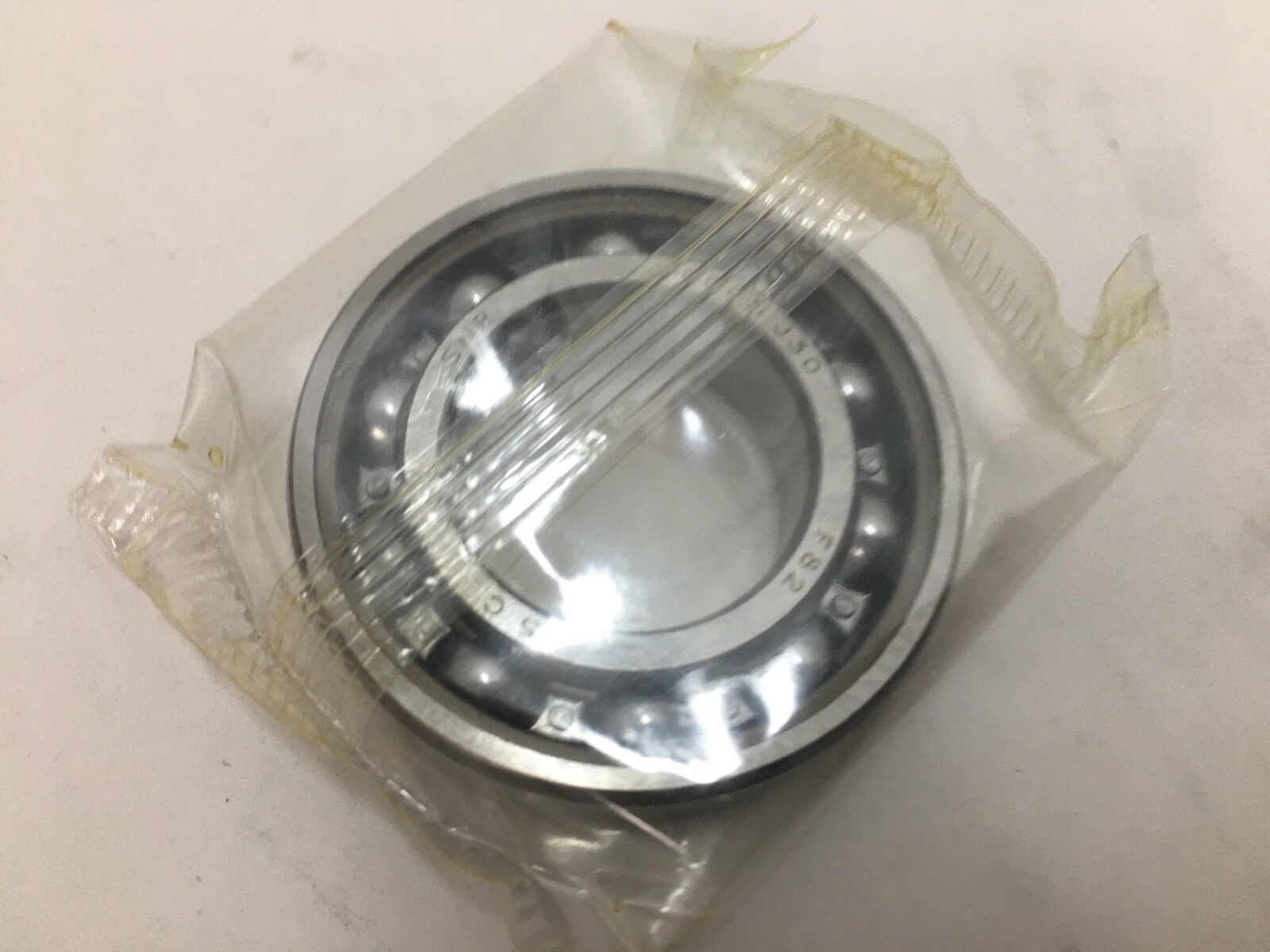

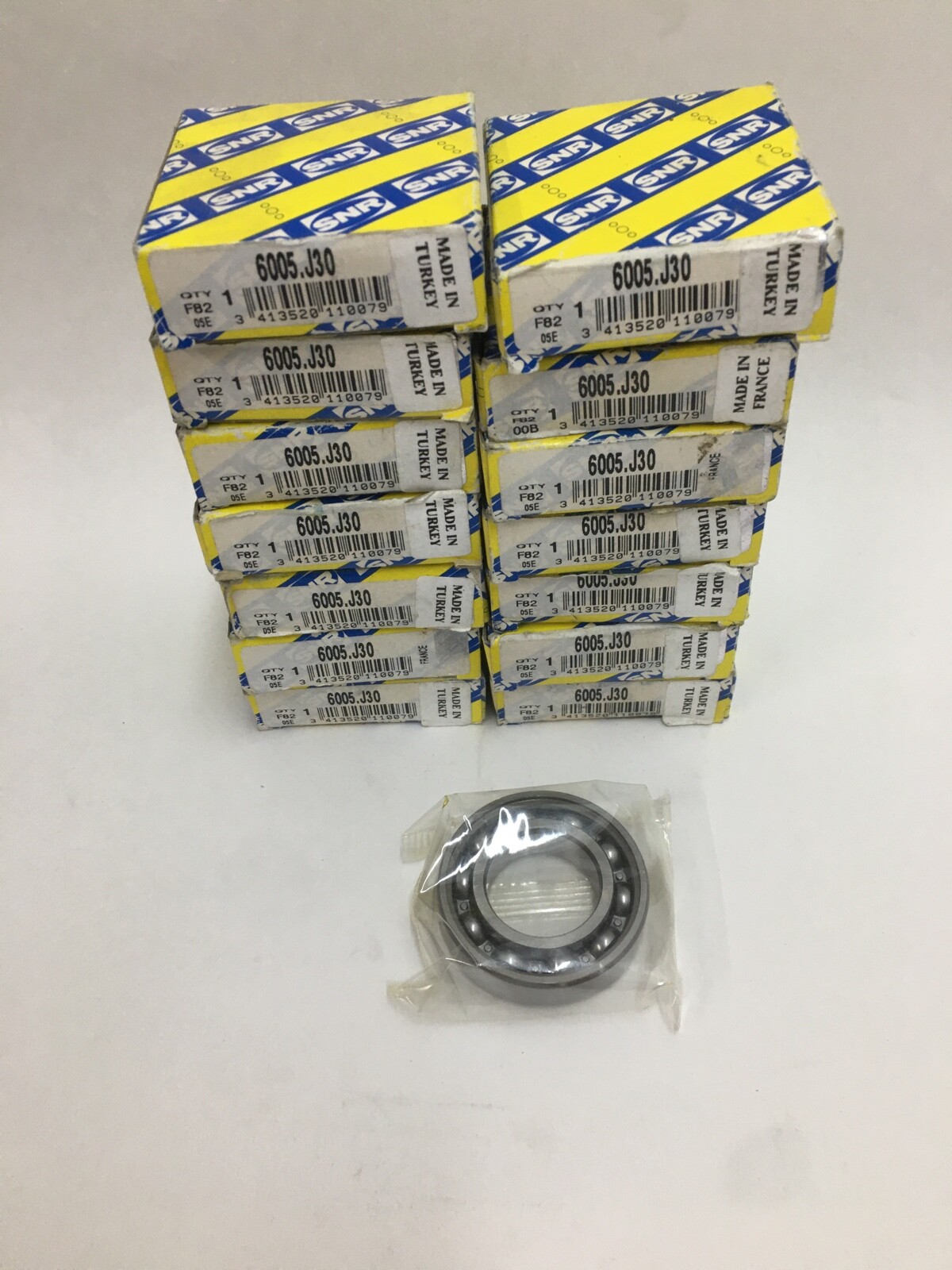

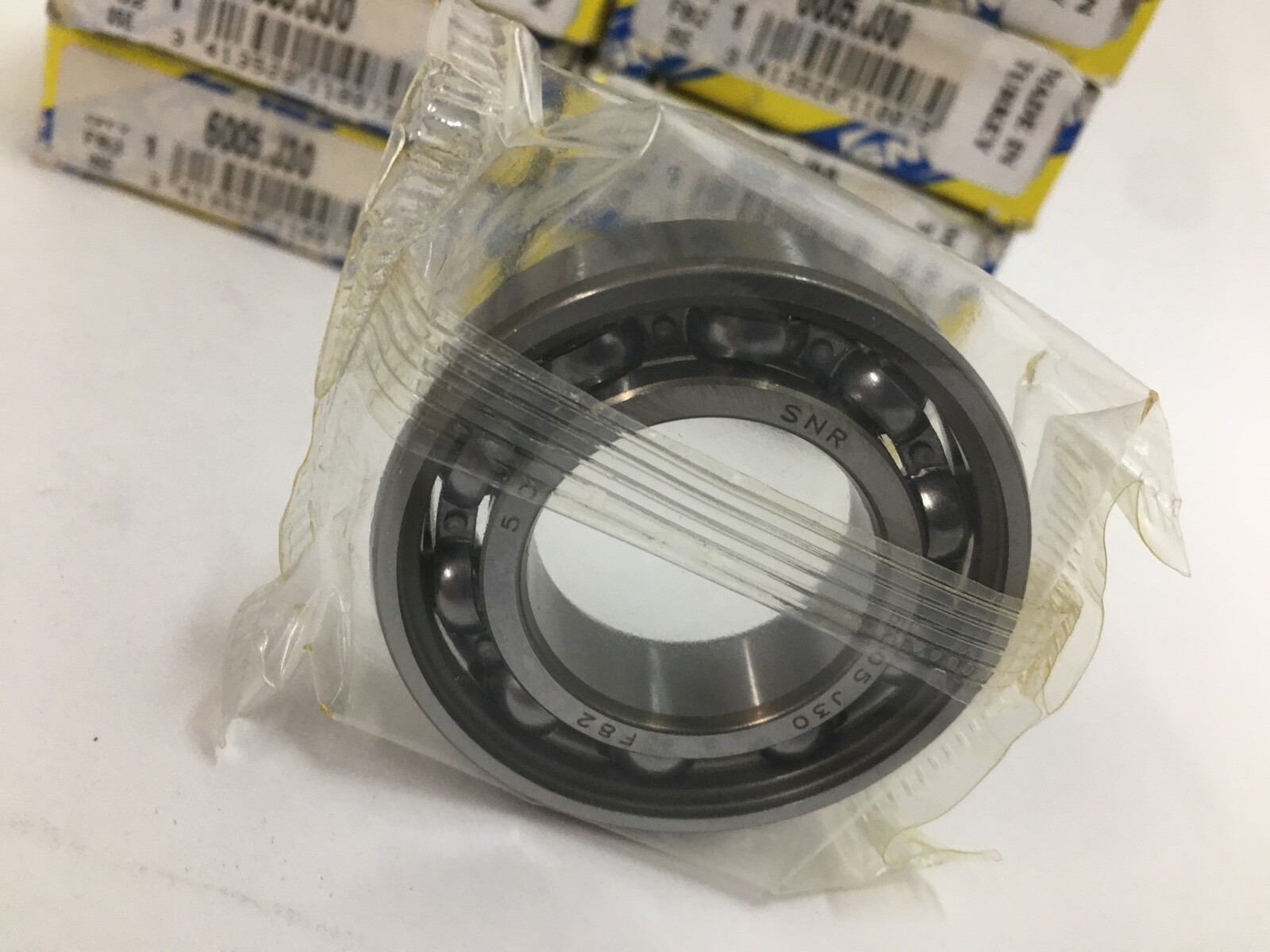

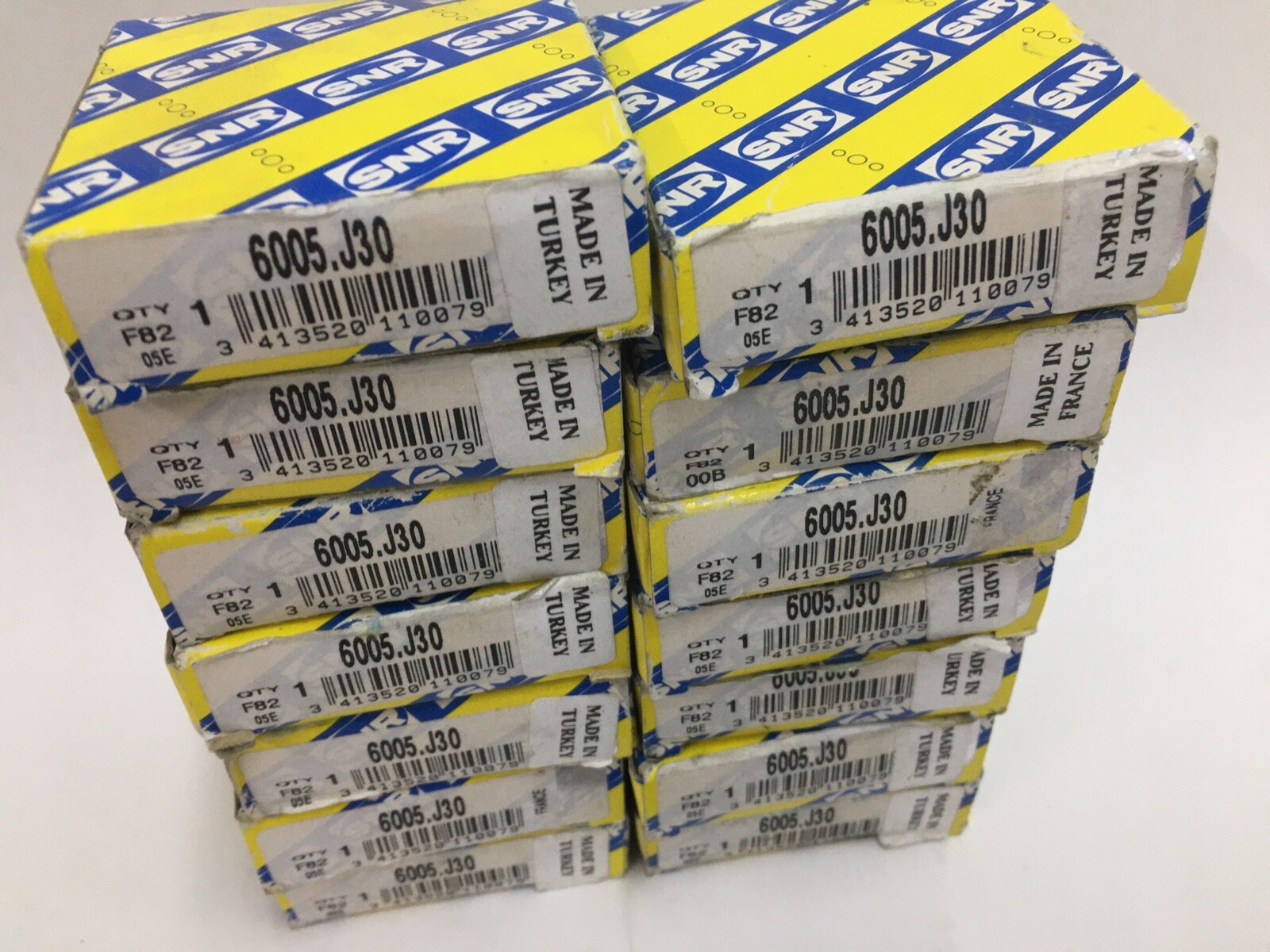

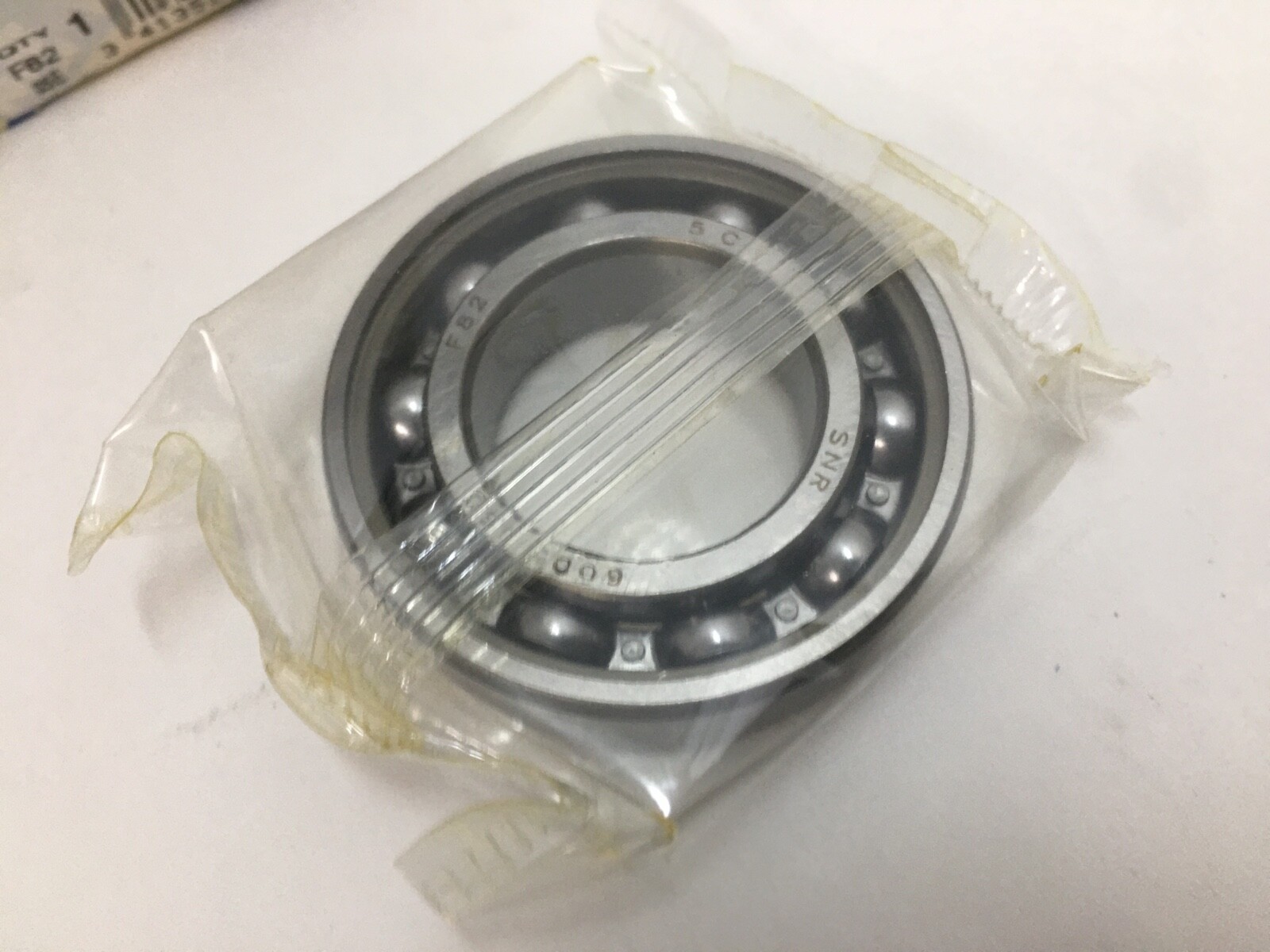

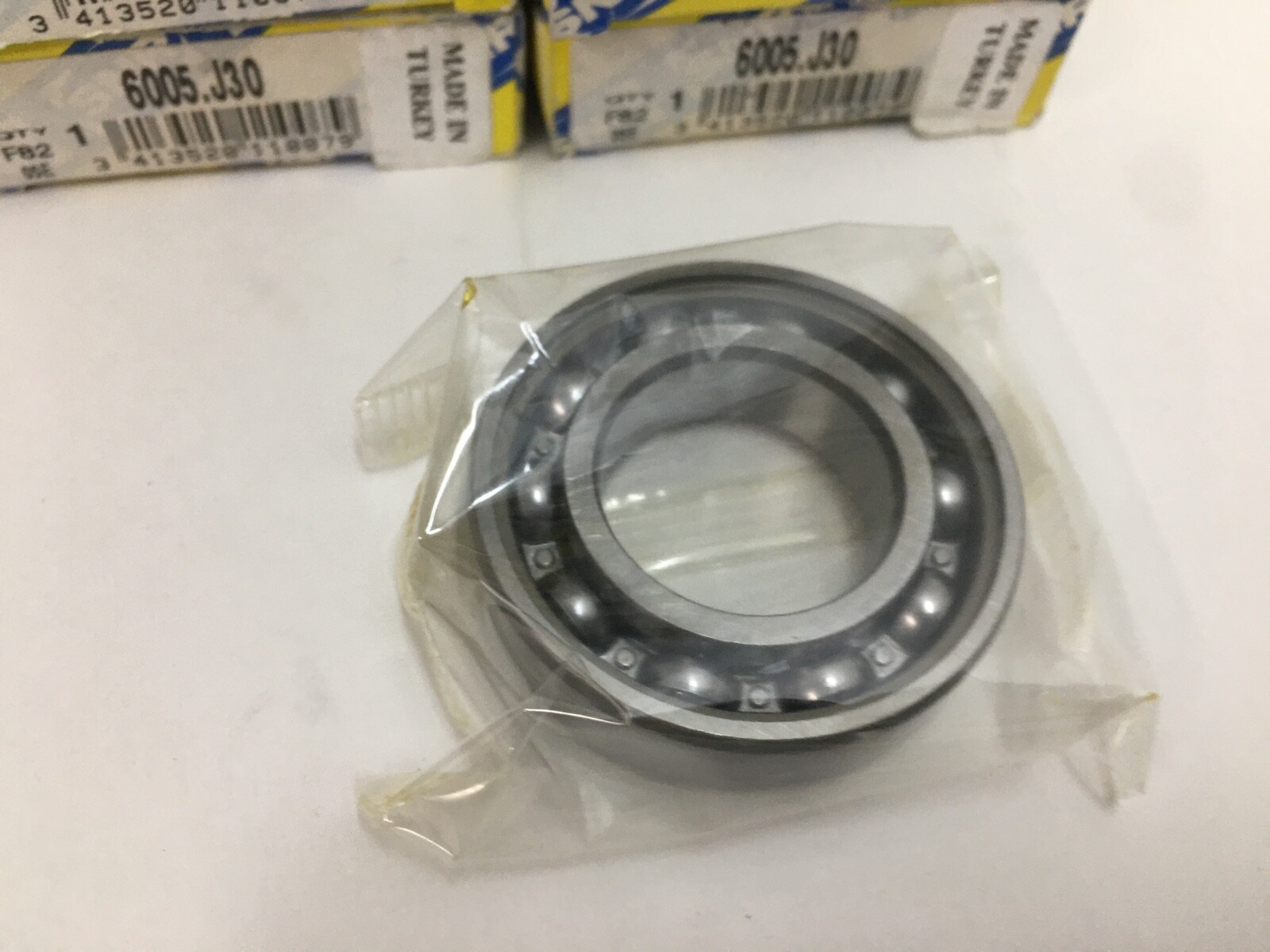

Single-row deep groove ball bearing, 25 mm bore x 47 mm OD x 12 mm wide, open, pressed steel cage, C3 clearance. Set of fifteen SNR 6005J30 bearings.
List Price
$45.52
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 6005J30 |
| GTIN | 3413520110079 |
| Model | 6005 C3 |
| Bearing Type | Ball Bearing, Open |
| ID | 25 mm |
| OD | 47 mm |
| Width | 12 mm |
| Series | 6000 |
|---|---|
| Material | Chrome Steel |
| Base Number | 6005 |
| Industry Terms | deep groove ball bearing, open ball bearing, radial ball bearing, C3 clearance, 6000 series, extra light series |
| Common Misspellings | 6005J3, 6005JC3, 6050J30, 605J30, 6005J3O |
| Overall Width | 12 mm |
| Mpn Variants | 6005J30, 6005 J30, 6005.J30, 6005C3, 6005 C3, 6005-C3 |
| Additional Attributes | Inner ring shoulder diameter d1: 30.2 mm; outer ring inner diameter D1: 42 mm; chamfer rs min: 0.6 mm; da min: 29 mm; Da max: 43 mm; ra max: 0.6 mm; f0: 14.5; defect frequencies at 60 rpm: BPFO 4.118 Hz, BPFI 5.882 Hz, BSF 5.493 Hz, FTF 0.412 Hz |
| Min Temp | -40 °C |
| Dynamic Load Rating | 10,600 N |
| Static Load Rating | 5,900 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.079 kg (0.17 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 25,000 rpm |
| Internal Clearance | C3 |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.00 |
| Application Types | Electric motors; power tools; general industrial machinery |
| Cross Reference 1 | SKF 6005/C3 |
|---|---|
| Cross Reference 2 | FAG 6005-C3 |
| Cross Reference 3 | NSK 6005C3 |
| Cross Reference 4 | NTN 6005C3 |
| Cross Reference 5 | Koyo 6005C3 |
SNR 6005J30 is an open single-row deep groove ball bearing from NTN-SNR with a pressed steel cage and C3 radial internal clearance. SNR also catalogues this execution as 6005C3. Unit Quantity: 15 Pcs, fifteen individual SNR 6005J30 bearings. GTIN: 3413520110079.
60 — single-row deep groove ball bearing, ISO extra-light series 10.
05 — bore code 05: 25 mm bore, 47 mm outside diameter, 12 mm width.
J30 — SNR radial internal clearance category 3, equivalent to C3.
Bore Diameter: 25 mm. Outside Diameter: 47 mm. Overall Width: 12 mm. Dynamic Load Rating: 10,600 N. Static Load Rating: 5,900 N. Fatigue Limit Load: 270 N. Reference Speed: 15,000 rpm. Limiting Speed: 25,000 rpm. Closure Type: Open. Cage Material: Pressed steel. Internal Clearance: C3. Rolling Elements: Ball. Min Temp: -40 °C. Max Temp: 120 °C. Item Weight: 0.079 kg (0.17 lb).
Inner Ring Shoulder Diameter d1: 30.2 mm. Outer Ring Inner Diameter D1: 42 mm. Minimum Chamfer rs: 0.6 mm. Shaft Abutment Diameter da min: 29 mm. Housing Abutment Diameter Da max: 43 mm. Fillet Radius ra max: 0.6 mm. Calculation factor f0: 14.5. Bearing defect frequencies at 60 rpm: BPFO 4.118 Hz, BPFI 5.882 Hz, BSF 5.493 Hz, FTF 0.412 Hz.
Cross-Reference 1: SKF 6005/C3. Cross-Reference 2: FAG 6005-C3. Cross-Reference 3: NSK 6005C3. Cross-Reference 4: NTN 6005C3. Cross-Reference 5: Koyo 6005C3. MPN Variants: 6005J30, 6005 J30, 6005.J30, 6005C3, 6005 C3, 6005-C3.
25 mm bore, 47 mm outside diameter and 12 mm width.
J30 is the SNR code for radial internal clearance category 3, equivalent to C3.
Dynamic Load Rating: 10,600 N. Static Load Rating: 5,900 N. Limiting Speed: 25,000 rpm.
