NTN 6320ZZC3 deep groove ball bearing, 100 mm bore, 215 mm OD, 47 mm wide, steel shields both sides, C3 clearance, 192,000 N dynamic rating, 6300 series.
List Price
$125.27
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 6320ZZC3 |
| Model | 6320ZZC3 |
| Bearing Type | Ball Bearing, Shields both sides |
| ID | 100 mm |
| OD | 215 mm |
| Width | 47 mm |
| Material | Bearing Steel |
|---|---|
| Series | 6300 |
| Mpn Variants | 6320ZZC3, 63202ZC3, 6320 2Z C3, 6320ZZC3/2A, 6320Z, 6320-2Z/C3 |
| Precision Class | ABEC 1 / P0 |
| Dynamic Load Rating | 192,000 N |
| Static Load Rating | 141,000 N |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Item Weight | 7.19 kg (15.85 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 3,200 rpm grease |
| Internal Clearance | C3 |
| Lubricant | Grease |
| Harmonization Code | 8482.10.50.68 |
| Closure Type | Shields both sides |
| Industry Terms | deep groove ball bearing; double shielded ball bearing; 6320 ZZ C3; 100 mm bore ball bearing |
| Common Misspellings | NTN 6320 ZZ C3; NTN 6320-ZZ/C3; NTN6320ZZC3; NNT 6320ZZC3 |
| Application Types | Electric motors; pumps; gearboxes; industrial machinery |
| Cross Reference 1 | SKF 6320-2Z/C3 |
|---|---|
| Cross Reference 2 | FAG 6320-2Z-C3 |
| Cross Reference 3 | NSK 6320ZZC3 |
| Cross Reference 4 | Koyo 6320ZZC3 |

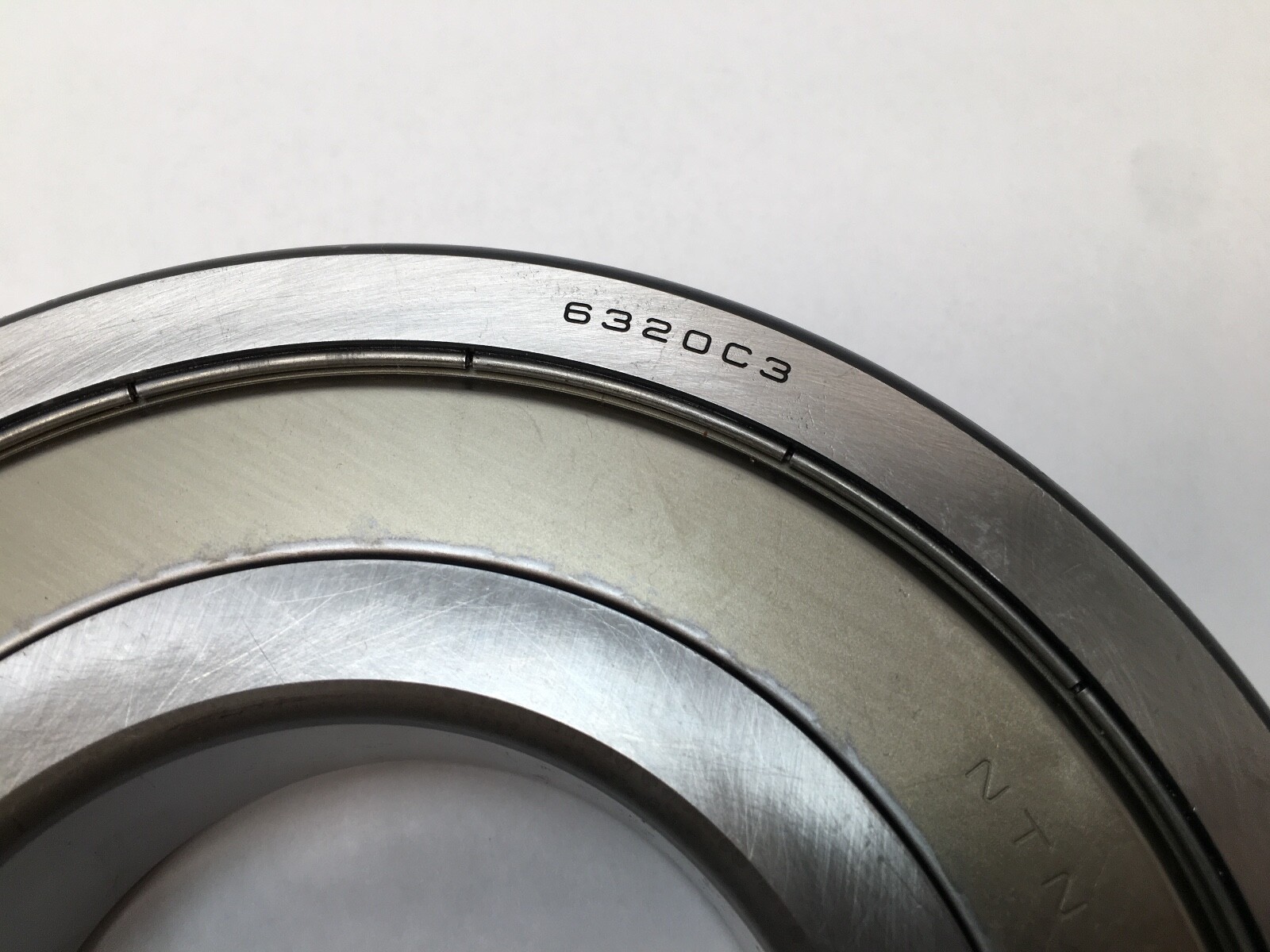

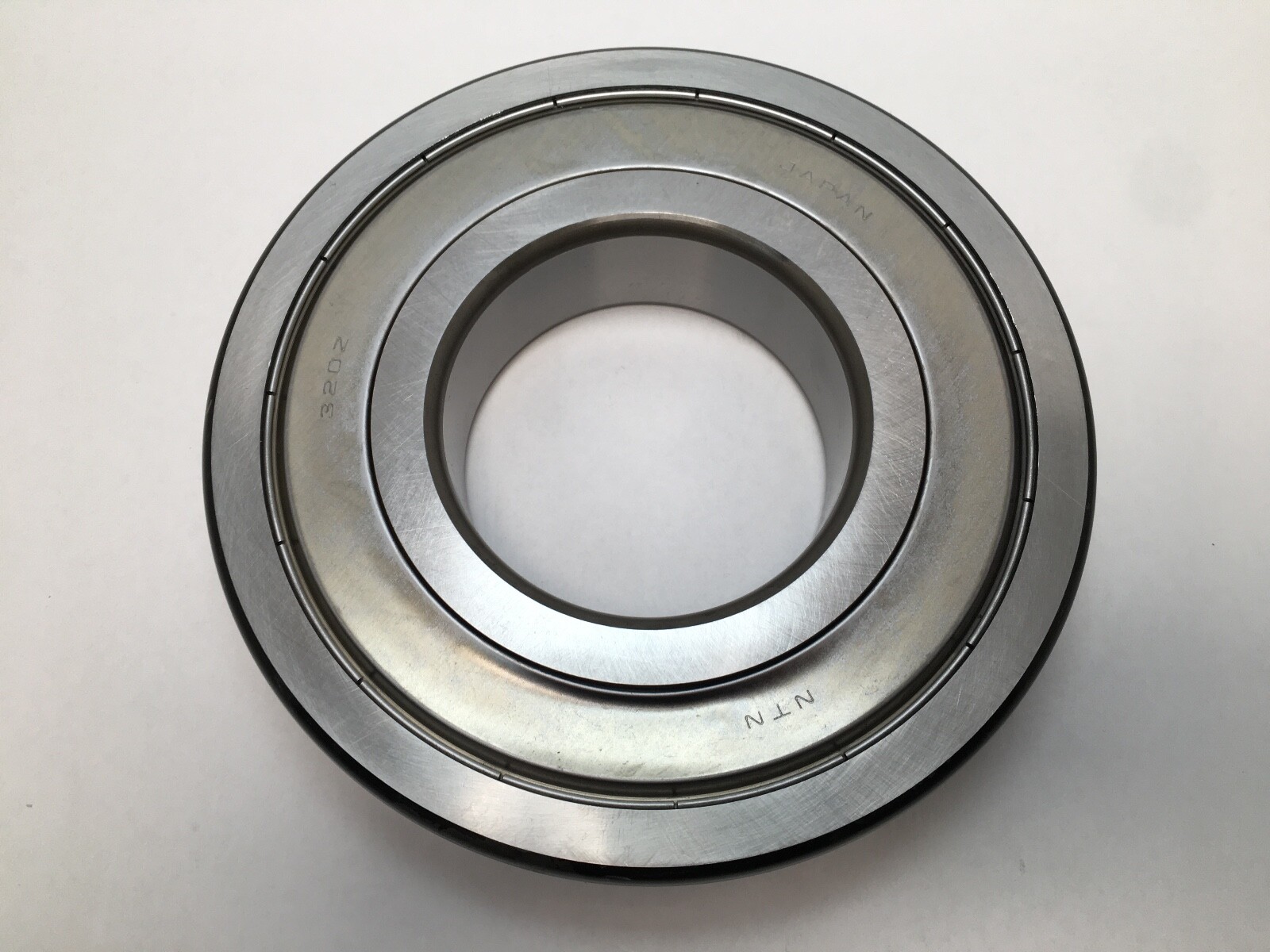

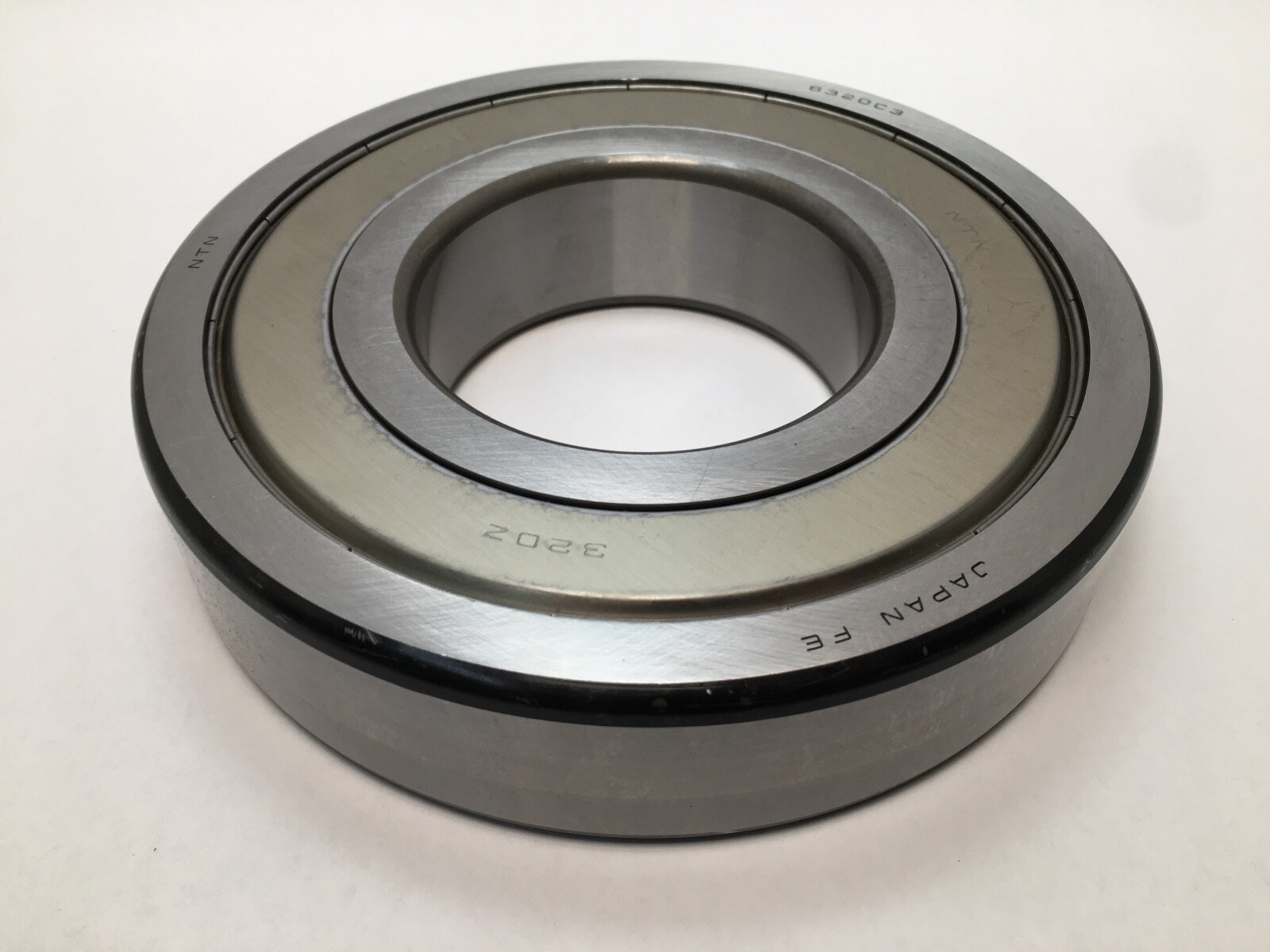

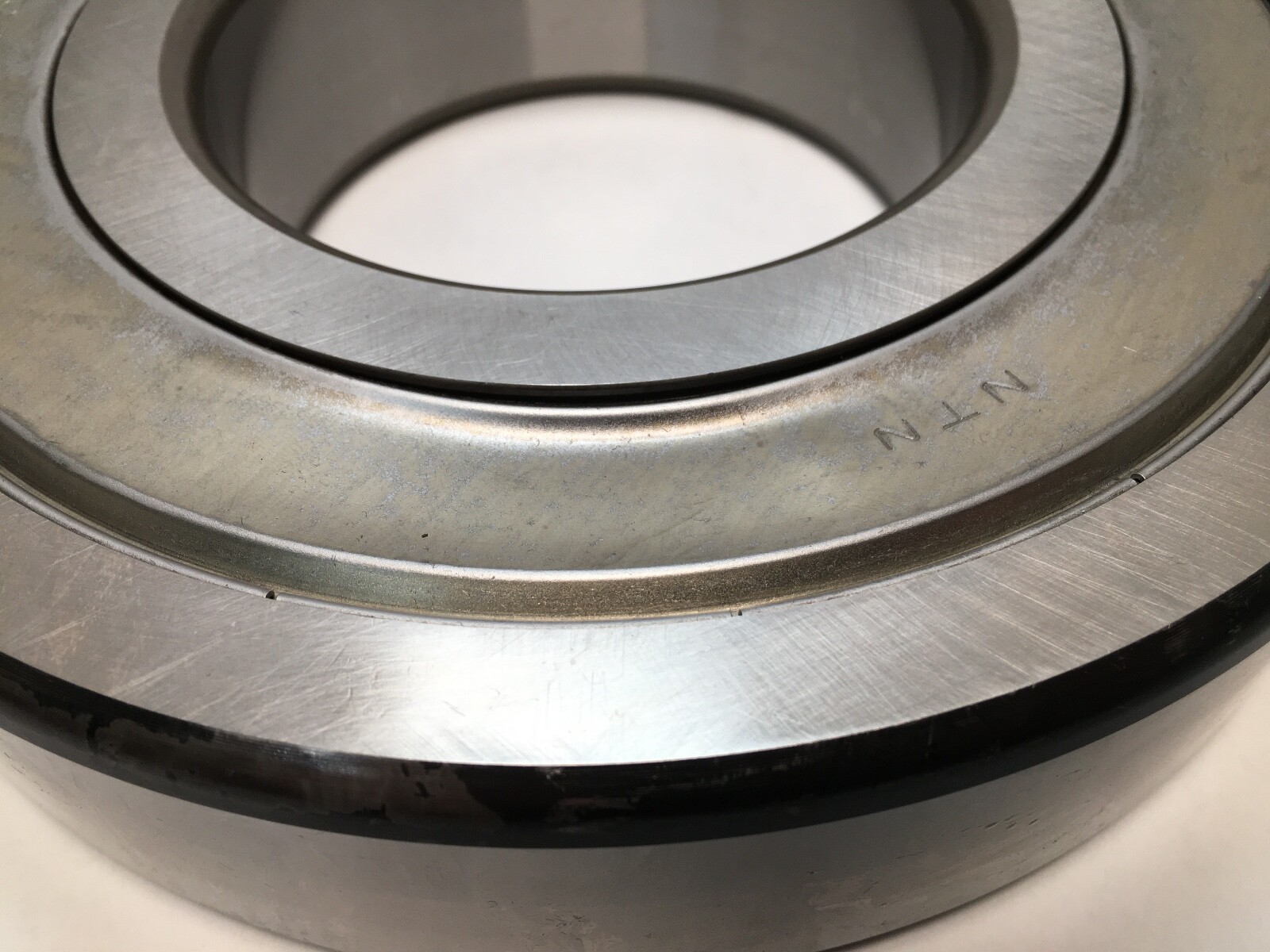

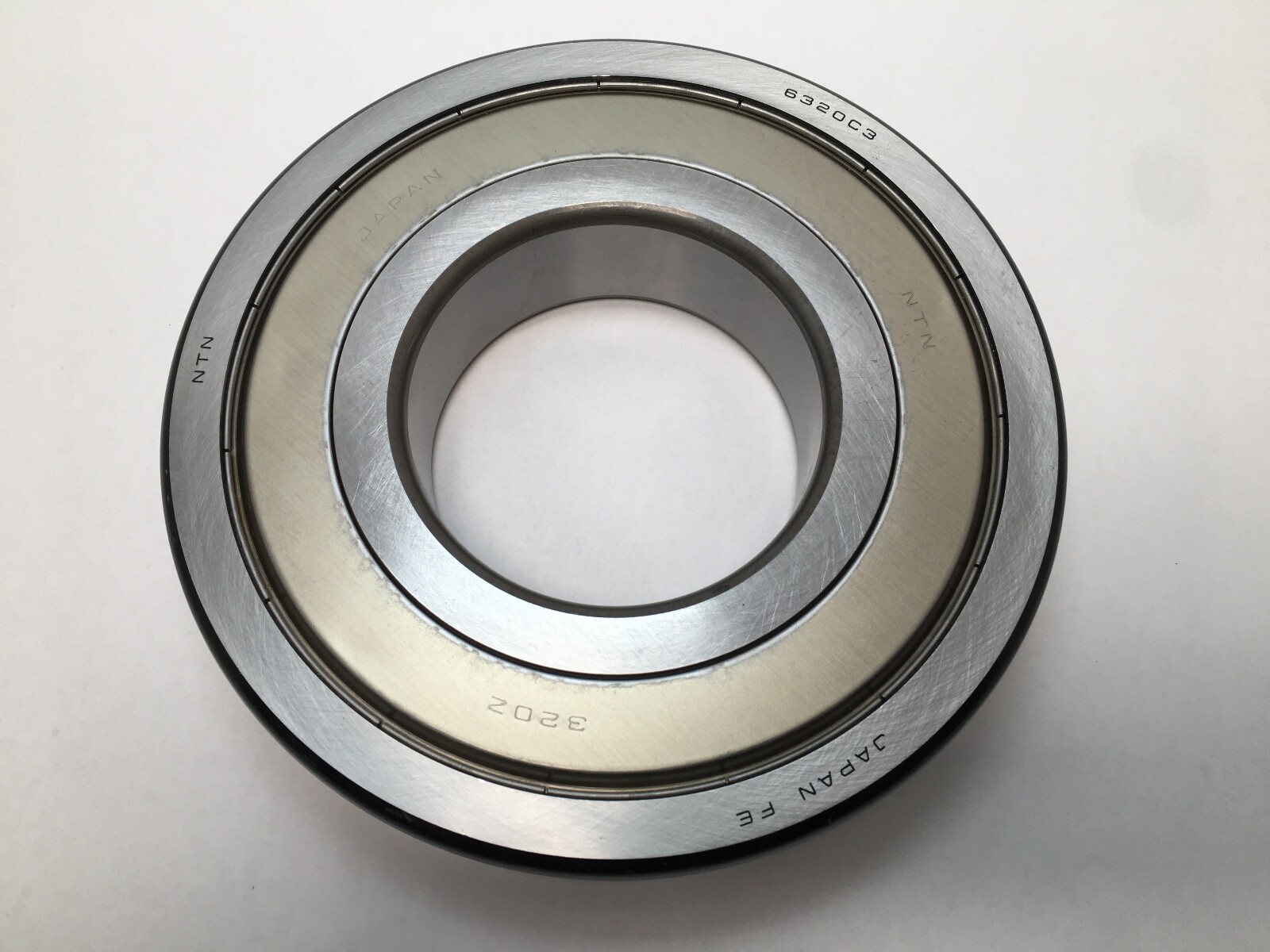

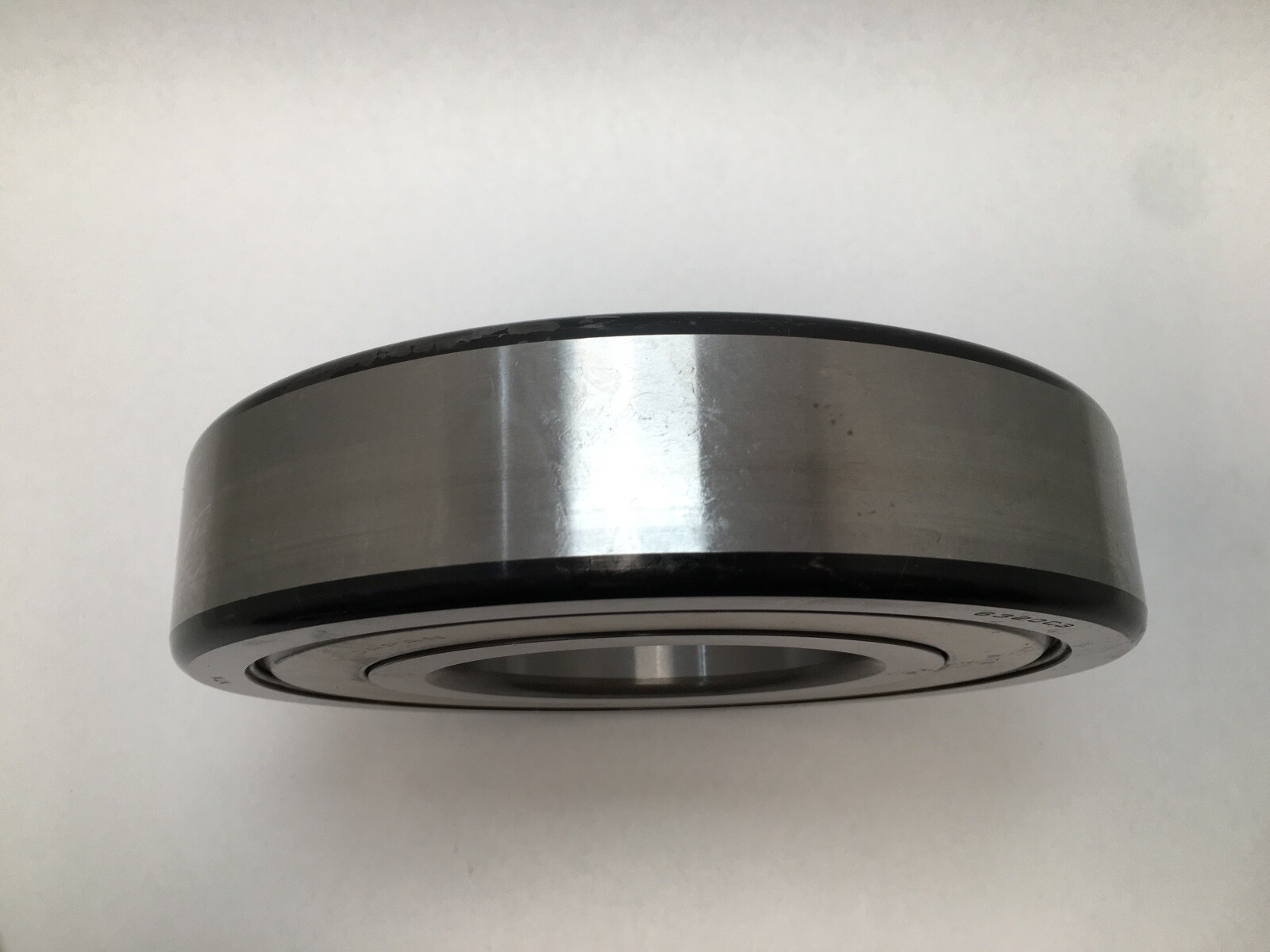

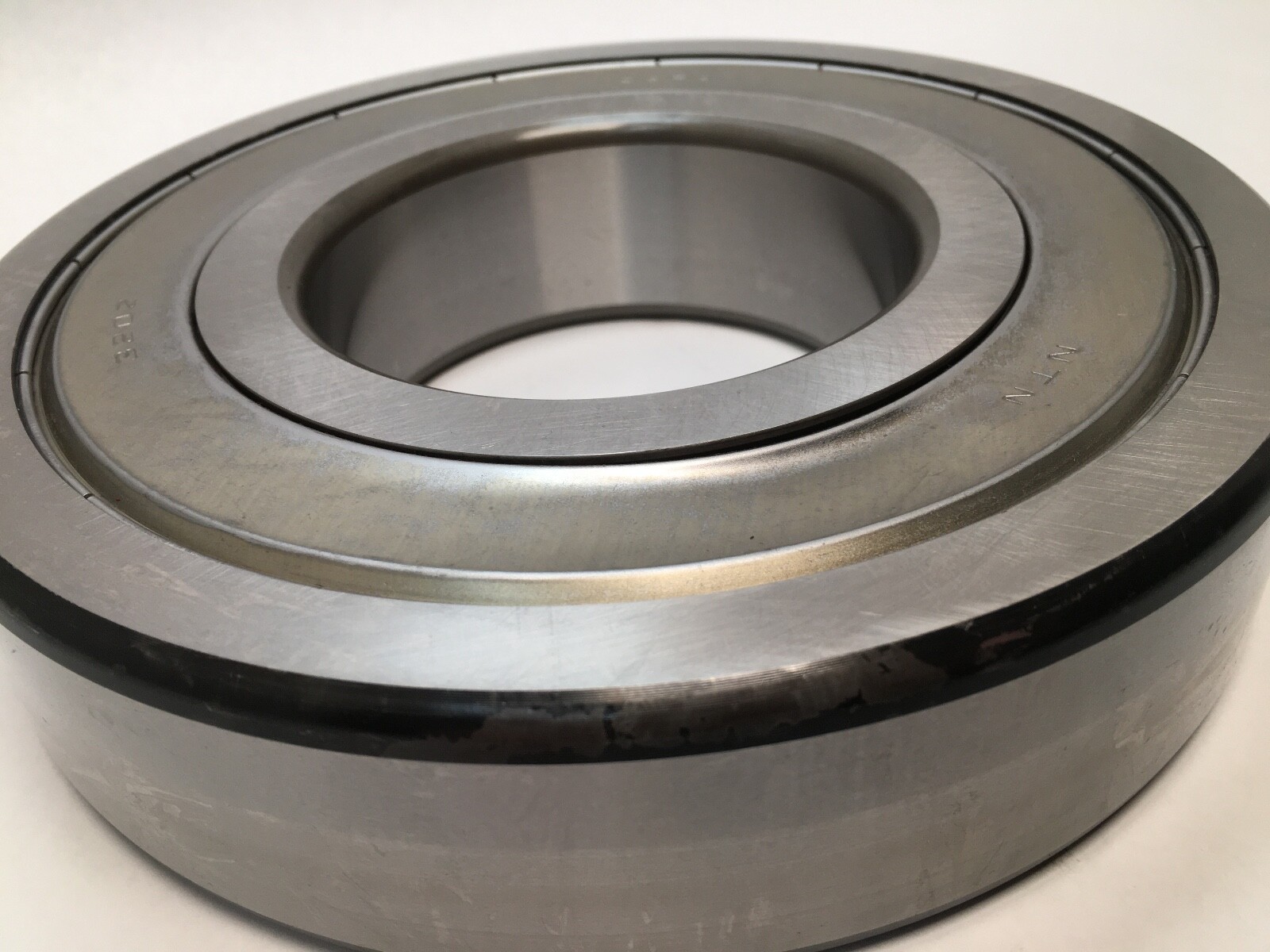

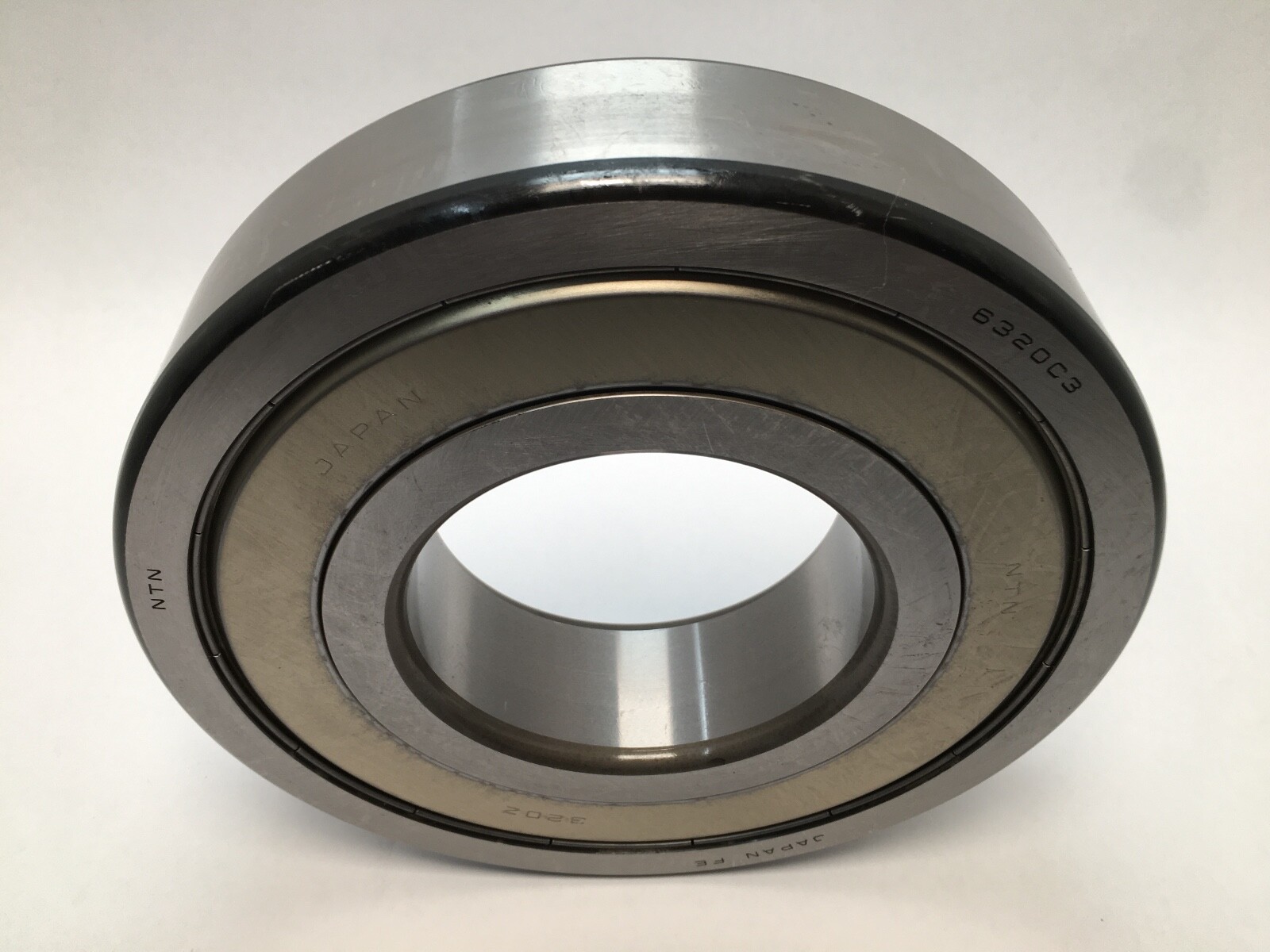

NTN 6320ZZC3 single-row deep groove ball bearing with a steel shield on each side. Envelope: 100 mm bore, 215 mm outside diameter, 47 mm width. C3 internal clearance, pressed steel cage, grease fill. Unit Quantity: 1 Pc.
6320 — 63 medium series deep groove ball bearing; bore code 20 gives a 100 mm bore.
ZZ — steel shields both sides (written 2Z on this record).
C3 — radial internal clearance greater than normal.

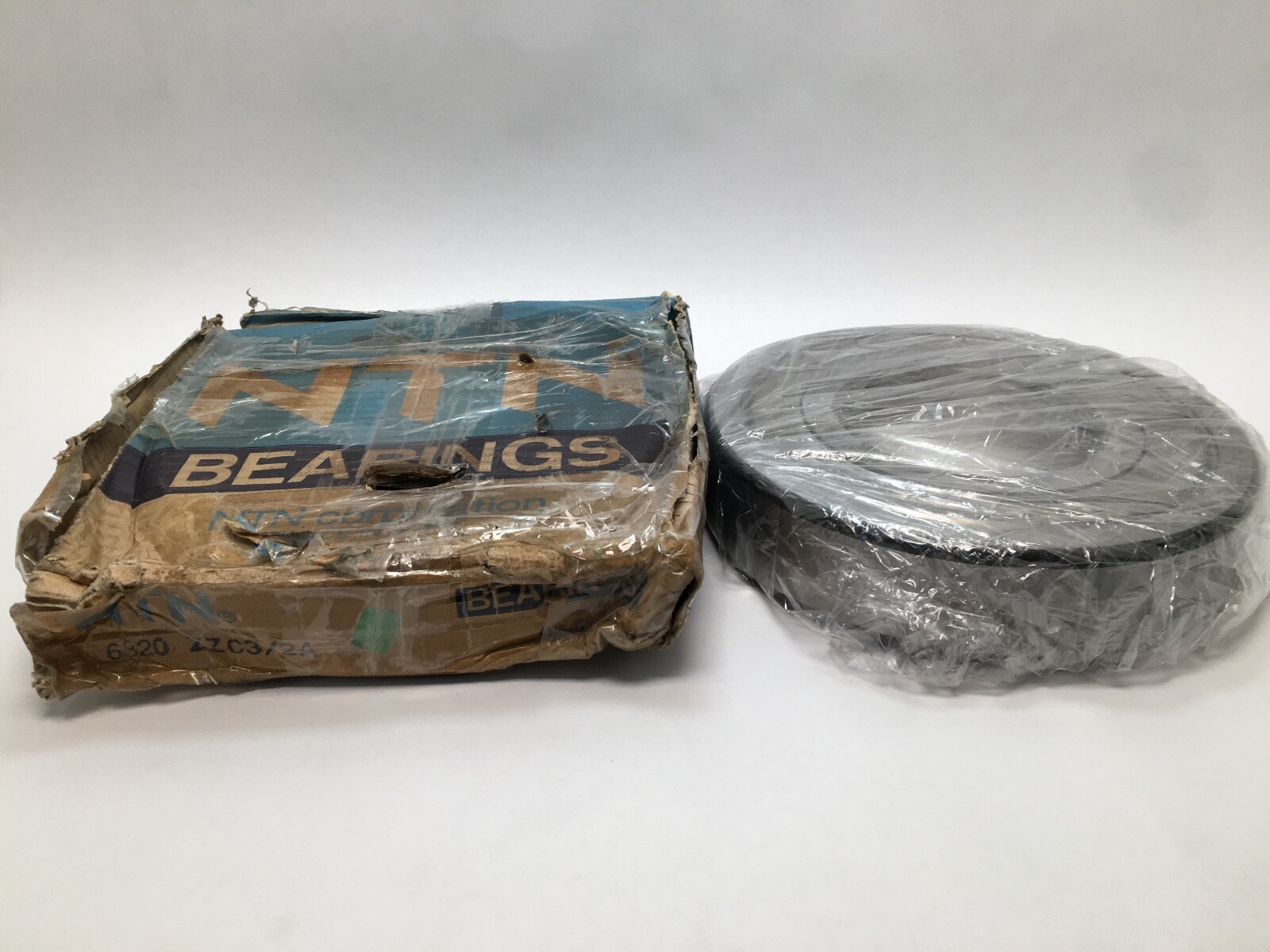

2A — factory fill of Shell Alvania 2 grease.
Series: 6300. Bore Diameter: 100 mm. Outside Diameter: 215 mm. Overall Width: 47 mm. Bore Type: Straight. Number Of Rows: 1. Rolling Elements: Ball. Closure Type: Shields both sides.
Internal Clearance: C3. Cage Material: Pressed steel. Precision Class: ABEC 1 / P0. Material: Bearing steel. Lubricant: Grease.
Dynamic Load Rating: 192,000 N. Static Load Rating: 141,000 N. Limiting Speed: 3,200 rpm grease. Item Weight: 7.19 kg (15.85 lb). Unit Quantity: 1 Pc. Country of Origin: Japan.
Shaft abutment diameter da min: 113 mm. Housing abutment diameter Da max: 202 mm. Fillet radius ras max: 2.5 mm. Bearing chamfer r: 3.0 mm.
SKF 6320-2Z/C3. FAG 6320-2Z-C3. NSK 6320ZZC3. Koyo 6320ZZC3. These are 100 x 215 x 47 mm double-shielded deep groove ball bearings with C3 clearance. Also written 6320Z, 6320 2Z C3, 6320ZZC3/2A.
Bore Diameter: 100 mm. Outside Diameter: 215 mm. Overall Width: 47 mm.
Steel shields on both sides (ZZ).
Dynamic Load Rating: 192,000 N. Static Load Rating: 141,000 N.
