Availability:
1 in stock

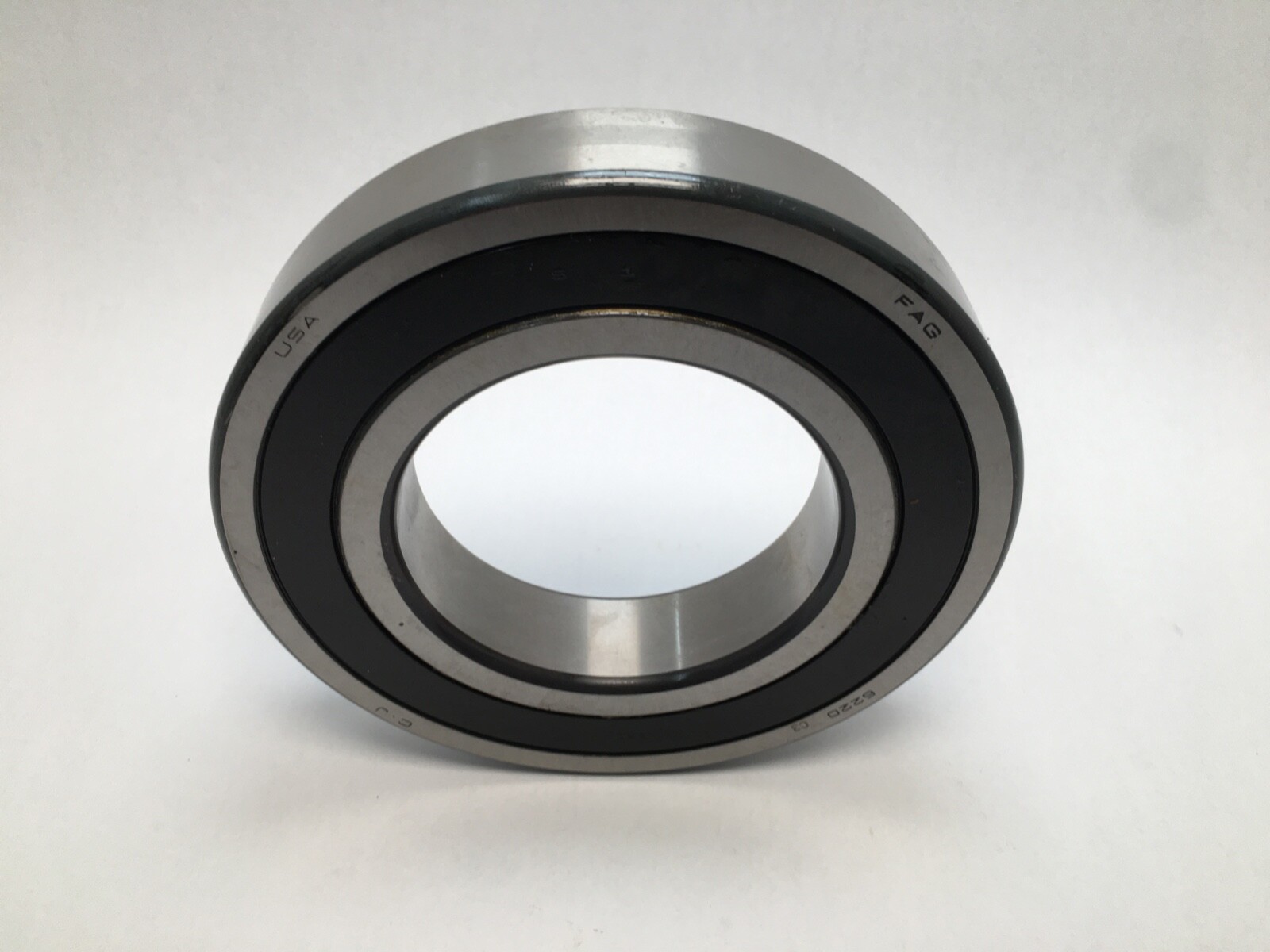

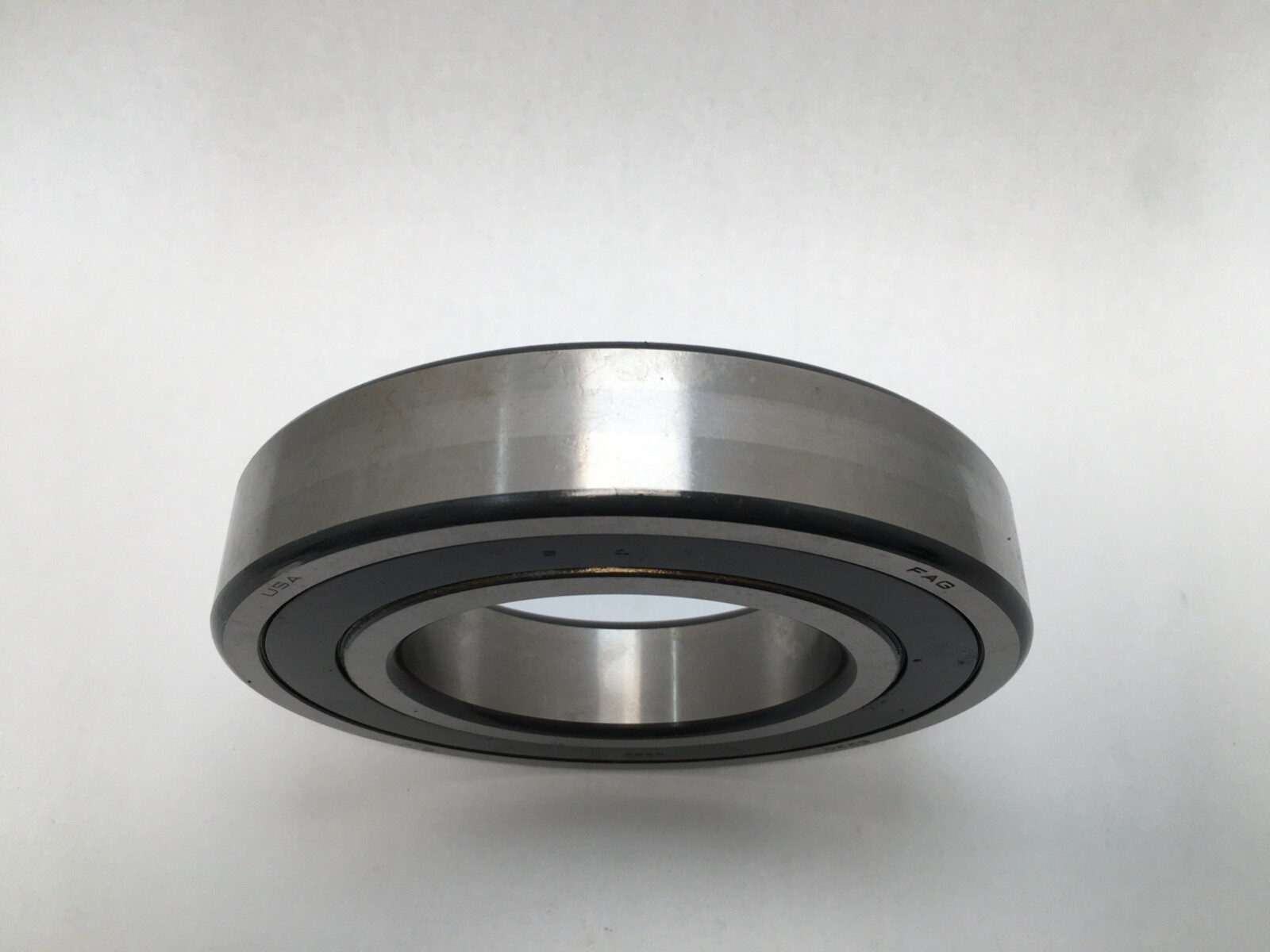

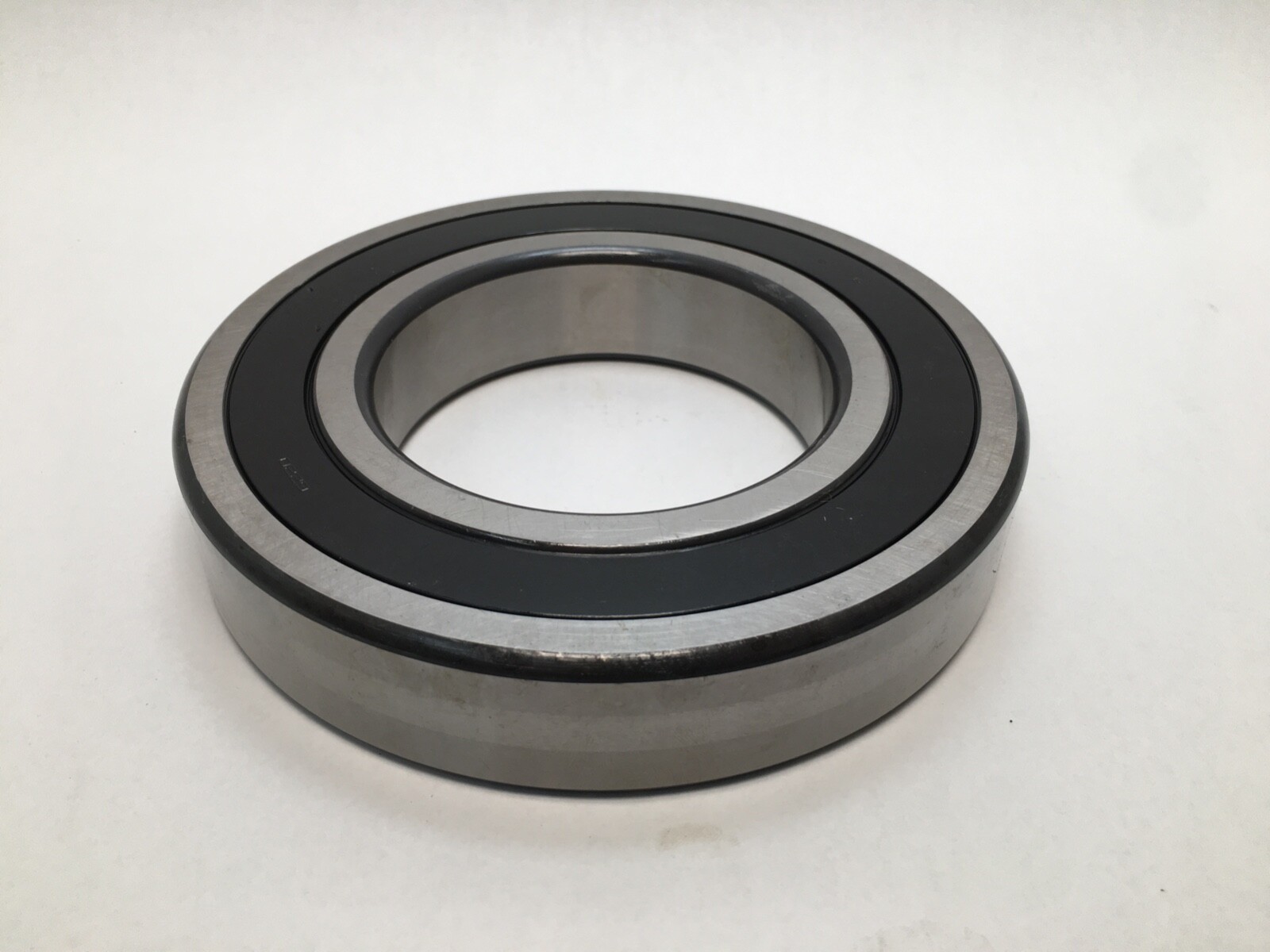

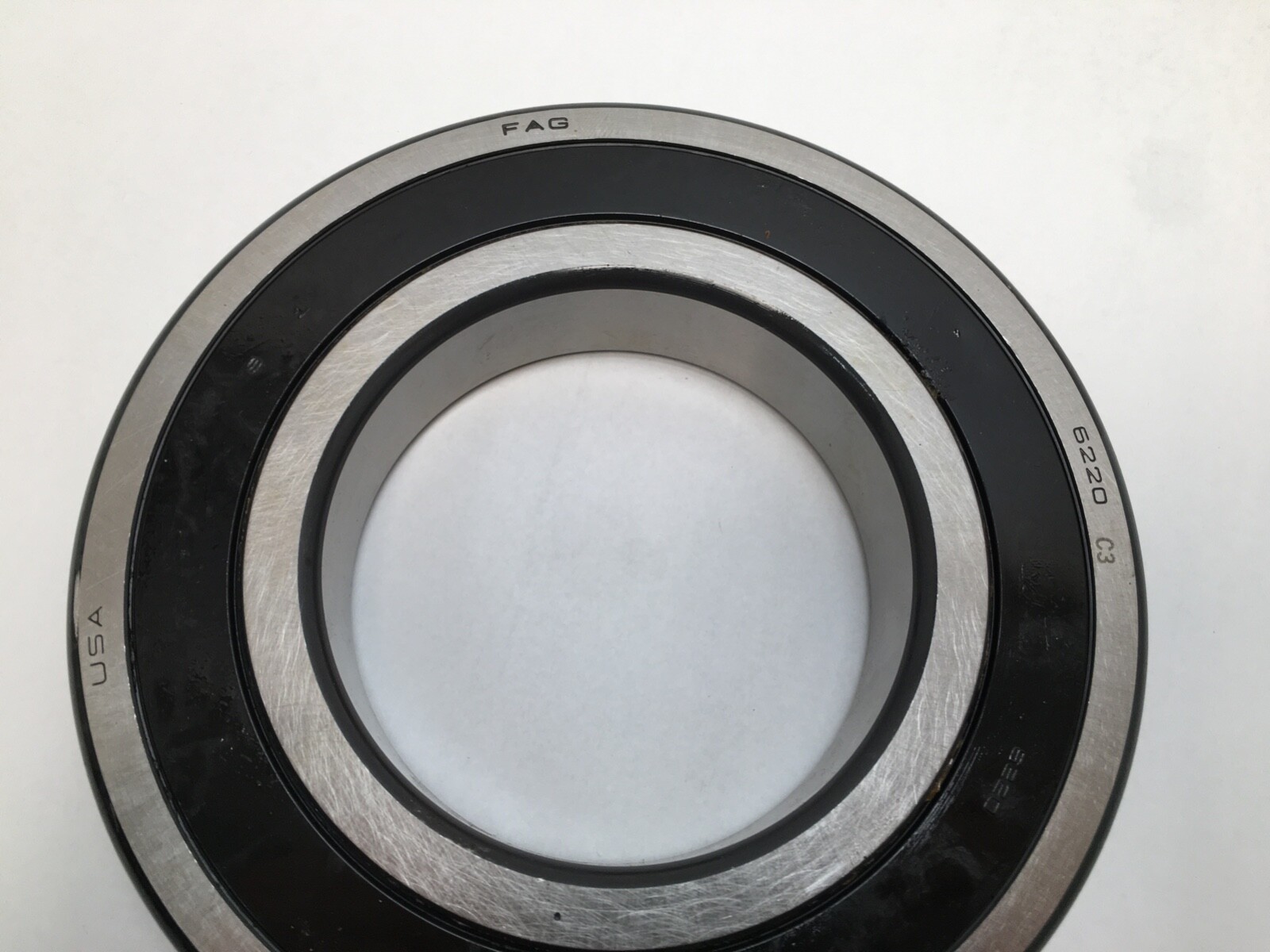

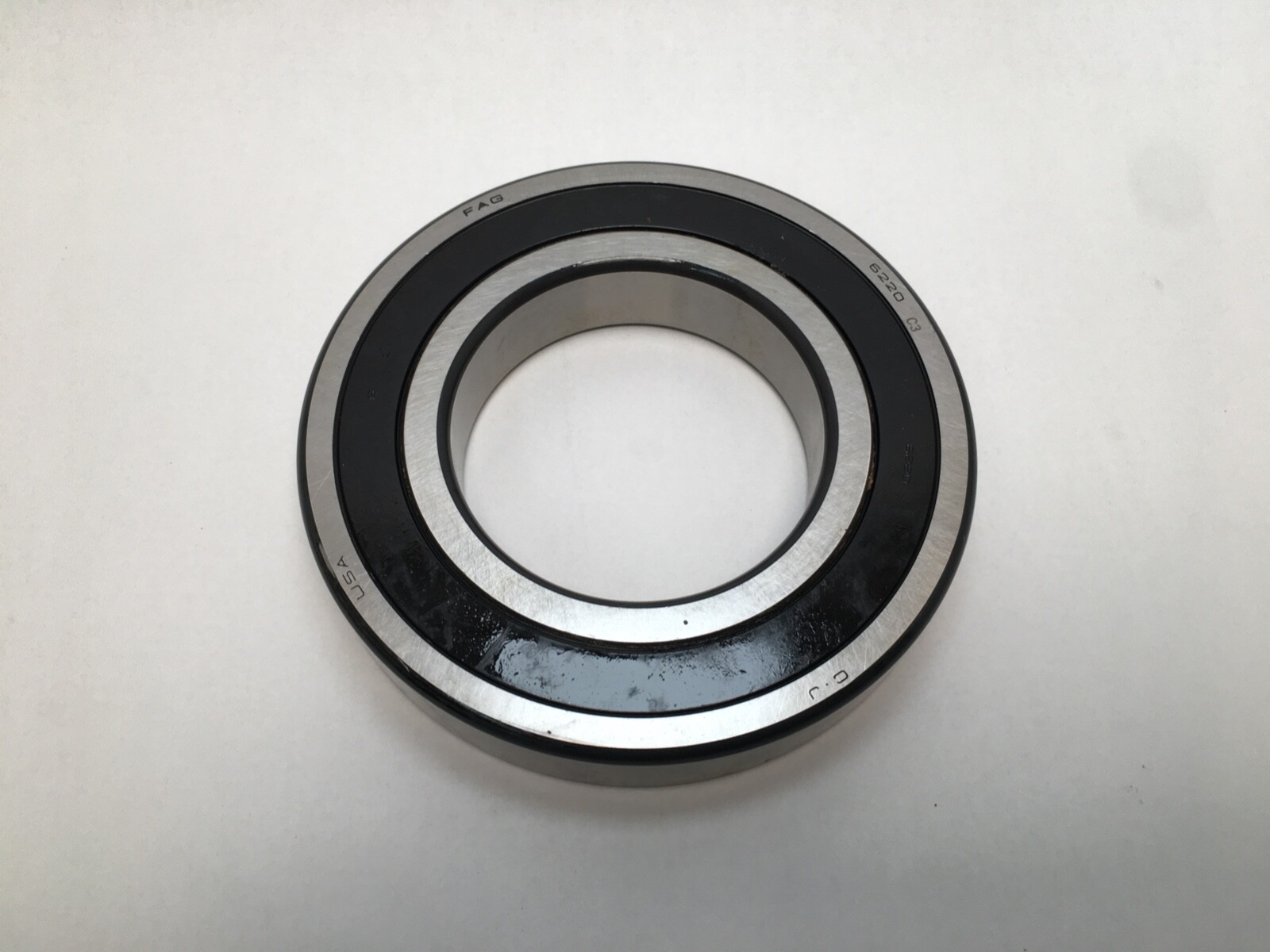

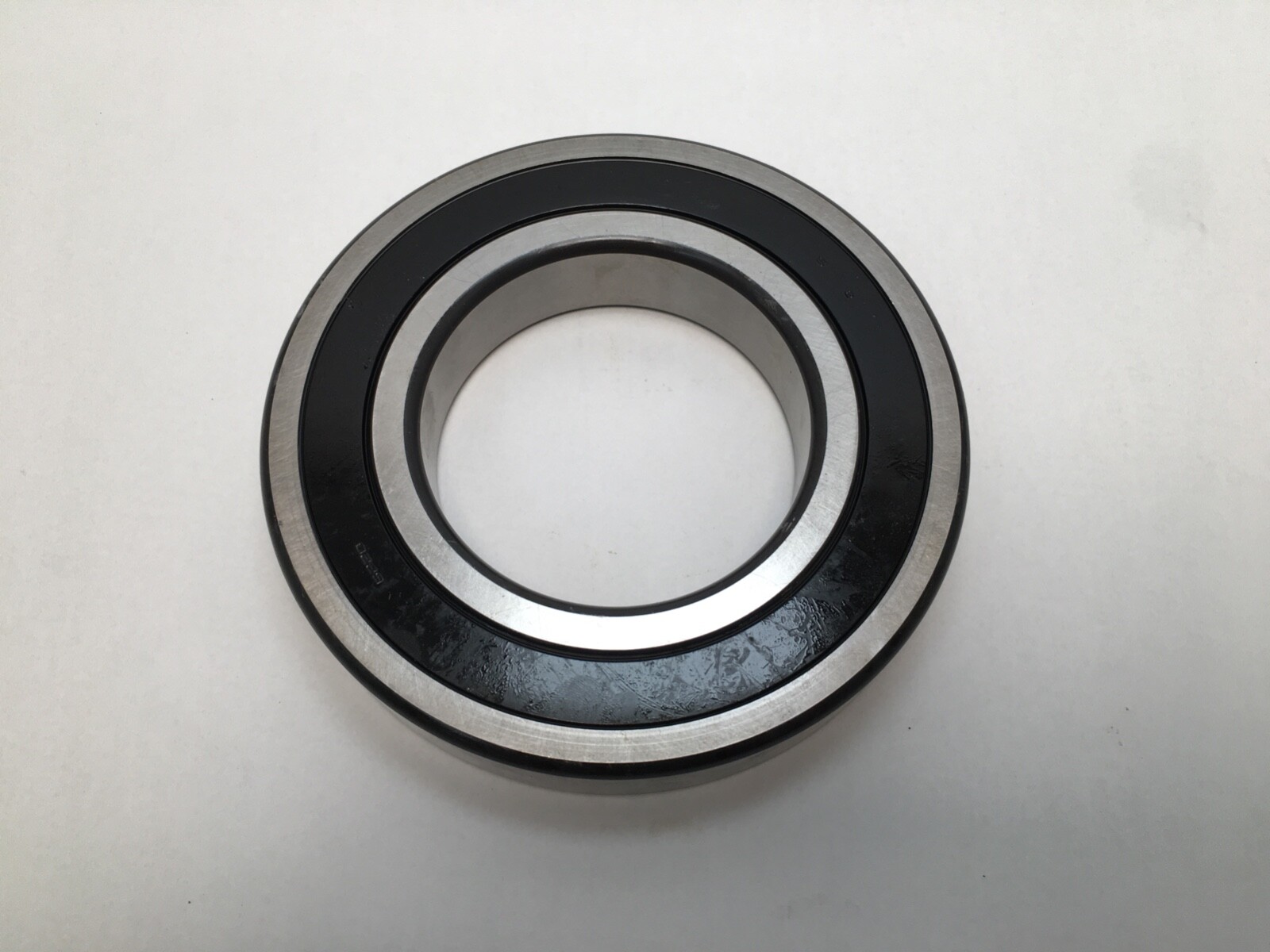

FAG 6220-2RSR-C3 deep groove ball bearing, 100 mm bore, 180 mm OD, 34 mm wide, contact rubber seals both sides and C3 clearance. Rated 130,000 N dynamic, 93,000 N static.
List Price
$152.97
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 6220-2RSR-C3 |
| Model | 6220-2RSR-C3 |
| Bearing Type | Ball Bearing, Contact seals both sides |
| ID | 100 mm |
| OD | 180 mm |
| Width | 34 mm |
| Series | 62 |
|---|---|
| Min Temp | -20 °C |
| Dynamic Load Rating | 130,000 N |
| Static Load Rating | 93,000 N |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 3.28 kg (7.23 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Internal Clearance | C3 |
| Limiting Speed | 2,140 rpm grease |
| Base Number | 6220 |
| Mpn Variants | 6220.2RSR.C3, 6220.2RS.C3, 62202RSC3, 6220-2RS-C3, 6220RS |
| Cross Reference 1 | SKF 6220-2RS1/C3 |
|---|---|
| Cross Reference 2 | NSK 6220DDUC3 |
| Cross Reference 3 | NTN 6220LLUC3 |
| Cross Reference 4 | Koyo 6220-2RSC3 |
The FAG 6220-2RSR-C3 is a single-row deep groove ball bearing with contact rubber seals on both sides, a sheet steel cage and C3 radial internal clearance. Bore Diameter: 100 mm. Outside Diameter: 180 mm. Overall Width: 34 mm. Closure Type: Contact seals both sides. Internal Clearance: C3.
62 — deep groove ball bearing, 62 (light) dimension series.
20 — bore code, 20 x 5 = 100 mm bore.
2RSR — FAG contact lip seals on both sides, factory greased.
C3 — radial internal clearance greater than normal.
Dynamic Load Rating: 130,000 N. Static Load Rating: 93,000 N. Fatigue load limit: 5,500 N. Limiting Speed: 2,140 rpm grease. Cage Material: Pressed steel. Operating temperature: −20 °C to +100 °C. Item Weight: 3.28 kg (7.23 lb). C3 clearance accommodates tighter fits and a larger temperature difference between the rings.
Minimum chamfer: 2.1 mm. Maximum fillet radius: 2.1 mm. Minimum shaft shoulder diameter: 112 mm. Maximum housing shoulder diameter: 168 mm. Inner ring shoulder diameter: 124.7 mm. Outer ring shoulder diameter: 154.94 mm.
Same 100 x 180 x 34 mm envelope with two contact seals and C3 clearance: SKF 6220-2RS1/C3, NSK 6220DDUC3, NTN 6220LLUC3, Koyo 6220-2RSC3.
