Availability:
1 in stock

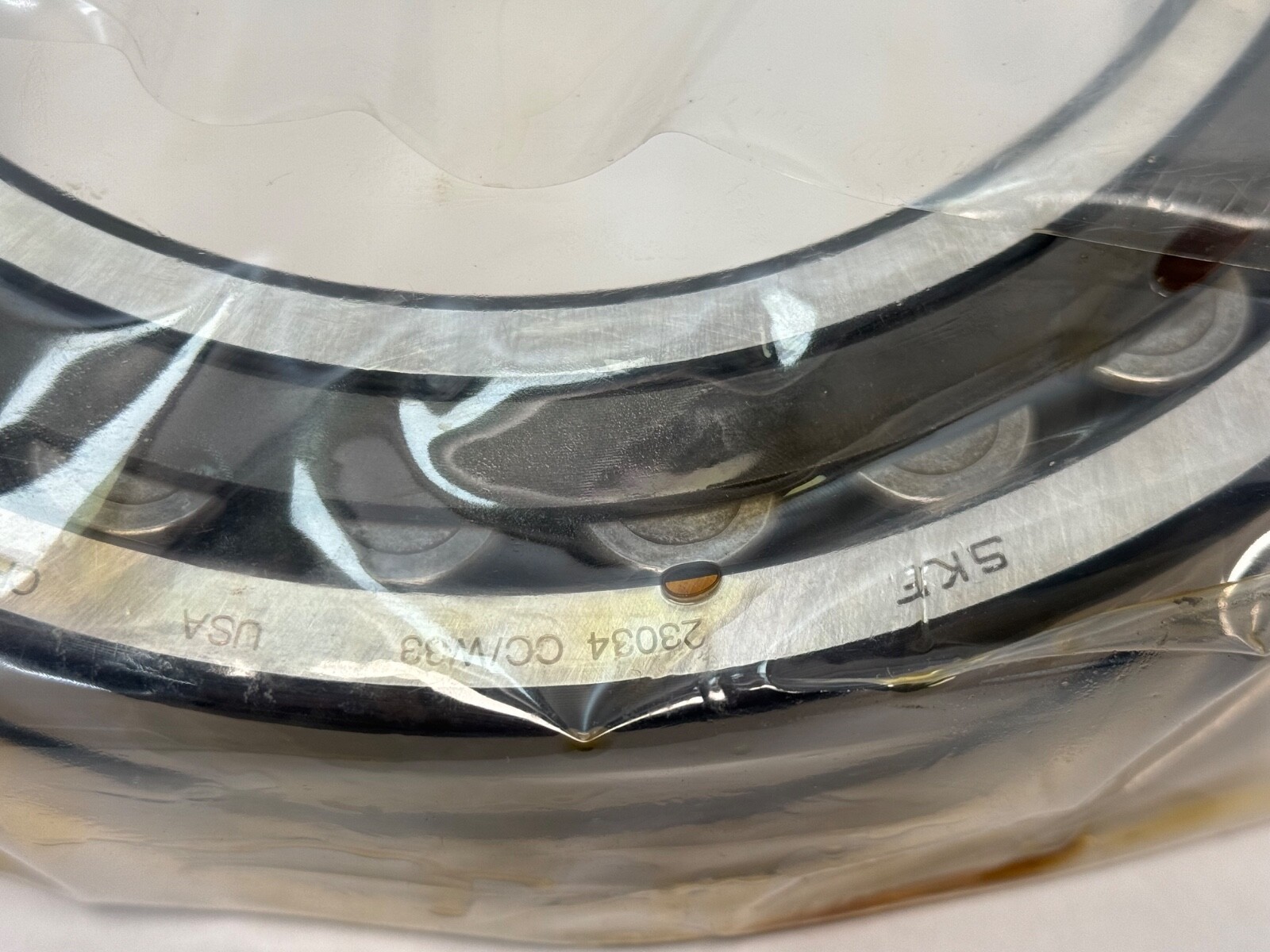

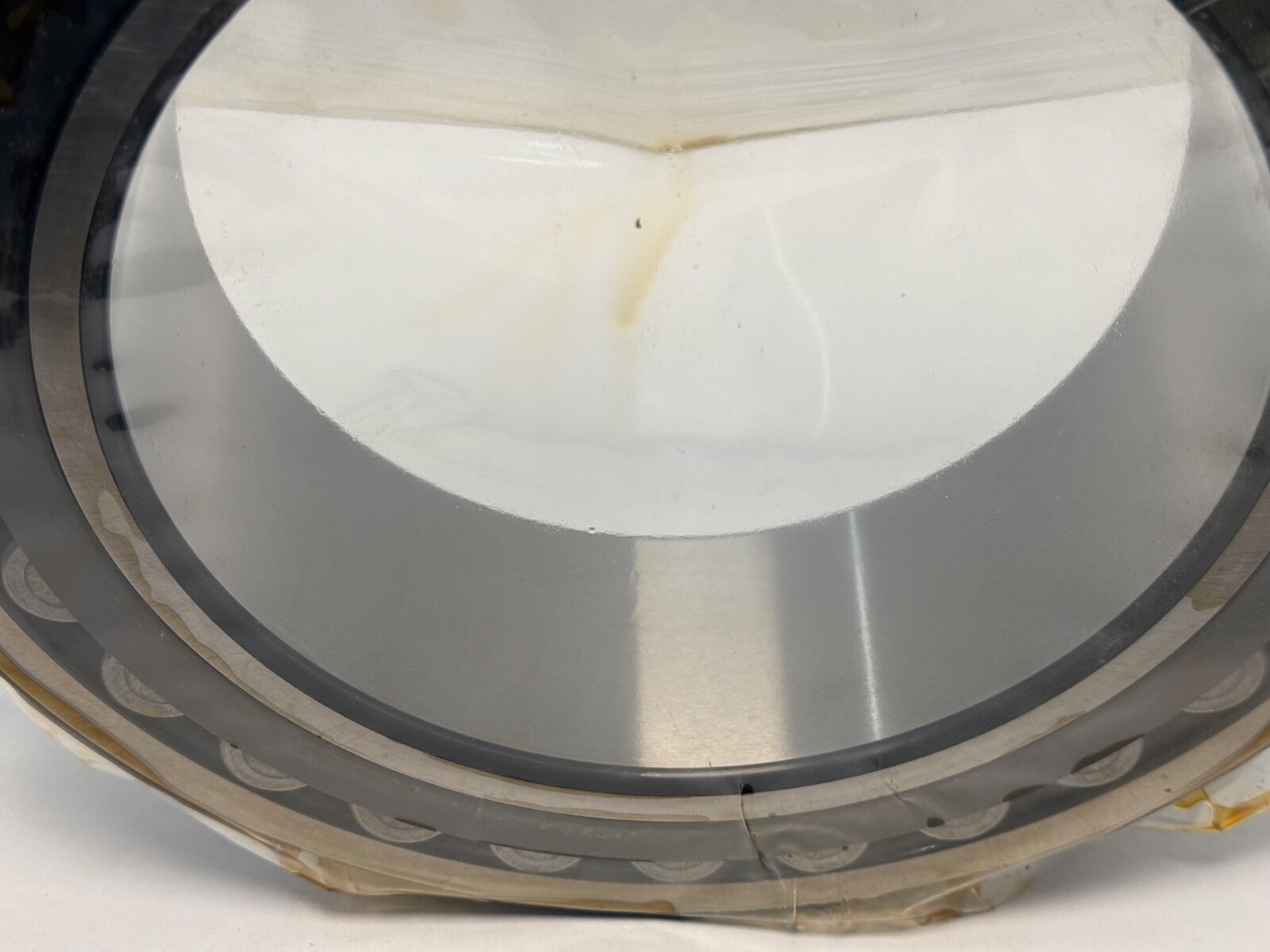

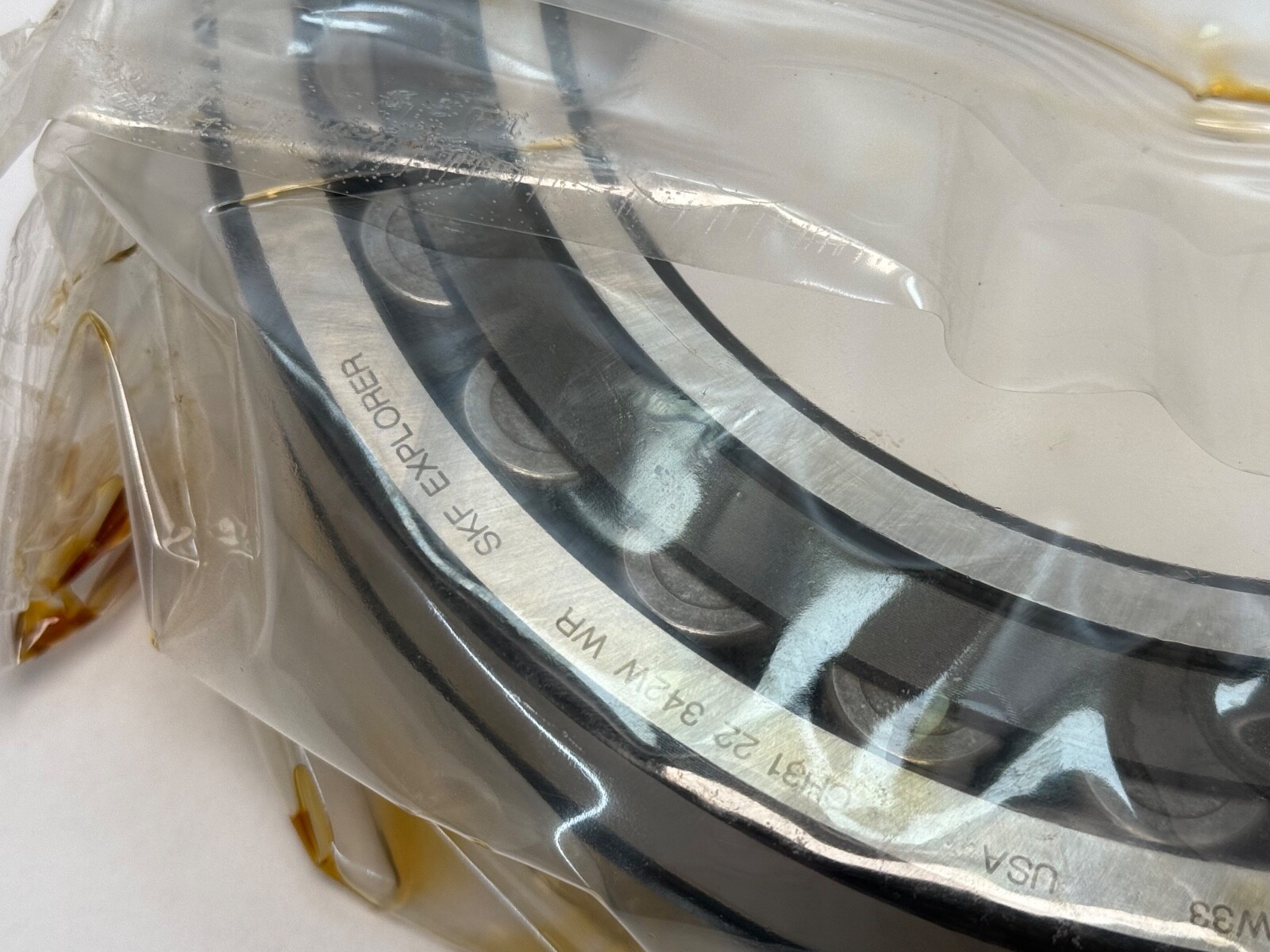

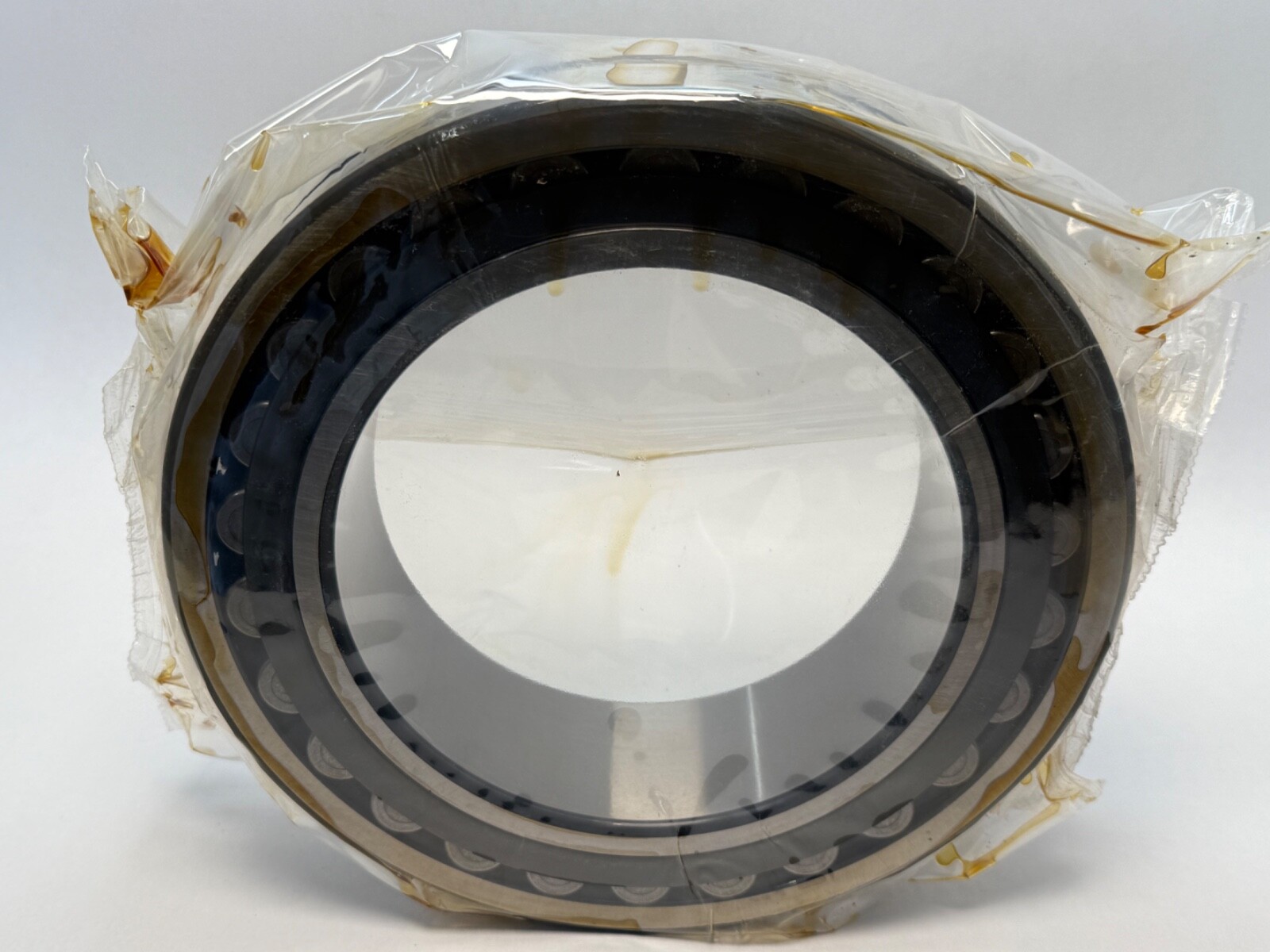

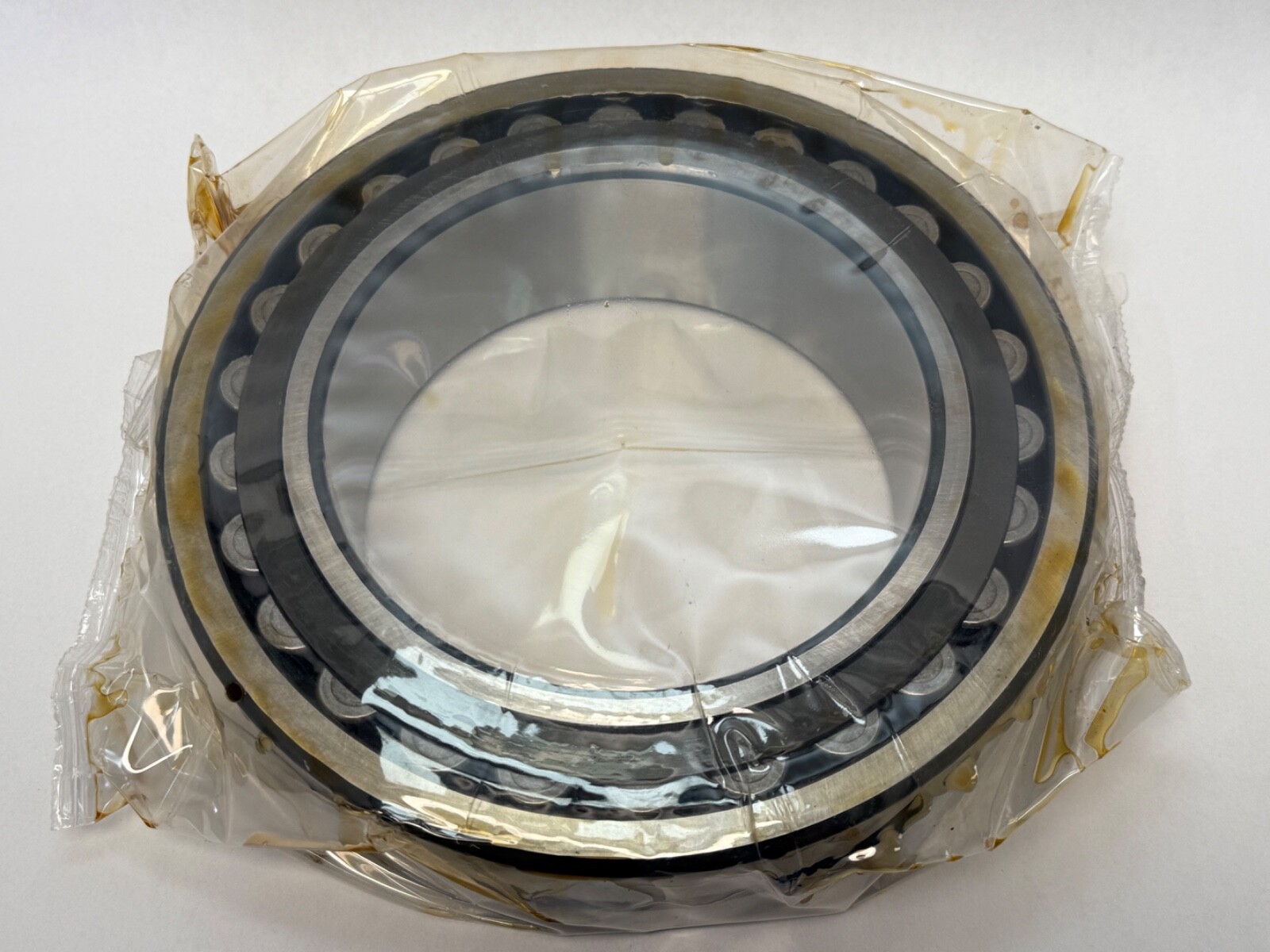

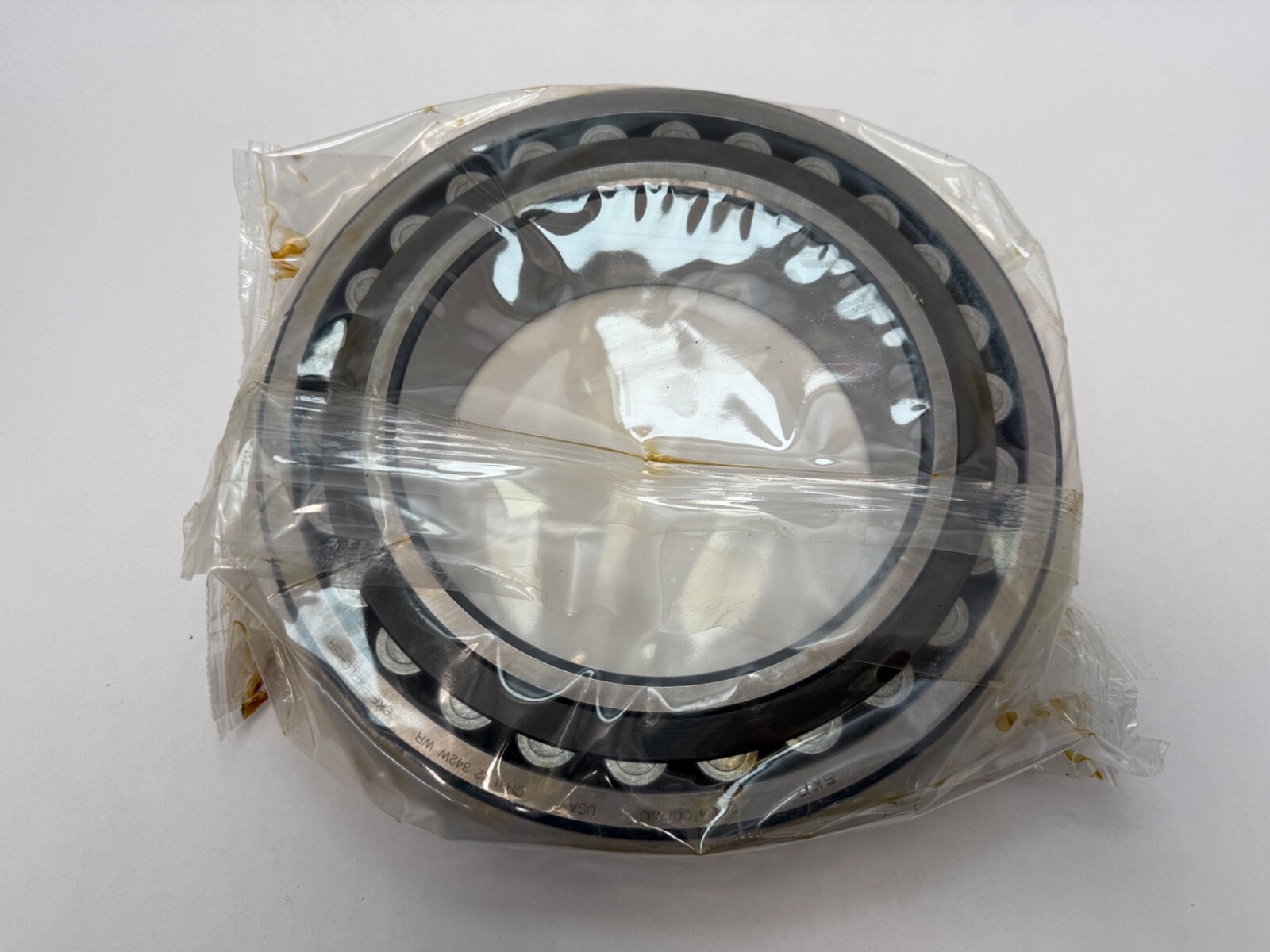

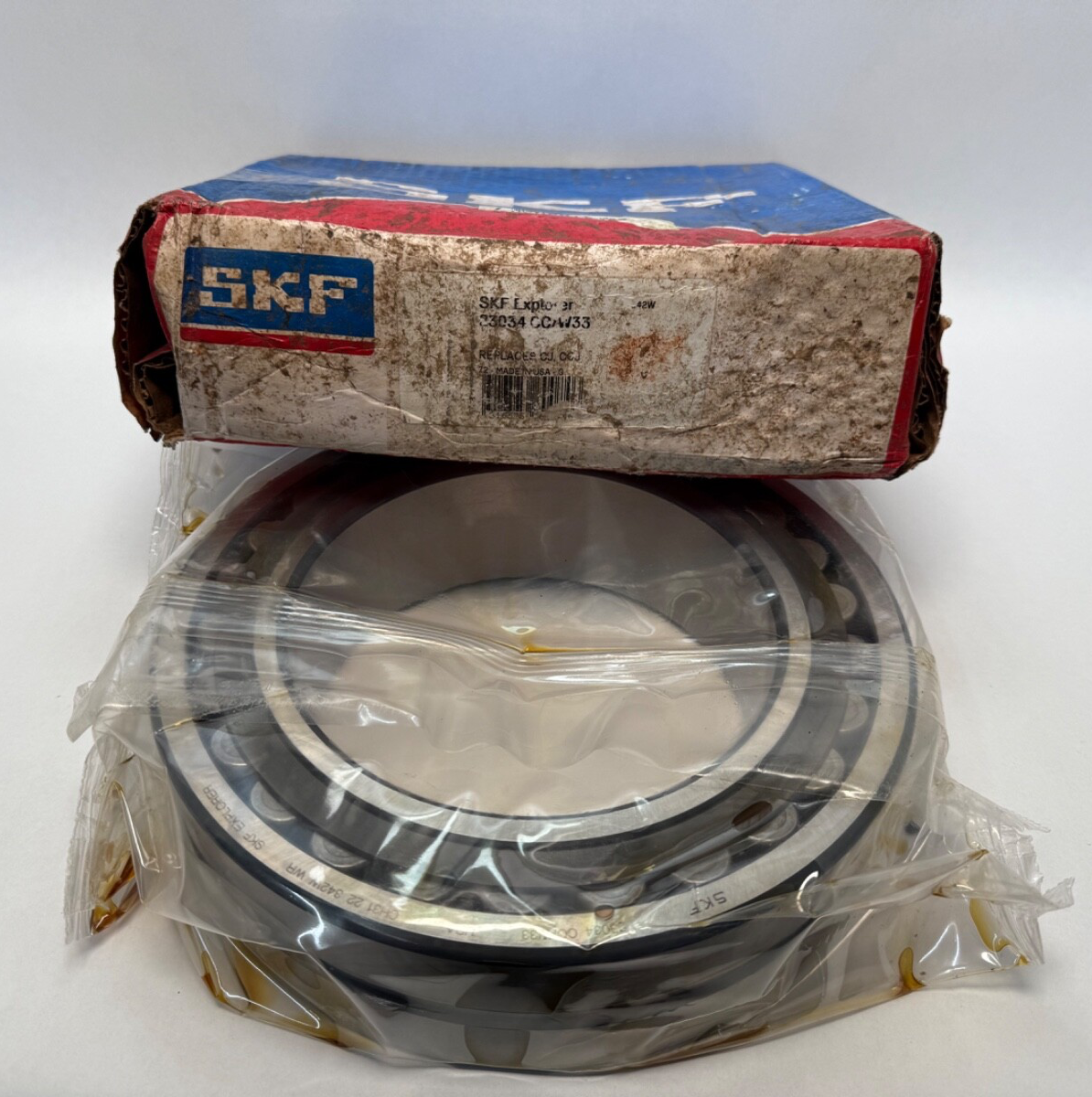

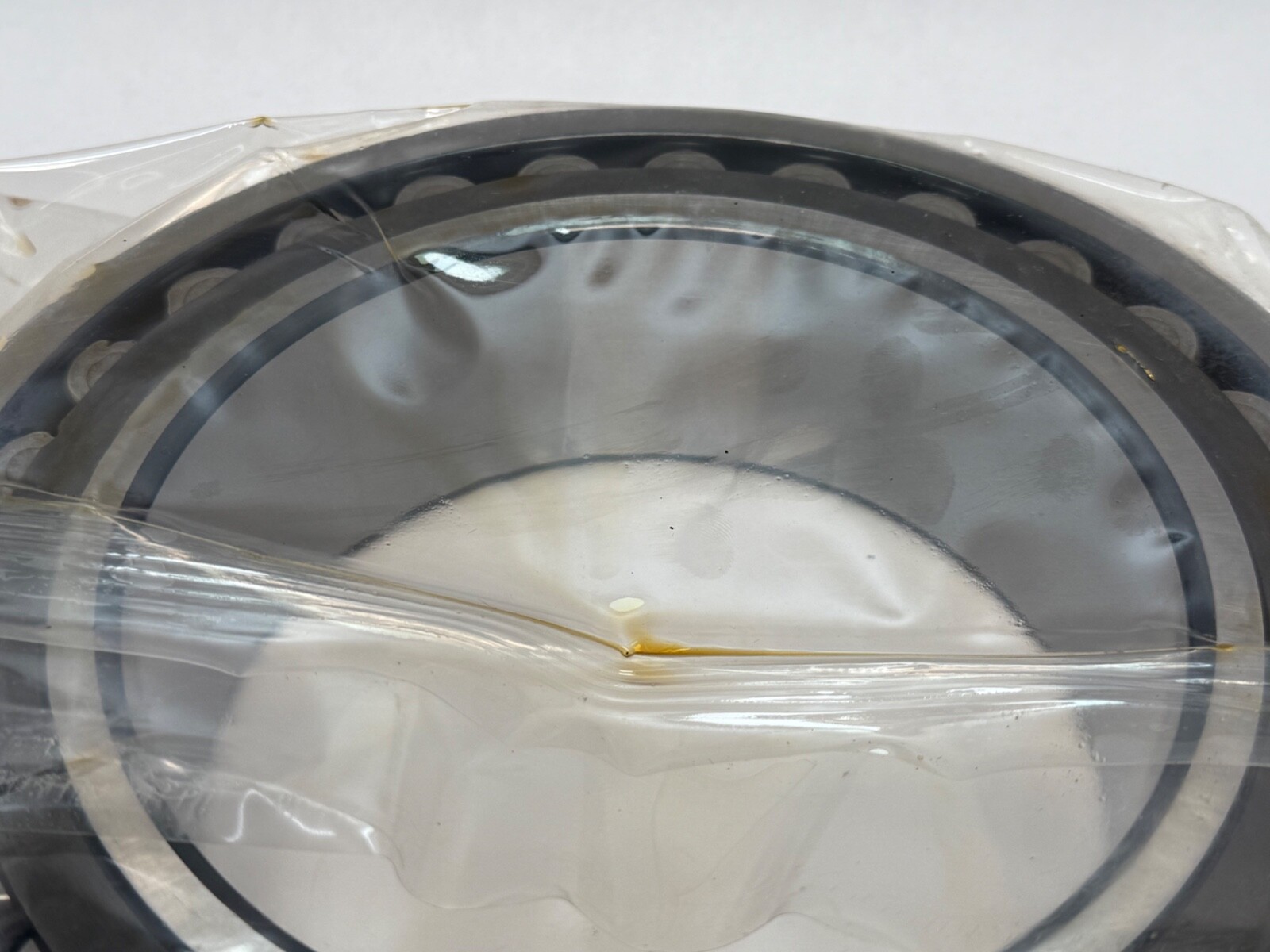

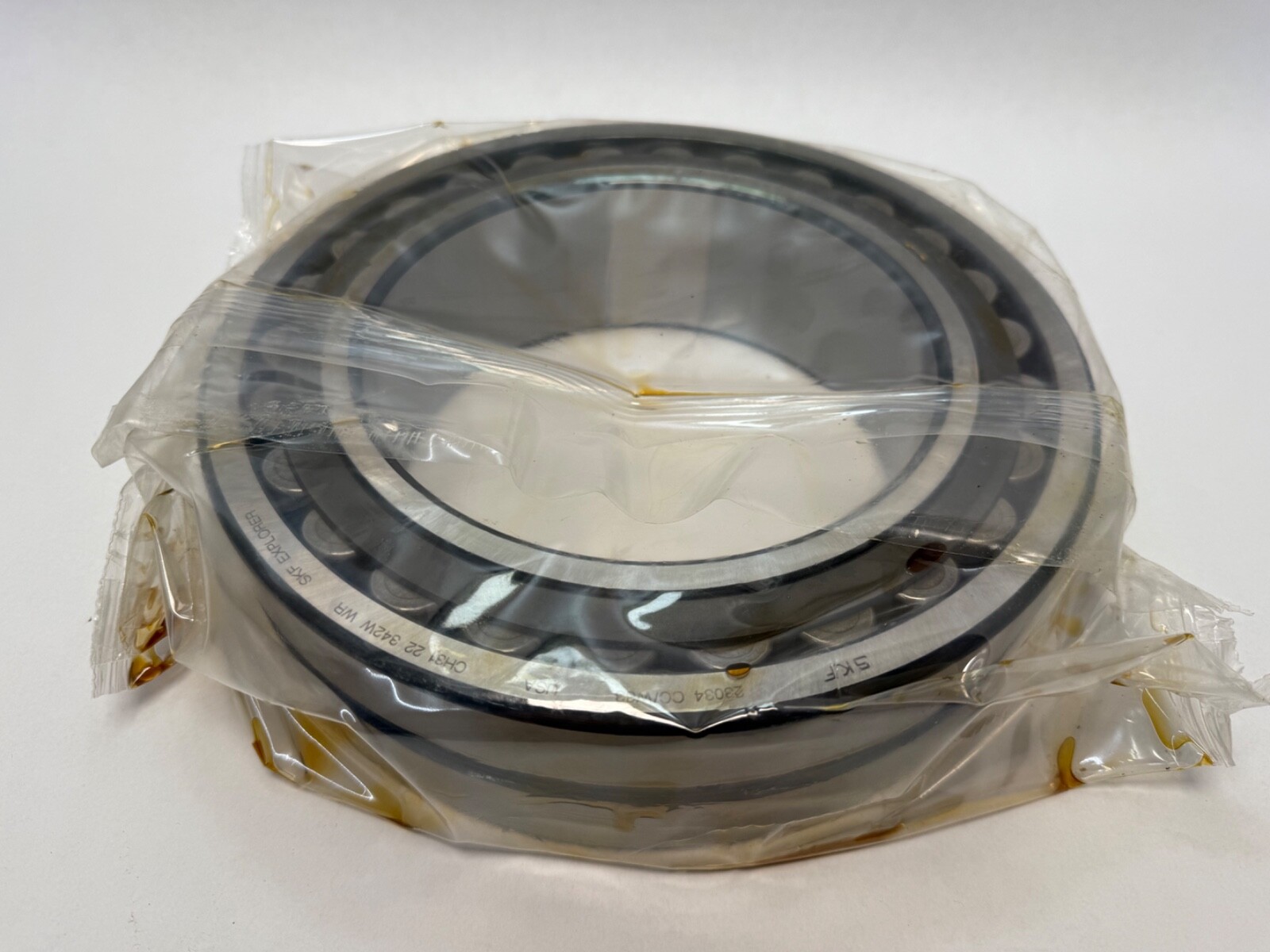

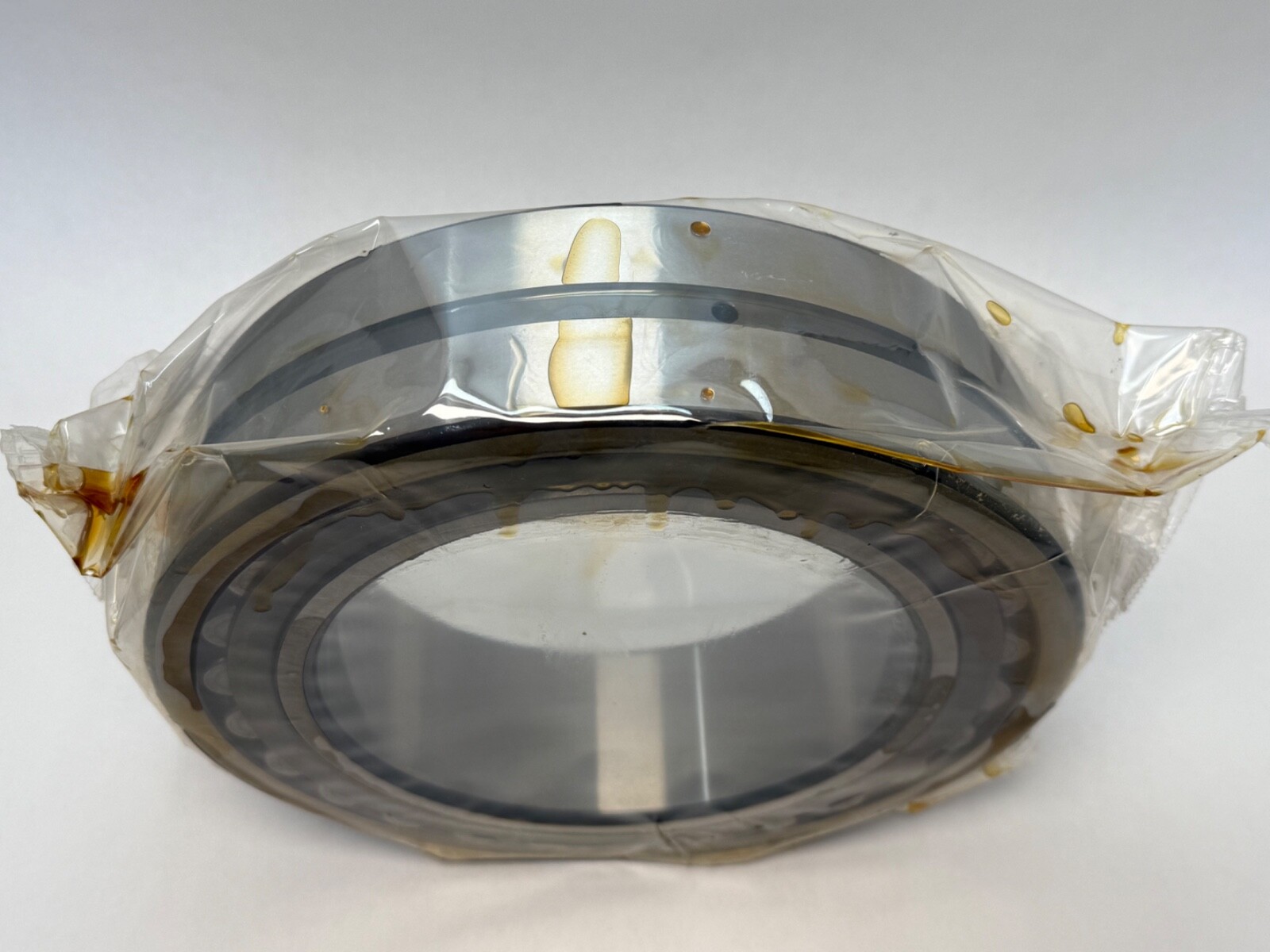

Spherical roller bearing, 170 x 260 x 67 mm, cylindrical bore, W33 lubrication groove, CN clearance. Dynamic load rating 745 kN; SKF Explorer class.
List Price
$366.75
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 23034-CC/W33 |
| Model | 23034 CC W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 170 mm |
| OD | 260 mm |
| Width | 67 mm |
| Material | Bearing Steel |
|---|---|
| Series | 23000 |
| Lubricant | Grease or oil |
| Mpn Variants | 23034 CC/W33, 23034-CC/W33, 23034CCW33, 23034 CC W33 |
| Precision Class | Normal (P0) dimensions; P5 run-out |
| Closure Type | Open |
| Cage Type | Two window-type cages with guide ring |
| Dynamic Load Rating | 745,000 N |
| Static Load Rating | 1,060,000 N |
| Rolling Elements | Spherical Roller |
| Item Weight | 12.6 kg (27.78 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Limiting Speed | 2,800 rpm |
| Internal Clearance | CN |
| Relubrication Feature | Yes (W33 groove and three holes) |
| Harmonization Code | 8482.30.00 |
| Cross Reference 1 | FAG 23034-E1-XL |
|---|---|
| Cross Reference 2 | Timken 23034EJW33 |
| Cross Reference 3 | NSK 23034CE4 |
| Cross Reference 4 | NTN 23034B |
SKF 23034 CC/W33 double row spherical roller bearing with cylindrical bore and relubrication feature, SKF Explorer performance class. Bore Diameter: 170 mm. Outside Diameter: 260 mm. Width: 67 mm. Item Weight: 12.6 kg (27.78 lb).
230 — ISO dimension series 30, wide section for the bore size.
34 — bore code, 34 x 5 = 170 mm.
CC — two window-type pressed steel cages with a guide ring.
W33 — annular lubrication groove with three radial holes in the outer ring.
Dynamic Load Rating: 745,000 N. Static Load Rating: 1,060,000 N. Reference Speed: 2,200 rpm. Limiting Speed: 2,800 rpm. Internal Clearance: CN. Tolerance Class: Normal dimensions, P5 run-out. Cage Material: Pressed steel. Lubricant: grease or oil, fed through the W33 groove. Number Of Rows: 2. The bearing is self-aligning and carries heavy radial loads with axial loads in both directions.
Unit Quantity: 1 Pc. Bore Type: Cylindrical.
Same 170 x 260 x 67 mm envelope, cylindrical bore: FAG 23034-E1-XL, Timken 23034EJW33, NSK 23034CE4, NTN 23034B.
