SNR7010HVDUJ74Angular Contact Ball Bearing – Straight Bore, 50 mm ID, 80 mm OD, 16 mm Width, Open, 25° Contact Angle, Light Preload.

Product Description

What this part is:

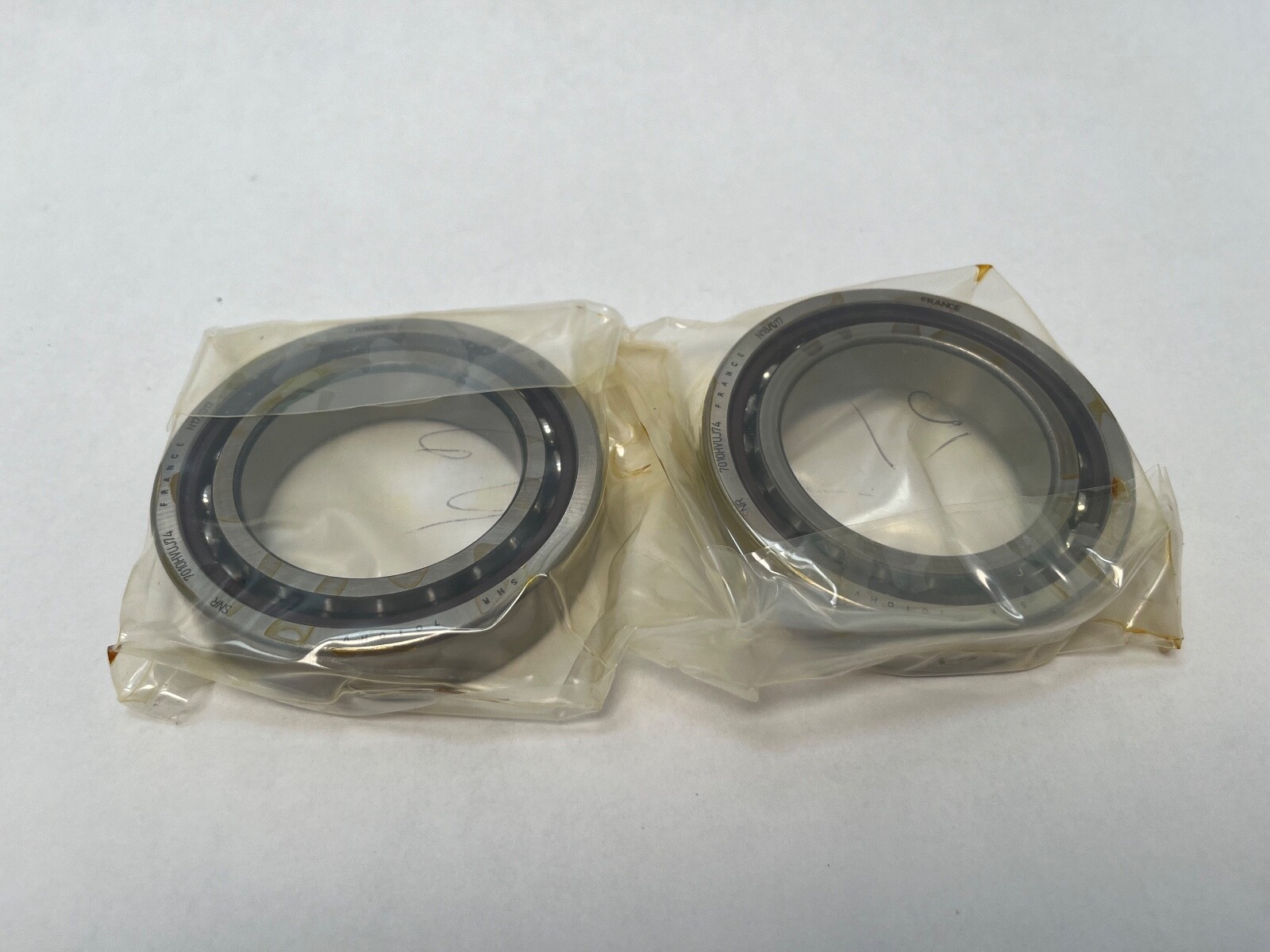

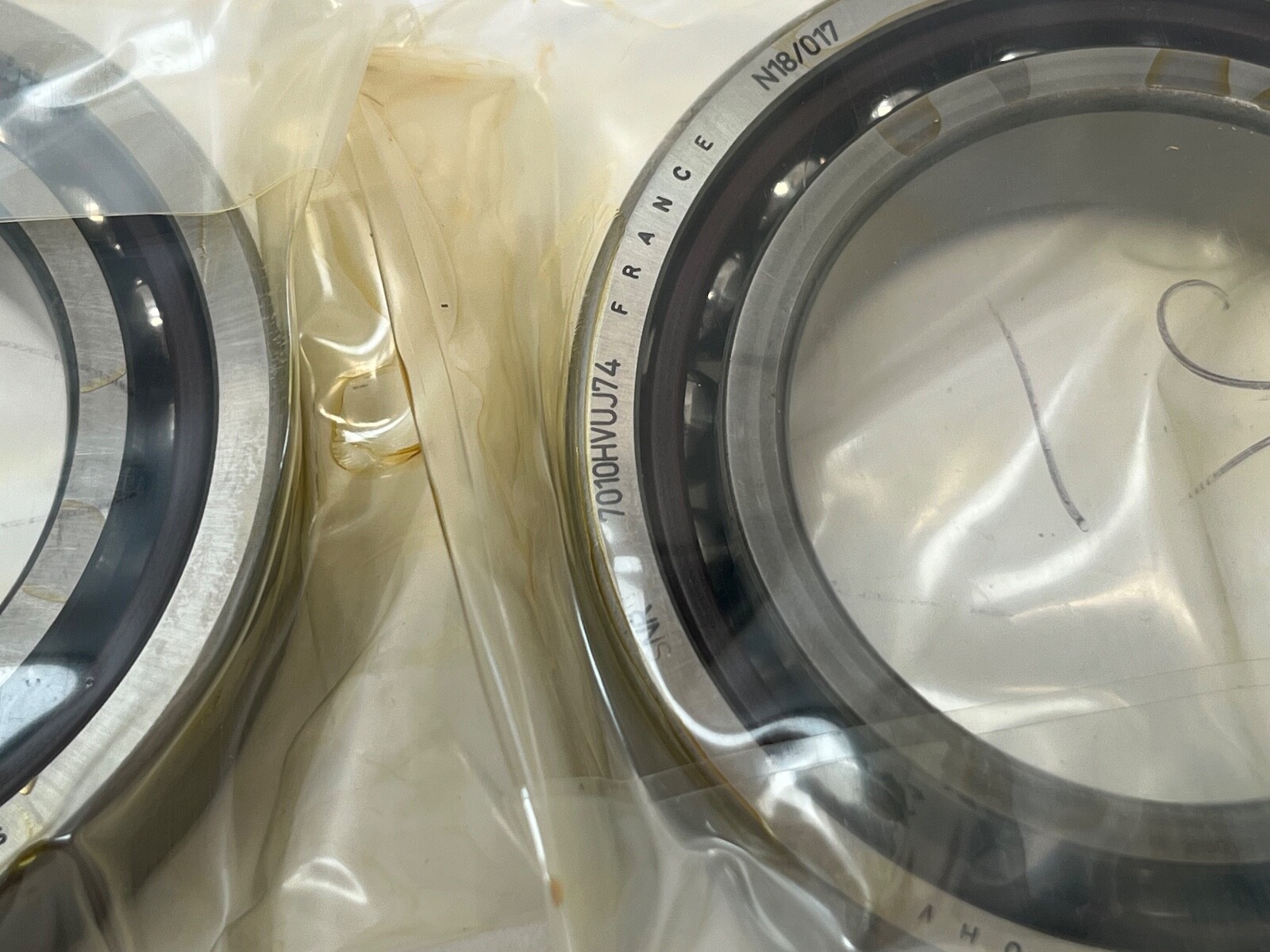

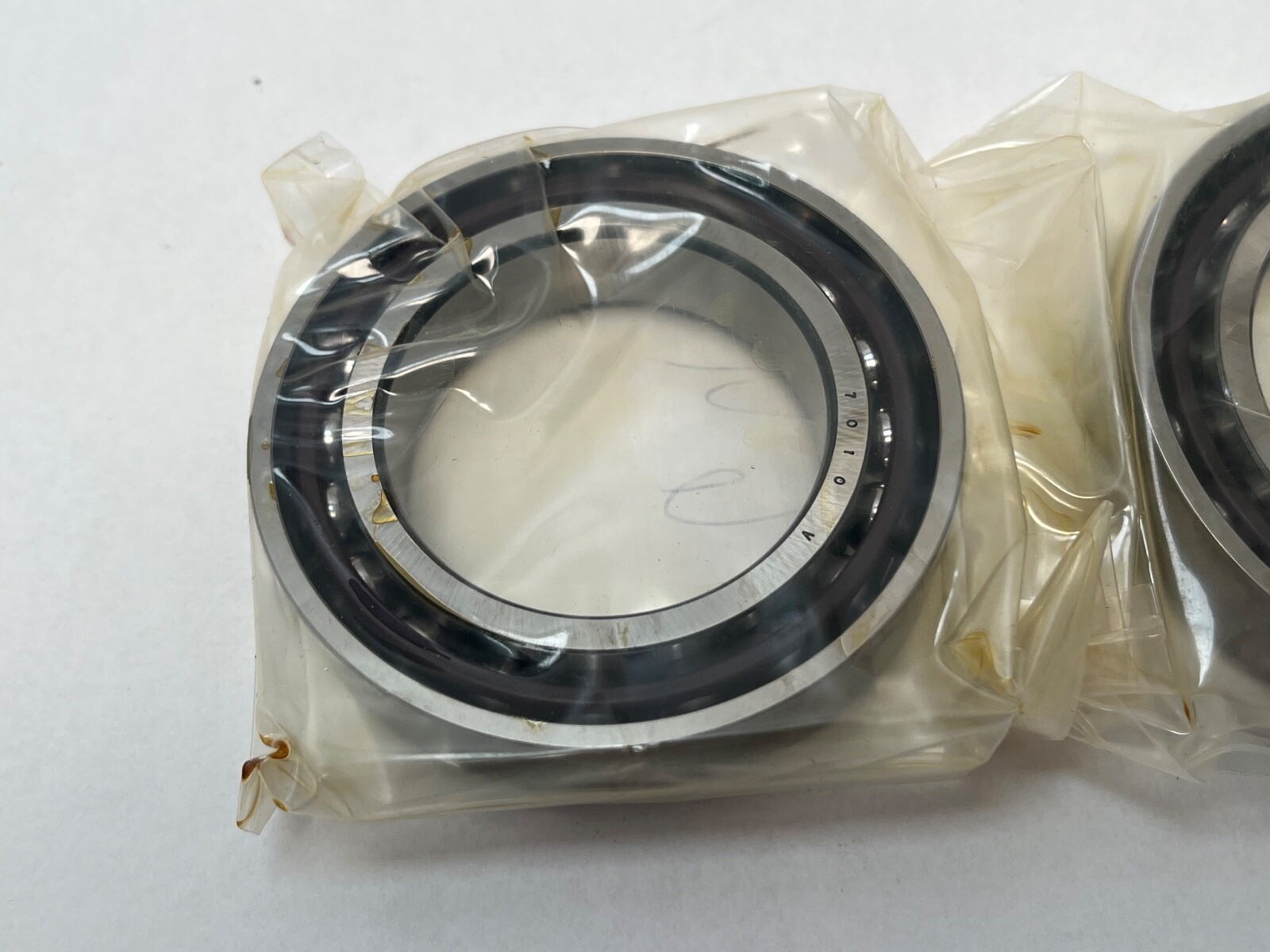

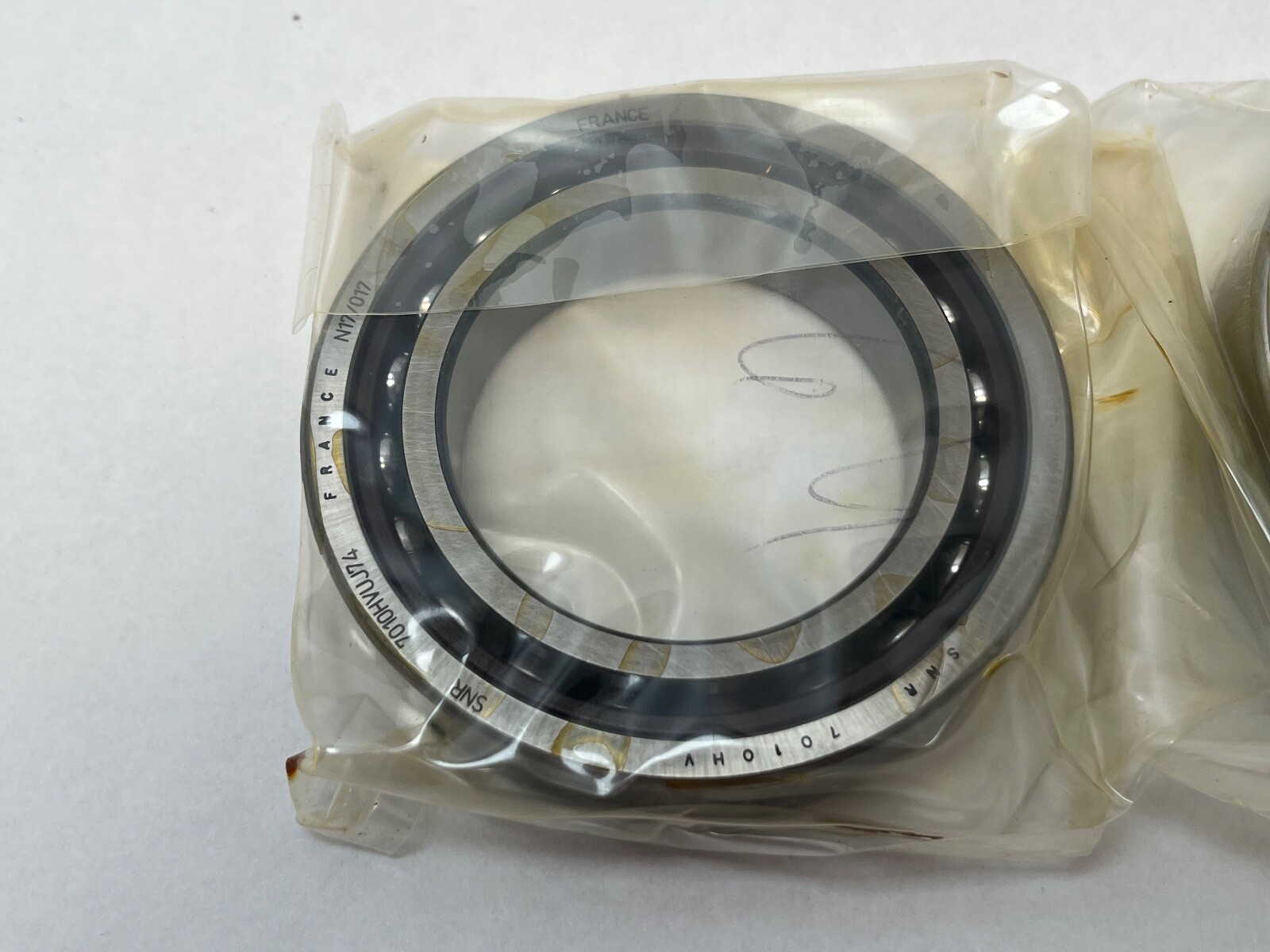

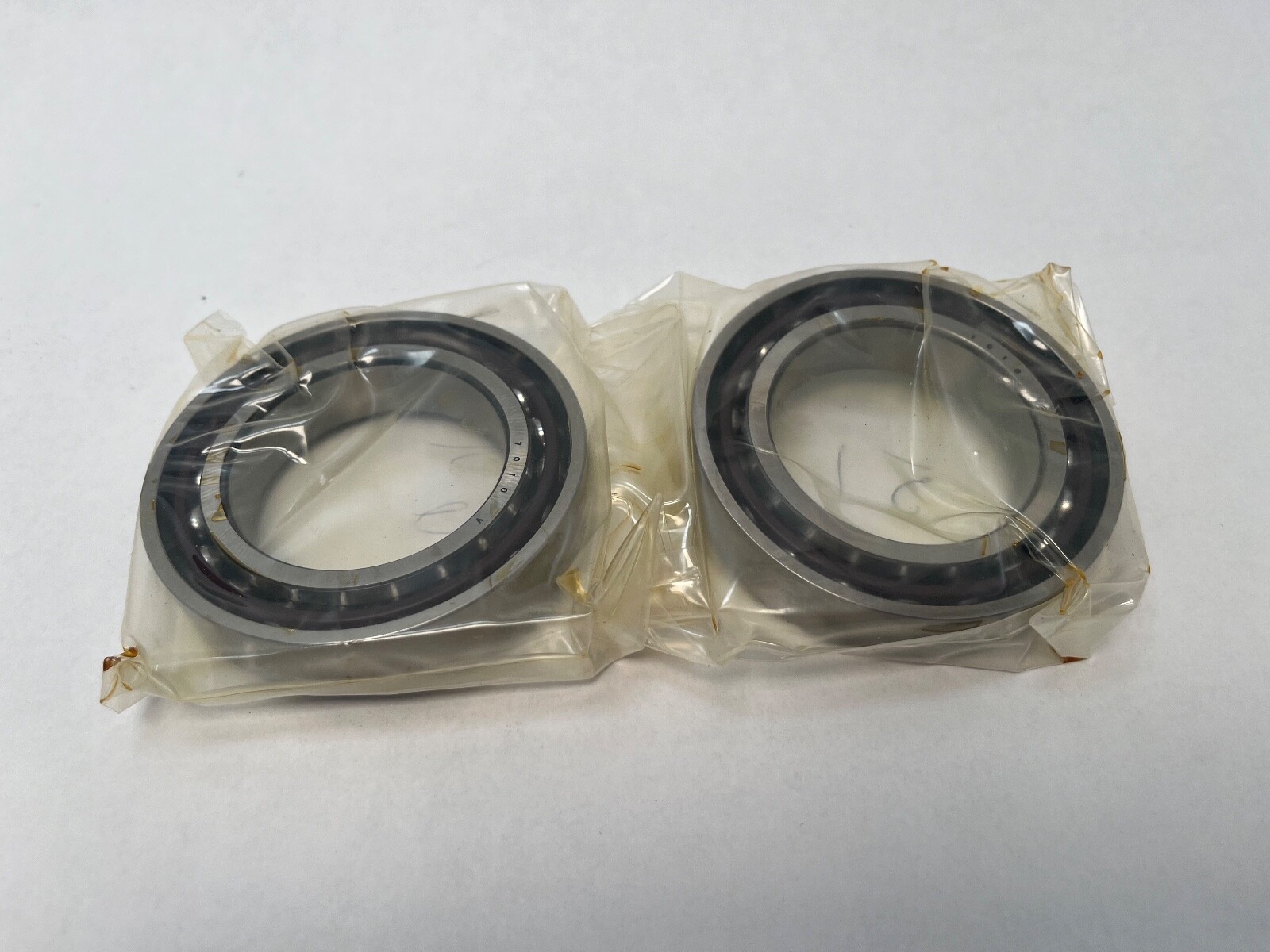

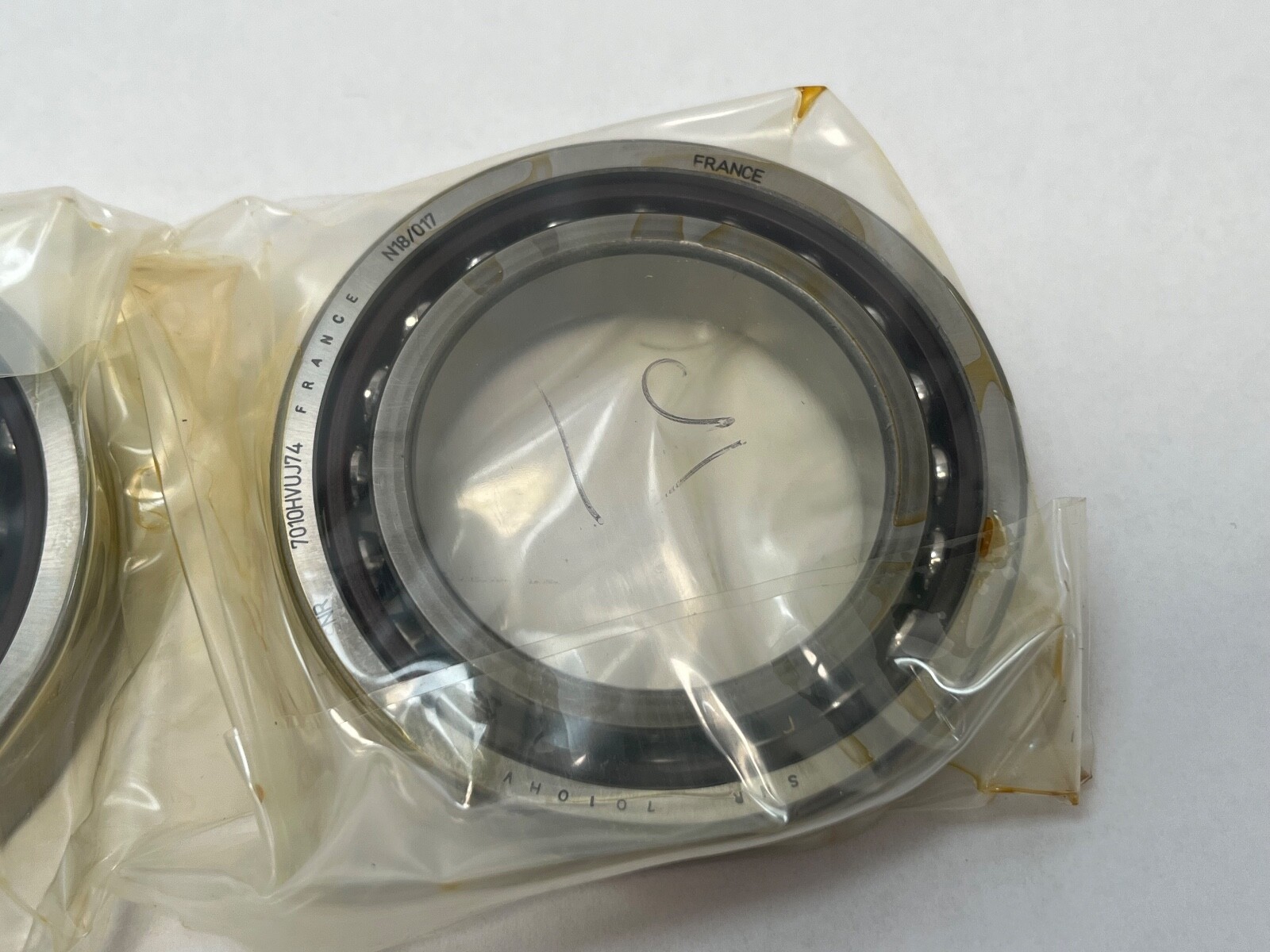

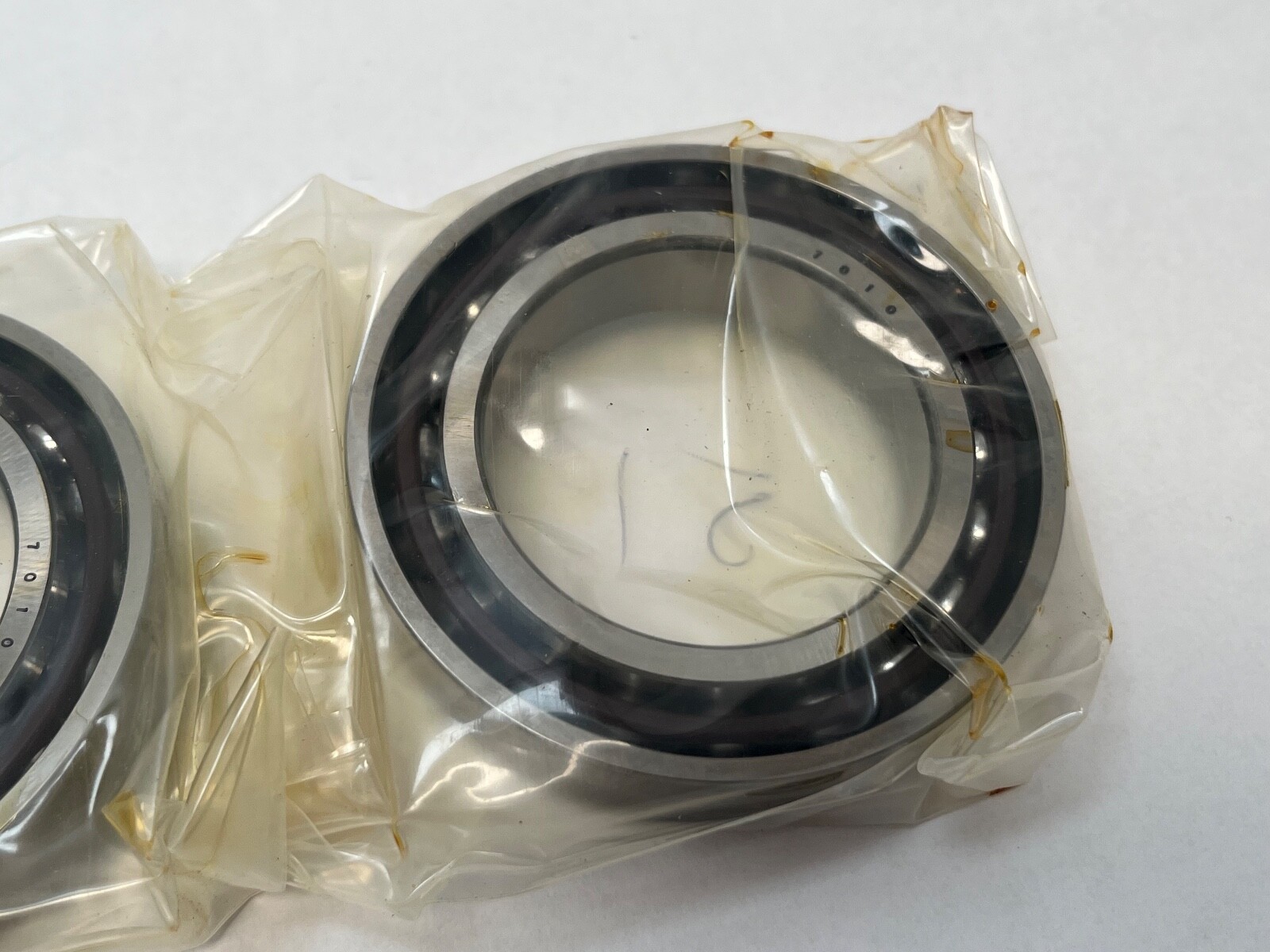

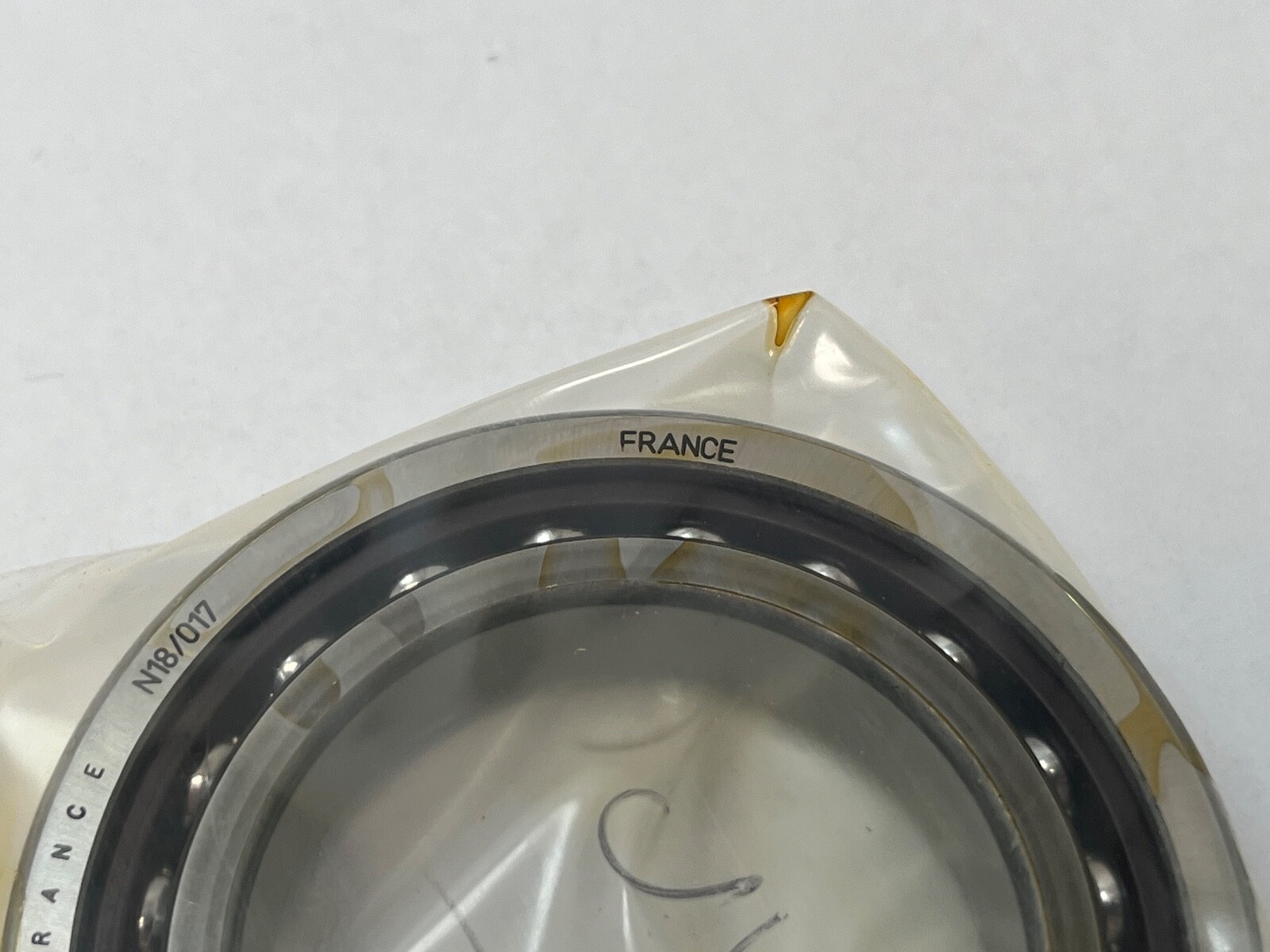

SNR 7010HVDUJ74 matched duplex pair (2 Pcs) of single-row angular contact ball bearings. Each bearing: 50 mm bore, 80 mm outside diameter, 16 mm width, 25° contact angle, light preload, open on both faces, straight bore.

Decoding the designation:

7010 — single-row angular contact ball bearing, 100 dimension series, bore code 10, giving a 50 mm bore.

H — 25° contact angle in the SNR scheme.

DU — duplex, a factory-matched set of two, universally ground.

J74 — light preload; the second digit gives ISO precision class 4 (P4).

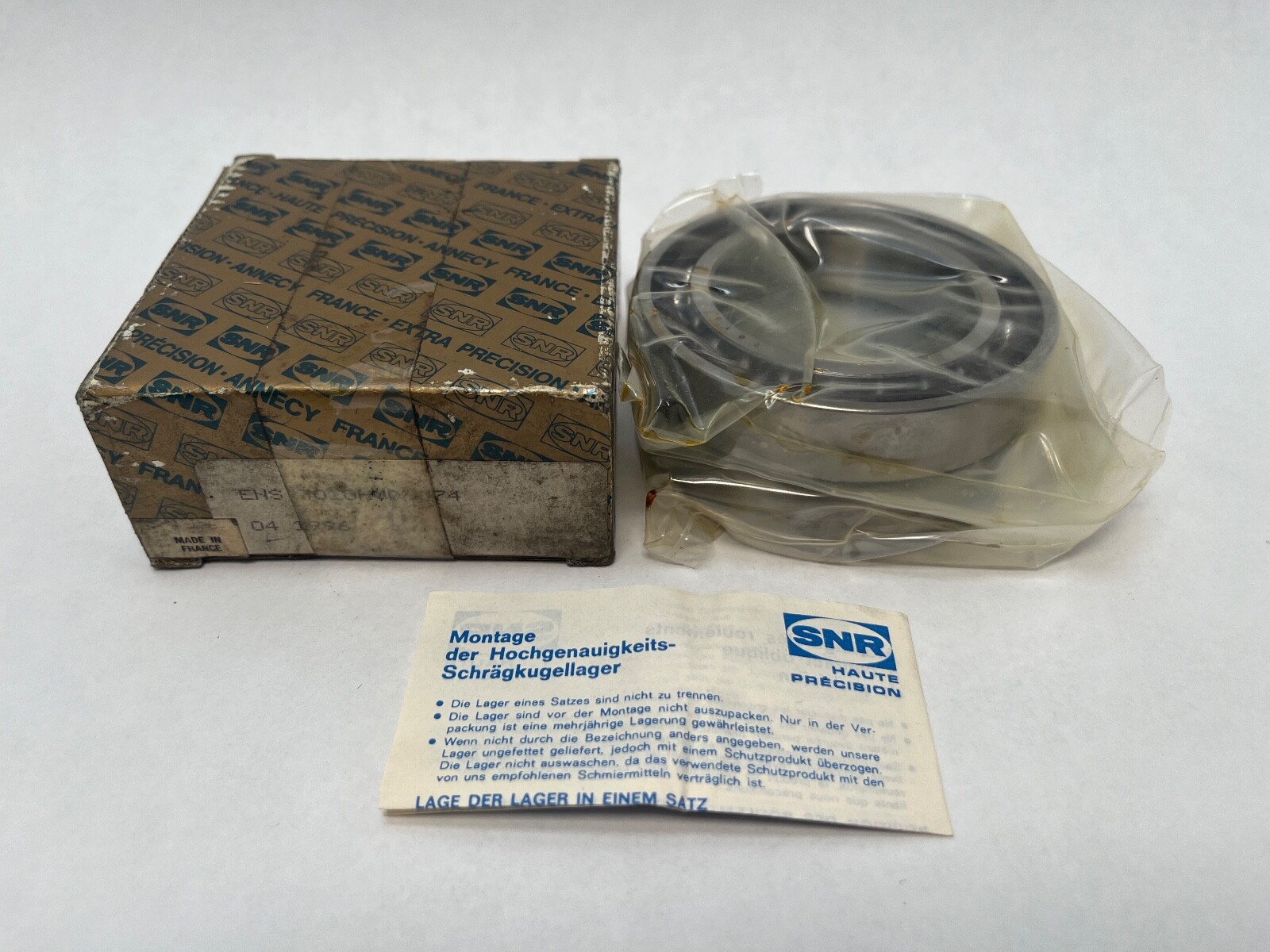

The carton carries this bearing in several schemes: SNR 7010 H V DU J74, FAG 7010-E-T-DUL-P4 and SKF 7010A.

Specifications:

Bore Diameter: 50 mm. Outside Diameter: 80 mm. Width: 16 mm per bearing. Series: 7000. Contact Angle: 25°. Preload: Light. Precision Class: ABEC 7, equivalent to P4. Cage Material: Phenolic resin. Cage Type: Machined. Number Of Rows: 1 per bearing. Rolling Elements: Ball. Bearing Material: Bearing steel. Closure Type: Open on both faces. Bore Type: Straight. Unit Quantity: 2 Pcs.

Dimensions and mounting:

Envelope: 50 x 80 x 16 mm per bearing, ISO 7010 size. Universally ground, so the two bearings pair in any face orientation at the designed light preload.

Compatibility and replacement:

25° equivalents: SKF 7010 ACD/P4ADGA (light preload, P4A), NSK 7010A5TYNDULP4 (polyamide cage) and FAG B7010-E-T-P4S-DUL (P4S, tighter than P4). A 7010 built at 15° is a related size. Harmonization Code: 8482.10.50.

Frequently asked questions:

What contact angle does the SNR 7010HVDUJ74 have?

The H in the SNR designation is a 25° contact angle.

What preload and precision class does J74 give?

Light preload; the second digit of the J-code gives ISO precision class 4 (P4), equivalent to ABEC 7.

What does the DU in the designation mean?

A factory-matched duplex set of two bearings, universally ground.
