Availability:
1 in stock

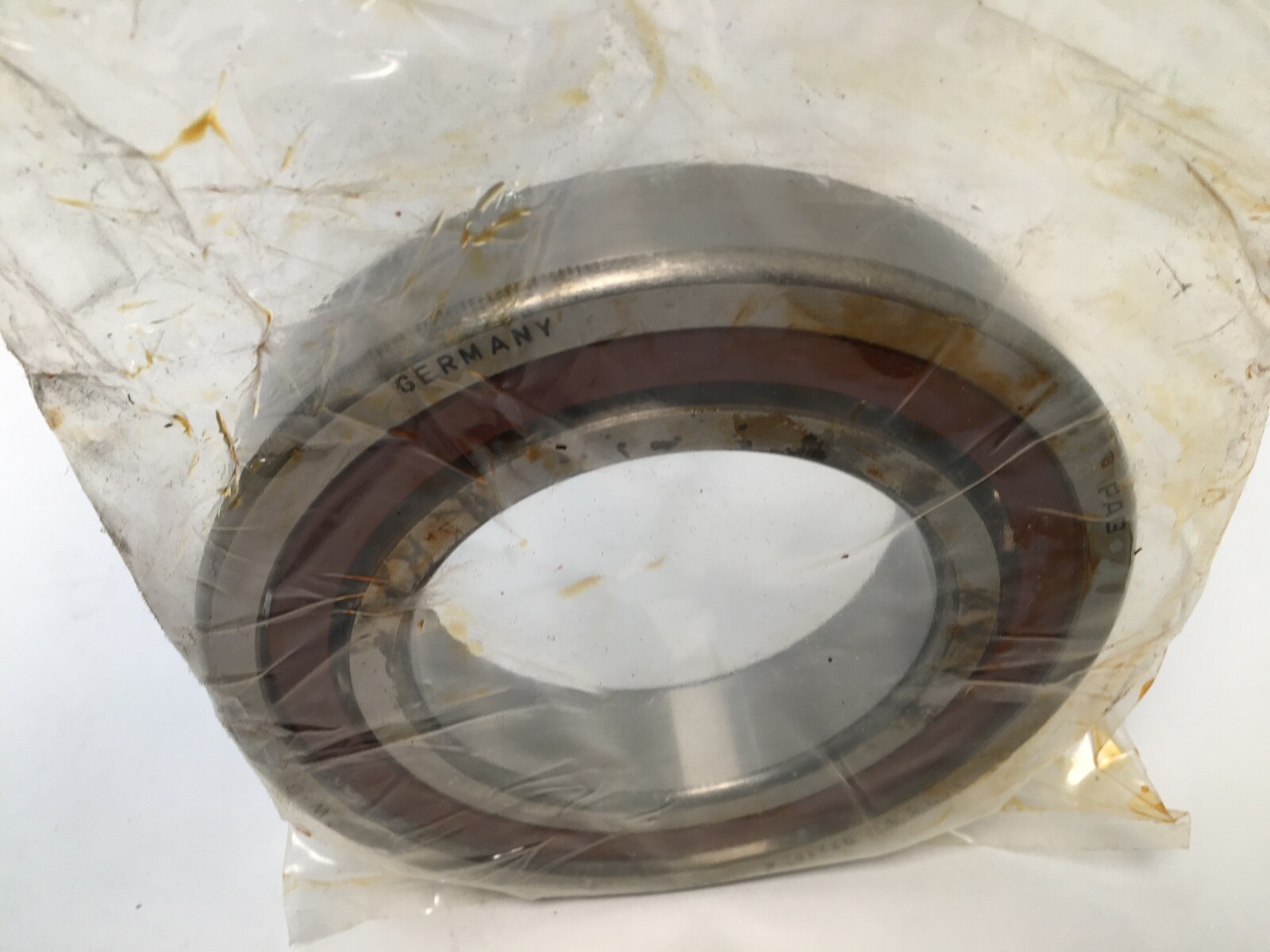

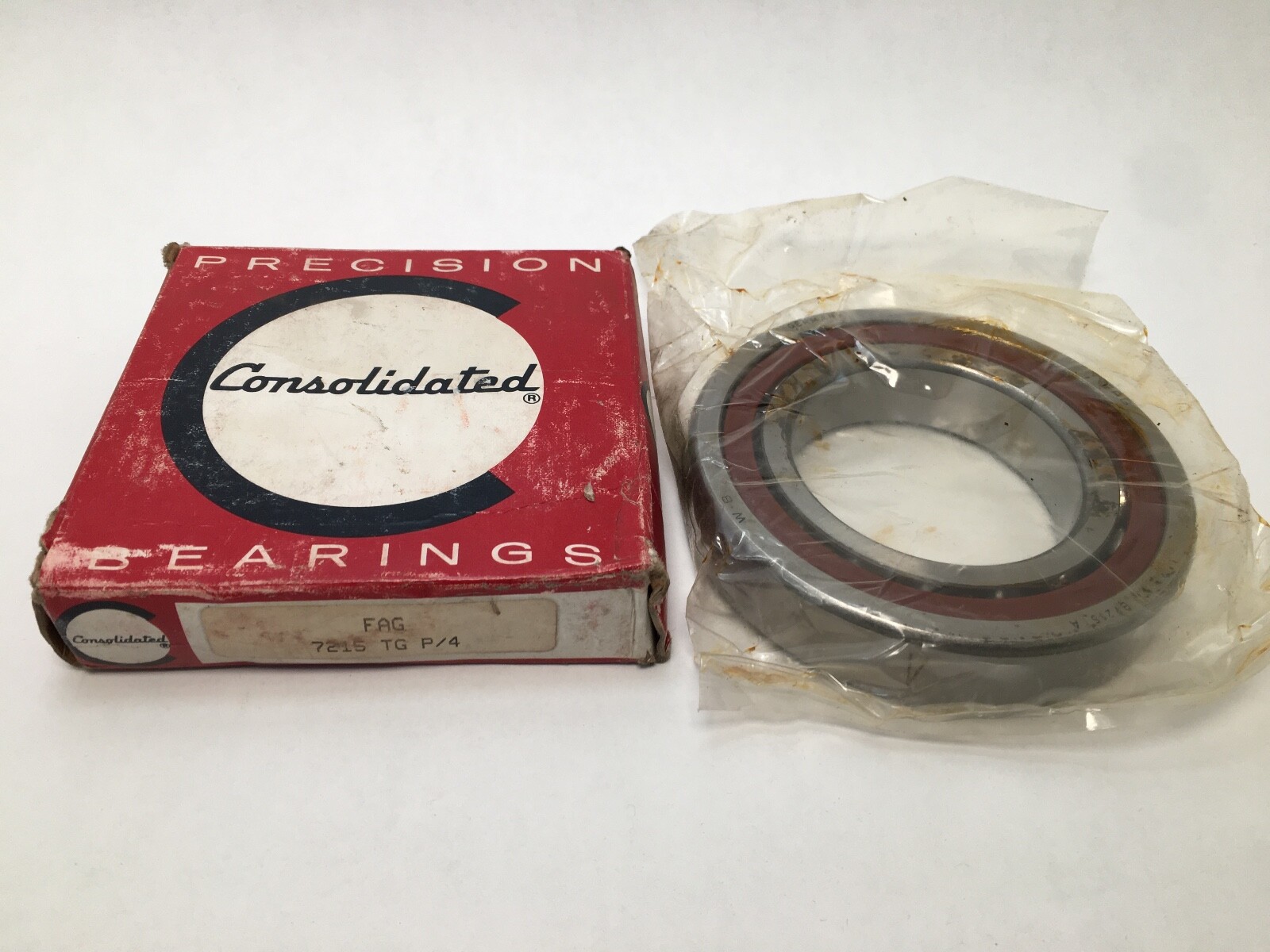

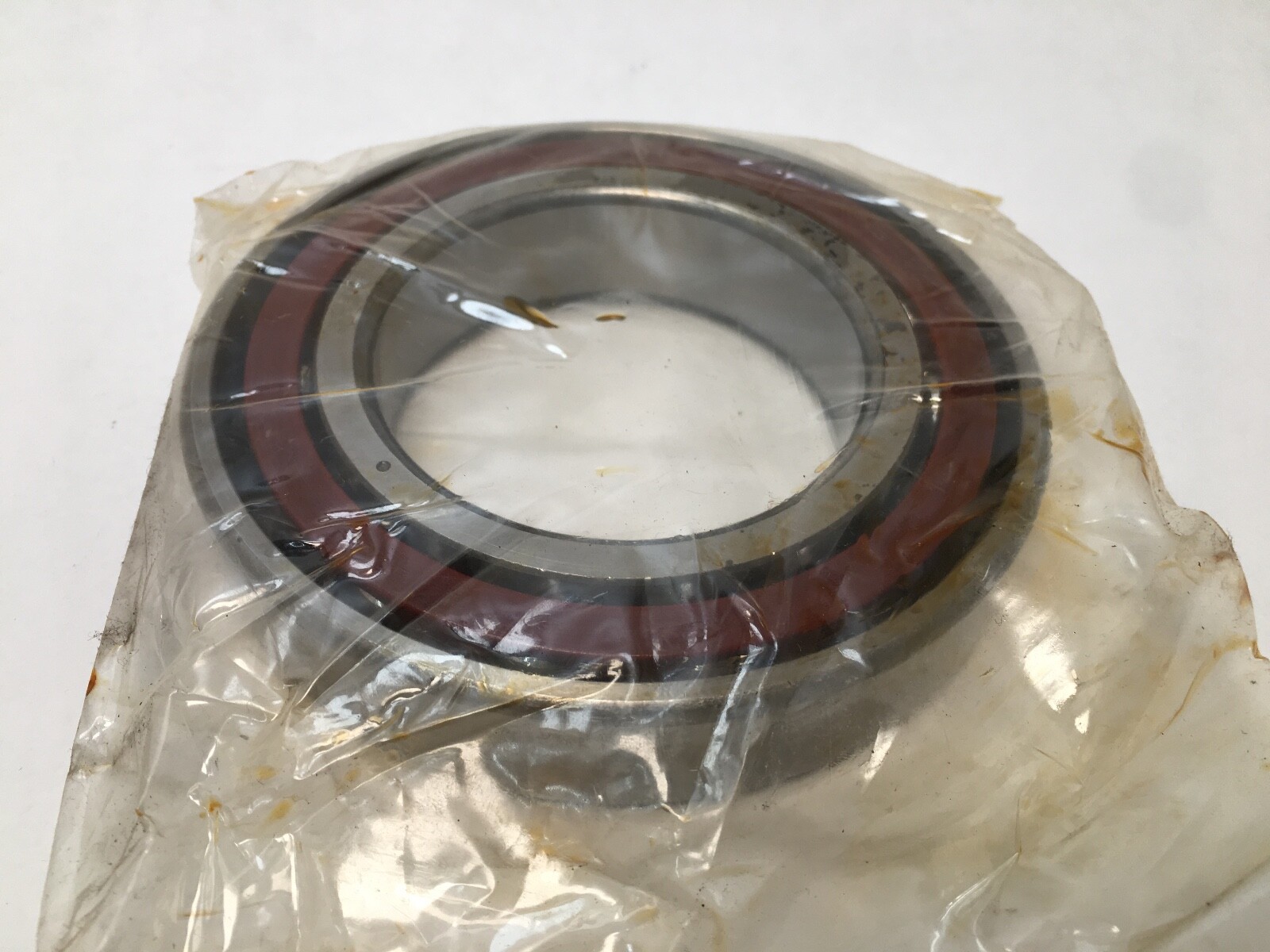

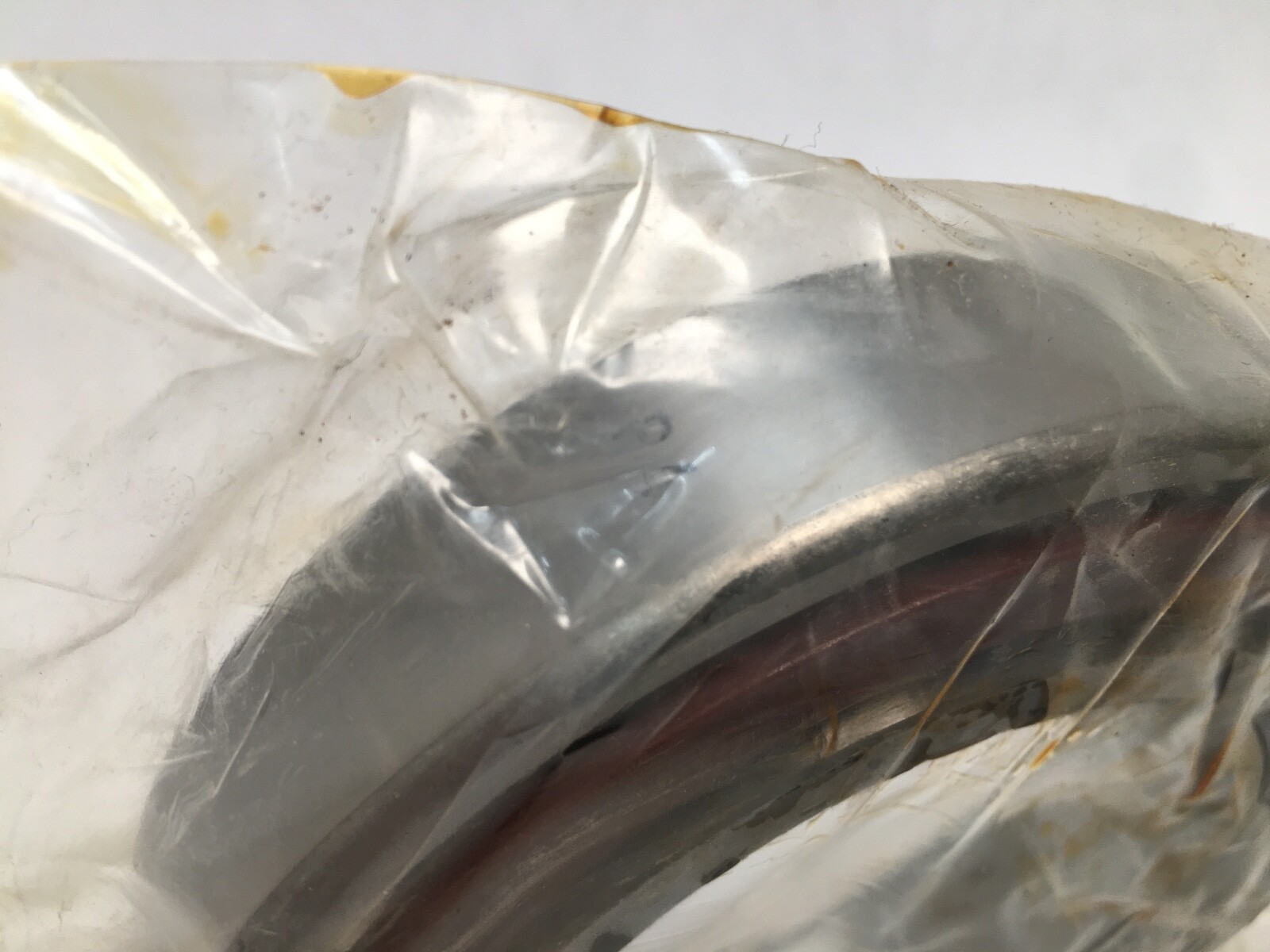

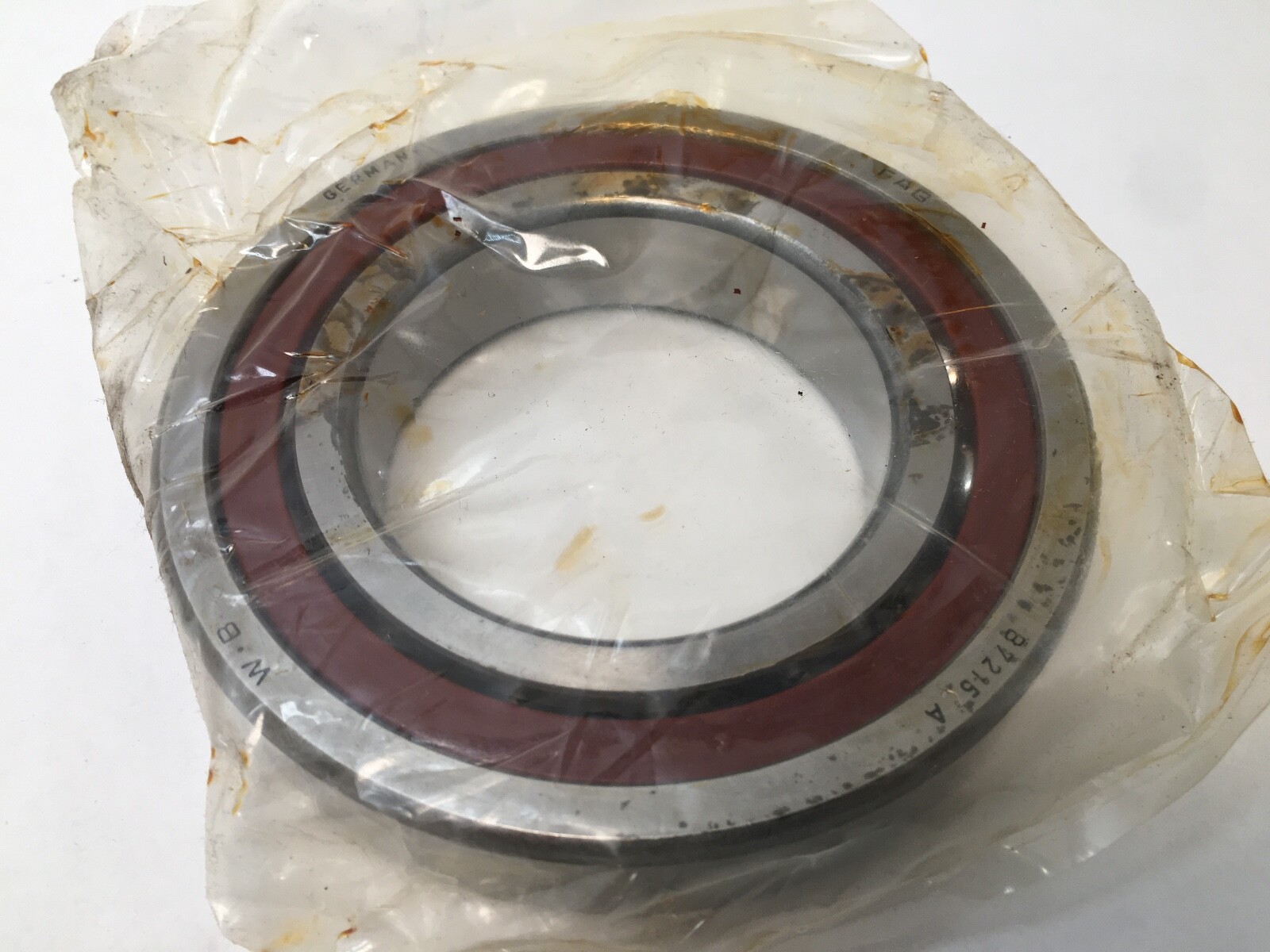

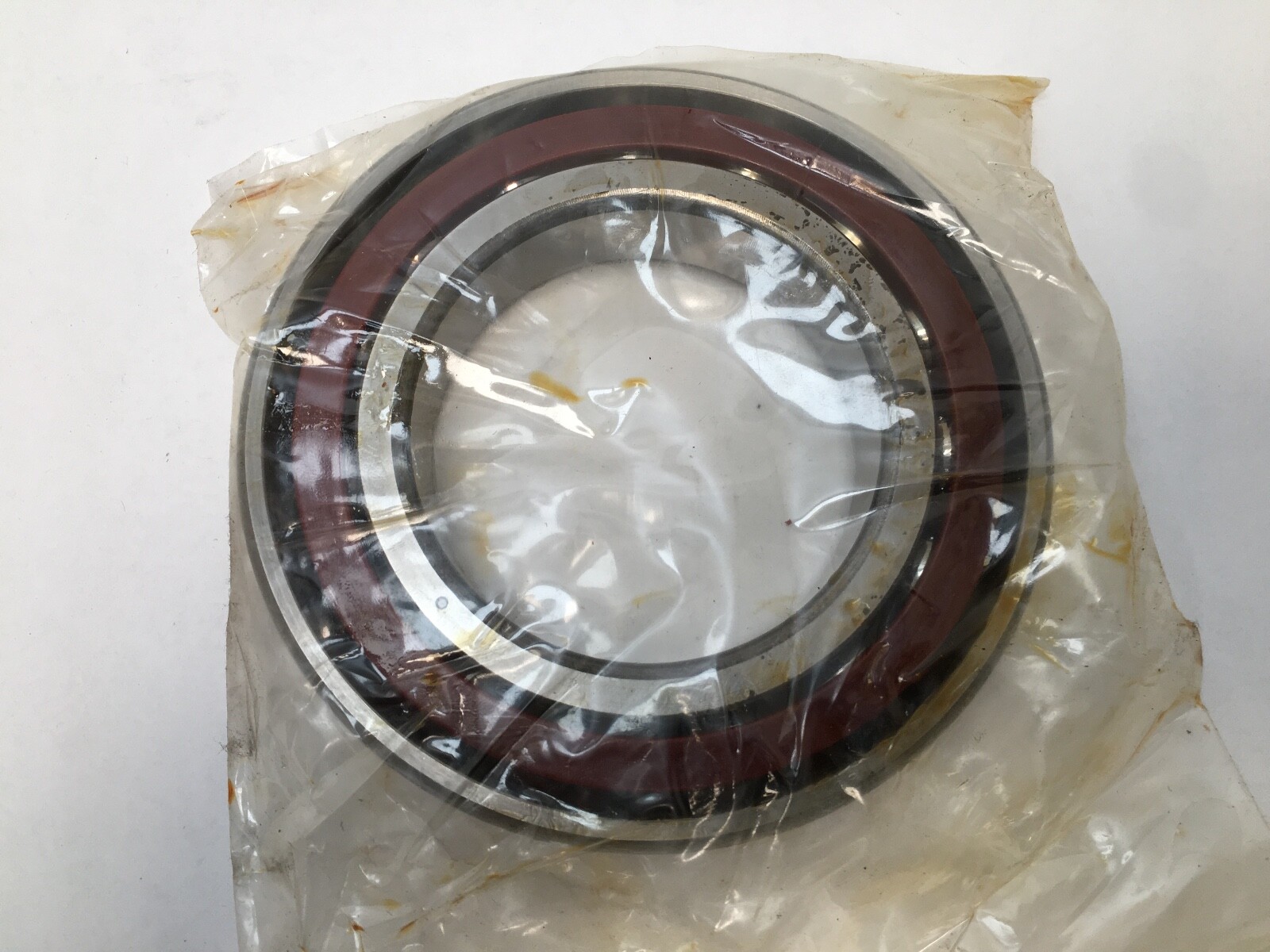

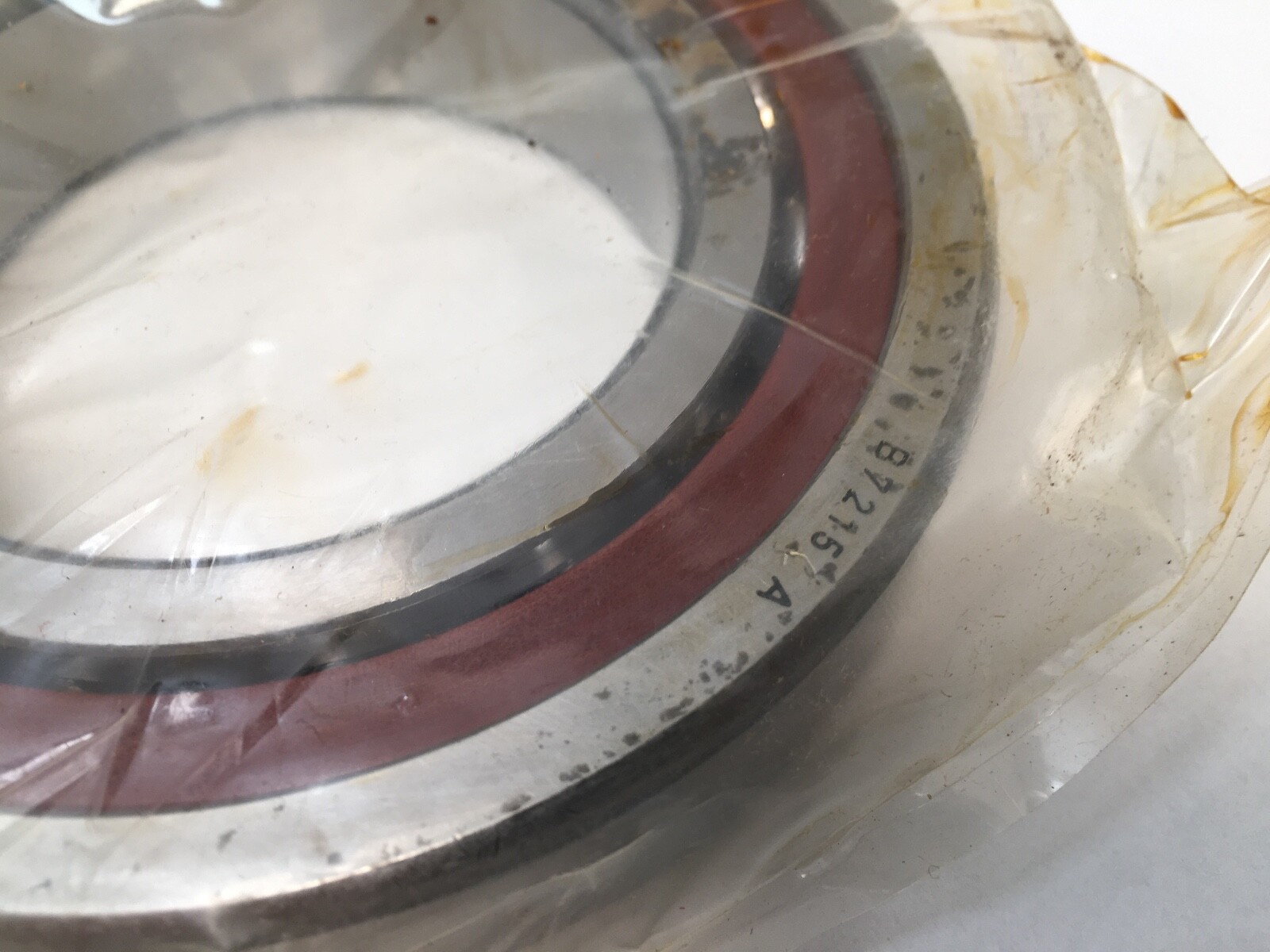

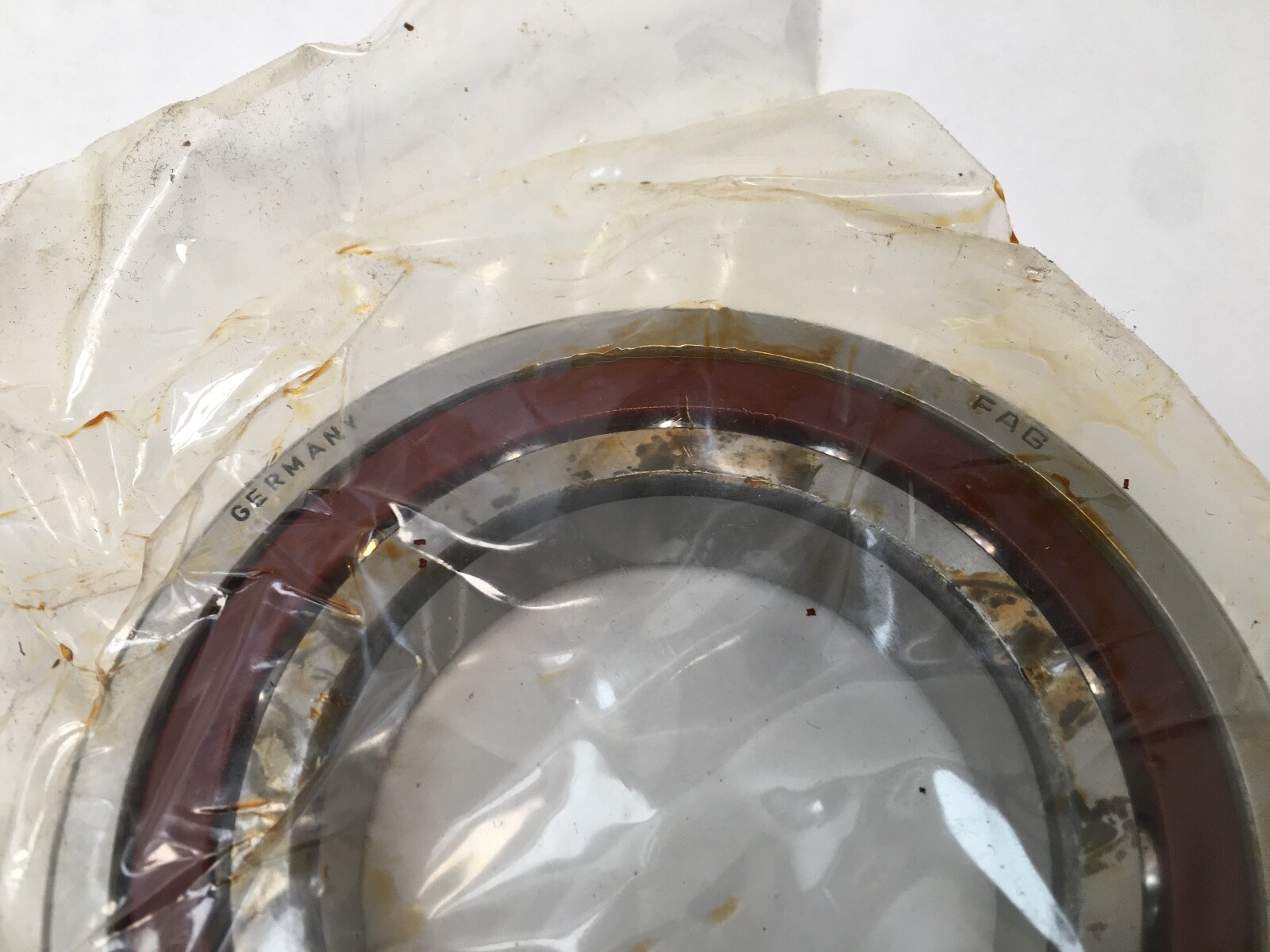

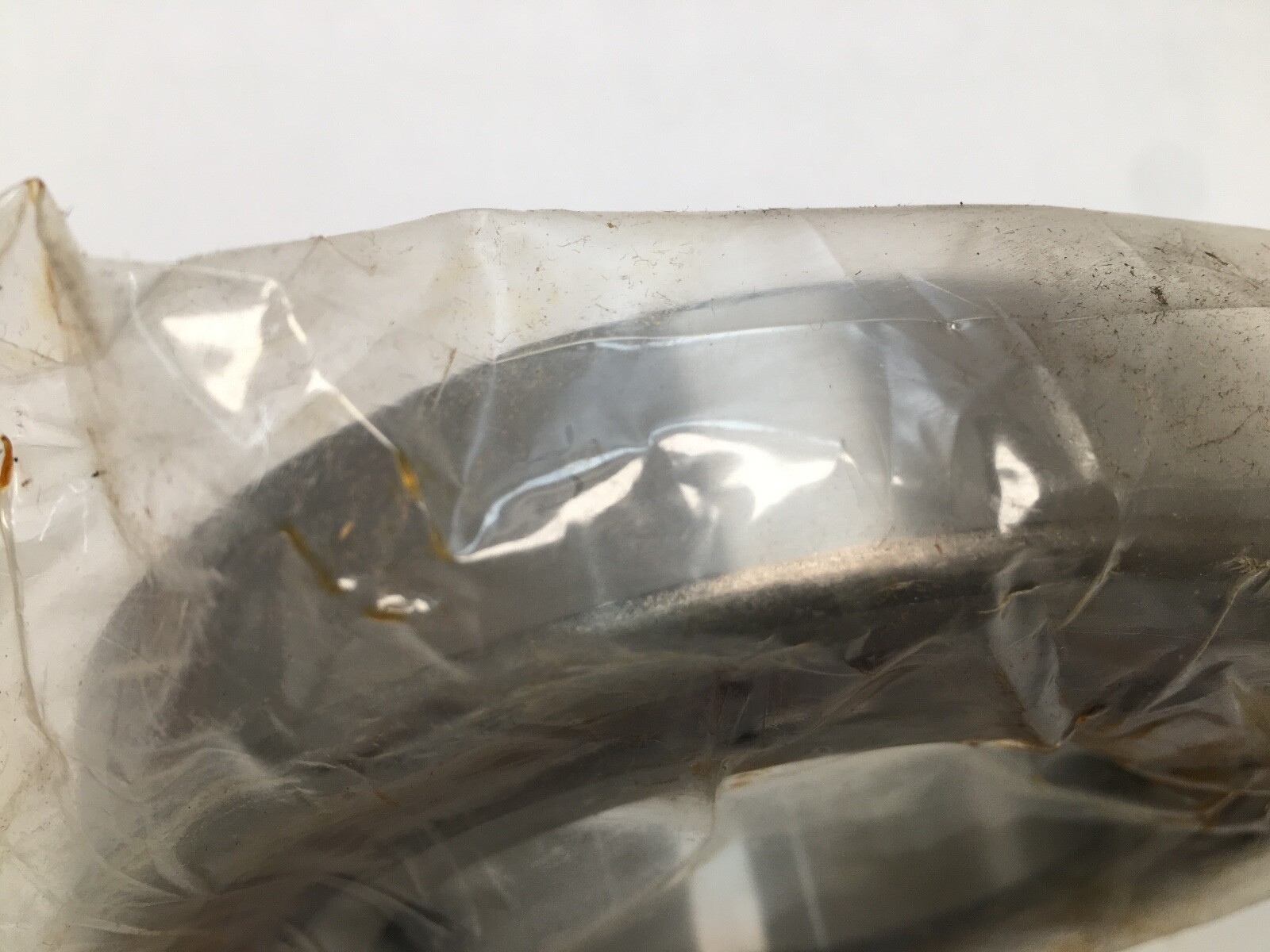

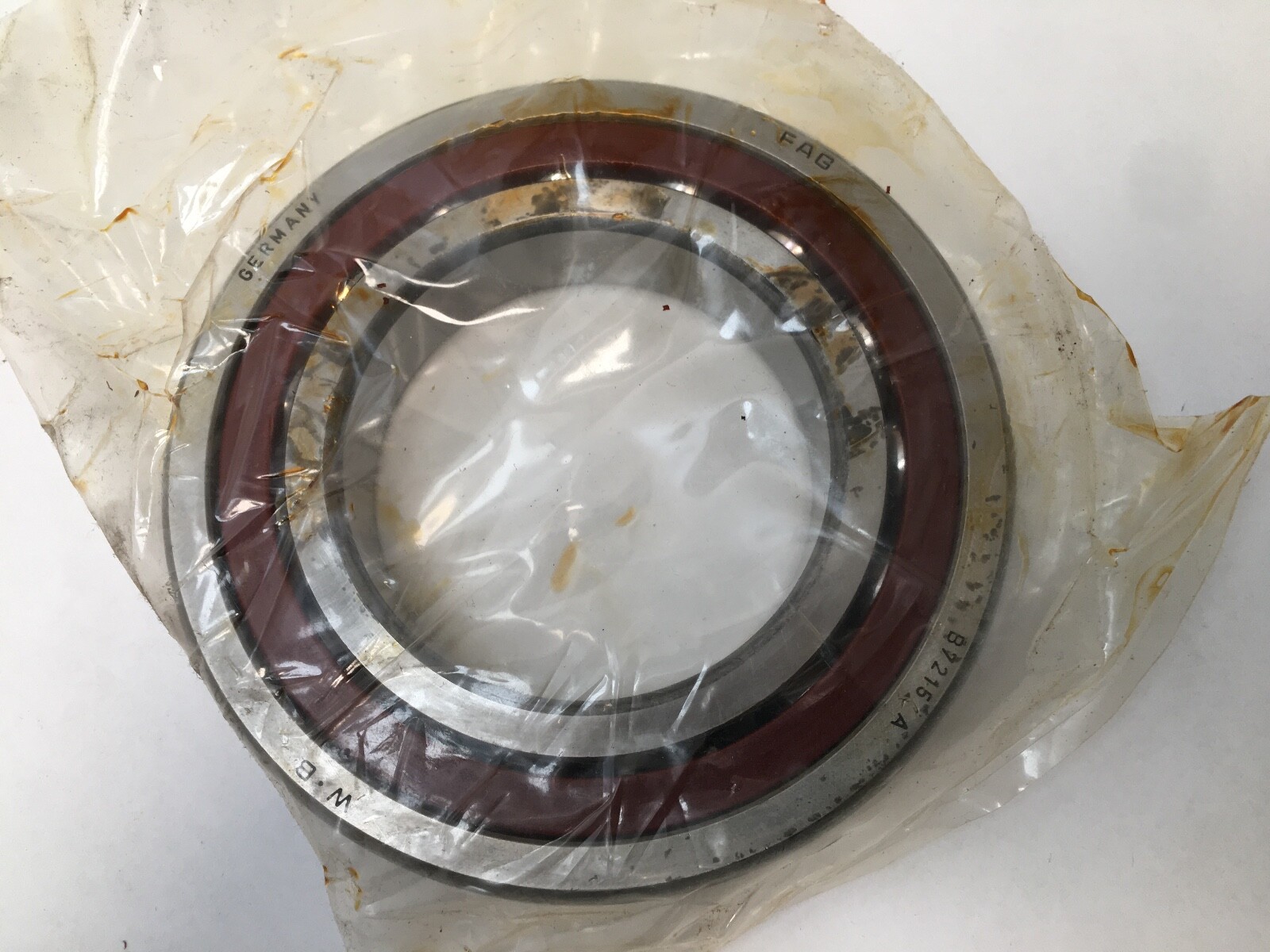

Angular contact spindle bearing, 75 mm bore x 130 mm OD x 25 mm width, 15° contact angle, ABEC 7 / P4, light preload. Consolidated (FAG) 7215TGP4.
List Price
$145.32
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 7215TGP4 |
| Model | B7215C / B7215C.A.P4.UL / 7215 TG P/4 / 215 / 2MM215 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 26 mm |
| Mpn Variants | 7215TGP4, 7215-TG-P4, B7215C.A.P4.UL, B-7215-C-A-P4-UL, B7215C, Consolidated 7215TGP4 |
|---|---|
| Precision Class | ABEC 7 / P4 |
| Cage Type | Machined, outer-ring land-riding |
| Series | 7200 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Contact Angle | 15° |
| Preload | Light |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Cross Reference 1 | SKF 7215 CD/P4ADGA |
|---|---|
| Cross Reference 2 | NSK 7215CTRSULP4 |
| Cross Reference 3 | Fafnir 2MM215WICRSUL |
| Cross Reference 4 | FAG B7215-C-T-P4S-UL |
Consolidated (FAG designation) 7215TGP4 single-row super-precision angular contact spindle bearing in the ISO 7215 envelope, current FAG form B7215-C-T-P4S-UL. Bearing Type: Angular Contact Ball Bearing. Bore Diameter: 75 mm. Outside Diameter: 130 mm. Width: 25 mm. Contact Angle: 15°.
7215 — 72 series angular contact, bore code 15 = 75 mm bore.
C — 15° contact angle.
TG — machined phenolic cage, outer-ring land-riding.
P4 — precision class P4, equivalent to ABEC 7.
UL — universal matching, light preload.
Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light. Cage Material: Phenolic. Cage Type: Machined, outer-ring land-riding. The 15° angle favours speed and radial stiffness; universal light-preload faces allow back-to-back, face-to-face or tandem pairing with any other UL bearing of the same size.
Chamfer r min: 1.5 mm. Chamfer r1 min: 1.5 mm. Shaft abutment diameter da: 85 mm. Housing abutment diameter Da: 120 mm. Fillet radius ra max: 1.5 mm. Effective load centre a: 26.2 mm.
Unit Quantity: 1 Pc. Single universally matched bearing.
Cross-references in the same 75 x 130 x 25 mm envelope, 15°, P4, light preload: SKF 7215 CD/P4ADGA, NSK 7215CTRSULP4, Fafnir 2MM215WICRSUL, FAG B7215-C-T-P4S-UL. MPN Variants: 7215TGP4, 7215-TG-P4, B7215C.A.P4.UL, B-7215-C-A-P4-UL, B7215C, Consolidated 7215TGP4.
