Availability:
1 in stock

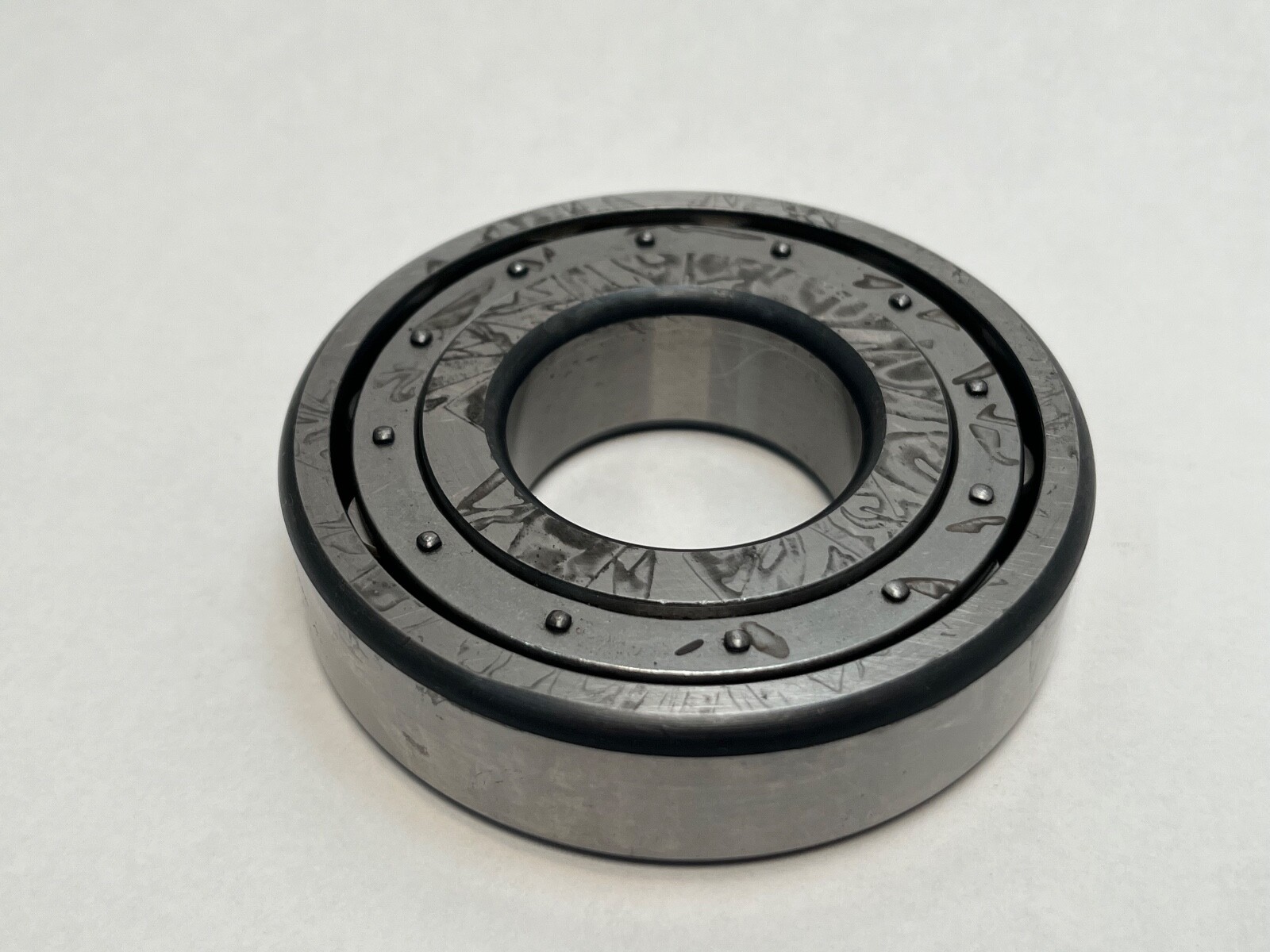

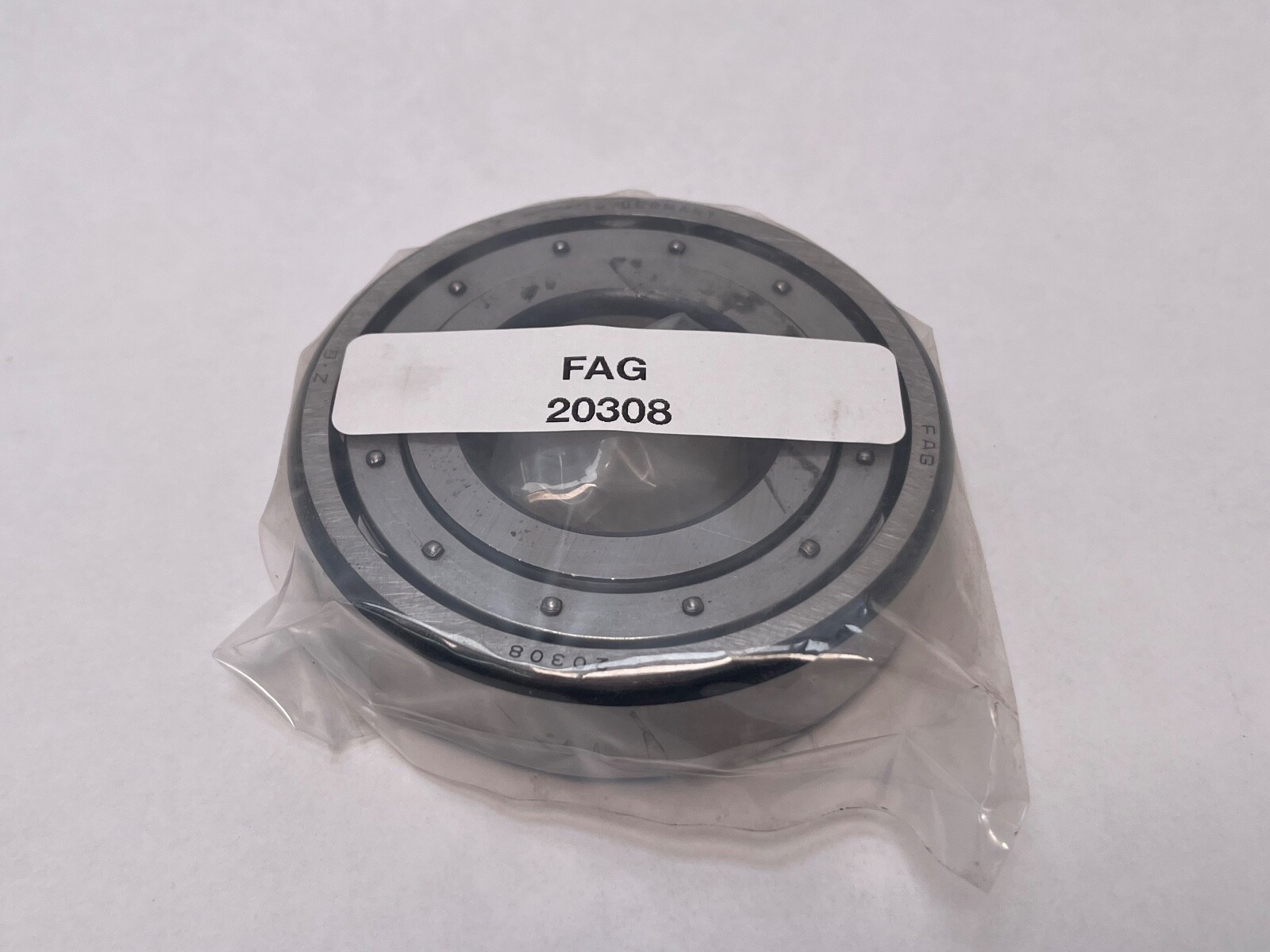

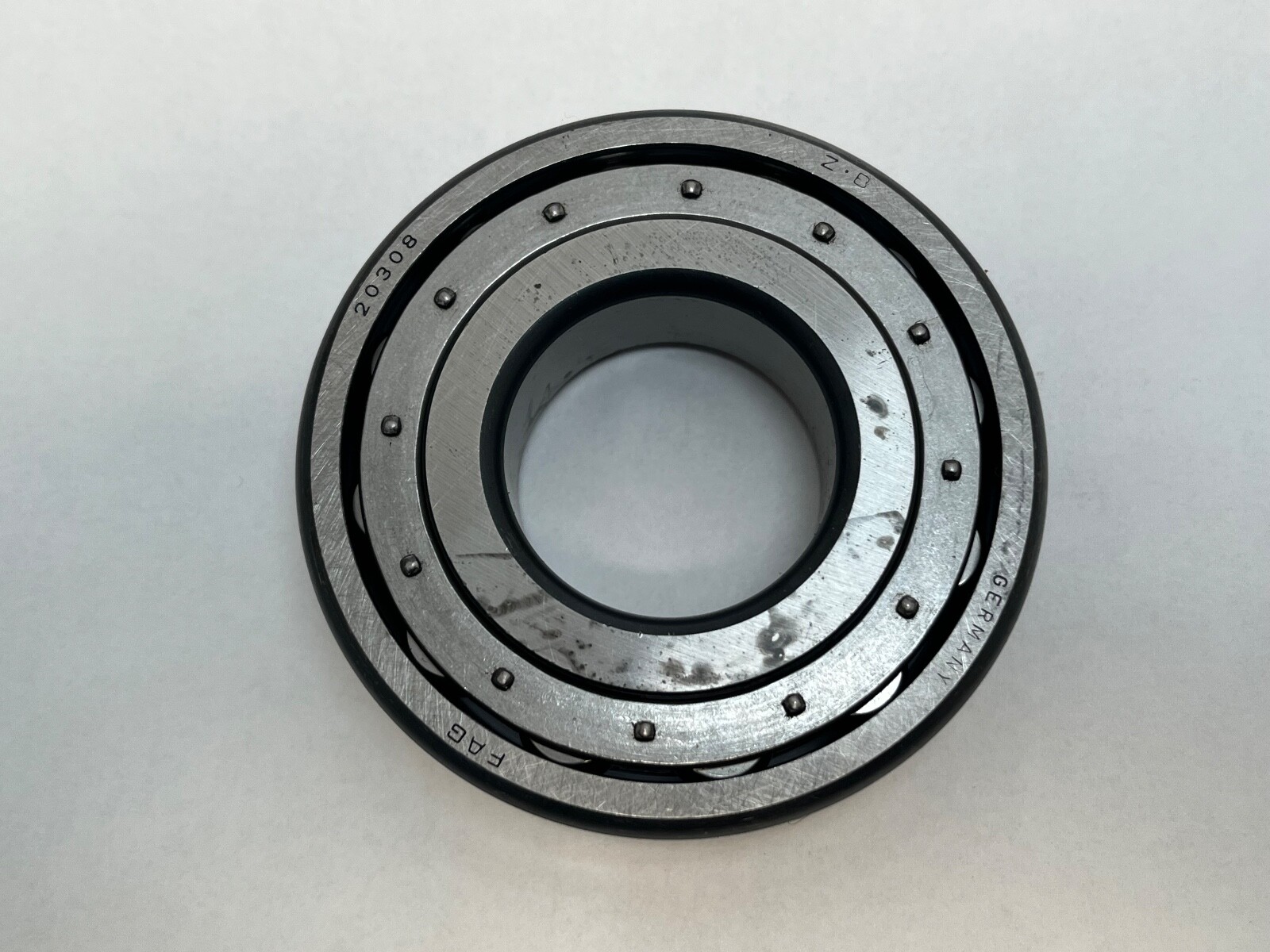

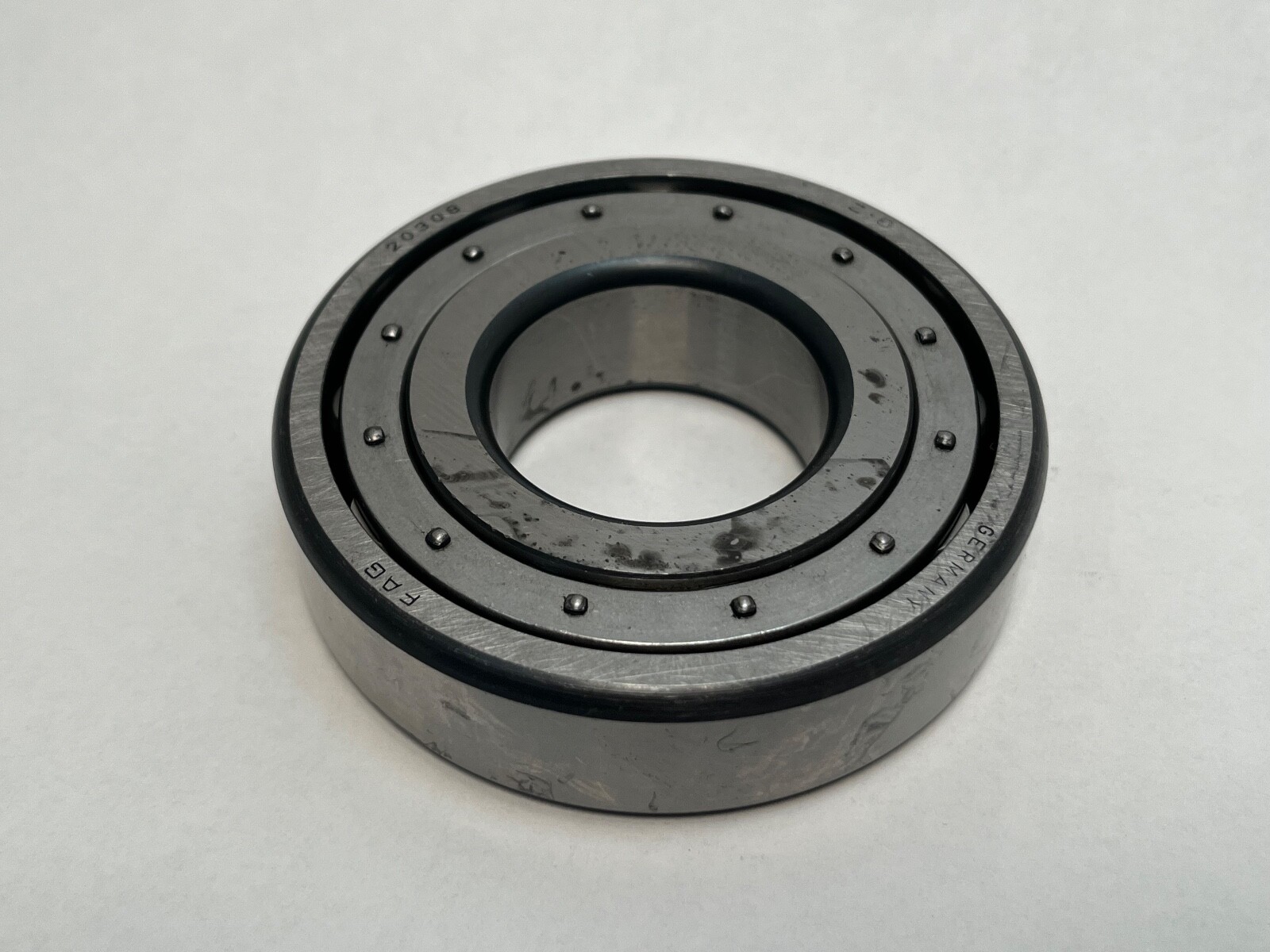

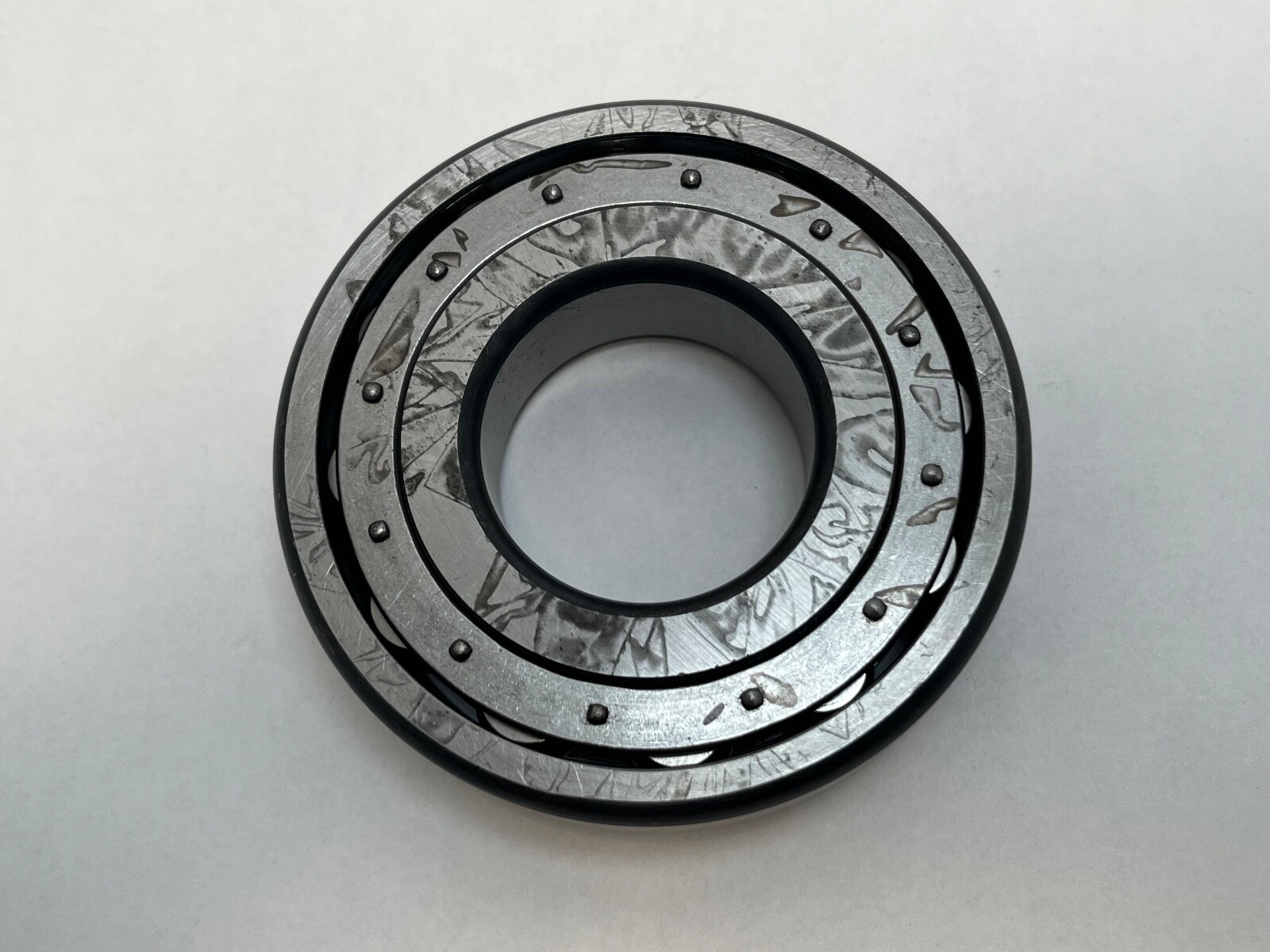

Single-row barrel roller bearing, 40 mm bore x 90 mm OD x 23 mm wide, cylindrical bore, self-aligning, CN clearance. FAG 20308, 203 series. 1 Pc.
List Price
$75.55
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 20308 |
| Model | 20308 |
| Bearing Type | Barrel Roller Bearing, Open |
| ID | 40 mm |
| OD | 90 mm |
| Width | 23 mm |
| Material | Bearing Steel |
|---|---|
| Base Number | 20308 |
| Bore Shaft Size | 40 mm (1.5748 in) |
| Mpn Variants | 20308, 20308-TVP, 20308M, 20308MB |
| Rolling Elements | Spherical Rollers |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | CN |

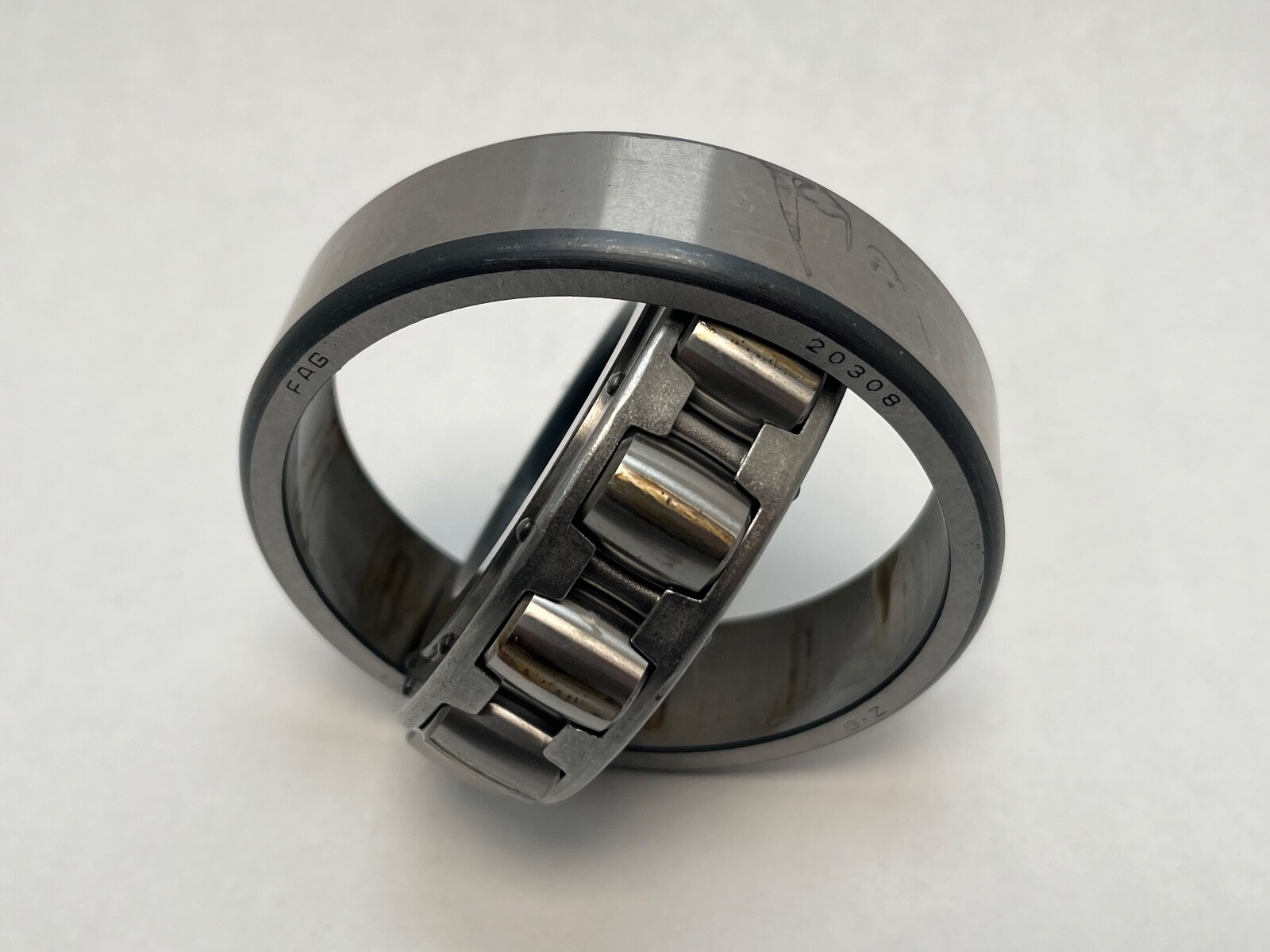

FAG 20308 is a single-row barrel roller bearing. One row of barrel-shaped rollers runs on a spherical outer raceway, so the inner ring, roller set and cage swivel inside the outer ring. Bore Diameter: 40 mm. Outside Diameter: 90 mm. Width: 23 mm. Cylindrical bore.
20 — barrel roller, single row.
3 — ISO dimension series 3, a heavier section than the 202xx range on the same bore.
08 — bore code, 8 x 5 = 40 mm bore.
No clearance suffix — CN, normal radial internal clearance.
Bearing Type: Single row barrel roller bearing. Rolling Elements: Spherical Rollers. Number Of Rows: 1. Bore Type: Straight (cylindrical). Internal Clearance: CN. Closure Type: Open. Series: 203. Material: Bearing Steel. Load direction: radial. Unit Quantity: 1 Pc.
Bore Diameter: 40 mm (1.5748 in). Outside Diameter: 90 mm (3.5433 in). Width: 23 mm (0.9055 in).
20308 is the base designation. Cage variants carry suffixes: 20308-TVP has a glass-fibre reinforced polyamide cage and 20308-M a machined brass cage. The tapered-bore 20308K is a related size with a different bore form. The 22308 is a double-row spherical roller bearing, a different bearing type.
40 mm bore, 90 mm outside diameter, 23 mm wide.
Radial load, with self-alignment on its spherical outer raceway.
Cylindrical.
