Deep Groove Ball Bearings: The Industry Default and When to Reach for Something Else
If you pulled a bearing off general industrial equipment at random, there’s a good chance
Availability:
1 in stock
Deep groove ball bearing, 75 x 130 x 25 mm, steel shields both sides, CM electric-motor clearance. Dynamic load rating 73,000 N, grease speed 5,600 rpm.
List Price
$51.17
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 6215ZZCM |
| Model | 6215-ZZ-CM |
| Bearing Type | Ball Bearing, Shields both sides |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Material | Chrome Steel |
|---|---|
| Series | 6200 |
| Lubricant | Grease |
| Dynamic Load Rating | 73,000 N |
| Static Load Rating | 49,500 N |
| Rolling Elements | Ball |
| Item Weight | 1.19 kg (2.62 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Internal Clearance | CM |
| Limiting Speed | 5,600 rpm grease |
| Mpn Variants | 6215ZZCM, 6215ZZ, 6215-ZZ-CM, 6215Z |
| Industry Terms | deep groove ball bearing, shielded ball bearing, electric motor bearing, 6215 ZZ, radial ball bearing |
| Common Misspellings | NSK 6215 ZZ CM; NSK6215ZZCM; NSK 6215ZZ-CM; NSK 6125ZZCM; NSK 6215 ZZC |
| Application Types | electric motors; pumps; gearboxes; fans and blowers; general industrial machinery |
| Cross Reference 1 | NSK 6215ZZ - standard CN clearance |
|---|---|
| Cross Reference 2 | SKF 6215-2Z - standard CN clearance |
| Cross Reference 3 | FAG 6215-2ZR - standard CN clearance |
| Cross Reference 4 | NTN 6215ZZ - standard CN clearance |
| Cross Reference 5 | Koyo 6215ZZ - standard CN clearance |

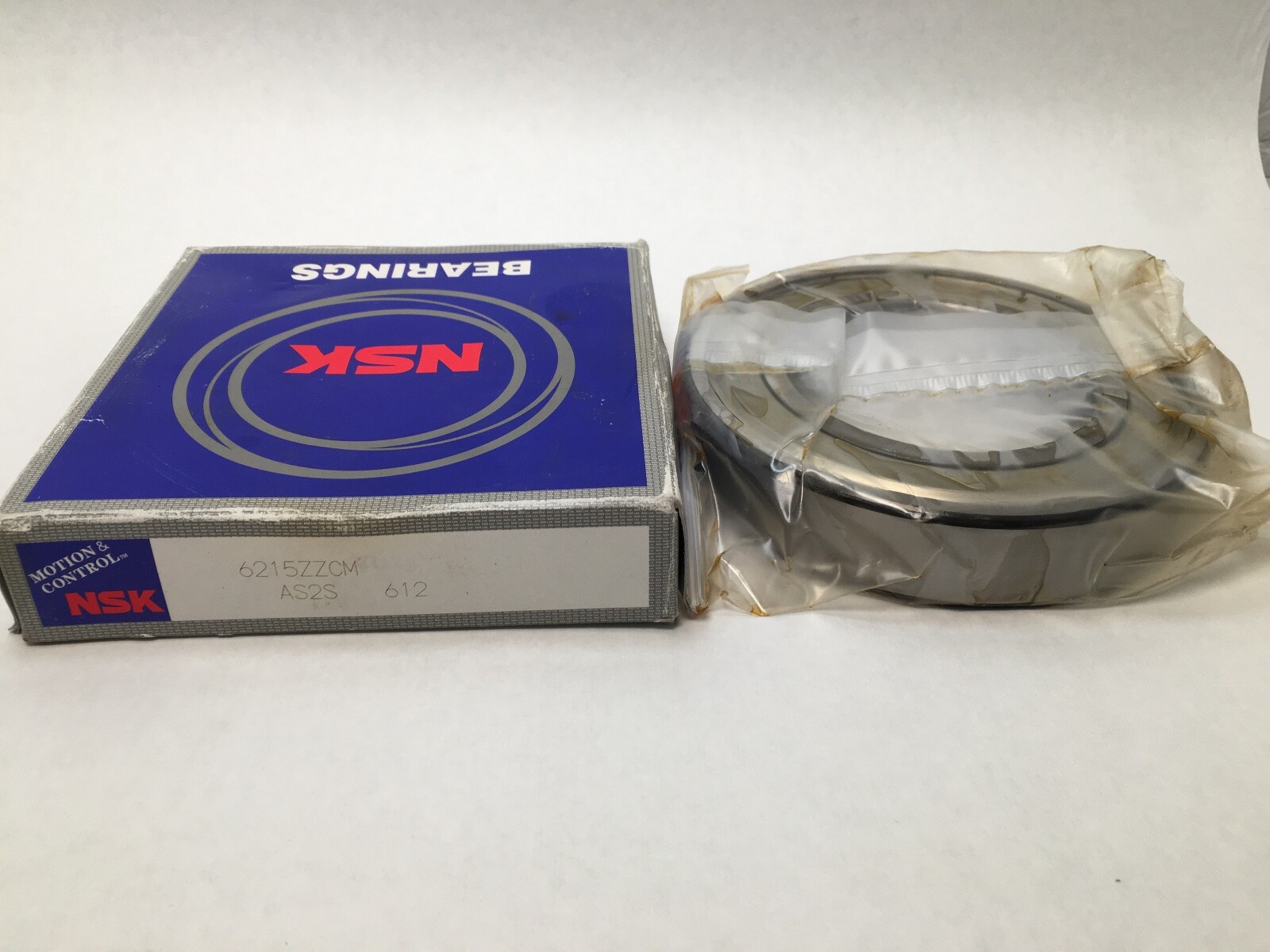

NSK 6215ZZCM is a single-row deep groove ball bearing, 62 series, with steel shields on both sides and NSK CM electric-motor radial clearance. Unit Quantity: 1 Pc.
6215 — 62-series (light) deep groove ball bearing, 75 mm bore.
ZZ — steel shields on both sides, grease-filled.
CM — NSK radial internal clearance for electric motors, a narrow clearance band for quiet running.
Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 25 mm. Dynamic Load Rating: 73,000 N. Static Load Rating: 49,500 N. Limiting Speed: 5,600 rpm grease. Item Weight: 1.19 kg (2.62 lb). Internal Clearance: CM. Closure Type: Shields both sides. Cage Material: Pressed steel. Rolling Elements: Ball. Number Of Balls: 11. Ball Diameter: 17.462 mm. Bore Type: Straight. Snap Ring Groove: No.
Chamfer r min: 1.5 mm. Shaft Abutment Diameter da: 83 to 90 mm. Housing Abutment Diameter Da max: 122 mm. Fillet Radius ra max: 1.5 mm.
NSK lists CM as a motor clearance that is not interchangeable with standard clearance. Same 75 x 130 x 25 mm shielded envelope in standard CN clearance: NSK 6215ZZ, SKF 6215-2Z, FAG 6215-2ZR, NTN 6215ZZ, Koyo 6215ZZ. MPN Variants: 6215ZZCM, 6215ZZ, 6215-ZZ-CM, 6215Z.
75 mm bore, 130 mm outside diameter, 25 mm wide.
NSK electric-motor radial clearance, a controlled clearance range for low noise.
Steel shields on both sides (ZZ).
