Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Angular contact spindle bearing pair, 35 mm bore x 55 mm OD x 10 mm, 15°, phenolic TA cage, ABEC 7 / P4, universal light preload 55 N. GMN S 61907 C TA A7 DUL, 2 Pcs.
List Price
$120.80
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GMN |
|---|---|
| MPN | S61907CTAA7DUL |
| Model | S61907CTAA7DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 55 mm |
| Width | 10 mm |
| Material | Bearing Steel |
|---|---|
| Series | S 619 |
| Preload | L (light), 55 N |
| Cage Type | TA, machined, outer-ring guided |
| Dynamic Load Rating | 10,900 N |
| Static Load Rating | 8,700 N |
| Rolling Elements | Ball |
| Item Weight | 0.075 kg (0.17 lb) per bearing |
| Cage Material | Laminated phenolic resin |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Limiting Speed | 28,500 rpm grease; 38,000 rpm oil |
| Overall Width | 10 mm |
| Mpn Variants | S61907CTAA7DUL, S 61907 C TA A7 DUL, S-61907-C-TA-P4-DUL, 71907-C, 7907-C |
| Arrangement Configuration | DUL — universal matched pair (DB, DF or DT) |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Bearing design: S, two lands on inner ring, non-separable; Balls: 18 x 5.556 mm; Axial rigidity (pair, light preload): 37 N/µm; Cage max operating temperature: 120 °C |
| Lubricant | Grease or oil |
| Cross Reference 1 | Fafnir 2MM9307WO-CR |
|---|---|
| Cross Reference 2 | FAG B71907-C-T |
| Cross Reference 3 | SKF 71907 CD |
| Cross Reference 4 | RHP 7907 X2TA |
| Cross Reference 5 | SNFA SEB 35 CE1 |
| Cross Reference 6 | SNR 71907 C |
GMN S 61907 C TA A7 DUL super-precision angular contact spindle bearing set, two thin-section bearings universally matched with light preload. Bore Diameter: 35 mm. Outside Diameter: 55 mm. Overall Width: 10 mm per bearing. Contact Angle: 15°. Cage Material: Laminated phenolic resin. Cage Type: Machined, outer-ring guided. Precision Class: ABEC 7 / P4. Preload: L (light), 55 N. Rolling Elements: Ball, 18 x 5.556 mm.
S — GMN standard spindle bearing, two lands on the inner ring, non-separable.
61907 — dimension series 19, bore code 07: 35 x 55 x 10 mm, the ISO 71907 size.
C — 15° nominal contact angle.
TA — laminated phenolic resin cage guided on the outer ring, rated to 120 °C.
A7 — ABEC 7 tolerance class per ABMA, corresponding to P4.
D — set of two bearings.
UL — universal matching, light preload. The pair mounts back-to-back, face-to-face or in tandem.
Dynamic Load Rating: 10,900 N. Static Load Rating: 8,700 N. Limiting Speed: 28,500 rpm grease; 38,000 rpm oil. Item Weight: 0.075 kg per bearing. Axial rigidity at light preload: 37 N/µm per pair. The 19-series thin section fits a larger shaft in a compact housing. Lubricant: grease or oil. Closure Type: Open. Snap Ring: No.

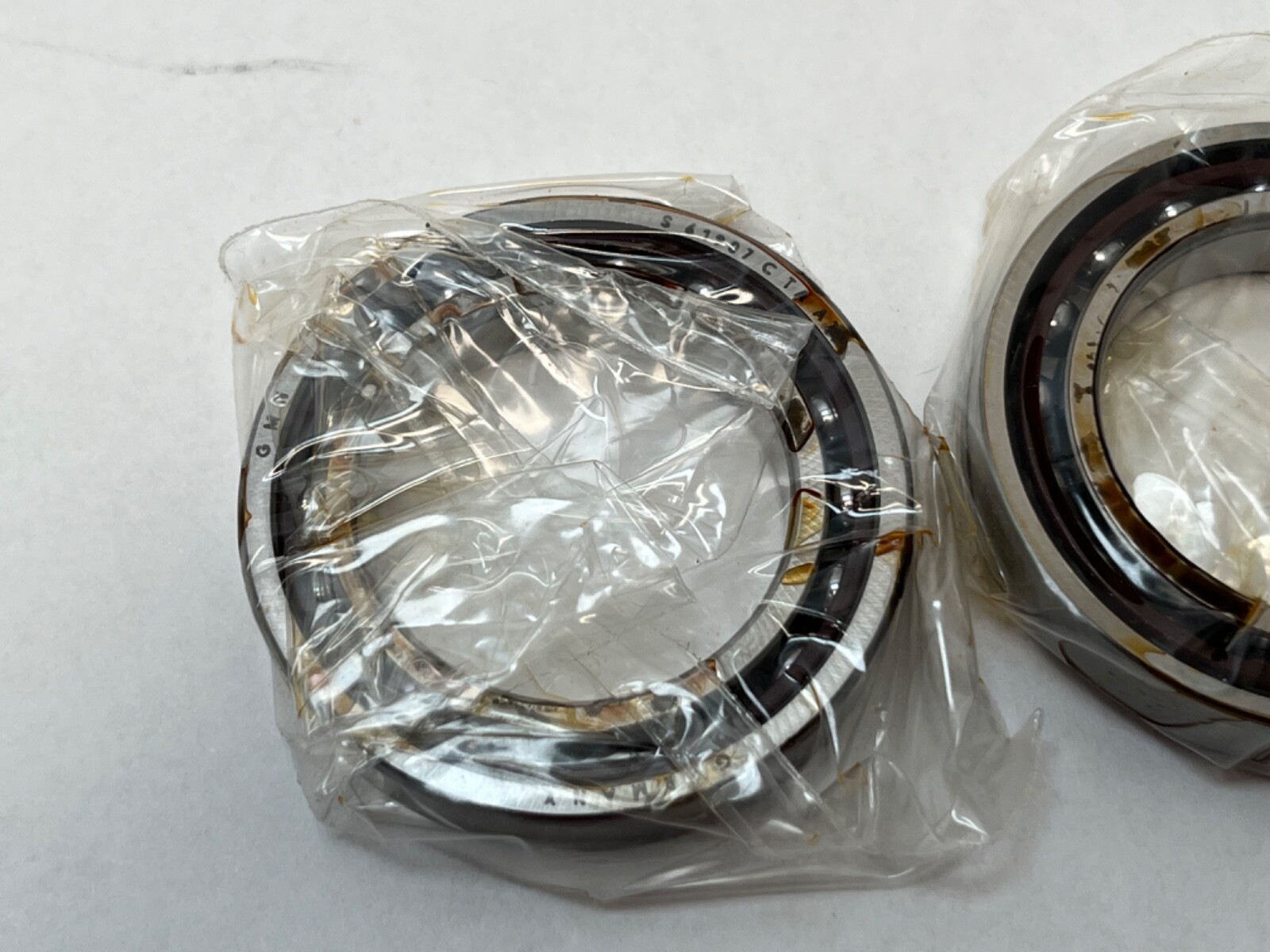

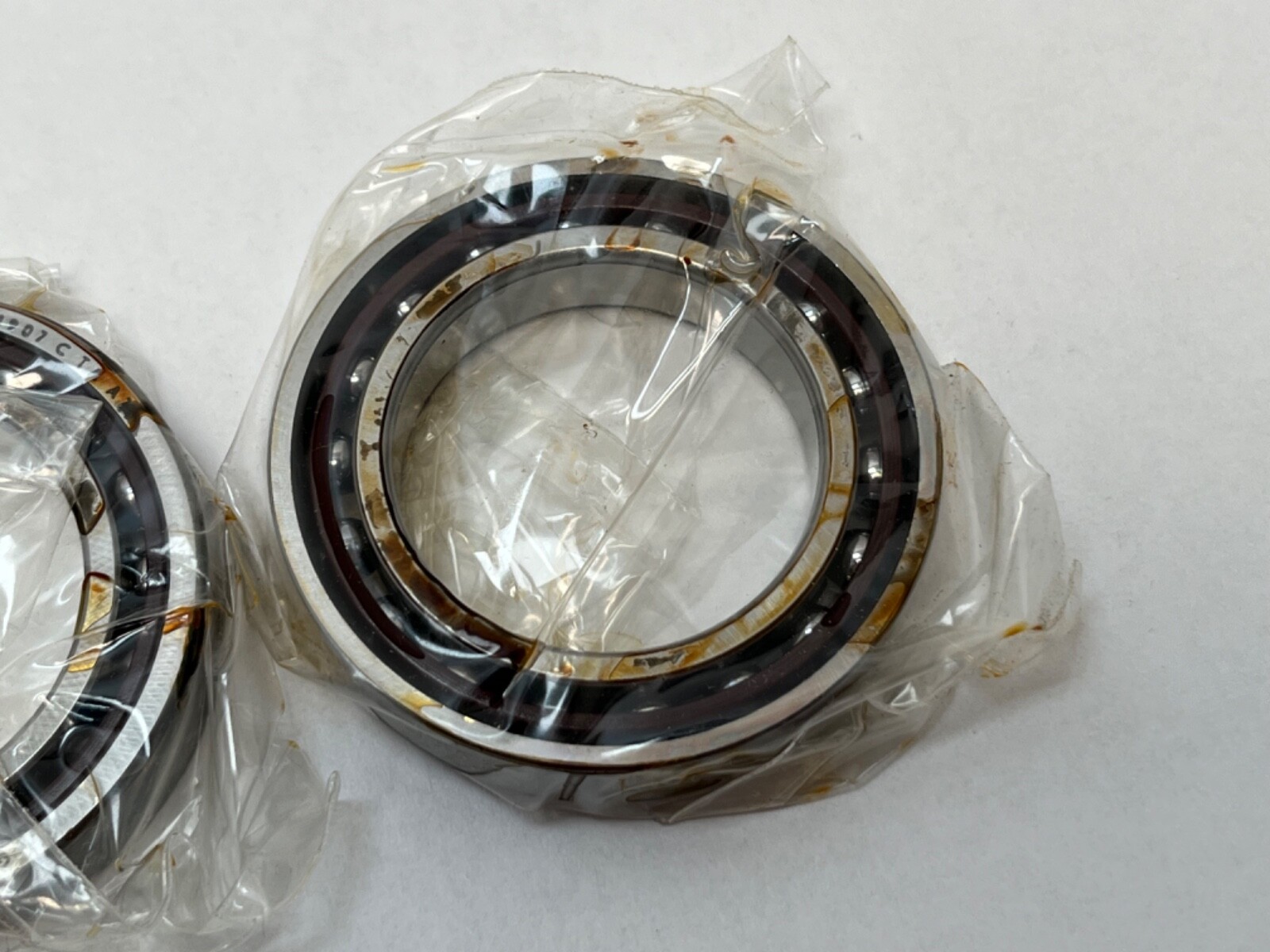

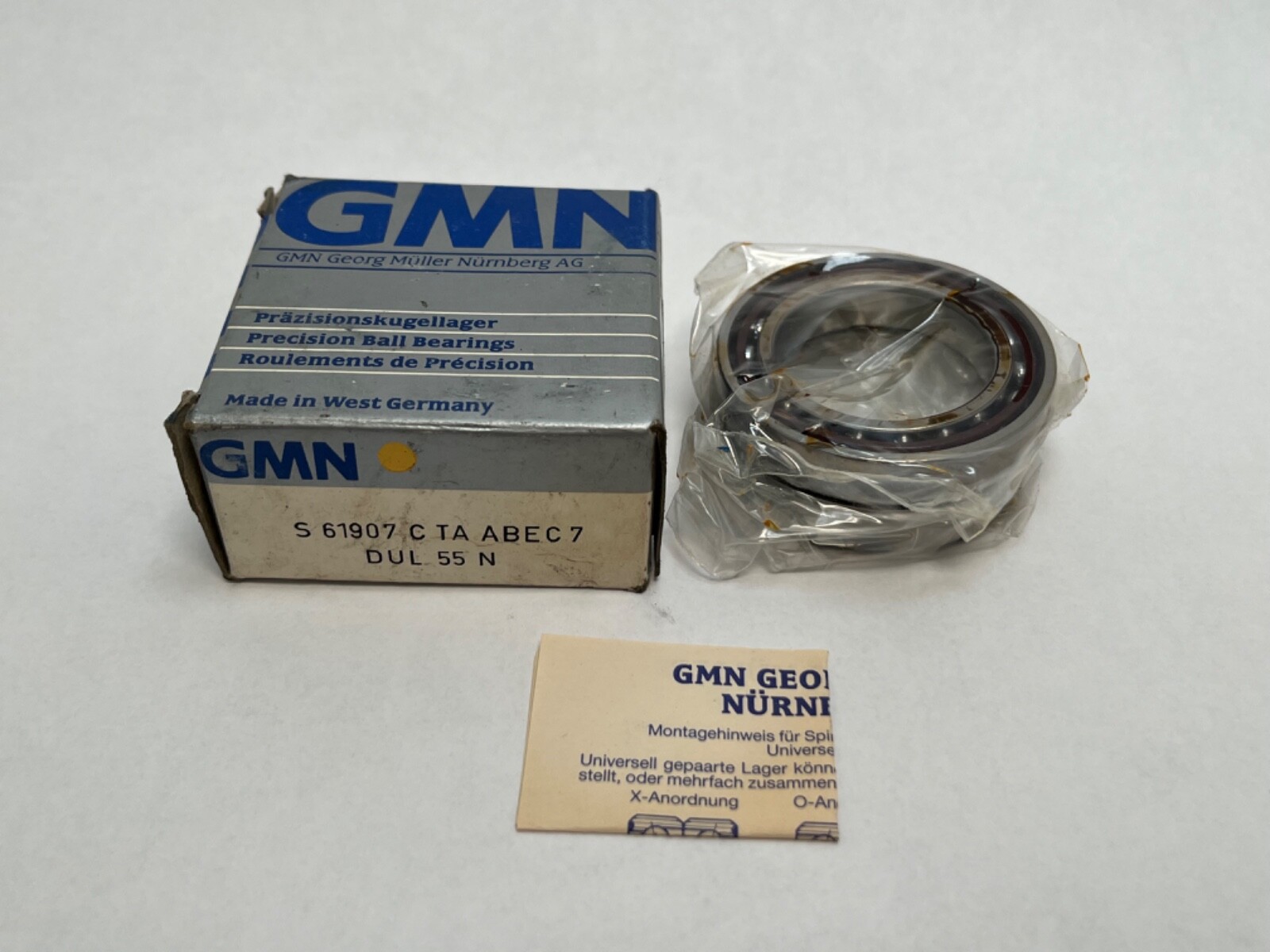

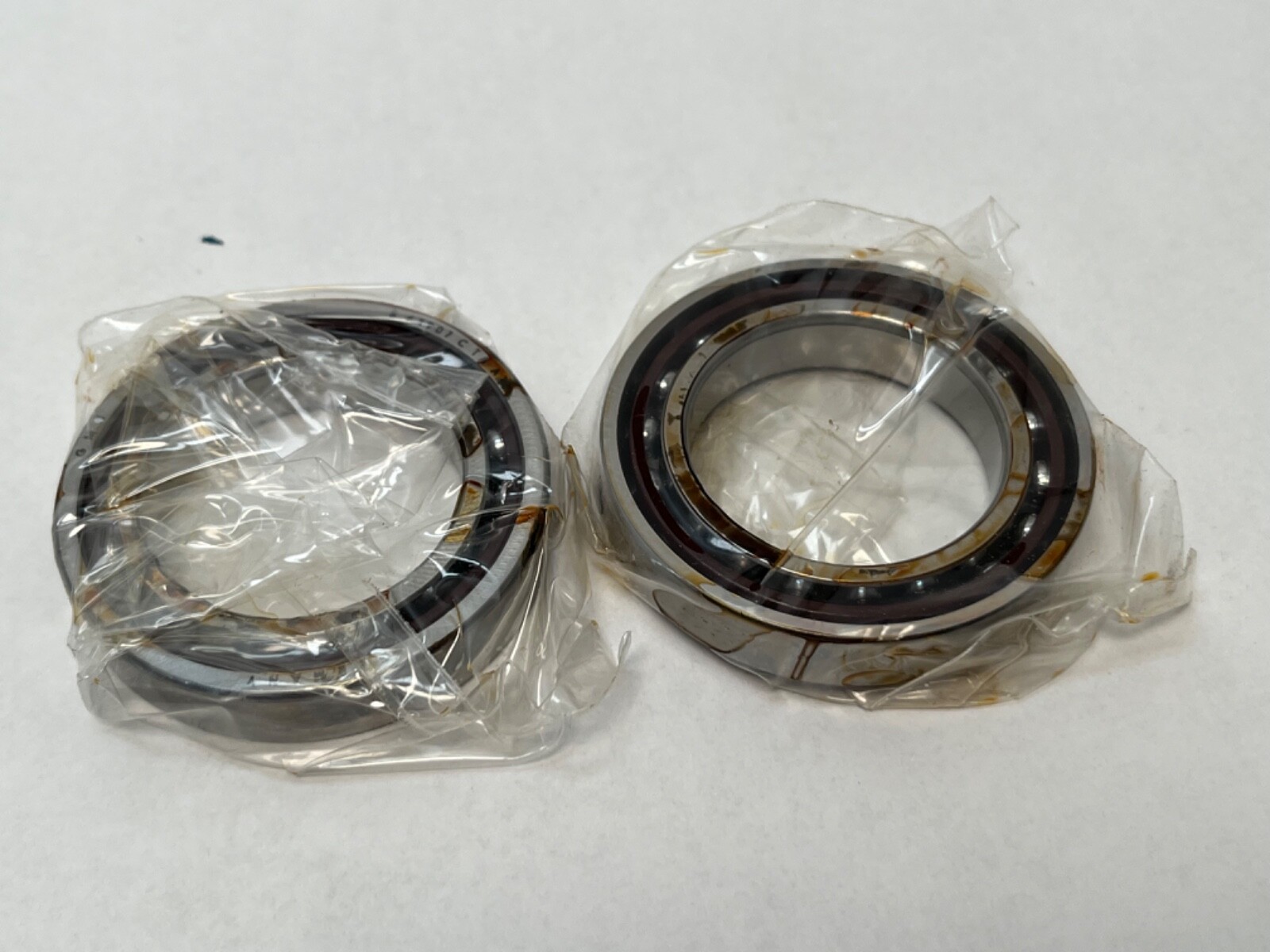

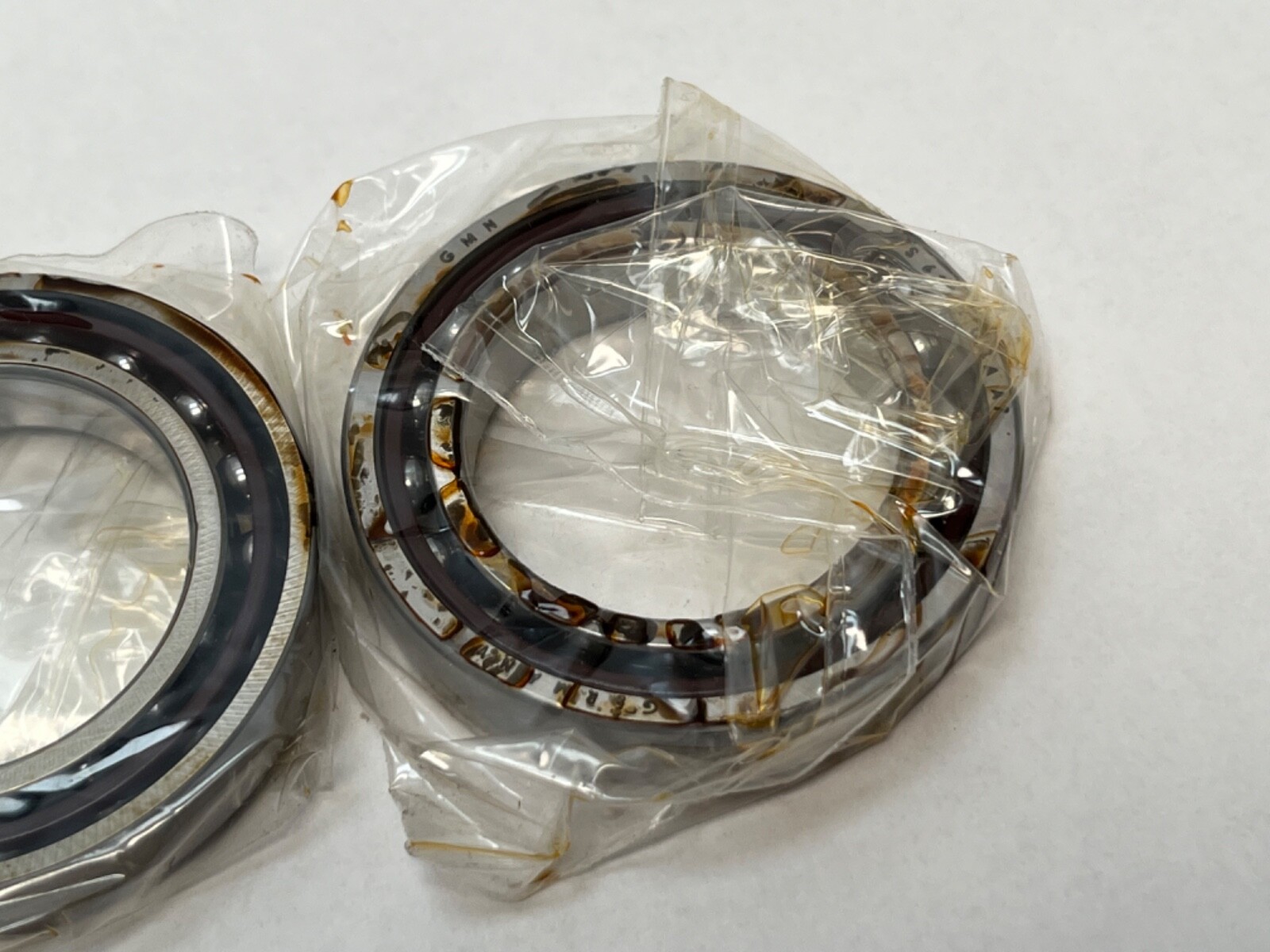

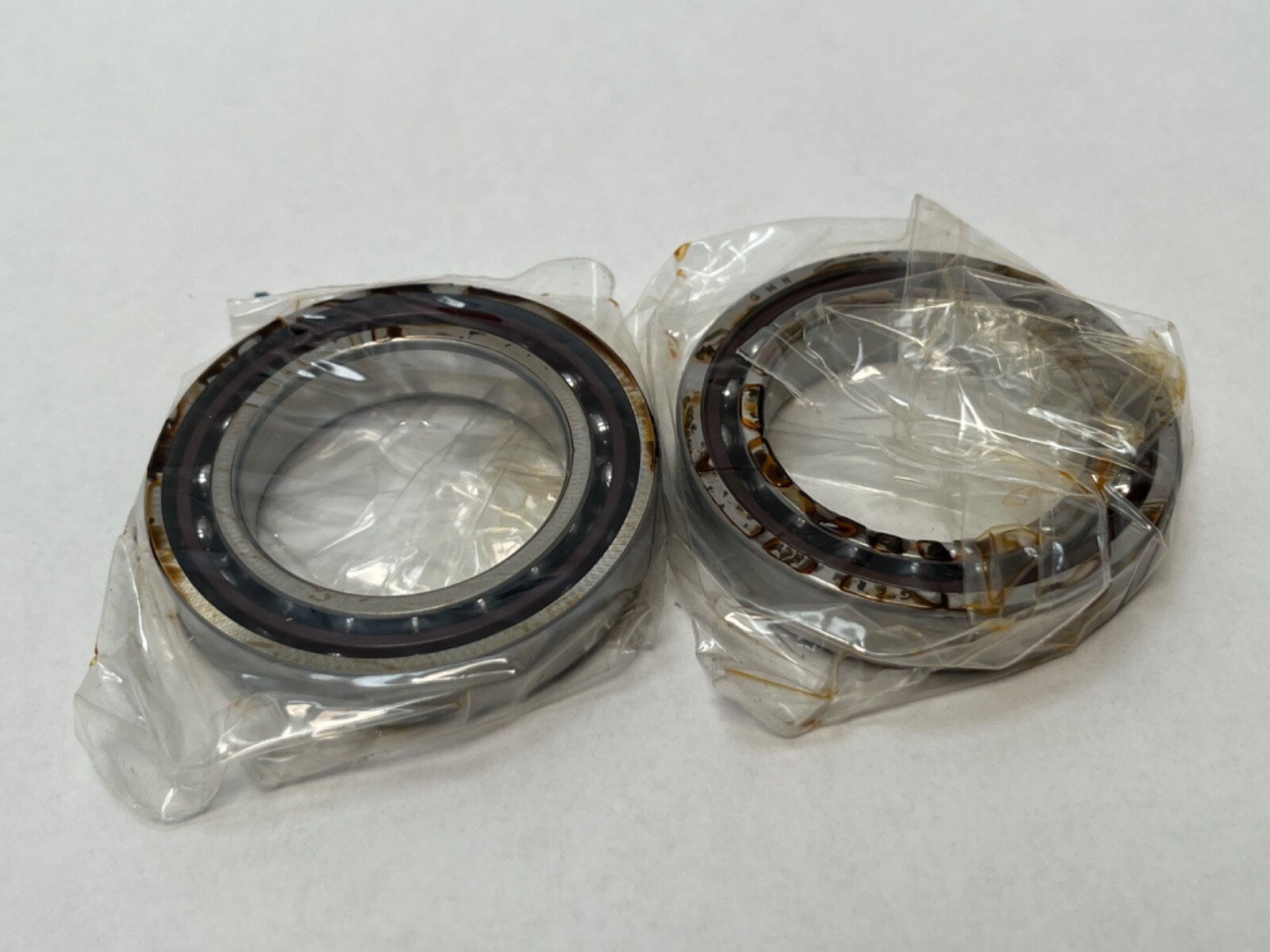

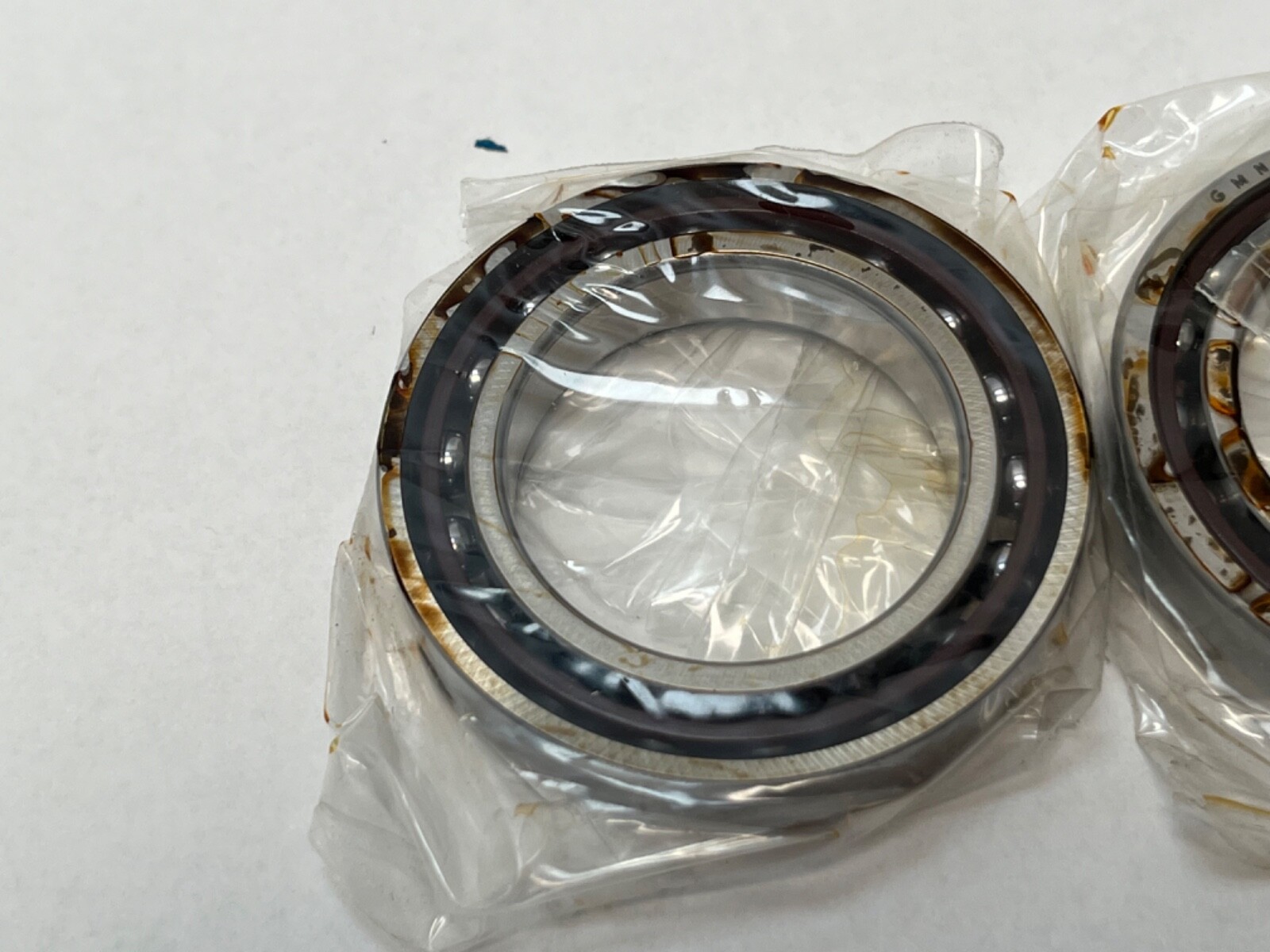

Unit Quantity: 2 Pcs. One factory duplex set. Condition: New old stock, open box; grease has dried.
Same 35 x 55 x 10 mm envelope and 15° angle: Fafnir 2MM9307WO-CR, FAG B71907-C-T, SKF 71907 CD, RHP 7907 X2TA, SNFA SEB 35 CE1, SNR 71907 C.
