Super-precision angular contact ball bearing, 50 x 80 x 16 mm, 25° contact angle, machined phenolic cage, extra light preload, open, ABEC 7 precision.
List Price
$77.39
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7010 ACDGA/P4A |
| GTIN | 7316570650259 |
| Model | 7010 ACD P4A DGA / 3MM9110WI CR DUL / 7010A 7010E 7010A5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 50 mm |
| OD | 80 mm |
| Width | 16 mm |
| Preload | Extra light |
|---|---|
| Material | Bearing Steel |
| Series | 7000 |
| Base Number | 7010 |
| Industry Terms | Spindle bearing; machine tool bearing; precision angular contact bearing; super precision bearing |
| Common Misspellings | 7010ACDGA P4A; 7010 ACGDA/P4A; SKF 7010ACD GA P4A; 7010-ACDGAP4A |
| Application Types | Machine tool spindles; grinding heads; milling spindles; precision gearboxes |
| Overall Width | 16 mm |
| Bore Shaft Size | 50 mm |
| Mpn Variants | 7010 ACDGA/P4A; 7010-ACDGA/P4A; 7010ACDGAP4A; 7010ACDP4ADGA; 7010 ACD/P4A DGA; 7010-ACD-P4A-DGA; 7010A5 |
| Precision Class | ABEC 7 / P4 |
| Min Temp | -30 °C |
| Cage Type | Machined, outer-ring guided |
| Rolling Elements | Balls |
| Max Temp | 100 °C |
| Item Weight | 0.251 kg |
| Cage Material | Phenolic (fabric-base laminate) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 25° |
| Part Number | 7010 ACDGA/P4A |
| Cross Reference 1 | FAG B7010-E-T-P4S-UL - light preload |
|---|---|
| Cross Reference 2 | Fafnir 3MM9110WI DUL - duplex pair, light preload |
| Cross Reference 3 | SKF 7010 CDGA/P4A (related, 15° contact angle) |
| Cross Reference 4 | SKF 7010 ACDGB/P4A - light preload |
| Cross Reference 5 | SKF 7010 ACDGC/P4A - medium preload |

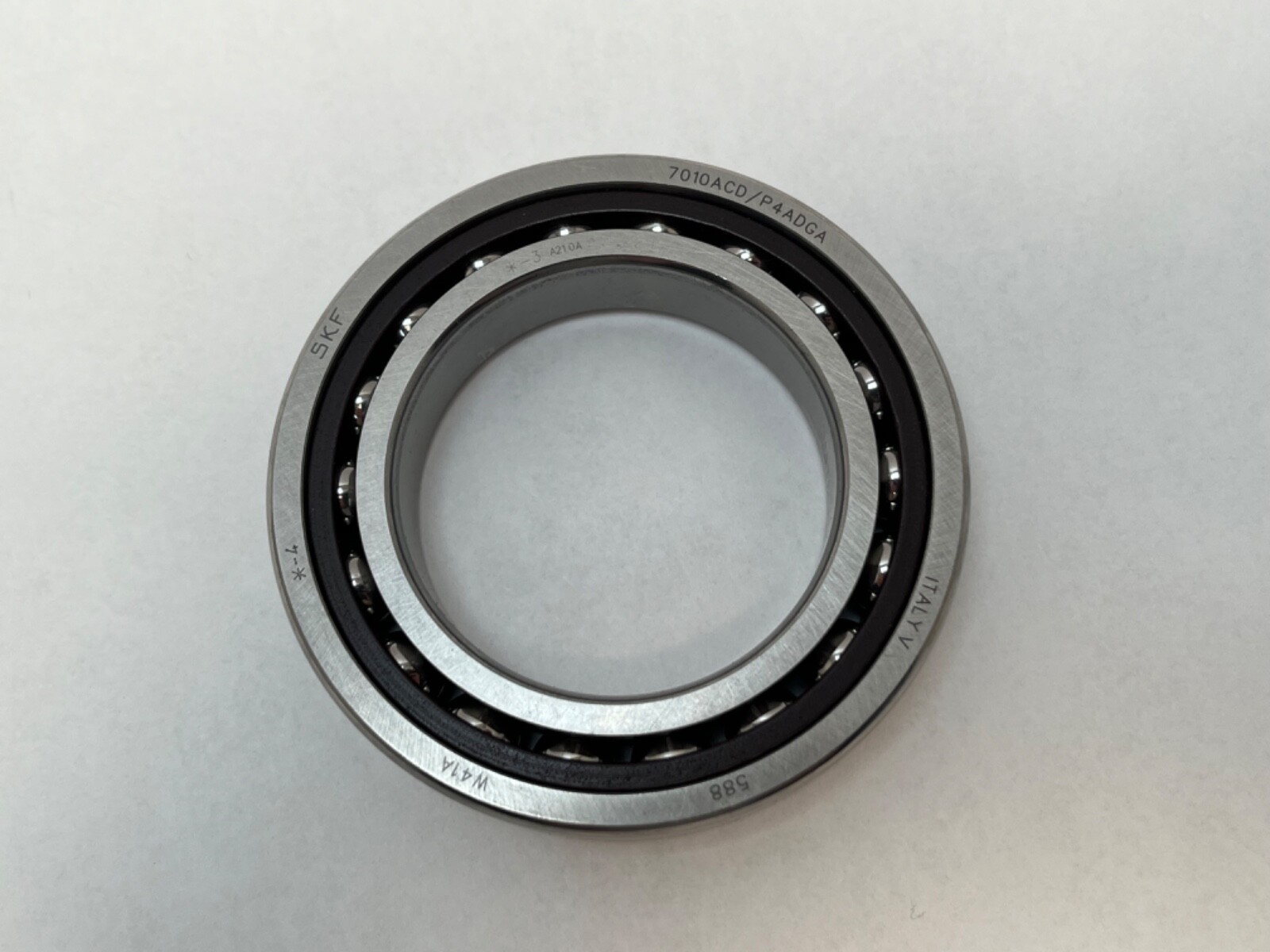

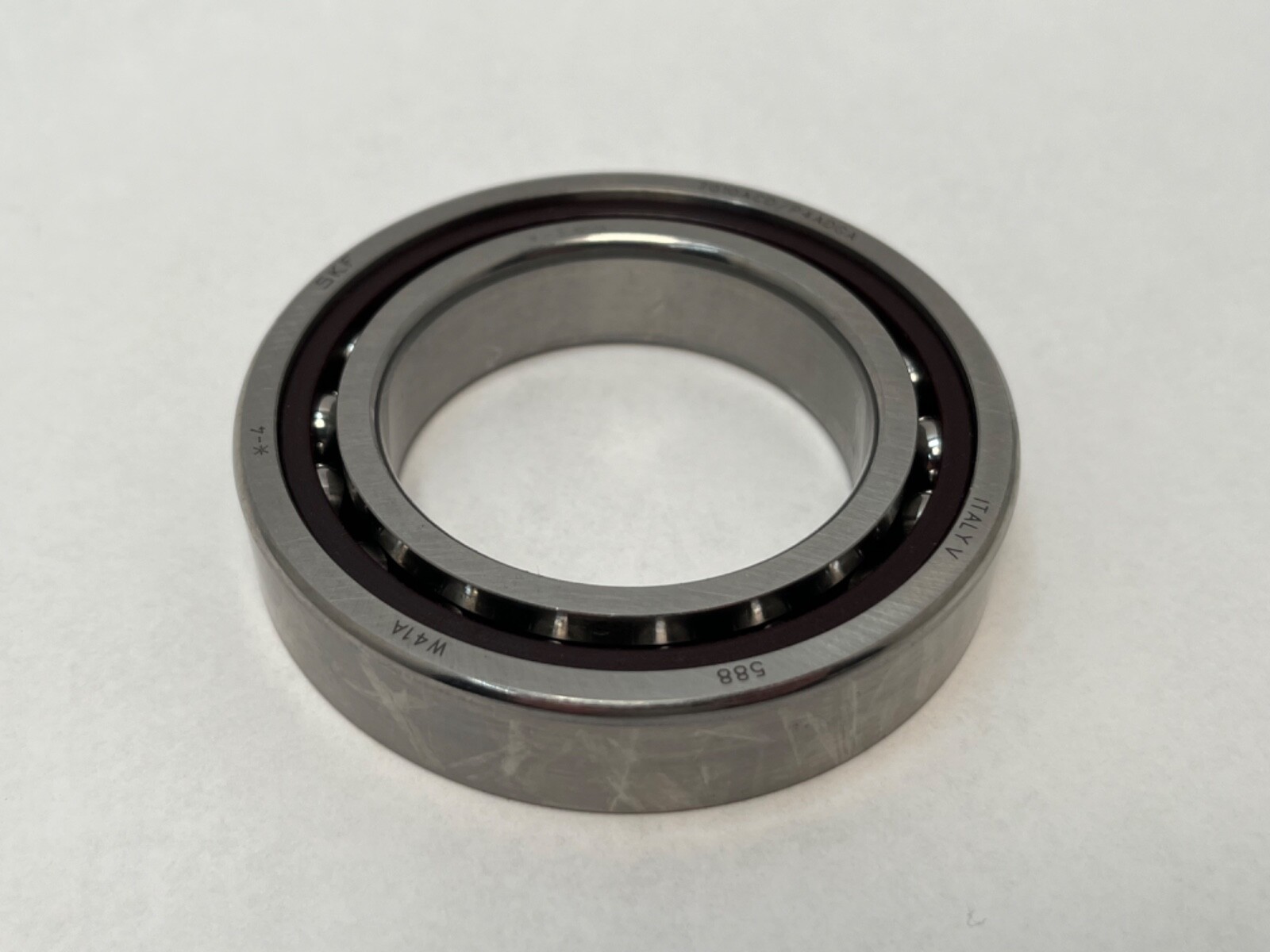

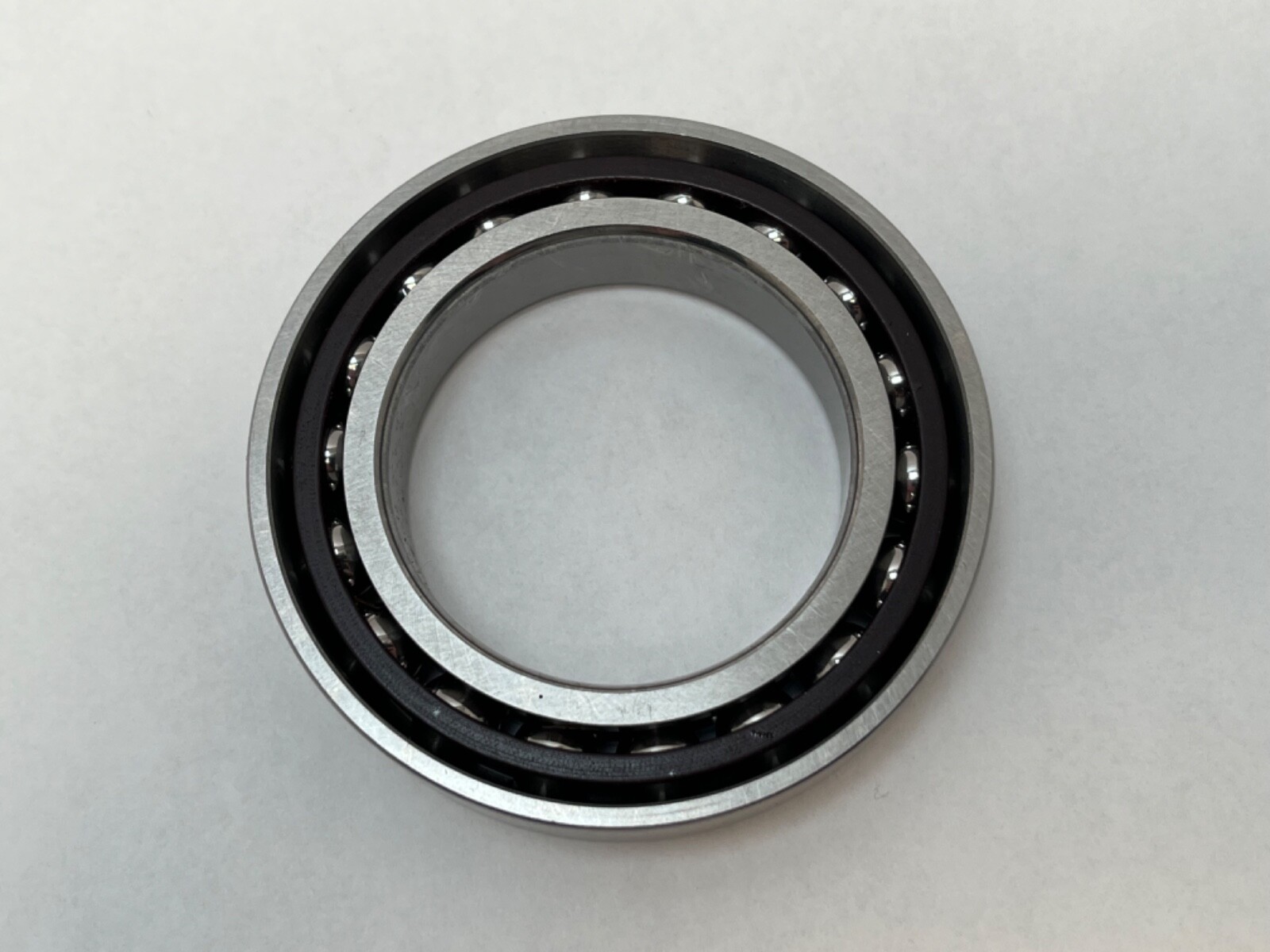

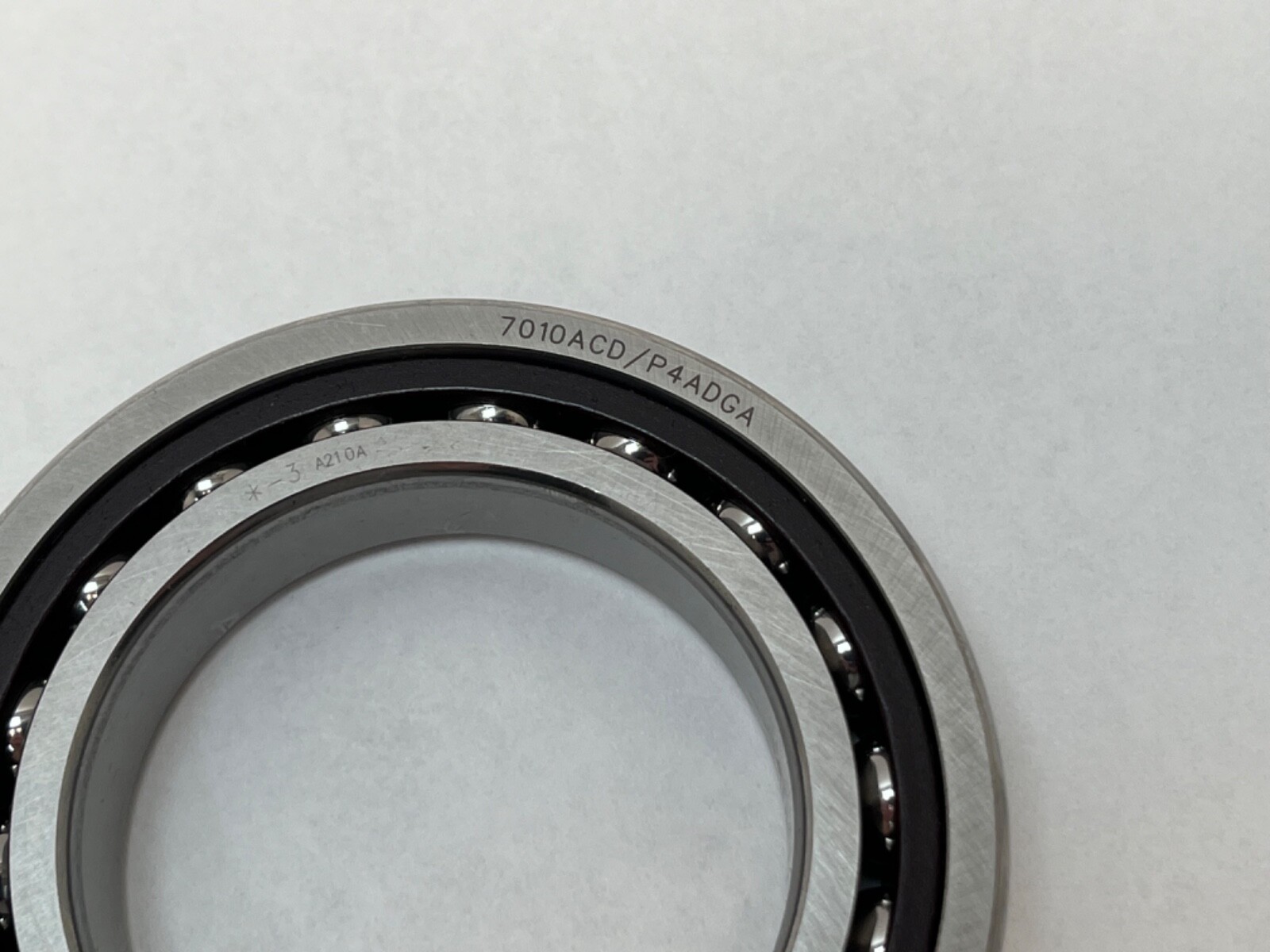

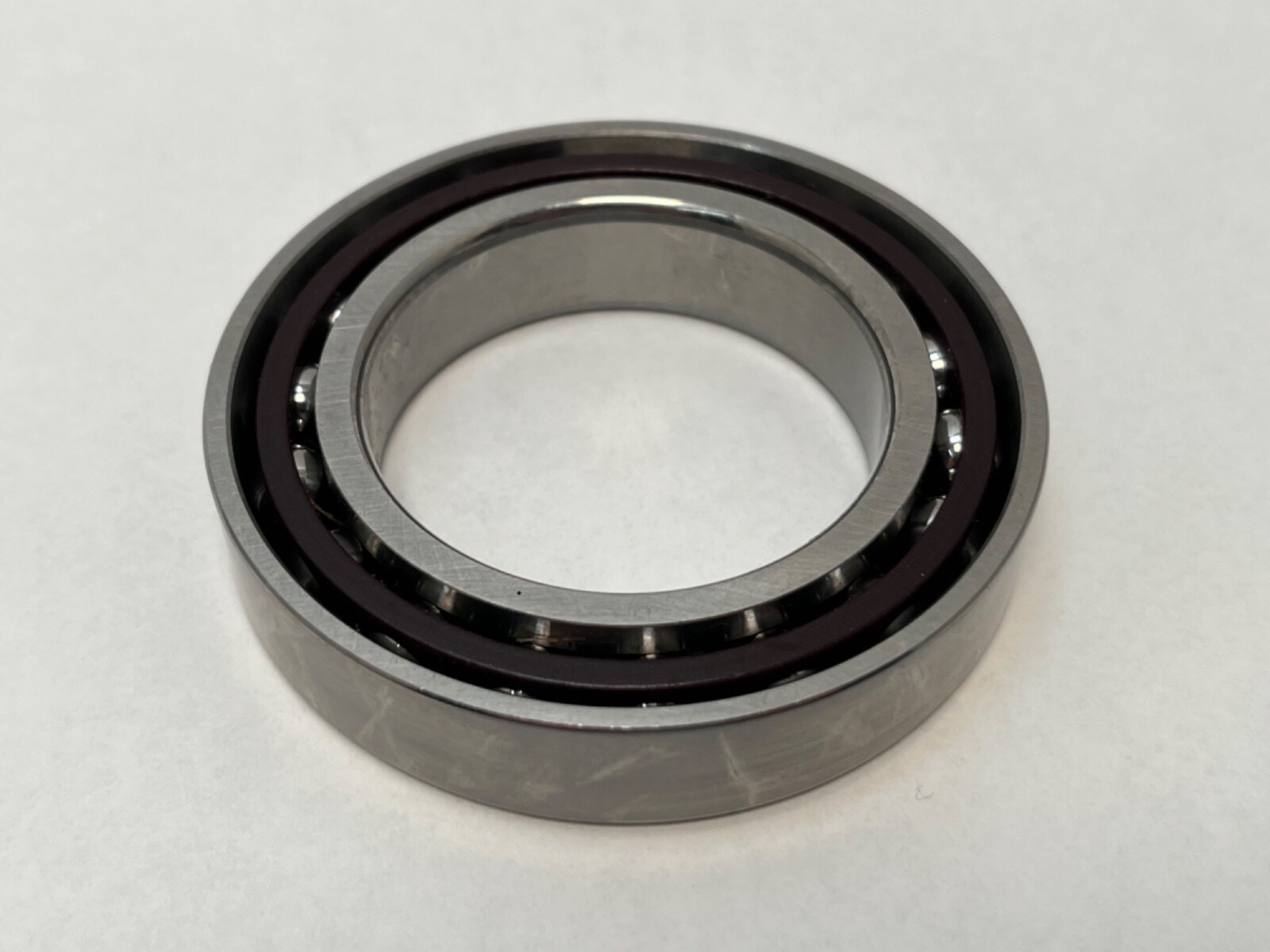

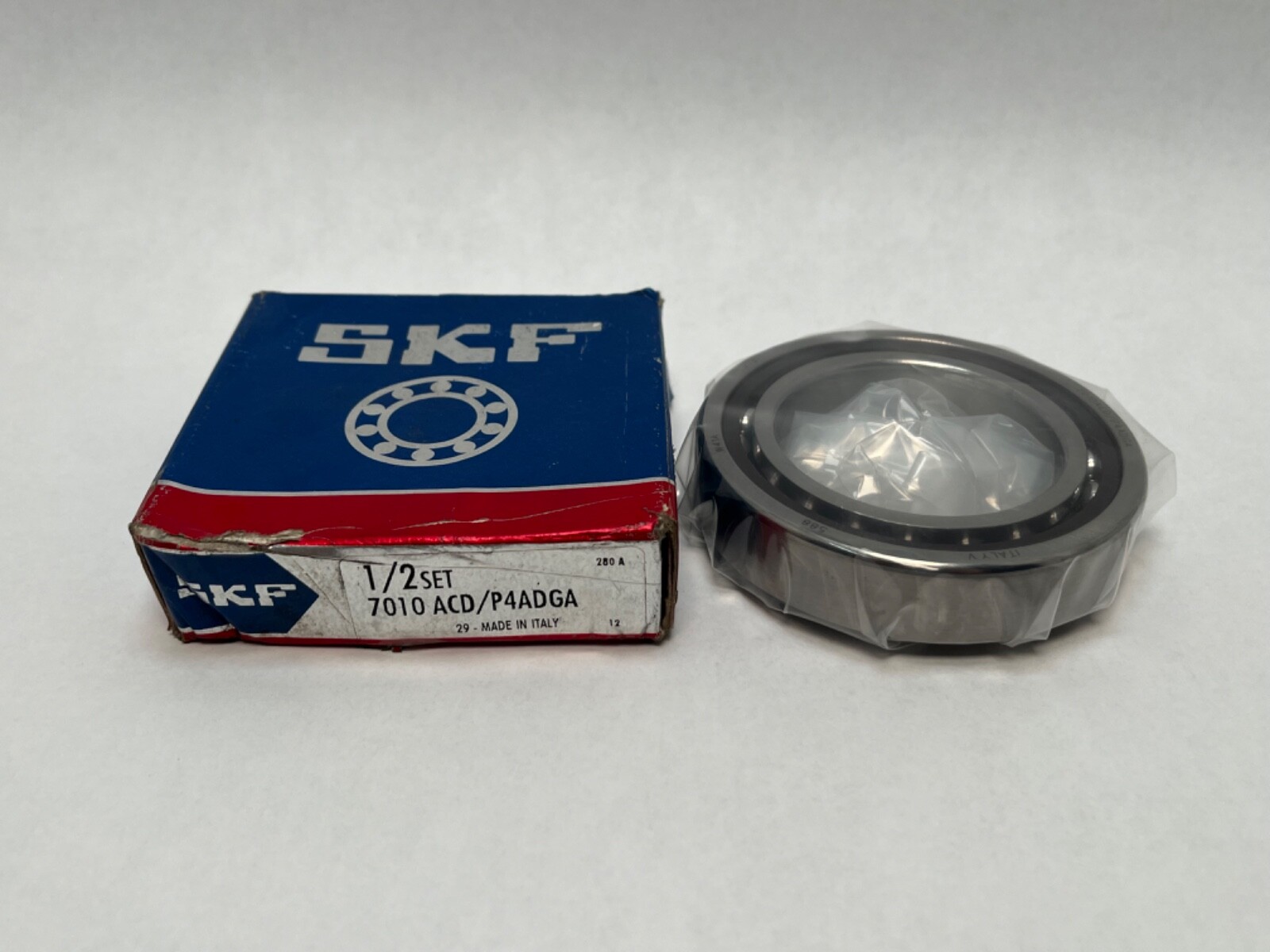

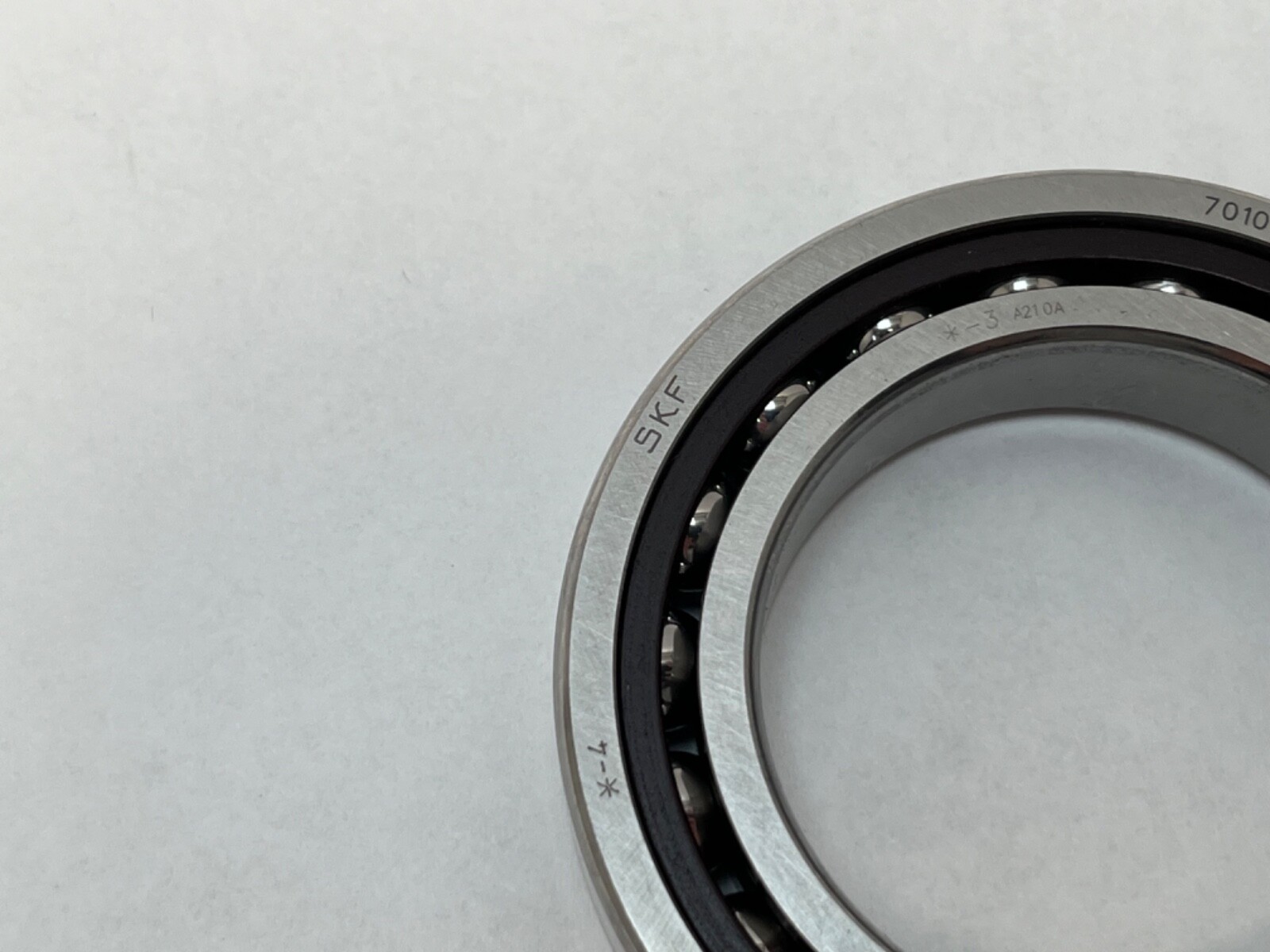

SKF 7010 ACDGA/P4A super-precision angular contact ball bearing. Bore Diameter: 50 mm. Outside Diameter: 80 mm. Width: 16 mm. Series: 7000, light section. Base Number: 7010. Single row, open, bearing steel rings and balls. Contact Angle: 25°. Cage: machined fabric-base laminate phenolic, outer-ring guided. Preload: extra light. Precision Class: ISO P4 / ABEC 7. Mass: 0.251 kg. GTIN: 7316570650259.
7010 — SKF 7000 series, light section, 50 mm bore.
ACD — 25° contact angle with a machined phenolic cage, outer-ring guided.
GA — extra light preload (GB light, GC medium).
P4A — ISO P4 / ABEC 7 precision, universally matchable so any two pieces pair up in any orientation.
Dynamic Load Rating: 26.6 kN. Static Load Rating: 22.8 kN. Limiting Speed: 18,000 rpm. Operating Temperature: –30 to +100 °C. Number Of Rows: 1. Seal Type: Open. Bore Type: Straight. Condition: New – Open box.
50 x 80 x 16 mm. A 25° contact angle carries more thrust and less speed than a 15° bearing of the same envelope, which suits spindles with substantial axial cutting load. Extra light preload is ground into the ring faces, so a pair set up solid carries its preload without shims or spacers.
Equivalents at the same envelope and angle: Fafnir 3MM9110WI-DUL, GMN S6010 E TA A7, FAG B7010-E-T-P4S-UL. The 7010 CDGA/P4A is a related size at 15°. The 7010 ACDGB/P4A and 7010 ACDGC/P4A are the same envelope at light and medium preload.
25°, from the ACD position of the designation.
Extra light, from the GA position.
ISO P4 / ABEC 7, from P4A.
