Availability:
1 in stock

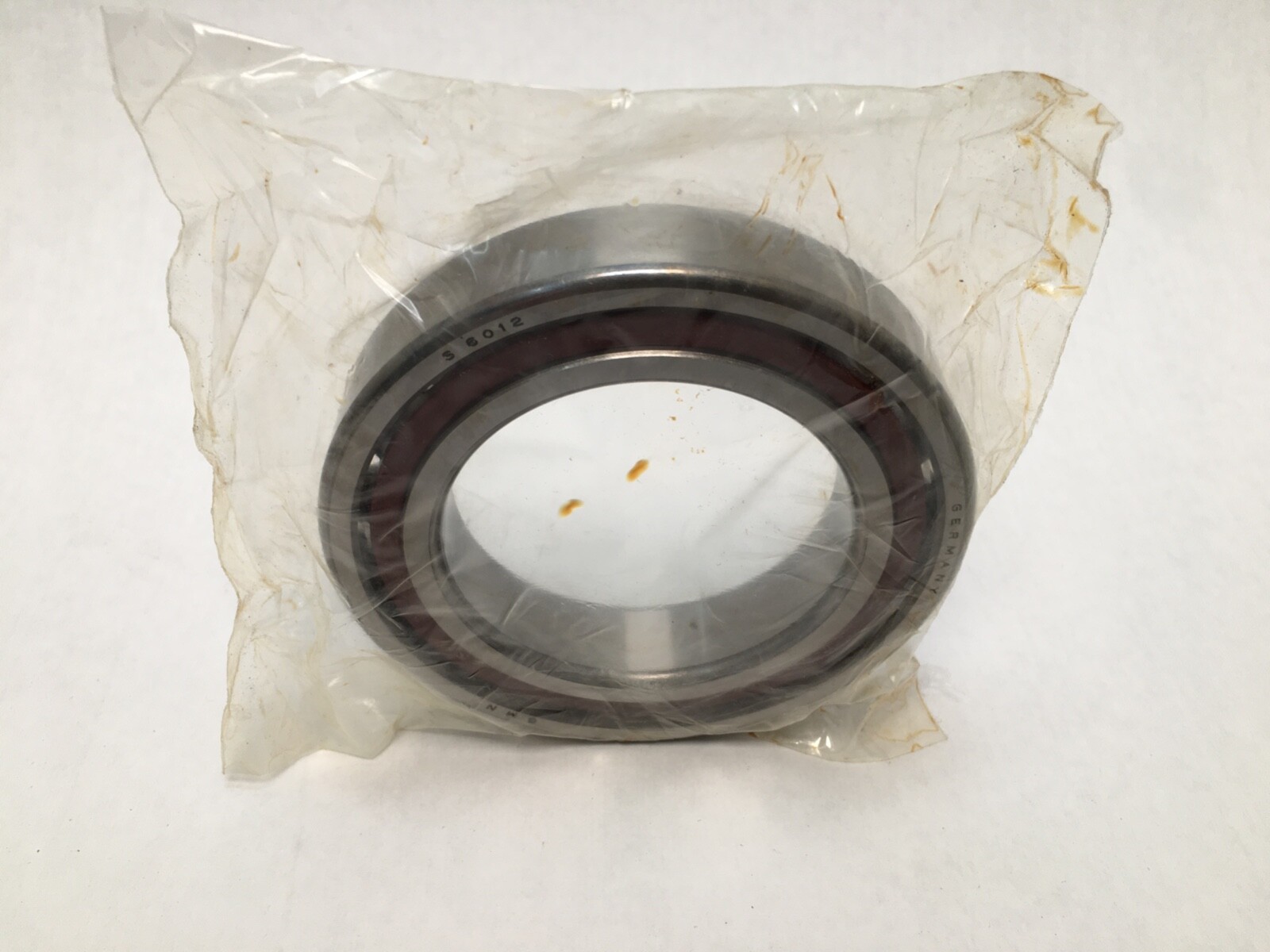

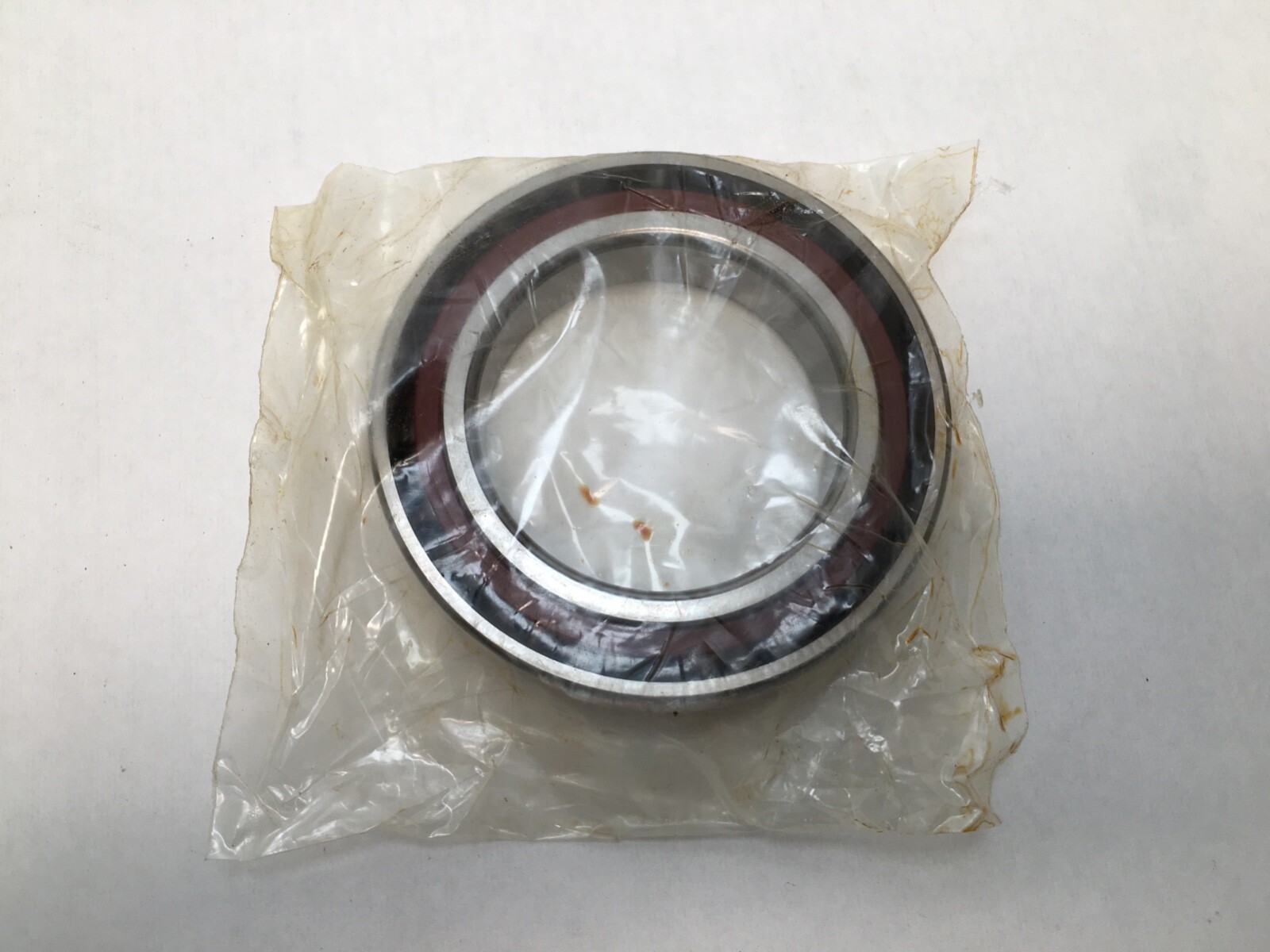

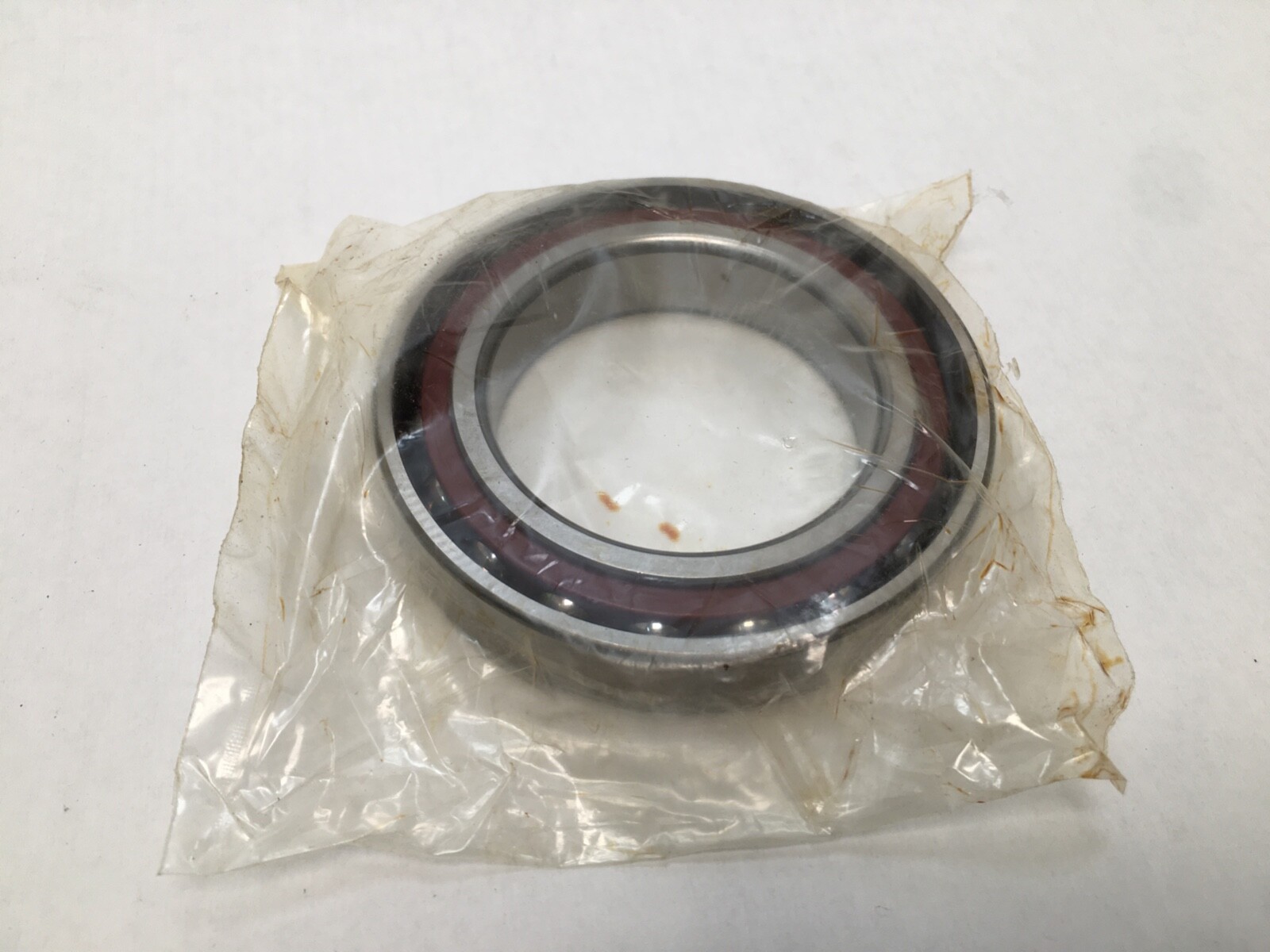

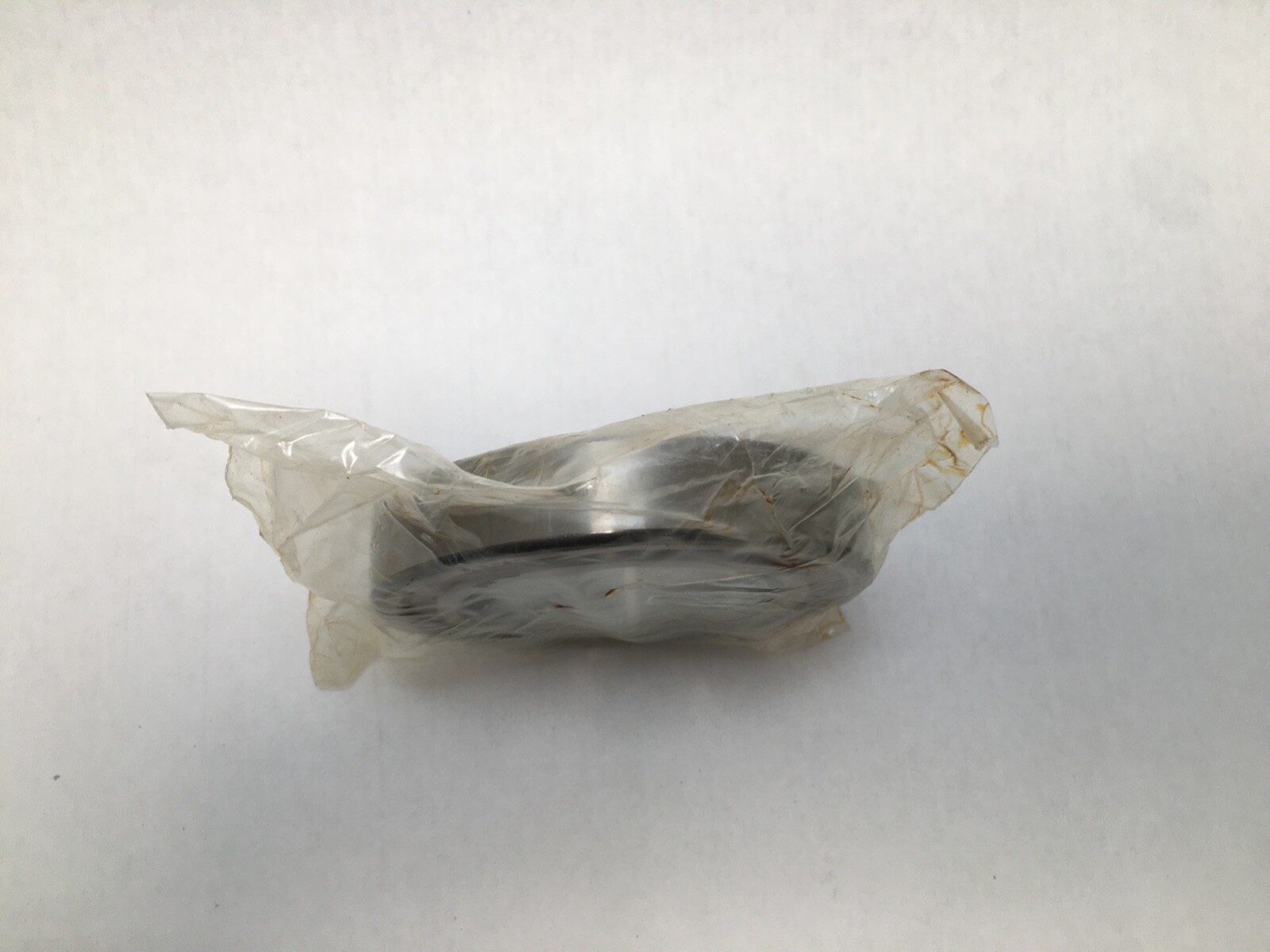

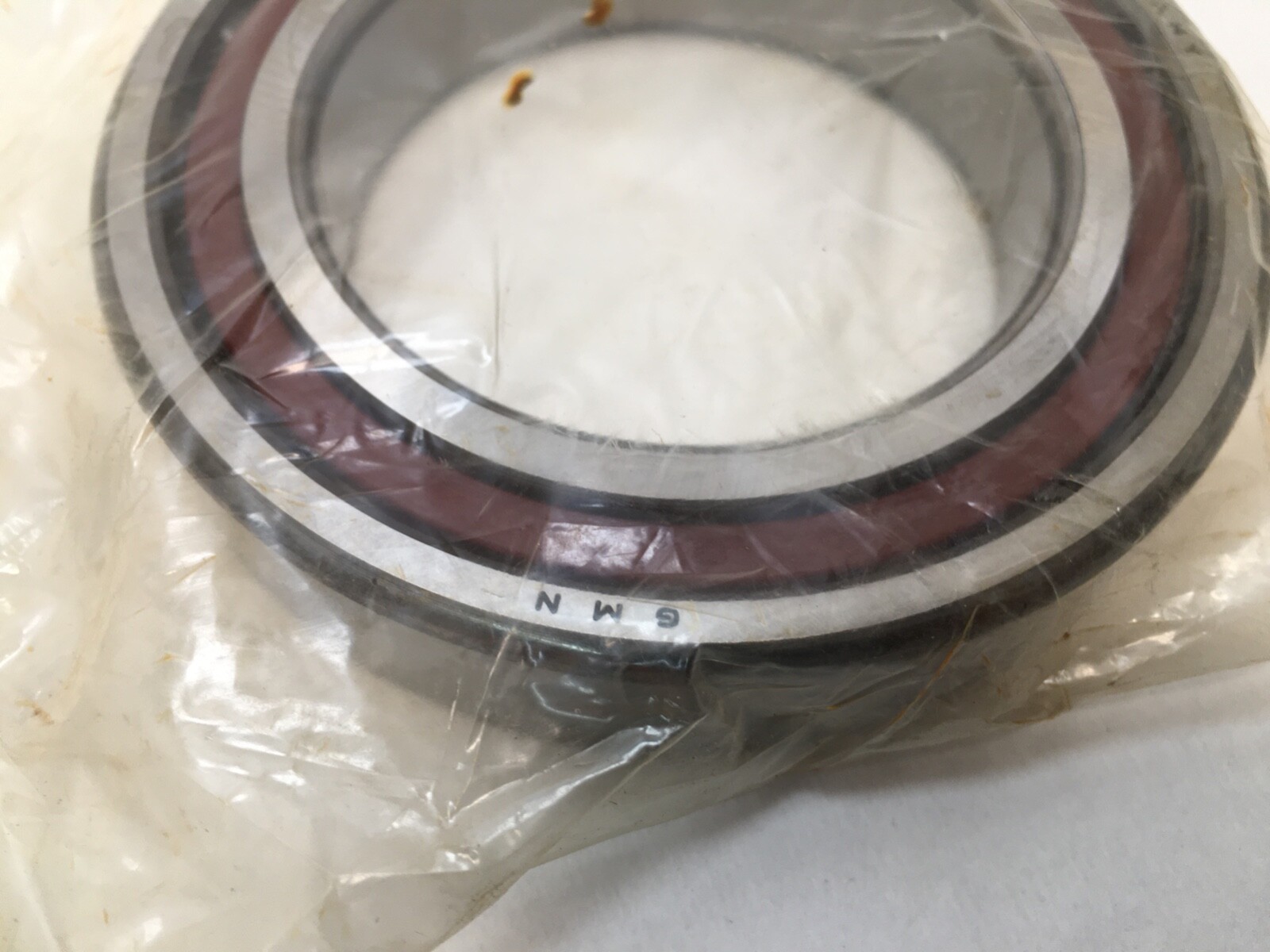

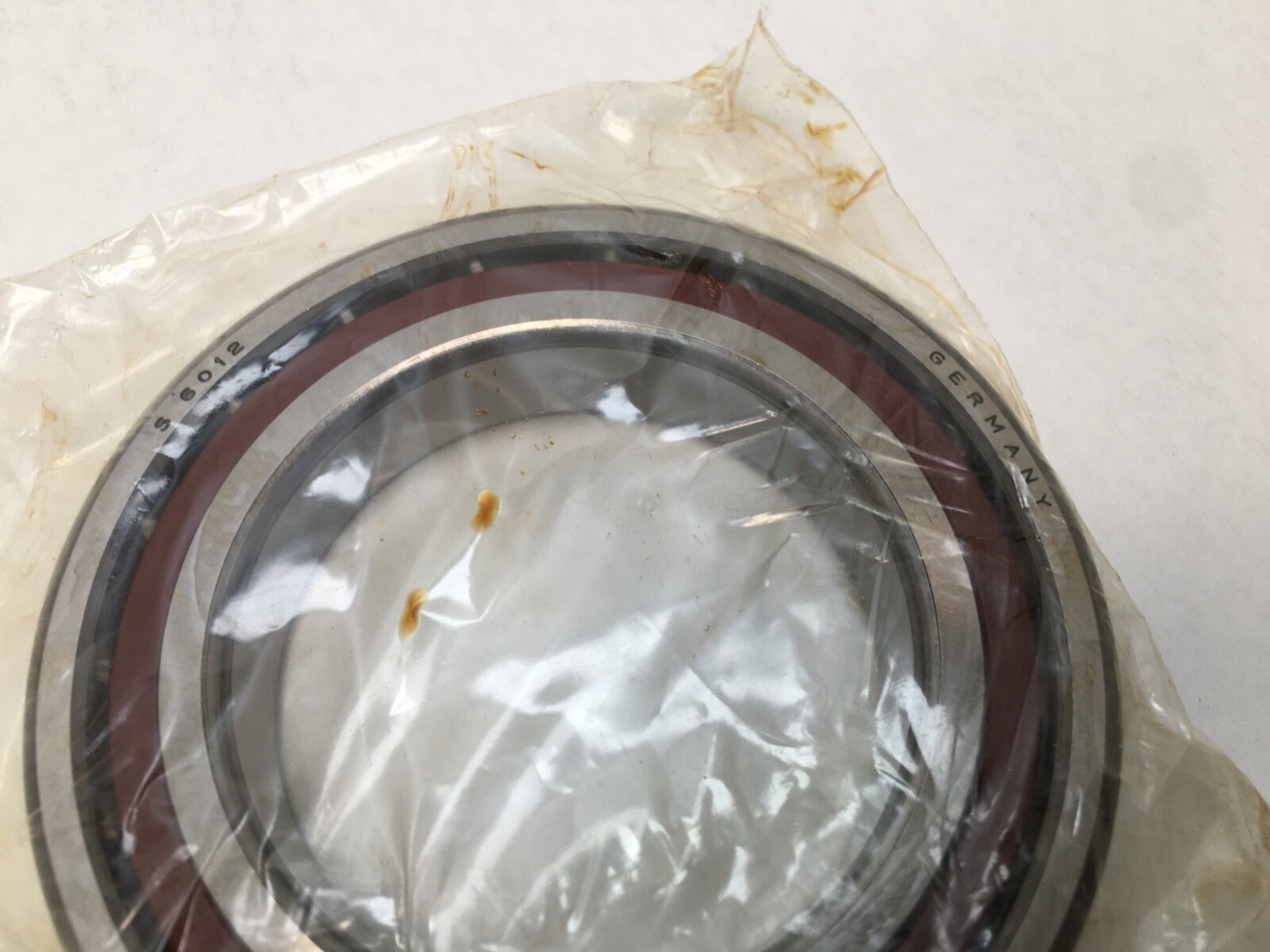

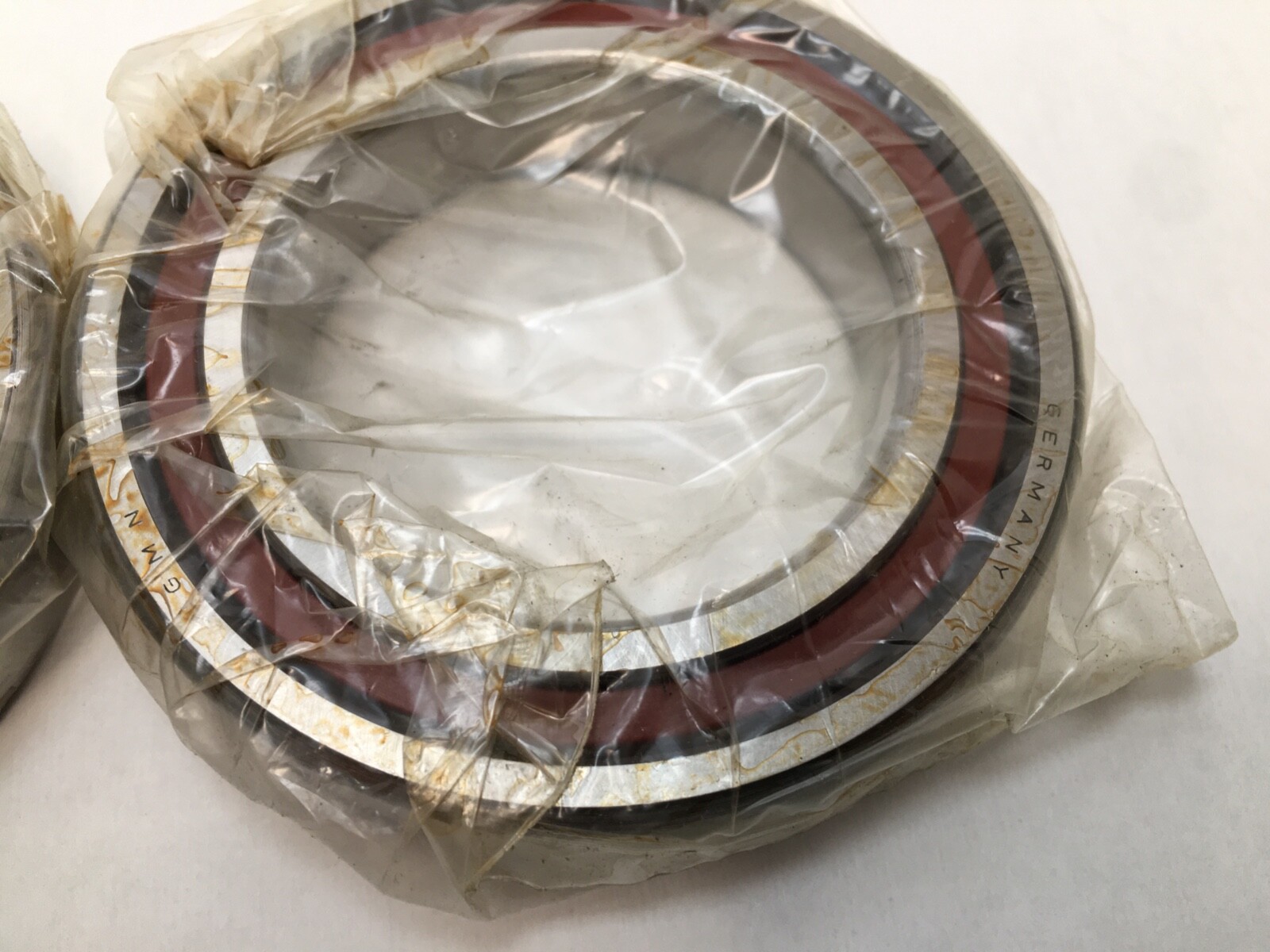

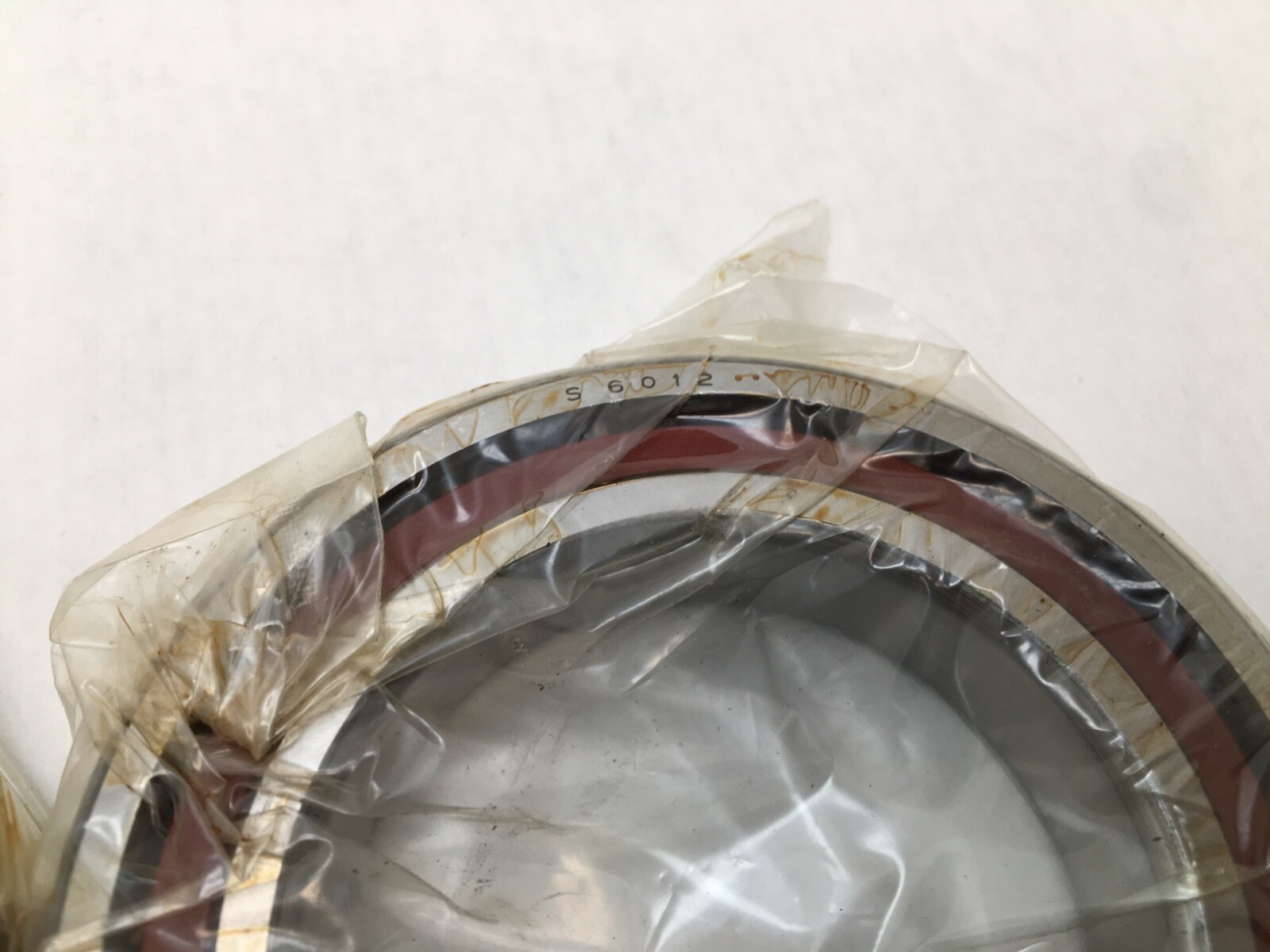

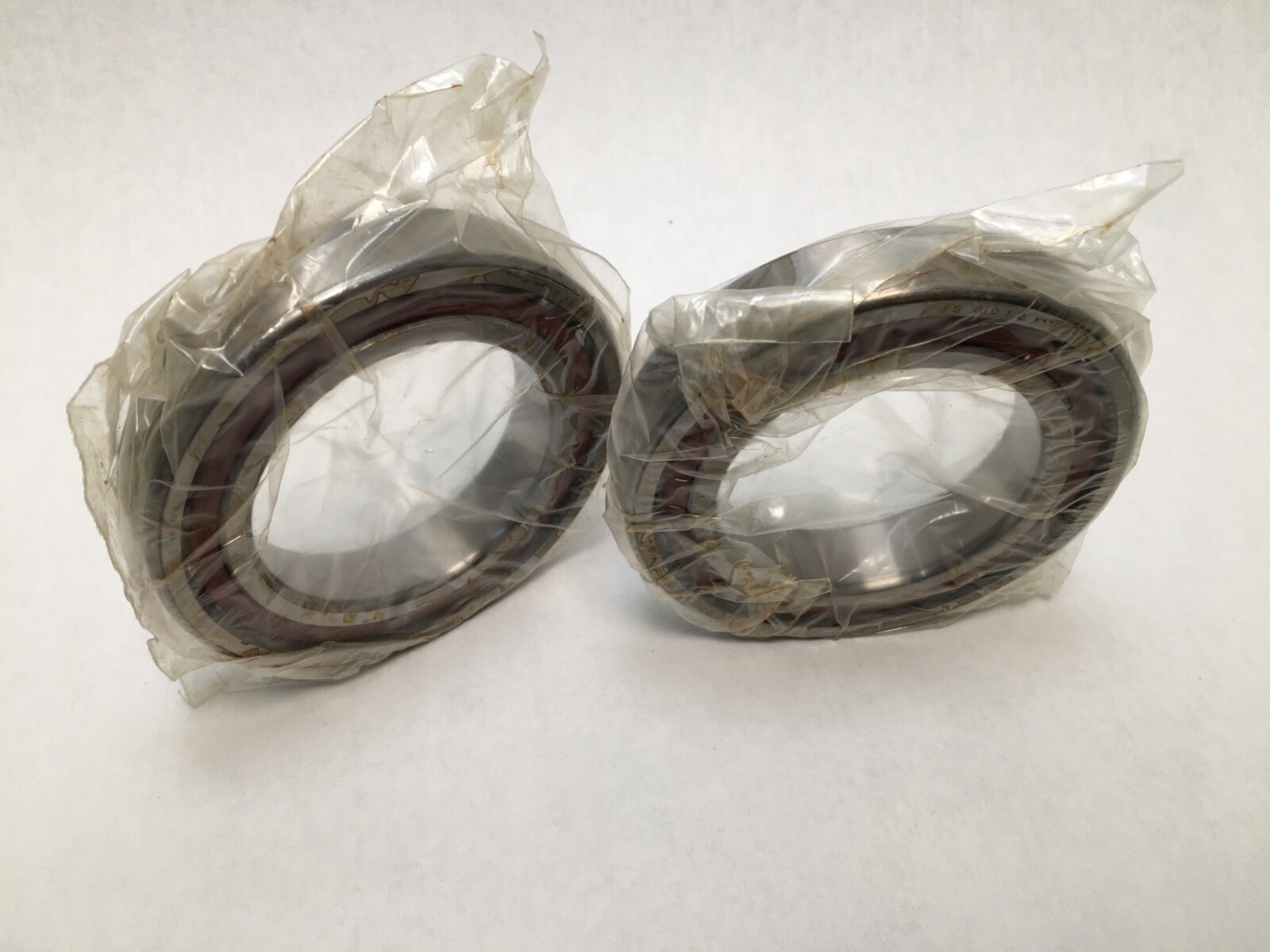

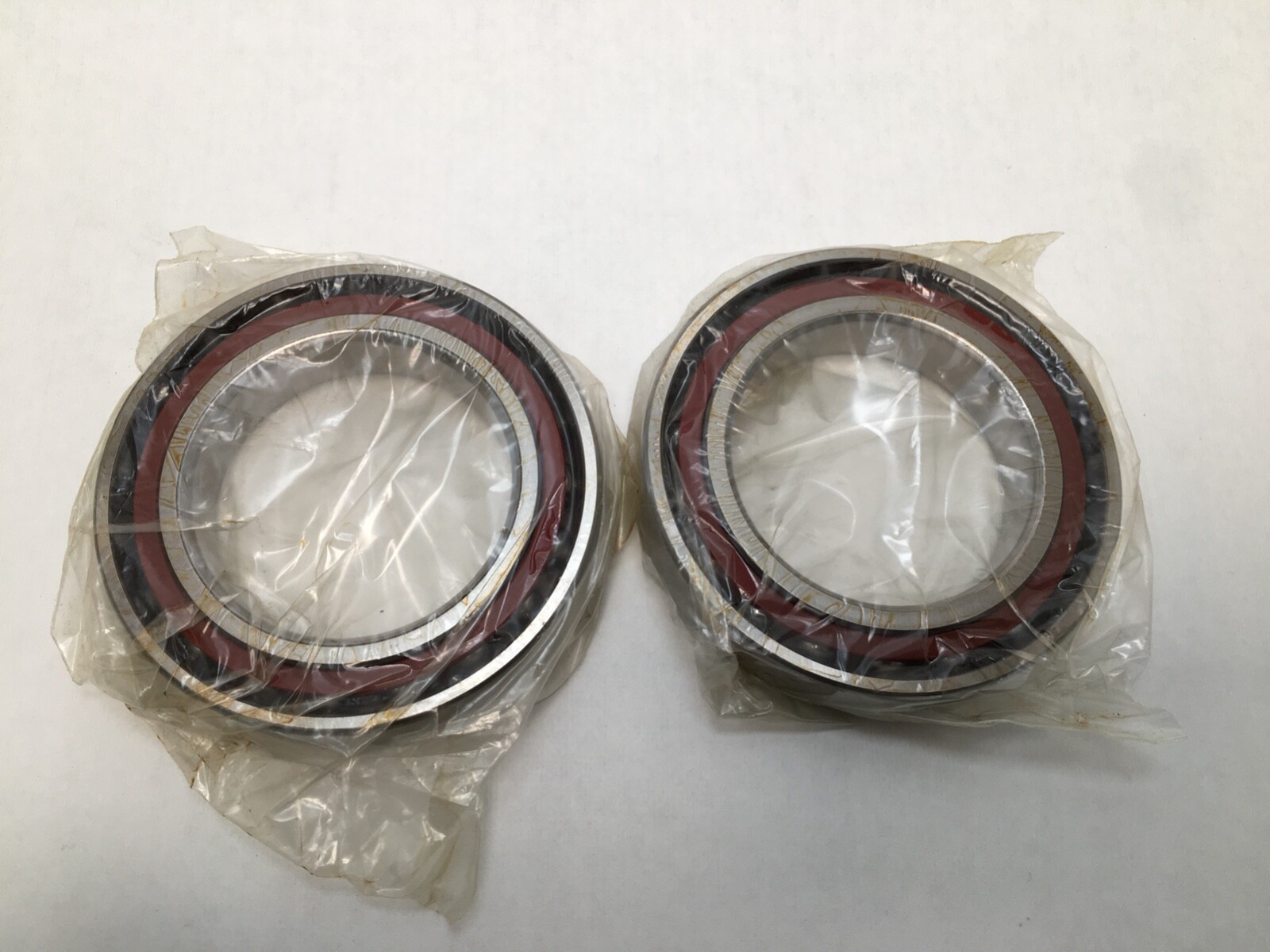

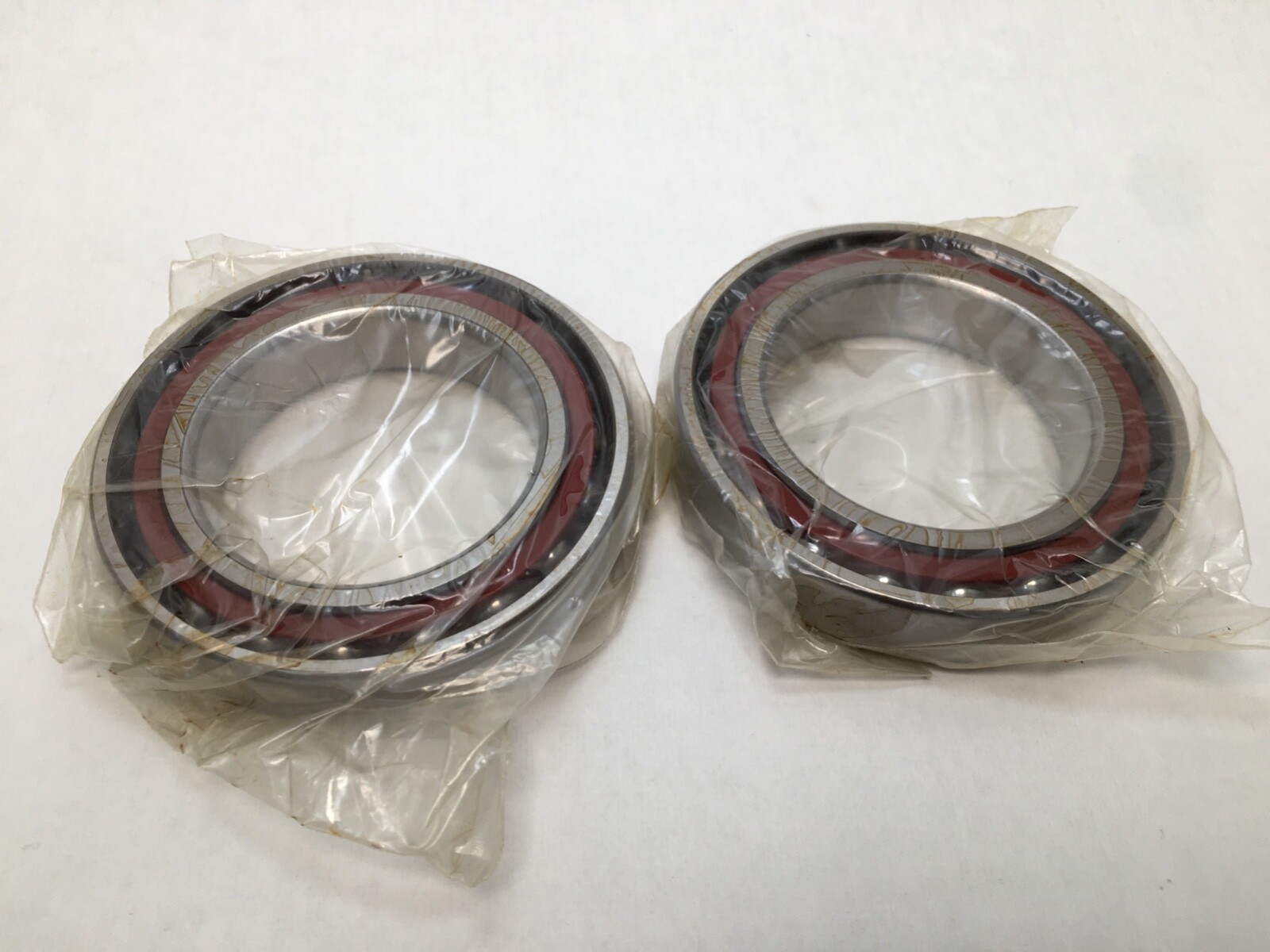

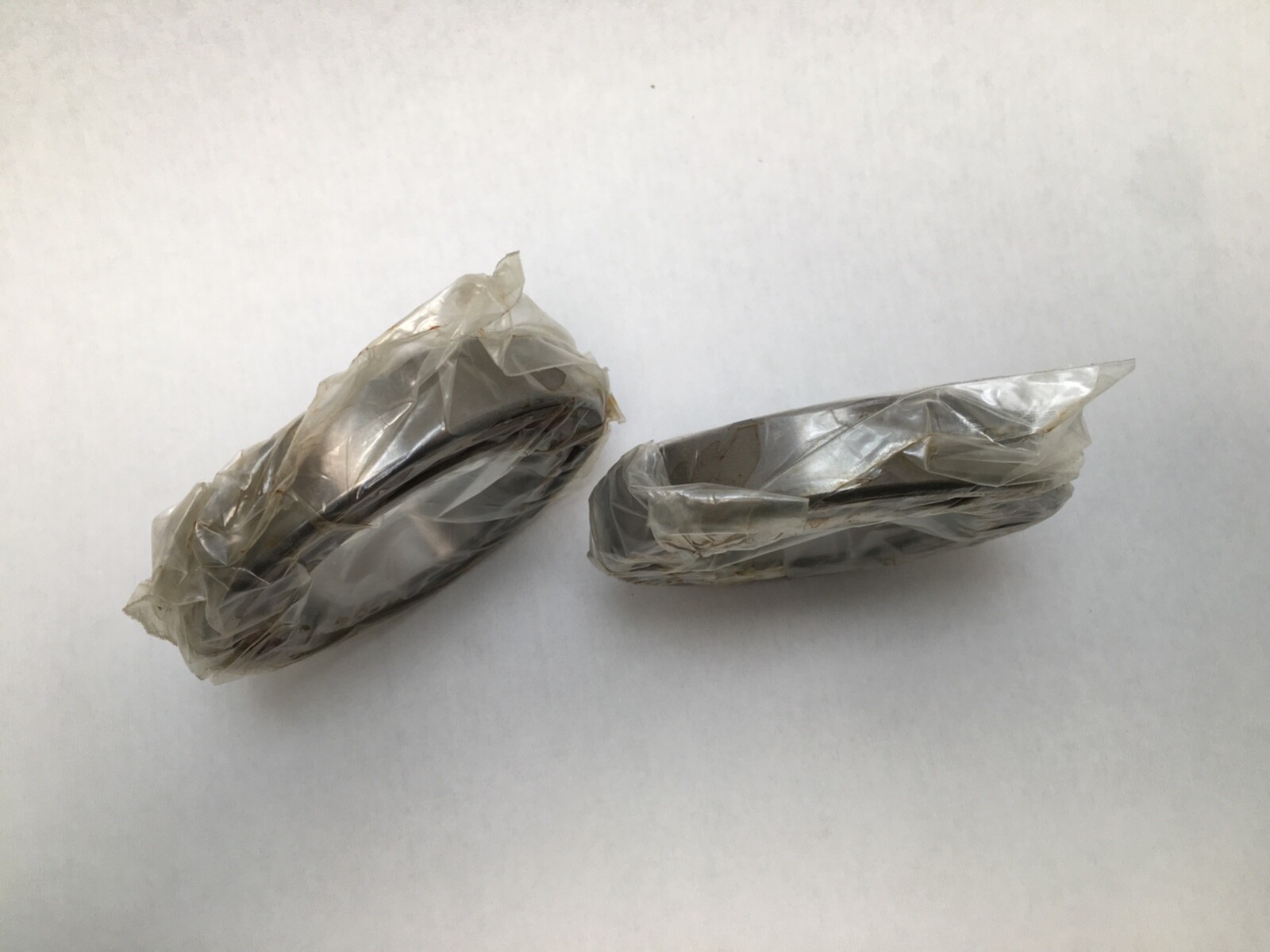

GMN S 6012 C TB HG DUL spindle angular contact bearings, 60 x 95 x 18 mm, 15°, HG precision, universal light-preload duplex set of two. 34 kN each.
List Price
$263.84
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GMN |
|---|---|
| MPN | S6012CTBHG |
| Model | S 6012 C TB HG DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 95 mm |
| Width | 18 mm |
| Series | S6000 |
|---|---|
| Preload | Light (UL) |
| Dynamic Load Rating | 34,000 N |
| Static Load Rating | 32,500 N |
| Rolling Elements | Ball |
| Item Weight | 0.406 kg (0.90 lb) per bearing |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal duplex set (DUL), any pairing |
| Base Number | S6012 |
| Industry Terms | spindle bearing, super precision angular contact bearing, matched pair, duplex bearing set |
| Common Misspellings | S6012CTB, S612CTBHG, GMN 6012CTBHG |
| Application Types | machine tool spindles, grinding spindles, milling spindles, high-speed motor spindles |
| Overall Width | 18 mm |
| Mpn Variants | S6012CTBHG, S 6012 C TB HG DUL, S6012CTBHGDUL, S6012CTBHGDUL150N, S6012C, 7012C |
| Precision Class | HG (GMN high precision) |
| Cross Reference 1 | FAG B7012-C-T-P4S-DUL |
|---|---|
| Cross Reference 2 | Fafnir 2MM9112WICRDUL |
| Cross Reference 3 | NSK 7012CTRDULP3 - P3 class |
| Cross Reference 4 | SKF 7012 CD/P4ADGA - extra light preload |
GMN S 6012 C TB HG DUL high-precision spindle angular contact ball bearings, S series, supplied as a universally matched duplex set with light preload. Bore Diameter: 60 mm. Outside Diameter: 95 mm. Overall Width: 18 mm per bearing. Contact Angle: 15°. Precision Class: HG (GMN high precision). Preload: Light (UL). Rolling Elements: Ball. Number Of Rows: 1. Closure Type: Open. Series: S6000.
S — GMN standard spindle bearing series, angular contact.
6012 — dimension series and bore, 60 x 95 x 18 mm, the ISO 7012 envelope.
C — 15° nominal contact angle.
HG — GMN high precision tolerance grade per GMN specification.
D — set of two bearings.
UL — universal matching, light preload.
Dynamic Load Rating: 34,000 N per bearing. Static Load Rating: 32,500 N per bearing. Item Weight: 0.406 kg (0.90 lb) per bearing. Ball complement: 22 balls, 9.525 mm. The 15° angle favours speed and radial stiffness in machine tool spindles. Universal matching lets the pair mount back-to-back, face-to-face or in tandem at the light preload.
Minimum chamfer r1,2: 1.1 mm. Minimum chamfer r3,4: 1.0 mm. Fillet ra max: 1.1 mm. Fillet rb max: 0.6 mm. Shaft abutment da min: 67.0 mm. Housing abutment Da max: 88.0 mm.

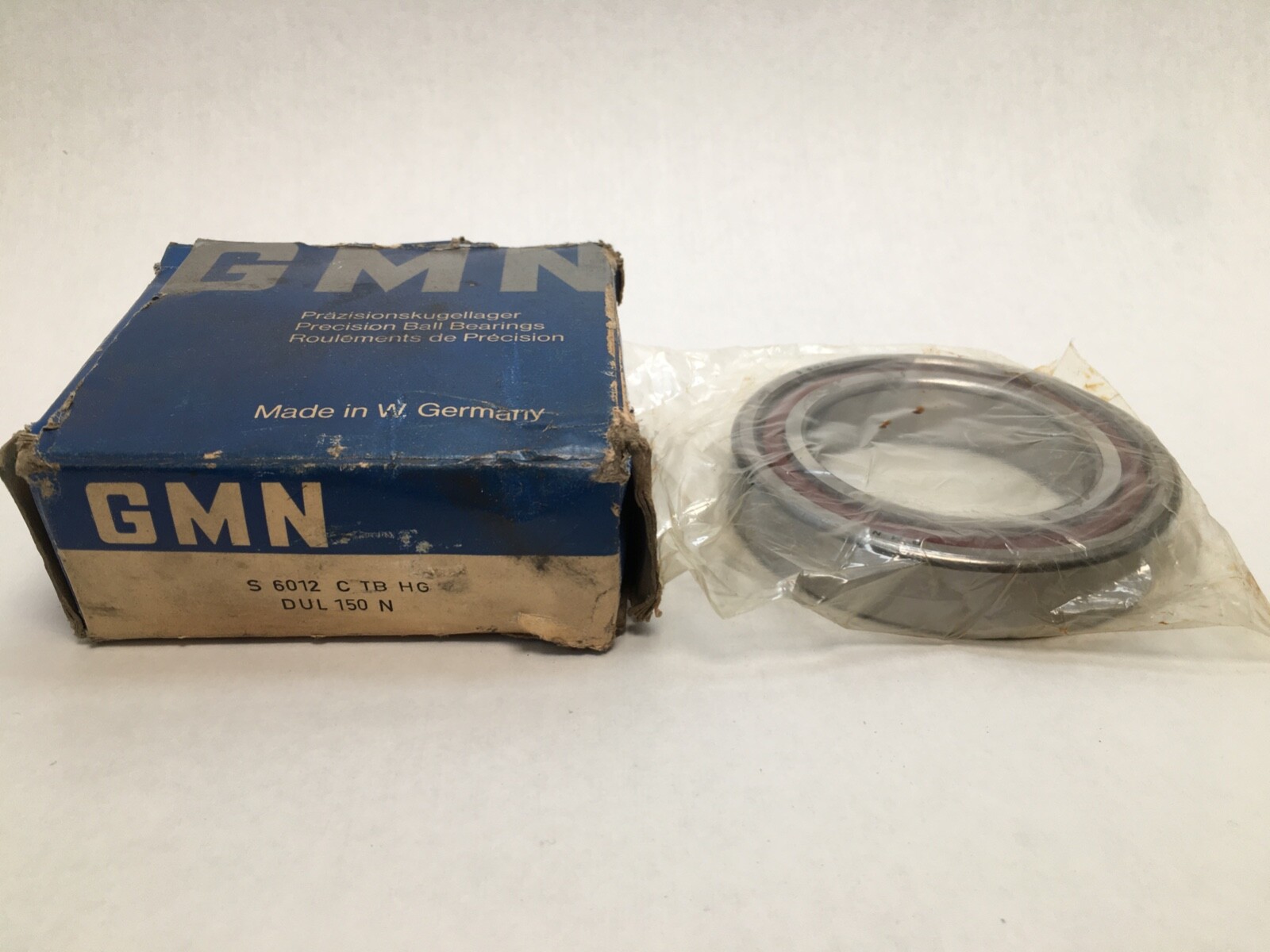

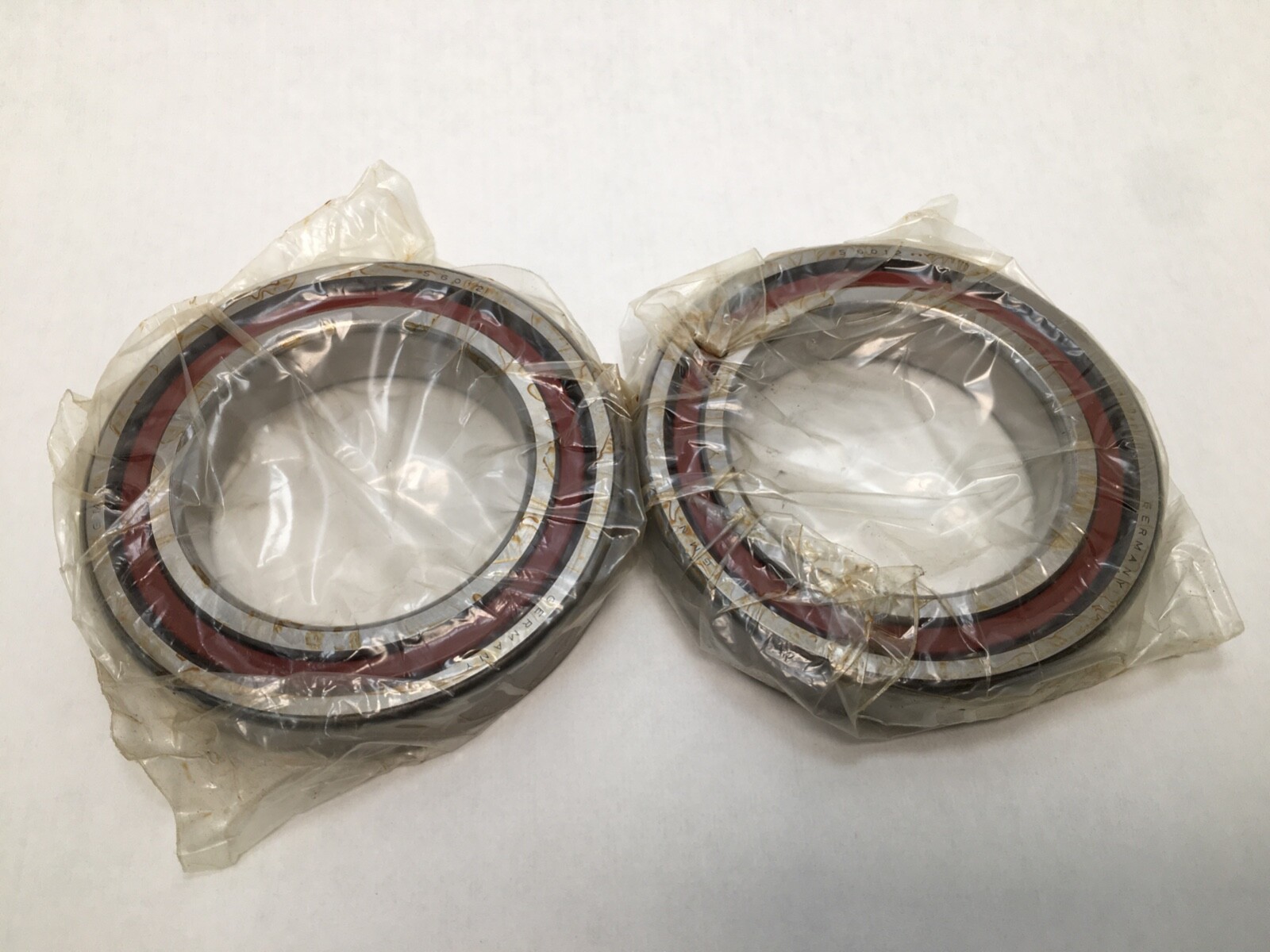

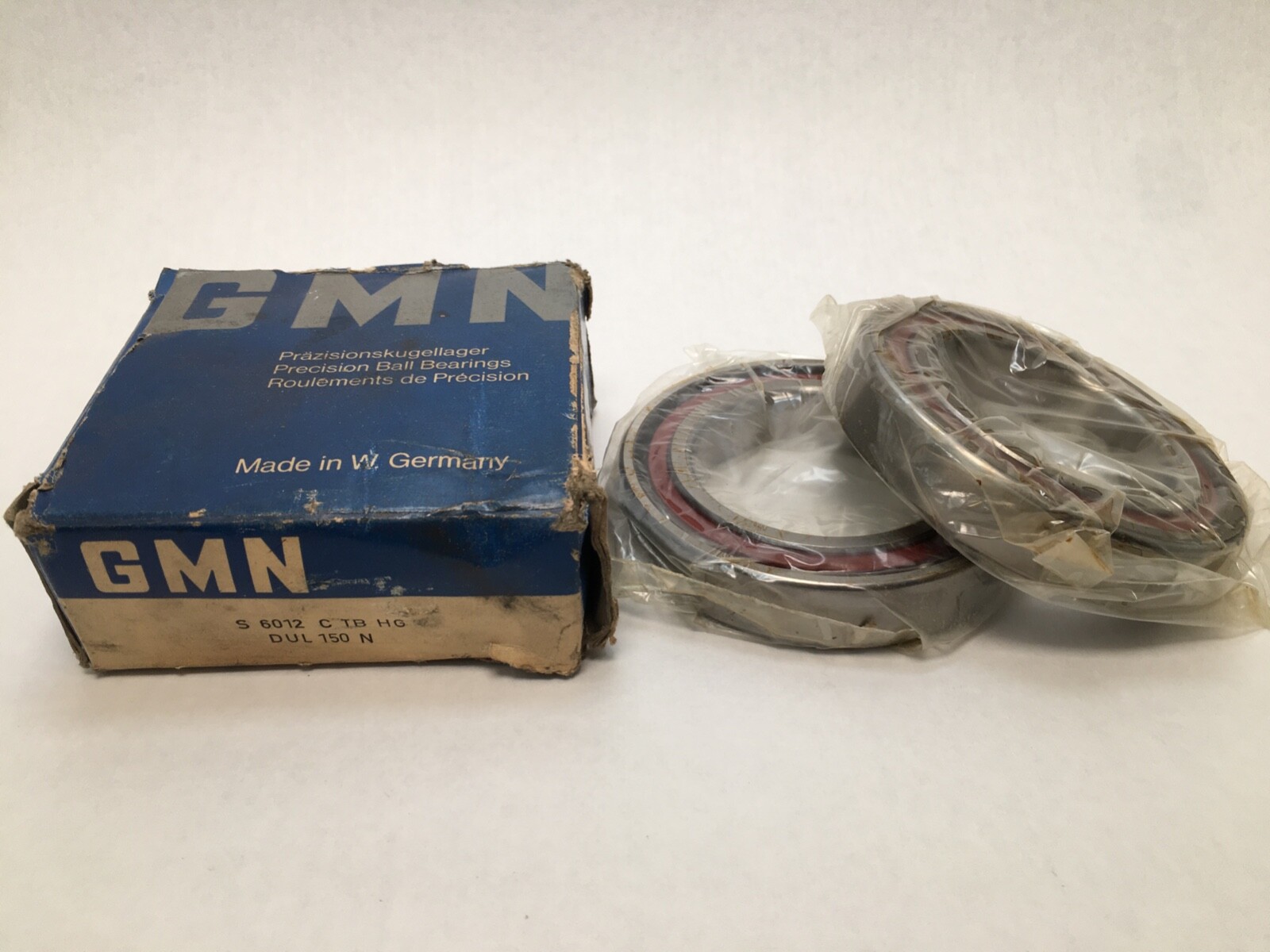

Unit Quantity: 2 Pcs. One universally matched duplex set (DUL). Carton marking 150 N.
Closest in 60 x 95 x 18 mm, 15° angle and universal light-preload pair: FAG B7012-C-T-P4S-DUL and Fafnir 2MM9112WICRDUL. NSK 7012CTRDULP3 is a P3 class execution. SKF 7012 CD/P4ADGA is extra light preload, lighter than DUL. MPN Variants: S6012CTBHG, S 6012 C TB HG DUL, S6012CTBHGDUL150N, 7012C.
