RHP7211ETSULP4Super Precision Angular Contact Ball Bearing – 55 mm Bore, 100 mm OD, 21 mm Width, 25° Contact Angle, ABEC 7 / P4, Phenolic Cage

Product Description

What this part is:

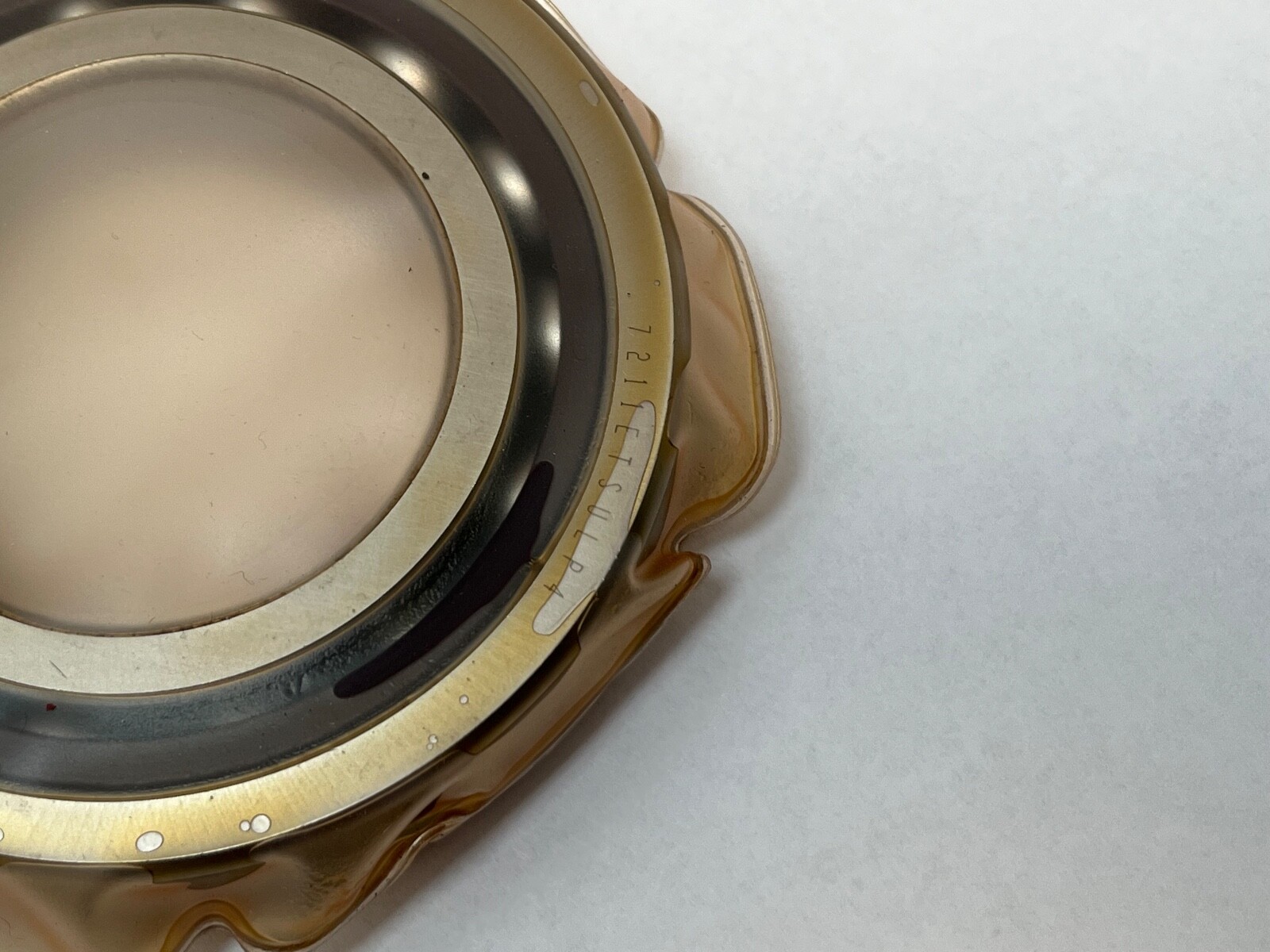

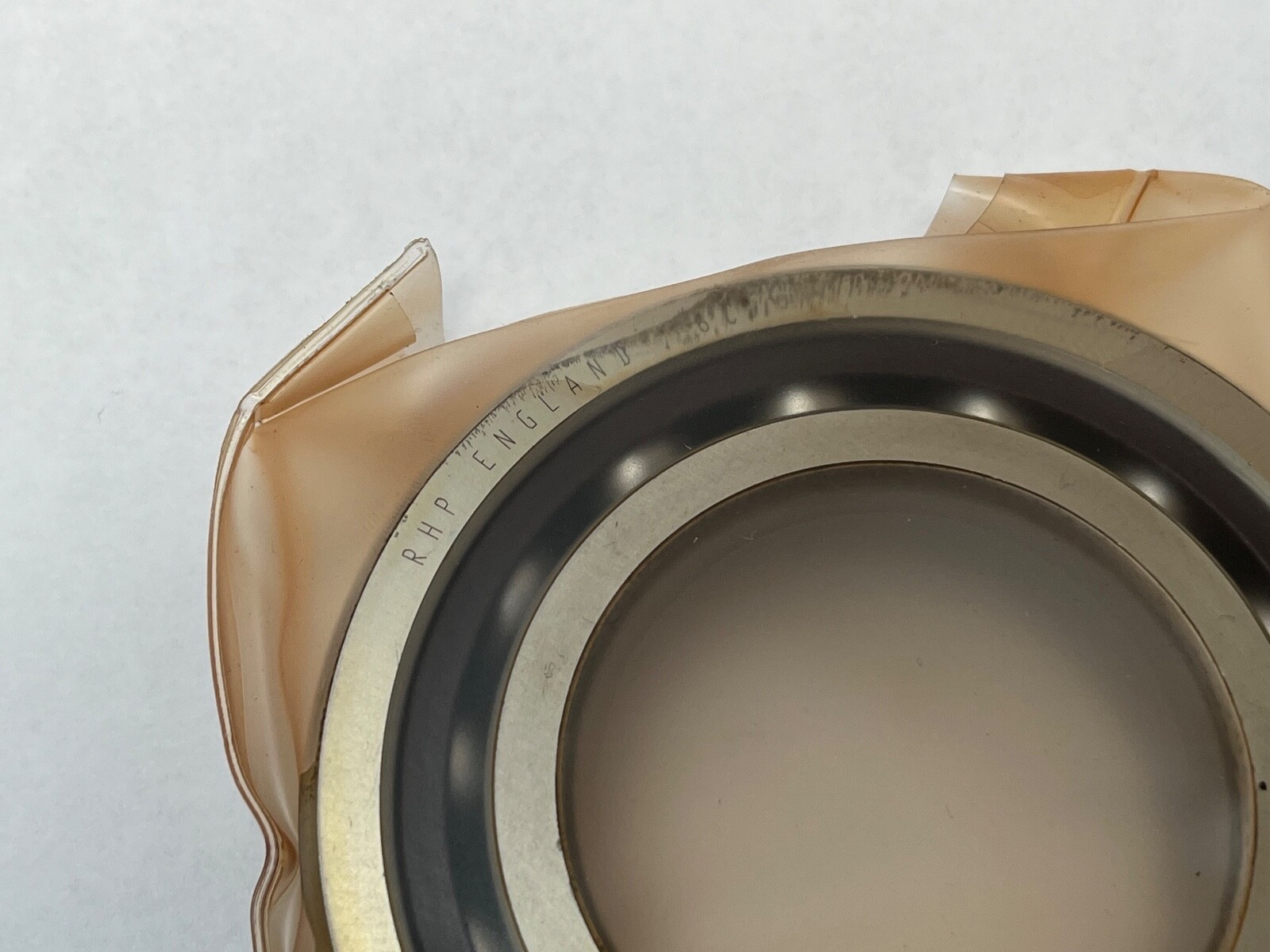

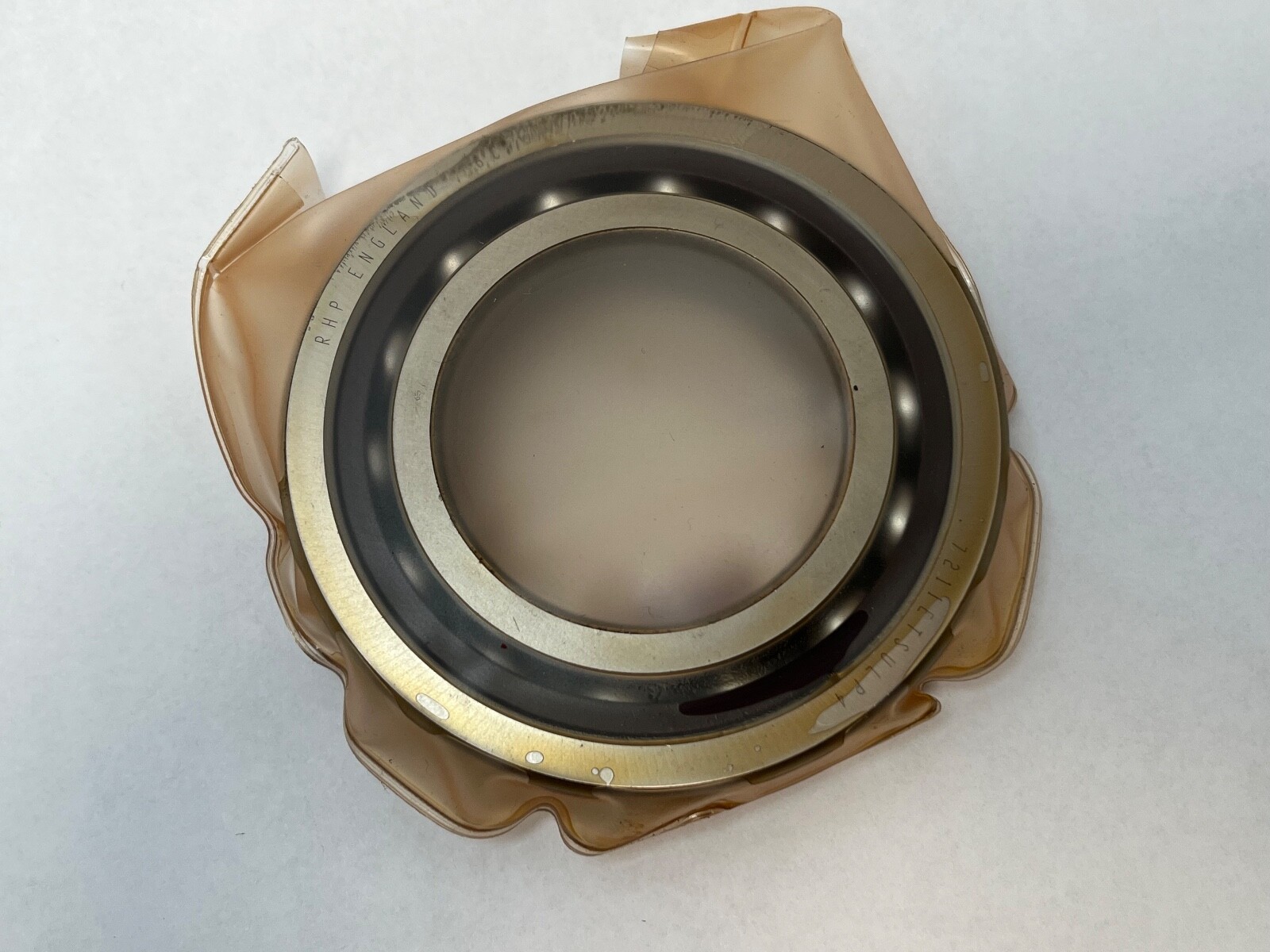

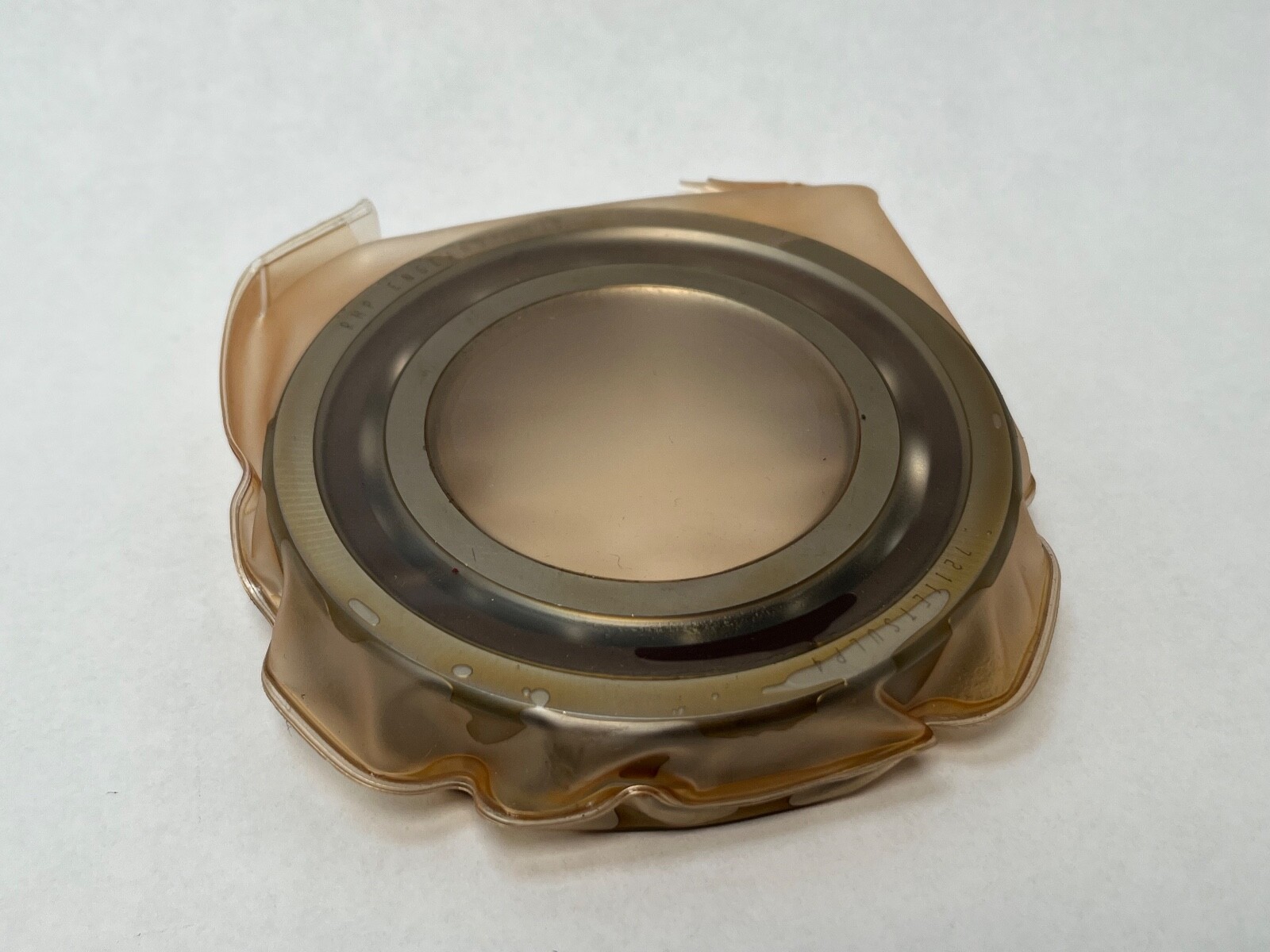

RHP 7211-E-T-SUL-P4 single-row super precision angular contact ball bearing, 55 x 100 x 21 mm, 25° contact angle, universally ground faces for pairing. Unit Quantity: 1 Pc.

Decoding the designation:

72 — ISO dimension series 02, the medium section of the RHP super precision angular contact range.

11 — bore code, 55 mm.

E — 25° contact angle, the legacy RHP code for the execution now designated A5. X3 in the RHP B-series string and the leading 3 in the Fafnir string carry the same angle.

T — machined laminated phenolic cage, outer-ring guided.

SU — universal face control, a face-ground property of the bearing.

L — light preload class for a universal pair.

P4 — RHP tolerance class P4, equivalent to BS 292 EP7 and ABEC 7.

Specifications:

Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 21 mm. Contact Angle: 25°. Precision Class: ABEC 7 / P4. Preload: Light. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Bearing Material: Bearing steel. Series: 7200. Base Number: 7211. Mounting Arrangement: Universally ground for pairing. Dynamic Load Rating: 50,500 N. Static Load Rating: 38,000 N. Limiting Speed: 12,400 rpm grease; 20,000 rpm oil-air. Item Weight: 0.603 kg (1.33 lb). Unit Quantity: 1 Pc.

Dimensions and mounting:

Minimum inner ring abutment diameter: 64 mm. Maximum outer ring abutment diameter: 91 mm. Maximum outer ring seating diameter: 94 mm. Chamfer r min: 1.5 mm. Chamfer r1 min: 1.0 mm. Effective load centre a: 28.6 mm. Internal free volume: 27.8 cm3. Pitch circle diameter for lubrication jets: 72.0 mm. Speed factors for paired sets: back-to-back light-preload pair 0.80 of the tabulated speed, set of three 0.65, set of four 0.60, spring-loaded tandem pair 0.95.

Compatibility and replacement:

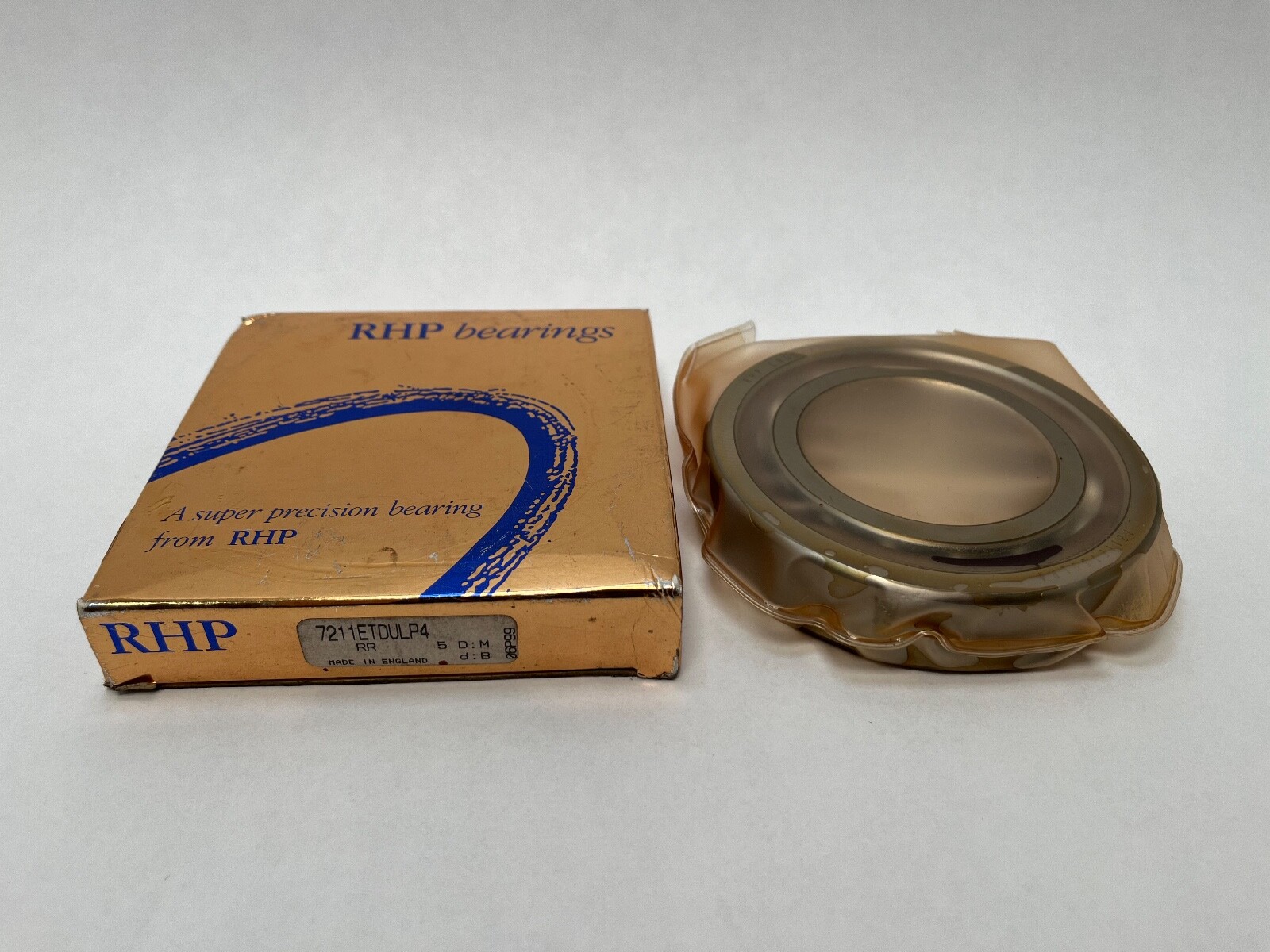

Cross-Reference 1: SKF 7211 ACD/P4A. Cross-Reference 2: FAG B7211-E-T-P4S. Cross-Reference 3: NSK 7211A5TRSULP4. Cross-Reference 4: NTN 7211UAD/GNP4. Cross-Reference 5: Timken Fafnir 3MM211WICRSUL. Cross-Reference 6: GMN S6211 E TA P4. Cross-Reference 7: SNFA E 7211 7CE3. Cross-Reference 8: IBC 7211-E-T-P4-UL. The carton also carries the RHP B-series designation B7211X3TASULEP7 and the Fafnir designation 3MM211WICRSUL.

Frequently asked questions:

What are the dimensions of the RHP 7211ETSULP4?

Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 21 mm.

What are the load ratings and speed limits?

Dynamic Load Rating: 50,500 N. Static Load Rating: 38,000 N. Limiting Speed: 12,400 rpm grease; 20,000 rpm oil-air.

What contact angle and preload does it have?

Contact Angle: 25°. Preload: Light.
