Availability:
9 in stock

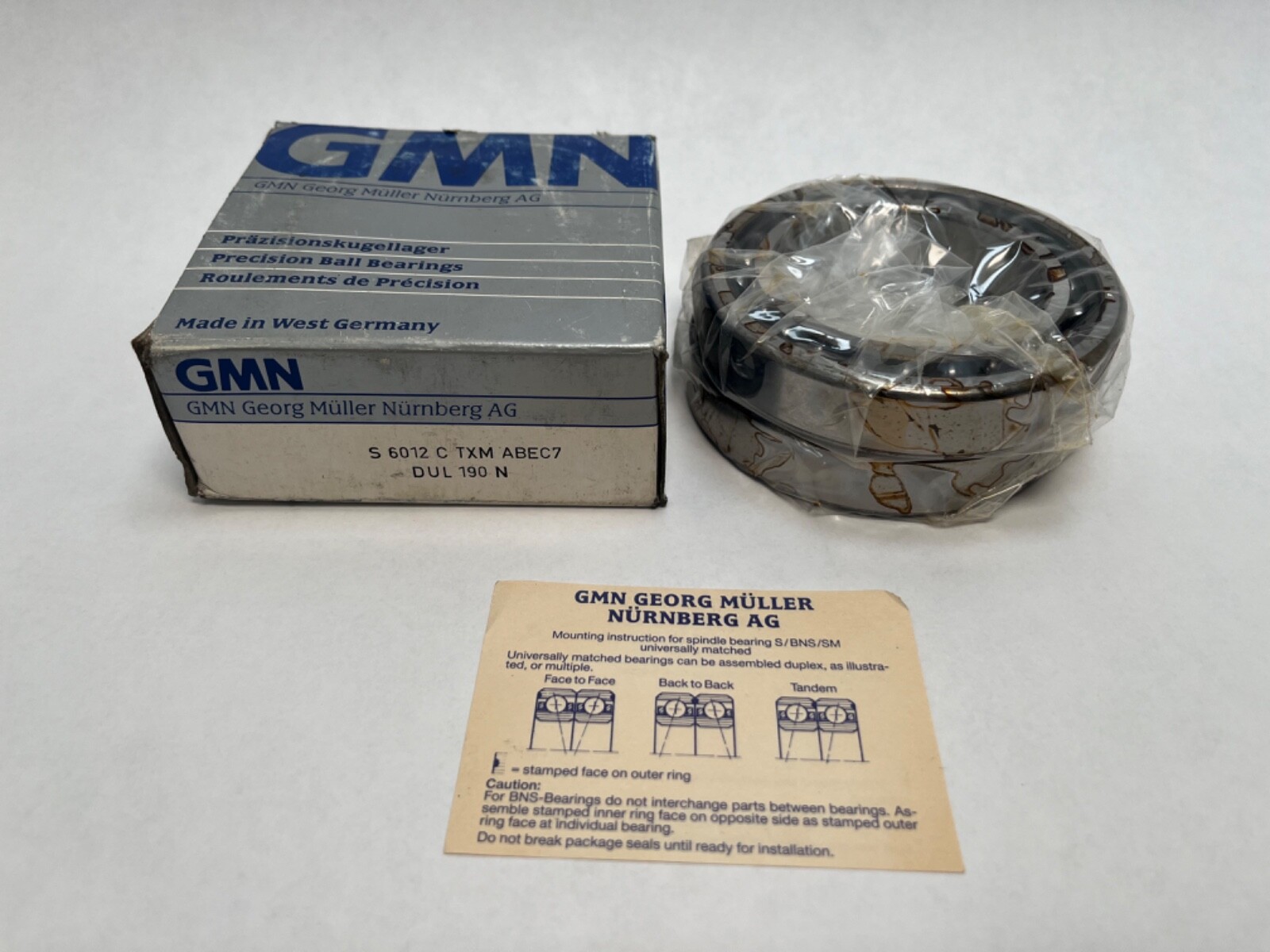

Super-precision angular contact bearing pair, 60 mm bore x 95 mm OD x 18 mm, 15°, PEEK cage, ABEC 7 / P4, universal light preload. GMN S6012 C TXM A7 DUL.
List Price
$197.30
9 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GMN |
|---|---|
| MPN | S6012CTXMA7DUL |
| Model | S 6012 C TXM A7 DUL / 2MM9112WI CR DUL / 7012C T P4 DUL / ABEC7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 95 mm |
| Width | 18 mm |
| Material | Chrome Steel |
|---|---|
| Series | S 60 |
| Preload | Light |
| Overall Width | 18 mm |
| Mpn Variants | S6012CTXMA7DUL, S 6012 C TXM A7 DUL, S-6012-C-TXM-ABEC7-DUL, 7012C |
| Precision Class | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | PEEK |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal (DB, DF or DT) |
| Cross Reference 1 | Fafnir 2MM9112WI DUL |
|---|---|
| Cross Reference 2 | FAG B7012-C-T-P4S-DUL |
| Cross Reference 3 | SKF 7012 CD/P4ADGA |
| Cross Reference 4 | NSK 7012CTYNDULP4 |
| Cross Reference 5 | Barden 112HCDUL |
GMN S 6012 C TXM A7 DUL super-precision angular contact spindle bearing, matched as a universal duplex pair. Bore Diameter: 60 mm. Outside Diameter: 95 mm. Overall Width: 18 mm per bearing. Contact Angle: 15°. Cage Material: PEEK. Precision Class: ABEC 7 / P4. Preload: Light. Rolling Elements: Ball.
S — GMN S series angular contact spindle bearing, steel balls.
60 12 — ISO 70 series, bore code 12: 60 mm bore, 95 mm OD.
C — 15° contact angle.
TXM — PEEK cage, rated for high operating temperature.
A7 — ABEC 7 / ISO P4 tolerance class.
DUL — duplex set of two universally ground bearings, light preload. Mounts back-to-back, face-to-face or tandem.
The 15° angle favours high speed and radial stiffness in machine tool spindles, grinding heads and high-speed motor spindles. Universal grinding lets the pair be arranged DB, DF or DT with the light preload set by the factory ground faces. Closure Type: Open.

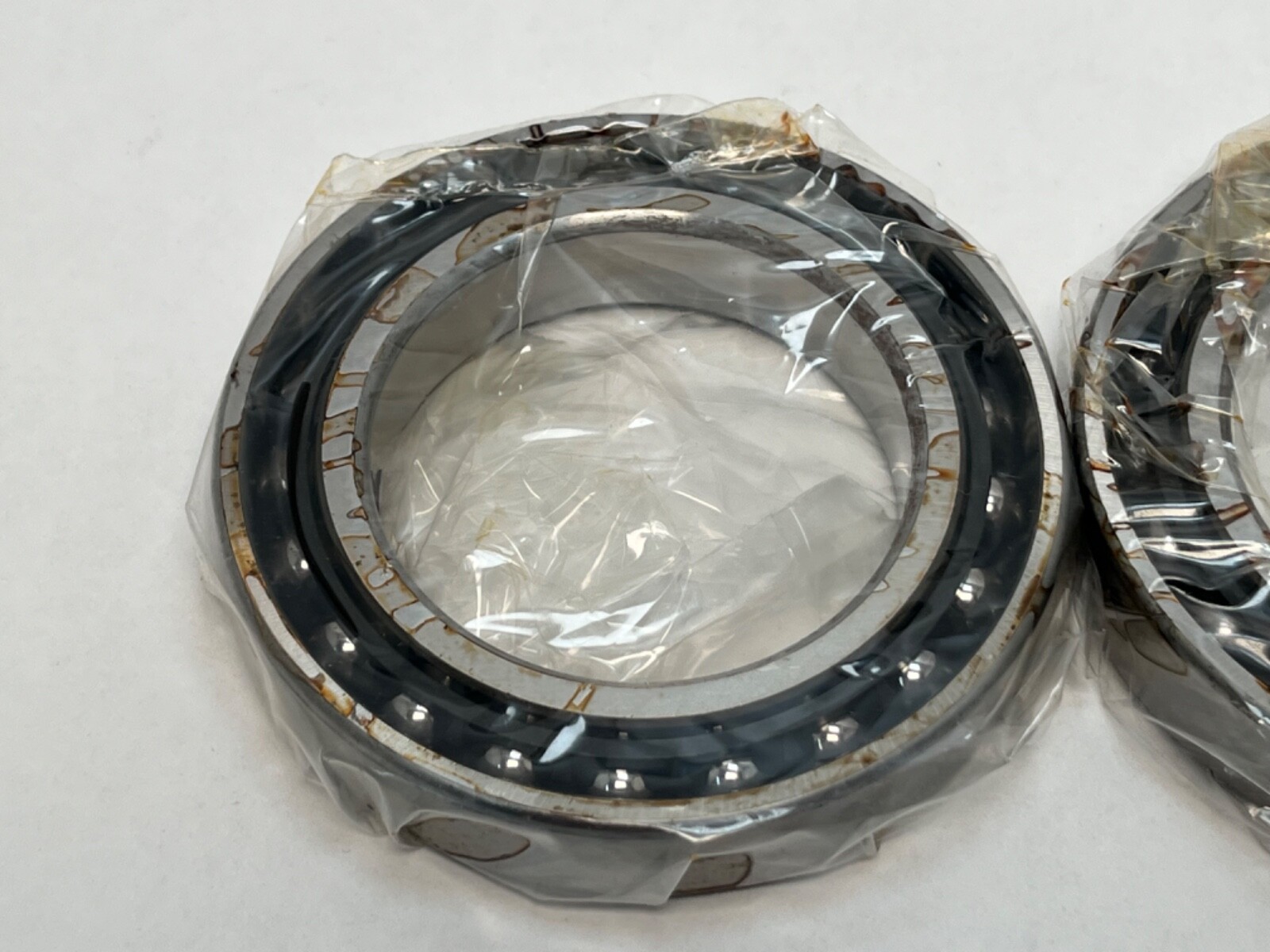

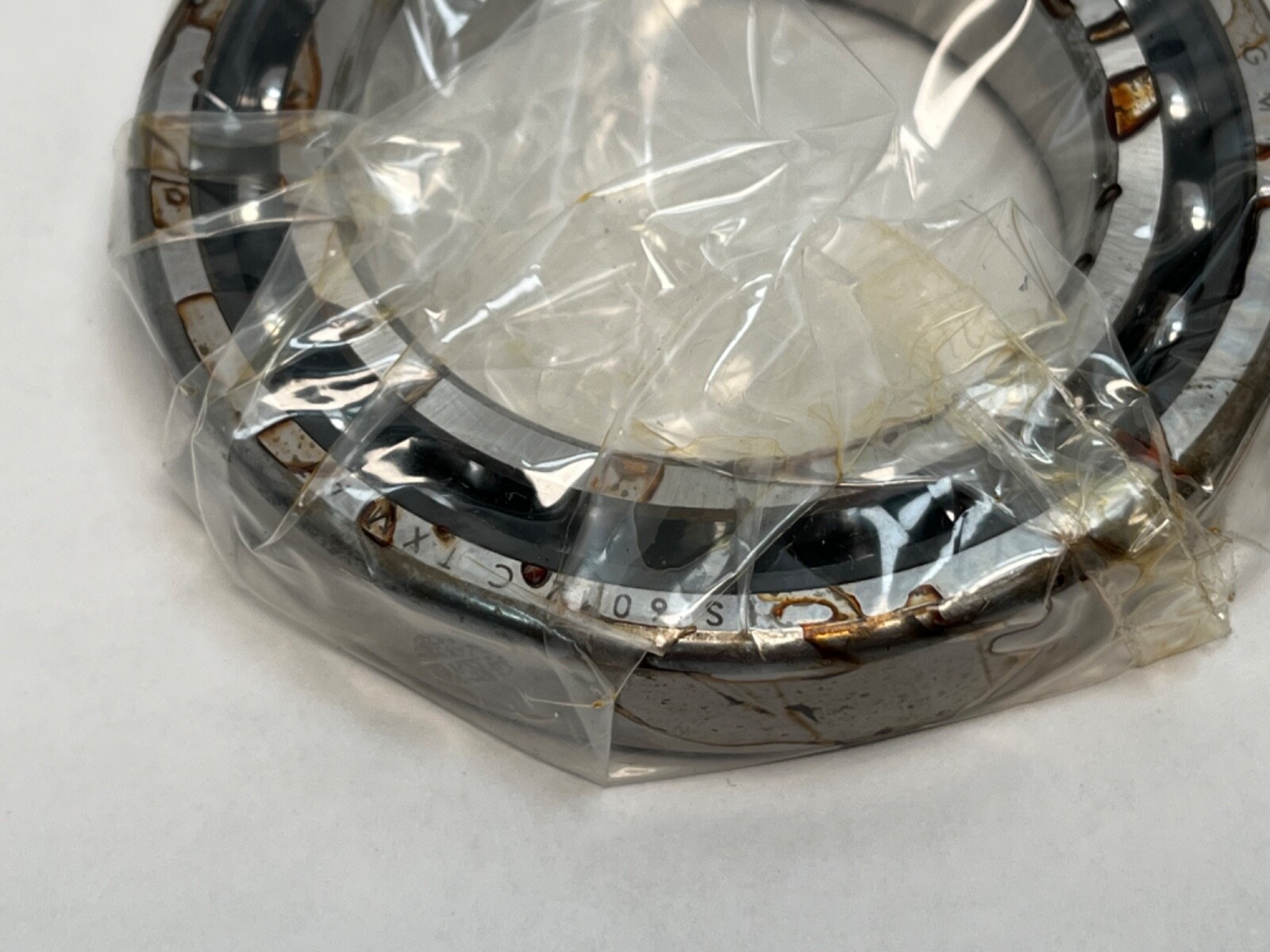

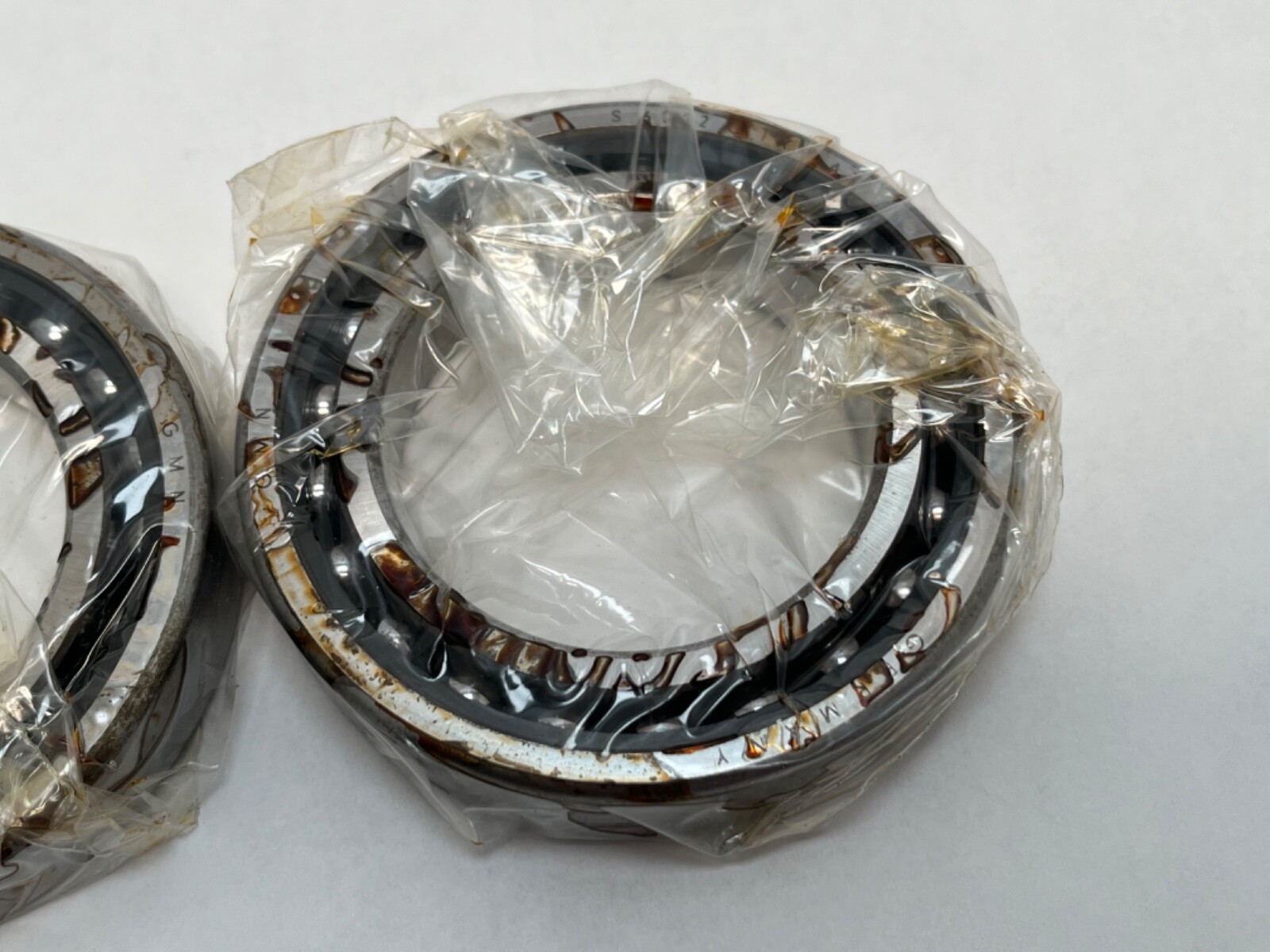

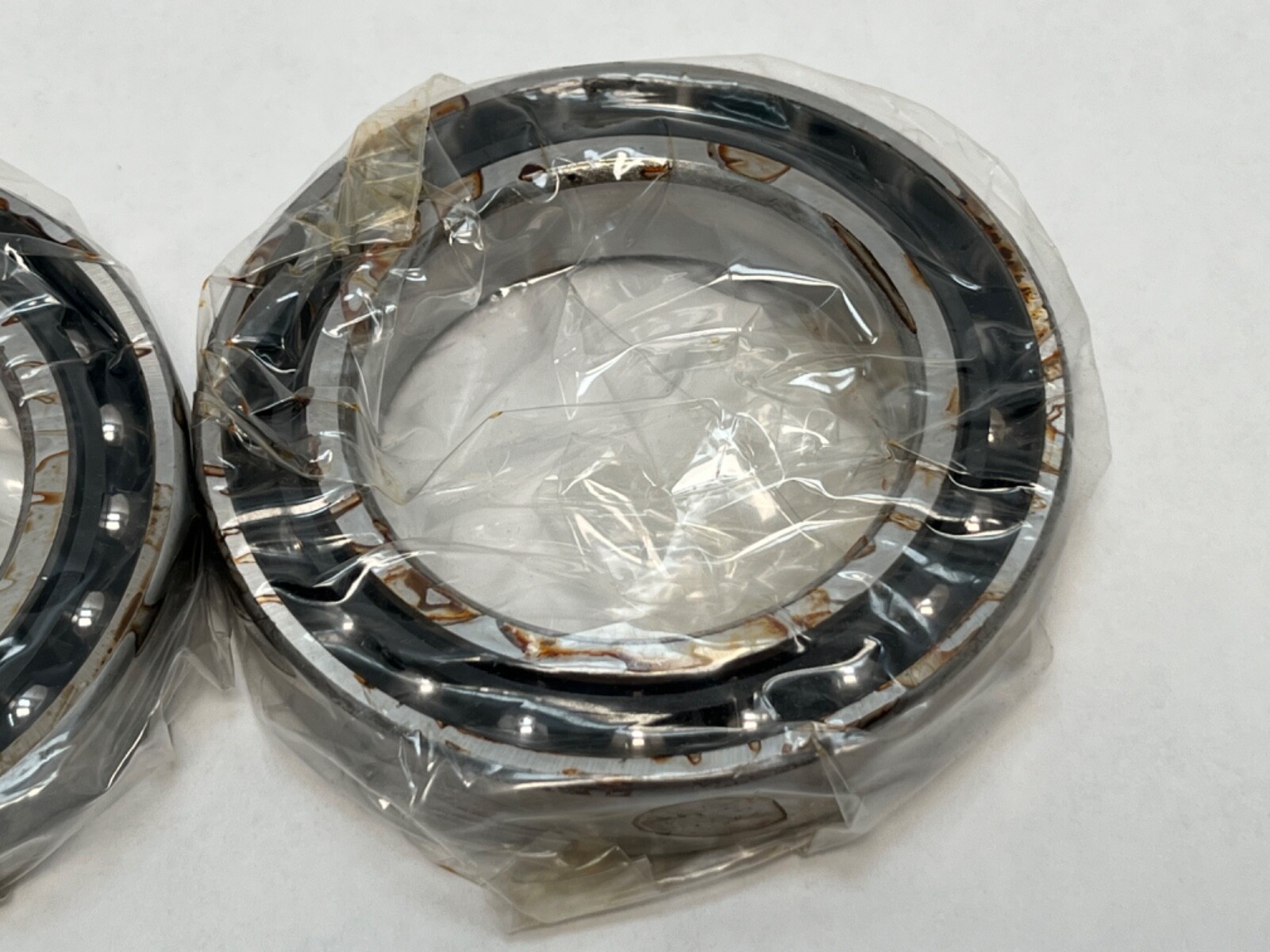

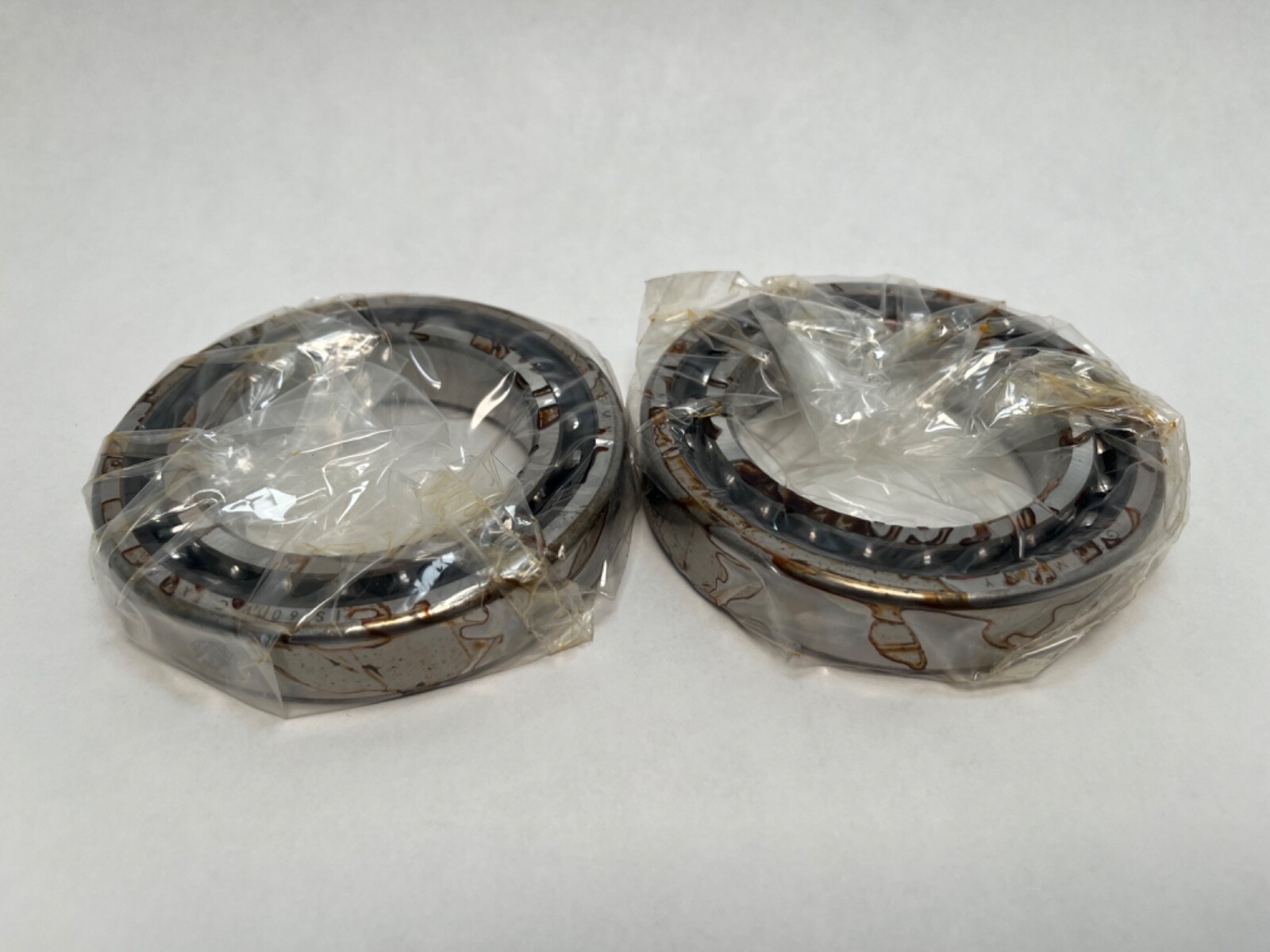

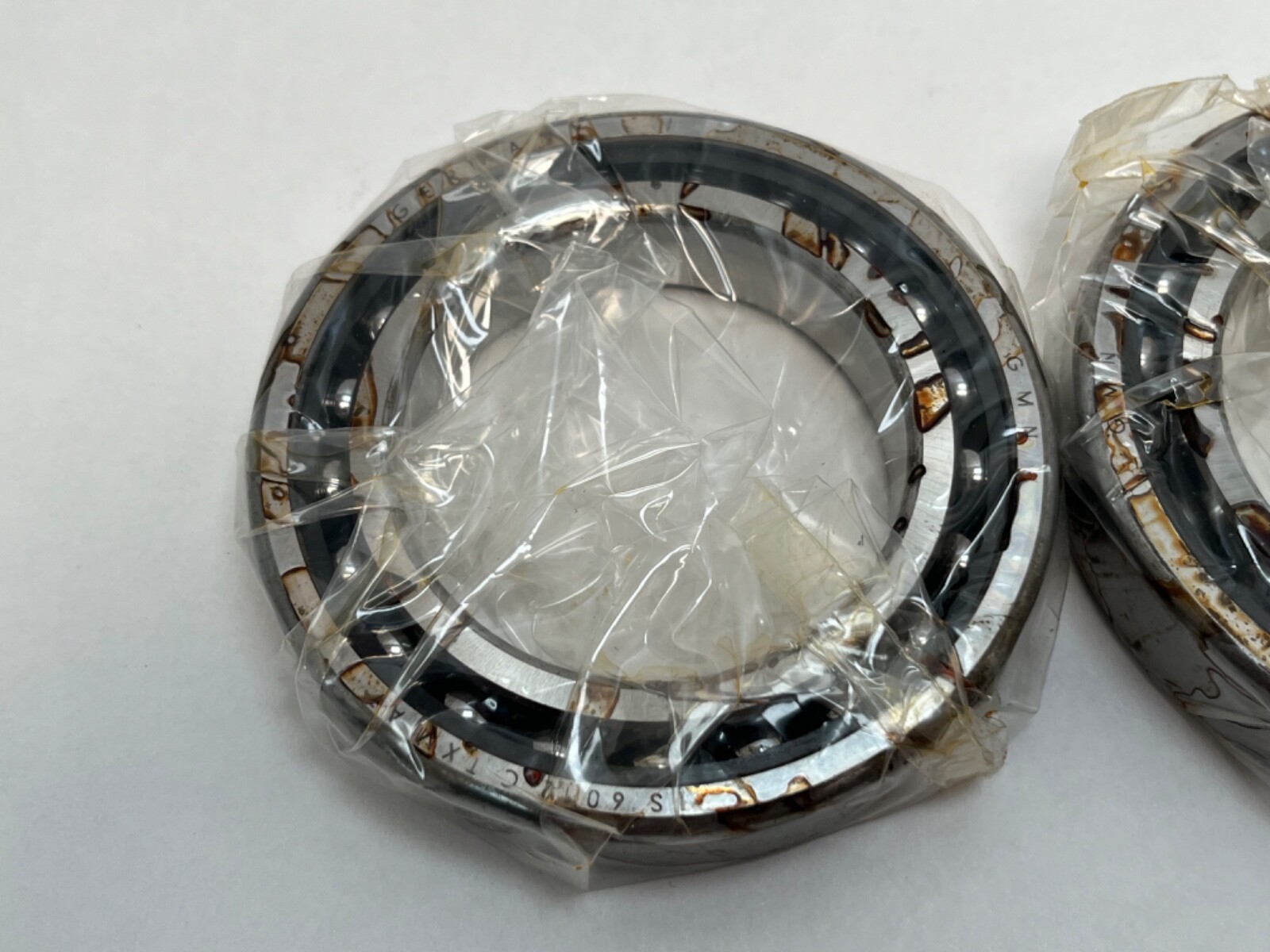

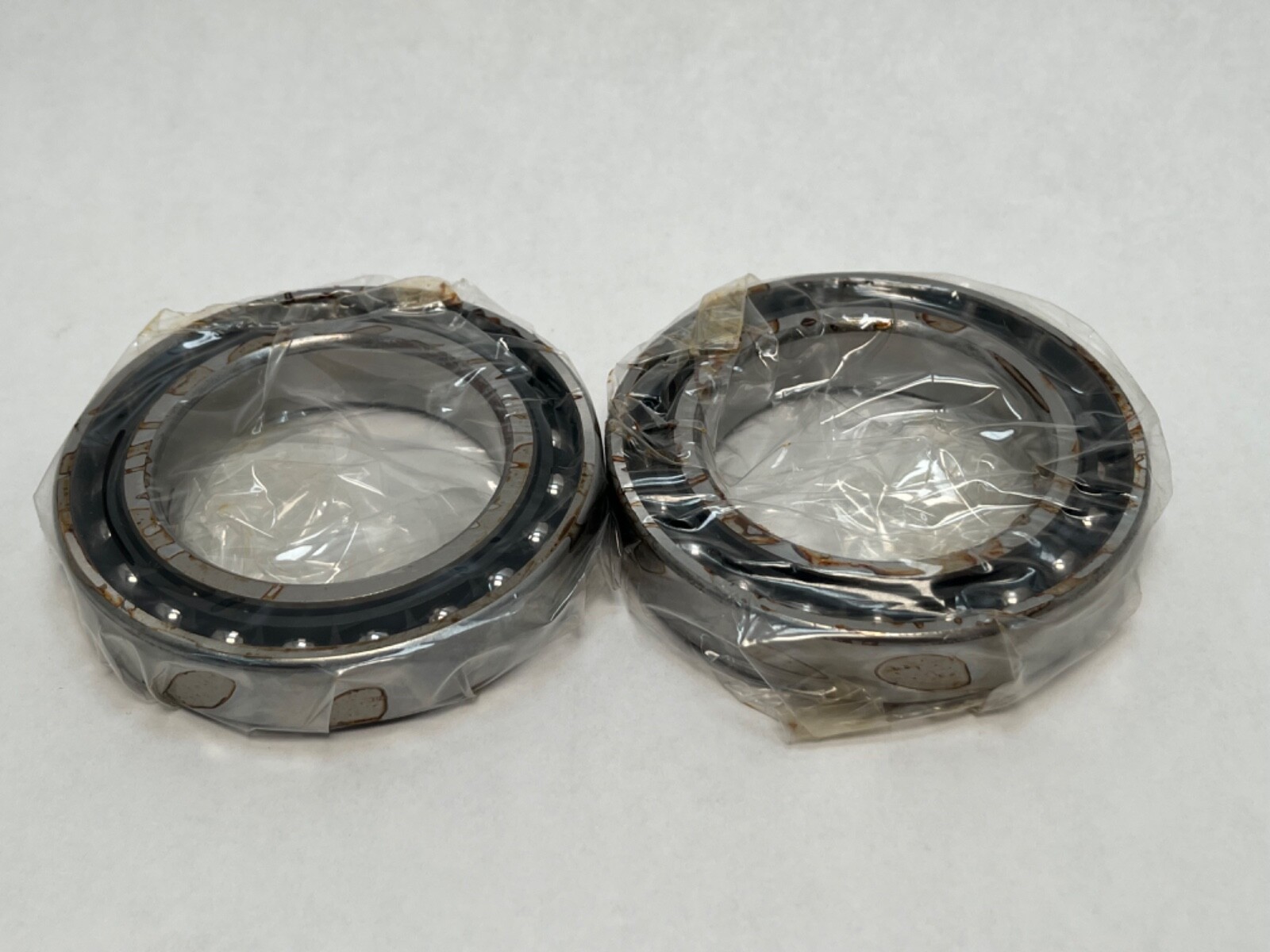

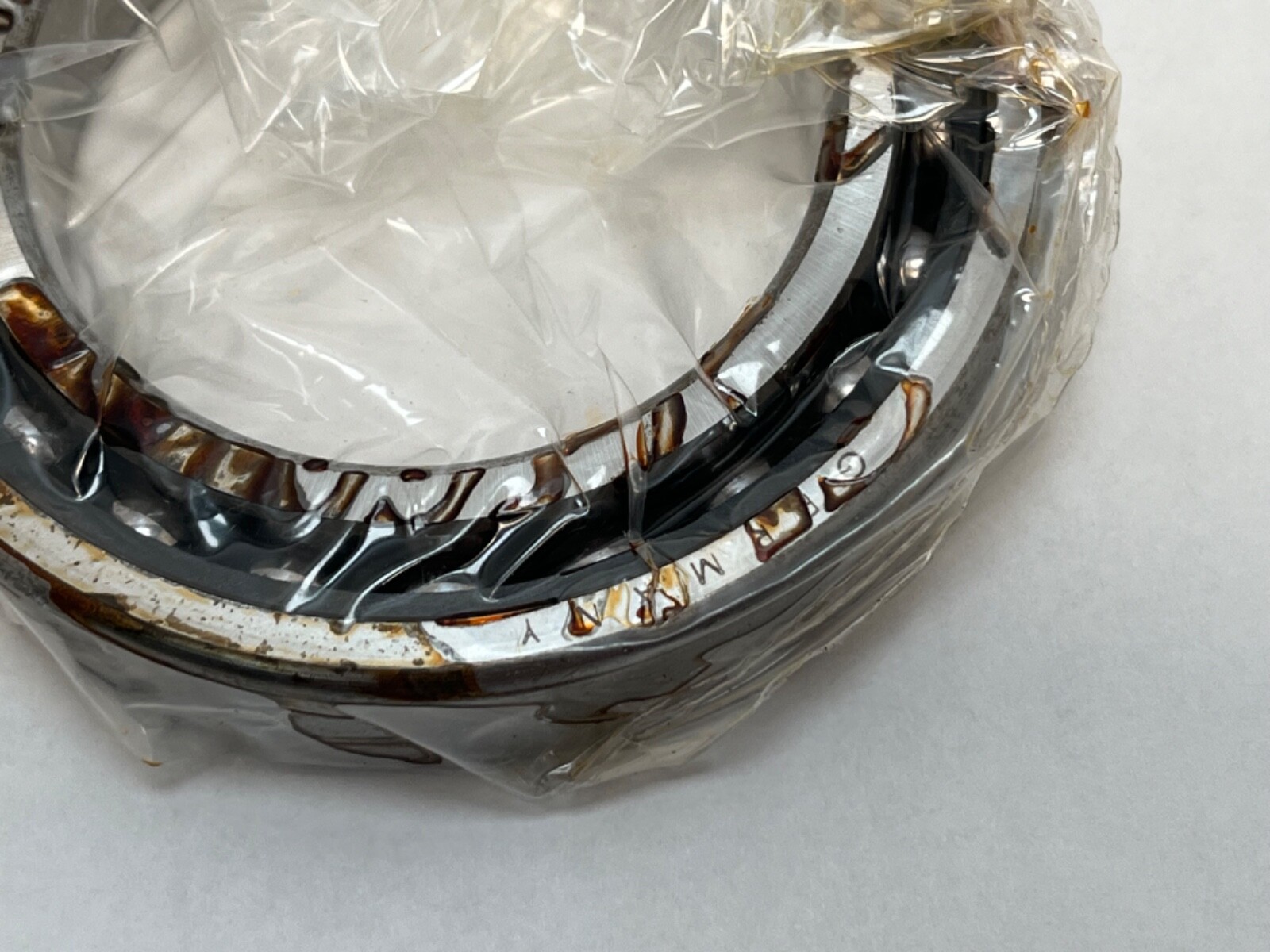

Unit Quantity: 2 Pcs. One factory duplex pair. Condition: New old stock, open box; grease has dried.
Same 60 x 95 x 18 mm envelope, 15°, universal light-preload pair: Fafnir 2MM9112WI DUL, FAG B7012-C-T-P4S-DUL, SKF 7012 CD/P4ADGA, NSK 7012CTYNDULP4, Barden 112HCDUL. Cage material differs by maker.
