GMNS6013CTXM-ABEC7-DULAngular Contact Ball Bearing – 65 mm ID, 100 mm OD, 18 mm Width, Open, 15°, Light Preload, PEEK Cage to 250°C, ABEC 7

Product Description

What this part is:

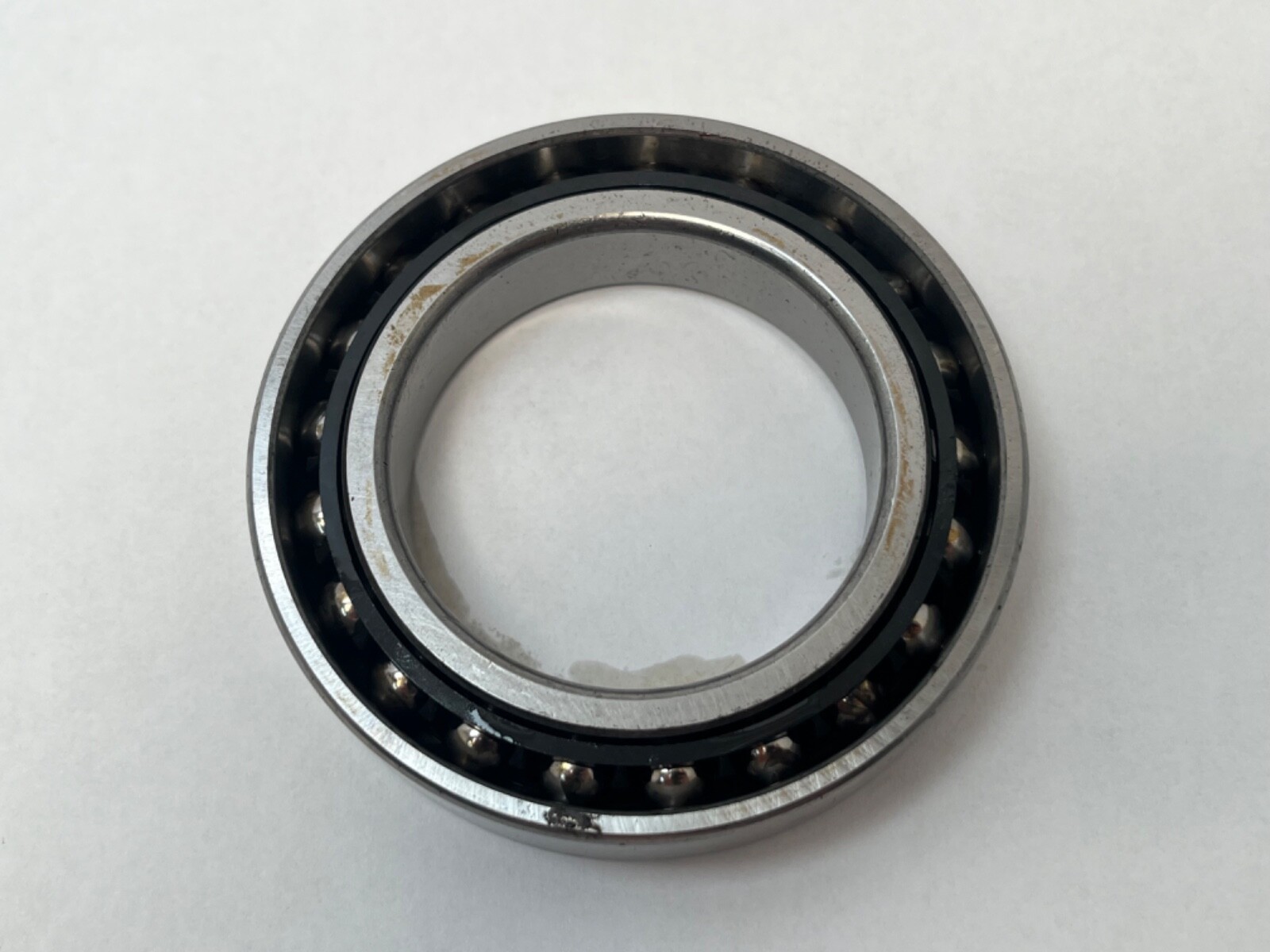

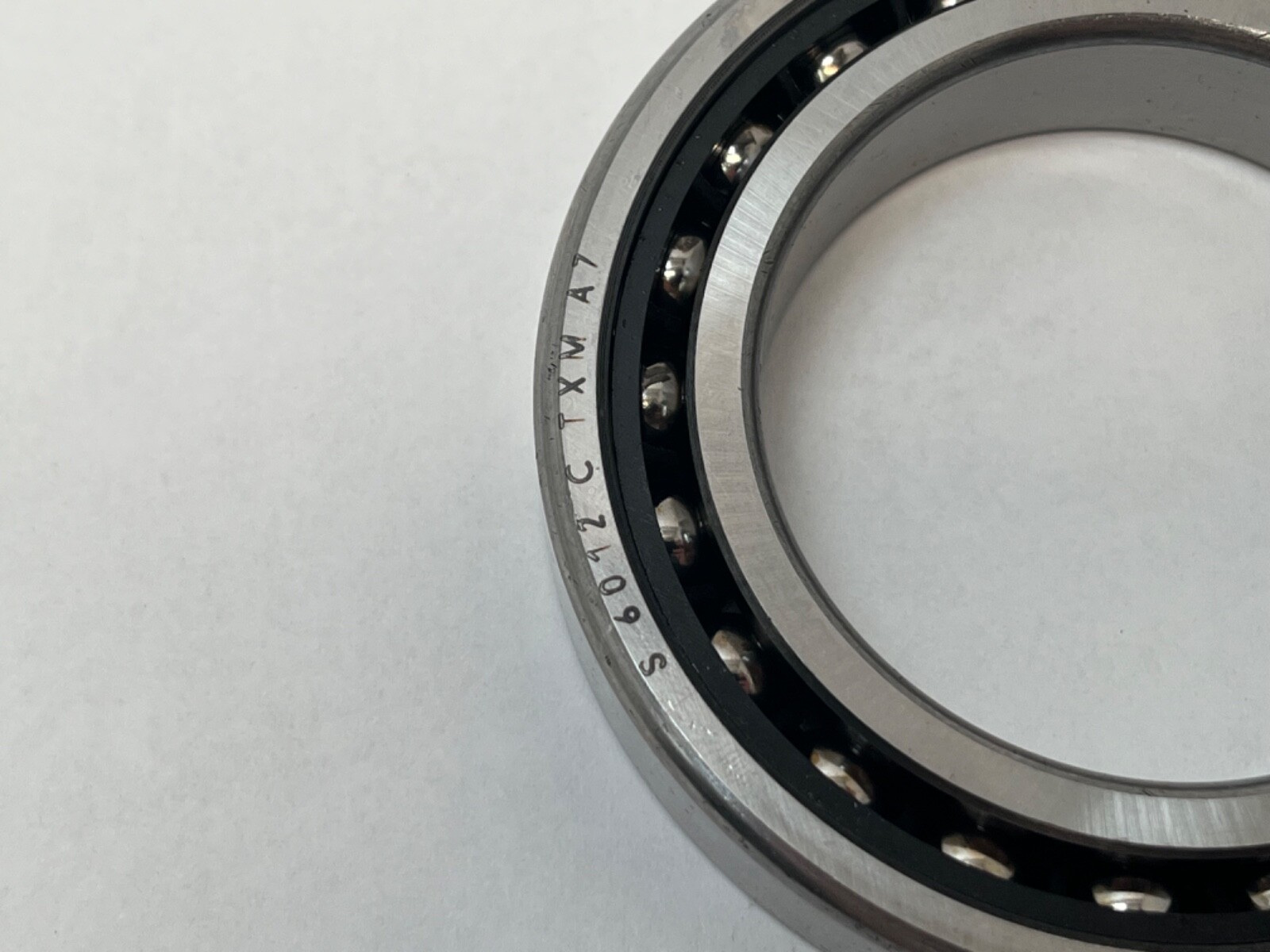

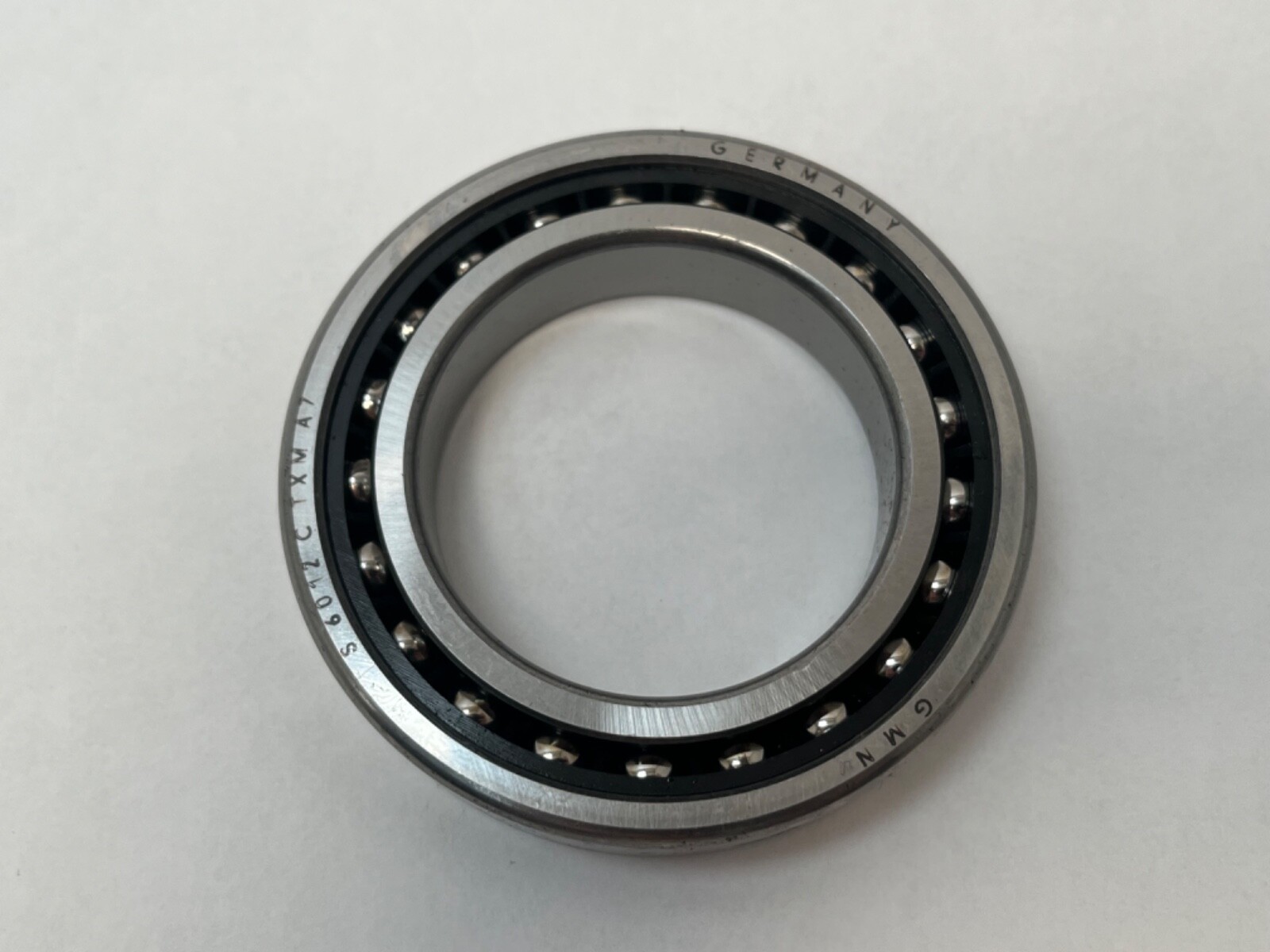

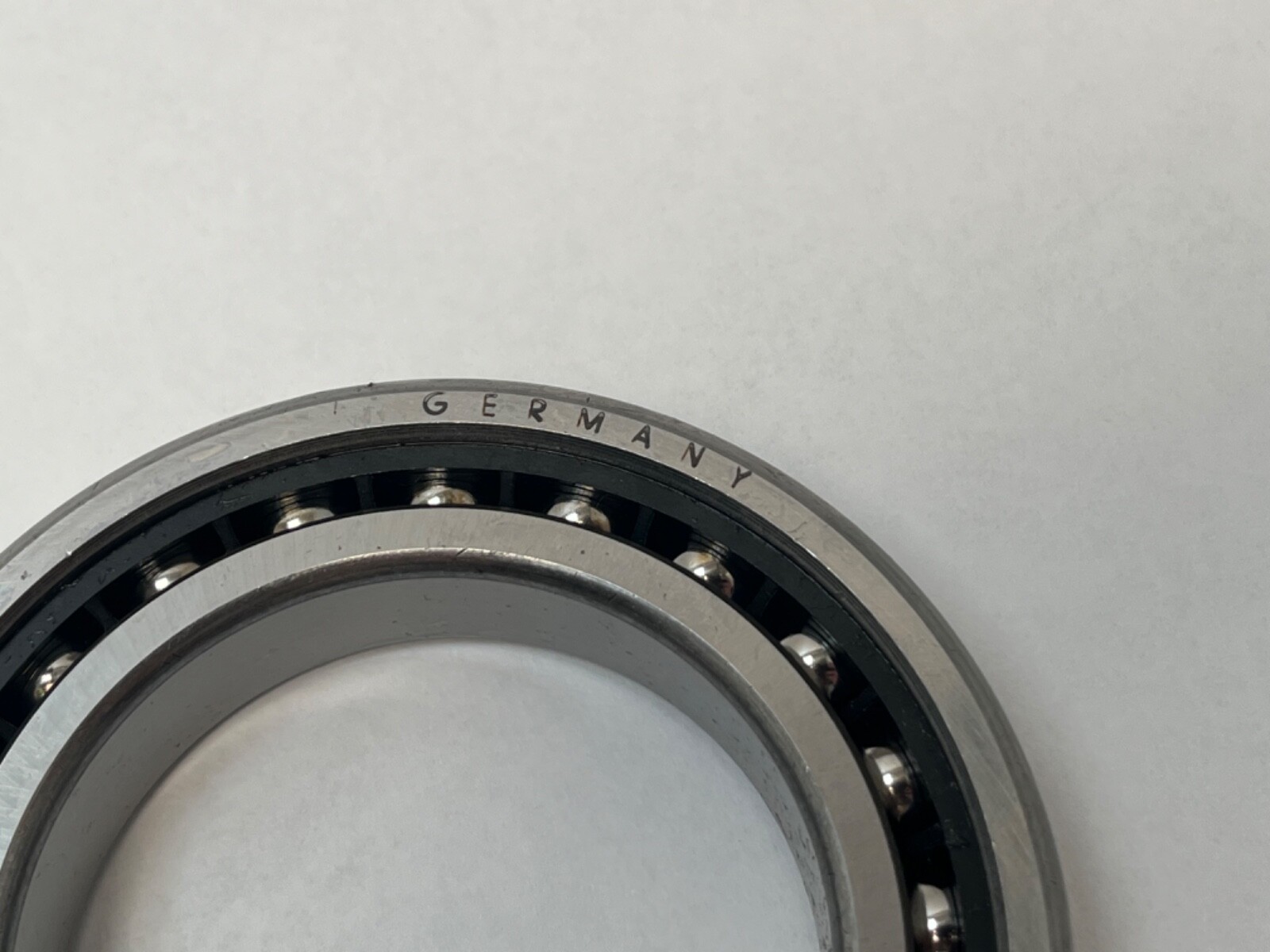

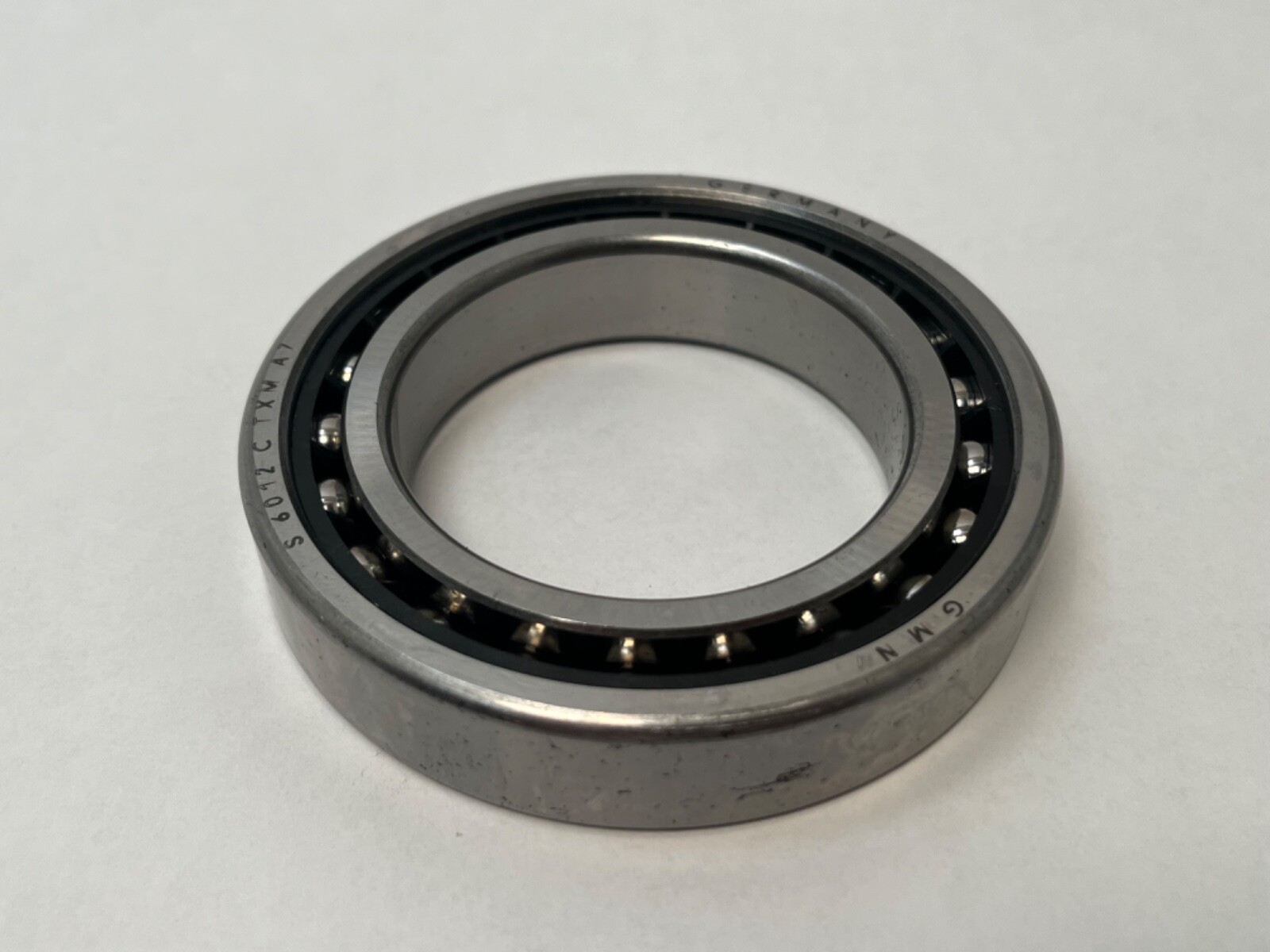

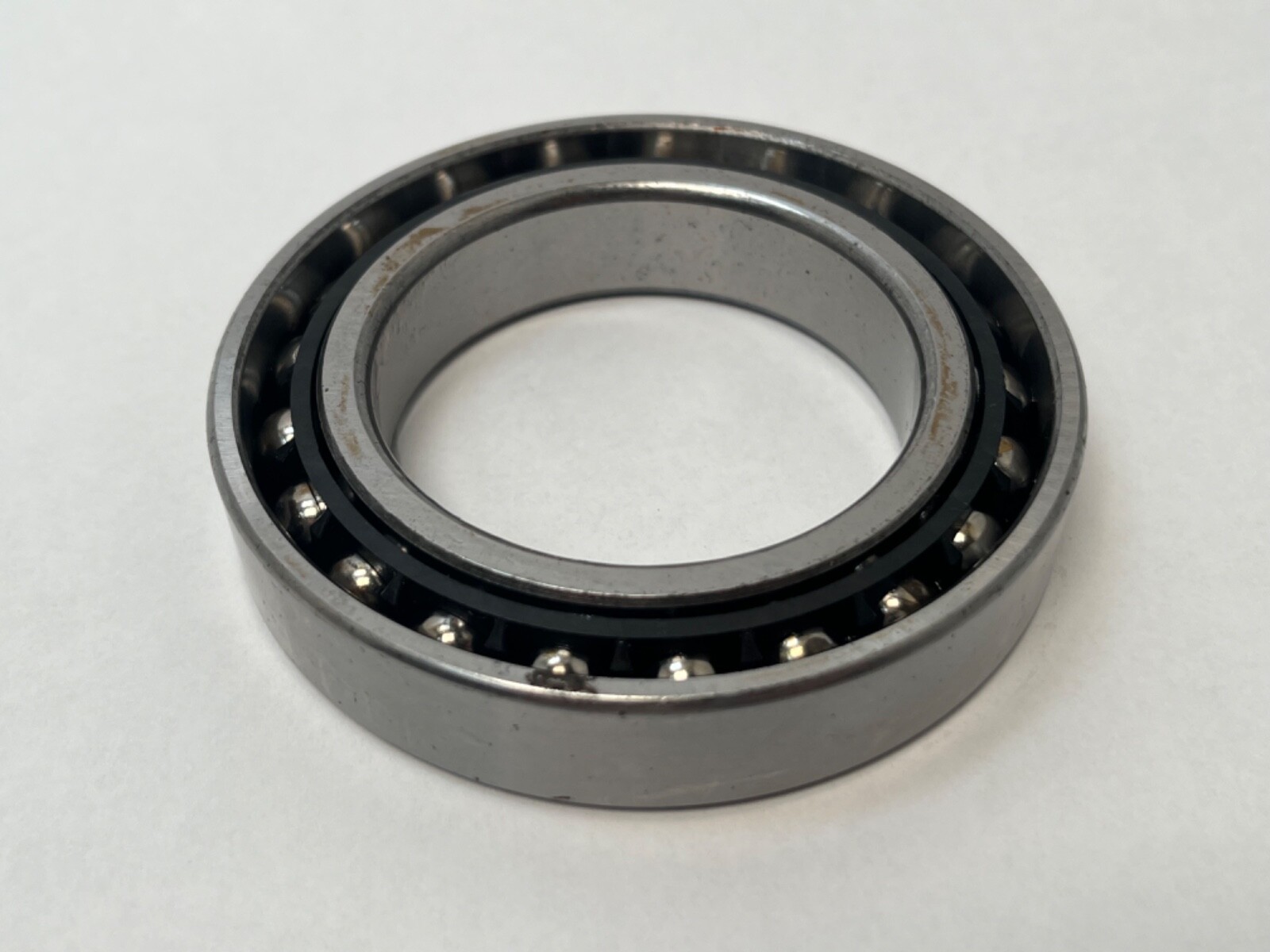

GMN S6013CTXM-ABEC7-DUL is an angular contact ball bearing from the GMN S Series, 65 mm bore by 100 mm outside diameter by 18 mm width, 15° contact angle, light preload, PEEK cage. One bearing from the DUL duplex range, universally ground. Unit Quantity: 1 Pc.

Decoding the designation:

S — GMN S Series angular contact range.

6013 — 65 mm bore, ISO 7013 envelope.

C — 15° contact angle.

TXM — PEEK cage, rated to 250 °C.

ABEC7 — precision class.

DUL — universally ground for duplex mounting at light preload.

1/2PR — one bearing.

Specifications:

Bore Diameter: 65 mm. Outside Diameter: 100 mm. Overall Width: 18 mm. Contact Angle: 15°. Number Of Rows: 1. Rolling Elements: Balls. Bore Type: Straight. Closure Type: Open. Cage Material: PEEK. Cage Type: Machined. Precision Class: ABEC 7 / P4. Preload: Light. Mounting Arrangement: Universal. Bearing Material: Chrome steel. Maximum Operating Temperature: 250 °C. Unit Quantity: 1 Pc.

Dimensions and mounting:

Envelope: 65 x 100 x 18 mm. Straight bore. Universally ground faces: the bearing mounts back-to-back, face-to-face or in tandem with another of the same designation.

Compatibility and replacement:

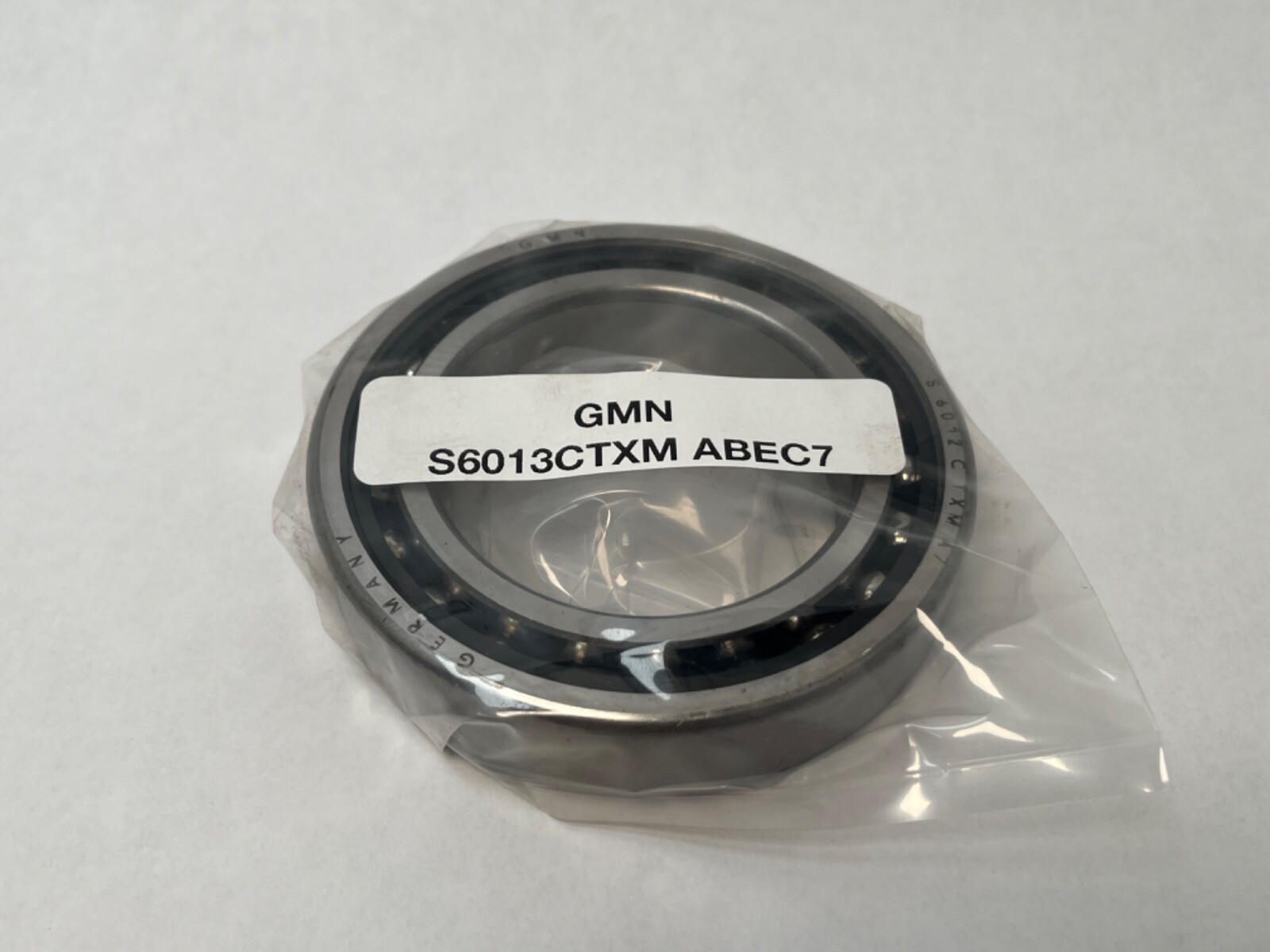

Cross-references, all 15° angular contact in 65 x 100 x 18 mm: SKF 7013 CD/P4ADGA, FAG B7013-C-T-P4S-DUL, Fafnir 2MM9113WI CR DUL. The carton also carries the ISO form 7013C T P4 DUL. Searchable variants: S6013CTXM-ABEC7-DUL, S 6013 C TXM DUL, S-6013-C-TXM-A7-DUL, S6013CTXMABEC7DUL.

Frequently asked questions:

What is the contact angle of the GMN S6013CTXM-ABEC7-DUL?

15°, from the C in the designation.

What is the cage material?

PEEK, from the TXM code, rated to 250 °C.

What is the preload class?

Light preload, from the DUL code.
