Availability:
1 in stock

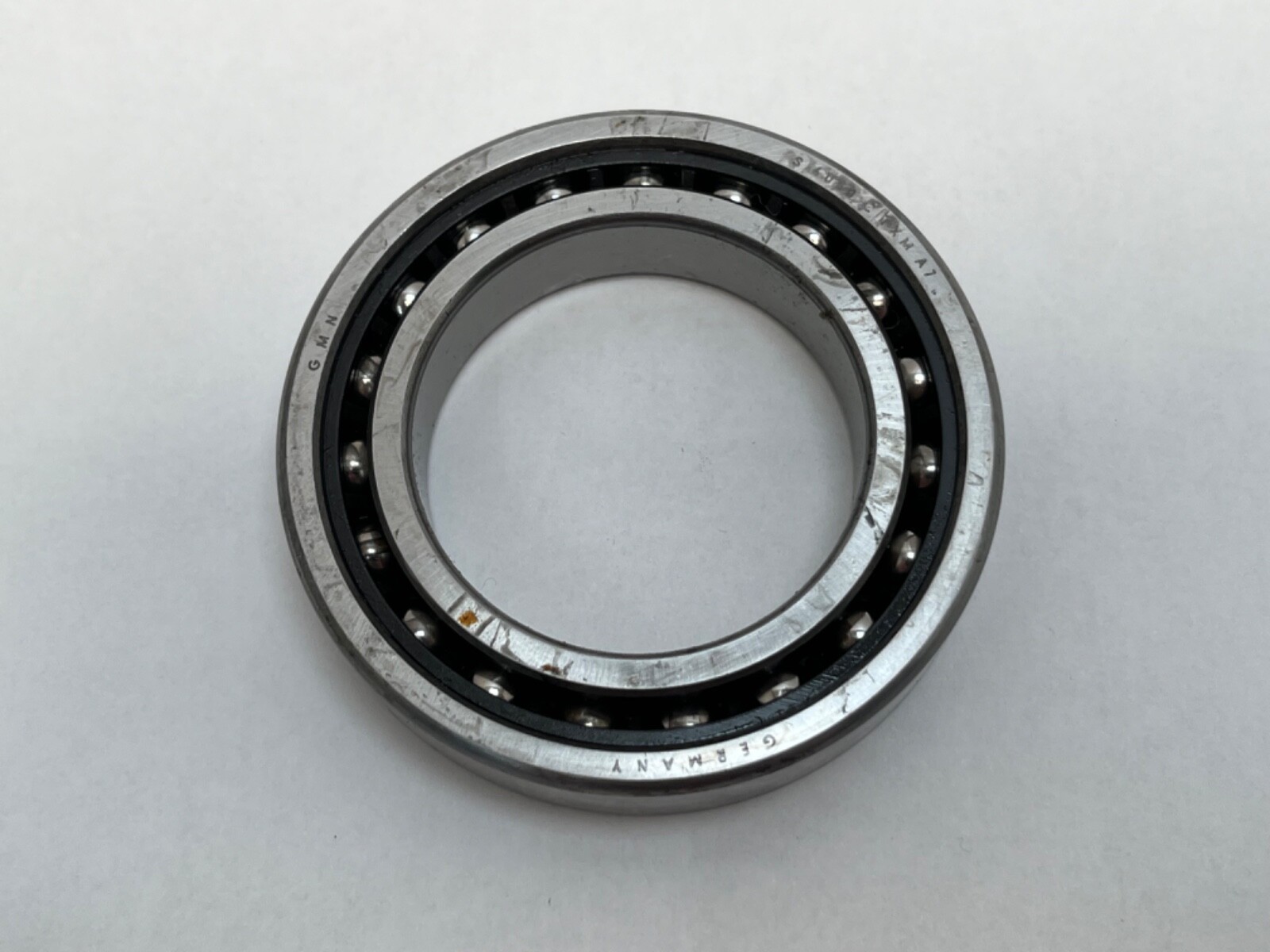

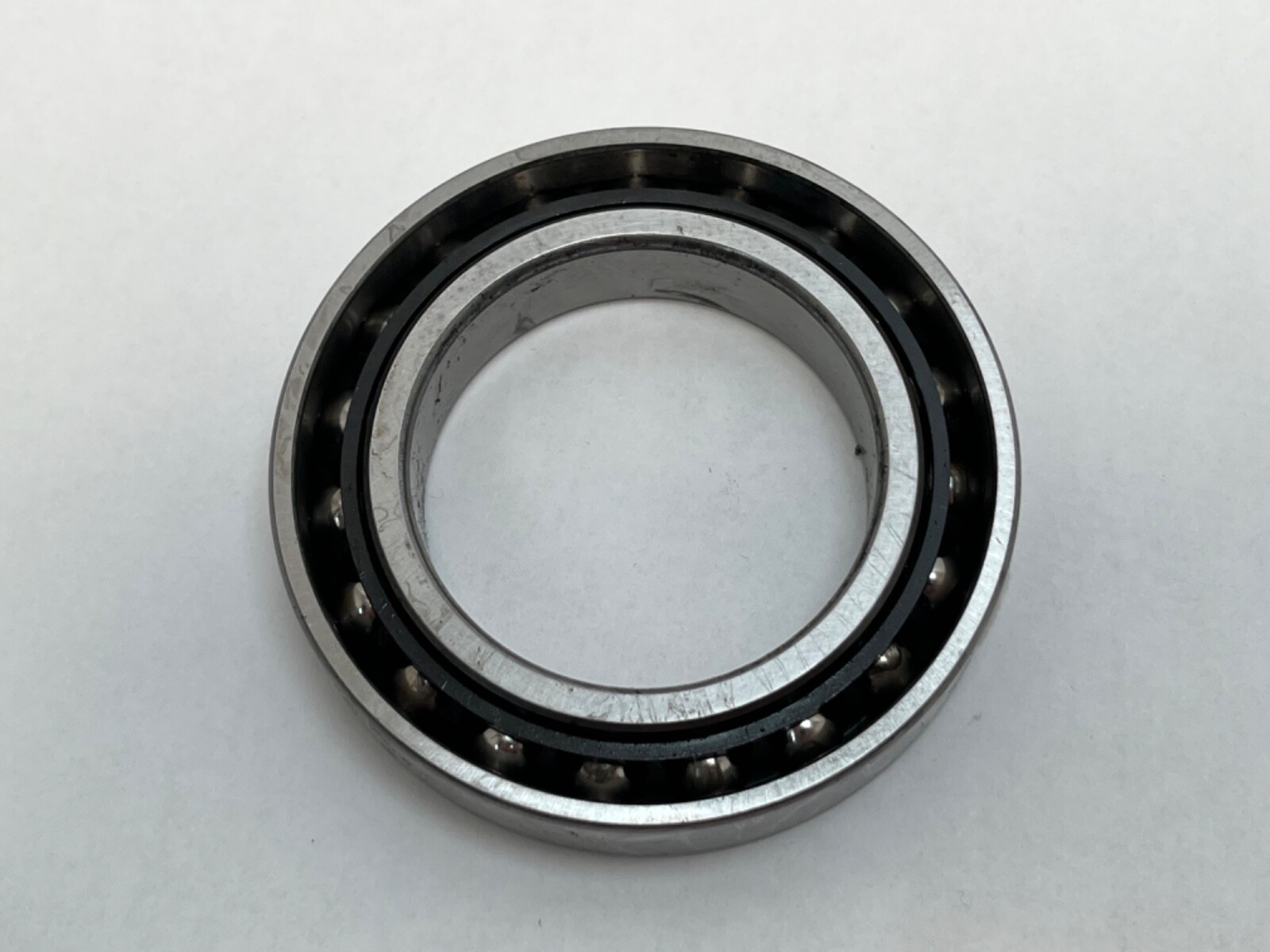

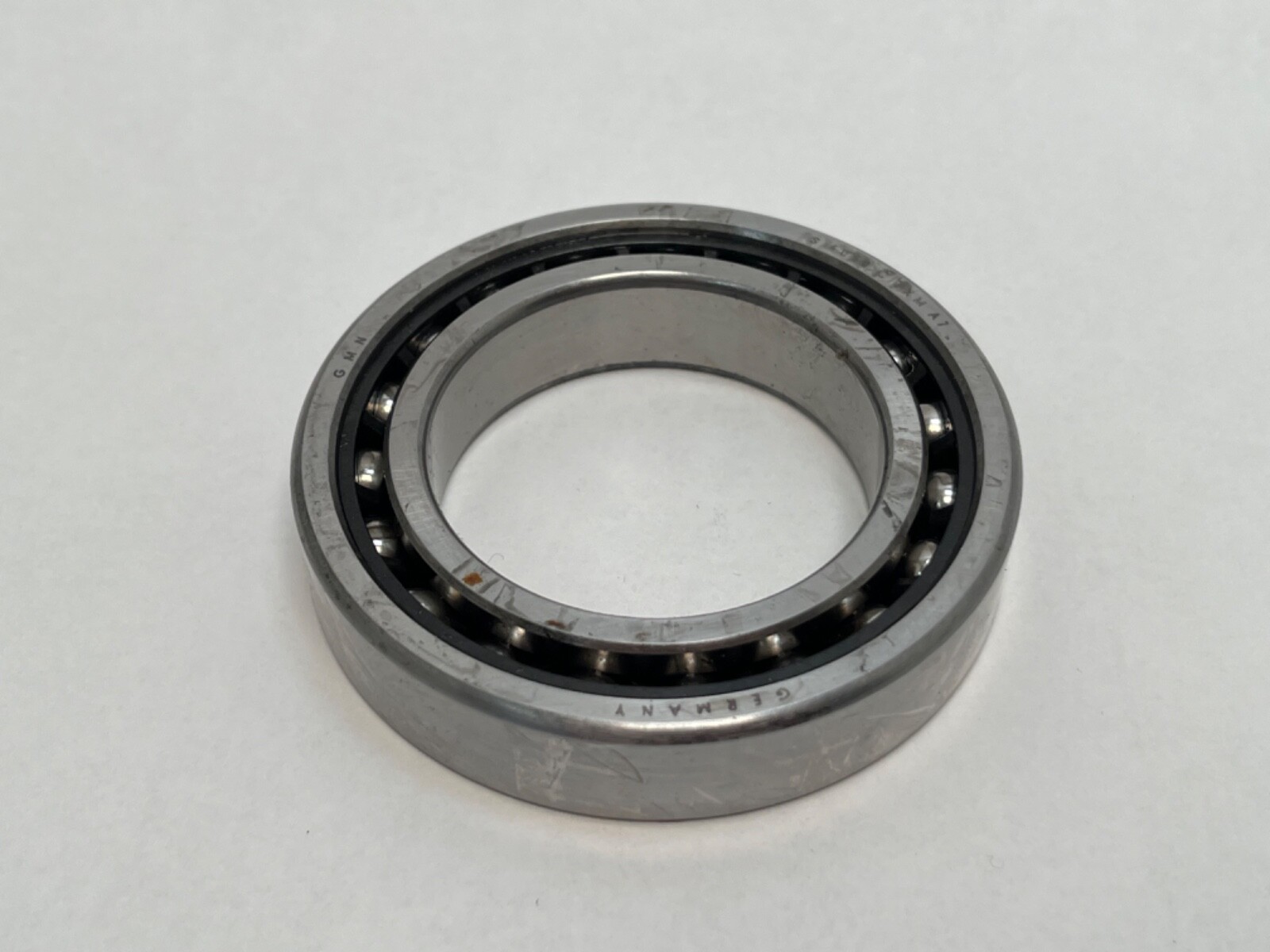

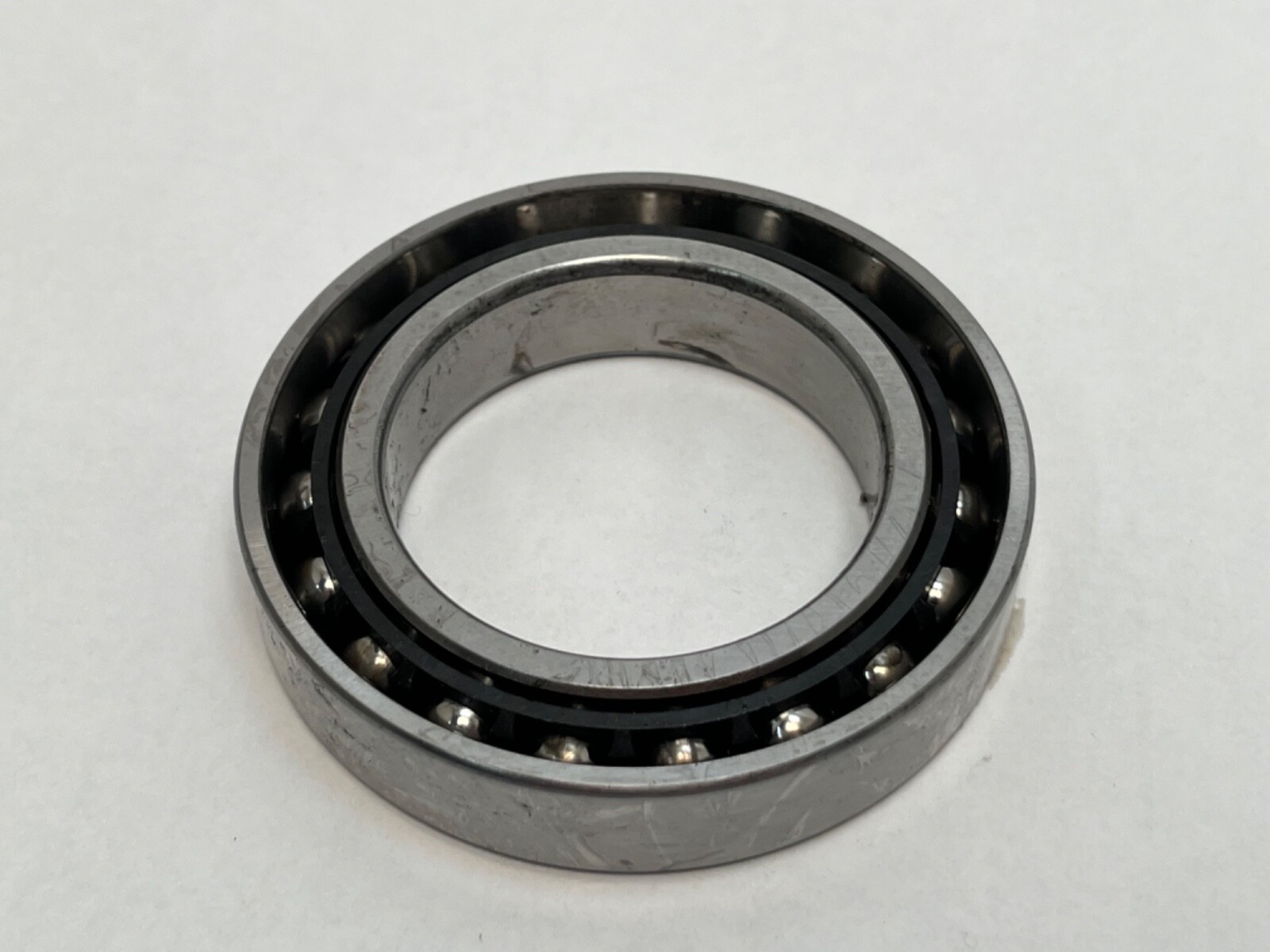

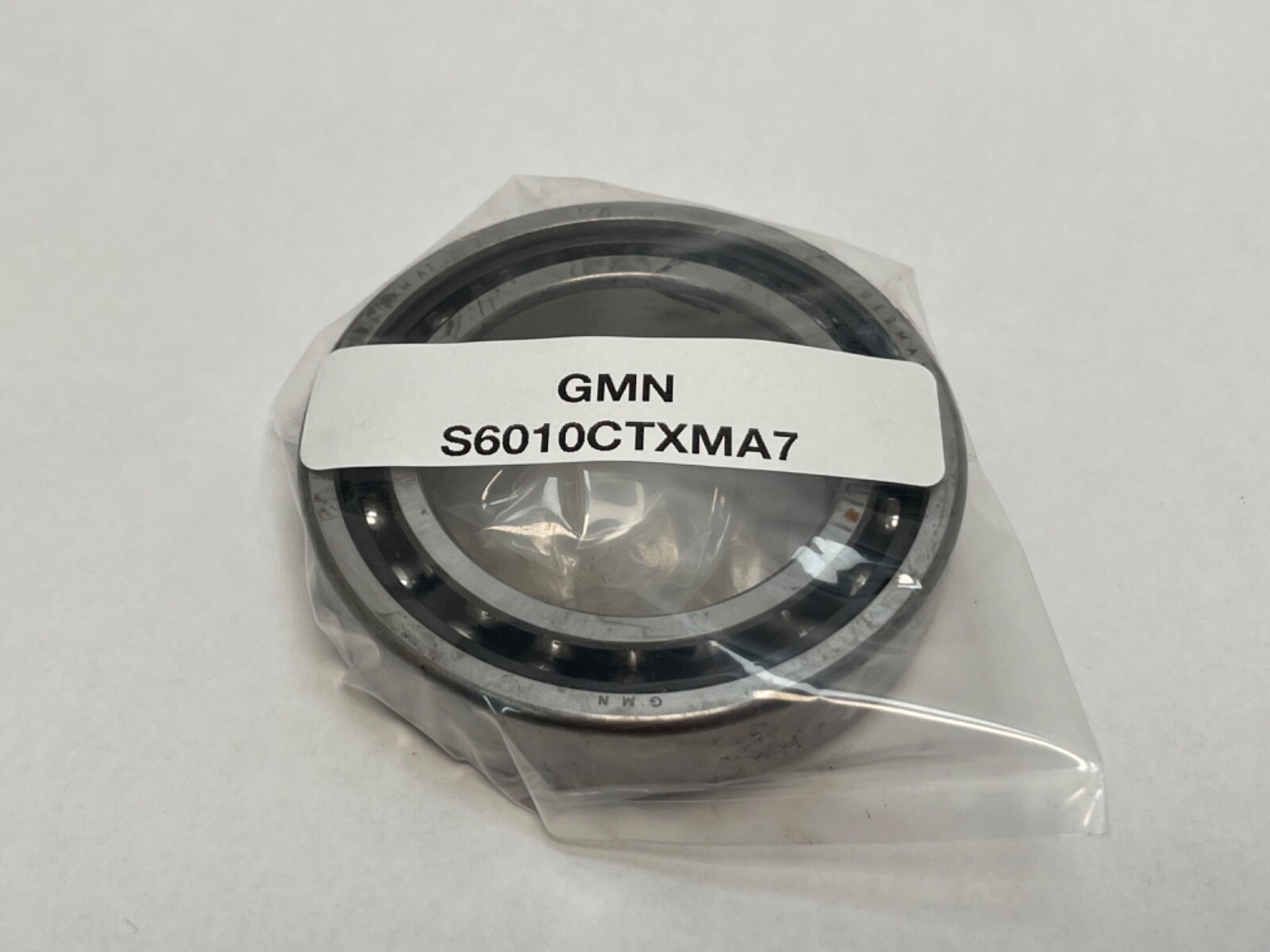

GMN S6010CTXMA7UL angular contact spindle bearing, 50 x 80 x 16 mm, 15° contact angle, ABEC 7, universal matching with light preload (140 N), PEEK TXM cage.
List Price
$47.53
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GMN |
|---|---|
| MPN | S 6010 C TXM A7 UL |
| Model | S6010CTXMA7UL |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 50 mm |
| OD | 80 mm |
| Width | 16 mm |
| Material | 100Cr6 (SAE 52100) steel |
|---|---|
| Mpn Variants | S6010CTXMA7UL, S 6010 C TXM A7 UL, S-6010-C-TXM-ABEC7-SUL, S6010CTXM, 7010C |
| Arrangement Configuration | Universal matching (UL) |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Number of balls: 19; Ball diameter: 8.731 mm; Pitch circle diameter: 65 mm; Abutment da min: 55.4 mm; Abutment Da max: 75.5 mm; GMN preload values: L 140 N, M 420 N, S 840 N; Axial rigidity (pair, light preload): 65 N/µm; TXM cage operating temperature: 250 °C |
| Cage Type | Moulded, outer-ring guided, ball-retaining |
| Dynamic Load Rating | 28,000 N |
| Static Load Rating | 24,500 N |
| Precision Rating | ABEC 7 / P4 |
| Series | GMN S 60 |
| Cage Material | PEEK |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Contact Angle | 15° |
| Preload | L (light), 140 N |
| Bearing Material | 100Cr6 (SAE 52100) steel |
| Cross Reference 1 | GMN S6010CTAA7UL - phenolic cage |
|---|---|
| Cross Reference 2 | SKF 7010 CD/P4A - cage differs |
| Cross Reference 3 | FAG B7010-C-T-P4S - cage differs |
| Cross Reference 4 | NSK 7010CTYP4 - cage differs |
| Cross Reference 5 | Fafnir 2MM9110WI - cage differs |

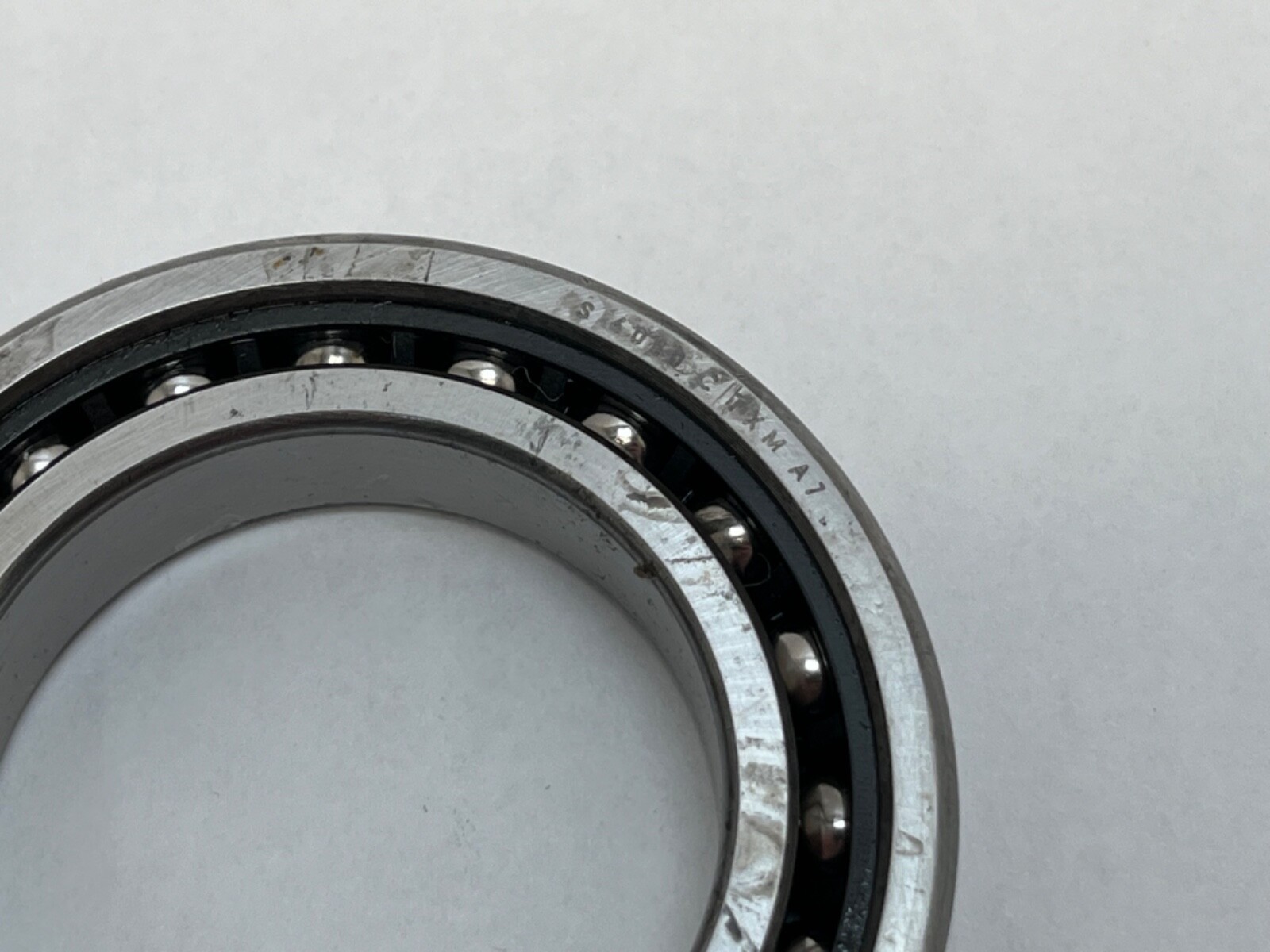

GMN S 6010 C TXM A7 UL is a single-row angular contact spindle bearing from GMN’s S series on the 7010 size, universally matched with light preload. Open, 15° contact angle, ABEC 7 / P4, PEEK cage. Unit Quantity: 1 Pc.
S — GMN standard spindle bearing series, non-separable.
6010 — 60 dimension series, 50 mm bore: the 7010 size, 50 x 80 x 16 mm.
C — 15° nominal contact angle.
TXM — moulded PEEK cage, outer-ring guided and ball-retaining, rated by GMN to 250 °C.
A7 — ABEC 7 per ABMA, corresponding to P4.
UL — universal matching with light preload. GMN light preload for this size: 140 N.
Bore Diameter: 50 mm. Outside Diameter: 80 mm. Overall Width: 16 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: L (light), 140 N. Arrangement: Universal matching (UL). Cage Material: PEEK. Cage Type: Moulded, outer-ring guided, ball-retaining. Closure Type: Open. Dynamic Load Rating: 28,000 N. Static Load Rating: 24,500 N. Bearing Material: 100Cr6 (SAE 52100) steel.
Number of balls: 19. Ball diameter: 8.731 mm. Pitch circle diameter: 65 mm. Abutment diameter inner ring da min: 55.4 mm. Abutment diameter outer ring Da max: 75.5 mm. Chamfer rs: 1 mm, open side 0.6 mm. GMN preload values for this size: L 140 N, M 420 N, S 840 N. Axial rigidity of a pair at light preload: 65 N/µm. Universally matched for back-to-back, face-to-face or tandem mounting.
GMN S6010CTAA7UL is the phenolic-cage version of this bearing. SKF 7010 CD/P4A, FAG B7010-C-T-P4S, NSK 7010CTYP4 and Fafnir 2MM9110WI are 50 x 80 x 16 mm, 15°, P4-class bearings with different cages. MPN Variants: S6010CTXMA7UL, S 6010 C TXM A7 UL, S-6010-C-TXM-ABEC7-SUL, S6010CTXM, 7010C.
50 x 80 x 16 mm with a 15° contact angle.
The TXM cage: moulded PEEK, outer-ring guided and ball-retaining, rated by GMN to 250 °C.
Light preload (UL) of 140 N, ABEC 7 corresponding to P4.
