Super precision angular contact ball bearing, 65x120x23 mm, 15 degree contact angle, phenolic cage, P3 class light-preload duplex pair, 92,000 N dynamic.
List Price
$327.00
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 7213CTRDULP3 |
| GTIN | 029176620379 |
| Model | 7213-C-TR-DUL-P3 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 23 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 Super Precision |
| Lubricant | Grease or oil-air |
| Preload | Light (L) |
| Base Number | 7213C |
| Industry Terms | Super precision spindle bearing; matched duplex pair; P3 class bearing; precision angular contact bearing; machine tool spindle bearing |
| Common Misspellings | 7213CTRDUIP3; 7213 CTR DULP3; 7213CTRDULP-3; 7213CTRDULPE; NSK 7213CTRDLP3 |
| Application Types | Machine tool spindles; grinding spindles; boring and milling spindles; precision gearboxes; rotary tables |
| Overall Width | 23 mm |
| Mpn Variants | 7213CTRDULP3; 7213C TR DUL P3; 7213-C-TR-DUL-P3; 7213-CTR-DUL-P3; 7213CTRDUL P3 |
| Precision Class | P3 |
| Additional Attributes | da min 74 mm; Da max 111 mm; Db max 114 mm; ra max 1.5 mm; rb max 0.8 mm; r min 1.5 mm; r1 min 1 mm; effective load centre a 23.9 mm; permissible axial load Pa 40.0 kN; recommended grease quantity 5.3 g per bearing |
| Cage Type | Outer-ring guided |
| Dynamic Load Rating | 92,000 N |
| Static Load Rating | 58,500 N |
| Rolling Elements | Ball |
| Item Weight | 1.01 kg (2.227 lb) per bearing |
| Cage Material | Phenolic |
| Number Of Rows | Single Row |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 12,500 rpm grease; 19,000 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Duplex universal (DU) |
| Bearing Material | Bearing Steel |
| Closure Type | Open |
| Cross Reference 1 | SKF 7213 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B7213-C-T-P4S |
| Cross Reference 3 | Timken (Fafnir) 2MM213WI |
| Cross Reference 4 | RHP 7213CTDUL |
| Cross Reference 5 | Koyo 7213C-5G |
| Cross Reference 6 | NTN 7213CG/GNP4 |
| Cross Reference 7 | GMN S 6213 C |
| Cross Reference 8 | NSK 7213CTYDULP4 (sibling execution, ball-guided cage, P4 class) |
| Cross Reference 9 | NSK 7213A5TRDULP3 - 25 deg vs 15 deg |

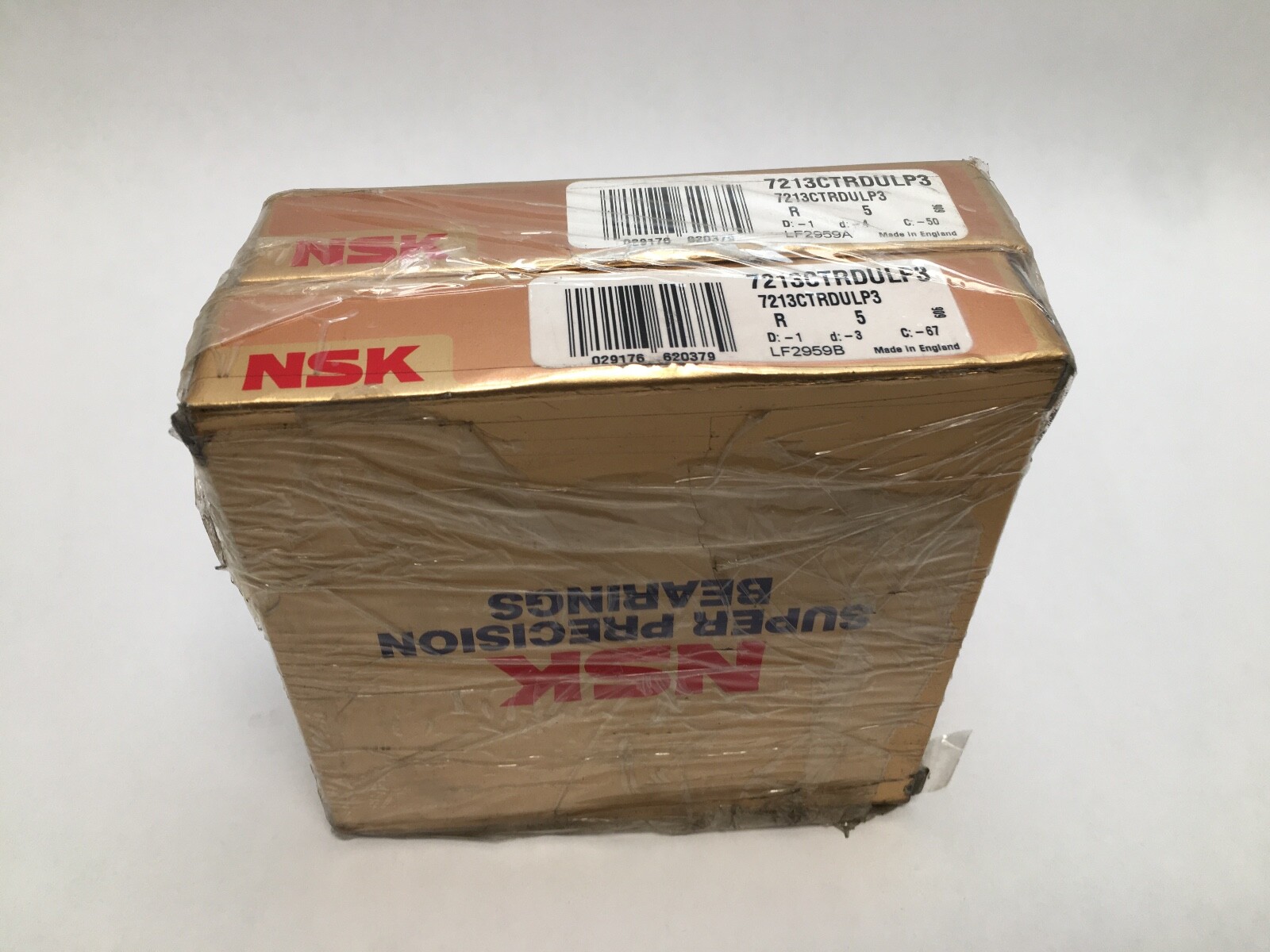

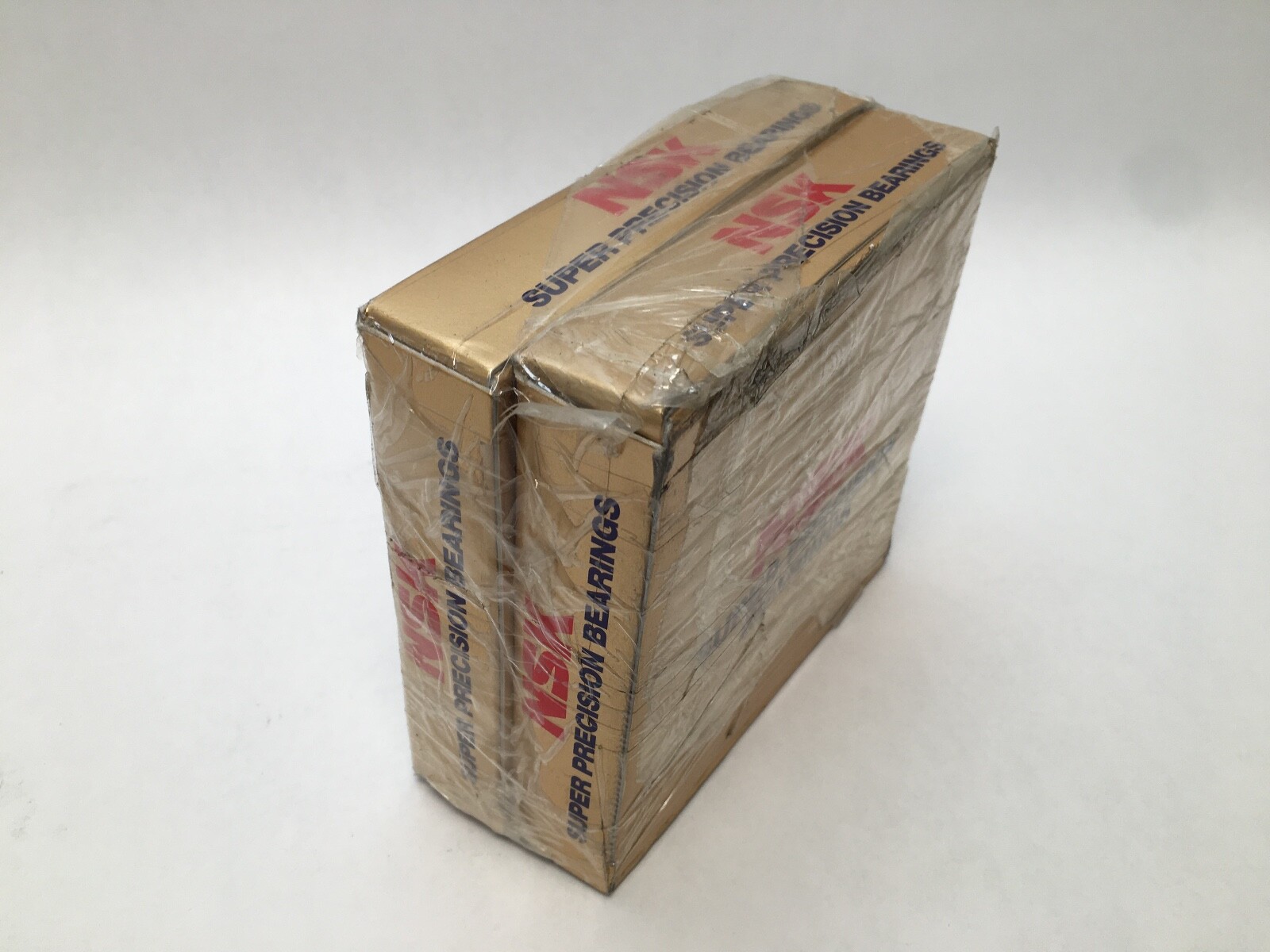

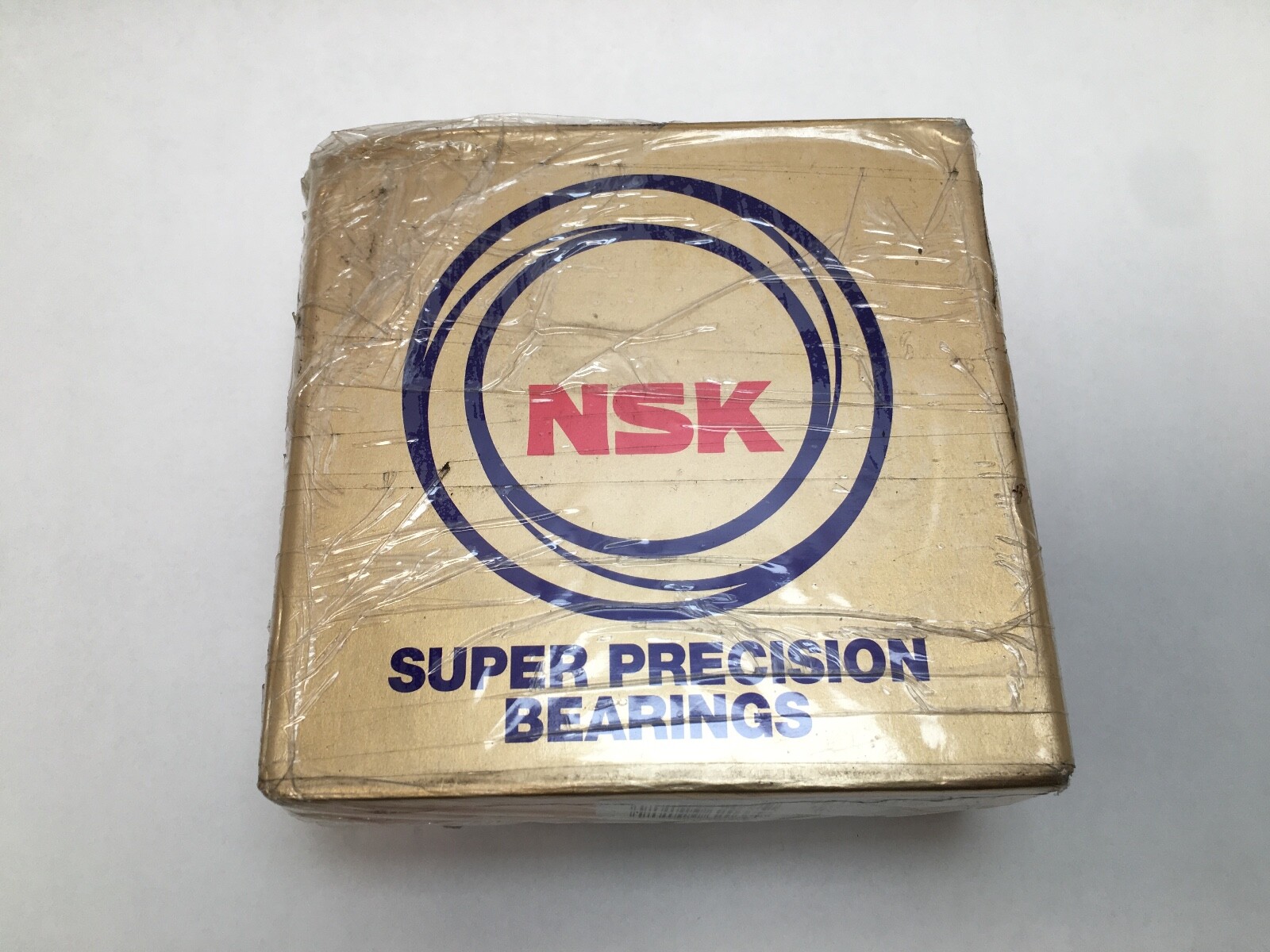

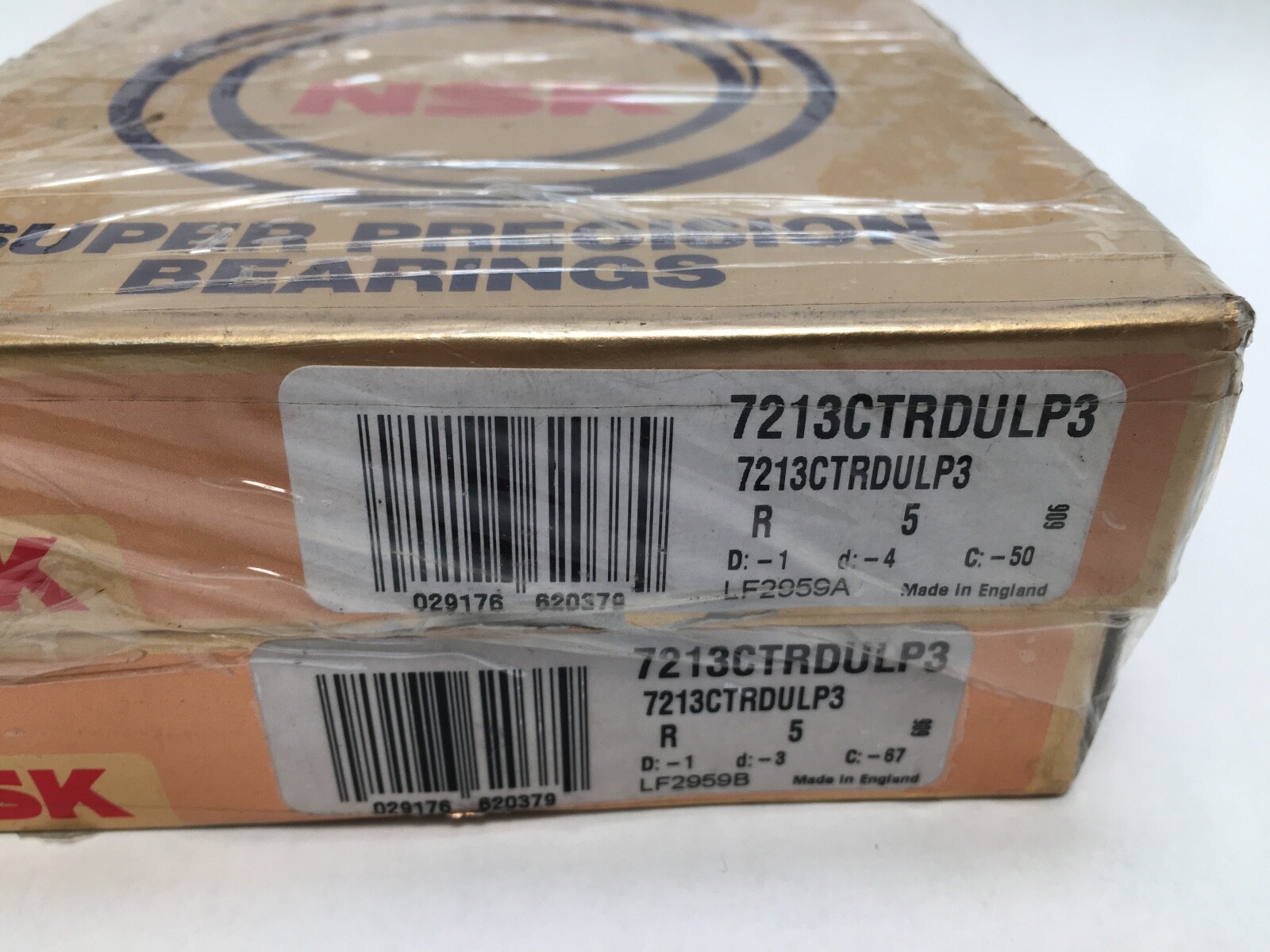

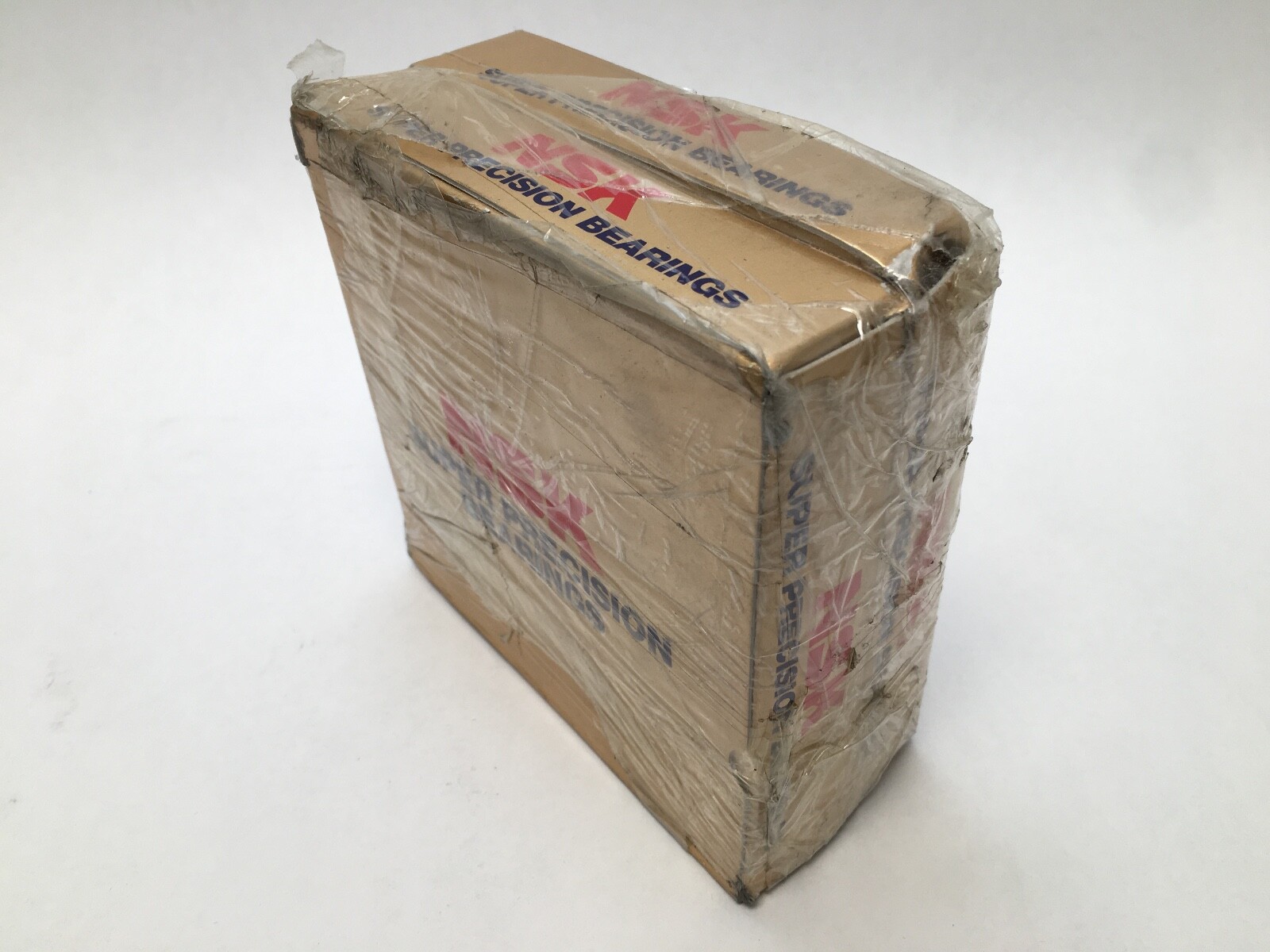

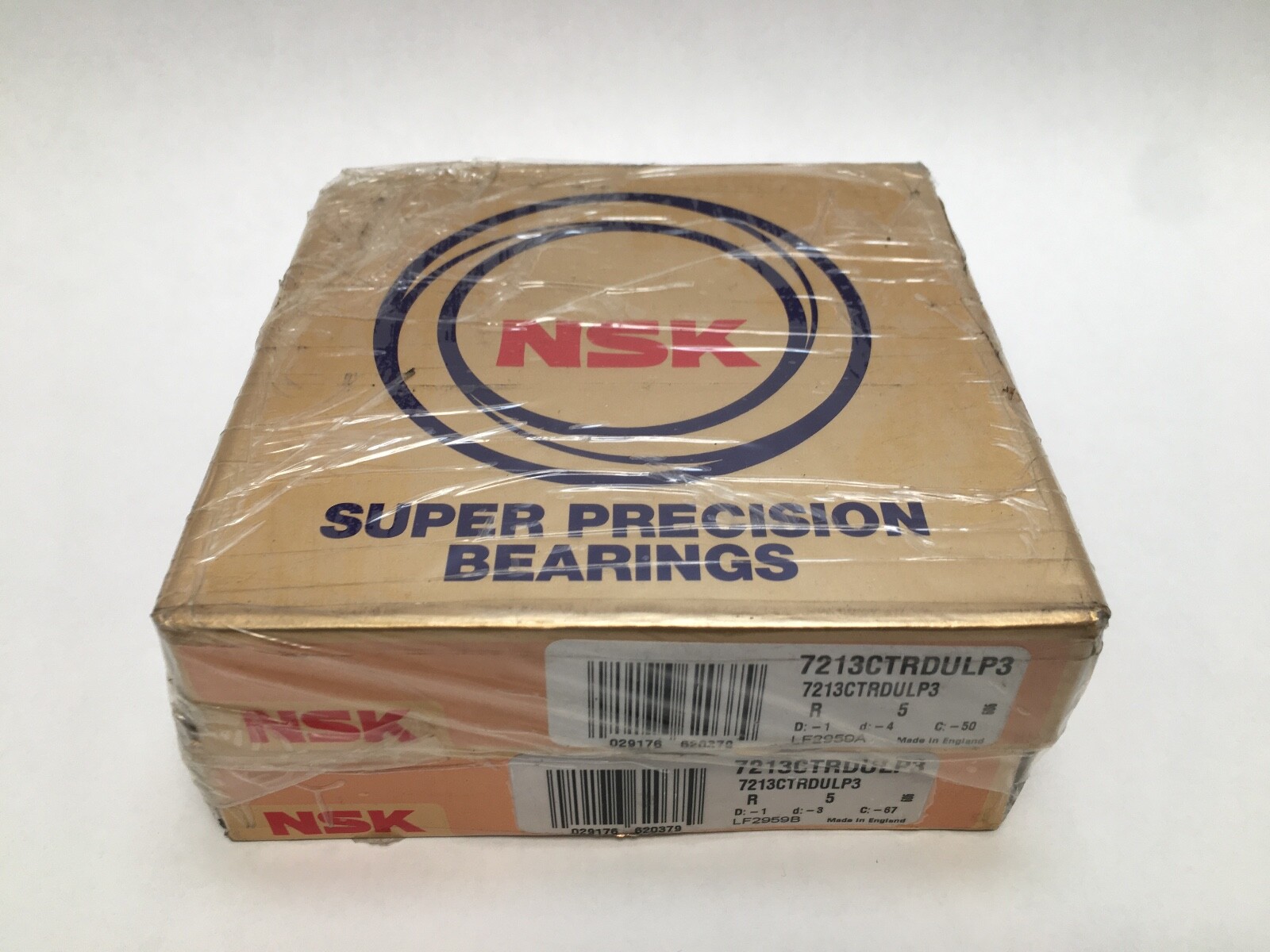

NSK 7213CTRDULP3 is a super precision single-row angular contact ball bearing supplied as a matched duplex pair of 2 pieces. Bore Diameter: 65 mm (2.5591 in). Outside Diameter: 120 mm (4.7244 in). Overall Width: 23 mm (0.9055 in). Contact Angle: 15°. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Number Of Rows: Single Row. Bearing Material: Bearing Steel. Unit Quantity: 2 Pcs.
7213 — 72 series super precision angular contact ball bearing in the 13 bore size, giving a 65 mm bore.
C — 15° contact angle.
TR — phenolic cage, outer-ring guided.
DU — duplex universal matching, so two bearings pair back-to-back, face-to-face or in tandem.
L — light preload.
P3 — NSK super precision tolerance class above P4.
Dynamic Load Rating: 92,000 N per bearing. Static Load Rating: 58,500 N per bearing. Limiting Speed: 12,500 rpm grease; 19,000 rpm oil. Item Weight: 1.01 kg (2.227 lb) per bearing. Precision Class: P3. Cage Material: Phenolic. Cage Type: Outer-ring guided. Preload: Light (L). Lubricant: Grease or oil-air. Permissible axial load Pa: 40.0 kN per bearing. Recommended grease quantity: 5.3 g per bearing.
Shaft abutment diameter da min: 74 mm. Housing abutment diameter Da max: 111 mm. Housing abutment diameter Db max: 114 mm. Shaft fillet radius ra max: 1.5 mm. Housing fillet radius rb max: 0.8 mm. Chamfer r min: 1.5 mm. Chamfer r1 min: 1 mm. Effective load centre a: 23.9 mm. Mounting Arrangement: Duplex universal (DU). Series: 7200 Super Precision. Base Number: 7213C.
Cross-references: SKF 7213 CD/P4A; FAG B7213-C-T-P4S; Timken (Fafnir) 2MM213WI; RHP 7213CTDUL; Koyo 7213C-5G; NTN 7213CG/GNP4; GMN S 6213 C. NSK 7213CTYDULP4 carries a ball-guided cage and P4 class. NSK 7213A5TRDULP3 has a 25° contact angle.
Bore 65 mm, outside diameter 120 mm, width 23 mm.
The C code gives a 15° contact angle. The TR code gives a phenolic cage guided on the outer ring.
DU is duplex universal matching, L is light preload and P3 is NSK super precision class above P4. The listing is a matched pair of 2 pieces.
