Availability:
1 in stock

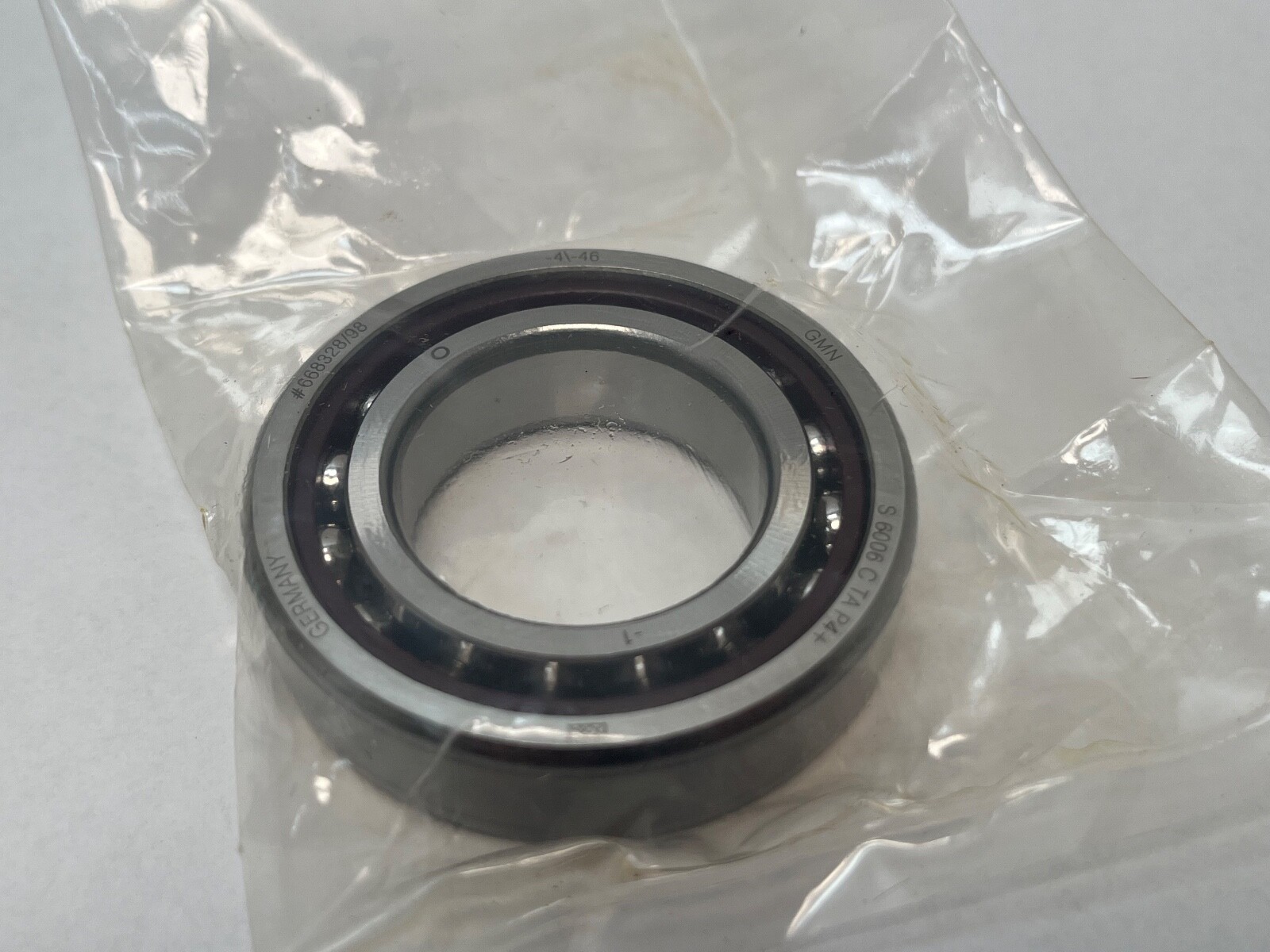

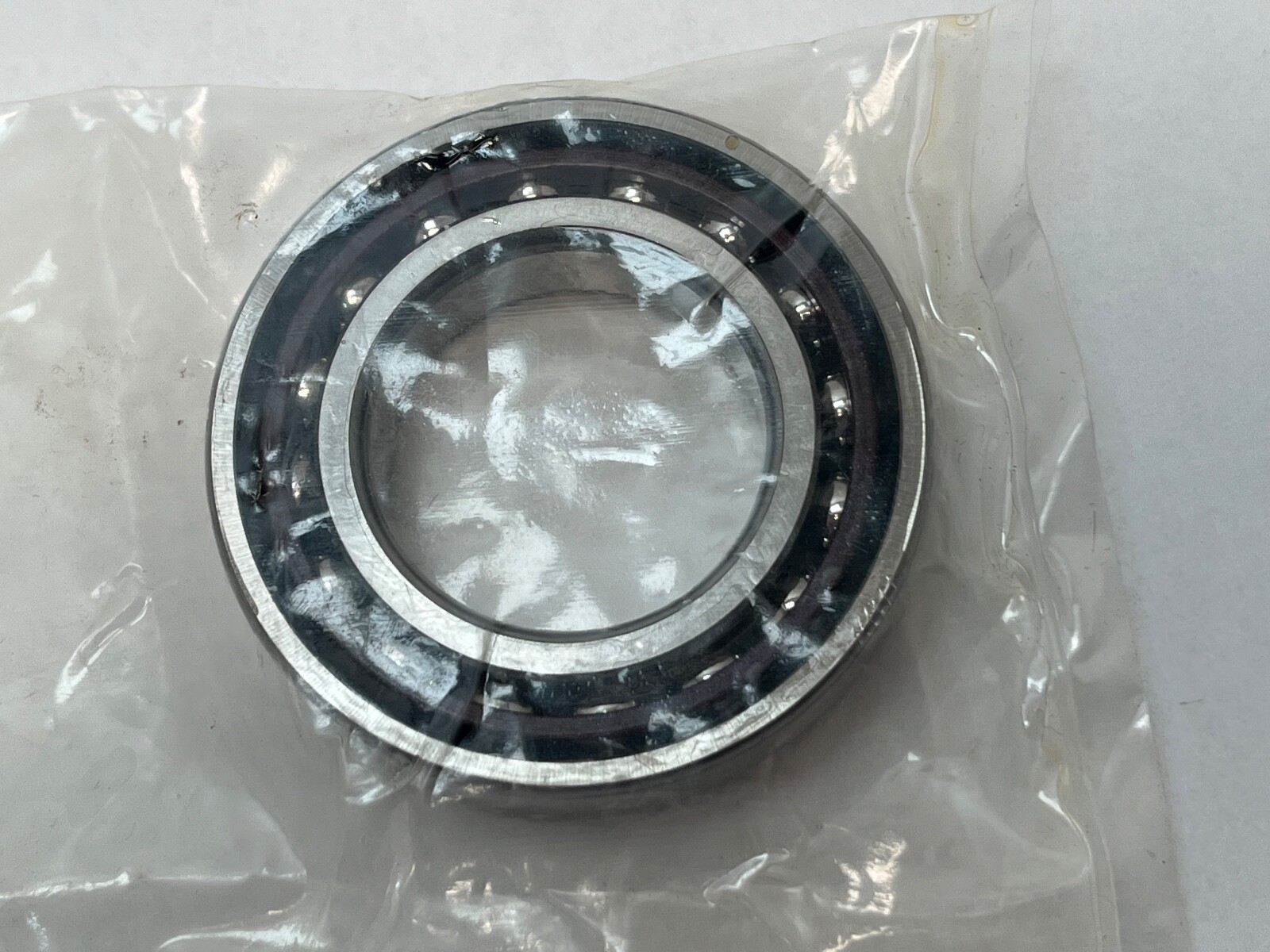

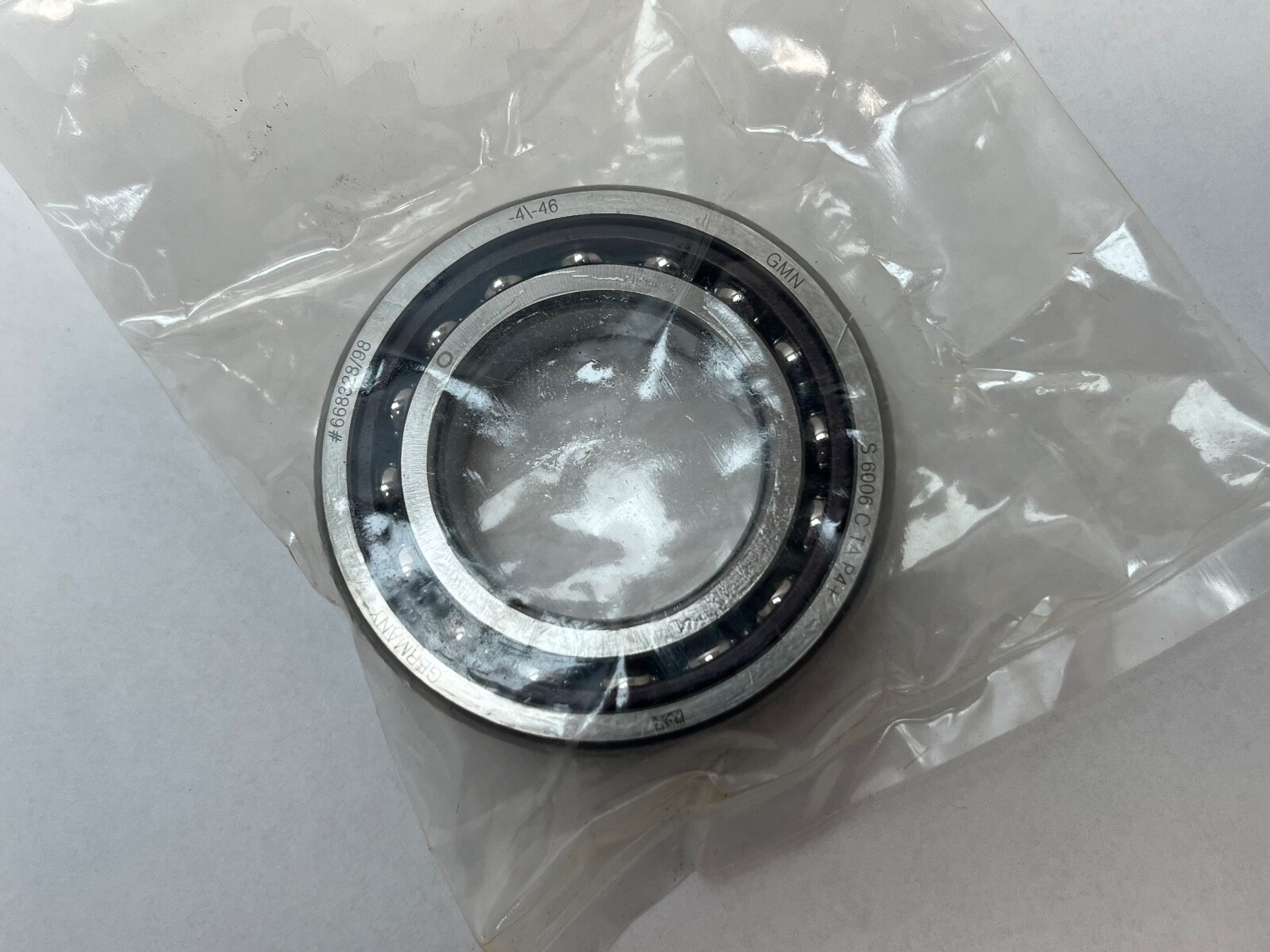

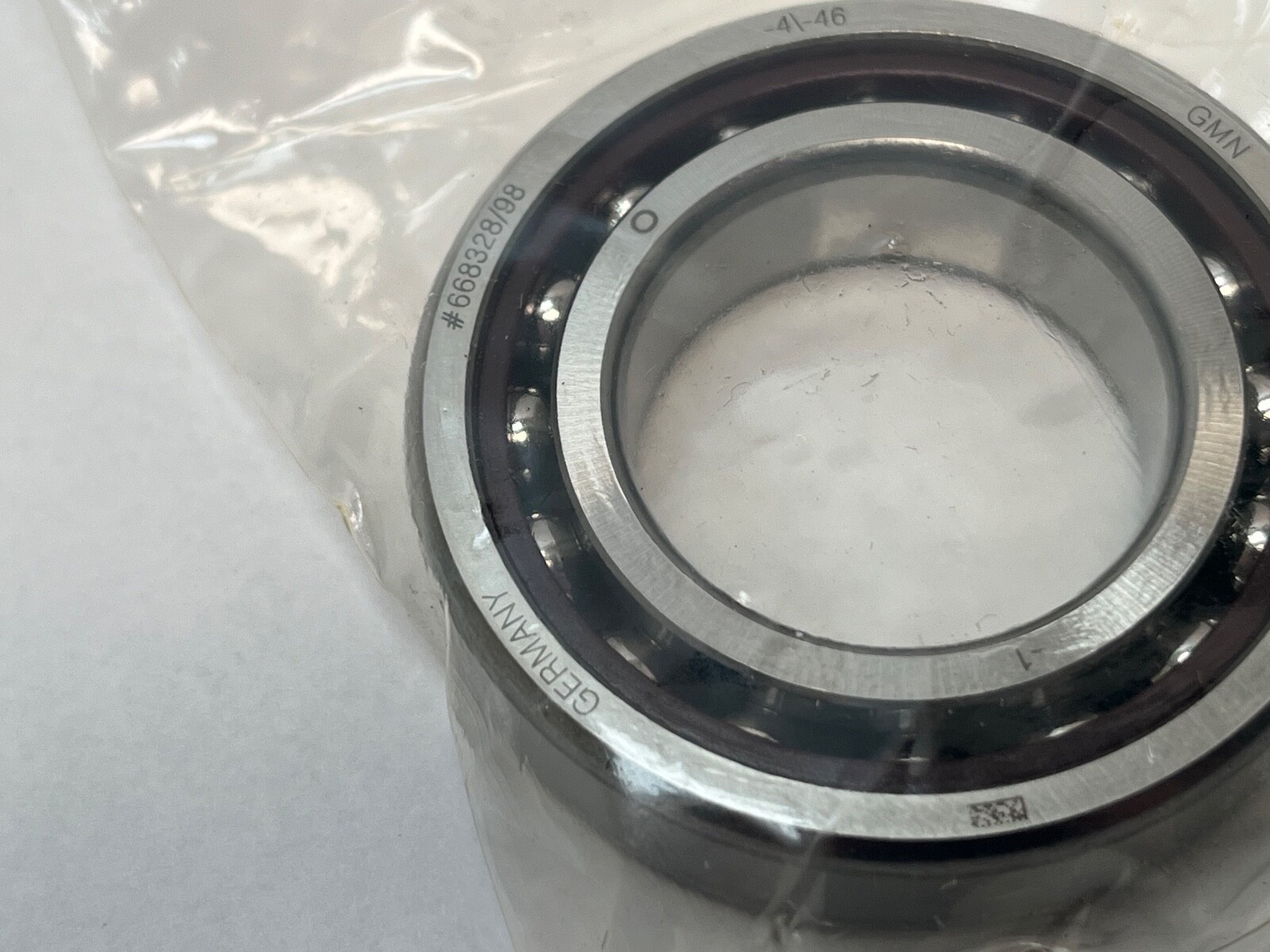

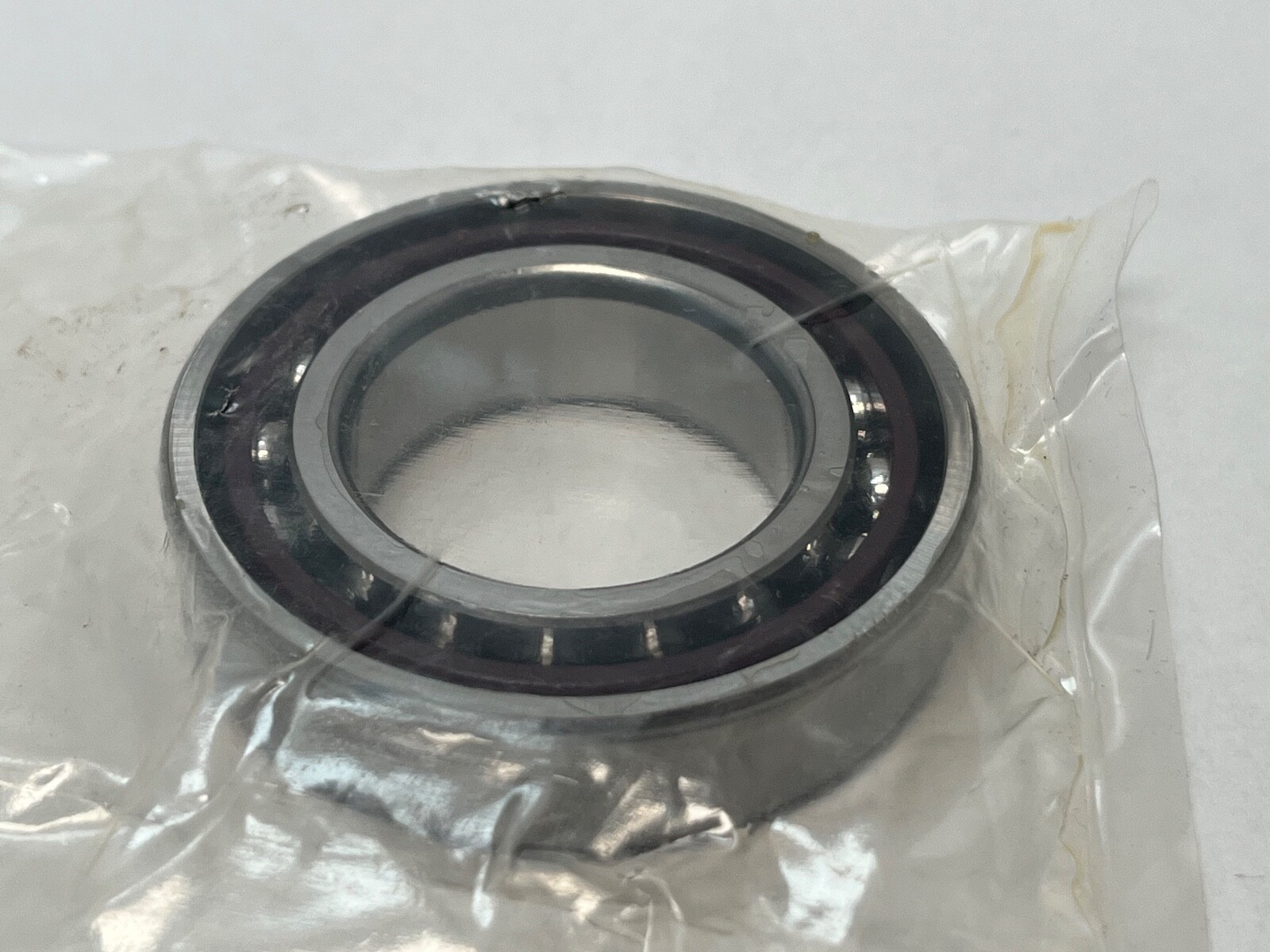

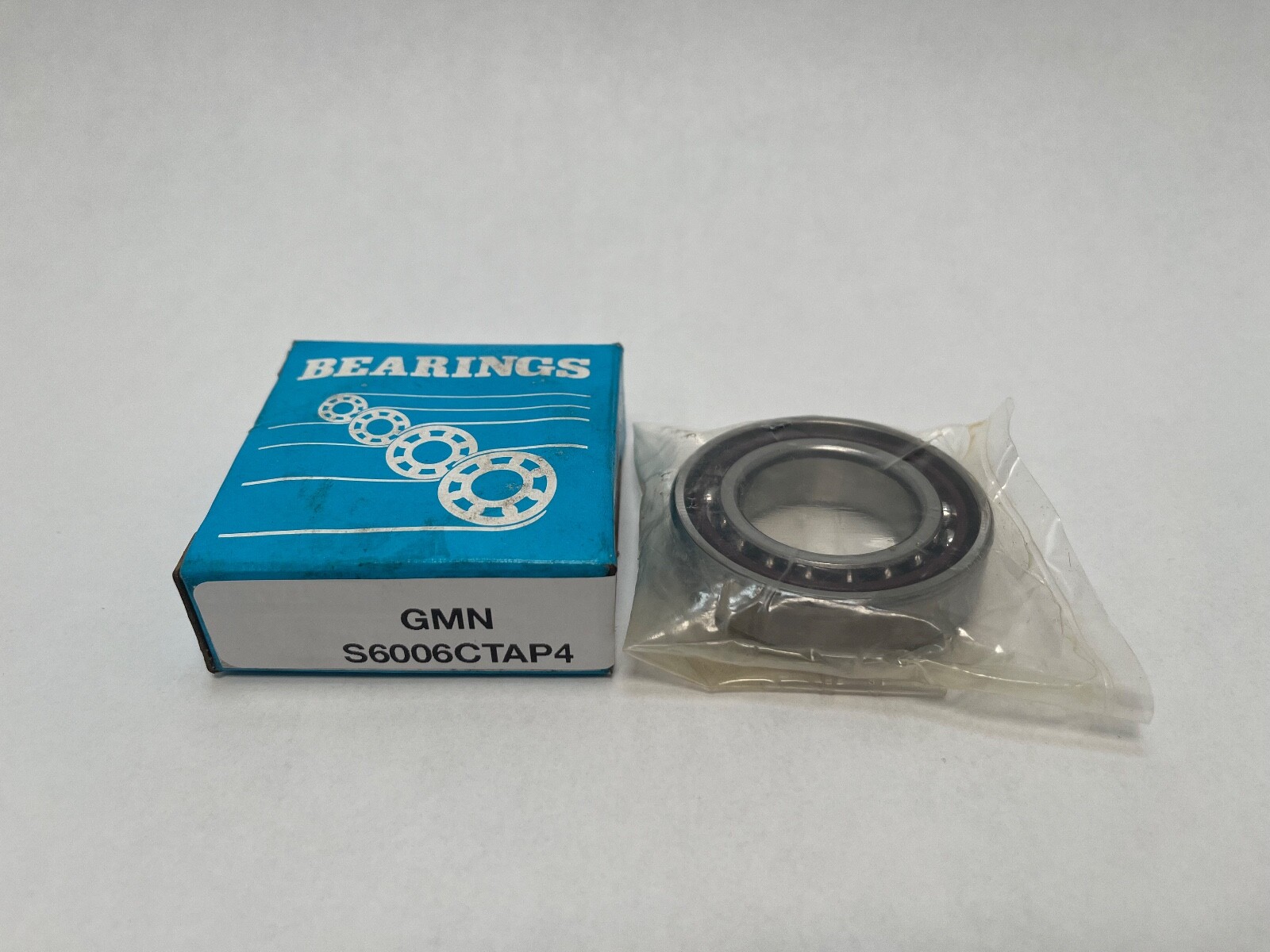

GMN S6006CTAP4 angular contact spindle bearing, 30 x 55 x 13 mm, 15° contact angle, P4 precision, outer-ring guided phenolic cage. 16,500 N dynamic rating.
List Price
$76.47
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GMN |
|---|---|
| MPN | S6006CTAP4 |
| Model | S6006CTAP4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 55 mm |
| Width | 13 mm |
| Material | 100Cr6 (SAE 52100) steel |
|---|---|
| Series | GMN S 60 |
| Lubricant | Grease or oil |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 16,500 N |
| Static Load Rating | 12,000 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Item Weight | 0.115 kg (0.25 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Limiting Speed | 30,000 rpm grease; 40,000 rpm oil |
| Mpn Variants | S6006CTAP4, S 6006 C TA P4, S-6006-C-TA-P4, S6006CTA, 7006-C |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Number of balls: 16; Ball diameter: 7.144 mm; Pitch circle diameter: 42.5 mm; Abutment da min: 34.9 mm; Abutment Da max: 50.9 mm; Oil nozzle position dT: 40.5 mm; GMN matched-set preload values: L 85 N, M 250 N, S 500 N; TA cage operating temperature: 120 °C |
| Bearing Material | 100Cr6 (SAE 52100) steel |
| Cross Reference 1 | SKF 7006 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B7006-C-T-P4S |
| Cross Reference 3 | NSK 7006CTYP4 |
| Cross Reference 4 | Fafnir 2MM9106WI |

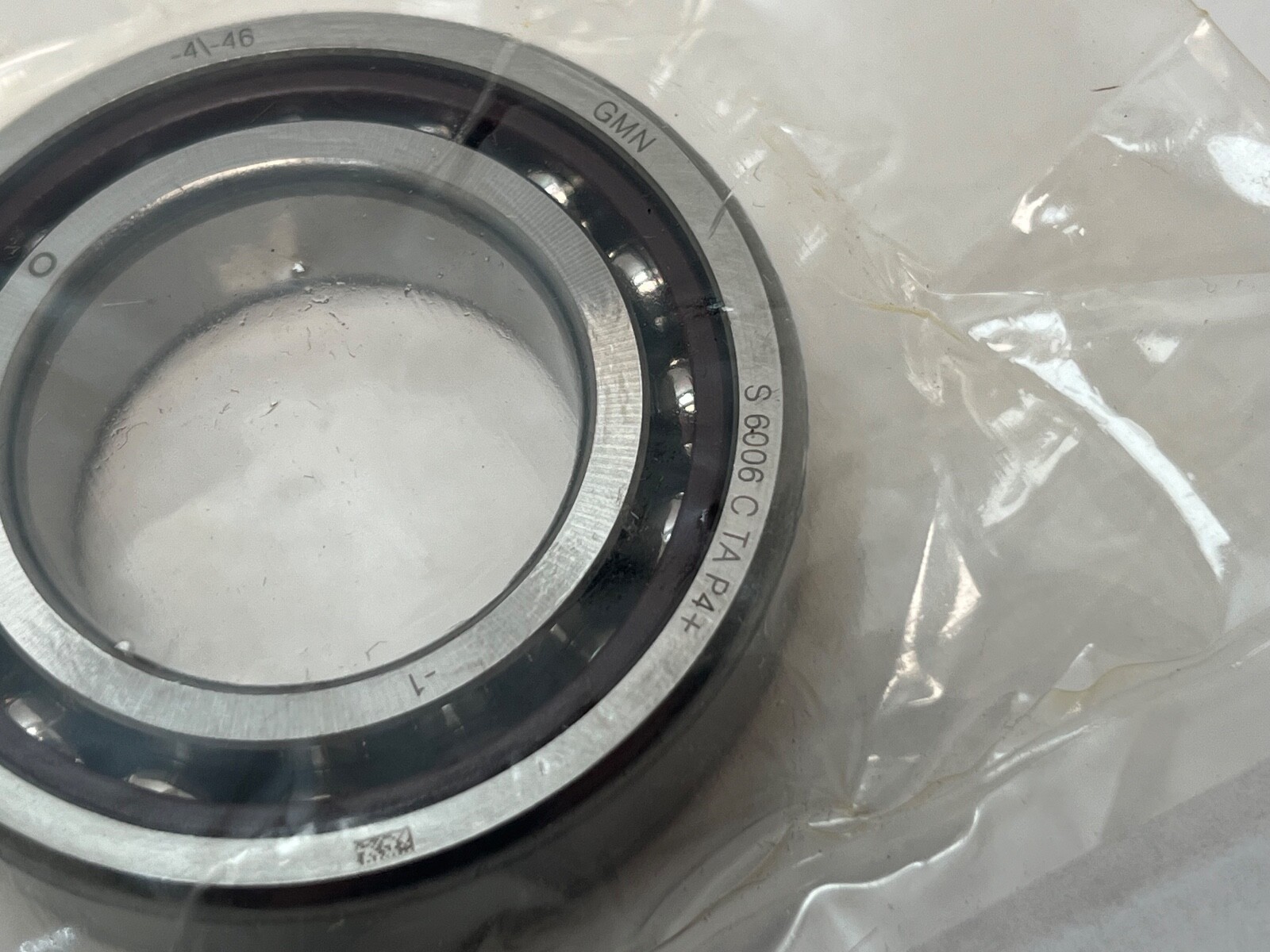

GMN S6006CTAP4 is a single-row angular contact spindle bearing from GMN’s S series, built on the ISO 7006 envelope. Bore Diameter: 30 mm. Outside Diameter: 55 mm. Overall Width: 13 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4.
S — GMN standard spindle bearing series, non-separable.
6006 — 60 dimension series, 30 mm bore: the 7006 size, 30 x 55 x 13 mm.
C — 15° nominal contact angle.
TA — laminated phenolic resin cage guided on the outer ring.
P4 — GMN tolerance class P4, corresponding to P4S per DIN 628-6.
Dynamic Load Rating: 16,500 N. Static Load Rating: 12,000 N. Limiting Speed: 30,000 rpm grease; 40,000 rpm oil. The 15° angle favours speed and radial stiffness. Cage Material: Phenolic. GMN rates the TA cage to 120 °C operating temperature.
Item Weight: 0.115 kg. Number of balls: 16. Ball diameter: 7.144 mm. Pitch circle diameter: 42.5 mm. Abutment diameter inner ring da min: 34.9 mm. Abutment diameter outer ring Da max: 50.9 mm. Oil nozzle position dT: 40.5 mm. Chamfer rs: 1 mm, open side 0.6 mm. GMN preload values for this size in matched sets: L 85 N, M 250 N, S 500 N.
Unit Quantity: 1 Pc. Single bearing with no matching or preload suffix. Closure Type: Open.
Same 30 x 55 x 13 mm envelope, 15° angle and P4-class tolerance: SKF 7006 CD/P4A, FAG B7006-C-T-P4S, NSK 7006CTYP4, Fafnir 2MM9106WI. Cage material varies by maker.
