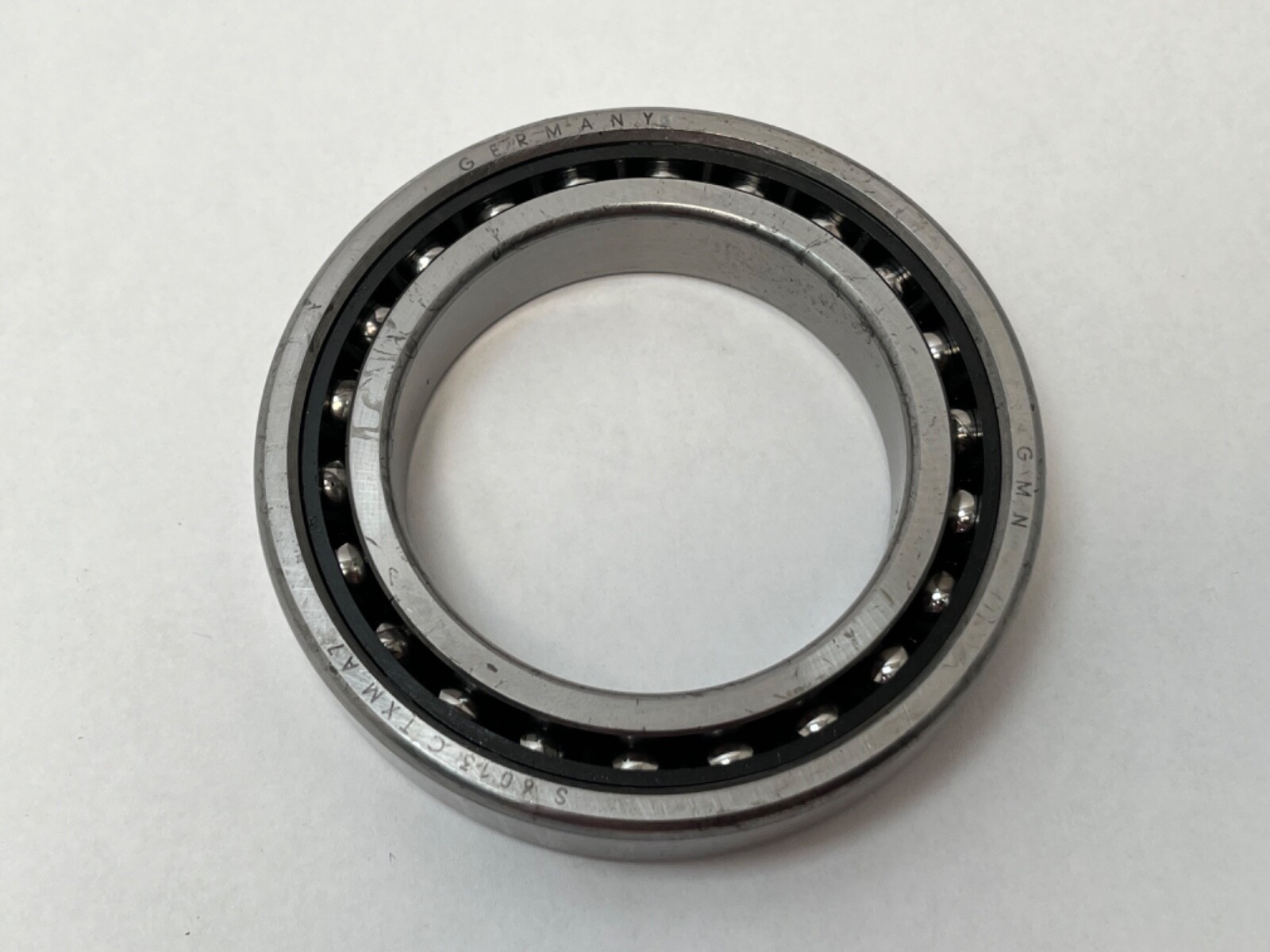

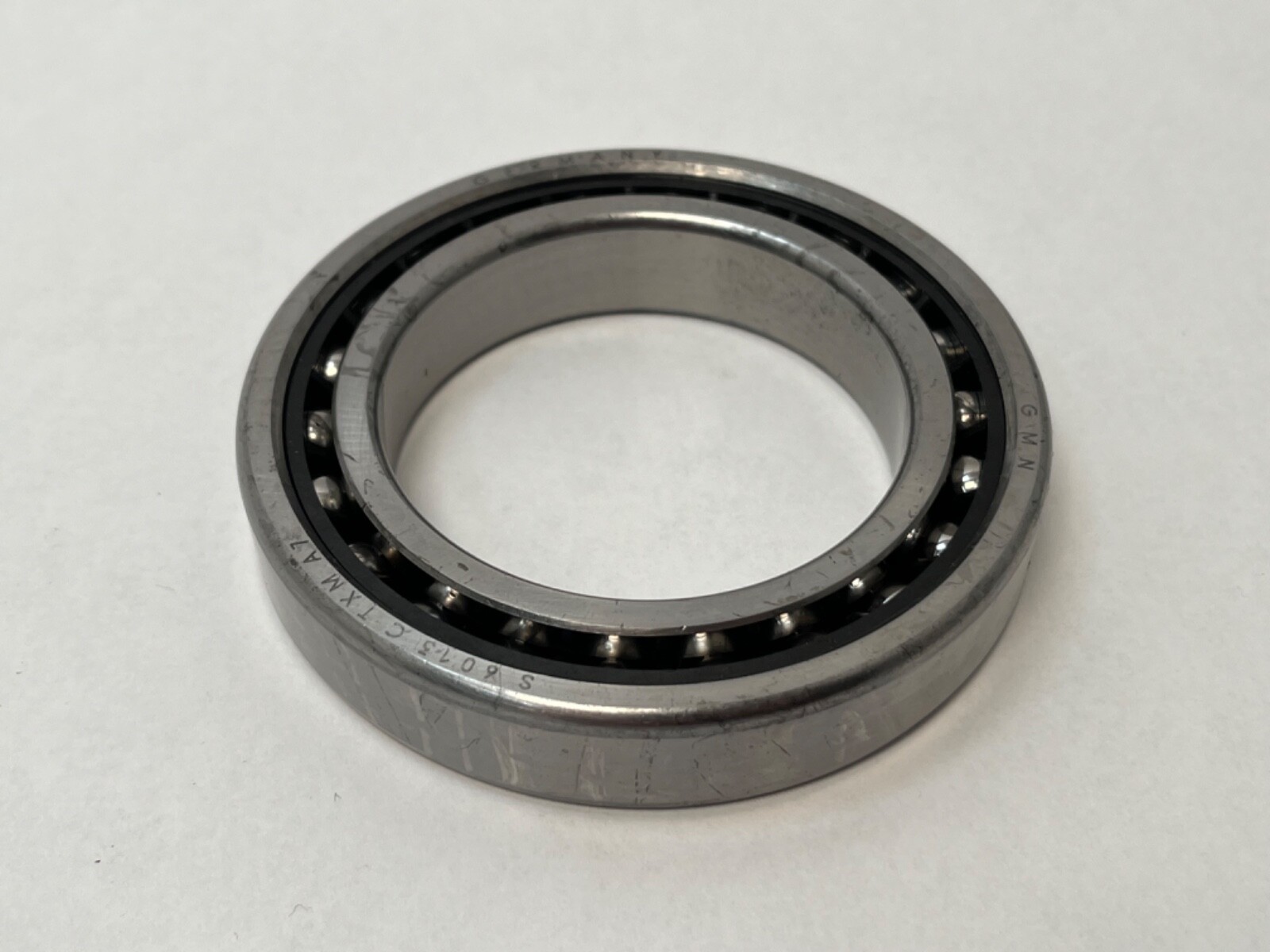

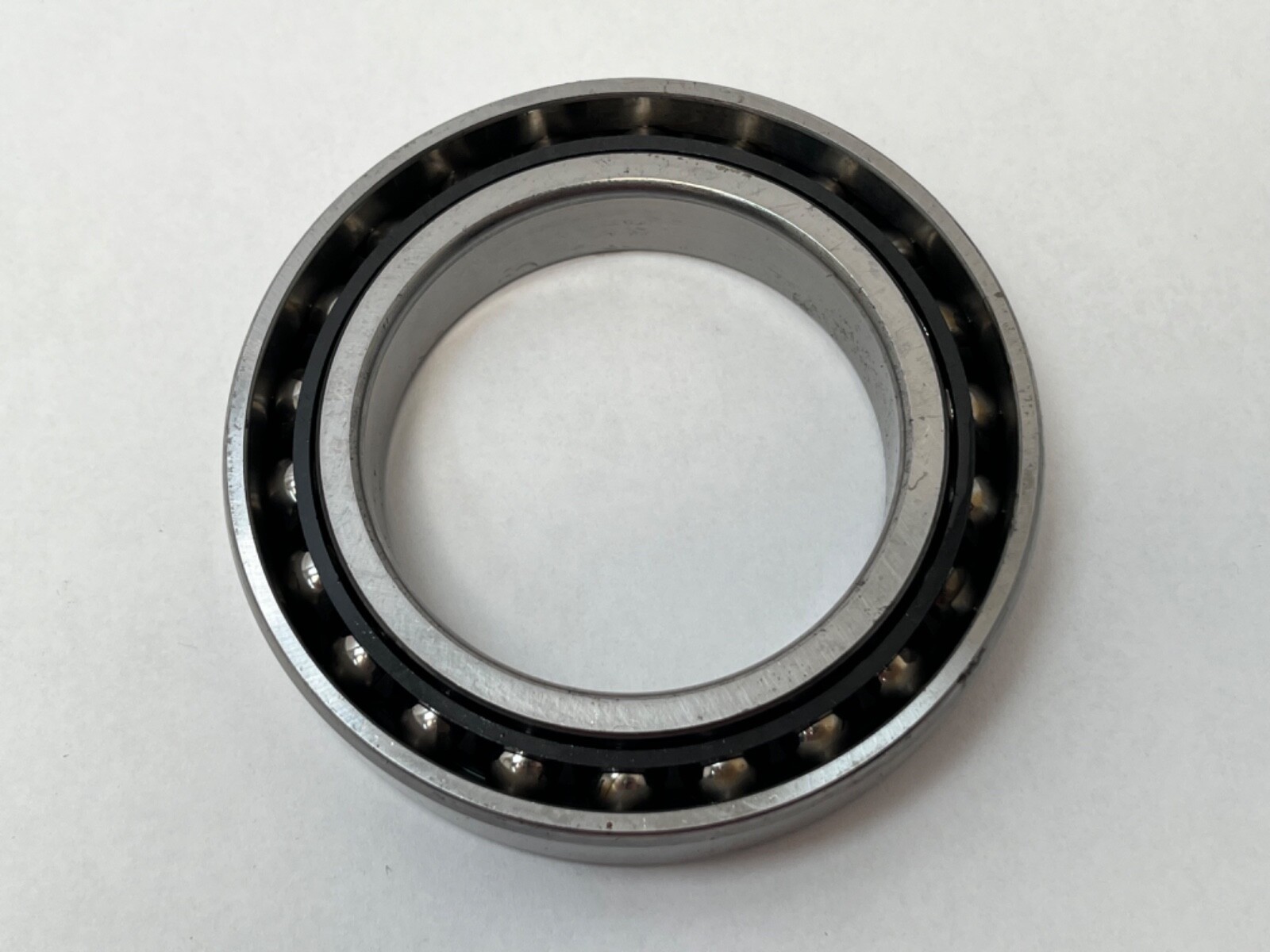

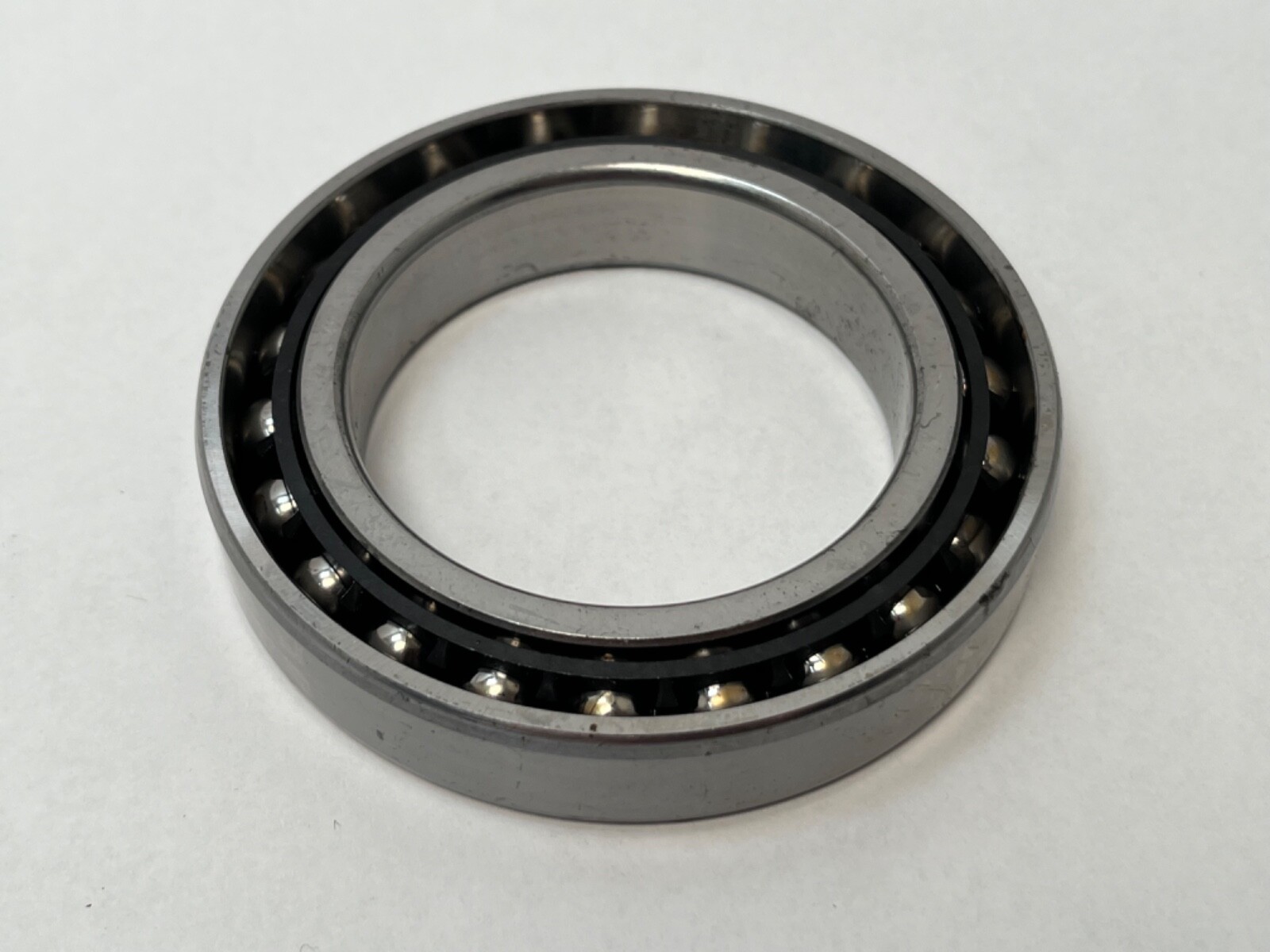

GMNS 6013 C TXM A7Angular Contact Ball Bearing – 65 mm ID, 100 mm OD, 18 mm Width, Open, 15°, PEEK Cage to 250°C, ABEC 7

Condition: New – Open box
Condition Note: Made In Germany, New Old Stock, Dried Grease (Bearing May Need New Grease To Spin Freely)

Availability:

1 in stock

GMN S6013CTXMA7 angular contact ball bearing, 65 x 100 x 18 mm, 15° contact angle, open, PEEK cage rated to 250 °C, ABEC 7 precision class, 1 Pc.

Same day shipment

List Price

$49.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandGMN
MPNS 6013 C TXM A7
ModelS 6013 C TXM A7 / 2MM9113WI CR DUL / 7013C T P4 DUL / ABEC7 P4
Bearing TypeAngular Contact Ball Bearing, Open
ID65 mm
OD100 mm
Width18 mm

Technical Specifications

MaterialSteel
Base NumberS6013C
Bore Shaft Size65 mm
Mpn VariantsS6013CTXMA7, S 6013 C TXM A7, S-6013-C-TXM-A7, S6013C TXM ABEC7, S6013CTXM
Precision ClassABEC 7
SeriesS Series
Rolling ElementsBalls
Cage MaterialPEEK
Number Of Rows1
Bore TypeStraight
Contact Angle15°
Part NumberS6013CTXMA7
Industry Termsspindle bearing; high precision angular contact bearing; 15 degree angular contact ball bearing; PEEK cage spindle bearing; ABEC 7 spindle bearing; 7013C equivalent size
Common MisspellingsGMN S6013CTXM7; GMN S 6013 CTXMA7; GNM S6013CTXMA7; GMN S6013C-TXM-A7; GMN S6013 TXM A7
Application TypesMachine tool spindles; high-speed motor spindles; precision rotary tables; grinding spindles

Cross-References

Cross Reference 1SKF 7013 CD/P4A (15°, P4A)
Cross Reference 2FAG B7013-C-T-P4S (15°, P4S)
Cross Reference 3Fafnir 2MM9113WI CR (15°)
Cross Reference 4ISO 7013C T P4 (ISO designation)
Seller Part Number: AA2B4#IDKOZV

Product Description

What this part is:

GMN S 6013 C TXM A7 angular contact ball bearing, S Series. Bore: 65 mm. Outside Diameter: 100 mm. Overall Width: 18 mm. Contact Angle: 15°. Unit Quantity: 1 Pc.

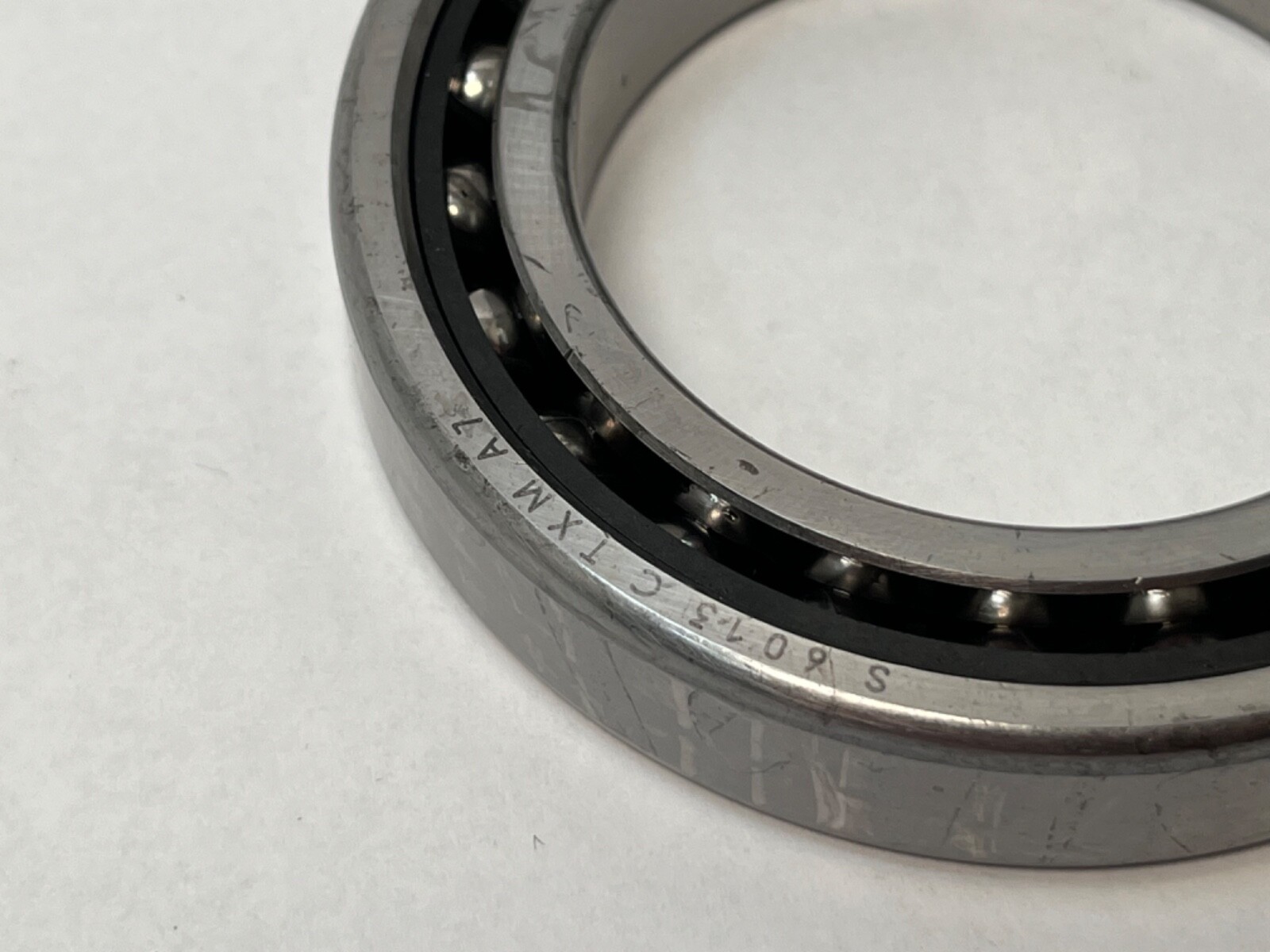

Decoding the designation:

S — GMN’s S Series angular contact range.

6013 — 65 mm bore, ISO 7013 envelope at 65 x 100 x 18 mm.

C — 15° contact angle.

TXM — PEEK cage, rated to 250 °C.

A7 — ABEC 7 precision class.

Specifications:

Number Of Rows: 1. Rolling Elements: Balls. Bore Type: Straight. Closure Type: Open. Cage Material: PEEK. Precision Class: ABEC 7. Bearing Material: Steel. Maximum operating temperature: 250 °C.

Dimensions and mounting:

Bore 65 mm straight, outside diameter 100 mm, width 18 mm, open on both faces. One single bearing.

Compatibility and replacement:

Related 7013 size at 15°, 65 x 100 x 18 mm: SKF 7013 CD/P4A, FAG B7013-C-T-P4S and Fafnir 2MM9113WI CR. A 25° GMN E execution on the same size is a related size at a different contact angle. The carton also carries the ISO form 7013C T P4. Also written S6013CTXMA7, S 6013 C TXM A7, S-6013-C-TXM-A7, S6013C TXM ABEC7 and S6013CTXM.

Frequently asked questions:

What are the dimensions of the GMN S6013CTXMA7?

65 mm bore, 100 mm outside diameter, 18 mm width.

What contact angle does it have?

15° (C).

What is the cage made of?

PEEK, rated to 250 °C (TXM).
