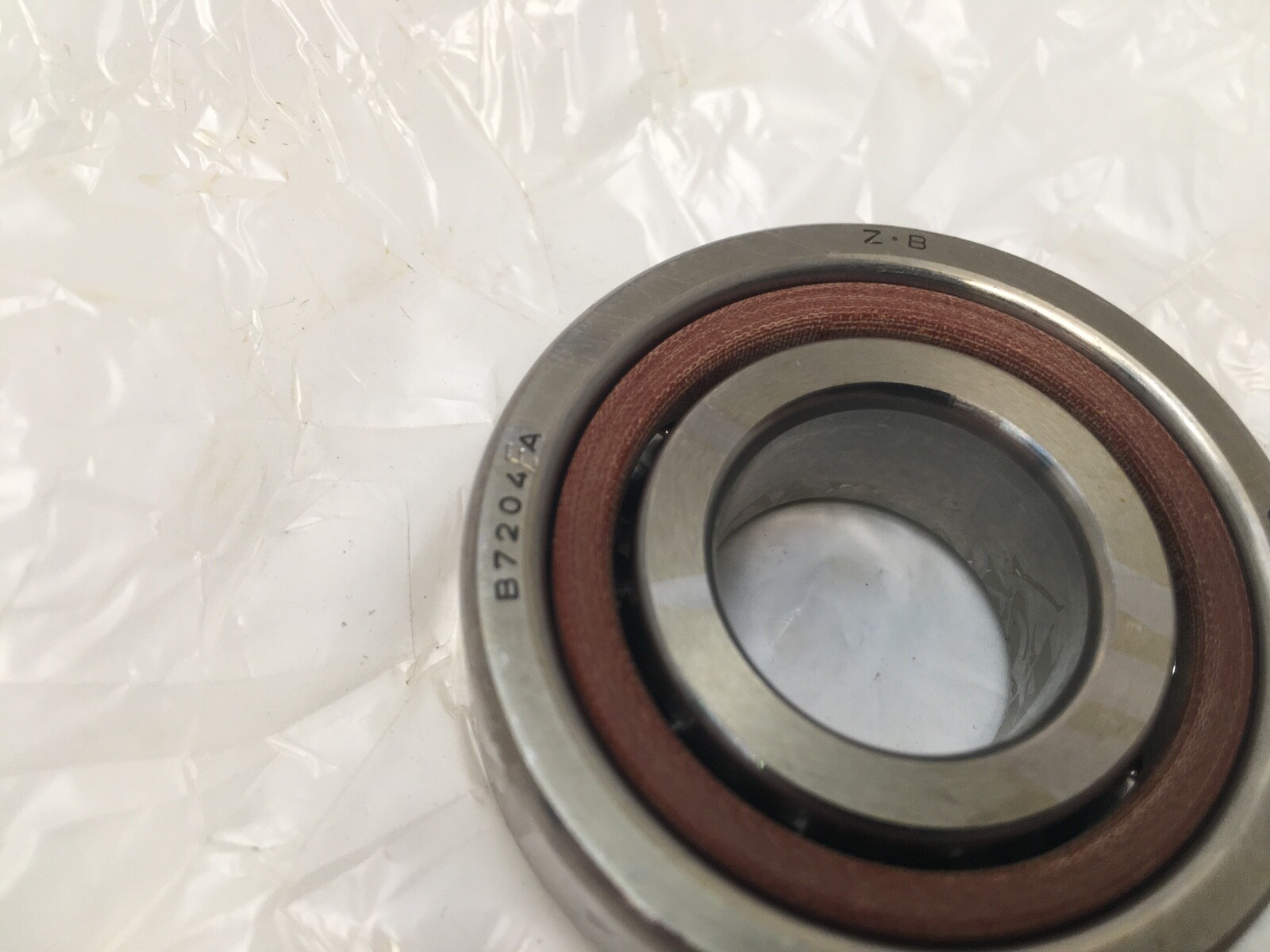

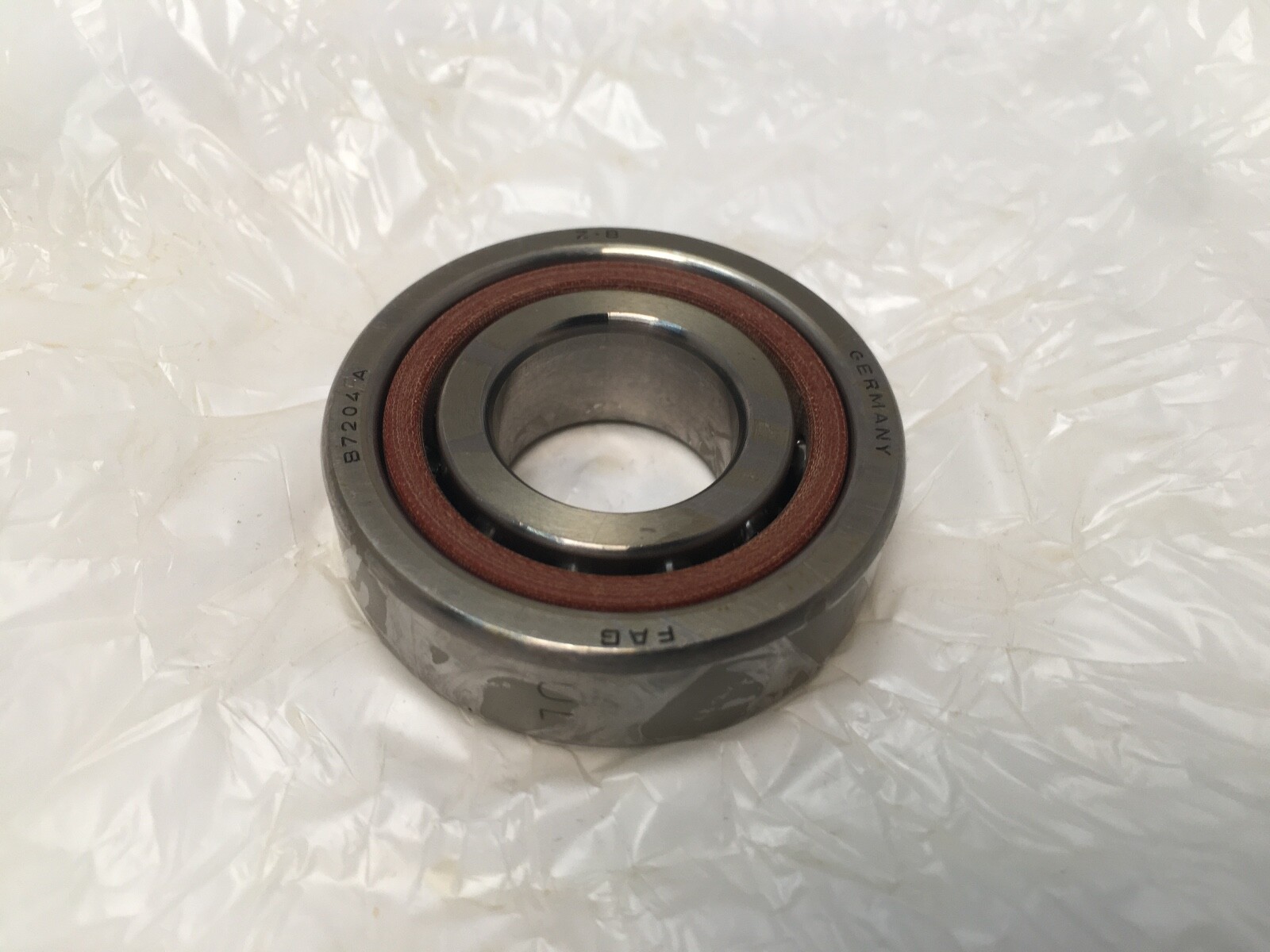

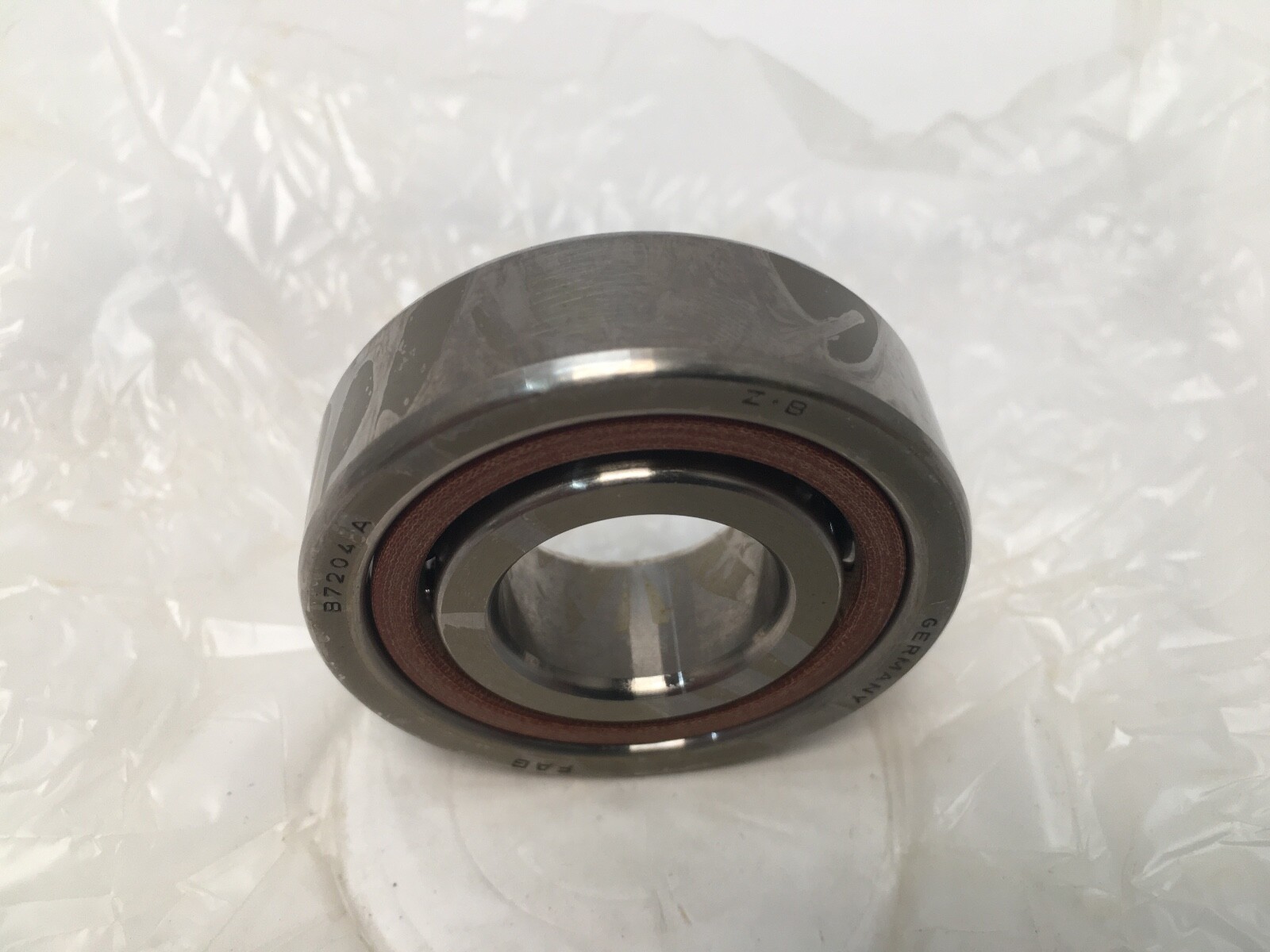

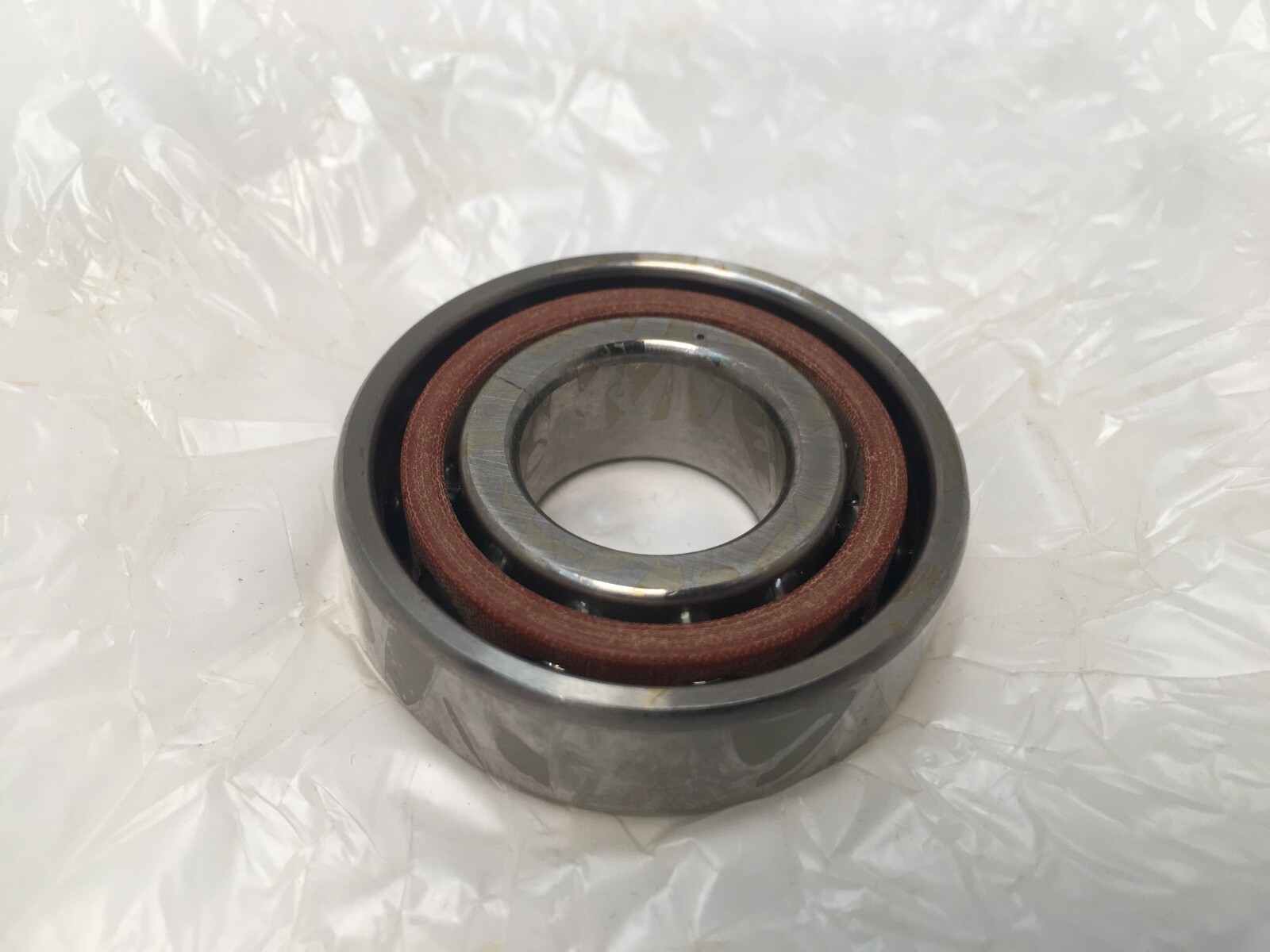

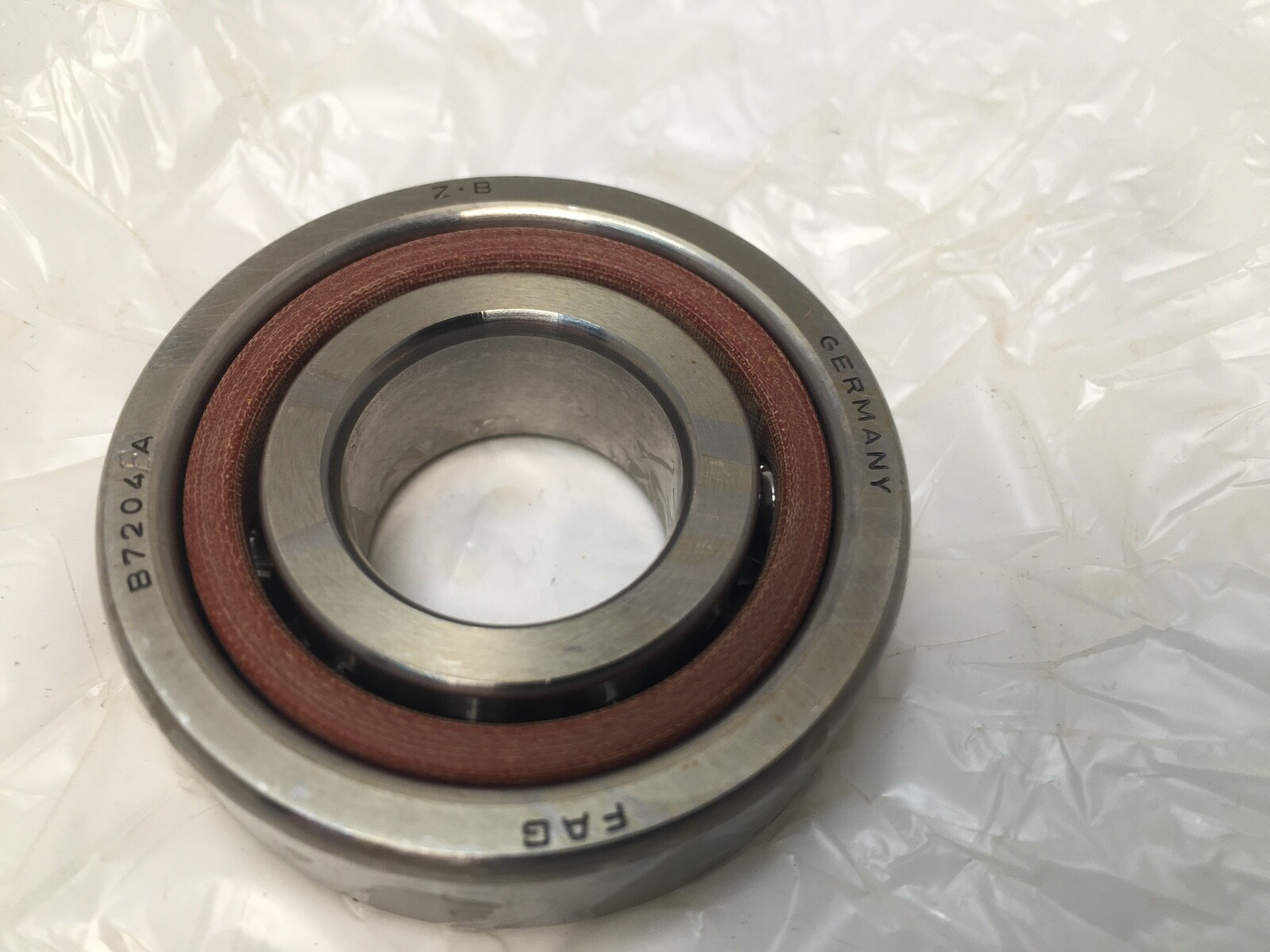

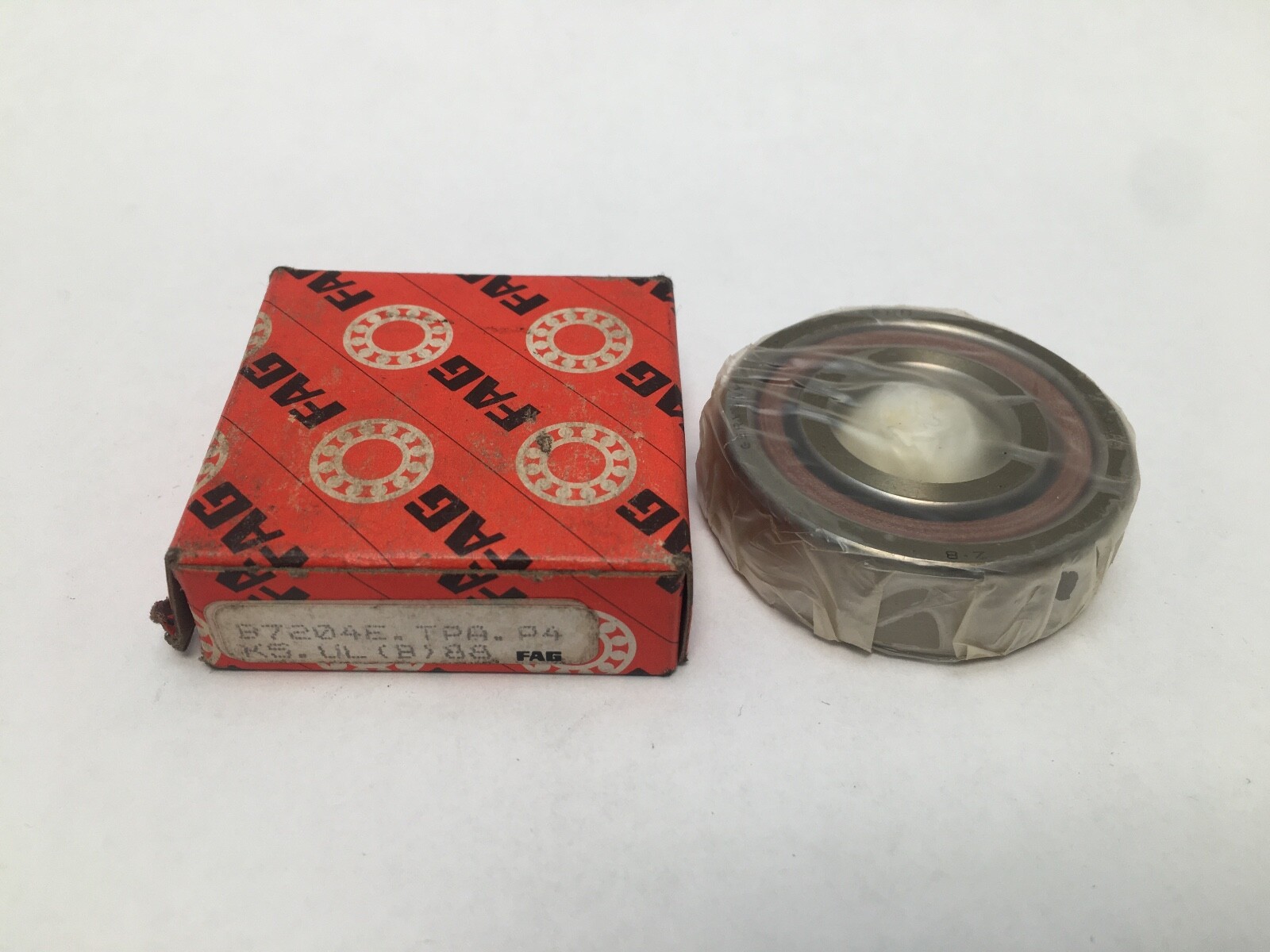

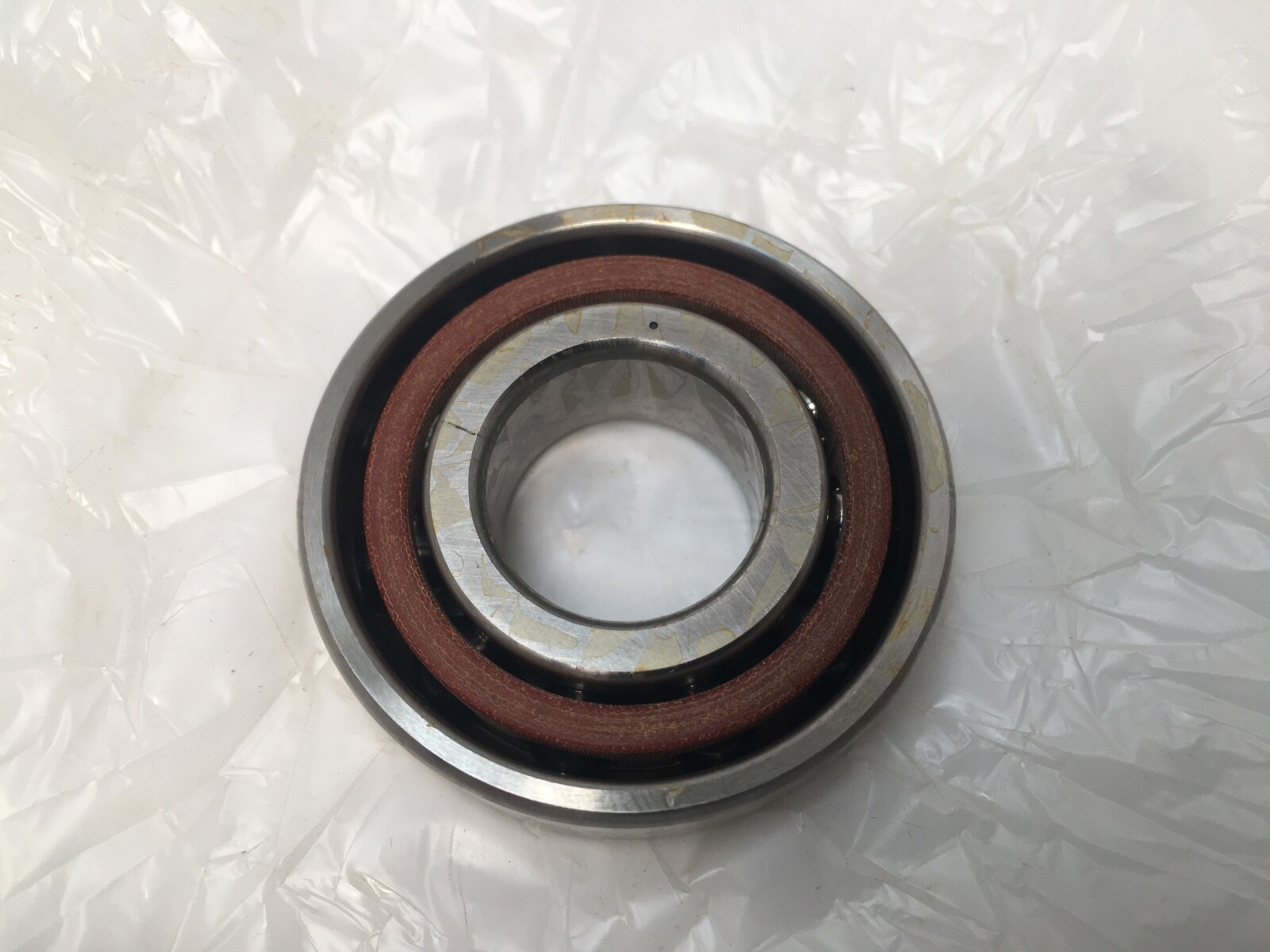

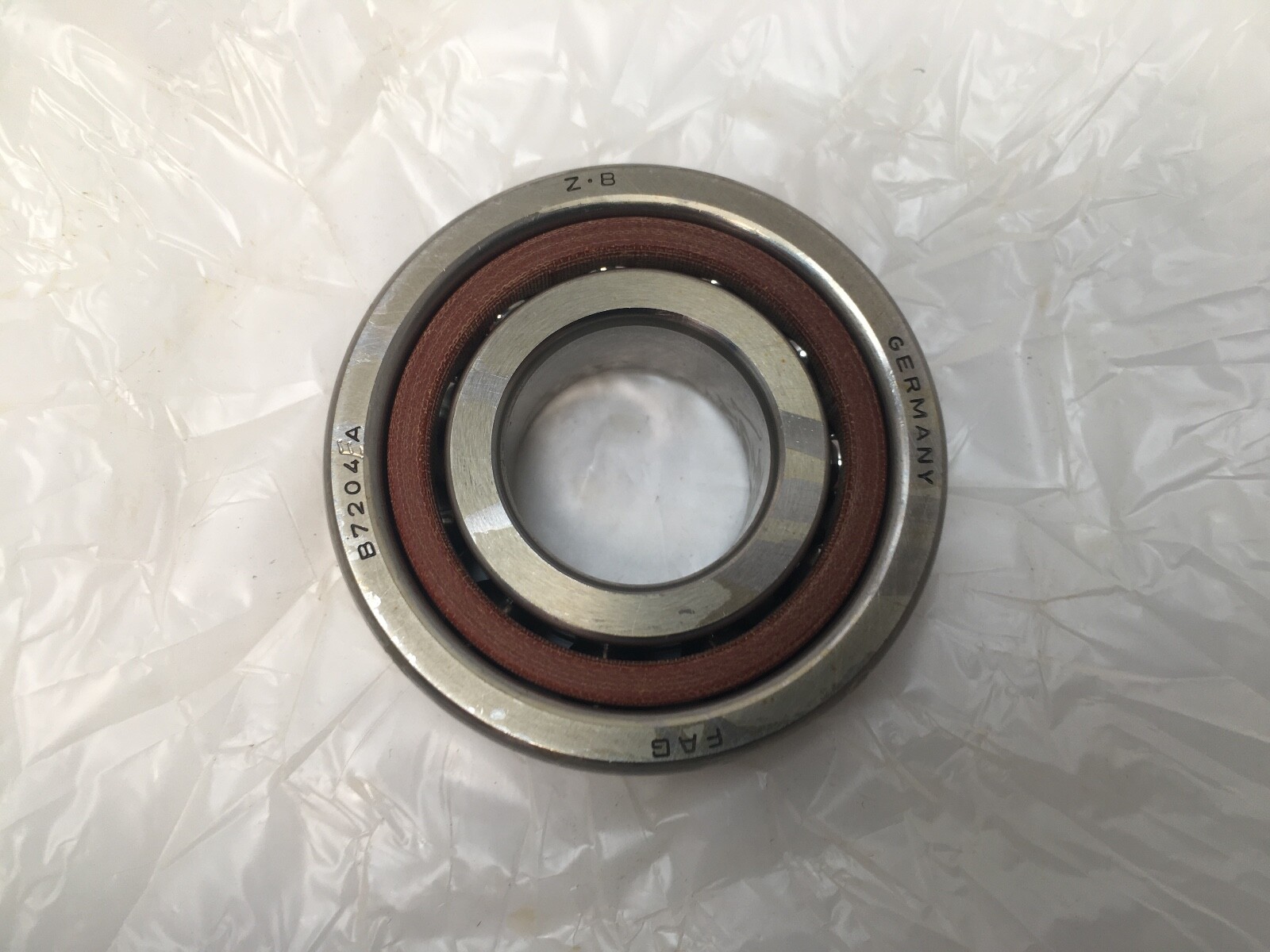

Spindle angular contact ball bearing, 20 x 47 x 14 mm, 25° contact angle, P4S precision, phenolic cage, universal light preload (UL). Open, super-precision B72.
List Price
$69.73
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | B7204E.TPA.P4S.UL |
| Model | B7204-E-T-P4S-UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 47 mm |
| Width | 14 mm |
| Series | B72 |
|---|---|
| Preload | Light |
| Min Temp | -30 °C |
| Cage Type | Fabric-base laminated phenolic (TPA / T) |
| Dynamic Load Rating | 16,500 N |
| Static Load Rating | 7,700 N |
| Rolling Elements | Ball |
| Max Temp | 100 °C |
| Item Weight | 0.100 kg |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal (U) |
| Limiting Speed | 30,000 rpm grease; 45,000 rpm oil |
| Overall Width | 14 mm |
| Mpn Variants | B7204E.TPA.P4S.UL, B7204-E-T-P4S-UL, B-7204-E-TPA-P4-K5-UL, B7204ETPAP4K5UL, B7204E.T.P4S.UL, B7204E.TPA.P4.UL, 7204E |
| Compatible With Replaces | FAG B7204-E-T-P4S-UL (current); replaces B7204E.T.P4S.UL, B7204E.TPA.P4.UL |
| Precision Class | P4S (better than ABEC 7 / P4) |
| Additional Attributes | Current B7204-E-T-P4S-UL data: Preload force light 107 N; Operating temperature -30 to +100 °C; Shaft shoulder diameter 26.5 mm; Housing shoulder diameter 40.5 mm; r min 1 mm. |
| Cross Reference 1 | SKF 7204 ACD/P4A |
|---|---|
| Cross Reference 2 | NSK 7204A5TYNSULP4 |
| Cross Reference 3 | GMN S6204ETA |
| Cross Reference 4 | Fafnir 3MM204WI |
FAG B7204E.TPA.P4S.UL is a single-row super-precision spindle angular contact ball bearing, current Schaeffler designation B7204-E-T-P4S-UL. Unit Quantity: 1 Pc. Single universal bearing. Open design, ball rolling elements, B72 series.
B7204 — FAG super-precision spindle bearing, 72 series, 20 mm bore, 20 x 47 x 14 mm.
E — 25° contact angle.
TPA — cage of fabric-base laminated phenolic; current Schaeffler cage code T.
P4S — FAG precision class tighter than P4, on an ABEC 7 / P4 body.
UL — universal single bearing for any arrangement, light preload.
Bore Diameter: 20 mm. Outside Diameter: 47 mm. Overall Width: 14 mm. Contact Angle: 25°. Closure Type: Open. Rolling Elements: Ball. Series: B72. Dynamic Load Rating: 16,500 N. Static Load Rating: 7,700 N. Limiting Speed: 30,000 rpm grease; 45,000 rpm oil. Item Weight: 0.100 kg. Cage Material: Phenolic. Precision Class: P4S. Preload: Light. Mounting Arrangement: Universal (U). Operating temperature: -30 to +100 °C.
Shaft shoulder diameter: 26.5 mm. Housing shoulder diameter: 40.5 mm. Chamfer dimension r min: 1 mm. Preload force, light: 107 N. The universal grinding allows combination in back-to-back, face-to-face or tandem sets with other UL bearings at the stated light preload.
Current Schaeffler designation: B7204-E-T-P4S-UL. Earlier FAG designations: B7204E.T.P4S.UL, B7204E.TPA.P4.UL. Same-envelope 25° super-precision cross-references: SKF 7204 ACD/P4A, NSK 7204A5TYNSULP4, GMN S6204ETA, Fafnir 3MM204WI.
20 mm bore, 47 mm outside diameter, 14 mm width.
25°, designated by the E in the part number.
P4S is a FAG precision class tighter than P4 (ABEC 7). UL is a universal single bearing for any arrangement, light preload.
