Angular contact ball bearing, 7205 envelope: 25 mm bore, 52 mm OD, 15 mm width, 15° contact angle, ABEC 5. NDH duplex tandem execution, medium preload.
List Price
$74.14
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NDH |
|---|---|
| MPN | 20205DTX5A |
| Model | 20205 DT X5A |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 25 mm |
| OD | 52 mm |
| Width | 15 mm |
| Mpn Variants | 20205DTX5A, 20205-DT-X5A, 20205 DT X5A, 20205DTX5, 7205-C-P5 |
|---|---|
| Precision Class | ABEC 5 / P5 |
| Cage Material | Metallic |
| Contact Angle | 15° |
| Preload | Medium |
| Mounting Arrangement | Duplex tandem (DT) |
| Industry Terms | angular contact ball bearing; duplex tandem bearing; 15 degree angular contact; ABEC 5 bearing; medium preload bearing; 25mm precision bearing |
| Common Misspellings | NDH20205DTX5A; 20205 DTX5A; 20205DT X5A; NHD 20205DTX5A |
| Application Types | Machine tool spindles; precision shaft supports; high-speed light-load drives; tandem axial load arrangements |
| Cross Reference 1 | SKF 7205 CD (single bearing, 15 deg angle) |
|---|---|
| Cross Reference 2 | NSK 7205C (single bearing, 15 deg angle) |
| Cross Reference 3 | FAG B7205-C (single bearing, 15 deg angle) |
| Cross Reference 4 | Fafnir 2MM205WI (single bearing, 15 deg angle) |

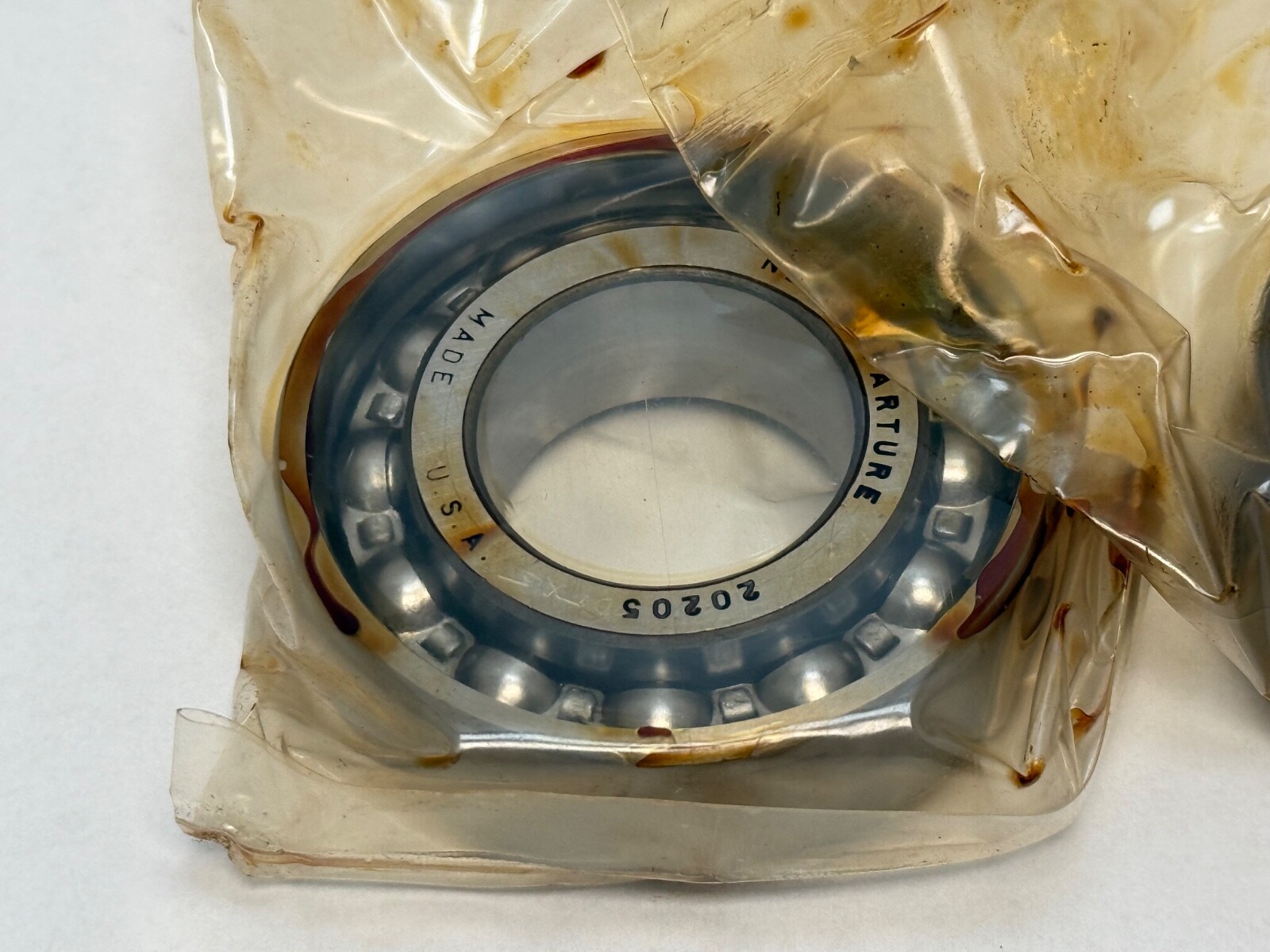

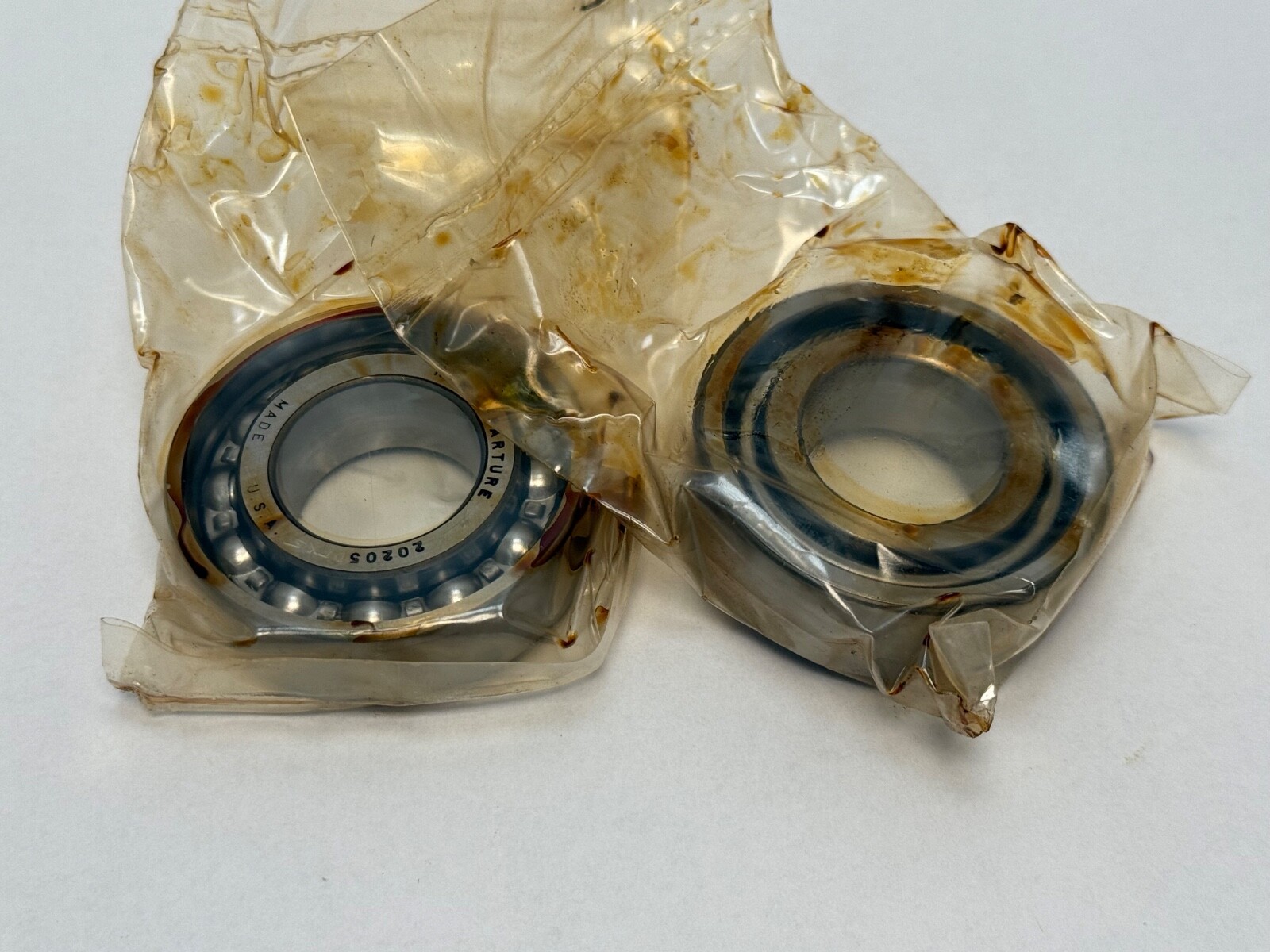

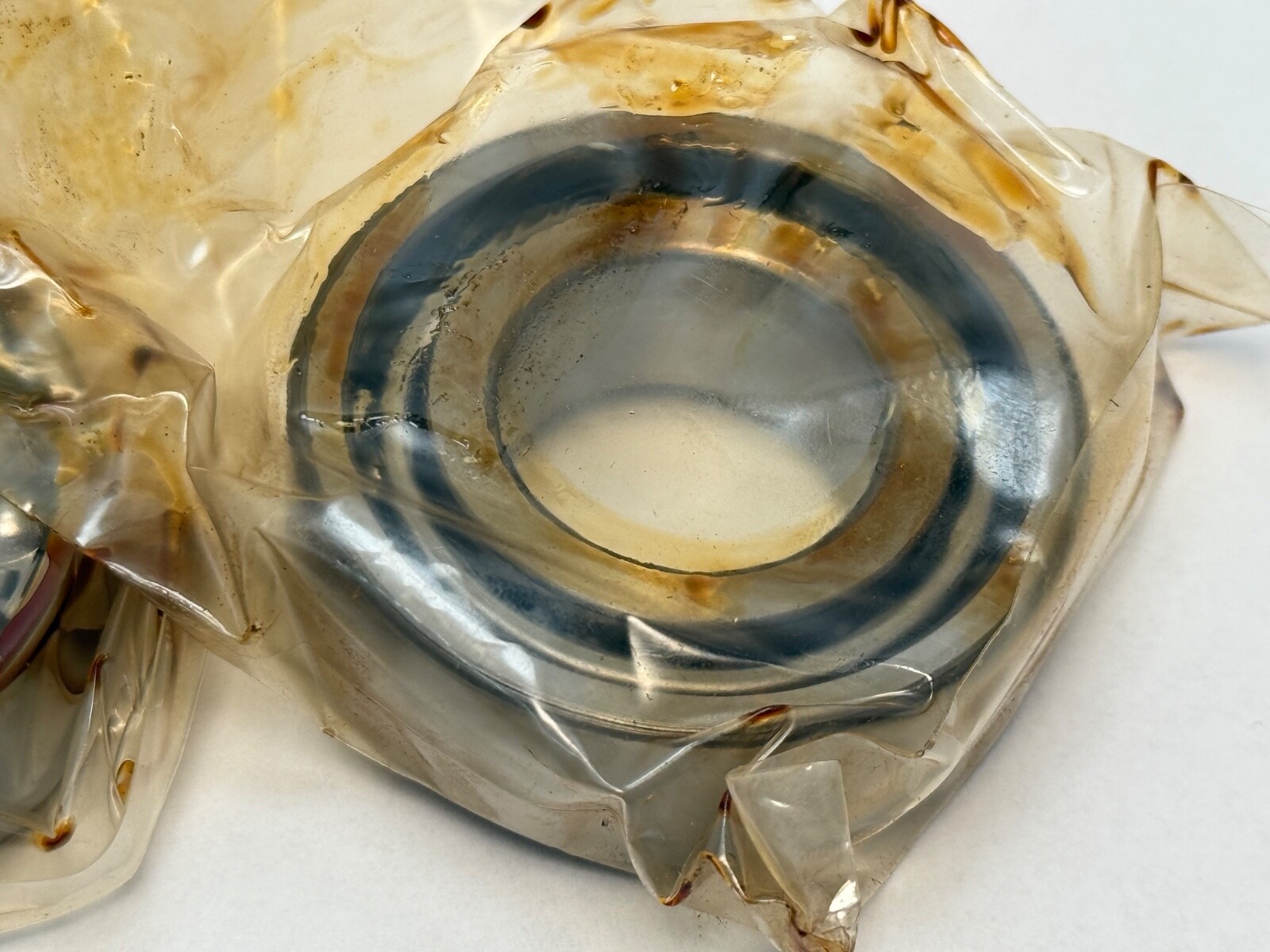

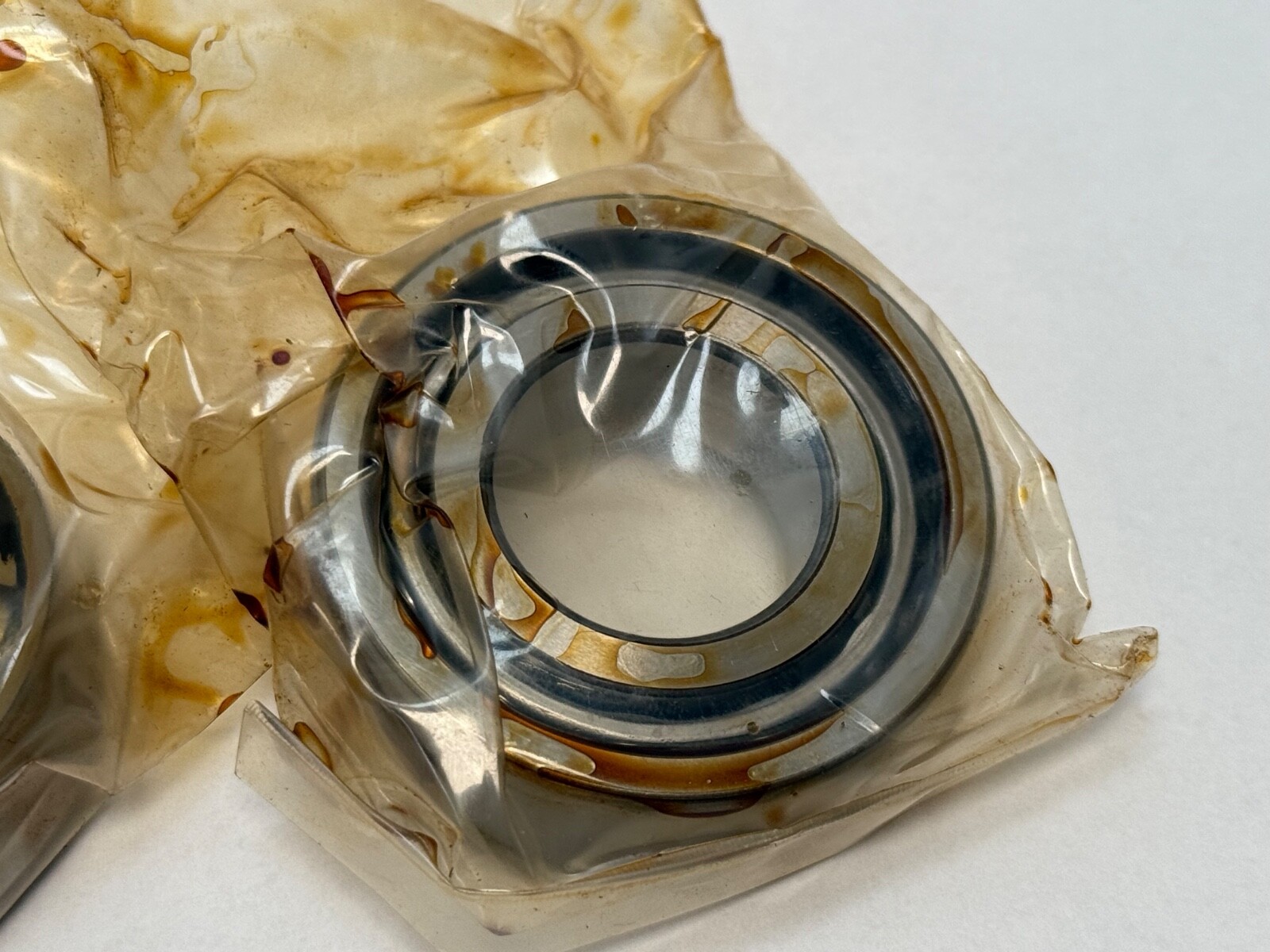

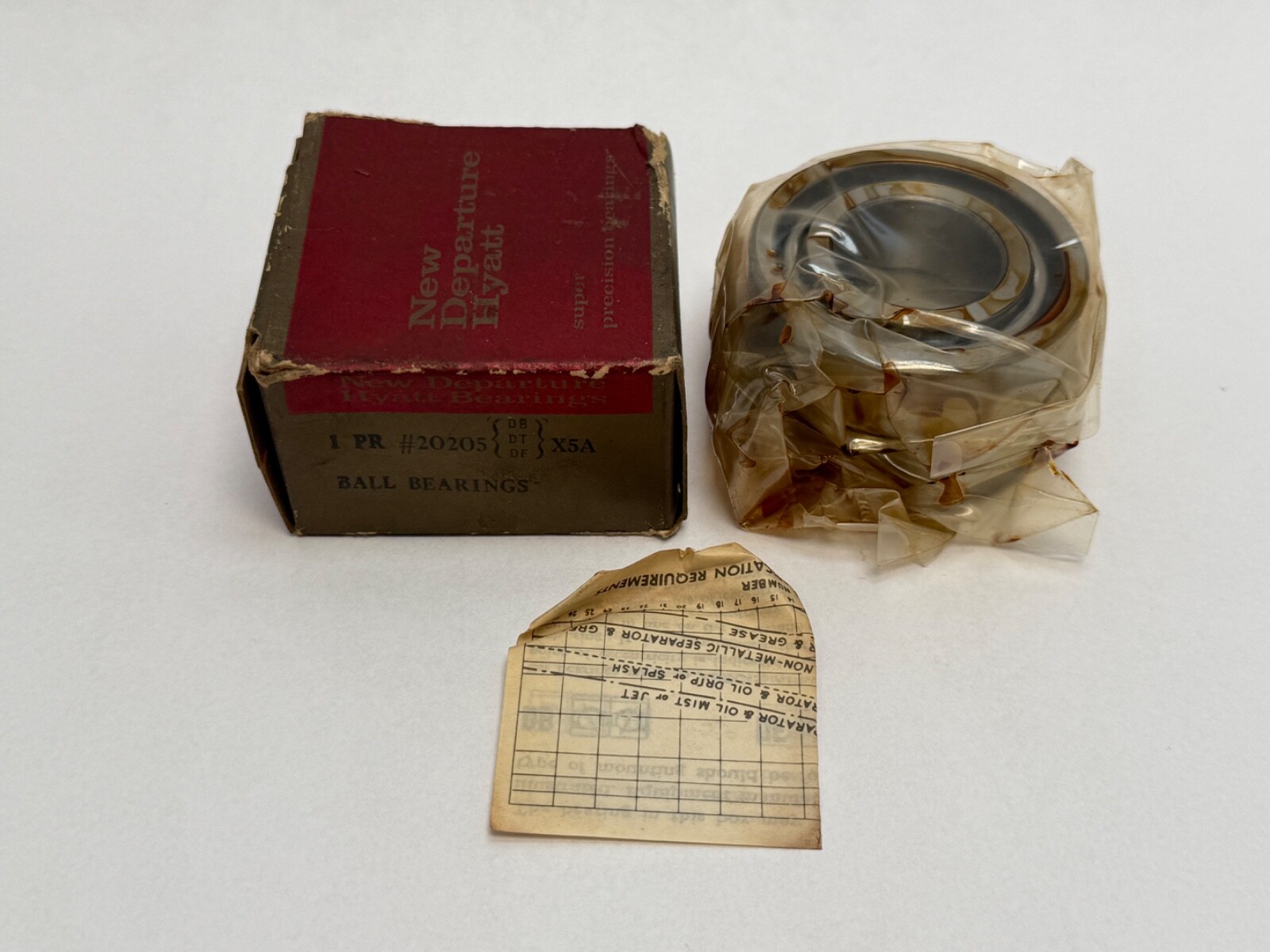

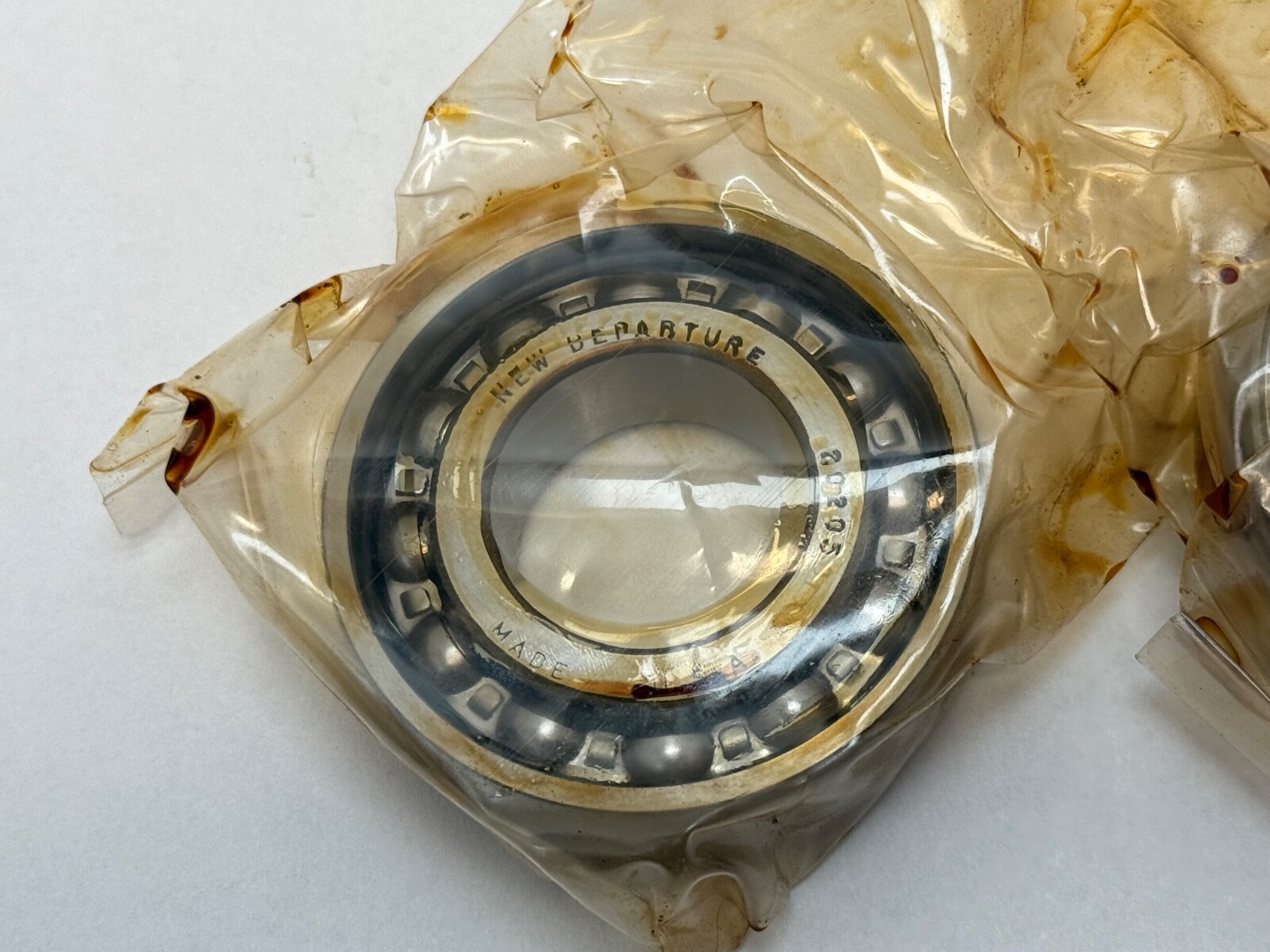

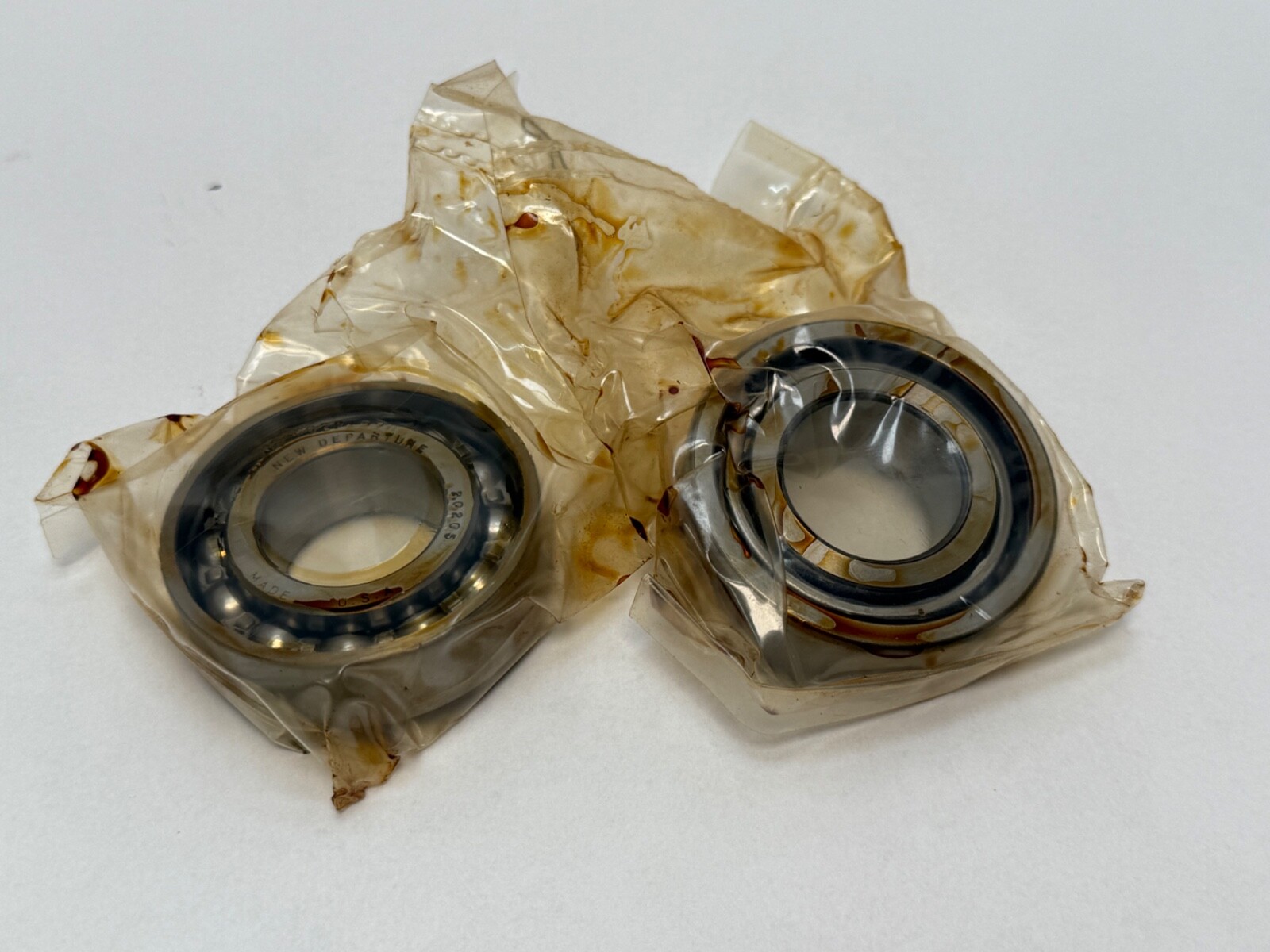

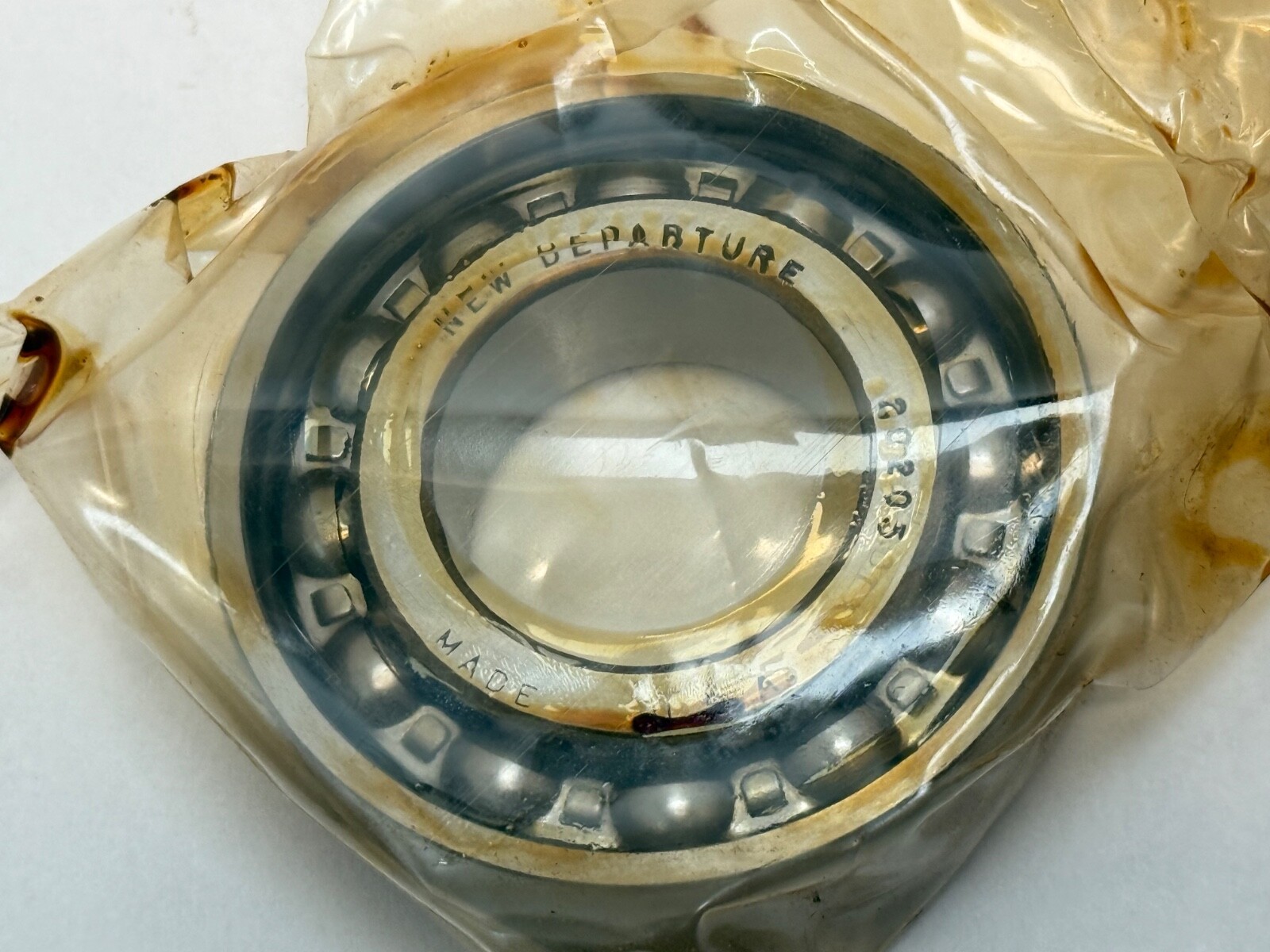

NDH 20205DTX5A is a single-row angular contact ball bearing in the ISO 7205 envelope, made by New Departure Hyatt for duplex tandem mounting at medium preload, with a metallic separator and ABEC 5 tolerance. Unit Quantity: 1 Pc.
20205 — NDH number for the ISO 7205 size, 25 x 52 x 15 mm. The 20-series prefix is the 15° angular contact family. No separator prefix: metallic separator.
DT — duplex tandem. Bearings ground for a matched set mounted facing the same direction.
X — NDH medium preload.
5 — ABEC 5 tolerance class.
Bore Diameter: 25 mm. Outside Diameter: 52 mm. Overall Width: 15 mm. Contact Angle: 15°. Cage Material: Metallic. Precision Class: ABEC 5 / P5. Mounting Arrangement: Duplex tandem (DT). Preload: Medium. Unit Quantity: 1 Pc.
Envelope: 25 x 52 x 15 mm (ISO 7205 size). Mounting Arrangement: Duplex tandem (DT), medium preload.
Cross-references on the 7205C size at 15°: SKF 7205 CD; NSK 7205C; FAG B7205-C; Fafnir 2MM205WI. Other forms of the number: 20205-DT-X5A, 20205 DT X5A, 20205DTX5, 7205-C-P5.
Contact Angle: 15°.
Precision Class: ABEC 5 / P5.
25 mm bore, 52 mm outside diameter, 15 mm width.
