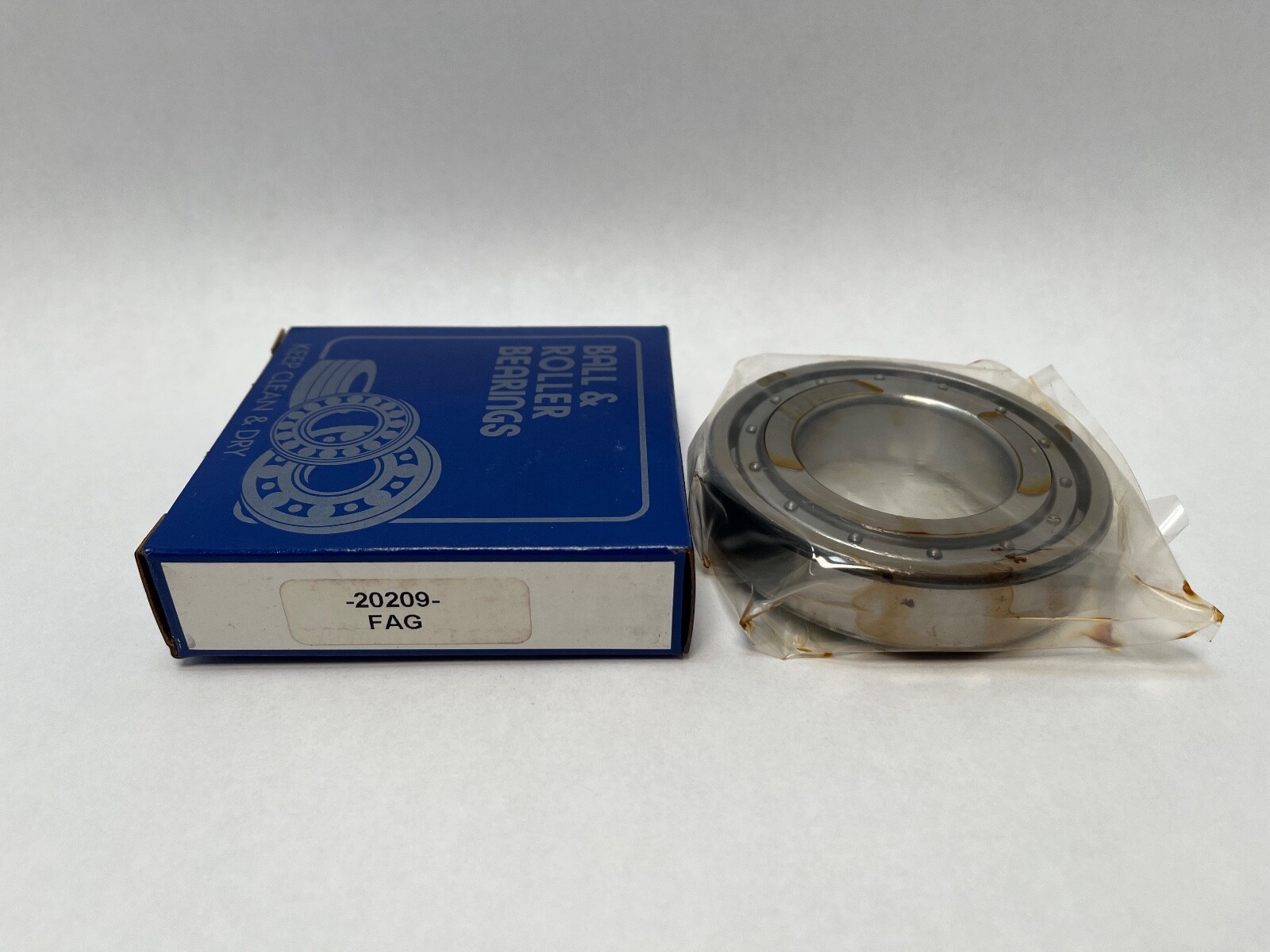

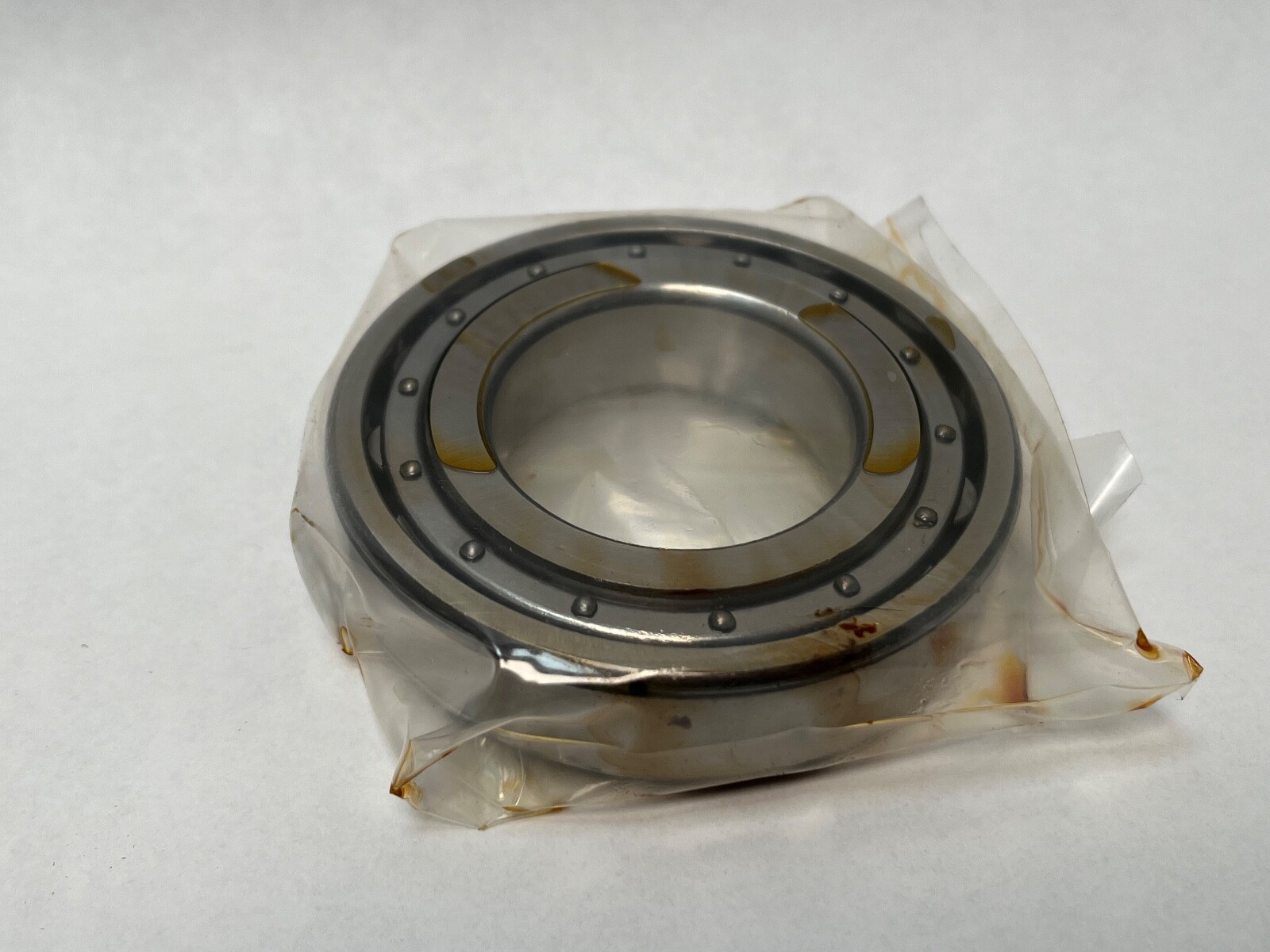

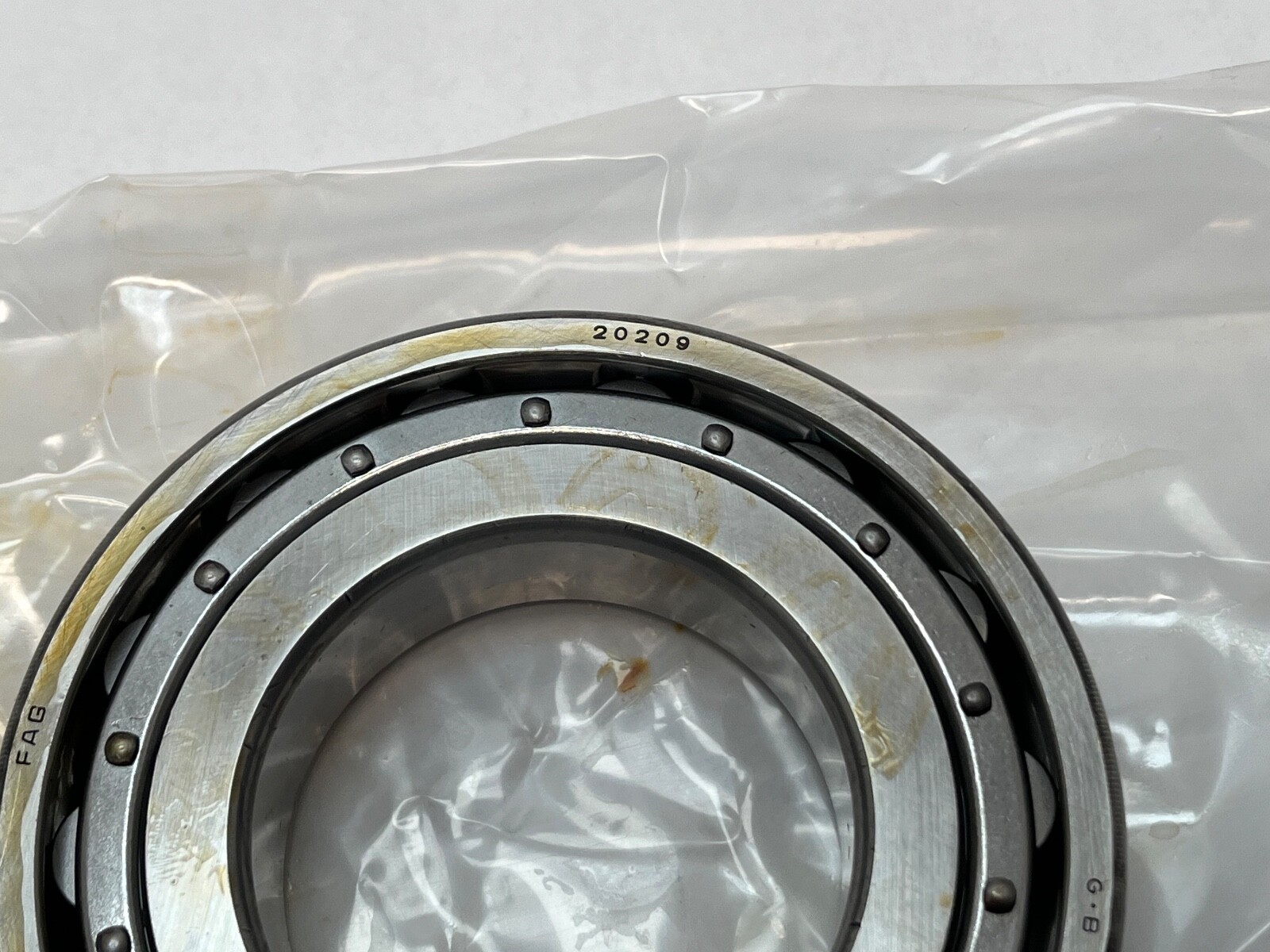

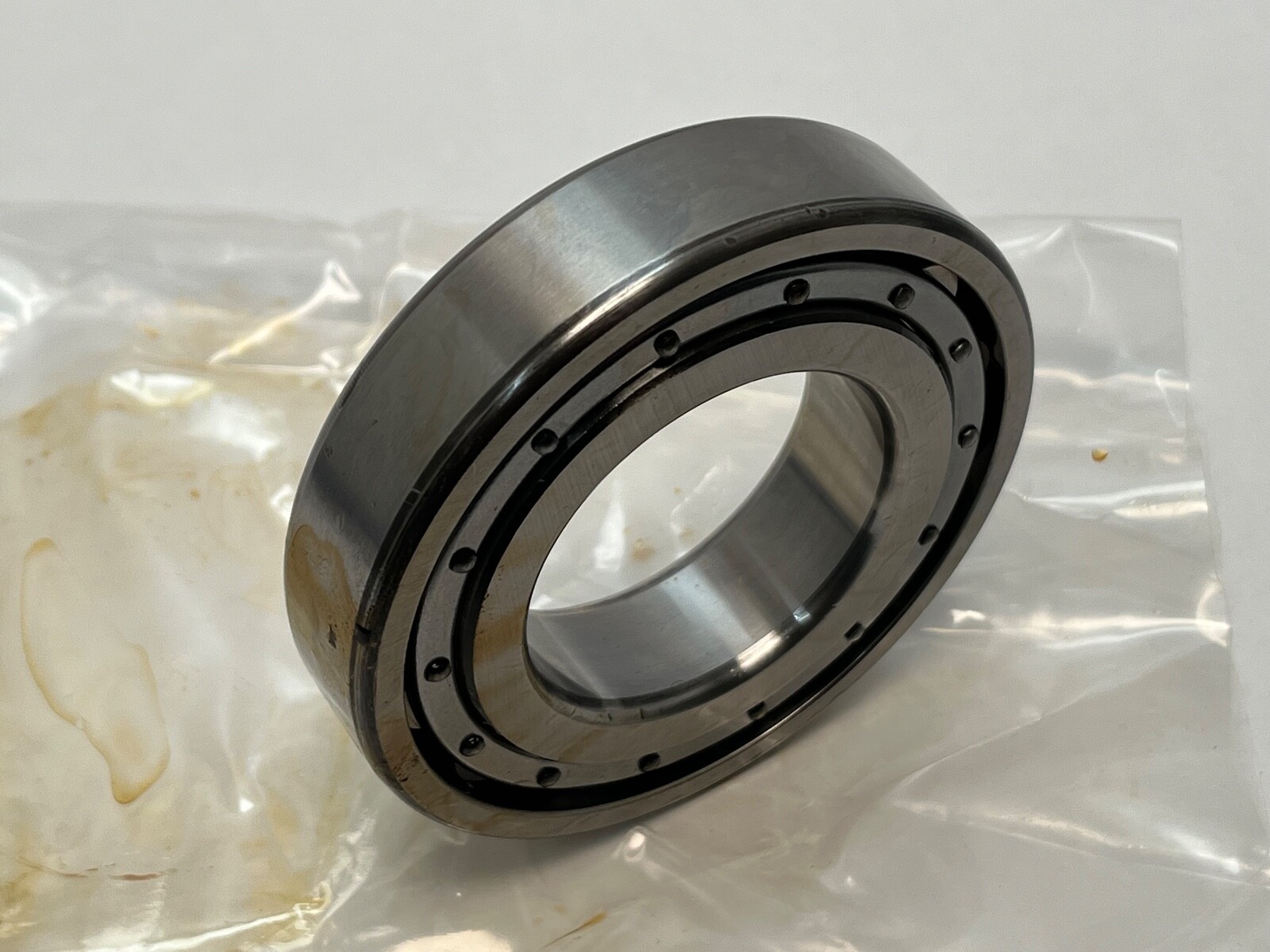

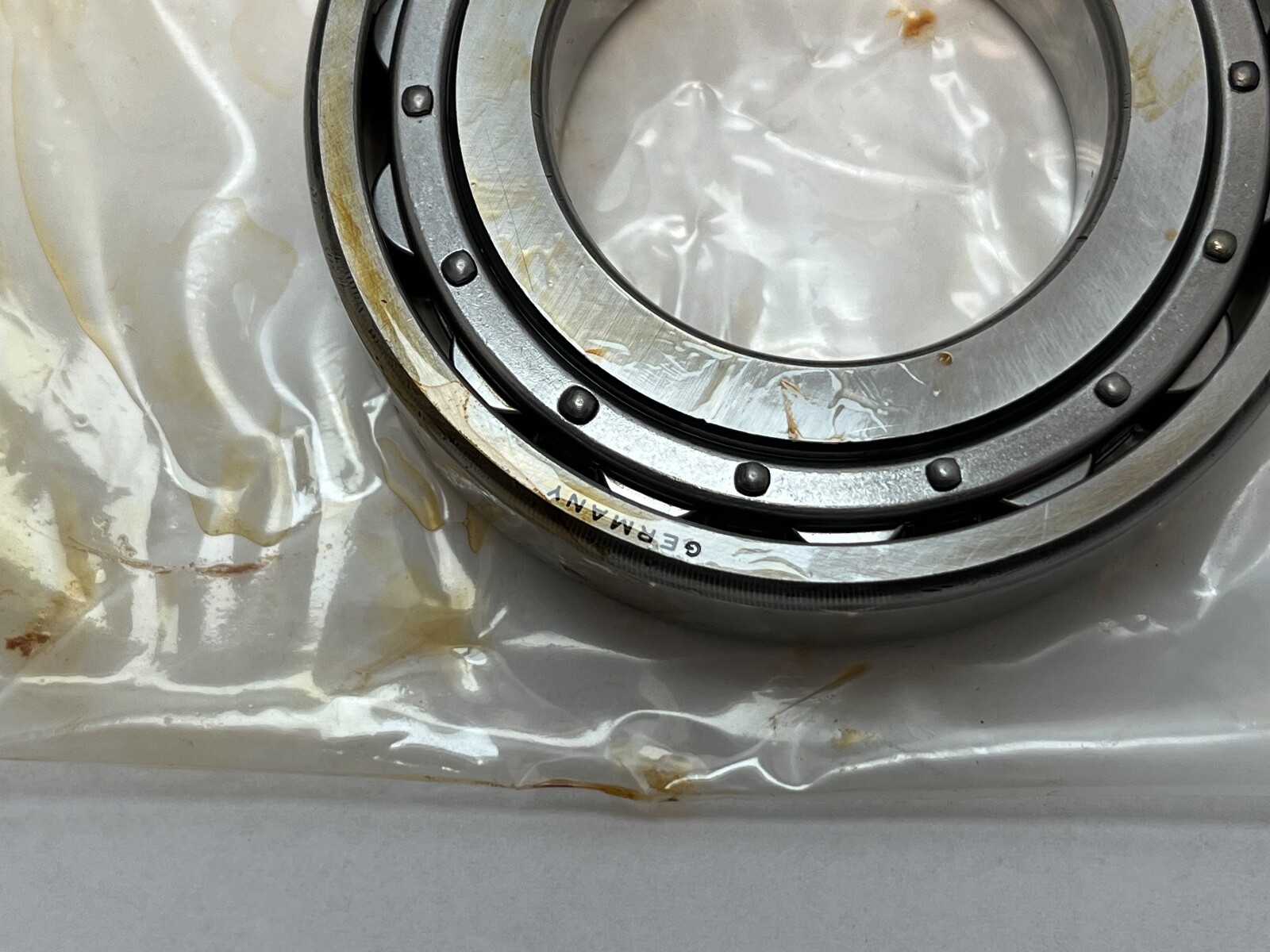

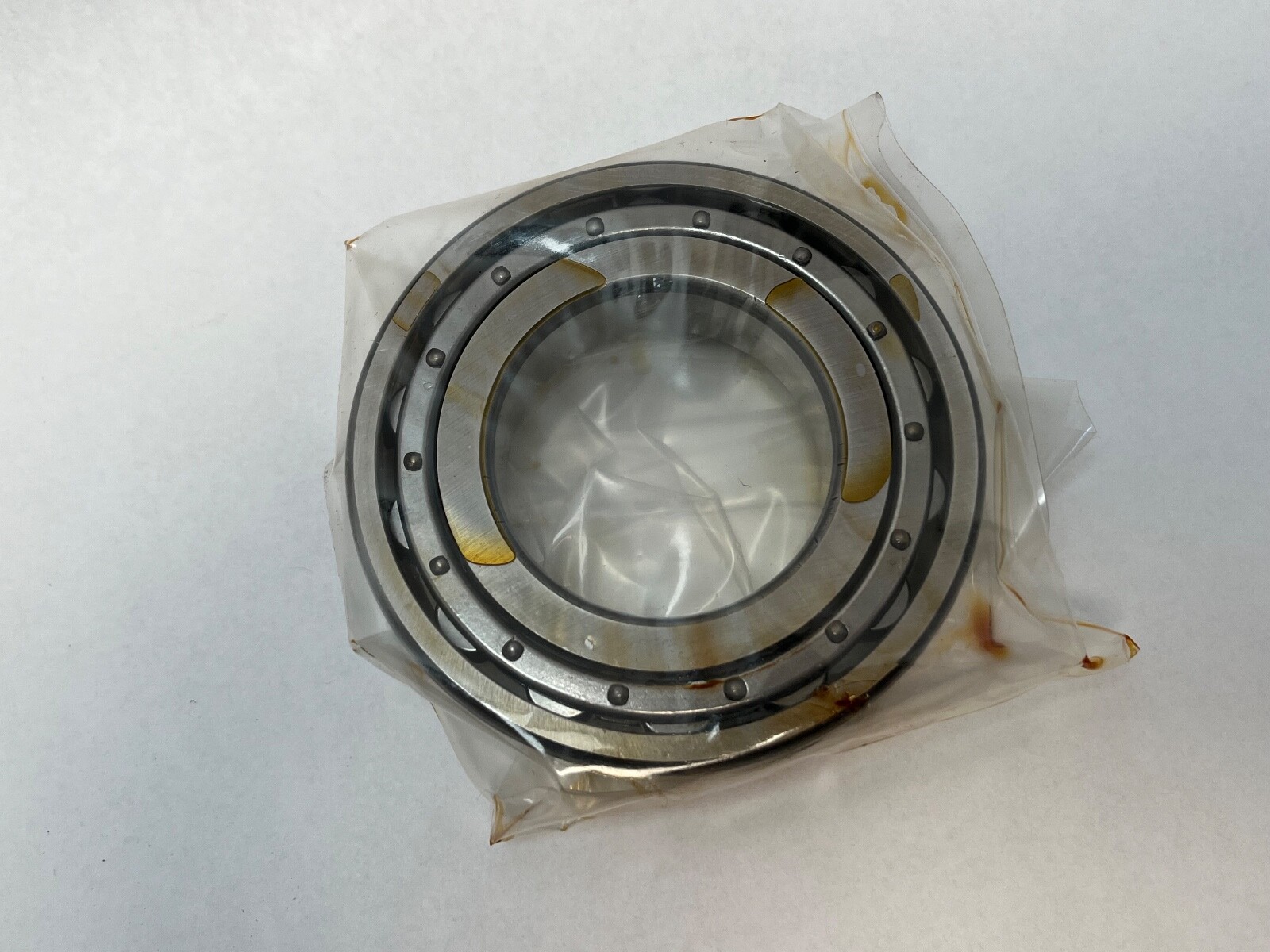

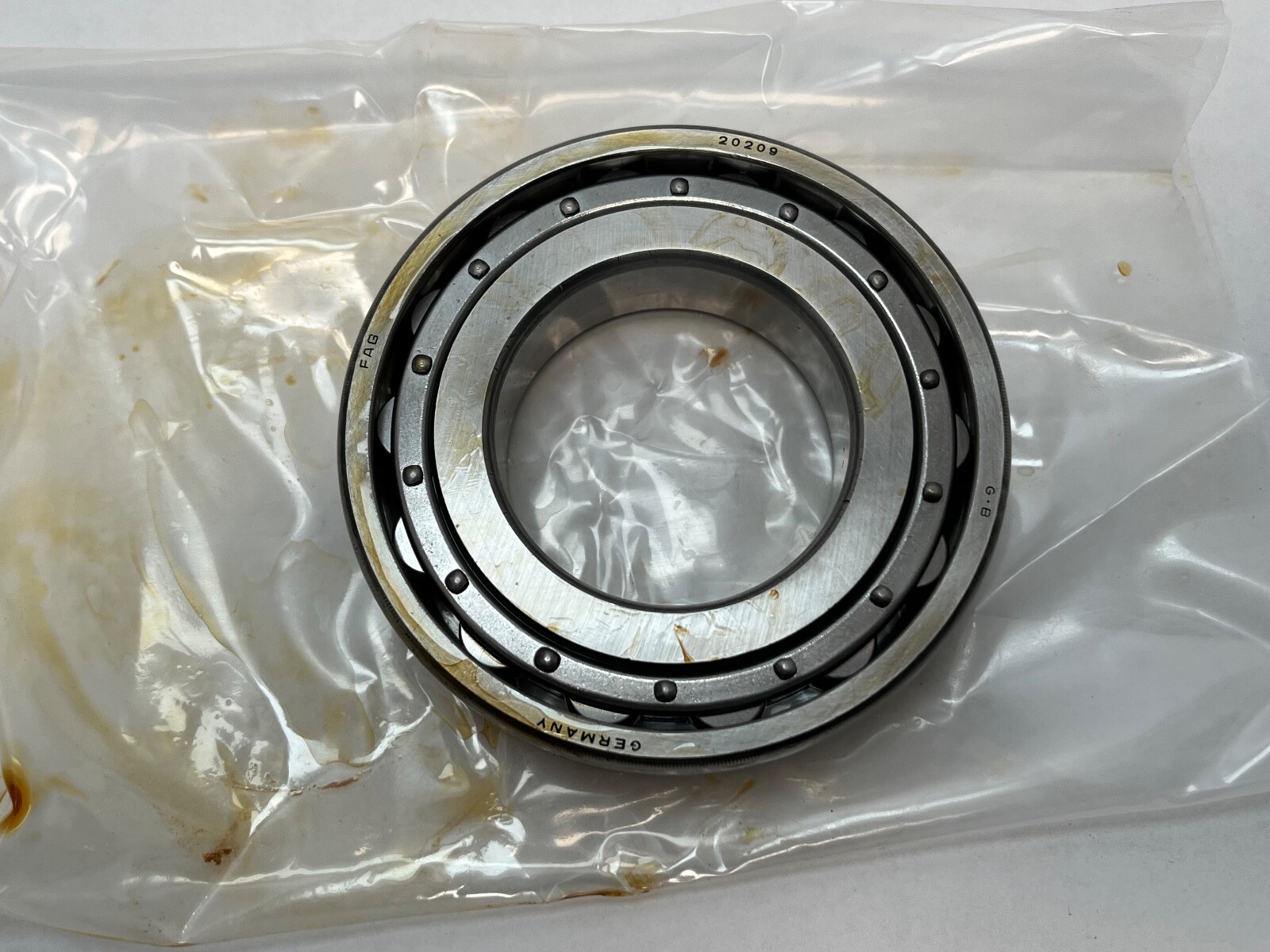

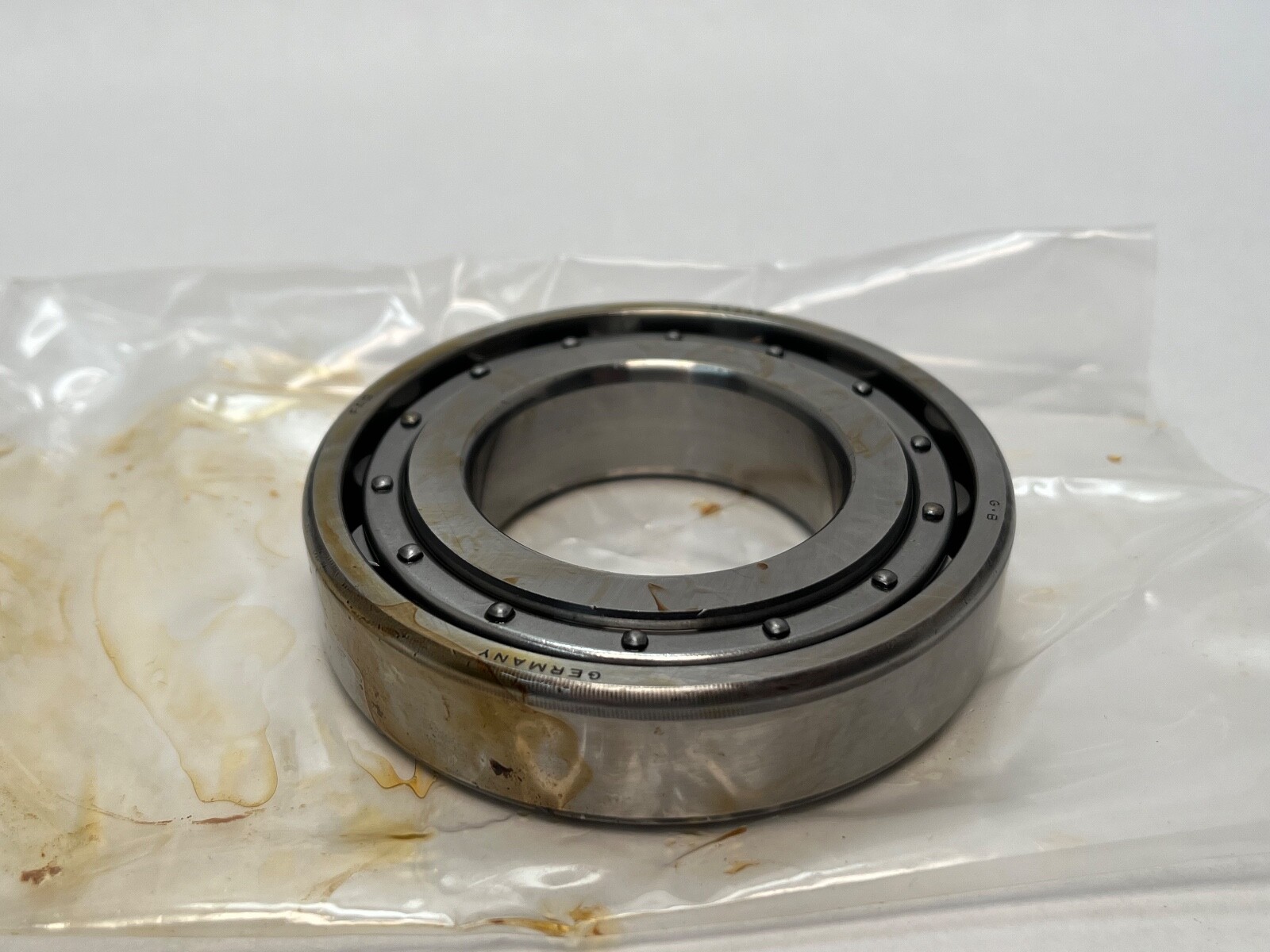

FAG 20209-TVP single-row barrel roller bearing, 45 x 85 x 19 mm, cylindrical bore, glass-fibre reinforced polyamide (TVP) cage. Sold as 1 Pc.
List Price
$86.03
6 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 20209 |
| Model | 20209 |
| Bearing Type | Barrel Roller Bearing |
| ID | 45 mm |
| OD | 85 mm |
| Width | 19 mm |
| Base Number | 20209 |
|---|---|
| Bore Shaft Size | 45 mm (1.7717 in) |
| Mpn Variants | 20209; 20209-TVP; 20209 TVP; 20209TVP; 20209M |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 1 |
| Internal Clearance | CN |
| Industry Terms | barrel roller bearing; single row barrel bearing; 202 series barrel roller bearing |
| Common Misspellings | FAG 20209 TVP; FAG20209TVP; FAF 20209 |
| Rolling Elements | Barrel Roller |
| Bore Type | Cylindrical |
FAG 20209-TVP single-row barrel roller bearing. Bore 45 mm, outside diameter 85 mm, width 19 mm. Cylindrical bore, glass-fibre reinforced polyamide cage. Sold as 1 Pc, bearing only.
20 — single-row barrel roller bearing series.
2 — ISO dimension series.
09 — bore code, 9 x 5 = 45 mm bore.
TVP — glass-fibre reinforced polyamide cage.
Bore Diameter: 45 mm (1.7717 in). Outside Diameter: 85 mm (3.3465 in). Width: 19 mm (0.7480 in). Number Of Rows: 1. Rolling Elements: Barrel roller. Bore Type: Cylindrical. Cage Material: Glass-fibre reinforced polyamide. Internal Clearance: CN. Unit Quantity: 1 Pc.
Cylindrical bore, mounted directly on the shaft seat. Boundary dimensions 45 x 85 x 19 mm.
Written forms of the designation: 20209, 20209-TVP, 20209M. The tapered-bore version is 20209K.
Bore 45 mm, outside diameter 85 mm, width 19 mm.
A single-row barrel roller bearing with a cylindrical bore.
A glass-fibre reinforced polyamide cage.
