Availability:
2 in stock
Single-row angular contact ball bearing, 80 x 140 x 26 mm, open, phenolic separator, duplex tandem set, light preload, ABEC-7. Sold as 2 Pcs.
List Price
$428.38
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | NDH |
|---|---|
| MPN | Q20216DTL7A |
| Model | 7216C T DUL P4 / 2MM216WI CR DUL / Q-20216-DTL-7A |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 80 mm |
| OD | 140 mm |
| Width | 26 mm |
| Condition | New |
|---|---|
| Preload | Light (L) |
| Base Number | 20216 |
| Industry Terms | duplex tandem pair, matched set angular contact, spindle bearing, phenolic cage bearing, universally ground bearing |
| Common Misspellings | Q20216DTL7A, Q20216 DTL 7A, NDH Q-20216-DT-L-7-A, New Departure Q20216DTL7A, Departure 20216 |
| Application Types | Machine tool spindles, precision gearbox thrust positions, pump and compressor thrust ends |
| Total Width | 52 mm (2.0472 in) for the tandem pair |
| Bore Shaft Size | 80 mm (3.1496 in) |
| Mpn Variants | Q20216DTL7A, Q20216-DTL-7A, Q 20216 DTL 7A, Q20216DTL7, 20216DTL7A, 20216 |
| Manufacturer Status | Obsolete. New Departure Hyatt was a General Motors division; the bearing line passed through Delphi and this designation is no longer produced. |
| Arrangement Configuration | Duplex tandem (DT), universally ground for DT / DB / DF |
| Precision Class | ABEC-7 |
| Additional Attributes | Rust-preventive slush per the A suffix |
| Cage Material | Phenolic |
| Number Of Rows | 1 per bearing |
| Design Units | Metric |
| Part Number | Q20216DTL7A |
| Cross Reference 1 | ISO 7216 (same 80x140x26 mm envelope) |
|---|---|
| Cross Reference 2 | Fafnir 2MM216WI-CR-DUL (related size, light-preload duplex, 80x140x26 mm) |

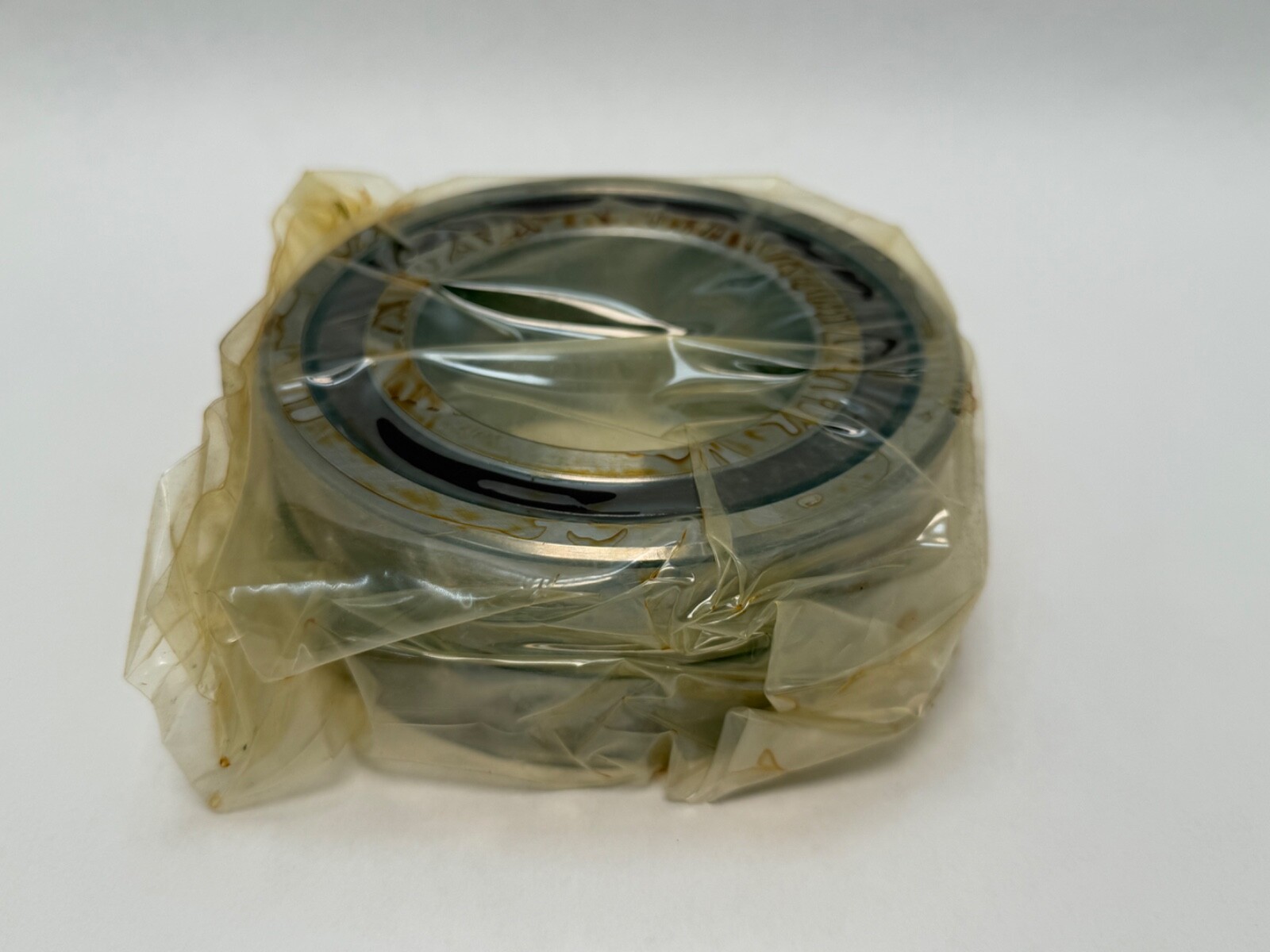

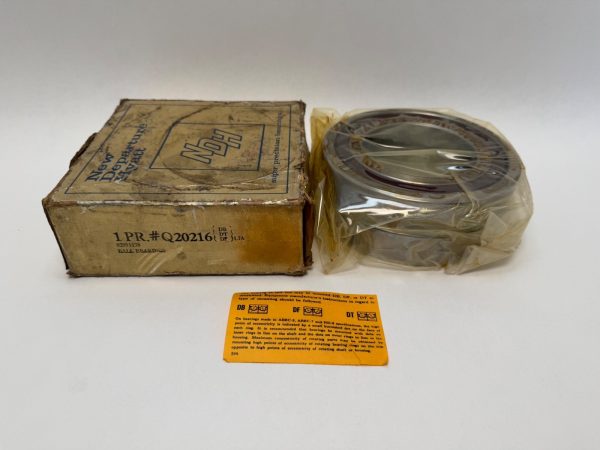

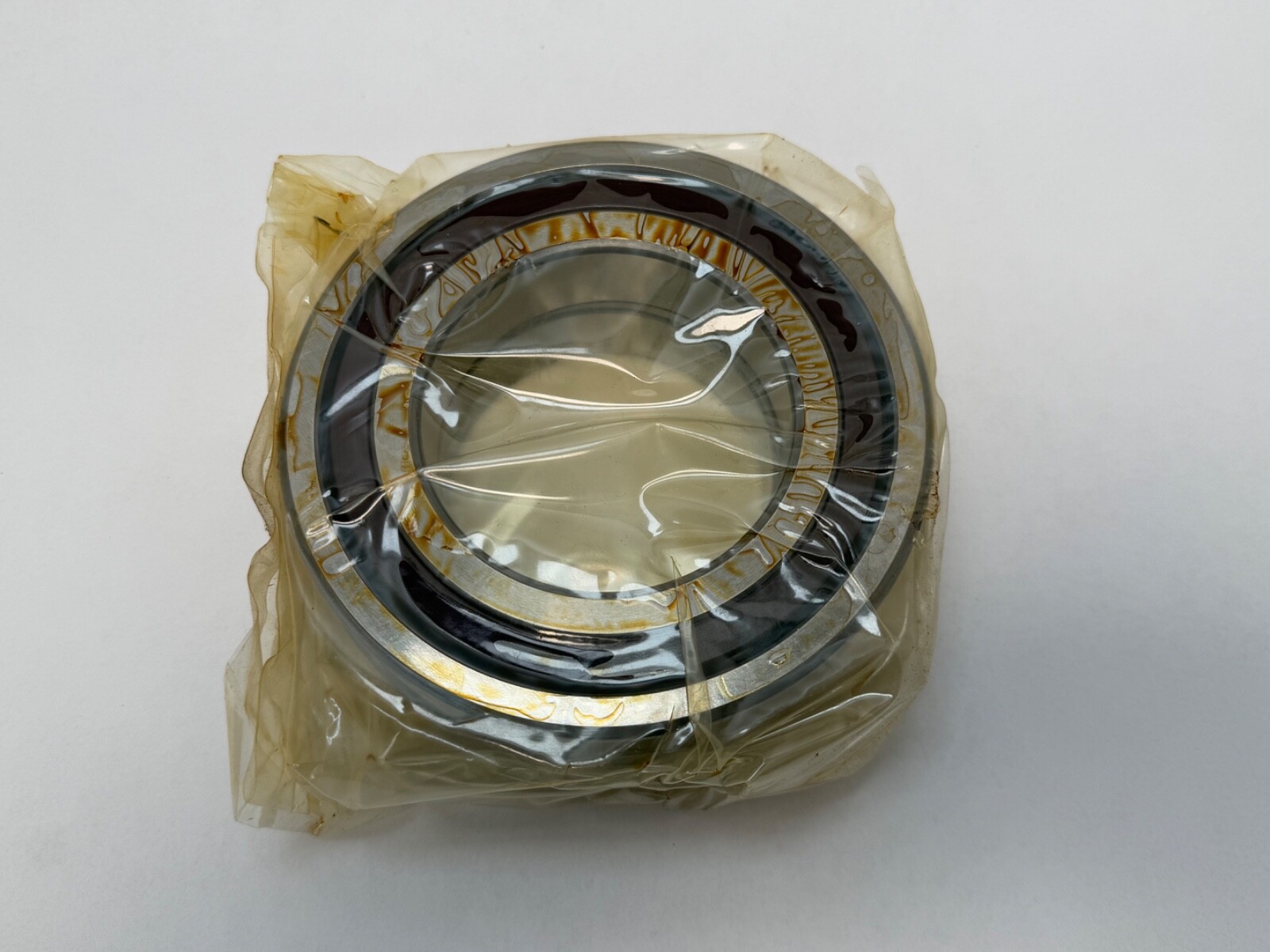

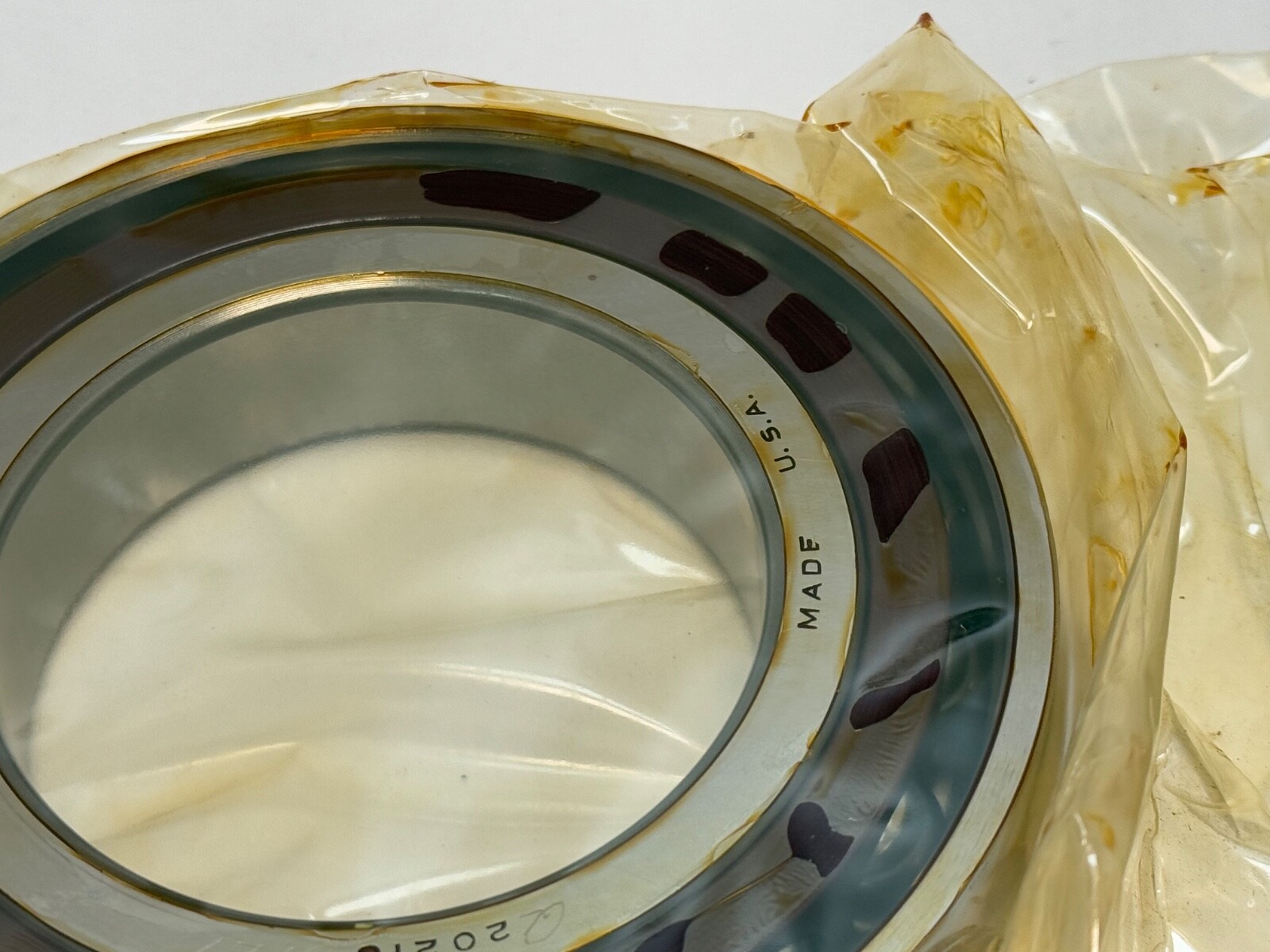

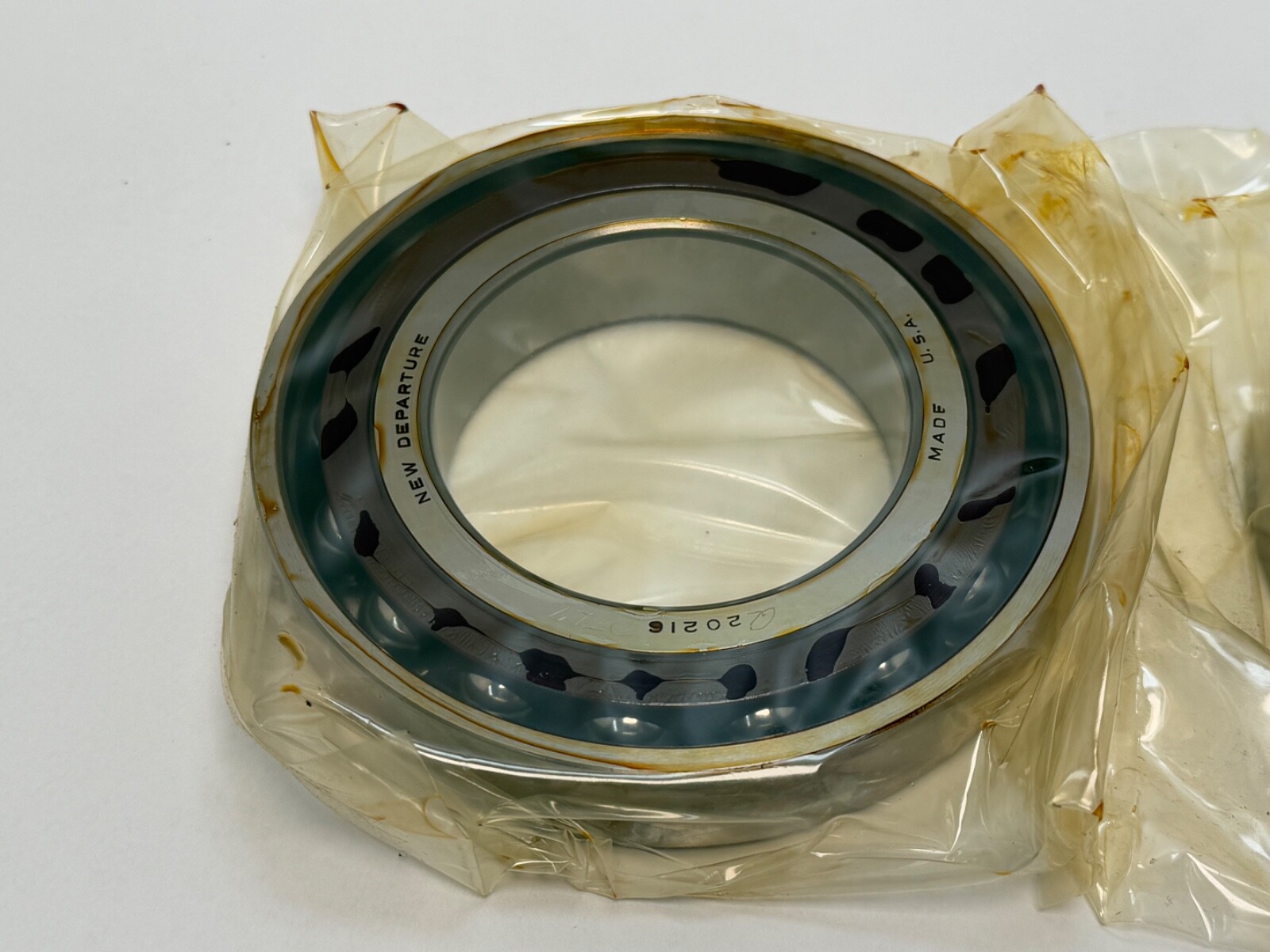

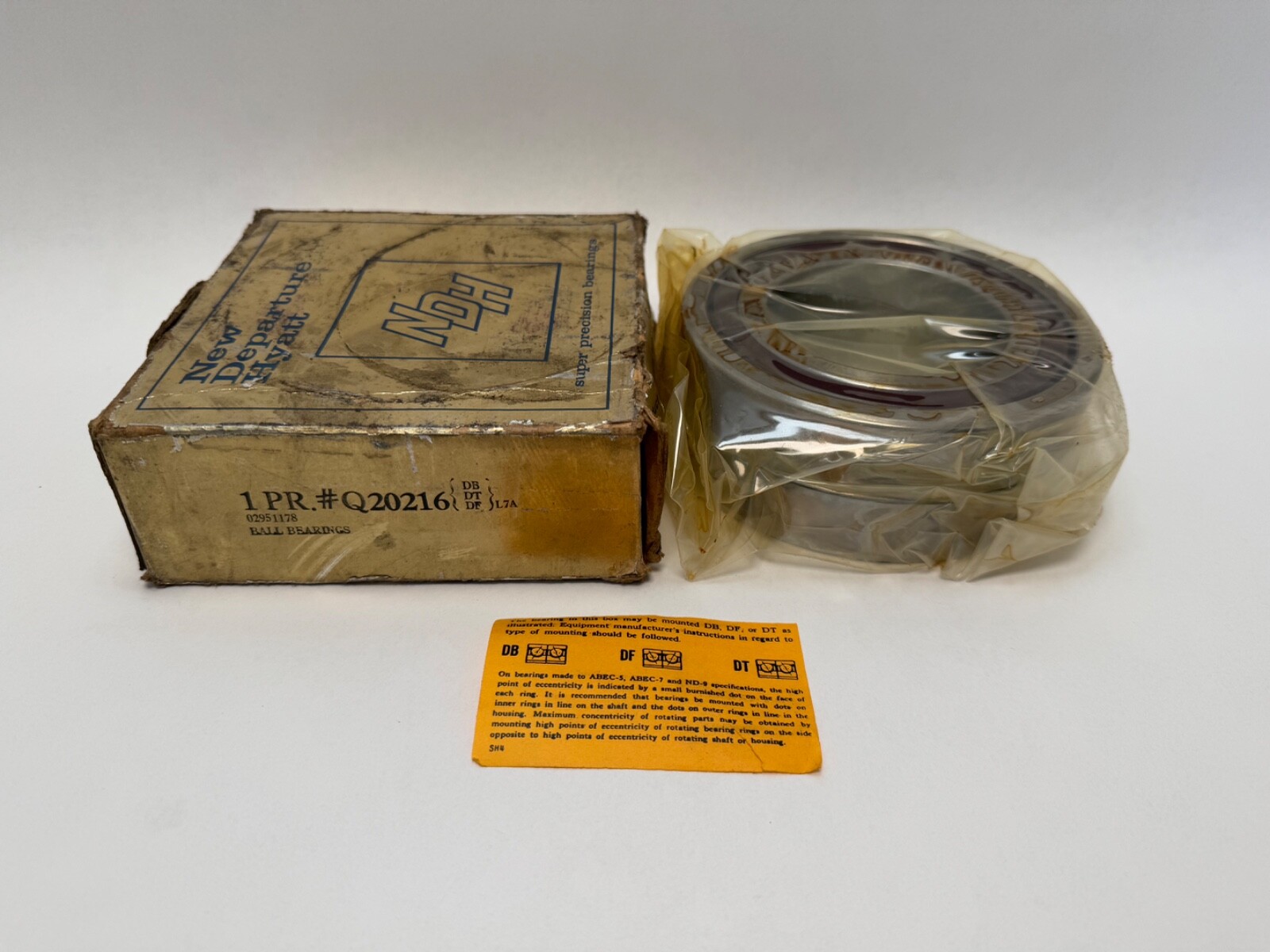

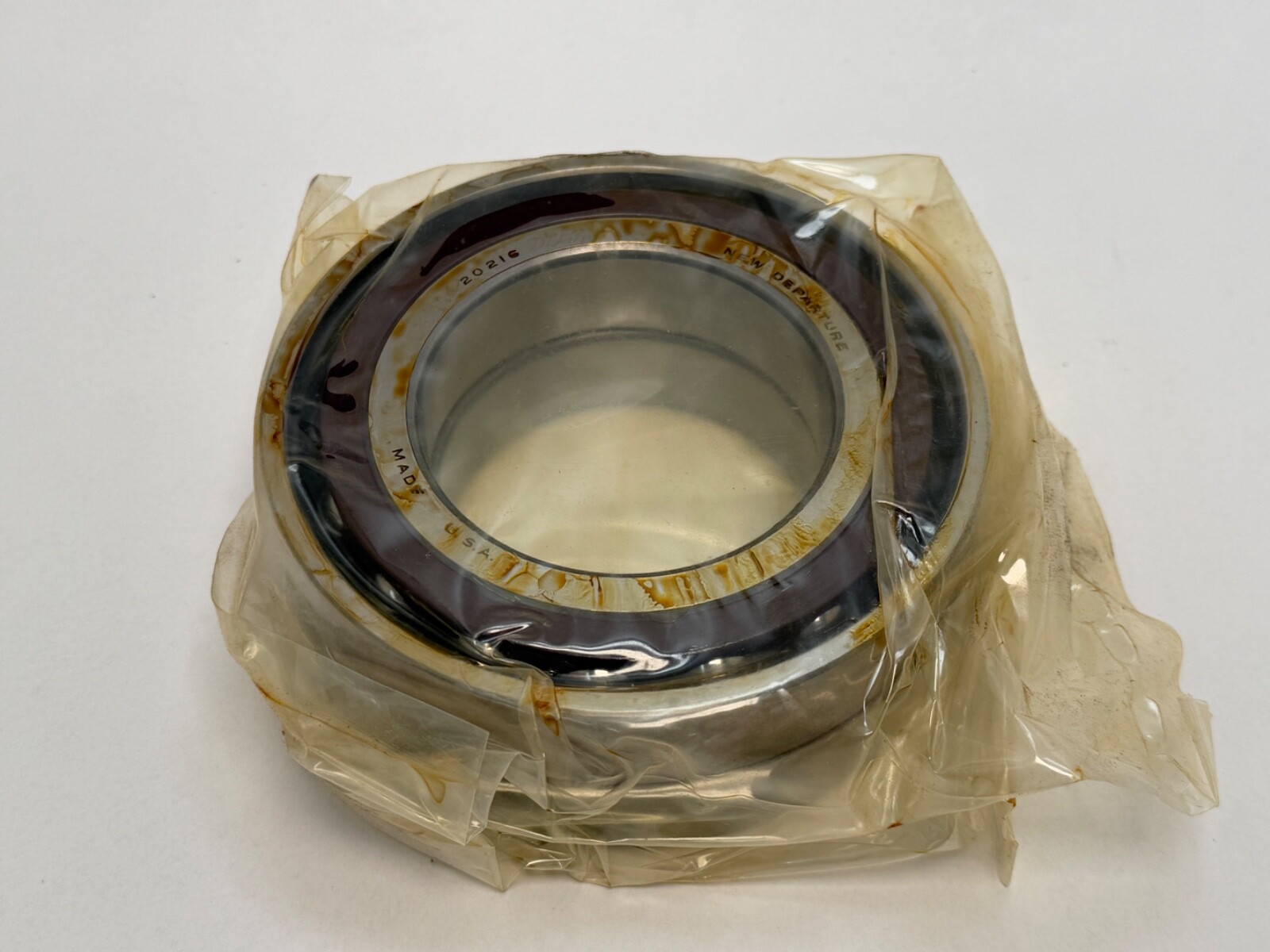

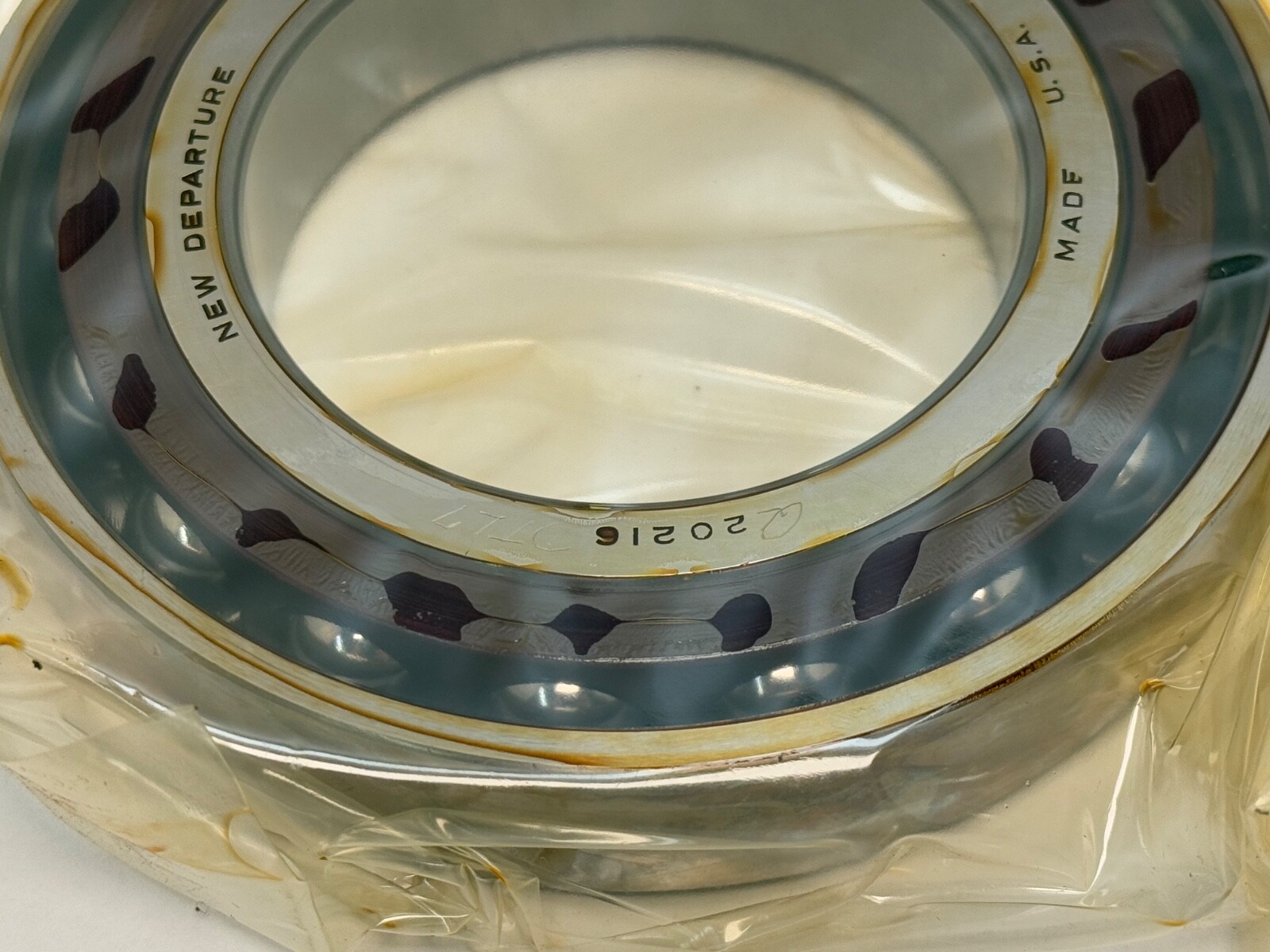

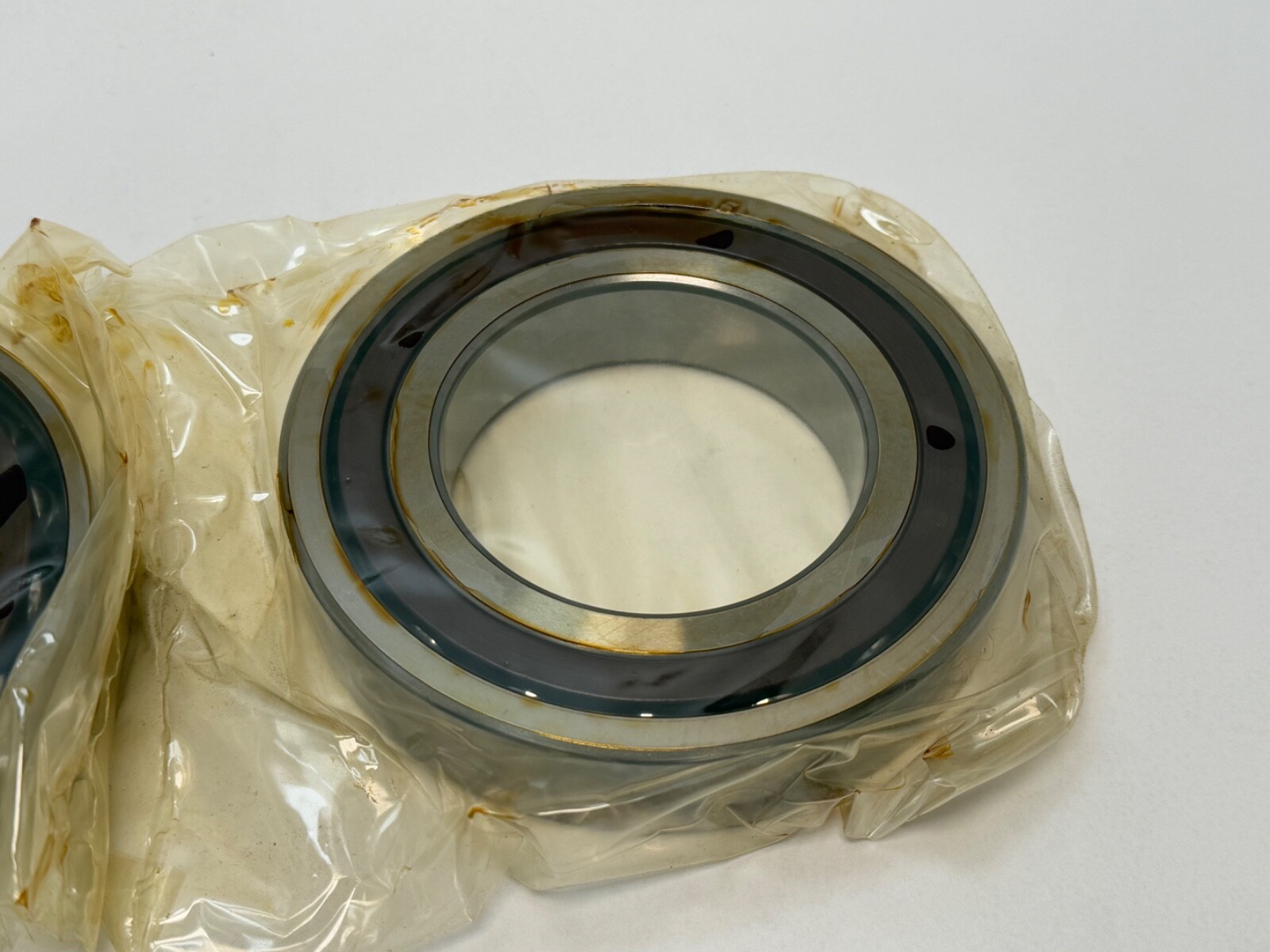

New Departure Hyatt Q20216DTL7A single-row angular contact ball bearing, 80 mm bore, 140 mm outside diameter, 26 mm width. Open on both faces, phenolic ball separator, faces flush ground for duplex tandem mounting.
Q – nonmetallic (phenolic) ball separator
20216 – New Departure 20200 angular contact series; bore code 16 = 80 mm; ISO 7216 dimensional envelope
DT – duplex tandem set, all faces flush ground to preload requirement for universal mounting in tandem, back-to-back or face-to-face
L – light preload
7 – ABEC-7 tolerance class
A – rust-preventive slush
Light preload is the lowest of the three NDH duplex classes — L light, X medium, T heavy — and it favours speed and low heat rise over maximum stiffness. Tandem rows take thrust in the same direction and share it, roughly doubling one-direction axial capacity over a single bearing. ABEC-7 is the precision grade used in machine tool spindle positions, holding bore, outside diameter, width and ring runout far tighter than commercial ABEC-1 stock.
Bore: 80 mm (3.1496 in)
Outside diameter: 140 mm (5.5118 in)
Width, each bearing: 26 mm (1.0236 in)
Rows: 1 per bearing
Rolling element: ball
Closure: open
Precision class: ABEC-7
Preload: light (L)
Separator: phenolic
Arrangement: duplex tandem, universally ground

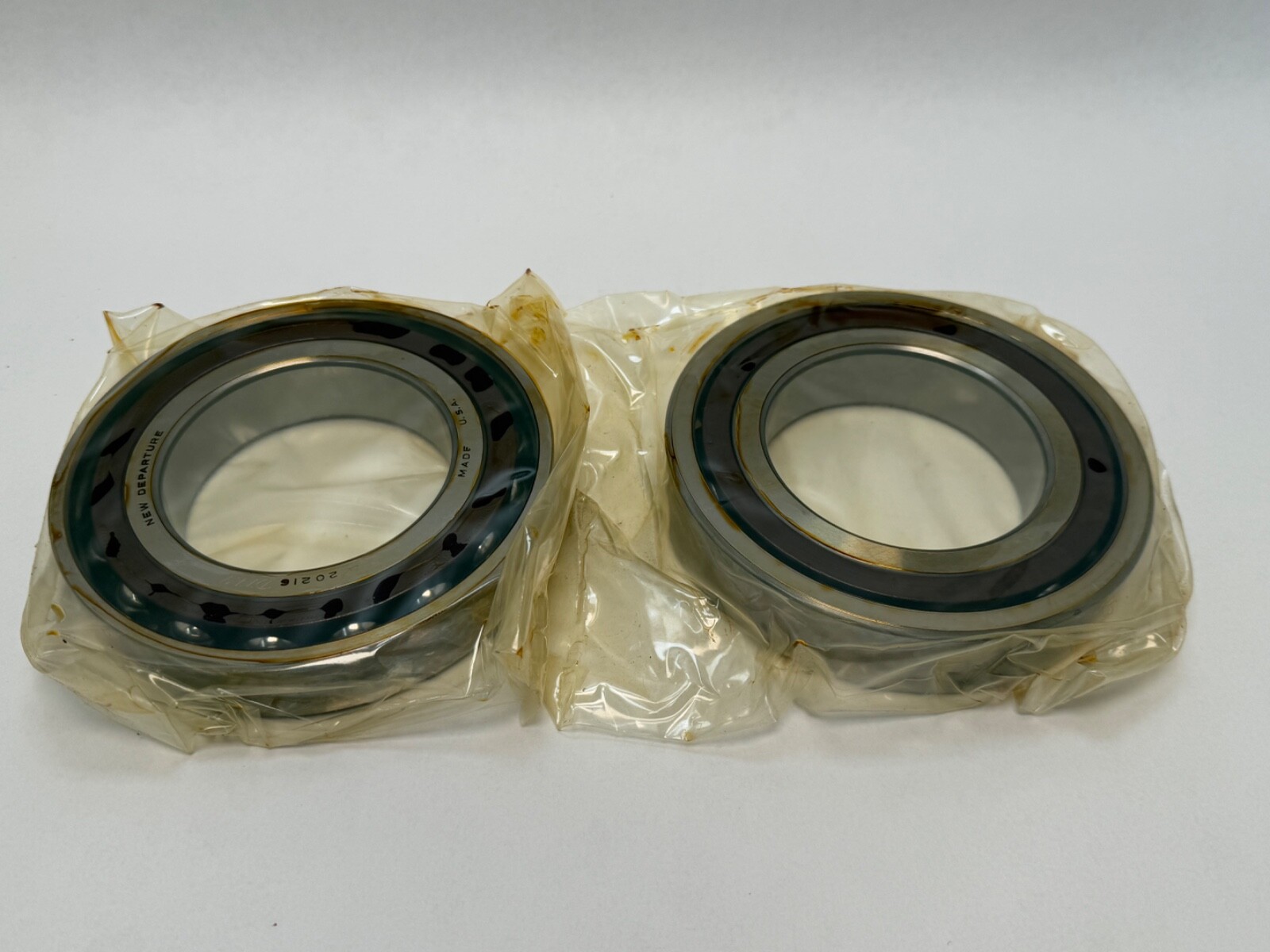

2 Pcs, one matched tandem set of single-row bearings. A DT designation is a matched set, not a double-row bearing.
Match marks on the ring faces are aligned as ground when the set is stacked. Shaft and housing seats are held to the tolerance grade of the bearing, and clamp load passes through the ring faces rather than the separator. Preload comes from the flush-ground faces once the rings are clamped solid.
The 80 x 140 x 26 mm envelope matches the ISO 7216 series. New Departure Hyatt was a General Motors division and the line later passed through Delphi, so this designation is obsolete and is searched alongside its ISO number. A same-envelope bearing built to a different contact angle, preload class or separator material is a related size rather than an interchange.
