Availability:
1 in stock

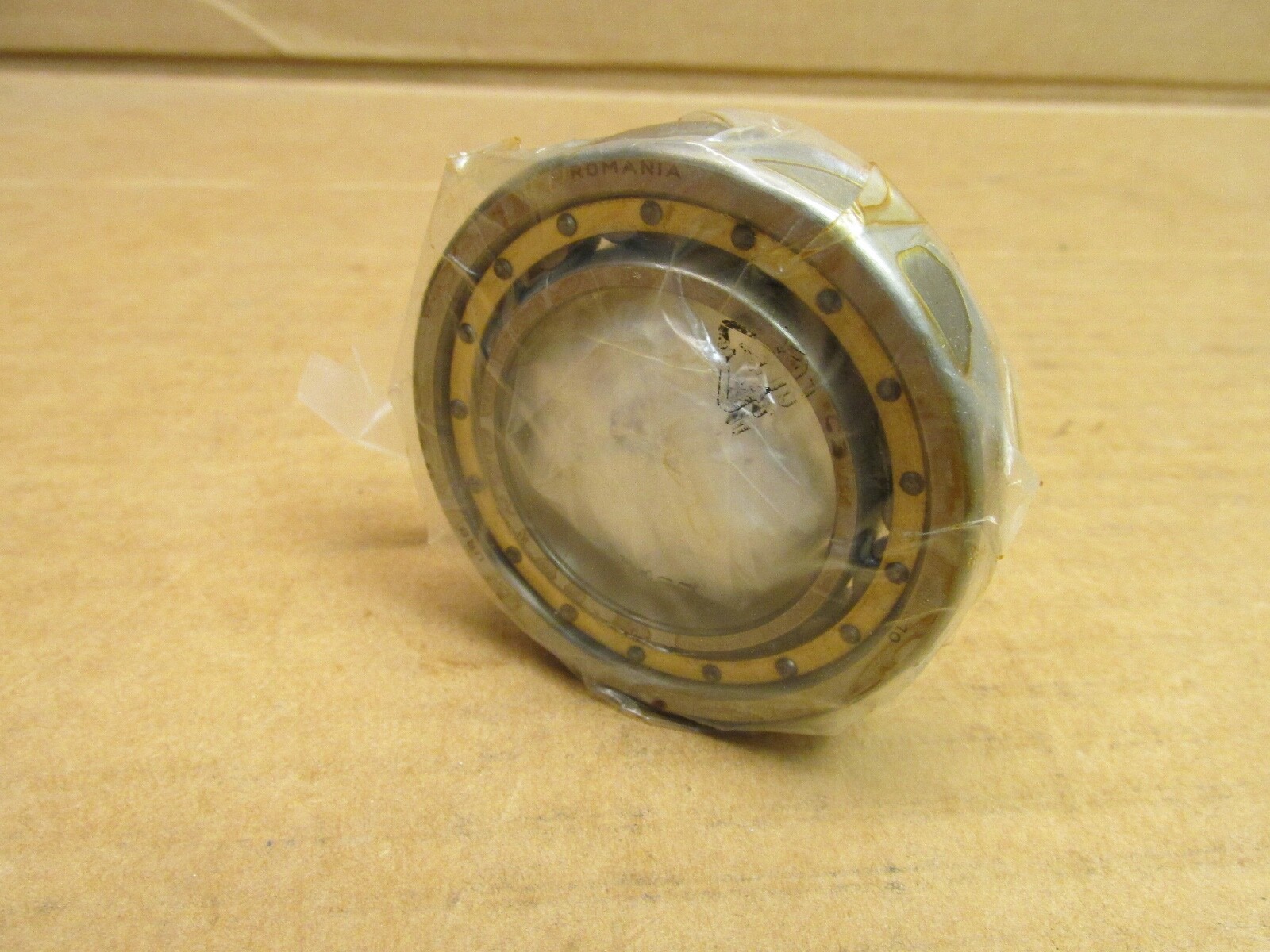

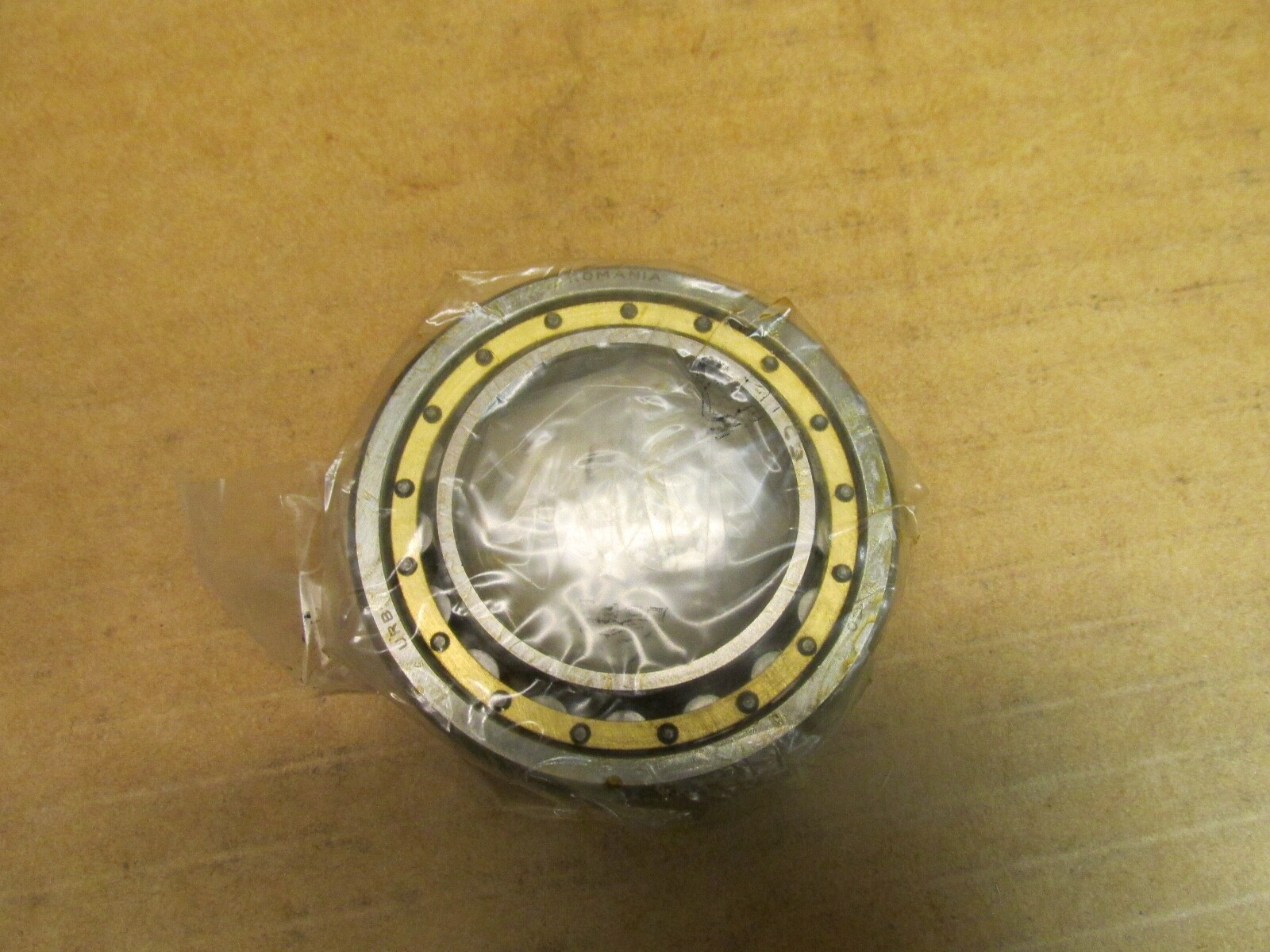

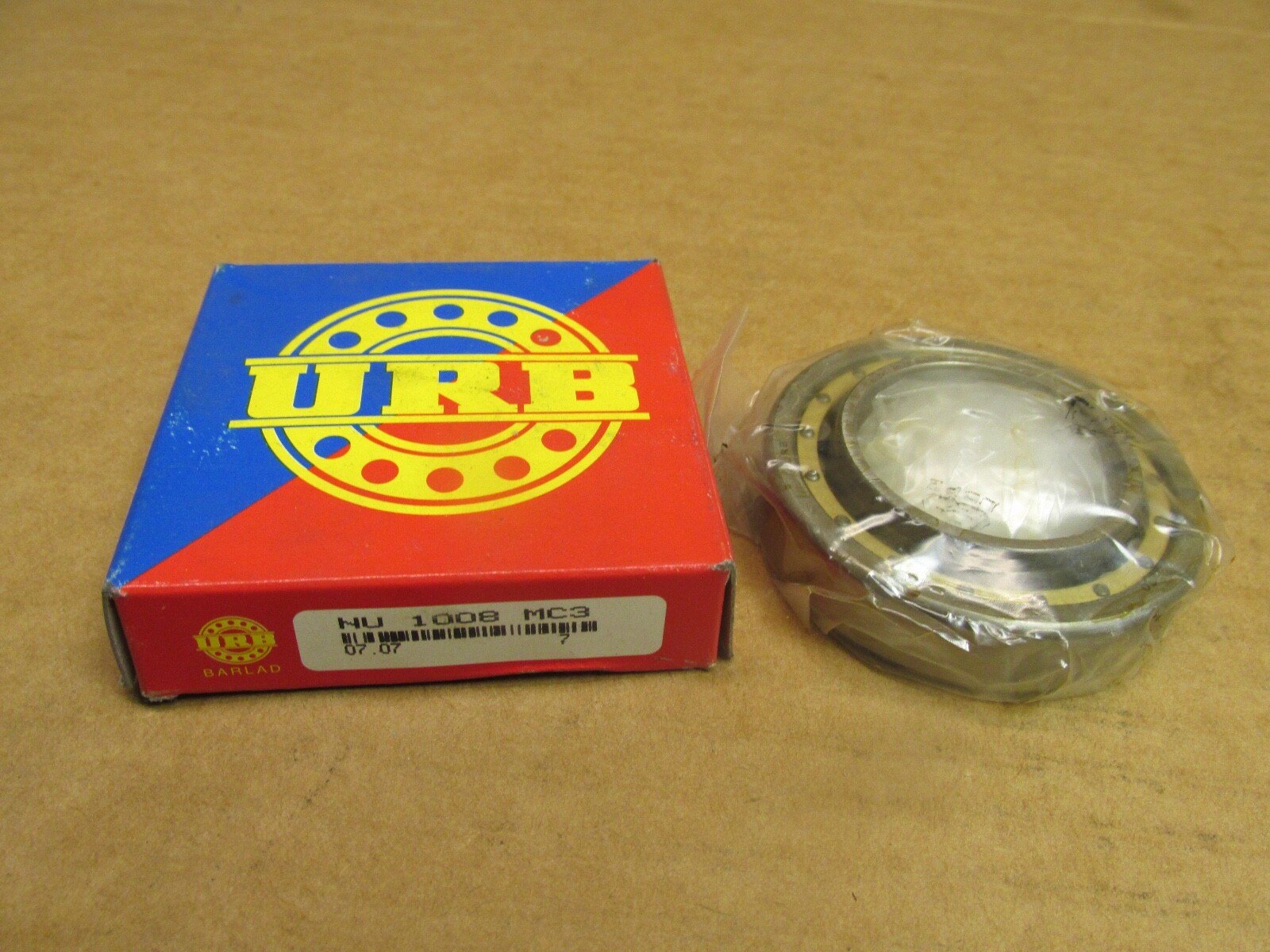

URB NU1008 M C3 cylindrical roller bearing, 40 mm bore, 68 mm OD, 15 mm wide, machined brass cage, C3 clearance. NU type with ribless inner ring, non-locating.
List Price
$53.54
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | URB |
|---|---|
| MPN | NU1008 M C3 |
| Model | NU-1008-M-C3 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 40 mm |
| OD | 68 mm |
| Width | 15mm |
| Series | NU10 |
|---|---|
| Material | Bearing Steel |
| Rolling Elements | Cylindrical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Cylindrical |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.50.00 |
| Internal Clearance | C3 |
| Overall Width | 15 mm |
| Mpn Variants | NU1008MC3, NU 1008 M C3, NU-1008-M-C3, NU1008M, NU1008 |
| Cross Reference 1 | SKF NU 1008 ML/C3 |
|---|---|
| Cross Reference 2 | FAG NU1008-M1-C3 |
| Cross Reference 3 | NSK NU1008M C3 |
| Cross Reference 5 | Koyo NU1008M C3 |
URB NU1008 M C3 is a single-row cylindrical roller bearing of NU design: two integral ribs on the outer ring and a ribless inner ring, so the shaft moves axially relative to the housing. It serves as a non-locating bearing and carries high radial load.
NU — outer ring with two ribs, inner ring without ribs.
10 — ISO dimension series 10.
08 — bore code, 08 x 5 = 40 mm bore.
M — machined brass cage.
C3 — internal radial clearance greater than normal.
Rolling Elements: Cylindrical Roller. Number Of Rows: 1. Cage Material: Machined brass. Internal Clearance: C3. Bore Type: Cylindrical. Closure Type: Open.
Bore Diameter: 40 mm. Outside Diameter: 68 mm. Overall Width: 15 mm.
NU1008 is an ISO boundary-dimension size, so the part interchanges dimensionally with SKF NU 1008 ML/C3, FAG NU1008-M1-C3 and NSK NU1008M C3.
What size is an NU1008 bearing?
40 mm bore, 68 mm OD, 15 mm wide.
What does M mean in NU1008M?
Machined brass cage.
Does an NU bearing locate the shaft axially?
No. The NU design is non-locating; the inner ring has no ribs.
