FAG22210-E1-C3Spherical Roller Bearing – 50 mm ID, 90 mm OD, 23 mm Width, Cylindrical Bore, C3 Clearance, E1 Design

Product Description

What this part is:

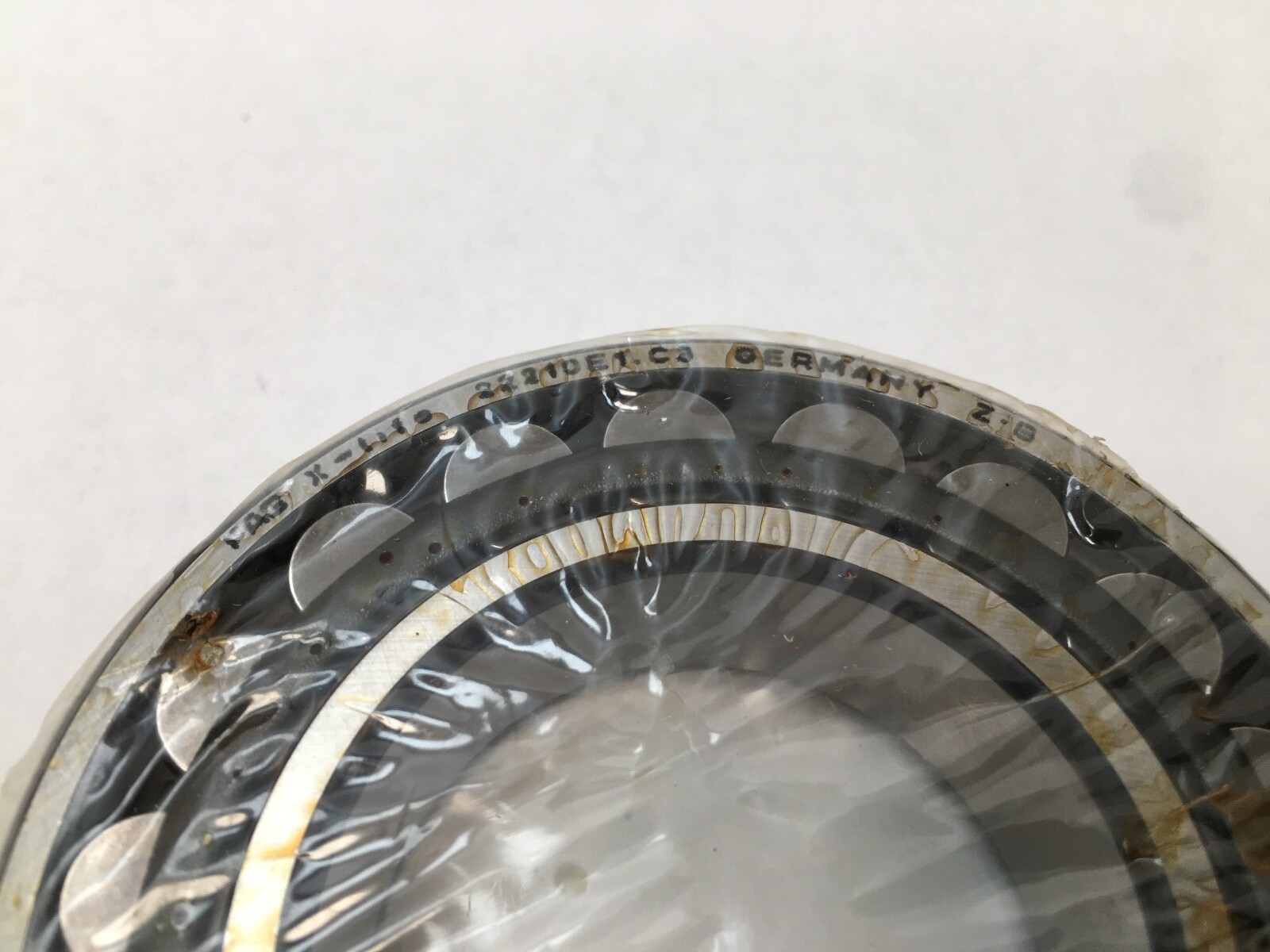

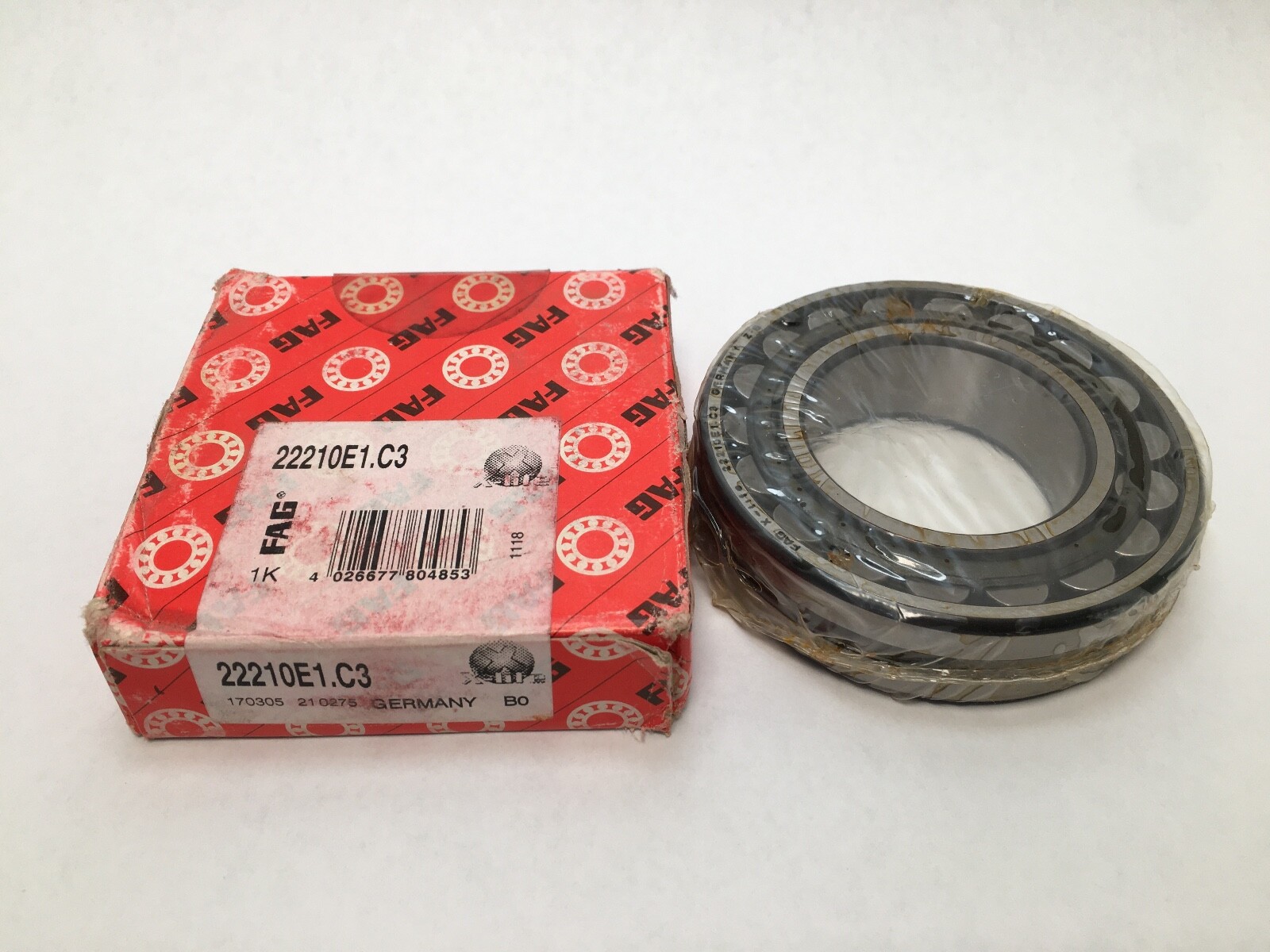

FAG 22210-E1-C3 spherical roller bearing, carton marking 22210E1.C3. Bore Diameter: 50 mm. Outside Diameter: 90 mm. Overall Width: 23 mm. Bore Type: Cylindrical. Closure Type: Open. Rolling Elements: Spherical Roller. Number Of Rows: 2. Internal Clearance: C3. Unit Quantity: 1 Pc.

Decoding the designation:

22210 — spherical roller bearing, 222 series, bore code 10 = 50 mm.

E1 — FAG E1 internal design, no central rib on the inner ring.

C3 — radial internal clearance greater than normal.

Specifications:

Bore Diameter: 50 mm. Outside Diameter: 90 mm. Overall Width: 23 mm. Bore Type: Cylindrical. Closure Type: Open. Rolling Elements: Spherical Roller. Number Of Rows: 2. Internal Clearance: C3.

Dimensions and mounting:

Envelope: 50 mm bore x 90 mm outside diameter x 23 mm width, cylindrical bore.

Compatibility and replacement:

Current Schaeffler successor: 22210-E1-XL-C3. Other makers’ 22210 C3 designs, 50 x 90 x 23 mm: SKF 22210 E/C3 and NSK 22210EAE4C3. Also written 22210-E1-C3, 22210E1.C3, 22210E1C3, 22210 E1 C3 and 22210E 1 C3.

Frequently asked questions:

What size is the FAG 22210-E1-C3?

50 mm bore, 90 mm outside diameter, 23 mm width, cylindrical bore.

What clearance does it have?

C3, radial internal clearance greater than normal.

What is the current FAG successor?

22210-E1-XL-C3.
