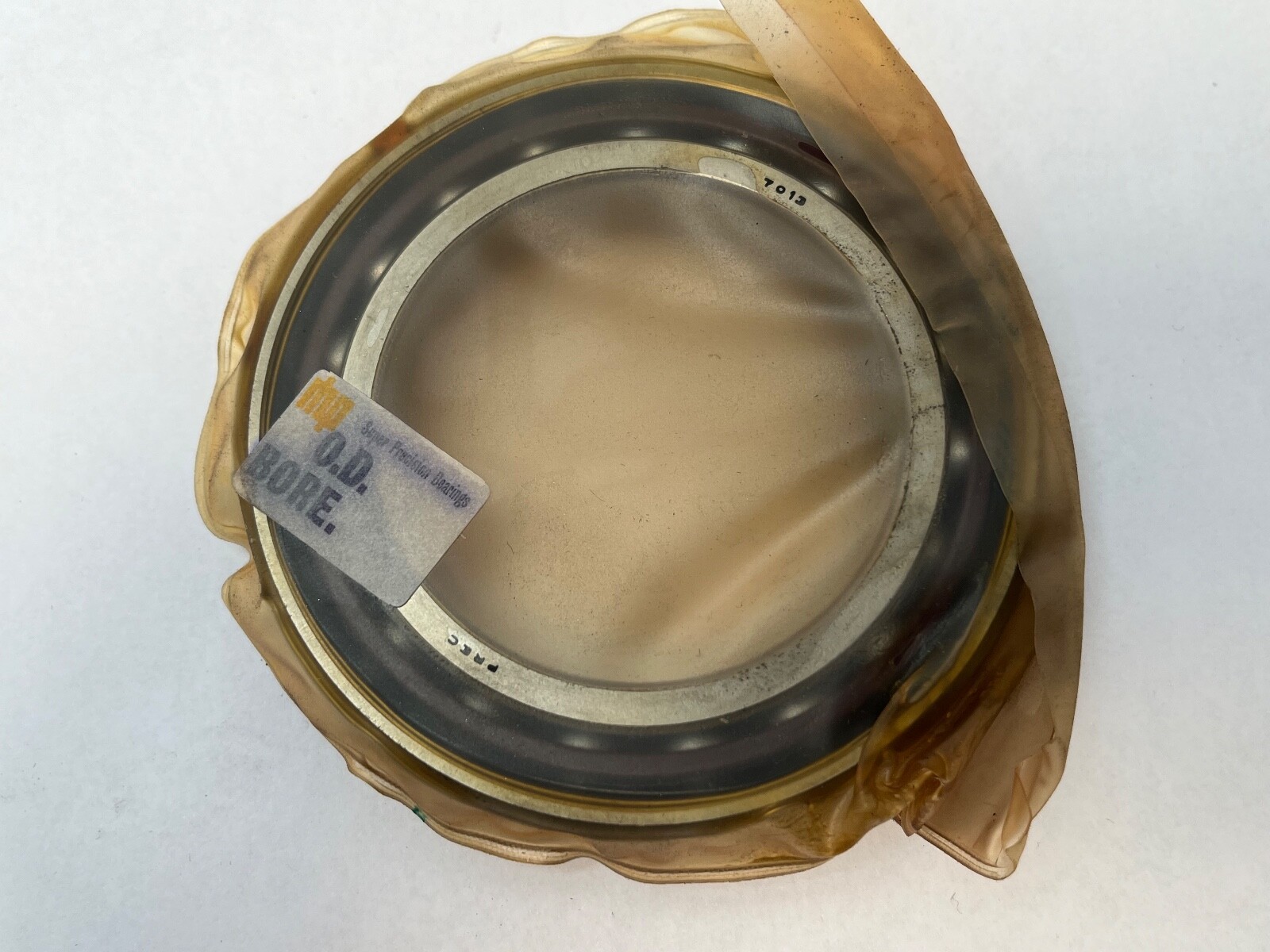

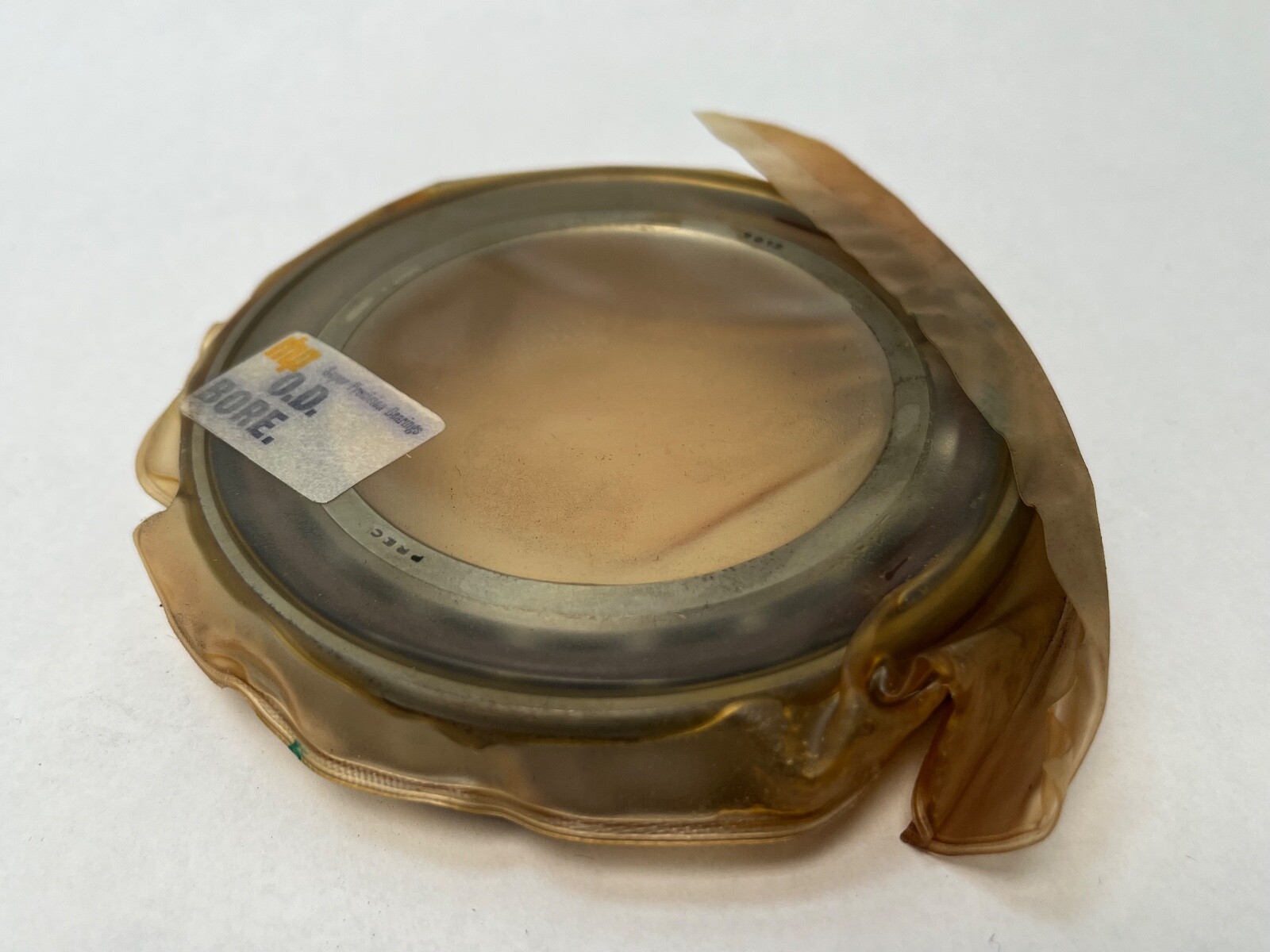

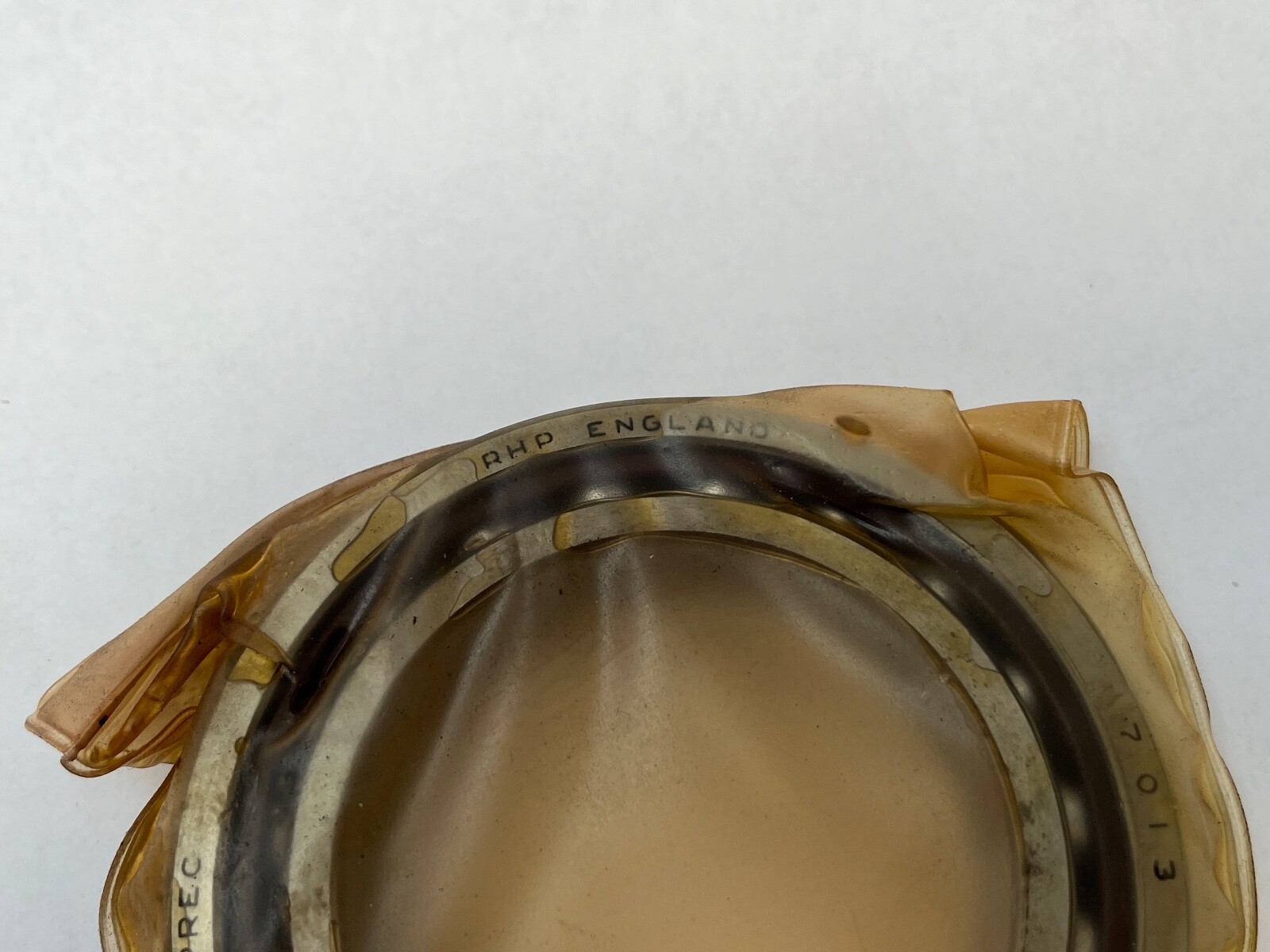

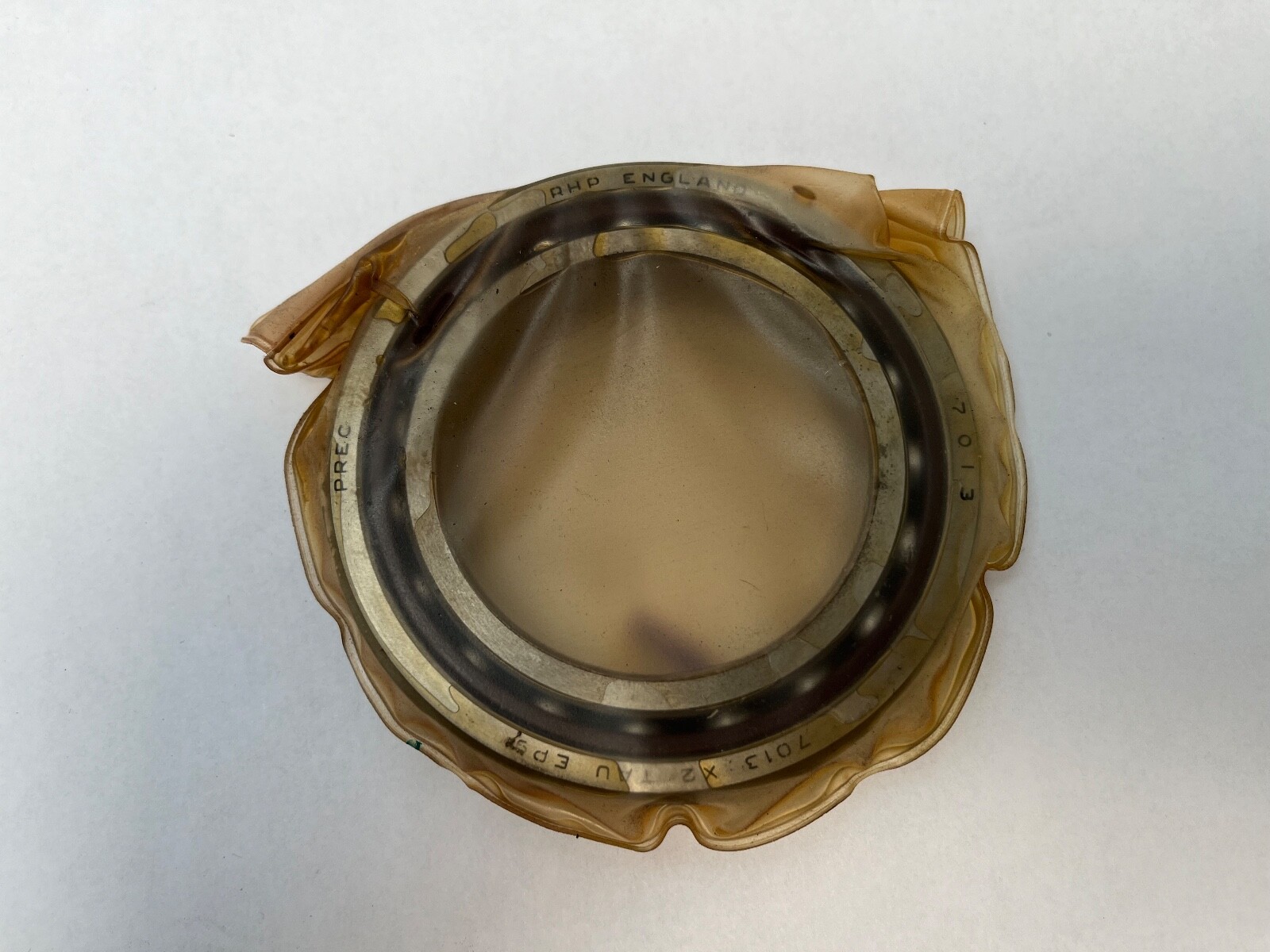

Super precision angular contact ball bearing, 65 x 100 x 18 mm, 15° contact angle, ABEC 7 / P4, light preload. Phenolic cage, universally ground, open.
List Price
$74.78
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7013CTSULP4 |
| Model | 7013 C T SUL P4 / B 7013 X2 TA UL EP7 / 2MM9113WI CR SUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 100 mm |
| Width | 18 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7000 |
| Preload | Light (L) |
| Base Number | 7013 |
| Industry Terms | super precision spindle bearing; machine tool spindle bearing |
| Common Misspellings | 7013 CT SUL P4; 7013CTSULP-4; 7013CSULP4; 7013CTSUL P4 |
| Application Types | Machine tool spindles; grinding spindles; precision gearboxes |
| Mpn Variants | 7013CTSULP4; 7013-C-T-SUL-P4; 7013C; B7013X2TAULEP7 |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Effective load centre a 20.0 mm; internal free volume 19.0 cm3 |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 37,000 N |
| Static Load Rating | 34,500 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.435 kg (0.96 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 13,300 rpm grease; 21,600 rpm oil |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Mounting Arrangement | Single, universally ground for paired mounting |
| Bearing Material | Bearing steel (SAE 52100 equivalent) |
| Closure Type | Open |
| Cross Reference 1 | NSK 7013CTRSULP4 |
|---|---|
| Cross Reference 2 | Timken/Fafnir 2MM9113WICRSUL |
| Cross Reference 3 | FAG B7013-C-T-P4S - FAG P4S class |
| Cross Reference 4 | SKF 7013 CD/P4A - SKF P4A class |
| Cross Reference 5 | NTN 7013C/GNP4 - NTN preload code |
| Cross Reference 6 | Koyo 7013C/GNP4 - Koyo preload code |
| Cross Reference 7 | SNR 7013CVUJ74 - SNR J74 preload code |
RHP 7013CTSULP4 super precision single-row angular contact ball bearing. Bore Diameter: 65 mm. Outside Diameter: 100 mm. Overall Width: 18 mm. Contact Angle: 15°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Series: 7000. Base Number: 7013. Unit Quantity: 1 Pc.
7 — single-row angular contact ball bearing.
0 — RHP dimension series 0, ISO series 10.
13 — bore code 13, a 65 mm bore.
C — 15° contact angle. The carton’s B-series code X2 and the Fafnir-scheme number 2MM9113WI both state the same 15°.
T — machined cage in laminated phenolic resin, outer-ring guided.
SU — single universal face control. Inner and outer rings are ground to equal width and the face steps are pre-adjusted at manufacture, so two bearings mount back-to-back, face-to-face or in tandem without custom-ground spacers.
L — light preload. Preload: Light (L).
P4 — RHP precision grade P4. Precision Class: ABEC 7 / P4.
Dynamic Load Rating: 37,000 N. Static Load Rating: 34,500 N. Limiting Speed: 13,300 rpm grease; 21,600 rpm oil. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Bearing Material: Bearing steel, SAE 52100 equivalent, through hardened and heat treated for dimensional stability. Lubricant: Grease or oil. Max temp: 120 °C. Preload: Light (L). Paired axial preload (light): 250 N, back-to-back or face-to-face pair. Paired axial stiffness (light): 82 N/µm. Mounting Arrangement: single bearing, universally face-ground for paired or multiple-set mounting. Item Weight: 0.435 kg (0.96 lb). Harmonization Code: 8482.10.50.28. Country of Origin: United Kingdom.
Bore Diameter: 65 mm. Outside Diameter: 100 mm. Overall Width: 18 mm. Shaft abutment diameter d1: 72 mm minimum. Abutment diameter D1: 93 mm maximum. Abutment diameter D2: 95 mm maximum. Chamfer dimension r: 1.1 mm minimum. Chamfer dimension r1: 0.6 mm minimum. Effective load centre a: 20.0 mm. Internal free volume: 19.0 cm³. Pitch circle diameter for lubrication jets: 77.5 mm.

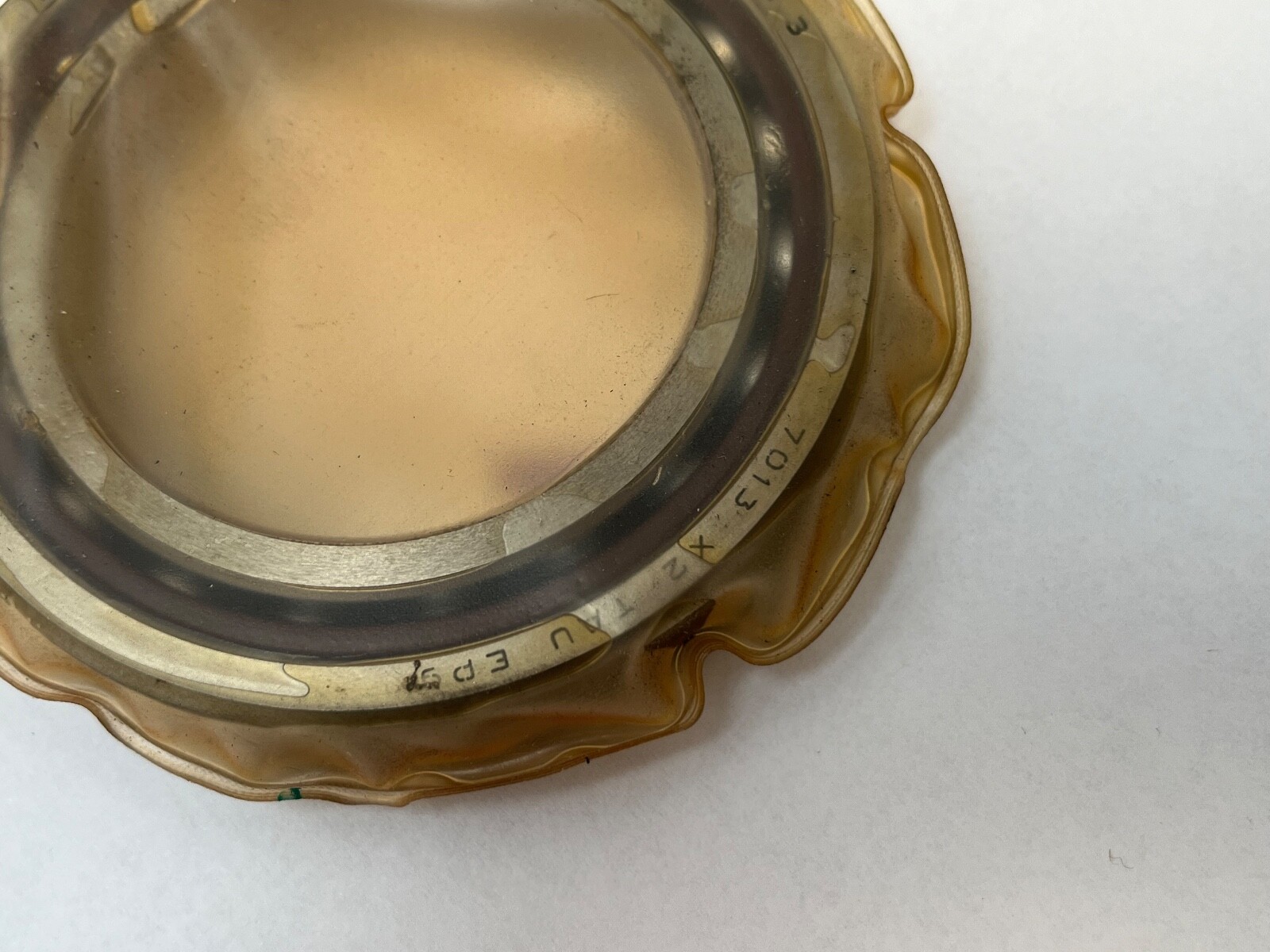

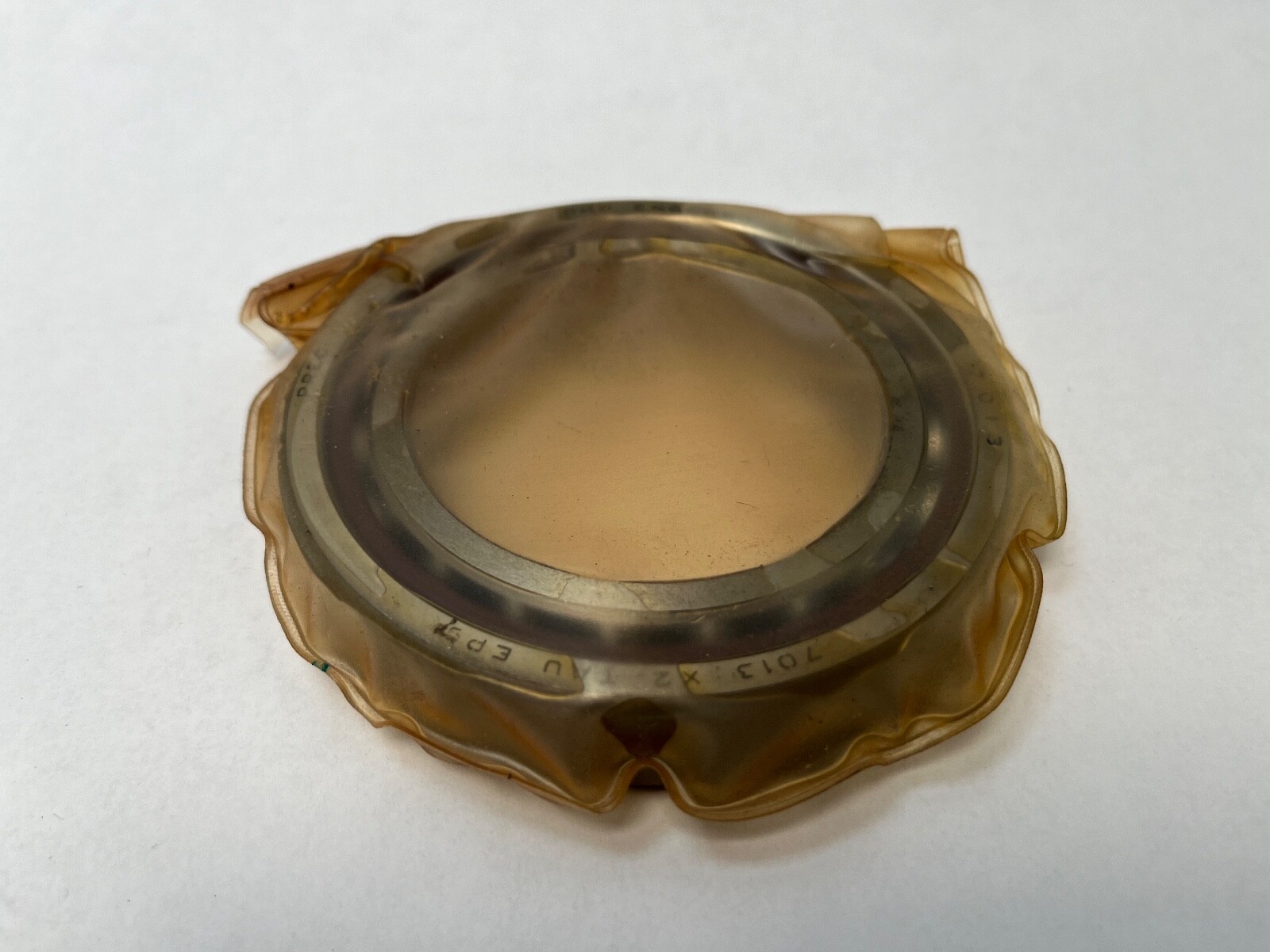

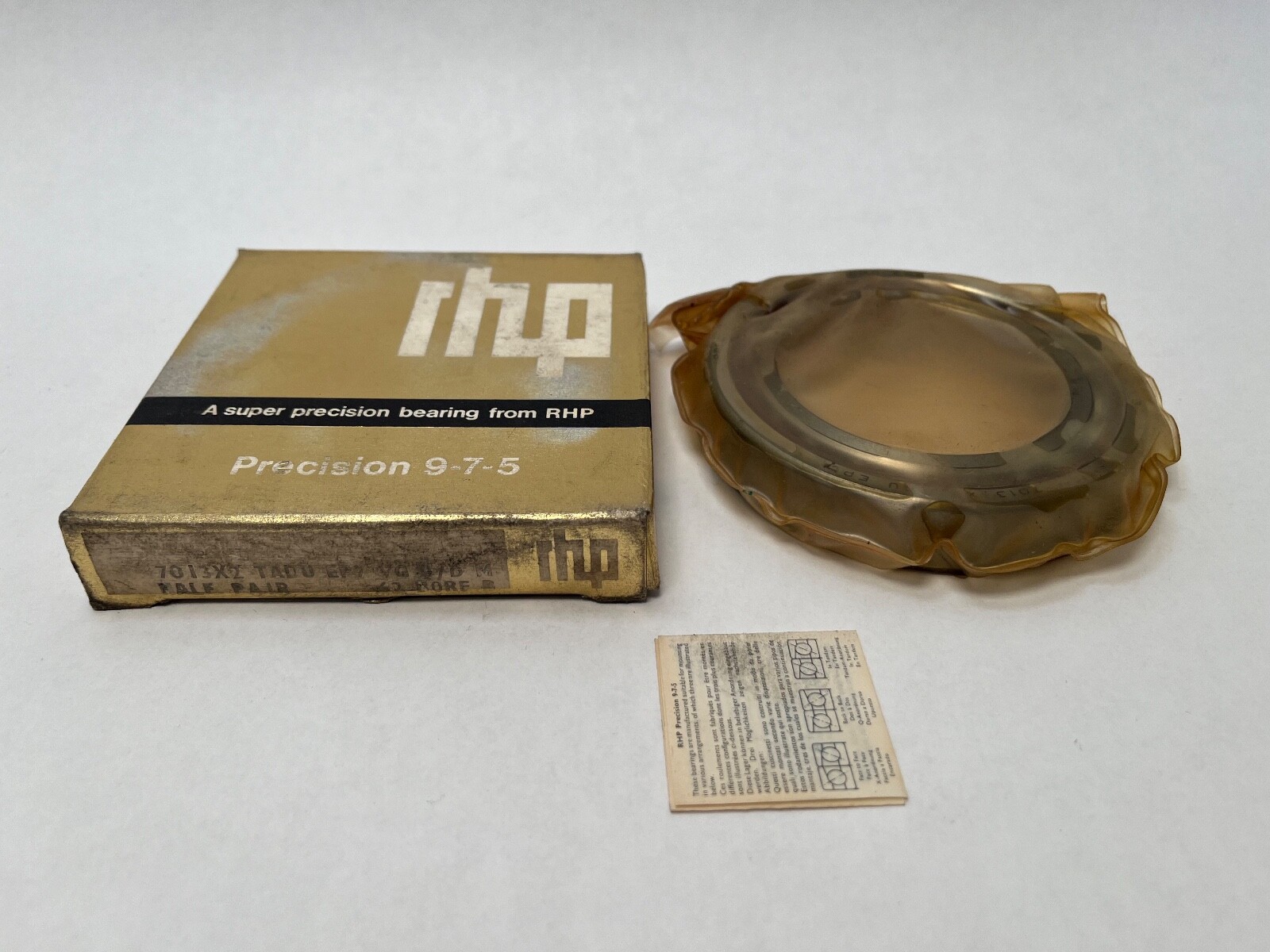

Cross-references with a 15° contact angle: NSK 7013CTRSULP4, Timken/Fafnir 2MM9113WICRSUL, FAG B7013-C-T-P4S, SKF 7013 CD/P4A, NTN 7013C/GNP4, Koyo 7013C/GNP4, SNR 7013CVUJ74. The carton also carries the RHP B-series marking B7013X2TAULEP7 for the same bearing.
A super precision single-row angular contact ball bearing, 65 x 100 x 18 mm, 15° contact angle, ABEC 7 / P4, light preload, phenolic cage.
Single universal face control: the rings are ground to equal width so two bearings mount back-to-back, face-to-face or in tandem.
13,300 rpm with grease and 21,600 rpm with oil.
