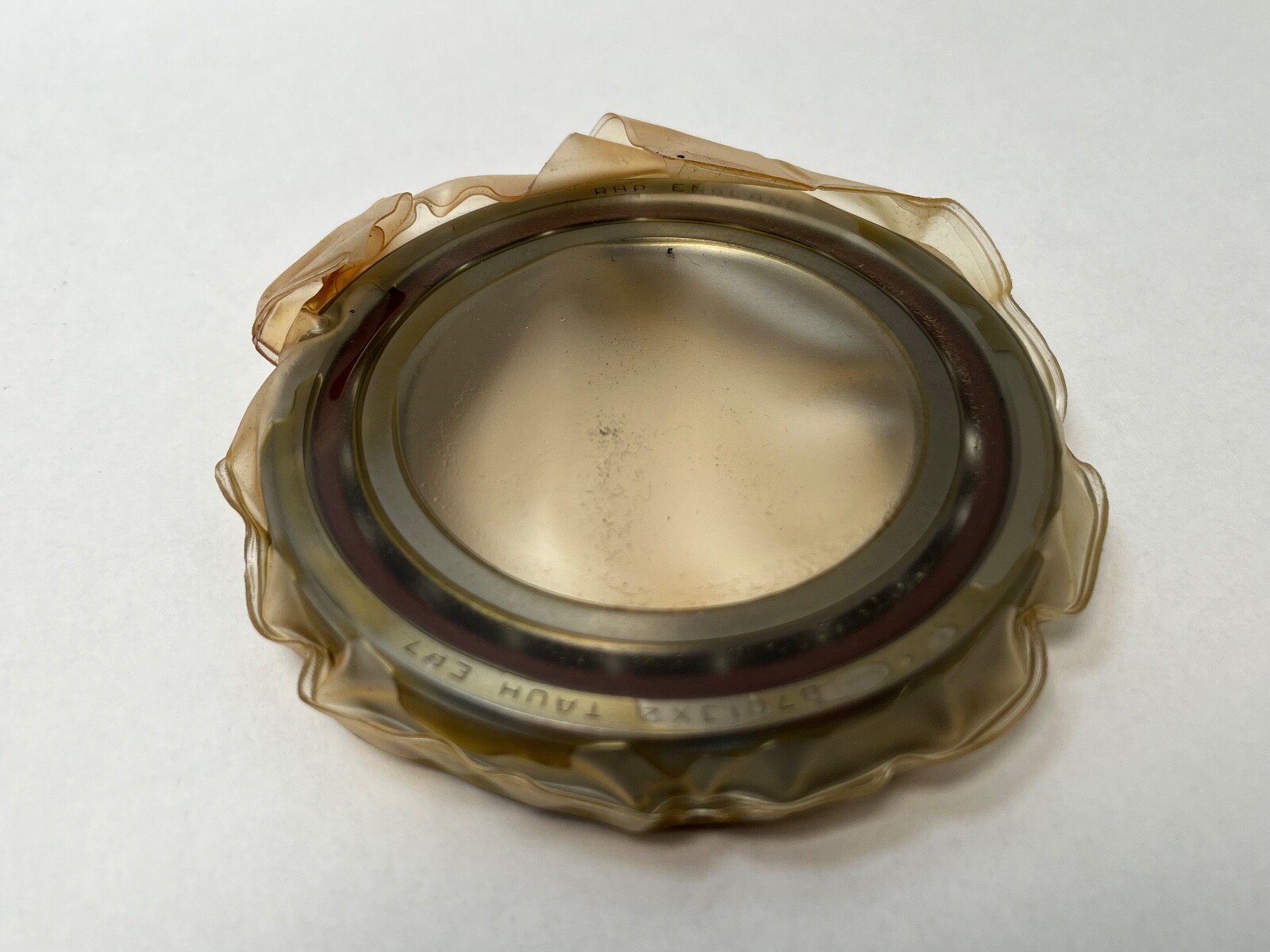

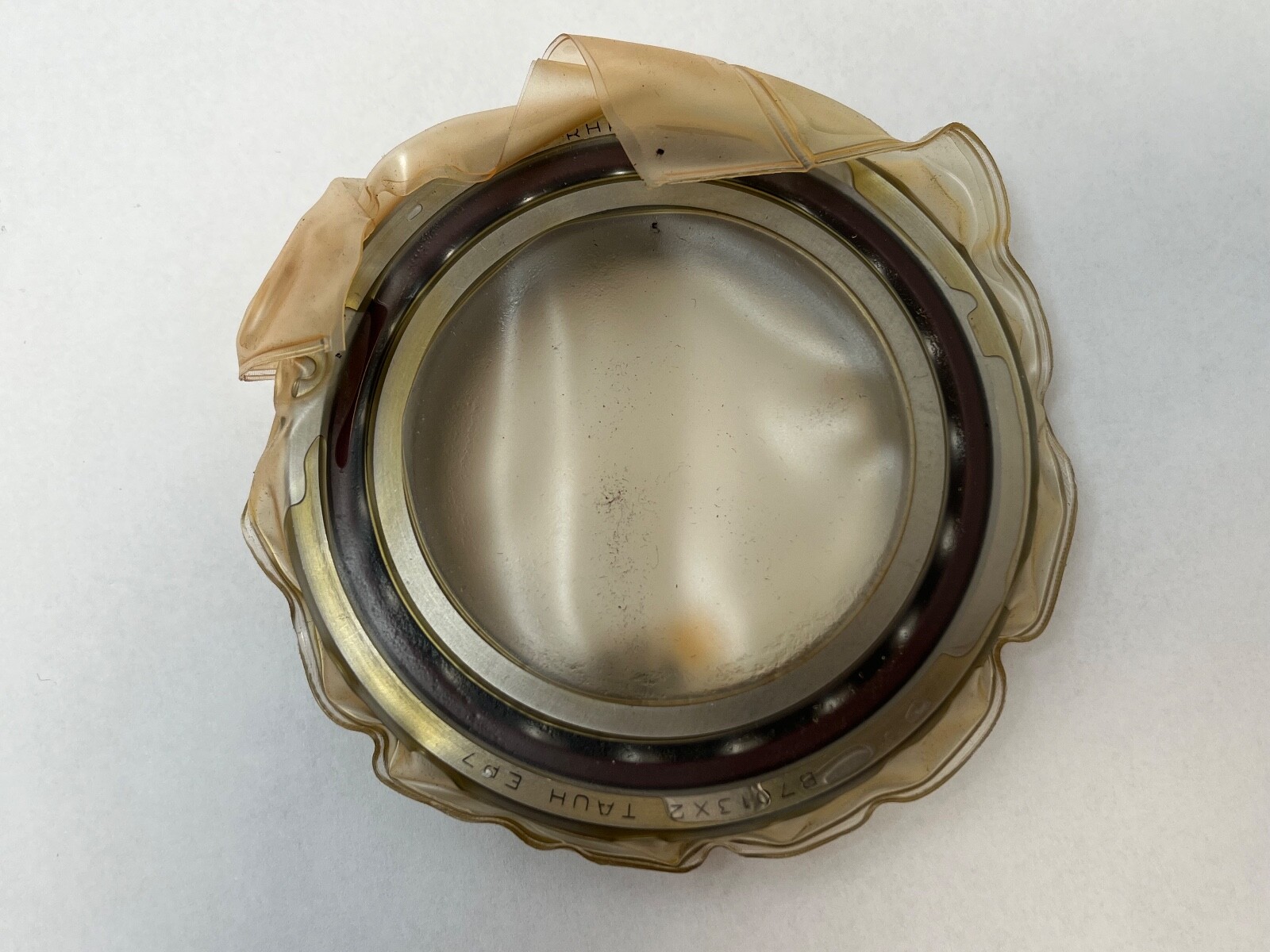

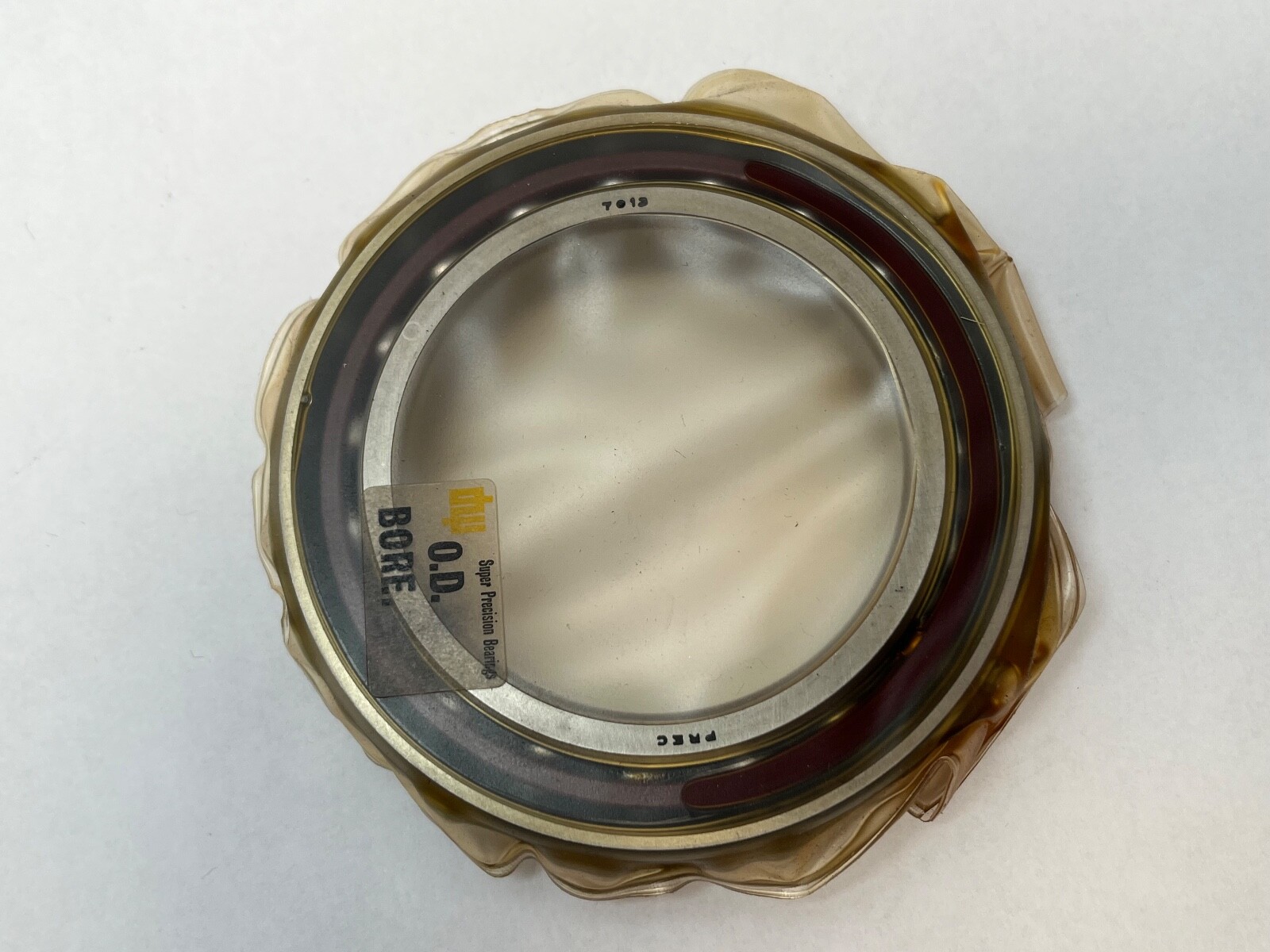

RHP7013CTSUHP4Super-Precision Angular Contact Ball Bearing – 65 mm ID, 100 mm OD, 18 mm Width, Open, Phenolic Outer-Land-Riding Cage, Light Preload, ABEC 7

Product Description

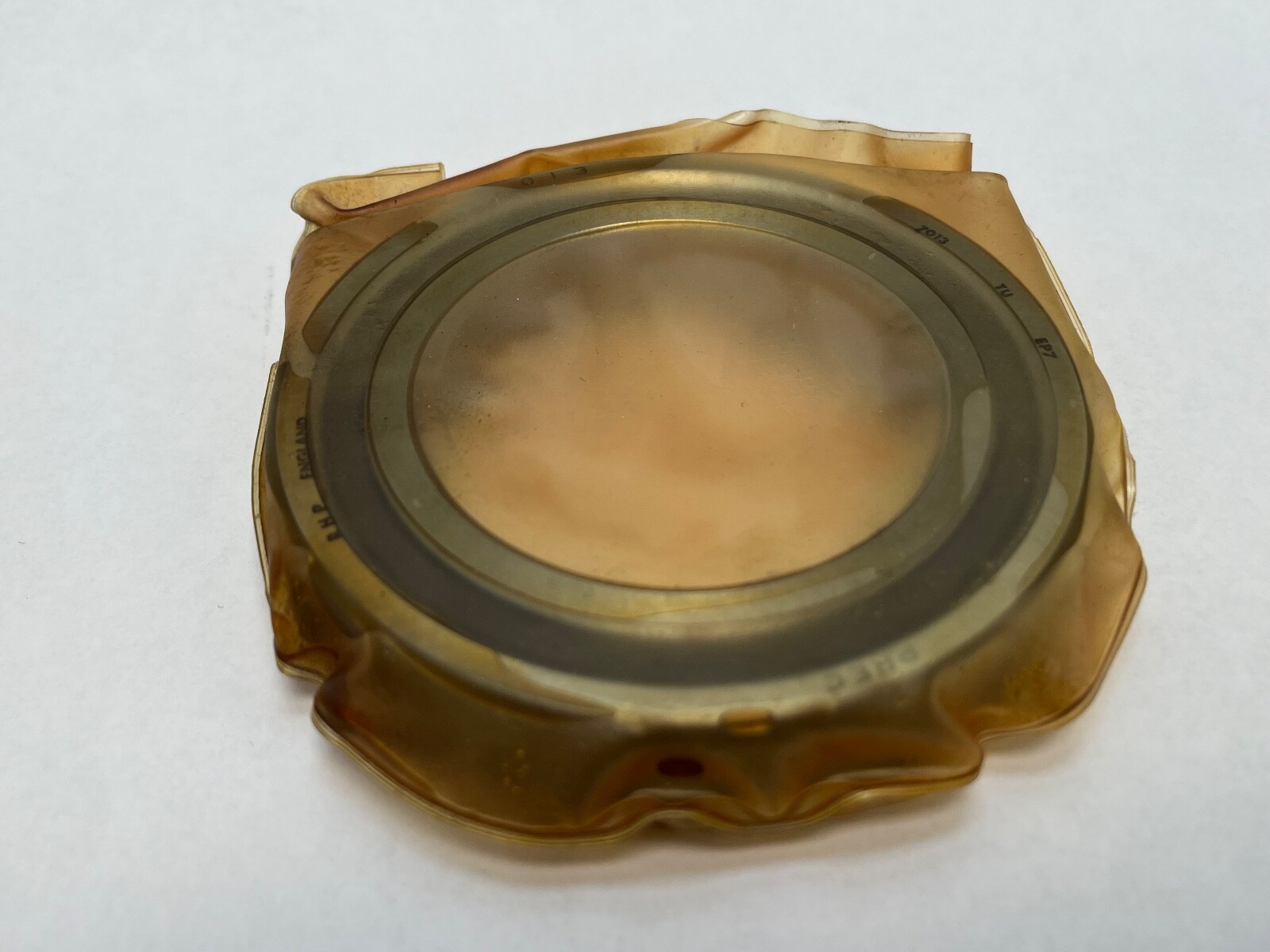

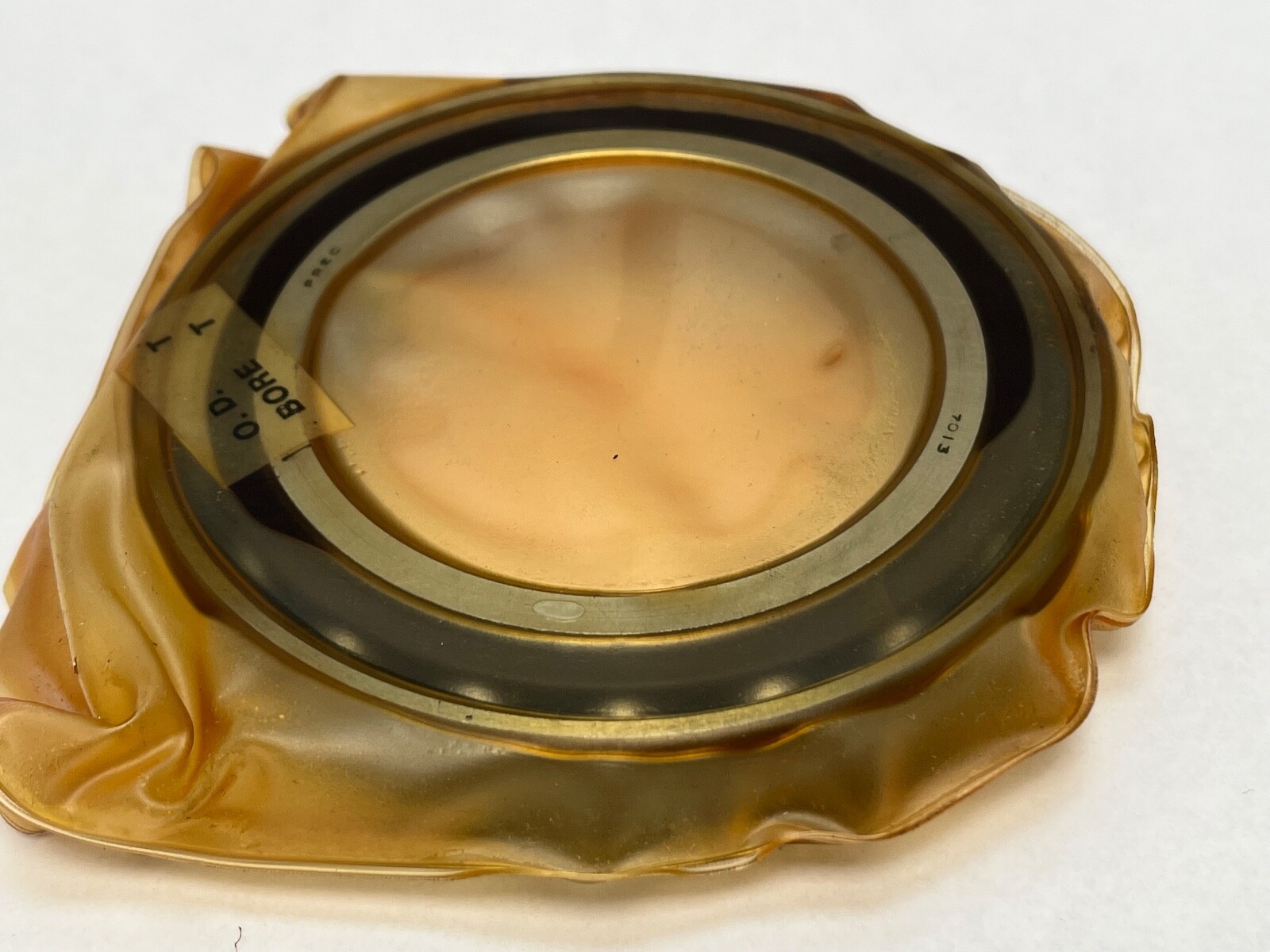

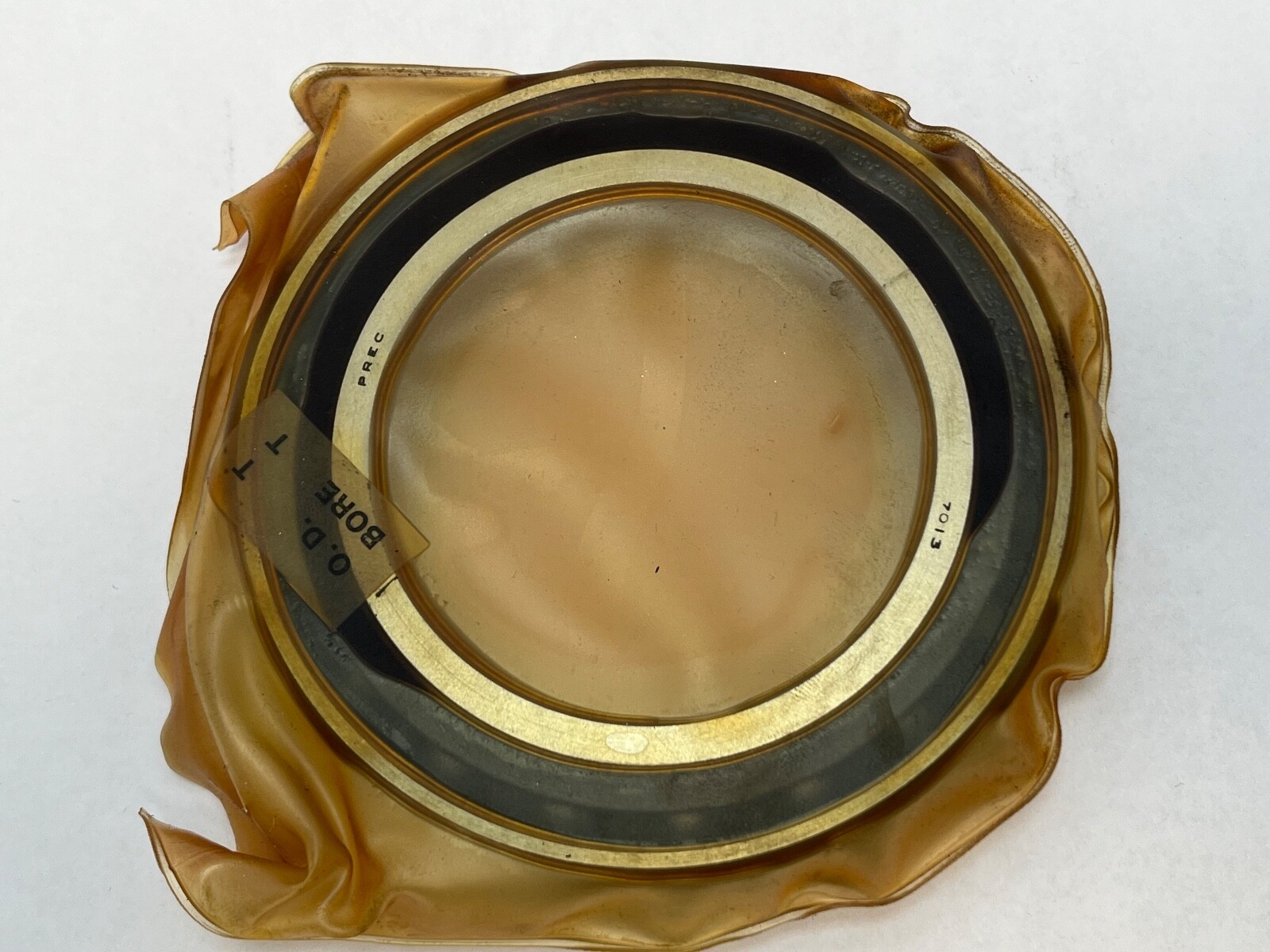

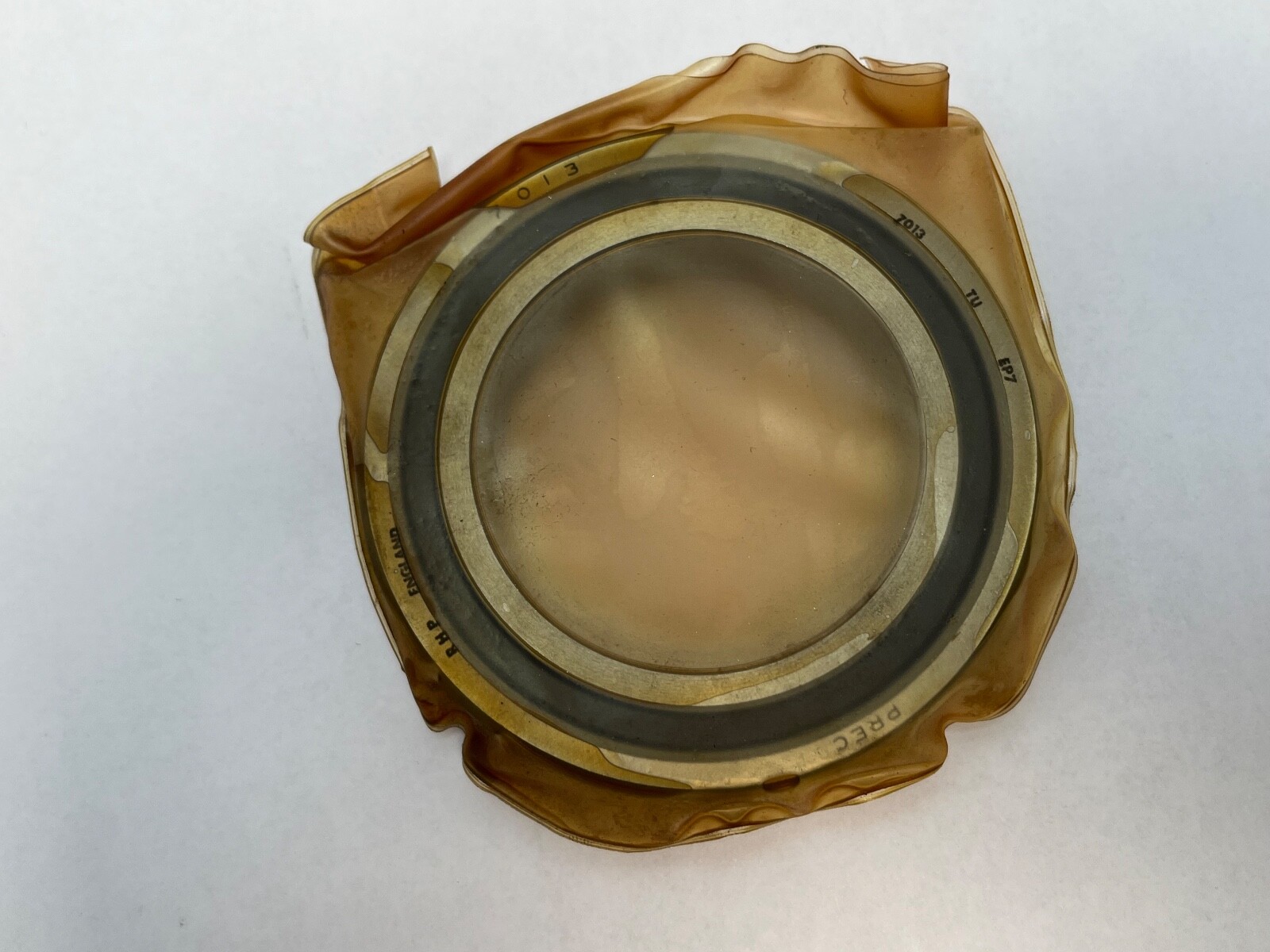

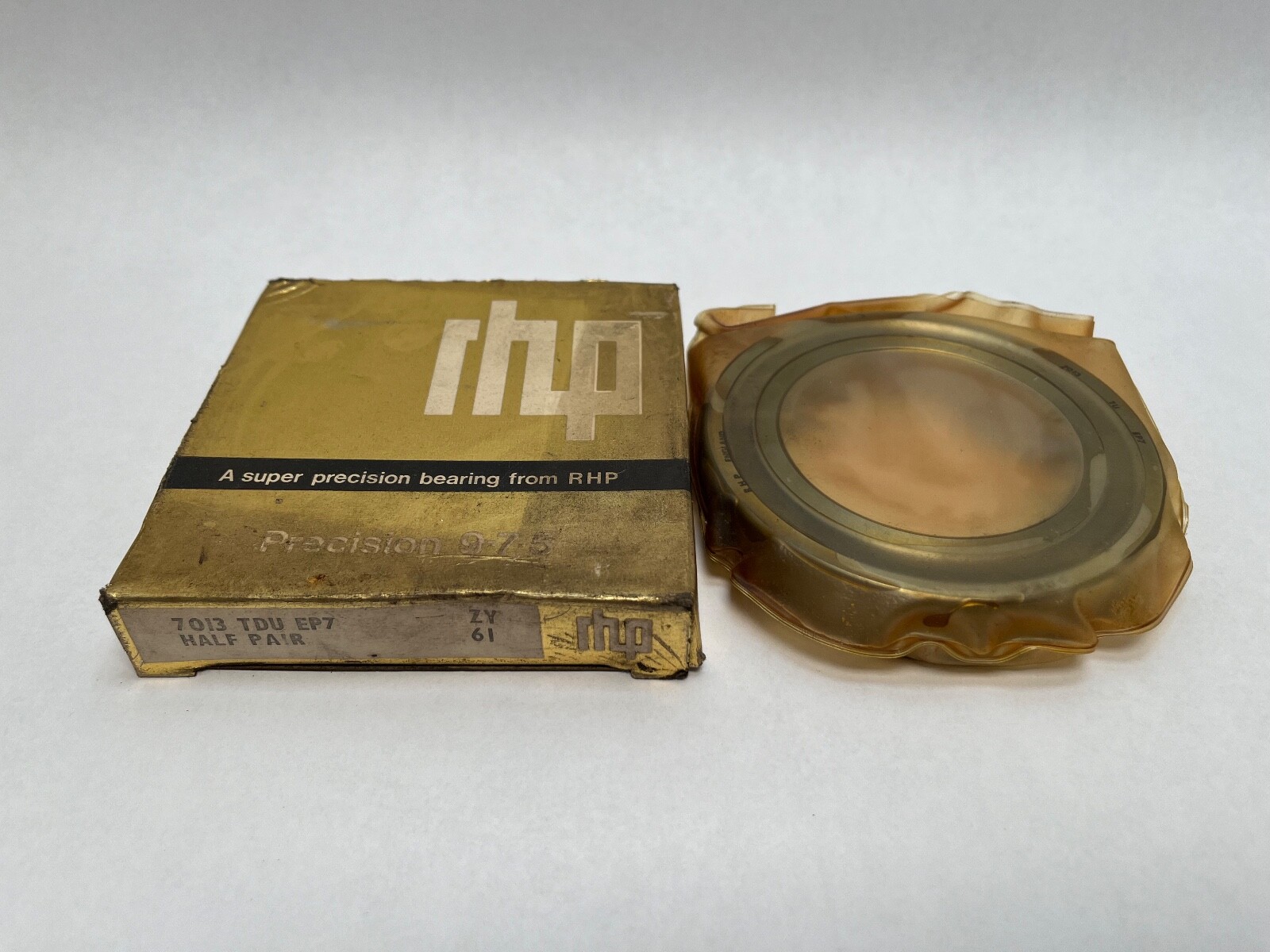

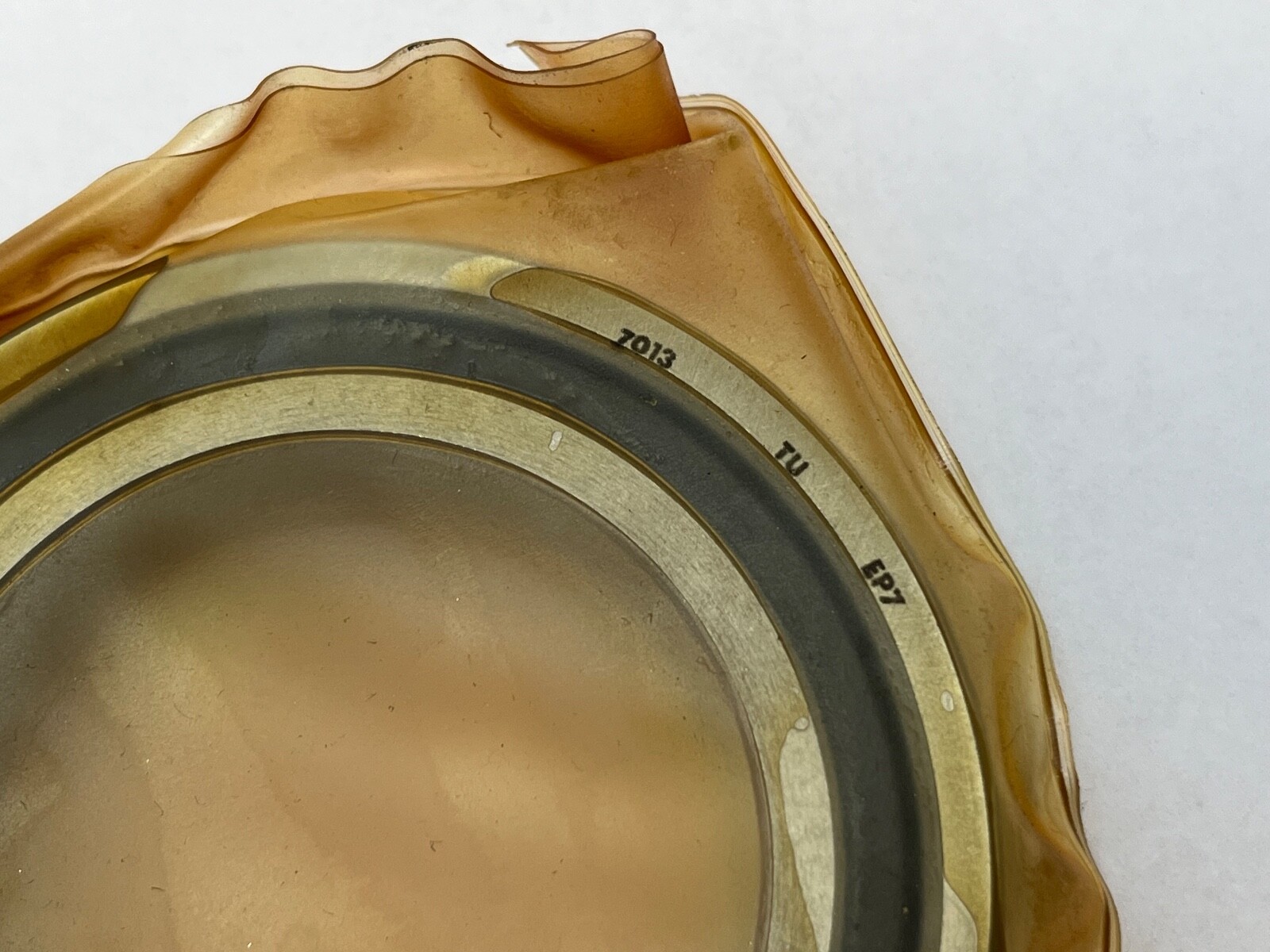

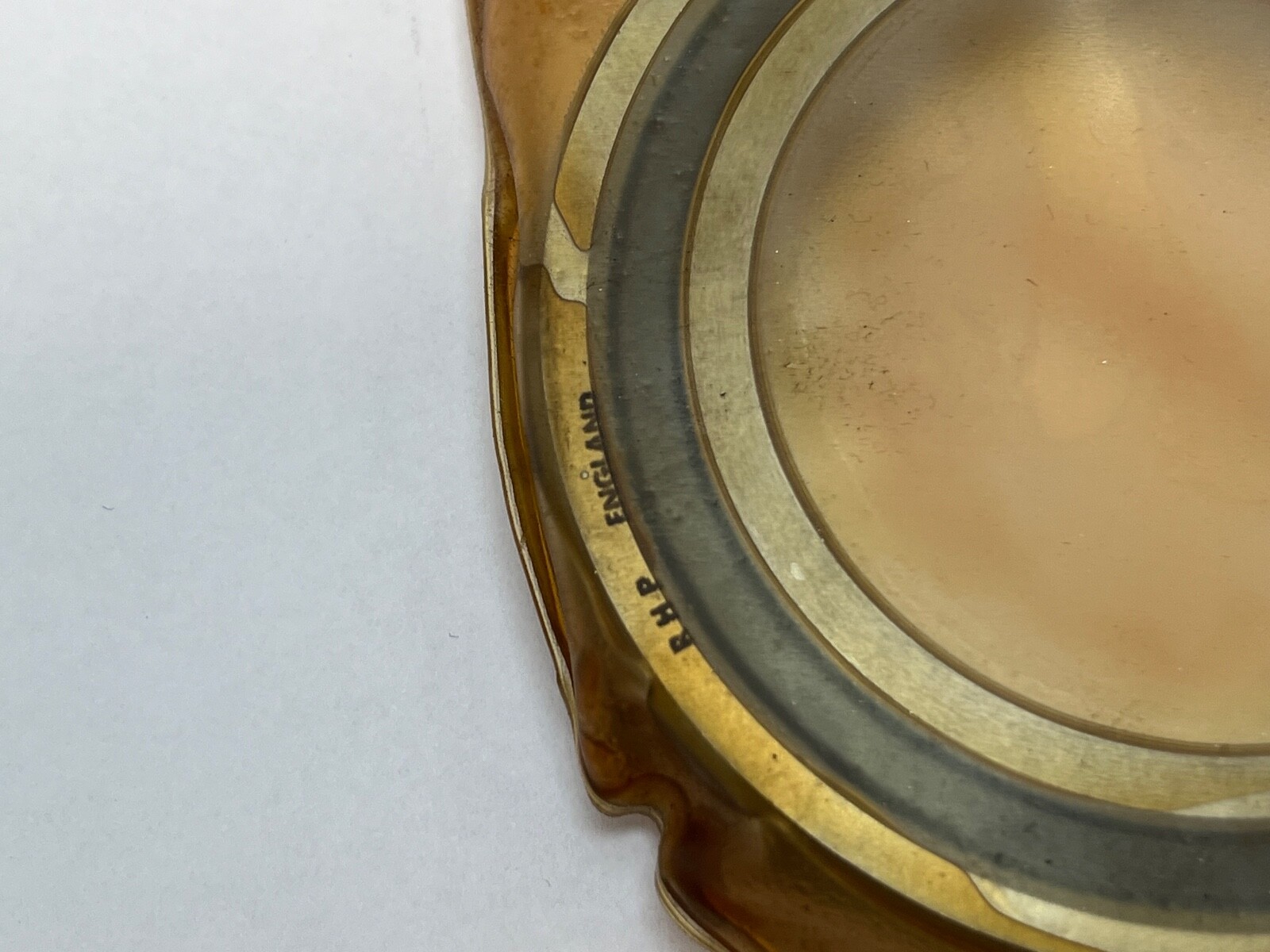

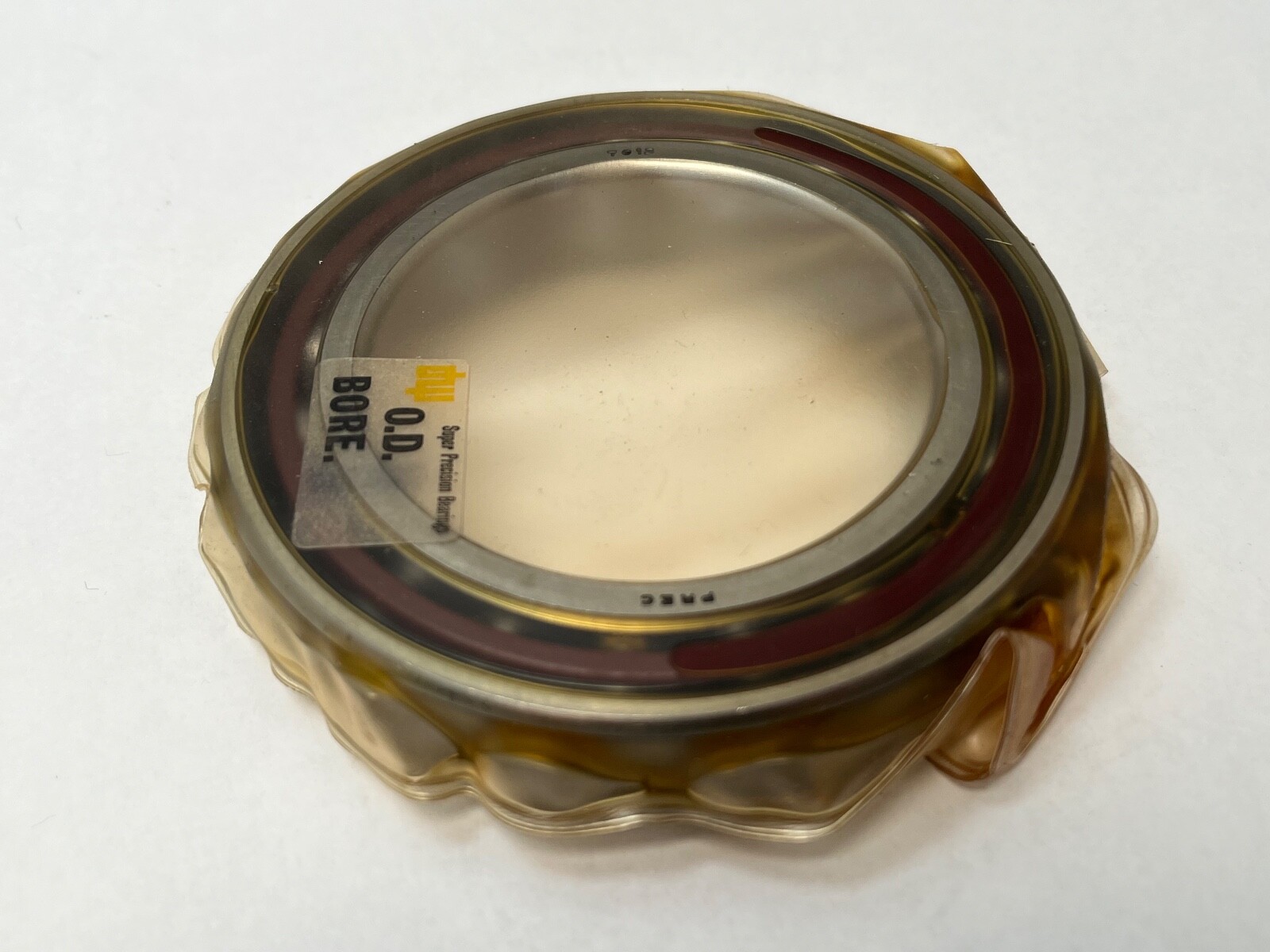

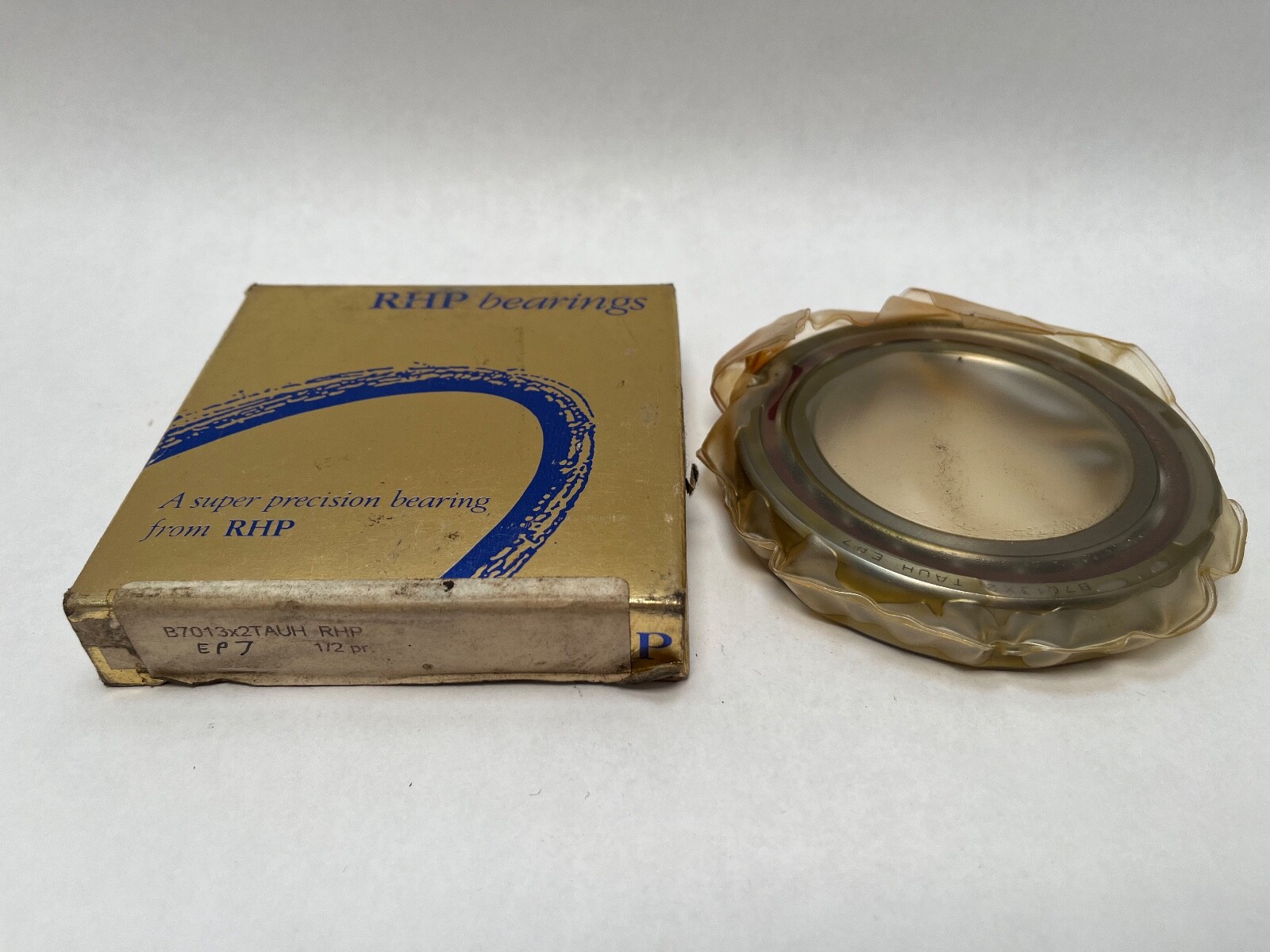

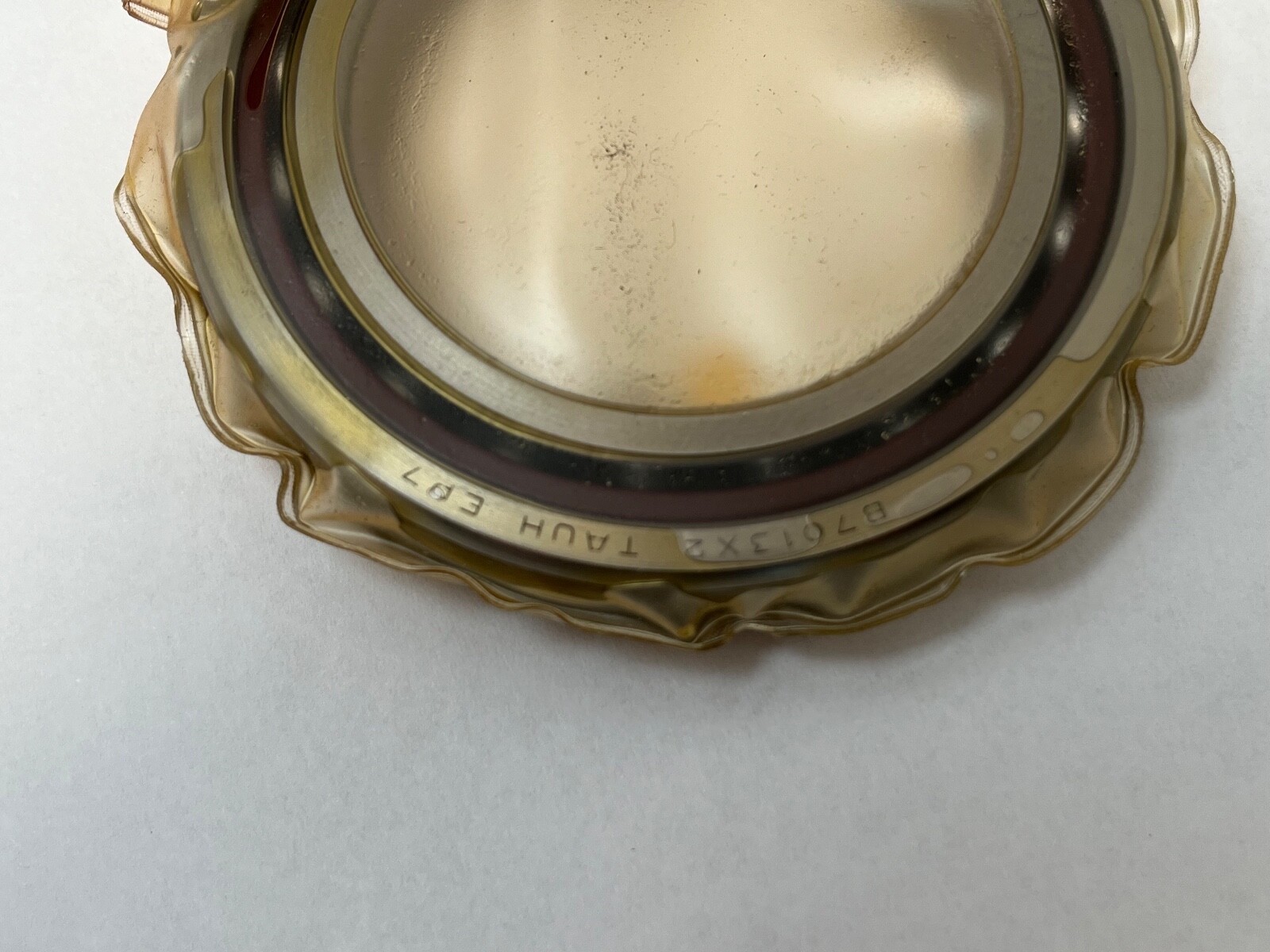

What this part is: RHP 7013TDULP4-1/2PR super-precision angular contact ball bearing. Bore: 65 mm. Outside Diameter: 100 mm. Overall Width: 18 mm. Series: 70. Base Number: 7013. Bearing Type: Angular contact ball bearing. Number Of Rows: 1. Rolling Elements: Balls. Bearing Material: Bearing steel. Bore Type: Straight. Closure Type: Open. Design Units: Metric. Decoding the designation: Precision Class: P4, equivalent to ABEC 7. Running Accuracy – Radial And Axial Runout: P4. The RHP B-series equivalent on the same carton is B7013TDUEP7, where EP7 is the same accuracy grade. Preload: Light. Internal Clearance: N/A — a preloaded bearing is set by preload rather than by running clearance. Mounting Arrangement: Universal, ground for duplex (DU) mounting in either direction. Contact Angle: Not specified. Cage and materials: Cage Material: Phenolic. Cage Type: Outer-ring land-riding. A fabric-base phenolic cage riding on the outer-ring land runs quiet at high speed and carries lubricant in the laminate itself. Maximum Operating Temperature: 120 °C. Minimum Operating Temperature: −30 °C. Item Weight: 0.88 lb. What these specs mean in practice: Light preload holds the balls in defined contact at low running friction and low heat rise, which suits a machine-tool spindle position that turns fast and carries moderate thrust. P4 accuracy fixes radial and axial runout close enough for a grinding or milling spindle. The universal grind lets two pieces be stacked back-to-back, face-to-face or in tandem and reach the catalogue preload without shims or spacers. Quantity and configuration: Unit Quantity: 1 Pc. The −1/2PR suffix marks one bearing out of a factory-matched universal duplex pair. A single universally ground piece runs on its own or stacks against another piece of the same designation and preload class. Interchange guidance: Cross-Reference 1: RHP B7013TDUEP7. Cross-Reference 2: Fafnir MM9113WI CR DUL. Both designations appear on this bearing’s own carton and describe the same 65 x 100 x 18 mm universal duplex phenolic-caged execution. MPN Variants: 7013TDULP4-1/2PR, 7013 T DUL P4, 7013TDULP4, B7013TDUEP7, B 7013 T DU EP7, MM9113WI CR DUL, 7013CTSUHP4.
