Angular contact ball bearing duplex pair, 75 mm bore x 105 mm OD x 16 mm wide, 40° contact angle, ABEC 7, light preload, phenolic cage. 2 Pcs.
List Price
$316.49
3 in stock
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | RHP |
|---|---|
| MPN | 7915TDUL |
| Model | 7915 TDU EP7 |
| Bearing Type | Angular Contact Ball Bearing |
| Condition | New |
|---|---|
| Preload | Light |
| Base Number | 71915 |
| Industry Terms | Spindle bearing, machine tool bearing, super precision angular contact, duplex pair, matched pair |
| Common Misspellings | RPH, R.H.P., 7915TDULL, 7915-TDUL |
| Application Types | Machine tool spindles, precision gearboxes, high-thrust rotating assemblies |
| Total Width | 32 mm (1.2598 in) for the pair |
| Bore Shaft Size | 75 mm (2.9528 in) |
| Mpn Variants | 7915TDUL, 7915-T-DUL, 7915 T DUL, 7915-T-DU-EP7, 7915TDULEP7 |
| Arrangement Configuration | Duplex matched pair (DU) |
| Precision Class | EP7 (ABEC 7) |
| Cage Material | Phenolic |
| Number Of Rows | 1 per bearing |
| Contact Angle | 40 Degrees |
| Design Units | Metric |
| Part Number | 7915TDUL |
| Cross Reference 1 | 71915 |
|---|---|
| Cross Reference 2 | 7915TDU |

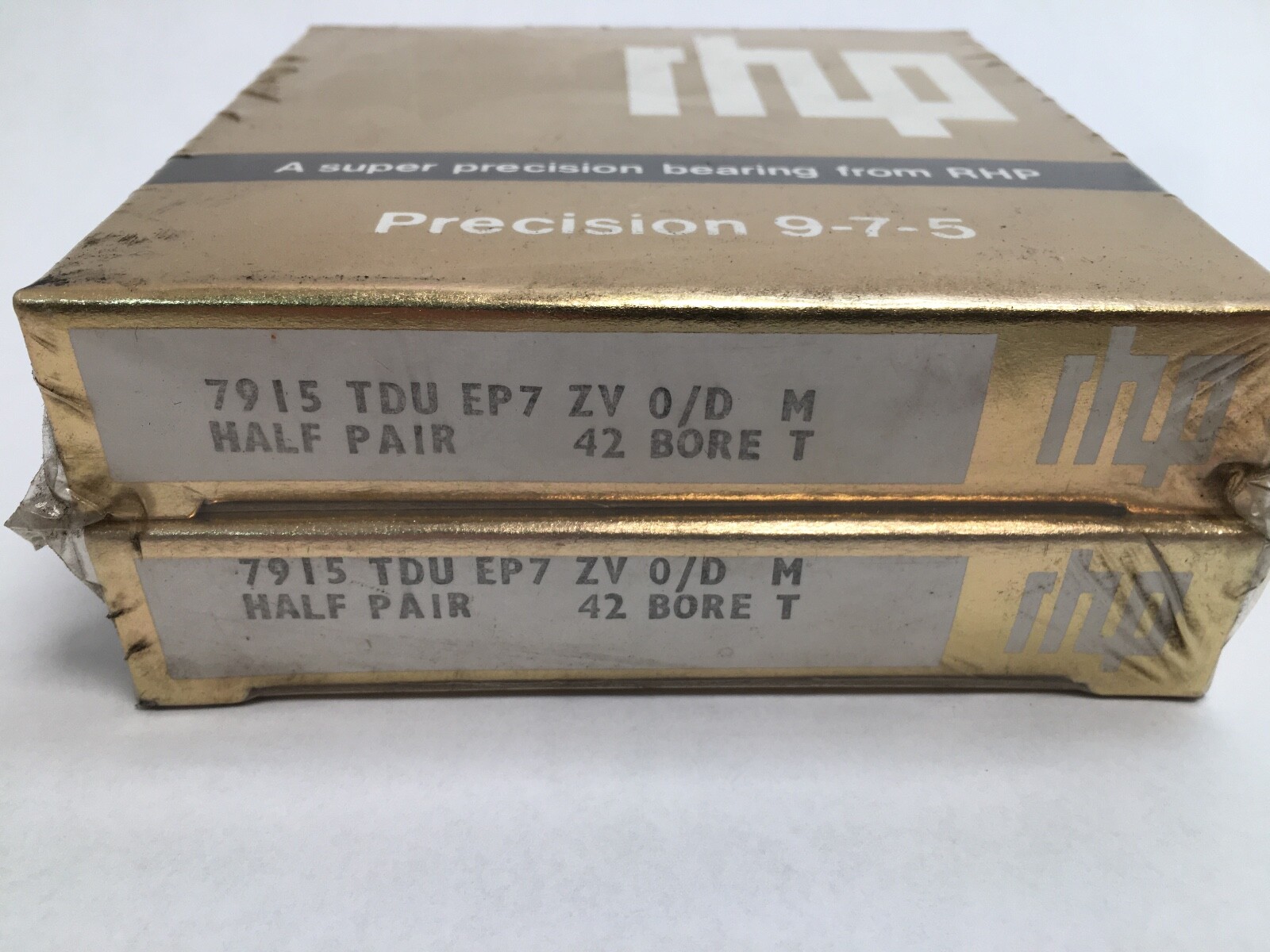

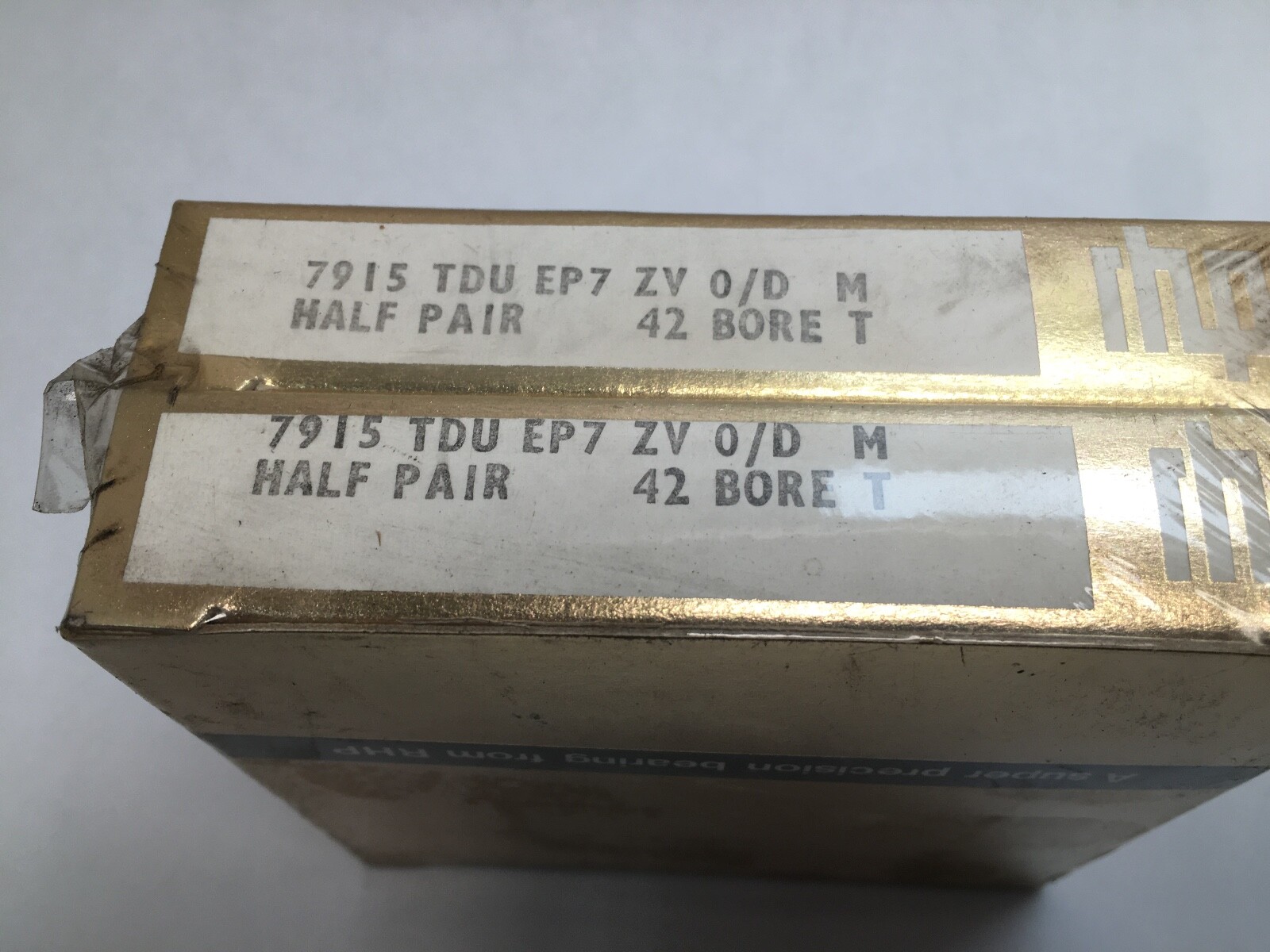

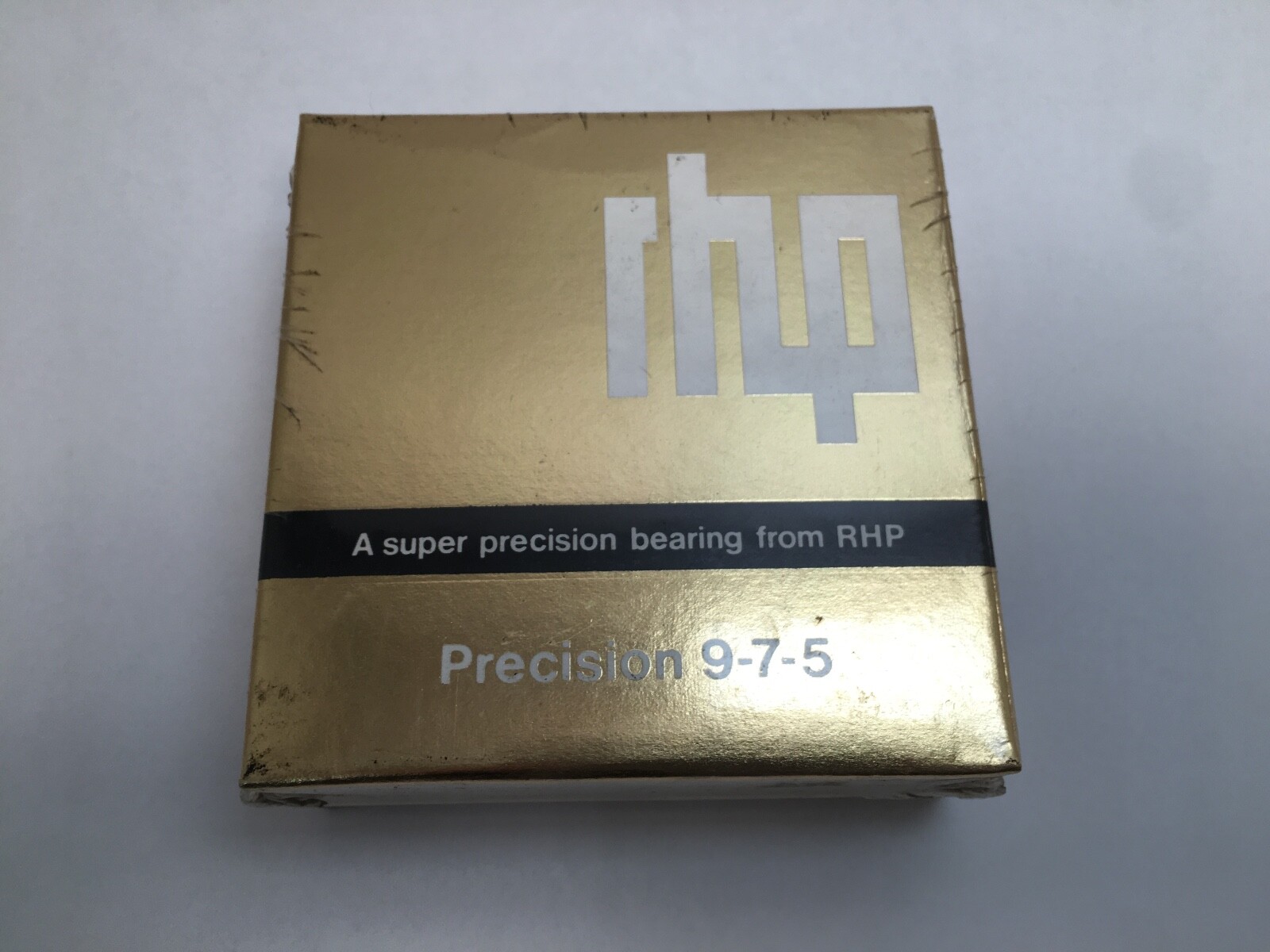

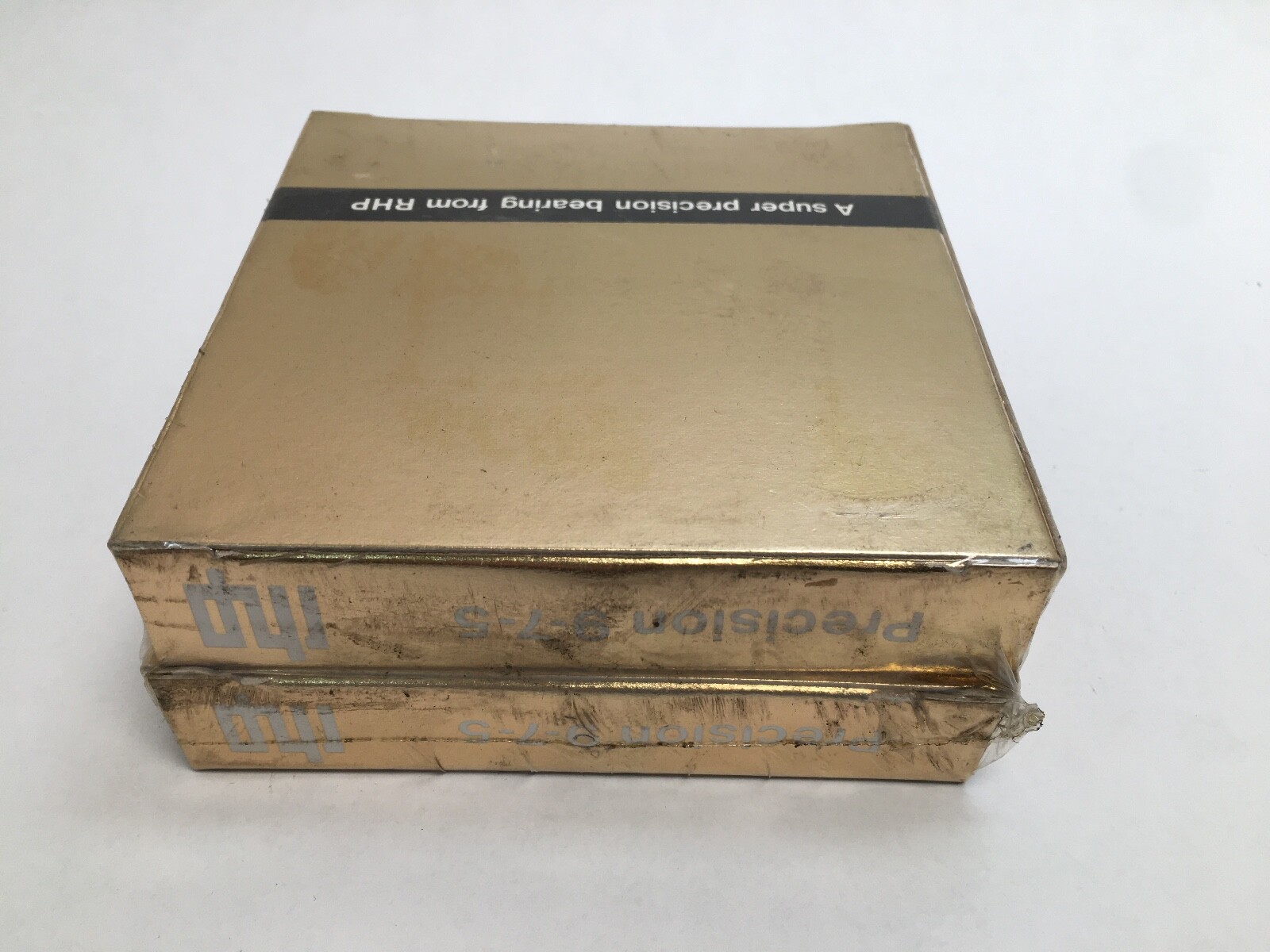

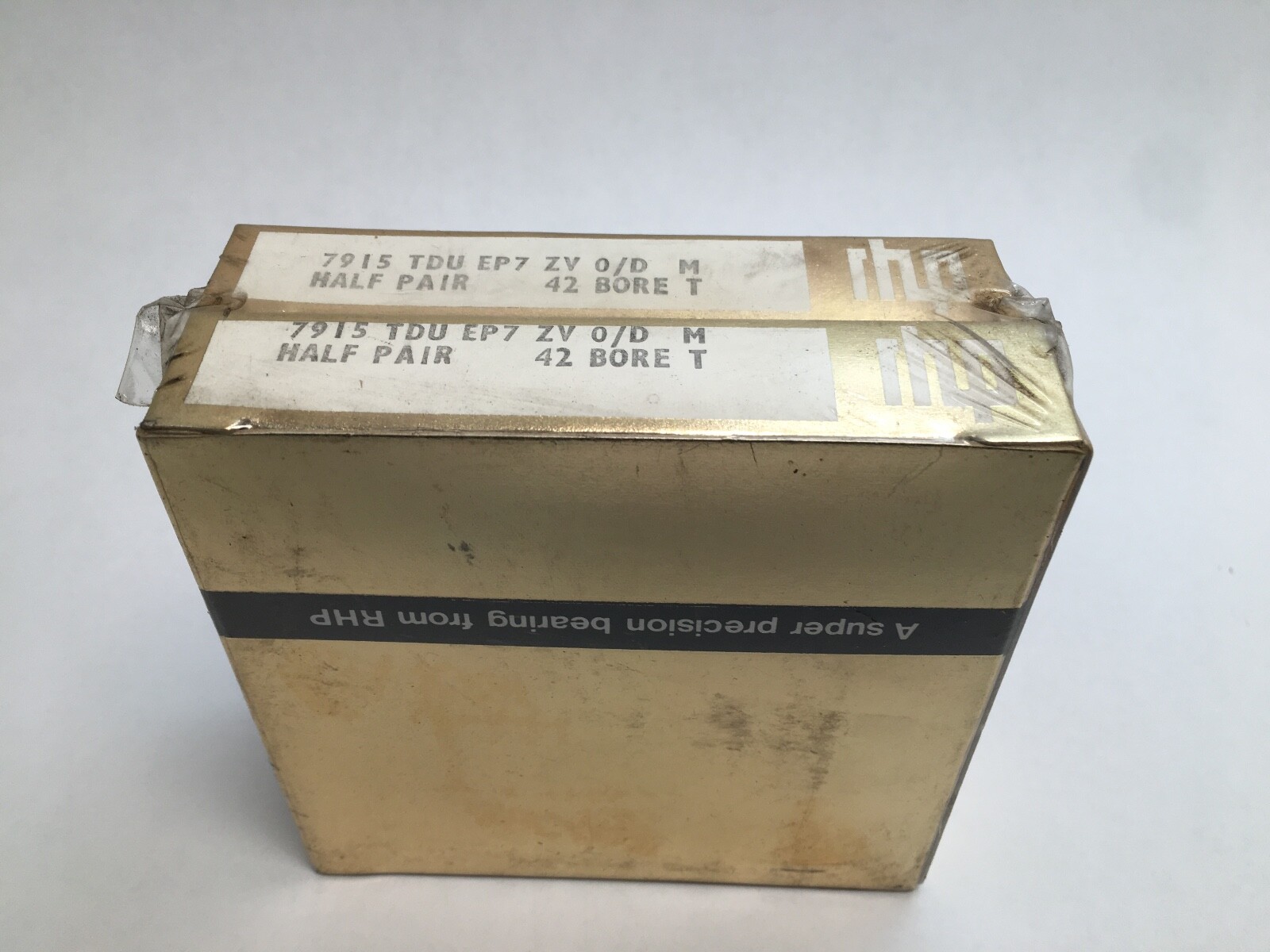

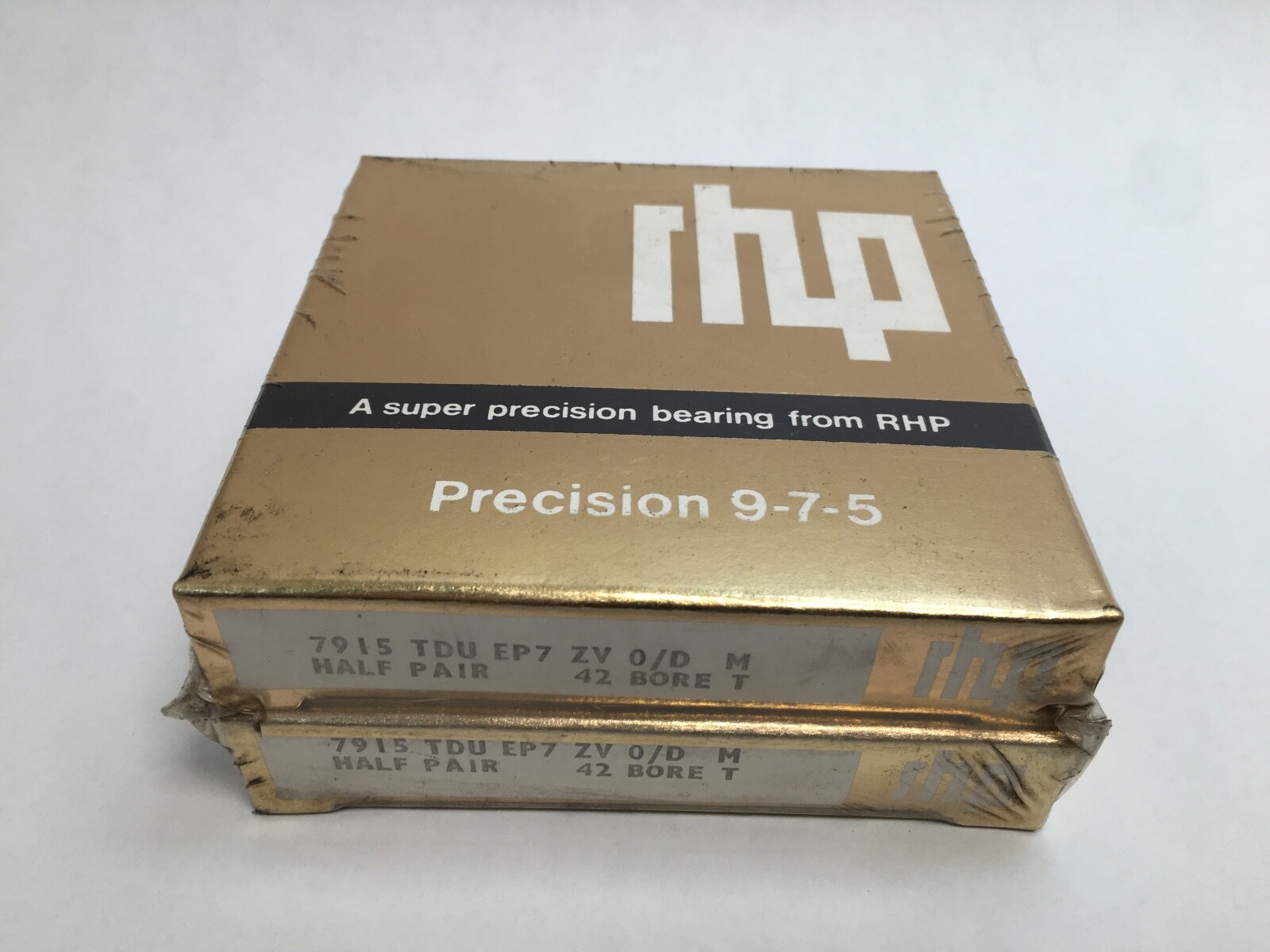

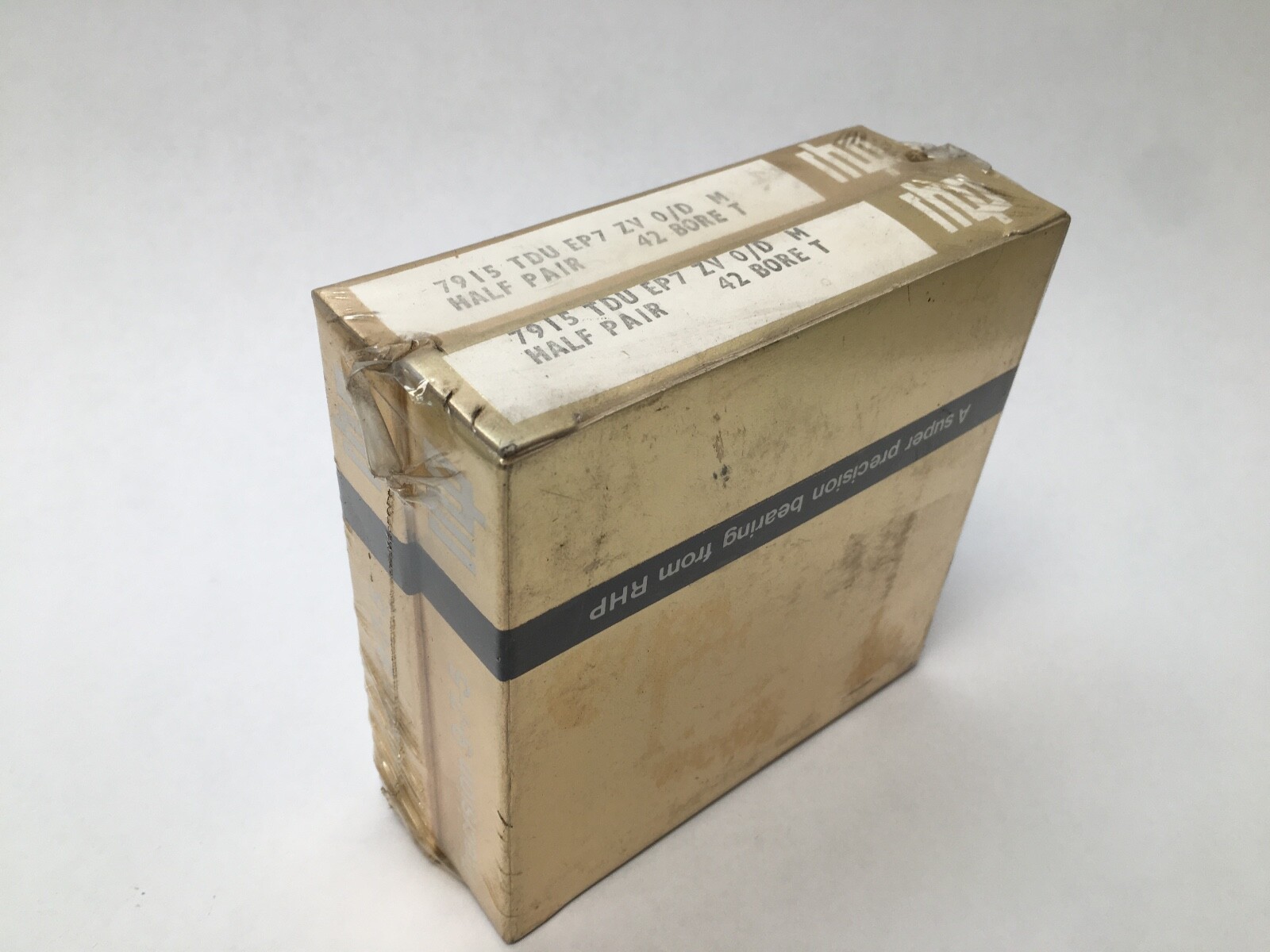

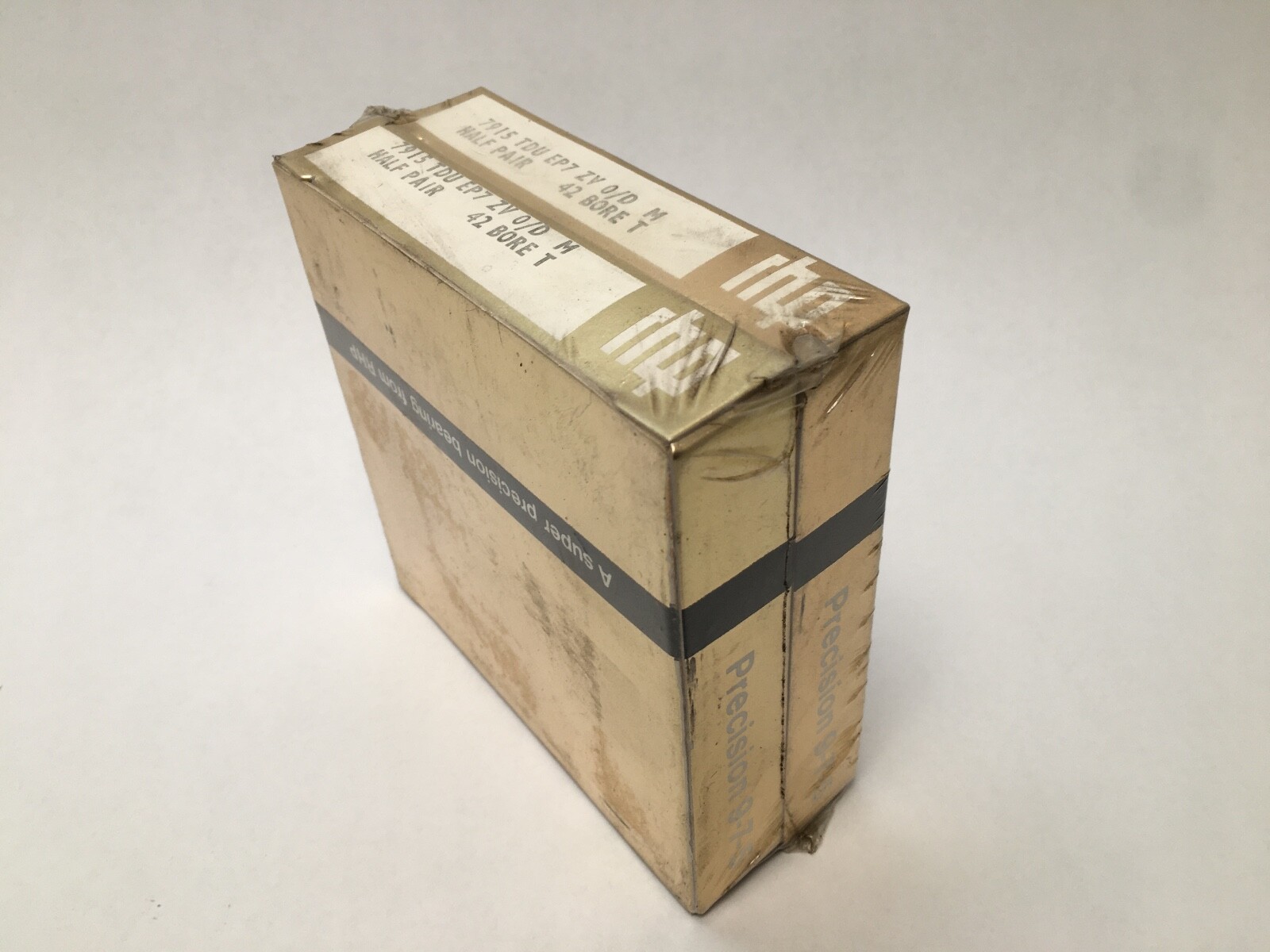

An RHP 7915-T-DU-EP7 angular contact ball bearing supplied as a duplex pair. Bore 75 mm, outside diameter 105 mm, width 16 mm per bearing, in the ISO 71915 envelope. Open faces, phenolic cage.
79 series, bore code 15 — 75 mm bore, ISO 71915 envelope
no angle letter — 40° contact angle in the RHP scheme
T — phenolic cage
DU — duplex, a matched pair ground to stack
L — light preload
EP7 — ABEC 7 precision in the RHP/NSK scheme
A 40° contact angle is the highest of the common angular contact angles and carries the most thrust for the envelope, trading away speed and radial stiffness against a 15° or 25° bearing. Each row takes thrust in one direction, so the duplex pair handles thrust in both. Light preload keeps running torque and heat low.
Bore: 75 mm (2.9528 in)
Outside diameter: 105 mm (4.1339 in)
Width: 16 mm (0.6299 in) per bearing
Contact angle: 40°
Precision class: EP7 (ABEC 7)
Preload: light
Rolling elements: steel balls, single row per bearing
Cage: phenolic
Closure: open both faces
2 Pcs, one matched duplex pair.
A duplex pair is ground as a set and the two bearings stay together; preload comes from the matched faces once the rings are clamped solid against square shoulders. Orientation of the pair determines whether the arrangement is back-to-back, face-to-face or tandem.
The ISO equivalent is 71915 at a 40° contact angle, light preload. The RHP B-series 7915X2 at 15° and 7915X3 at 25° share the envelope and are related sizes rather than interchanges, as are medium and heavy preload variants.
