A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
RHP 7013TDULP4-1/2PR super-precision angular contact ball bearing, 65 x 100 x 18 mm, light preload, P4. One universal-ground piece of a duplex pair.
List Price
$73.69
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7013TDULP4-1/2PR |
| Model | 7013TDULP4 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 100 mm |
| Width | 18 mm |
| Preload | Light |
|---|---|
| Material | Bearing steel |
| Series | 70 |
| Base Number | 7013 |
| Bore Shaft Size | 65 mm |
| Mpn Variants | 7013TDULP4-1/2PR; 7013 T DUL P4; 7013TDULP4; B7013TDUEP7; B 7013 T DU EP7; MM9113WI CR DUL; 7013CTSUHP4 |
| Precision Class | P4 (ABEC 7) |
| Cage Type | Outer-ring land-riding |
| Rolling Elements | Balls |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Mounting Arrangement | Universal duplex (DU) |
| Design Units | Metric |
| Part Number | 7013TDULP4 |
| Industry Terms | Super-precision angular contact bearing; universal duplex bearing; machine tool spindle bearing; matched pair bearing; P4 ABEC 7 spindle bearing |
| Common Misspellings | 7013TDULP41/2PR; 7013 TDUL P4; RHP7013TDULP4; RPH 7013TDULP4; 7013TDUL-P4 |
| Application Types | Machine tool spindles; grinding and milling spindle positions; high-speed precision shafts |

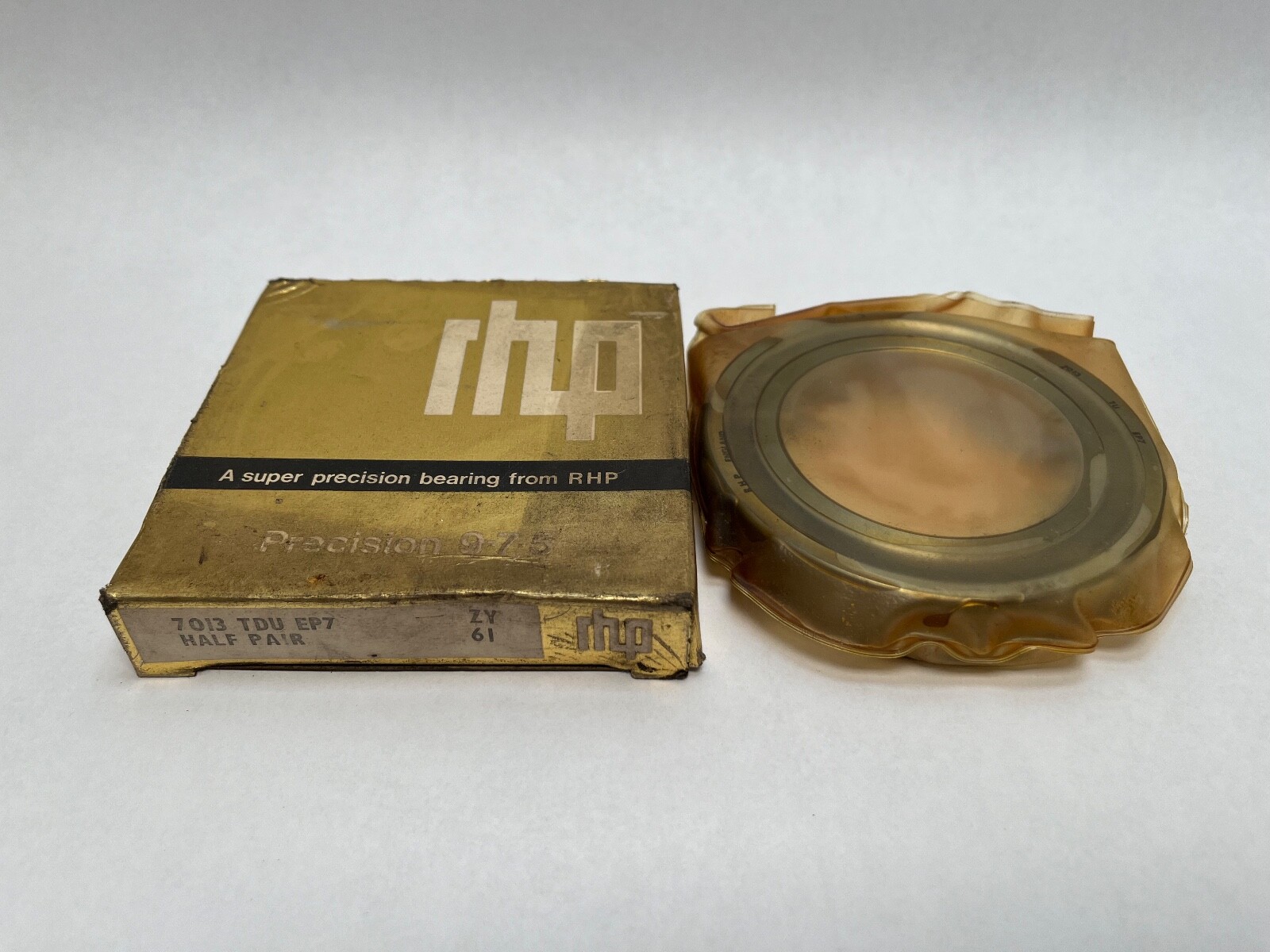

| Cross Reference 1 | RHP B7013TDUEP7 (same carton, B-series designation) |
|---|---|
| Cross Reference 2 | Fafnir MM9113WI CR DUL (same carton, Fafnir designation) |
RHP 7013TDULP4-1/2PR super-precision single-row angular contact ball bearing, one bearing from a factory-matched universal duplex pair. Bore 65 mm, outside diameter 100 mm, width 18 mm, open, phenolic cage, light preload, P4 accuracy. Unit Quantity: 1 Pc.
7013 — ISO 70 dimension series, bore code 13 = 65 mm bore.
DU — universal duplex grinding, so a piece can be mounted in either direction against another piece of the same designation.
L — light preload.

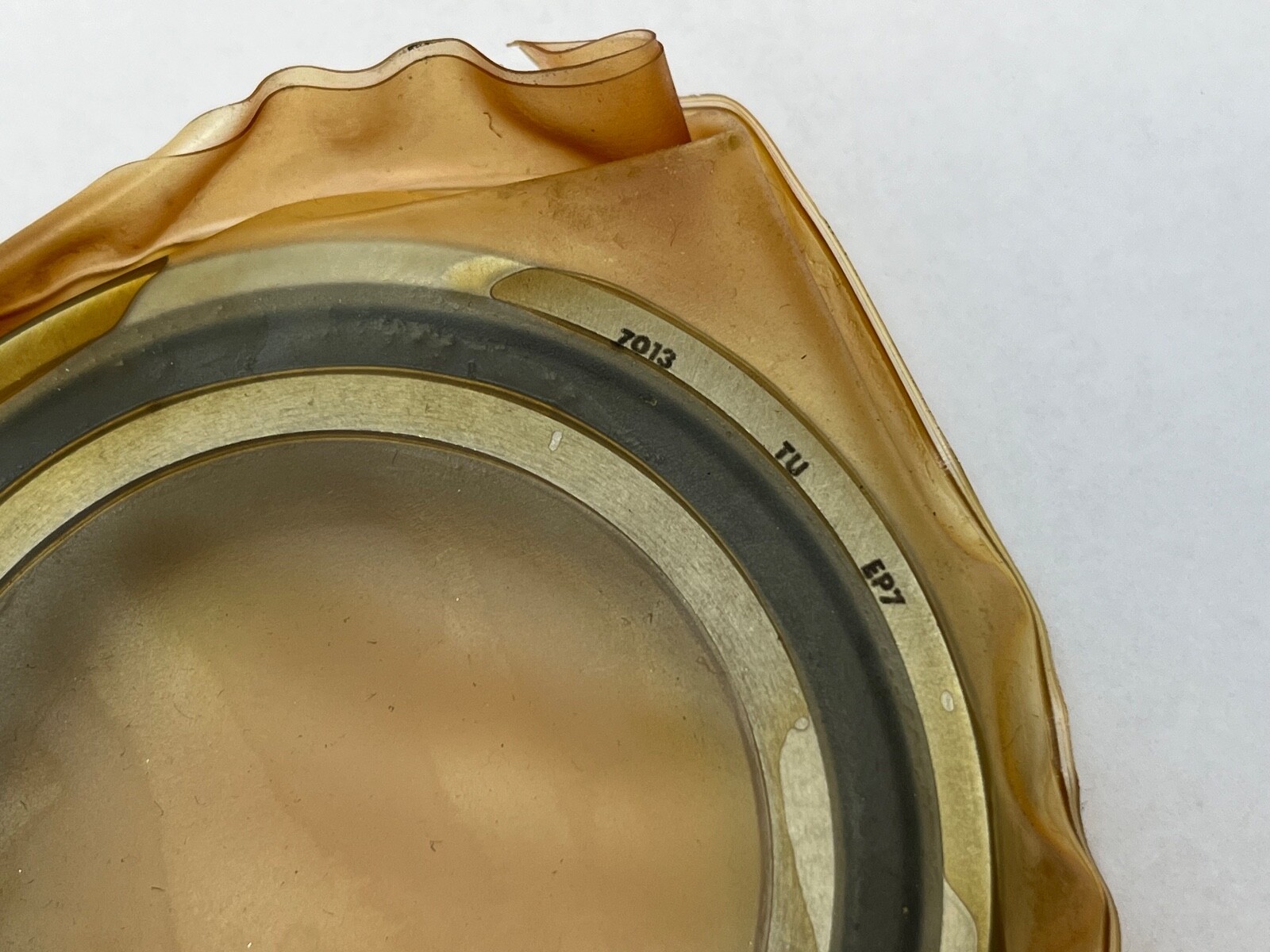

P4 — ISO accuracy class 4, equivalent to ABEC 7. The RHP B-series designation on the same carton is B7013TDUEP7, where EP7 is the same accuracy grade.
-1/2PR — one bearing out of a factory-matched universal duplex pair.
Bore Diameter: 65 mm. Outside Diameter: 100 mm. Overall Width: 18 mm. Series: 70. Base Number: 7013. Number Of Rows: 1. Rolling Elements: Balls. Bearing Material: Bearing steel. Bore Type: Straight. Closure Type: Open. Precision Class: P4 (ABEC 7). Preload: Light. Mounting Arrangement: Universal duplex (DU). Cage Material: Phenolic. Cage Type: Outer-ring land-riding. Country of Origin: United Kingdom.
Envelope: 65 x 100 x 18 mm. The universal grind lets two pieces of the same designation and preload class be stacked back-to-back, face-to-face or in tandem.
Cross-Reference 1: RHP B7013TDUEP7 (same carton, B-series designation). Cross-Reference 2: Fafnir MM9113WI CR DUL (same carton, Fafnir designation). MPN Variants: 7013TDULP4-1/2PR, 7013 T DUL P4, 7013TDULP4, B7013TDUEP7, B 7013 T DU EP7, MM9113WI CR DUL, 7013CTSUHP4.
Bore Diameter: 65 mm. Outside Diameter: 100 mm. Overall Width: 18 mm.
Precision Class: P4 (ABEC 7). Preload: Light.
-1/2PR marks one bearing from a factory-matched pair. DU marks universal duplex grinding, so the piece mounts in either direction against another of the same designation.
$137.64
92 in stock
